  1. Learning the meaning of places IfGi Location based Services SS 06 Milad Sabersamandari

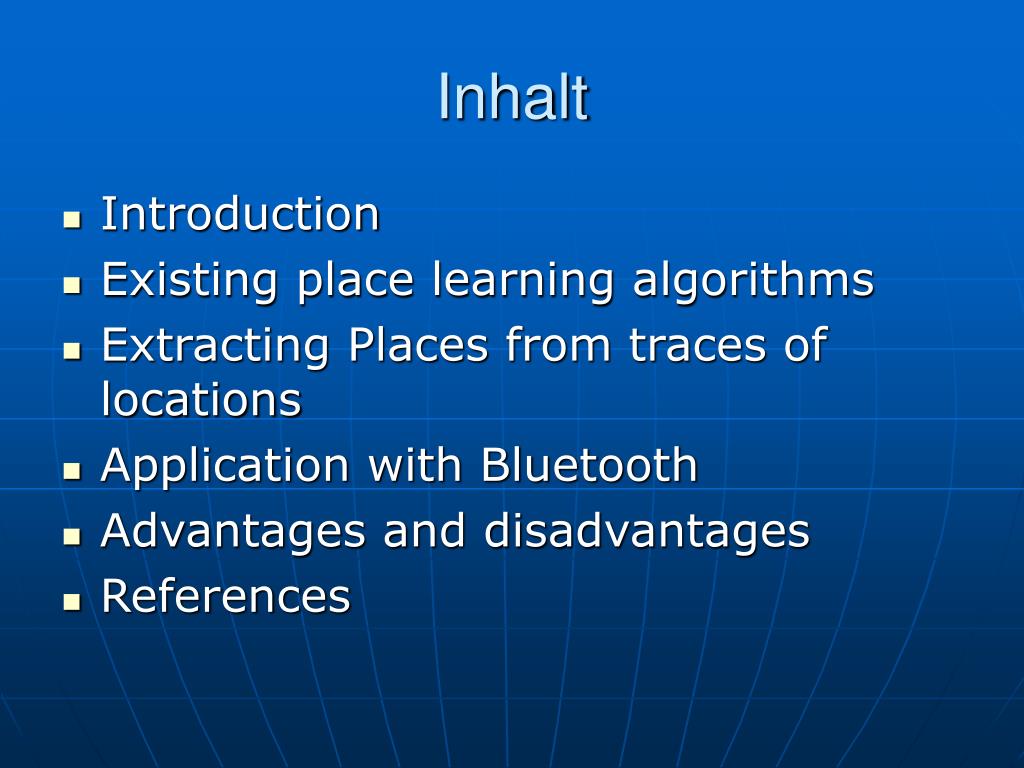

  2. Inhalt • Introduction • Existing place learning algorithms • Extracting Places from traces of locations • Application with Bluetooth • Advantages and disadvantages • References

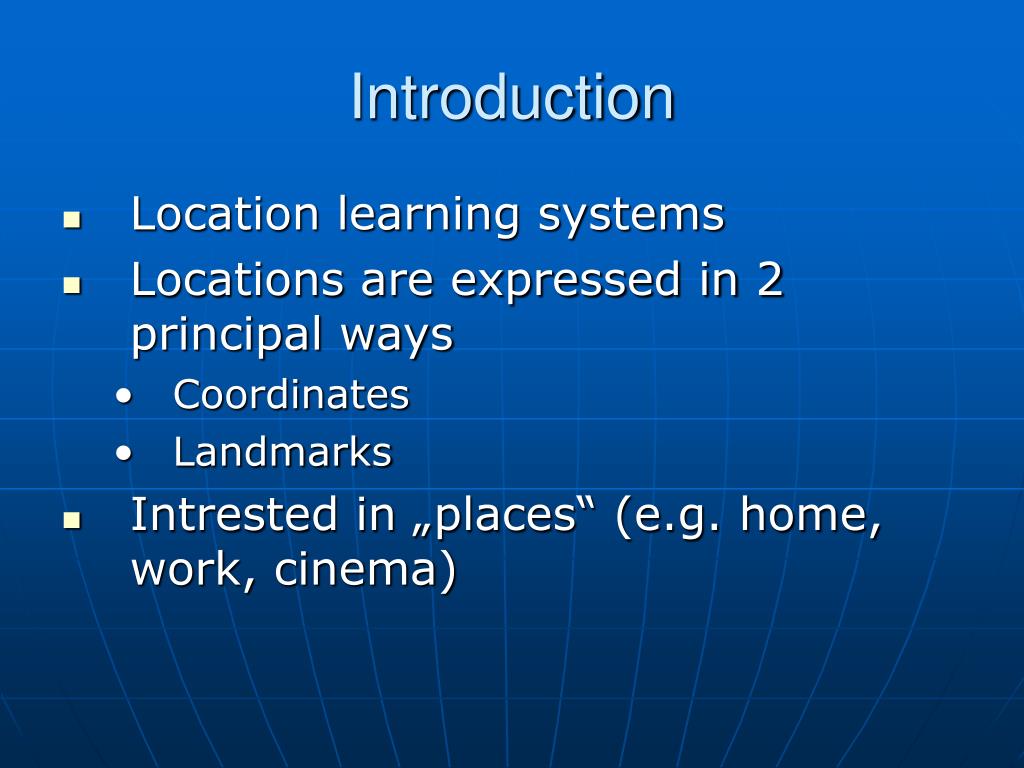

  3. Introduction • Location learning systems • Locations are expressed in 2 principal ways • Coordinates • Landmarks • Intrested in „places“ (e.g. home, work, cinema)

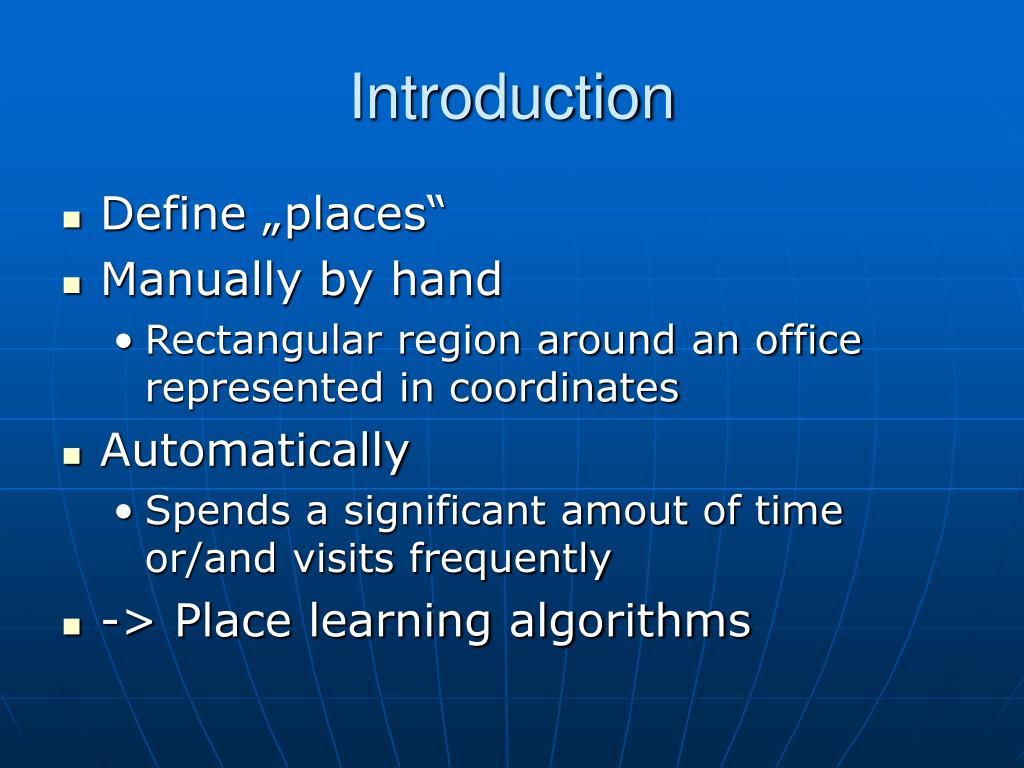

  4. Introduction • Define „places“ • Manually by hand • Rectangular region around an office represented in coordinates • Automatically • Spends a significant amout of time or/and visits frequently • -> Place learning algorithms

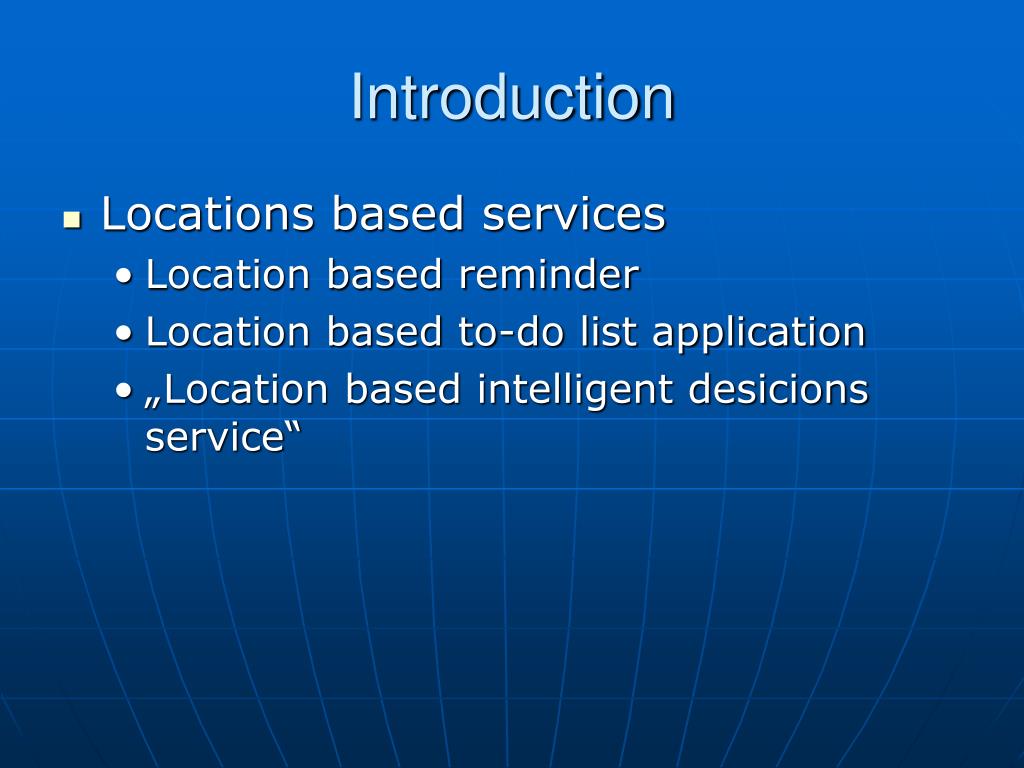

  5. Introduction • Locations based services • Location based reminder • Location based to-do list application • „Location based intelligent desicions service“

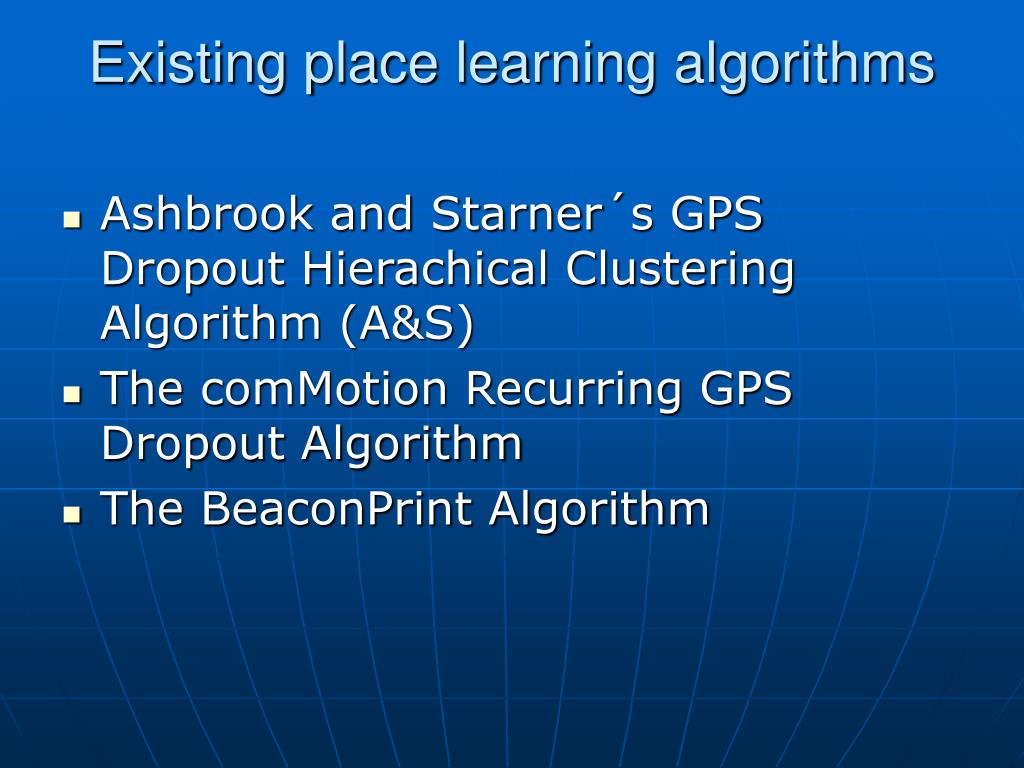

  6. Existing place learning algorithms • Ashbrook and Starner´s GPS Dropout Hierachical Clustering Algorithm (A&S) • The comMotion Recurring GPS Dropout Algorithm • The BeaconPrint Algorithm

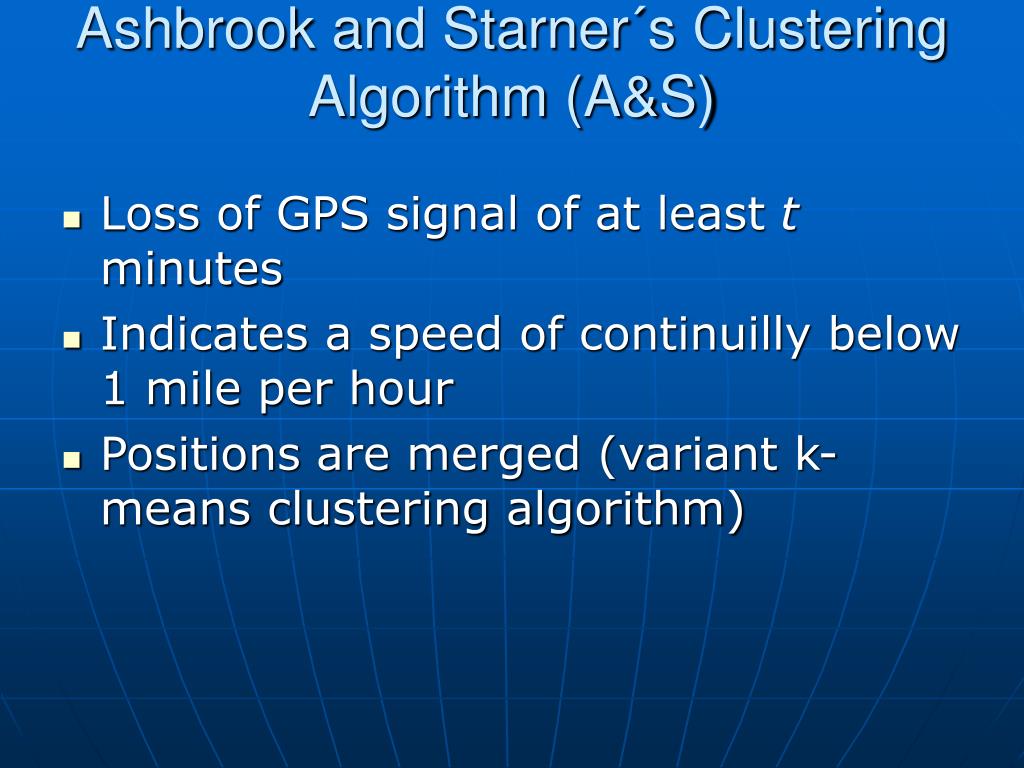

  7. Ashbrook and Starner´s Clustering Algorithm (A&S) • Loss of GPS signal of at least t minutes • Indicates a speed of continuilly below 1 mile per hour • Positions are merged (variant k-means clustering algorithm)

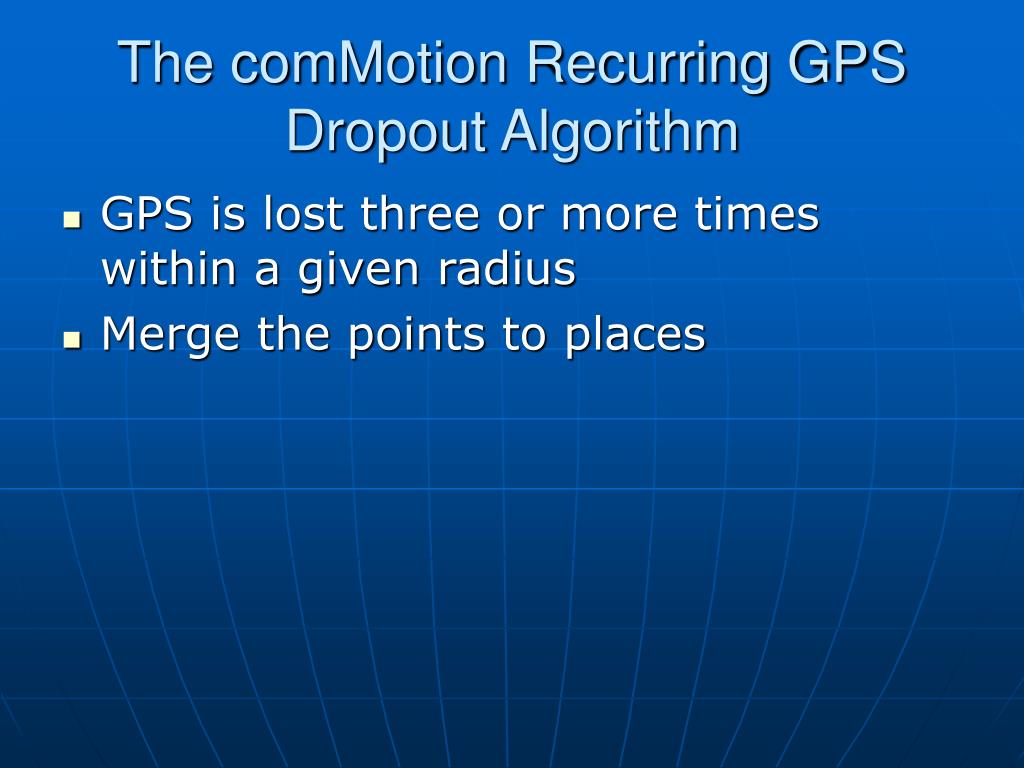

  8. The comMotion Recurring GPS Dropout Algorithm • GPS is lost three or more times within a given radius • Merge the points to places

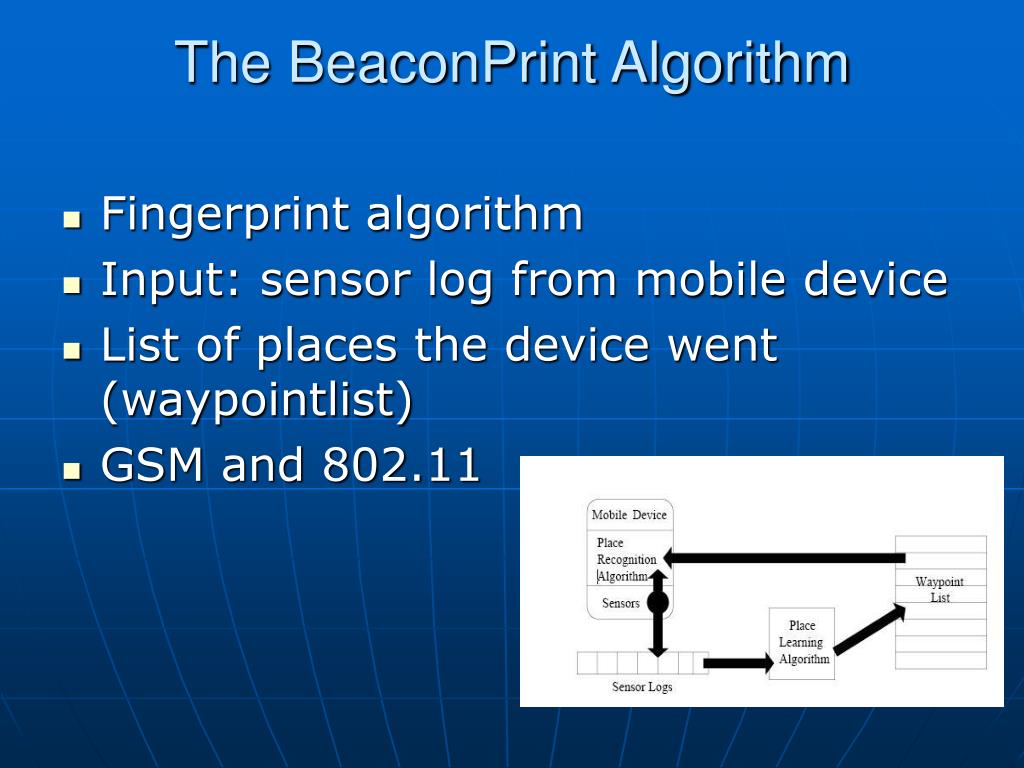

  9. The BeaconPrint Algorithm • Fingerprint algorithm • Input: sensor log from mobile device • List of places the device went (waypointlist) • GSM and 802.11

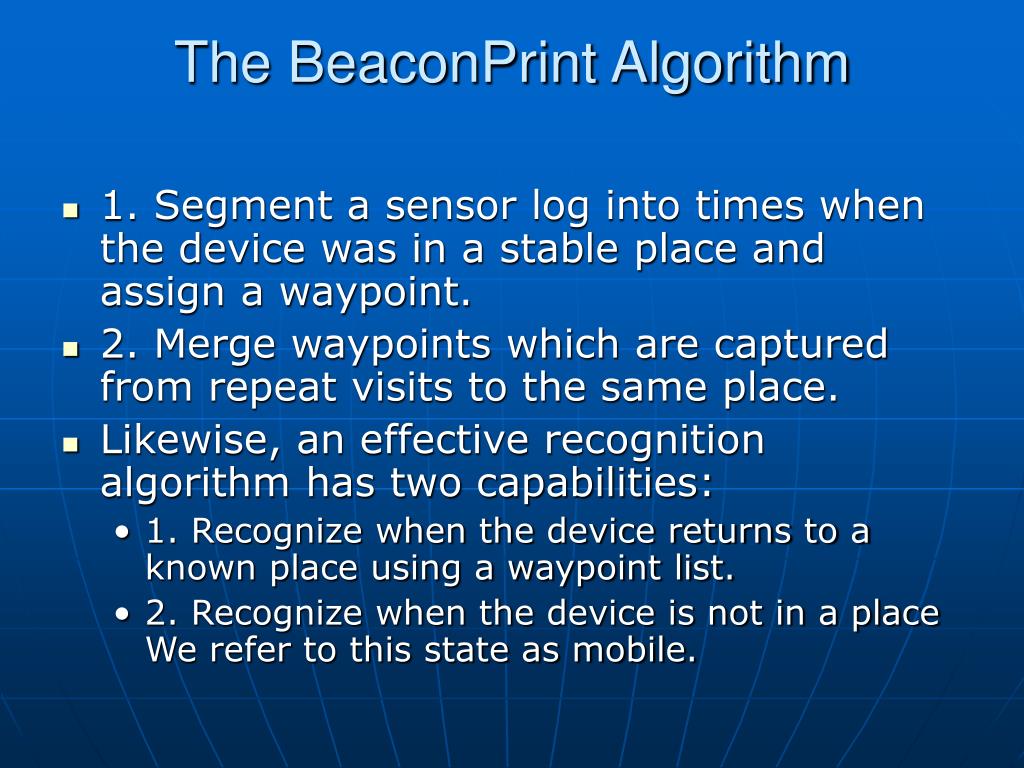

  10. The BeaconPrint Algorithm • 1. Segment a sensor log into times when the device was in a stable place and assign a waypoint. • 2. Merge waypoints which are captured from repeat visits to the same place. • Likewise, an effective recognition algorithm has two capabilities: • 1. Recognize when the device returns to a known place using a waypoint list. • 2. Recognize when the device is not in a place We refer to this state as mobile.

  11. Extracting Places from traces of locations • Uses Place Lab to collect traces of locations • In many cities and towns available • Place Lab works in urban areas aswell as indoors • Location recorded once per second • Places appear as clusters of locations

  12. Extracting Places from traces of locations • Place Lab • Uses that each WiFi access point broadcasts its unique MAC address • A database maps these addresses to longitude and latidute coordinates

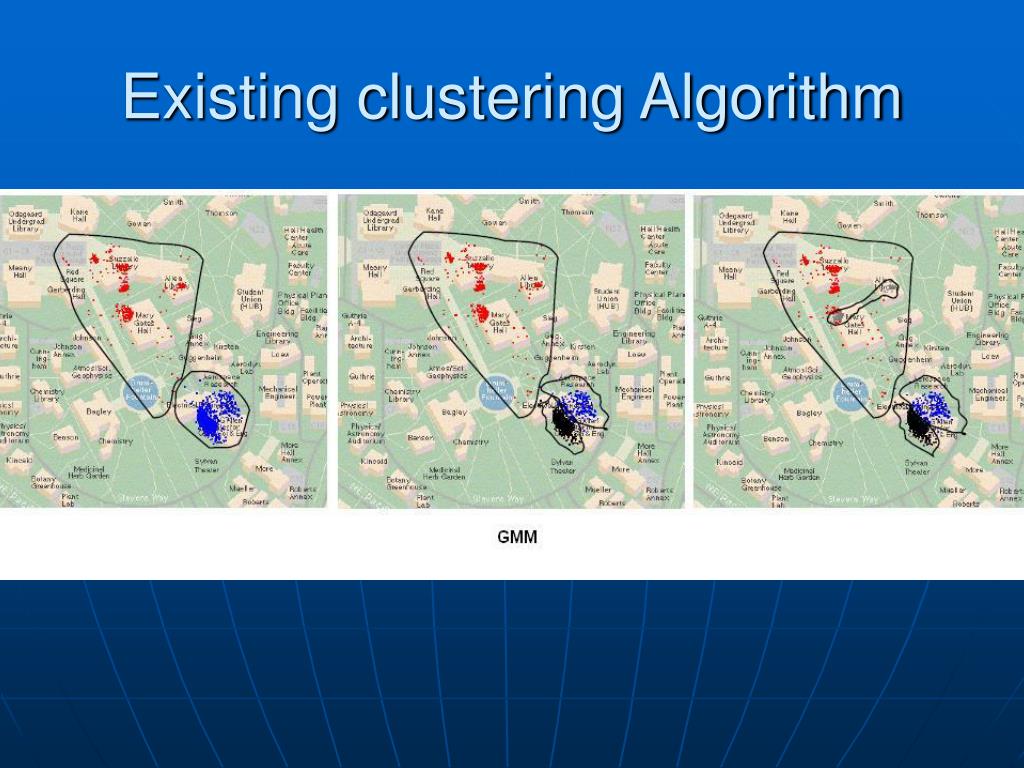

  13. Existing clustering Algorithm • k-means Algorithm • Gaussian mixture model (GMM) • Require the number of clusters as a parameter • Require a significant amout of computation

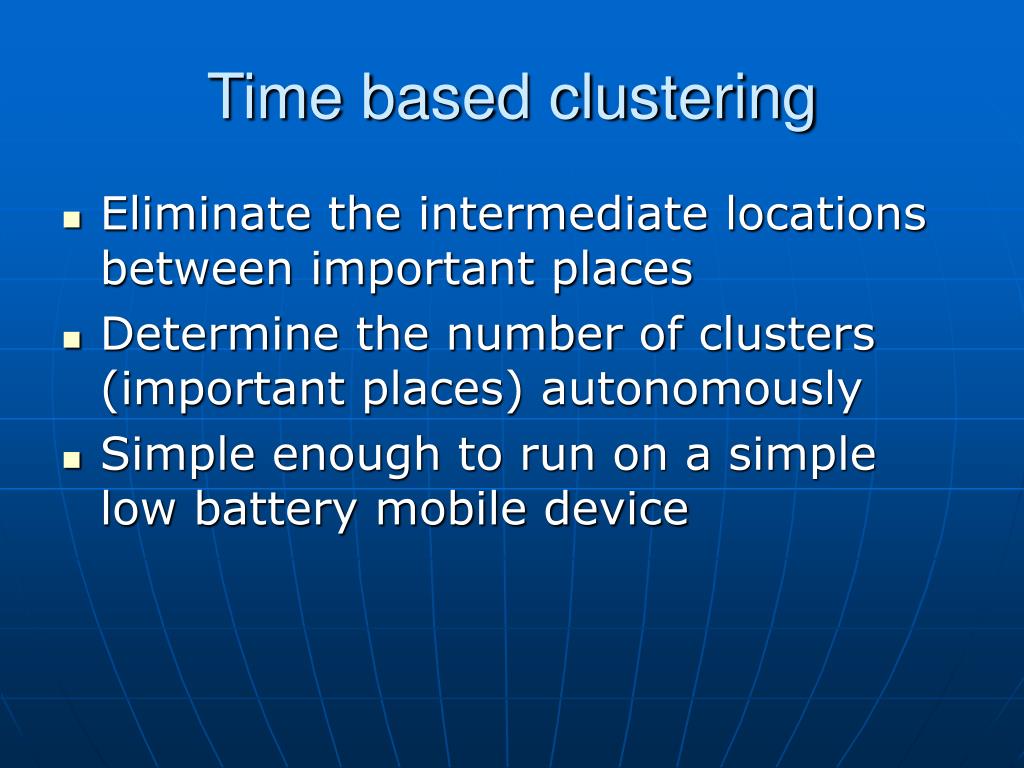

  14. Time based clustering • Eliminate the intermediate locations between important places • Determine the number of clusters (important places) autonomously • Simple enough to run on a simple low battery mobile device

  15. Time based clustering • Basic idea is to cluster along the time axis • New measured location is compared with previous locations • Decide if the mobile device is moving • Parameter:distance d between the locations and a cluster´s time duration t

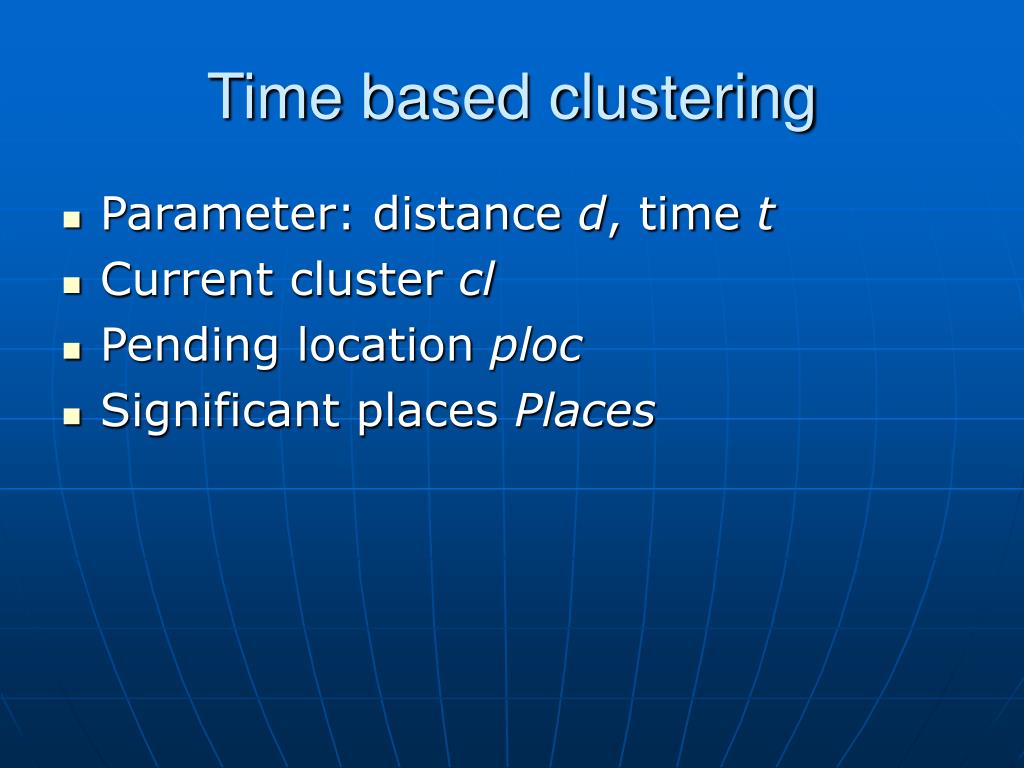

  16. Time based clustering • Parameter: distance d, time t • Current cluster cl • Pending location ploc • Significant places Places

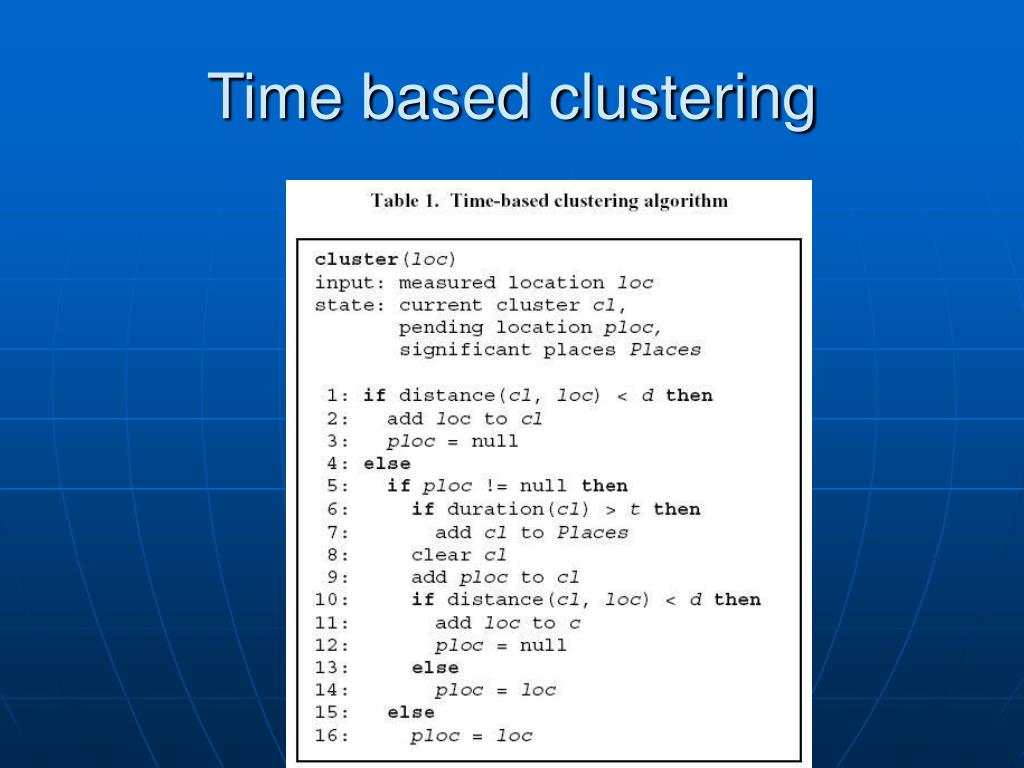

  17. Time based clustering

  18. Time based clustering • Unlike other clustering algorithms this algorithm computes the clusters incrementally • The computation is simple • Easily supported on small battery mobile devices

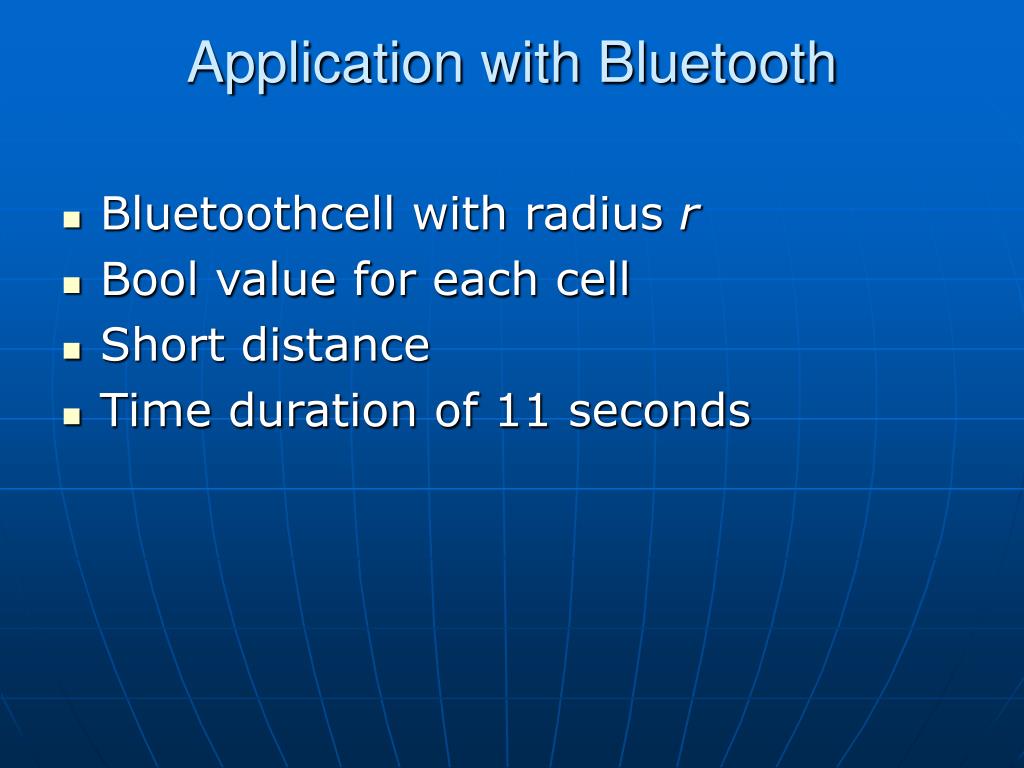

  19. Application with Bluetooth • Bluetoothcell with radius r • Bool value for each cell • Short distance • Time duration of 11 seconds

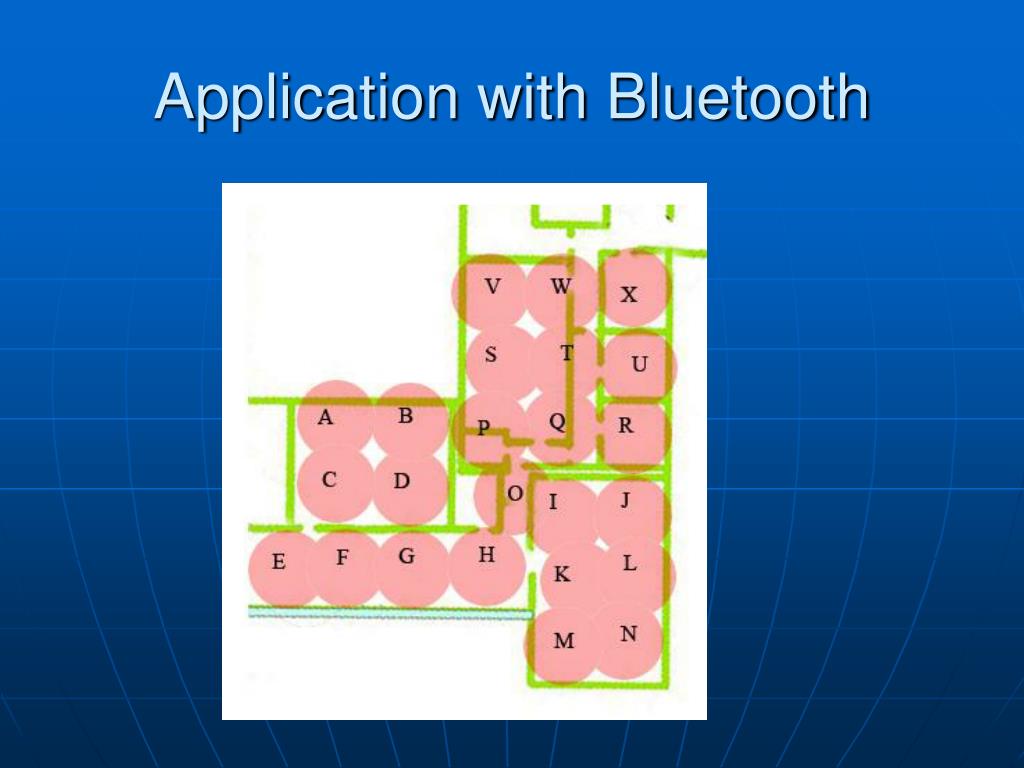

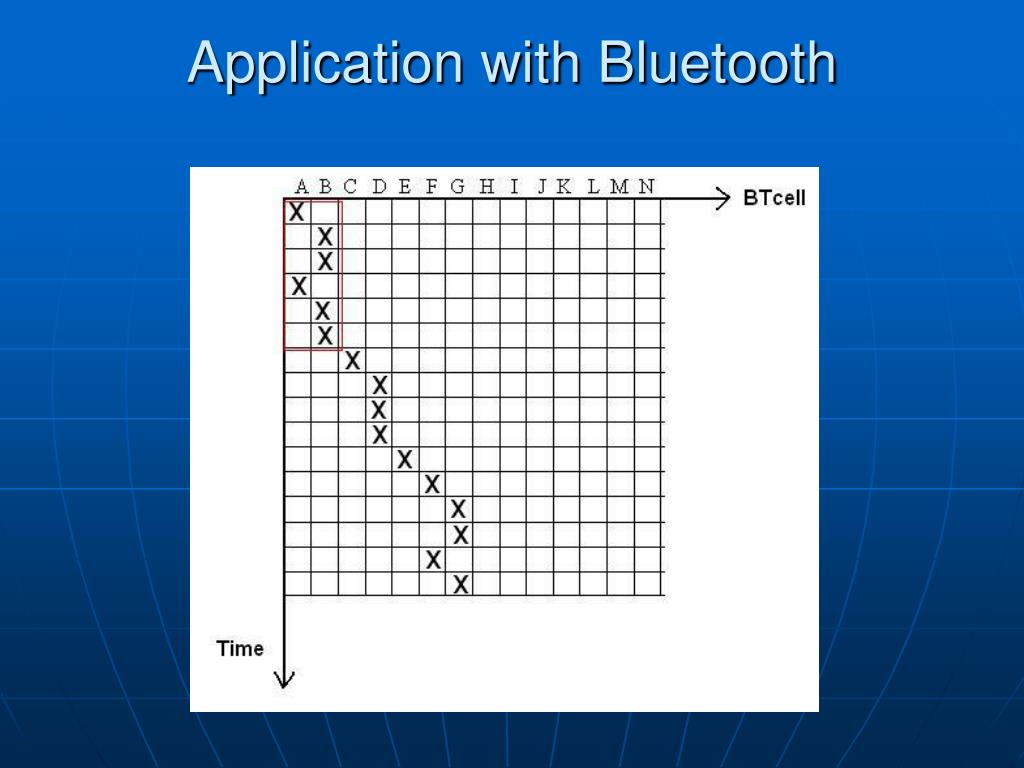

  20. Application with Bluetooth

  21. Application with Bluetooth

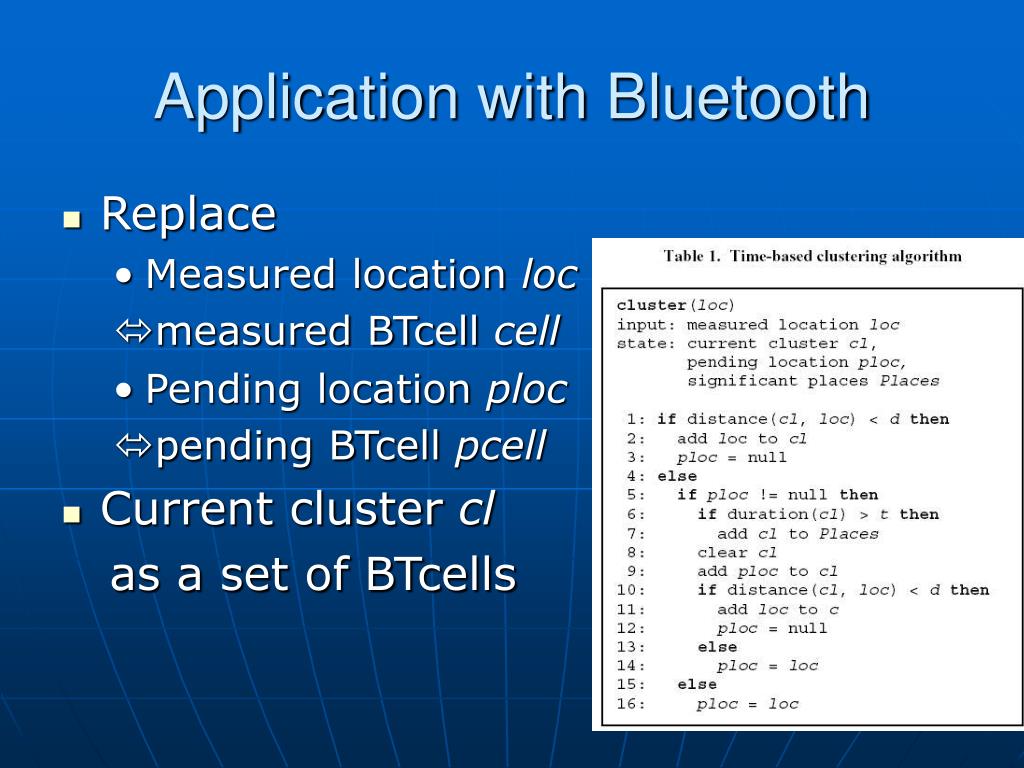

  22. Application with Bluetooth • Replace • Measured location loc measured BTcell cell • Pending location ploc pending BTcell pcell • Current cluster cl as a set of BTcells

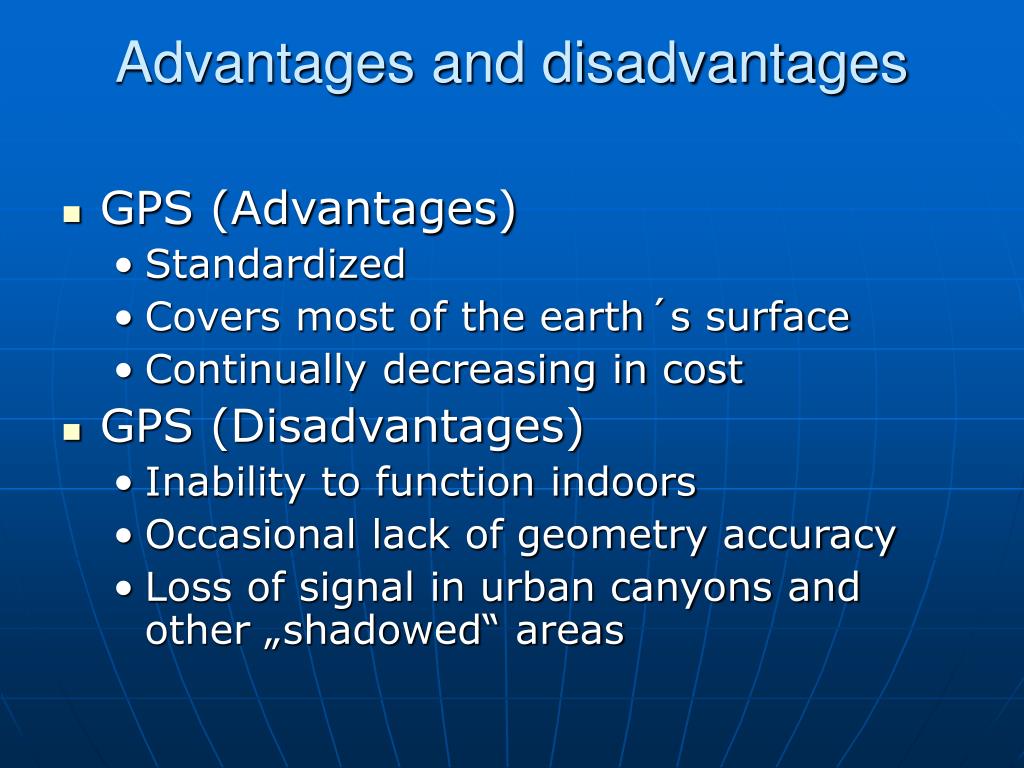

  23. Advantages and disadvantages • GPS (Advantages) • Standardized • Covers most of the earth´s surface • Continually decreasing in cost • GPS (Disadvantages) • Inability to function indoors • Occasional lack of geometry accuracy • Loss of signal in urban canyons and other „shadowed“ areas

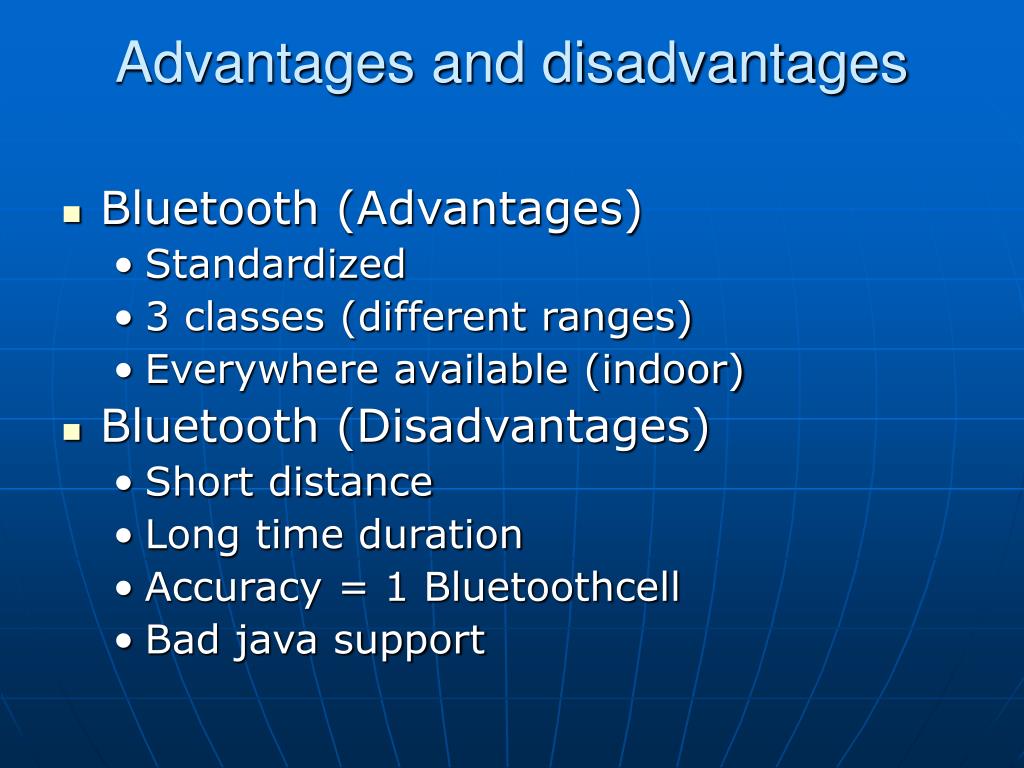

  24. Advantages and disadvantages • Bluetooth (Advantages) • Standardized • 3 classes (different ranges) • Everywhere available (indoor) • Bluetooth (Disadvantages) • Short distance • Long time duration • Accuracy = 1 Bluetoothcell • Bad java support

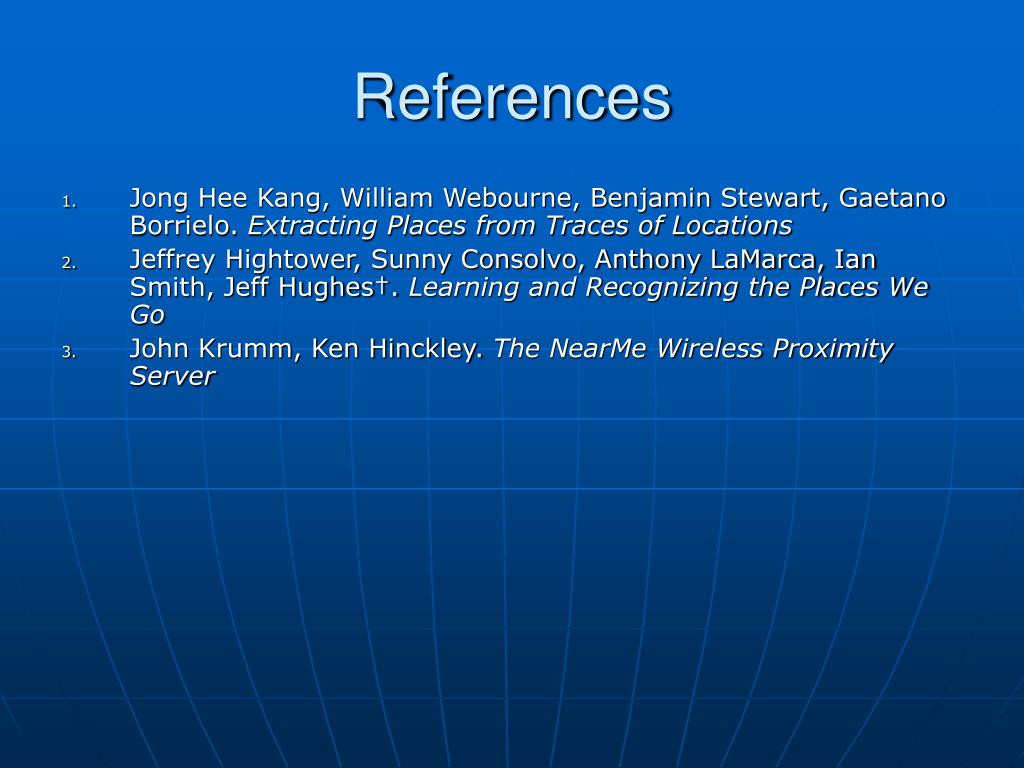

  25. References • Jong Hee Kang, William Webourne, Benjamin Stewart, Gaetano Borrielo. Extracting Places from Traces of Locations • Jeffrey Hightower, Sunny Consolvo, Anthony LaMarca, Ian Smith, Jeff Hughes†. Learning and Recognizing the Places We Go • John Krumm, Ken Hinckley. The NearMe Wireless Proximity Server

  26. Vielen Dank für Ihre Aufmerksamkeit
