Sam9 boot strategies

SAM9 Boot Strategies

Frederic BOYER

AT91 Support Group.

Version 1.0 October 2006

AT91 Support Group.

Version 2.0.2 June 2007


Sam9 bootrom memory
SAM9 BootROM Memory

  • SAM9 devices feature on-chip BootROM memory

  • BootROM memory can contain up to 4 applications:

    • SAM-BA Boot

      • Provides In-System Programming Solutions through serial or USB communication channels

    • DataFlash-Boot

    • NandFlash-Boot

    • SDCard-Boot



Sam9261 internal memory mapping for master 0 1

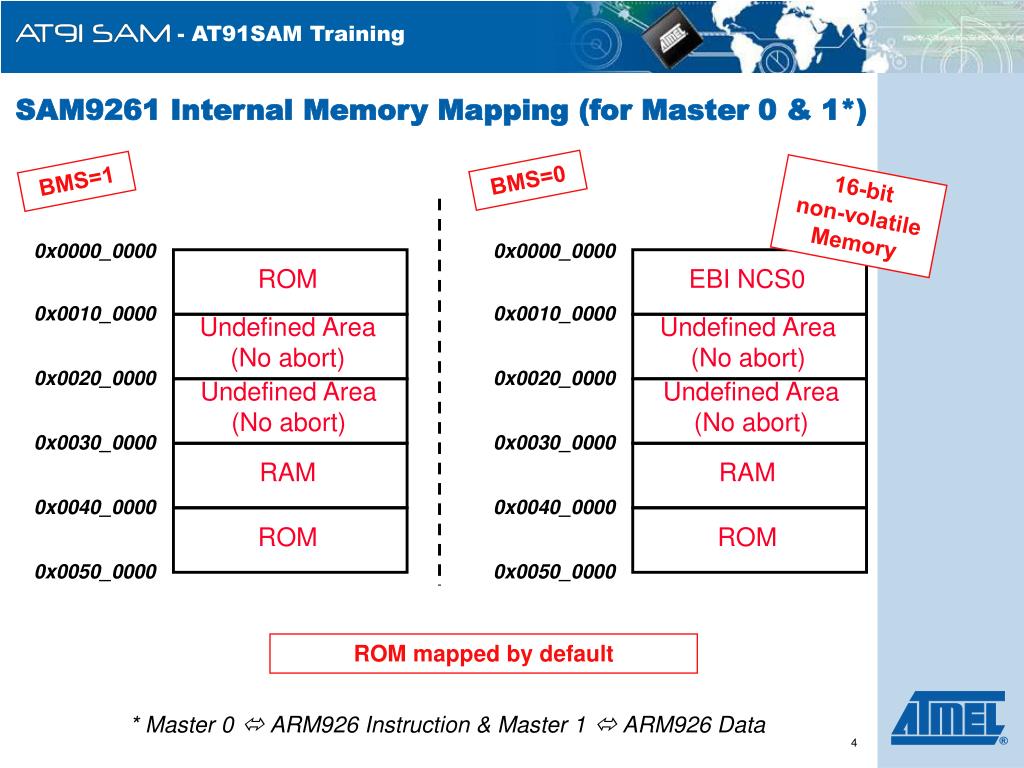

SAM9261 Internal Memory Mapping (for Master 0 & 1*)

BMS=0

BMS=1

16-bit

non-volatile Memory

0x0000_0000

0x0000_0000

ROM

EBI NCS0

0x0010_0000

0x0010_0000

Undefined Area(No abort)

Undefined Area(No abort)

0x0020_0000

0x0020_0000

Undefined Area(No abort)

Undefined Area(No abort)

0x0030_0000

0x0030_0000

RAM

RAM

0x0040_0000

0x0040_0000

ROM

ROM

0x0050_0000

0x0050_0000

ROM mapped by default

* Master 0  ARM926 Instruction & Master 1  ARM926 Data


Sam9261 embedded rom
SAM9261 Embedded ROM

Power Up

Boot From External Flash

Boot From ROM

Yes

No

BMS = 1

Boot From External Memory

on EBI Chip Select 0

DataFlash-Boot

on

SPI0 Chip Select 0

User Application

Yes

Valid Code ?

(SPI0 NPCS0)

No

Downloads and runs code from Dataflash into SRAM

SAM-BA Boot



Sam9260 internal memory mapping for master 0 1
SAM9260 Internal Memory Mapping (for Master 0 & 1*)

BMS = 1

BMS = 0

16-bit

non-volatile Memory

0x0000_0000

0x0000_0000

ROM

EBI NCS0

0x0010_0000

0x0010_0000

ROM

ROM

0x0020_0000

0x0020_0000

SRAM0 4KB

SRAM0 4KB

0x0030_0000

0x0030_0000

SRAM1 4KB

SRAM1 4KB

0x0040_0000

0x0040_0000

ROM mapped by default

* Master 0  ARM926 Instruction & Master 1  ARM926 Data


Sam9260 embedded rom
SAM9260 Embedded ROM

Power Up

Boot From External Flash

Boot From ROM

Yes

No

BMS = 1

DataFlash-Boot

on

SPI0 Chip Select 0

Boot From

External Memory

on EBI Chip Select 0

DataFlash-Boot

on

SPI0 Chip Select 1

User Application

NandFlash-Boot

on

EBI Chip Select 3

Optional

SAM-BA Boot


Sam9260 embedded rom cont

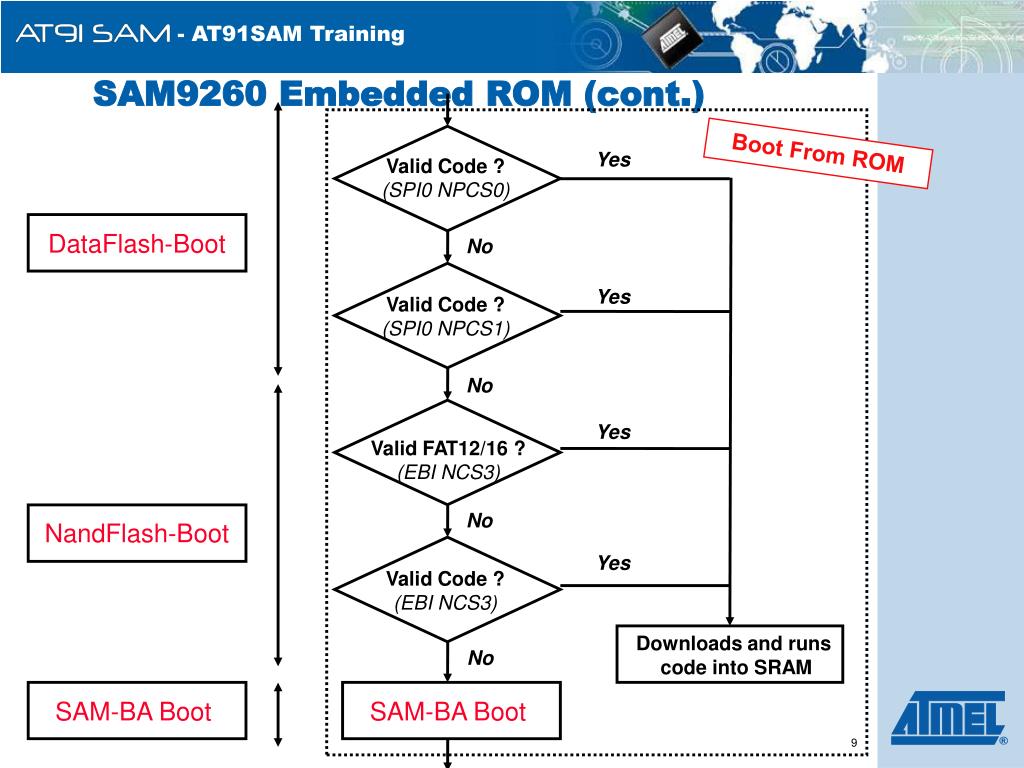

SAM9260 Embedded ROM (cont.)

Boot From ROM

Yes

Valid Code ?

(SPI0 NPCS0)

DataFlash-Boot

No

Yes

Valid Code ?

(SPI0 NPCS1)

No

Yes

Valid FAT12/16 ?

(EBI NCS3)

No

NandFlash-Boot

Yes

Valid Code ?

(EBI NCS3)

Downloads and runs

code into SRAM

No

SAM-BA Boot

SAM-BA Boot



Sam9263 internal memory mapping for master 7 8

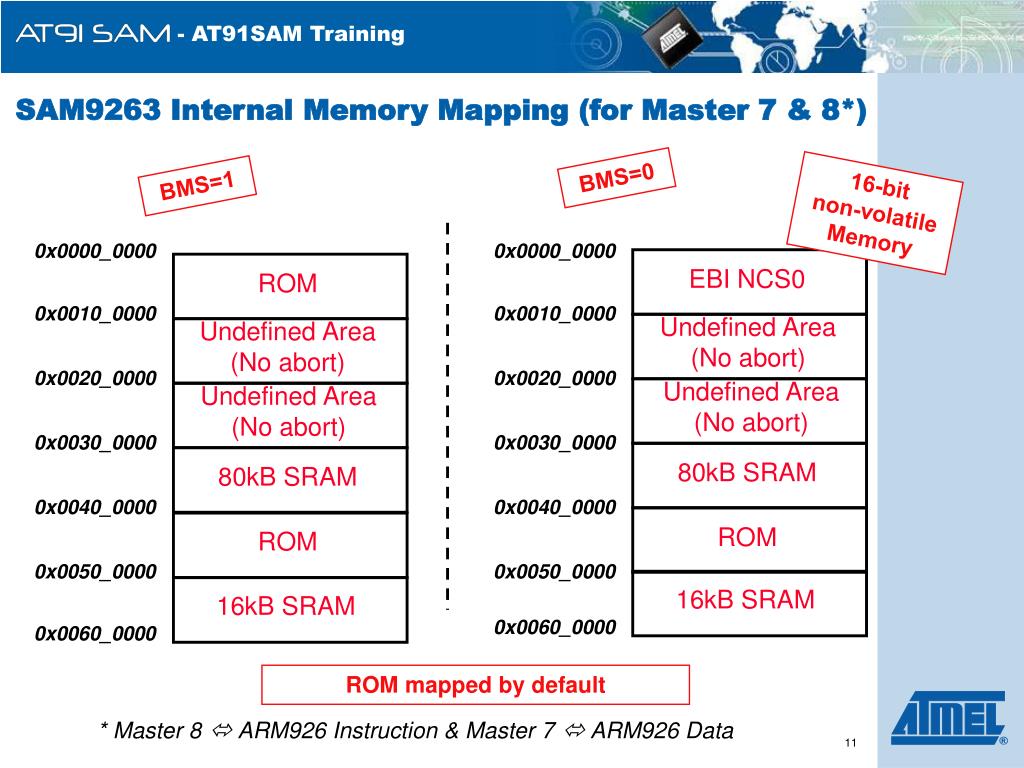

SAM9263 Internal Memory Mapping (for Master 7 & 8*)

BMS=0

BMS=1

16-bit

non-volatile Memory

0x0000_0000

0x0000_0000

EBI NCS0

ROM

0x0010_0000

0x0010_0000

Undefined Area(No abort)

Undefined Area(No abort)

0x0020_0000

0x0020_0000

Undefined Area(No abort)

Undefined Area(No abort)

0x0030_0000

0x0030_0000

80kB SRAM

80kB SRAM

0x0040_0000

0x0040_0000

ROM

ROM

0x0050_0000

0x0050_0000

16kB SRAM

16kB SRAM

0x0060_0000

0x0060_0000

ROM mapped by default

* Master 8  ARM926 Instruction & Master 7  ARM926 Data


Sam9263 embedded rom

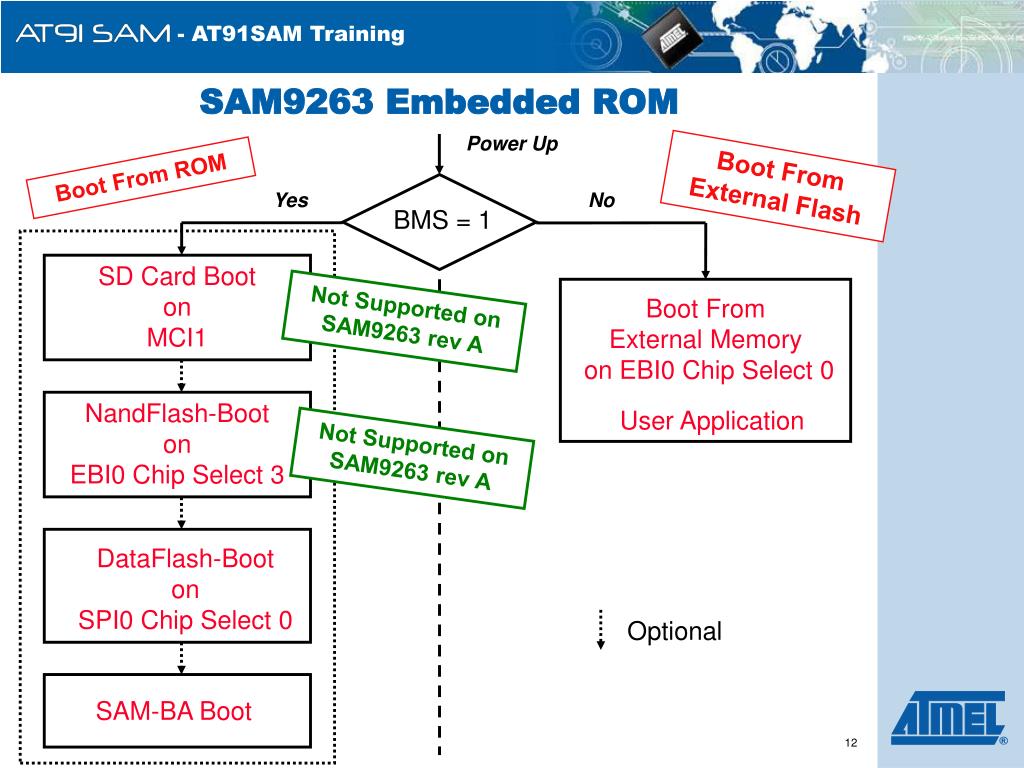

SAM9263 Embedded ROM

Power Up

Boot From External Flash

Boot From ROM

Yes

No

BMS = 1

SD Card Boot

on

MCI1

Not Supported on SAM9263 rev A

Boot From

External Memory

on EBI0 Chip Select 0

NandFlash-Boot

on

EBI0 Chip Select 3

User Application

Not Supported on SAM9263 rev A

DataFlash-Boot

on

SPI0 Chip Select 0

Optional

SAM-BA Boot


Sam ba boot dataflash boot nandflash boot sdcard boot

SAM-BA BootDataFlash-BootNandFlash-BootSDCard-Boot


Sam9 sam ba boot
SAM9 SAM-BA Boot

AT91SAM Dependant

  • Device Initialization

  • Check if USB Device enumeration (End of Bus Reset) has occured

  • Check for a received character on the DBGUorCheck if the AutoBaudrate sequence has succeeded

  • Step 2. and 3. until one occurs

  • Once the communication interface is identified, the application runs in an infinite loop waiting for different commands


Sam ba boot cont
SAM-BA Boot (cont.)

  • AT91SAM9261 & AT91SAM9263:

No AutoBaudrate

See. SAM9261 & SAM9263 SAM-BA Boot Requirements


Sam ba boot cont1
SAM-BA Boot (cont.)

DBGU & USB

  • SAM9261 SAM-BA Boot Requirements:


Sam ba boot cont2
SAM-BA Boot (cont.)

DBGU & USB

  • SAM9263 SAM-BA Boot Requirements:


Sam ba boot cont3
SAM-BA Boot (cont.)

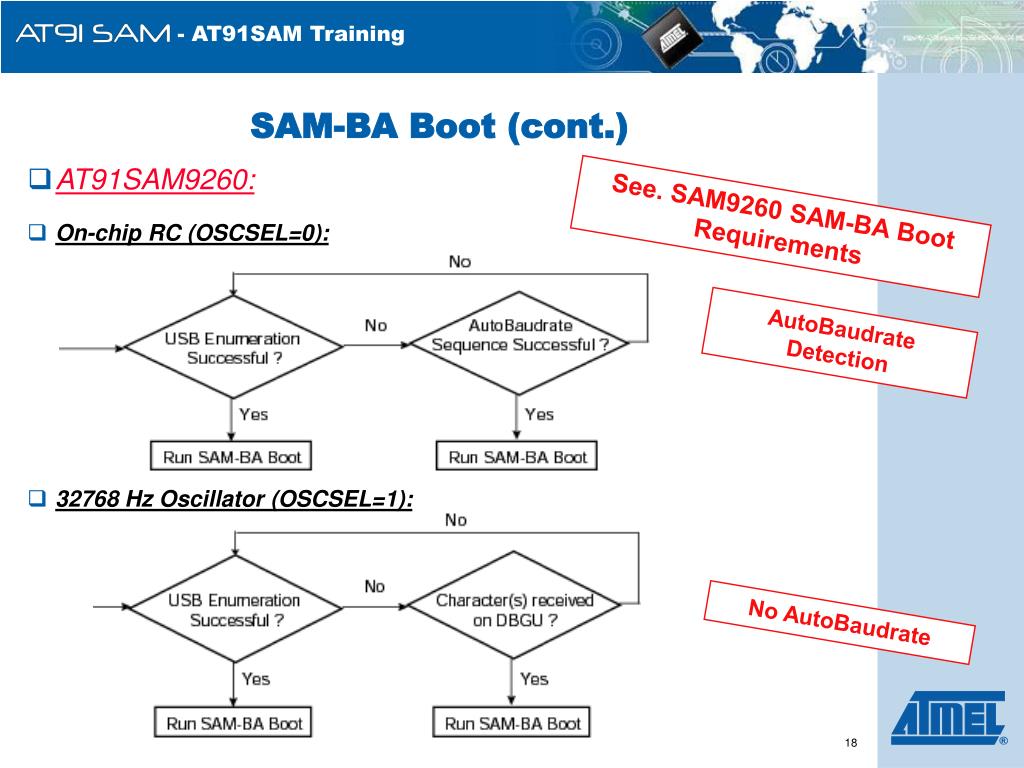

  • AT91SAM9260:

See. SAM9260 SAM-BA Boot Requirements

  • On-chip RC (OSCSEL=0):

AutoBaudrate Detection

  • 32768 Hz Oscillator (OSCSEL=1):

No AutoBaudrate


Sam ba boot cont4
SAM-BA Boot (cont.)

  • SAM-BA Boot AutoBaudrate Sequence:

SAM9260

with On-chip RC Only


Sam ba boot cont5
SAM-BA Boot (cont.)

DBGU & USB

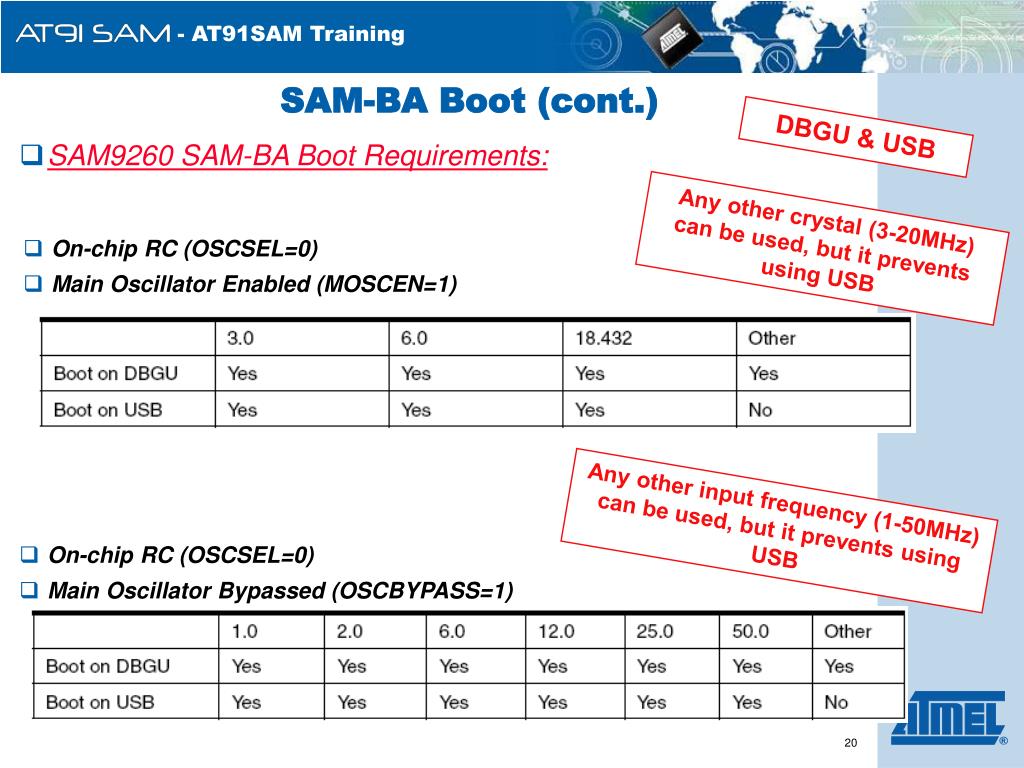

  • SAM9260 SAM-BA Boot Requirements:

Any other crystal (3-20MHz) can be used, but it prevents using USB

  • On-chip RC (OSCSEL=0)

  • Main Oscillator Enabled (MOSCEN=1)

Any other input frequency (1-50MHz) can be used, but it prevents using USB

  • On-chip RC (OSCSEL=0)

  • Main Oscillator Bypassed (OSCBYPASS=1)


Sam ba boot cont6
SAM-BA Boot (cont.)

DBGU & USB

  • SAM9260 SAM-BA Boot Requirements:

  • 32768 Hz Oscillator (OSCSEL=1) / Main Oscillator Enabled (MOSCEN=1)

  • 32768 Hz Oscillator (OSCSEL=1) / Main Oscillator Bypassed (OSCBYPASS=1)


Sam ba boot cont7
SAM-BA Boot (cont.)

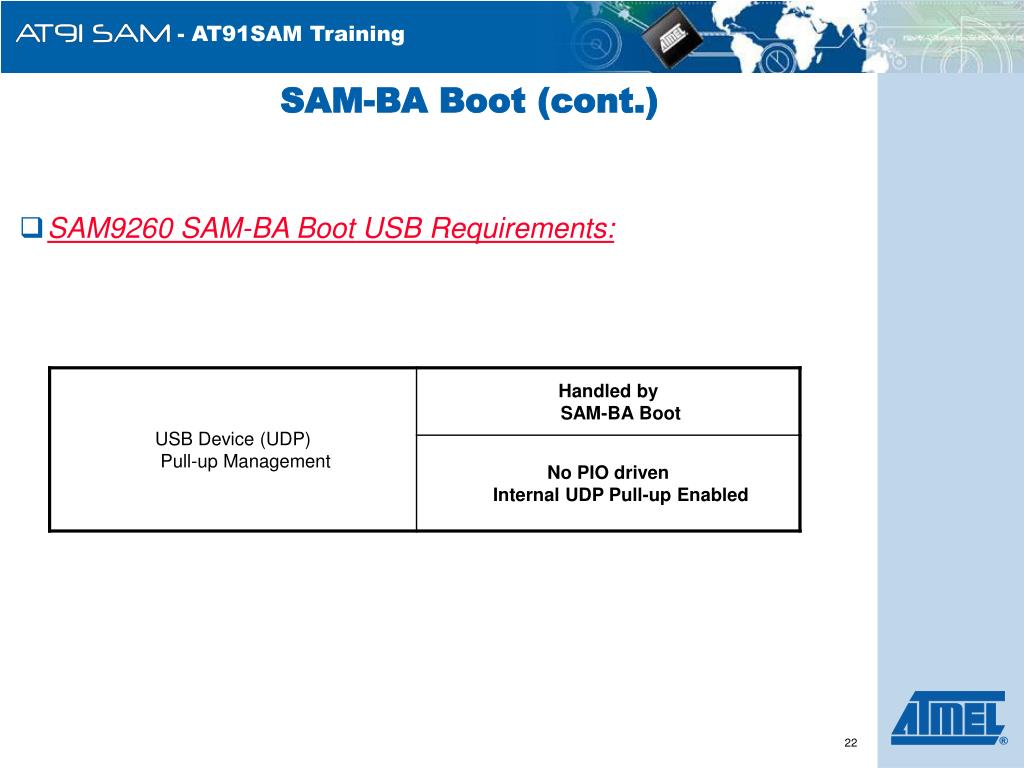

  • SAM9260 SAM-BA Boot USB Requirements:


Dataflash boot
DataFlash-Boot

  • Device Initialization

  • Search for valid code:

    • First 8th arm vectors must be valid

    • Decode the 6th vector (used to store code size)

  • If valid code found:

    • Download code into the internal SRAM

    • Reset peripherals

    • Perform a remap

    • Set PC at address 0x0000_0000



Nandflash boot
NandFlash-Boot

  • Device Initialization

  • Search for Boot.bin file in the root directory or in the FIRMWARE directory of a FAT12/16 formatted NandFlash

  • If valid file found:

    • Download code into the internal SRAM

    • Reset peripherals

    • Perform a remap and set PC at address 0x0000_0000

  • If no FAT12/16 file system, search for valid code:

    • First 8th arm vectors must be valid

    • Decode the 6th vector (used to store code size)

  • If valid code found:

    • Download code into the internal SRAM

    • Reset peripherals

    • Perform a remap and set PC at address 0x0000_0000

8-bit & 16-bit NandFlash Support

Small & Large Blocks Support

Not Supported on SAM9263 rev A

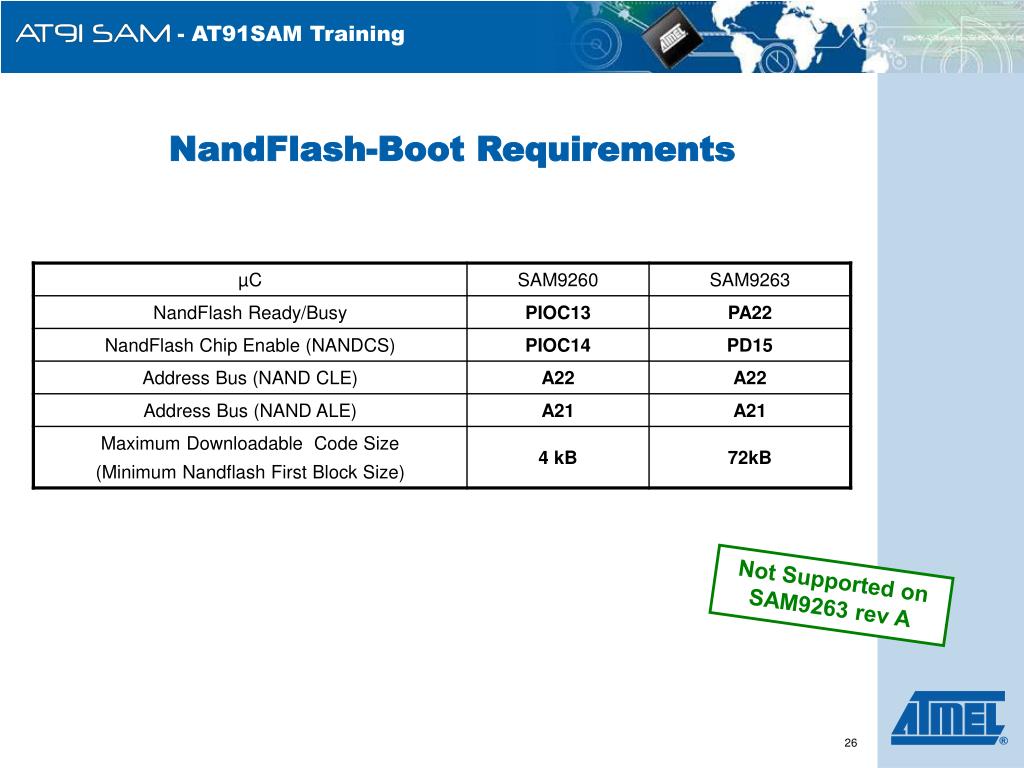

Nandflash boot requirements
NandFlash-Boot Requirements

Not Supported on SAM9263 rev A


Nandflash boot requirements cont
NandFlash-Boot Requirements (cont.)

  • Supported NandFlash Manufacturers:

Not Supported on SAM9263 rev A

NandFlash first block must be guaranteed

to be valid without ECC

(generally up to 1,000 Program/Erase cycles)


Sd card boot
SD Card Boot

  • Device Initialization

  • Search for Boot.bin file in the root directory or in the FIRMWARE directory of a FAT12/16 formatted SD Card

  • If valid file found:

    • Download code into the internal SRAM

    • Reset peripherals

    • Perform a remap and set PC at address 0x0000_0000

  • If no FAT12/16 file system, search for valid code:

    • First 8th arm vectors must be valid

    • Decode the 6th vector (used to store code size)

  • If valid code found:

    • Download code into the internal SRAM

    • Reset peripherals

    • Perform a remap and set PC at address 0x0000_0000

Not Supported on SAM9263 rev A


Sd card boot requirements
SD Card-Boot Requirements

Not Supported on SAM9263 rev A
