  1. Energy Changes

  2. Thermochemistry • Chemical reactions usually involve change of heat due to energy absorbed or evolved during reaction. • The study of heat changes of chemical reactions is known as THERMOCHEMISTRY

  3. Energy • Energy can come in different forms; • like heat, light, electrical, nuclear, etc… • Chemical energy is stored in all chemical substances. • With the law of conservation of energy, energy is never destroyed or created, only to be transferred.

  4. Bond making / breaking • Energy is absorbed or released because there are bonds being broken and there are bonds being formed when a chemical reaction occurs

  5. Bond Breaking • When a bond is being broken, heat energy is absorbed from the surrounding to break the bond; • Bond breaking is endothermic. • The amount of energy absorbed depends on the strength of the bond being broken • The stronger bond, more energy will be required to break the bond.

  6. Bond Making • When a bond is being formed, heat energy is evolved, given out to the surroundings • Bond formation is exothermic. • The amount of heat energy evolved depends on the strength of the bond being formed • The stronger the bond that is formed, more energy will be released.

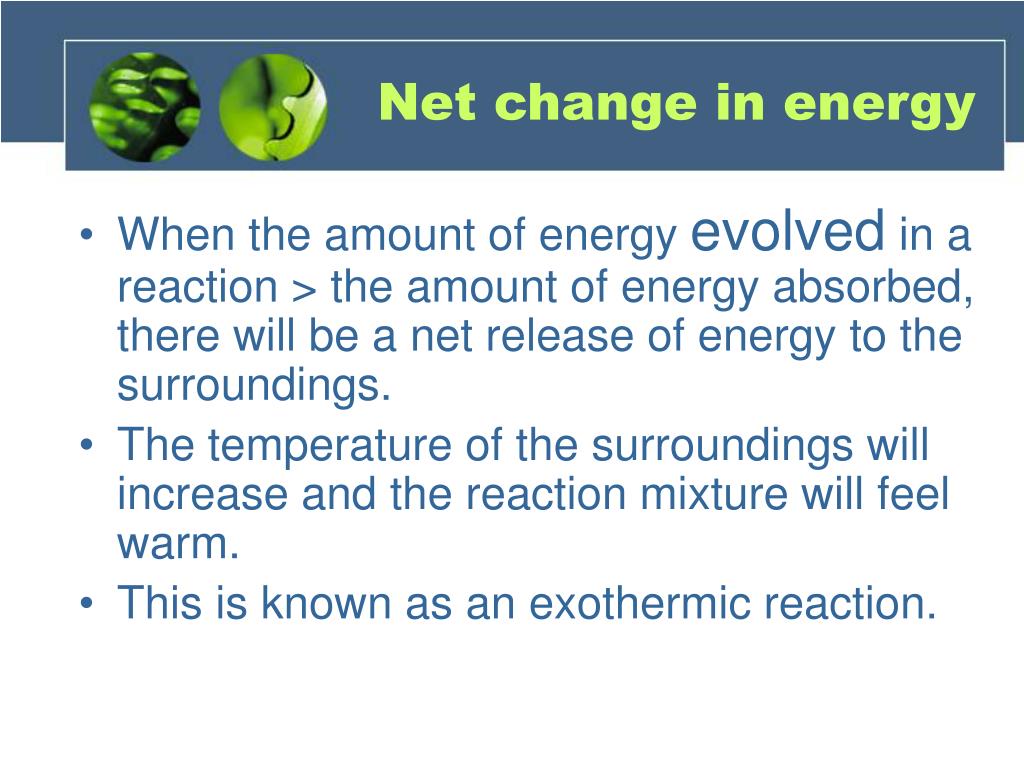

  7. Net change in energy • When the amount of energy evolved in a reaction > the amount of energy absorbed, there will be a net release of energy to the surroundings. • The temperature of the surroundings will increase and the reaction mixture will feel warm. • This is known as an exothermic reaction.

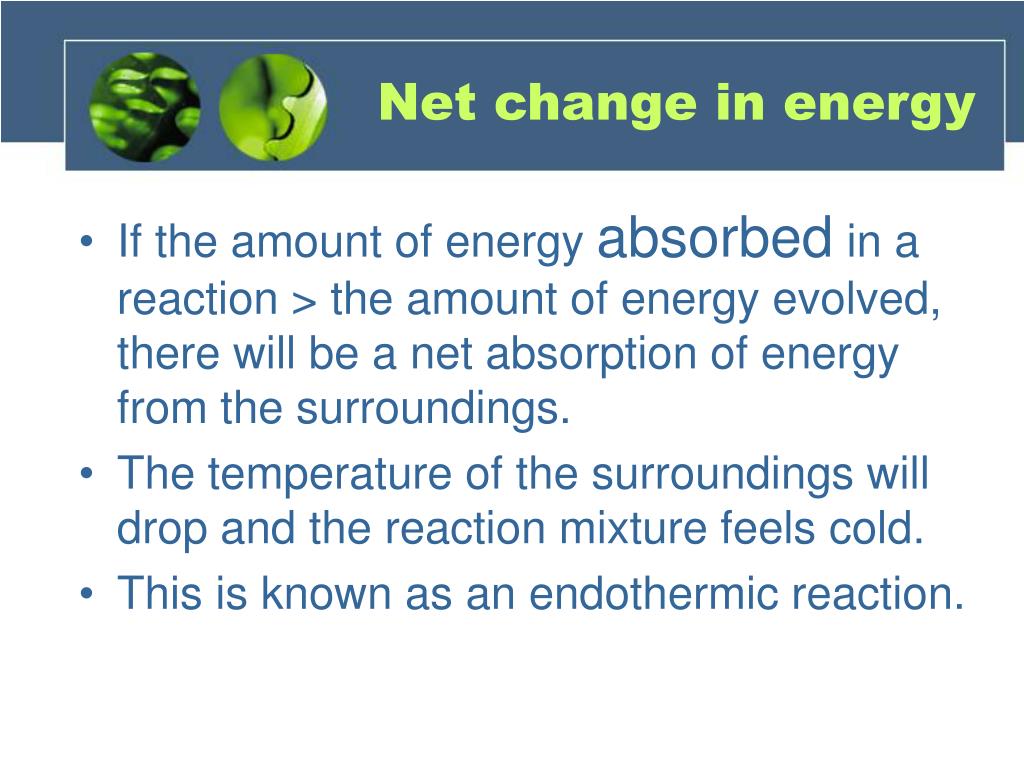

  8. Net change in energy • If the amount of energy absorbed in a reaction > the amount of energy evolved, there will be a net absorption of energy from the surroundings. • The temperature of the surroundings will drop and the reaction mixture feels cold. • This is known as an endothermic reaction.

  9. summary

  10. Examples of exothermic and endothermic reactions:

  11. Enthalpy Change • The overall energy change during a reaction is known as the enthalpy change (H) of the reaction. • The unit for enthalpy change is kJ/mol. • The unit for energy is kJ. • An exothermic reaction has a negative enthalpy change, • indicating more energy is lost than gained in the reaction. • An endothermic reaction has a positive enthalpy change, • indicating more energy is gained than lost in the reaction.

  12. Activation Energies • In a reaction, the reactant molecules must be able to overcome an energy barrier before they can turn into products. • This energy barrier is known as the activation energy, Ea. • Hence, activation energy is the minimum amount of energy required to initiate a chemical reaction. • Reactions with high activation energy will not occur spontaneously and may require heating or addition of catalyst to initiate the chemical reaction.

  13. Exothermic reaction Energy Activation energy Reactants H : -ve Products Time

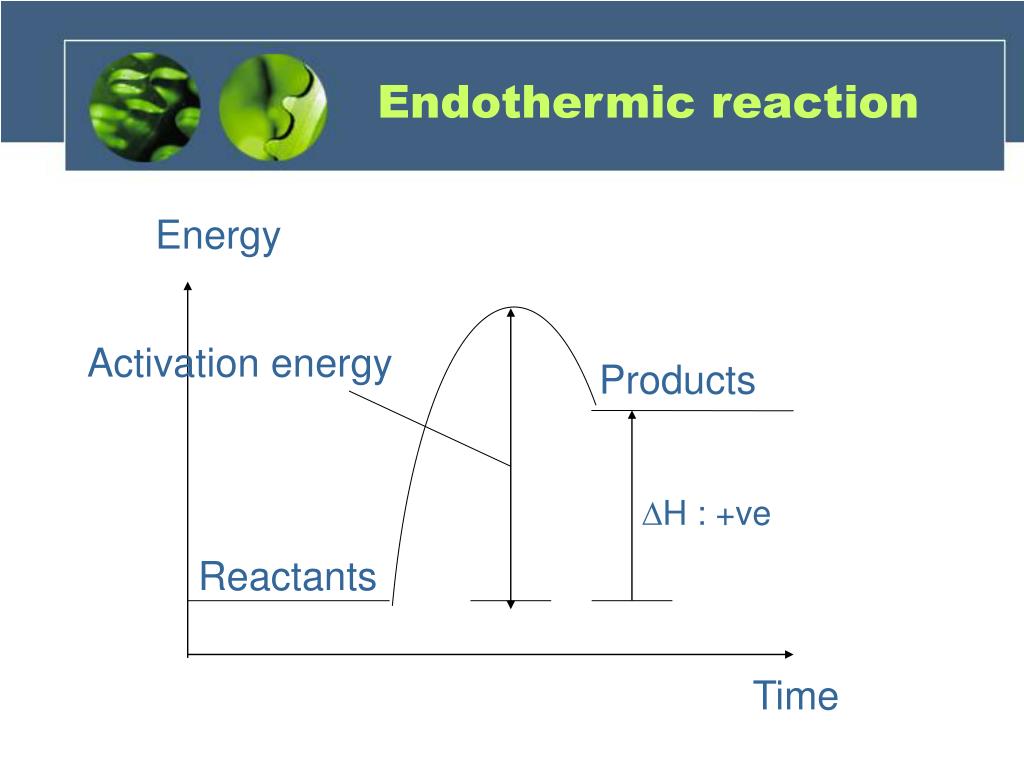

  14. Endothermic reaction Energy Activation energy Products H : +ve Reactants Time

  15. Energy Profile Diagram • An energy profile diagram is a plot of energy against time to represent the relative amount of energy of the reactants and the products. • An exothermic reaction has an overall energy loss during the reaction. • Hence the energy content of the reactants is higher than the energy content of the products. • An endothermic reaction has an overall energy gain during the reaction • Hence the energy content of the products is higher than the energy content of the reactants.

  16. Exothermic reaction Energy Reactants Enthalpy change (H) : negative Products Time

  17. Endothermic reaction Energy Products Enthalpy change (H) : positive Reactants Time

  18. Bond Energy • Bond energy is the amount of energy required to break a given bond. • Likewise, when the same amount of energy is evolved when that bond is formed. • Bond energy values can be used to calculate the enthalpy change of a reaction. • When a bond is formed, the bond energy is assigned a negative value, indicating energy is lost. • When a bond is broken, the bond energy is assigned a positive value, indicating energy gained.

  19. Enthalpy Change • Enthalpy change of a reaction = Sum of [energy absorbed due to bond breaking in reactants (assigned positive value)] +[energy evolved due to bond formation in products (assigned negative value)]

  20. An example of enthalpy change calculation from bond energies: • Hydrogen reacts with oxygen to form water. • 2 H2 (g) + O2 (g)  2 H2O (g)

  21. Bond energies

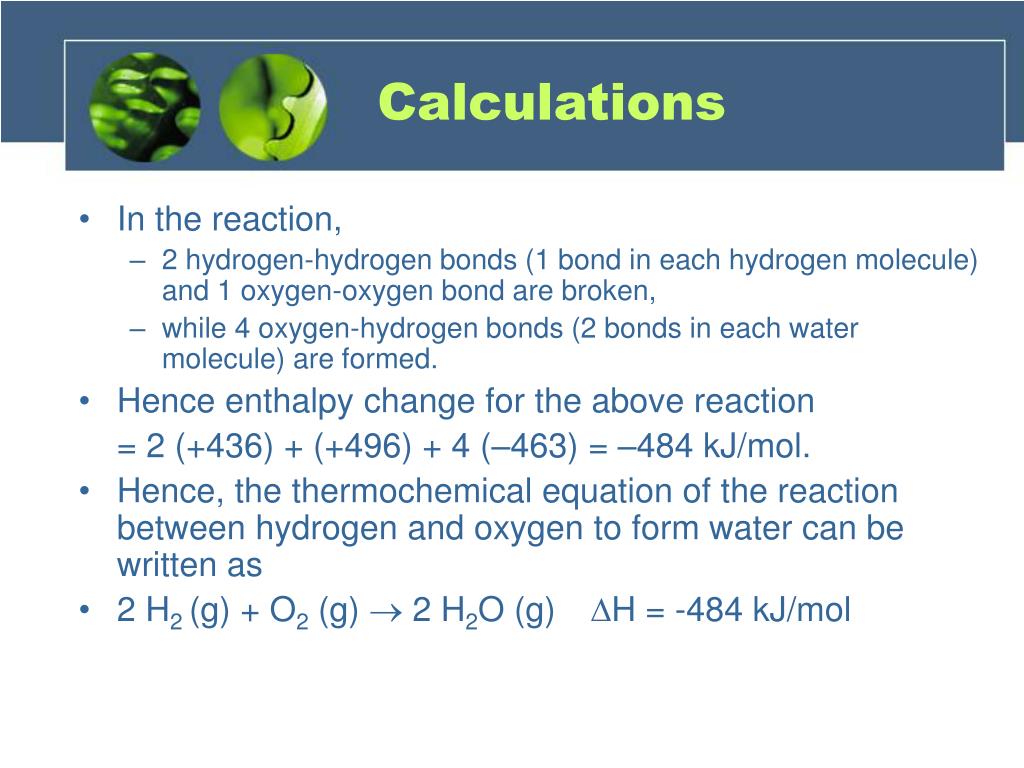

  22. Calculations • In the reaction, • 2 hydrogen-hydrogen bonds (1 bond in each hydrogen molecule) and 1 oxygen-oxygen bond are broken, • while 4 oxygen-hydrogen bonds (2 bonds in each water molecule) are formed. • Hence enthalpy change for the above reaction = 2 (+436) + (+496) + 4 (–463) = –484 kJ/mol. • Hence, the thermochemical equation of the reaction between hydrogen and oxygen to form water can be written as • 2 H2 (g) + O2 (g)  2 H2O (g) H = -484 kJ/mol
