Presentation Transcript


  1. Observational Constraints of of Reionization History in the JWST Era Xiaohui Fan University of Arizona Astrophysics in the Next Decade Sep 26, 2007 Background: 46,420 Quasars from the SDSS Data Release Three

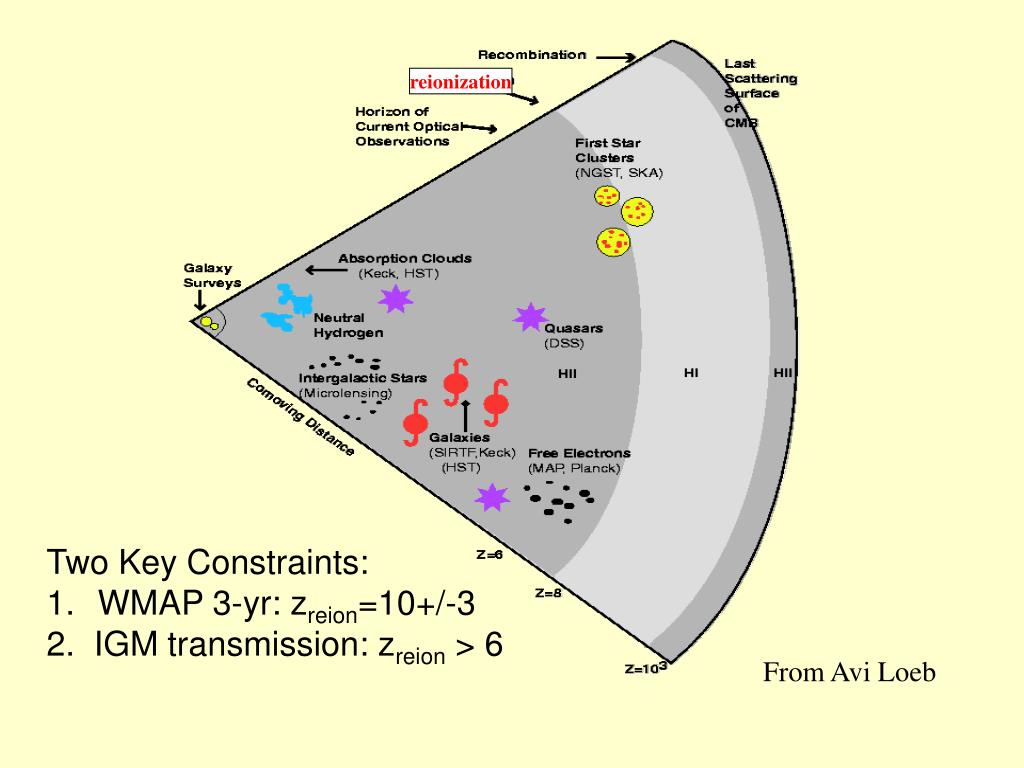

  2. reionization Two Key Constraints: WMAP 3-yr: zreion=10+/-3 2. IGM transmission: zreion > 6 From Avi Loeb

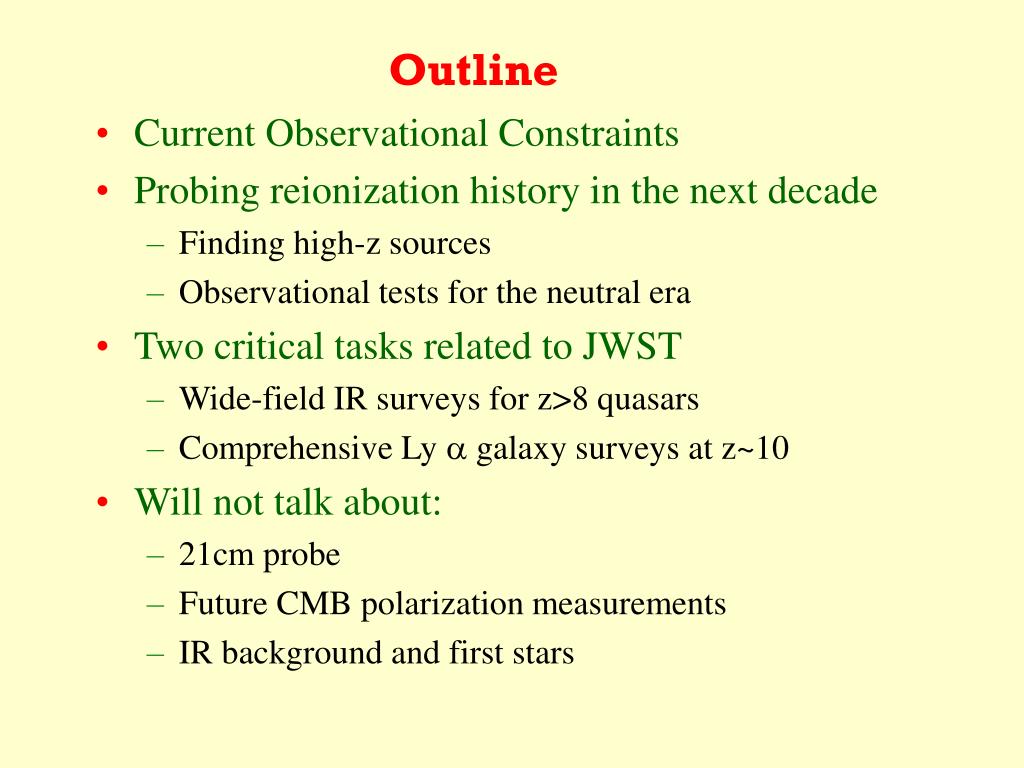

  3. Outline • Current Observational Constraints • Probing reionization history in the next decade • Finding high-z sources • Observational tests for the neutral era • Two critical tasks related to JWST • Wide-field IR surveys for z>8 quasars • Comprehensive Ly  galaxy surveys at z~10 • Will not talk about: • 21cm probe • Future CMB polarization measurements • IR background and first stars

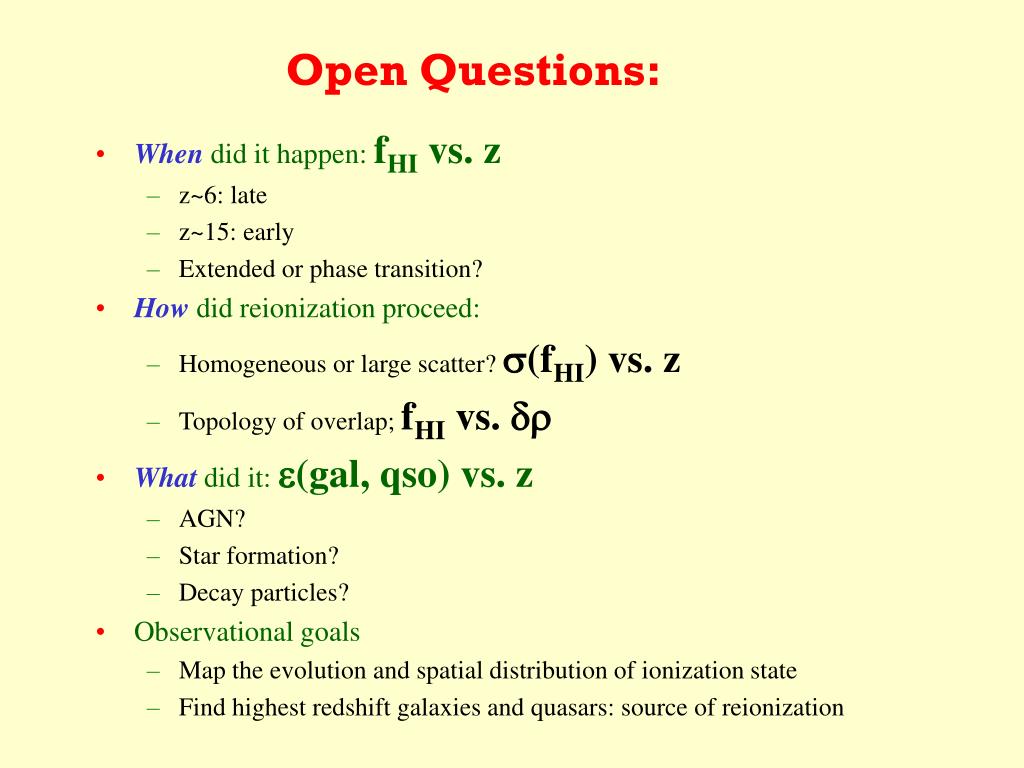

  4. Open Questions: • When did it happen: fHI vs. z • z~6: late • z~15: early • Extended or phase transition? • How did reionization proceed: • Homogeneous or large scatter? (fHI) vs. z • Topology of overlap; fHI vs.  • What did it: (gal, qso) vs. z • AGN? • Star formation? • Decay particles? • Observational goals • Map the evolution and spatial distribution of ionization state • Find highest redshift galaxies and quasars: source of reionization

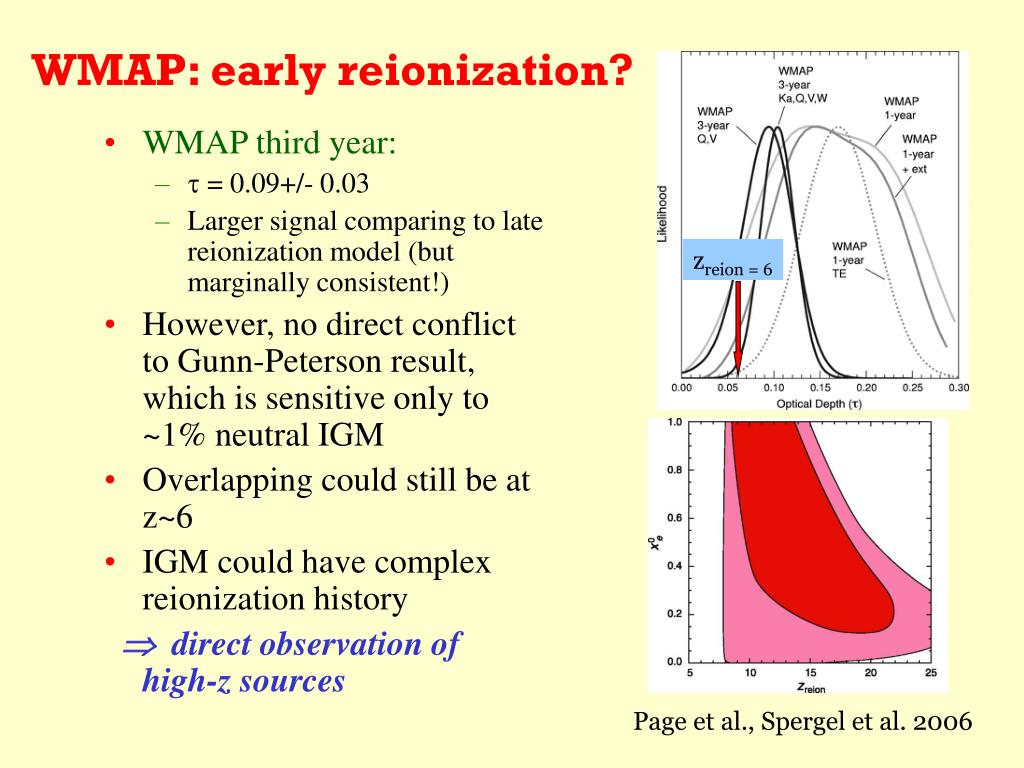

  5. WMAP: early reionization? • WMAP third year: •  = 0.09+/- 0.03 • Larger signal comparing to late reionization model (but marginally consistent!) • However, no direct conflict to Gunn-Peterson result, which is sensitive only to ~1% neutral IGM • Overlapping could still be at z~6 • IGM could have complex reionization history  direct observation of high-z sources zreion = 6 Page et al., Spergel et al. 2006

  6. Gunn-Peterson Test • Classic G-P (1965) effect: • Saturates at low neutral fraction • G-P damping wing (Miralda-Escude 1998) • Sensitive to neutral IGM • Attenuates off-resonance transmissions Damping wing

  7. Evolution of Lyman Absorptions at z=5-6 z = 0.15

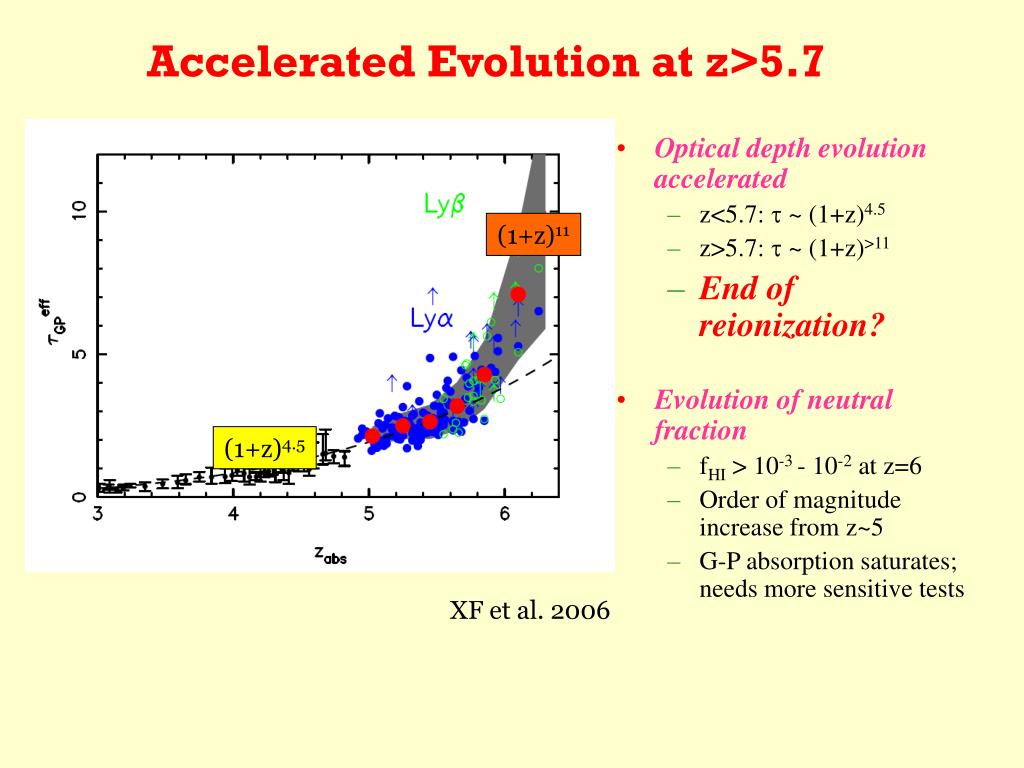

  8. Optical depth evolution accelerated z<5.7:  ~ (1+z)4.5 z>5.7:  ~ (1+z)>11 End of reionization? Evolution of neutral fraction fHI > 10-3 - 10-2 at z=6 Order of magnitude increase from z~5 G-P absorption saturates; needs more sensitive tests Accelerated Evolution at z>5.7 (1+z)11 (1+z)4.5 XF et al. 2006

  9. Beyond Gunn-Peterson Optical Depth:HII Region Sizes and Dark Gap Distributions zem • Size of HII region Rs ~ (LQ tQ / fHI )1/3 • Best estimate: fHI ~ a few percent at z~6 • Can be applied to higher z and fHI with lower S/N data Gallerani et al. Shapiro, Haiman, Mesinger, Wyithe, Loeb, Bolton, Haehnelt, Maselli et al. • Dark gap statistics • Sensitive to the topology of reionization • z~6 observations: • Dramatic increase in gap length: • Consistent with overlap at z~6-8 • Existence of transmission at z>6 places an upper limit of average neutral fraction <30% (Gallerani et al. 2007)

  10. Ly  Galaxy LF at z>6 • Neutral IGM has extended GP damping wing  attenuates Ly  emission line • New Subaru results • Declining density at z~6-7 (2-3 result) • Reionization not completed by z~6.5 • fHI ~ 0.3 - 0.6 at z~7 • Overlapping at z=6-7? • cf. Malhotra & Rhoads, Hu et al.: lack of evolution in Ly  galaxy density Iye et al. 2006 Kashikawa et al. 2006 Ota et al. 2007

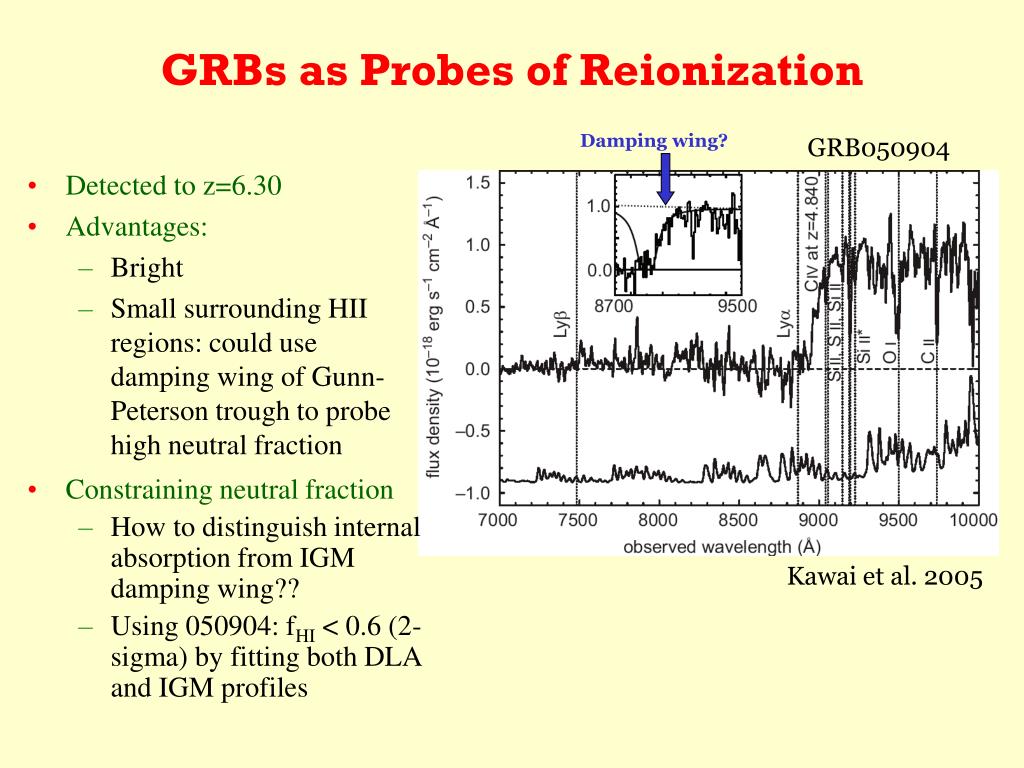

  11. Detected to z=6.30 Advantages: Bright Small surrounding HII regions: could use damping wing of Gunn-Peterson trough to probe high neutral fraction Constraining neutral fraction How to distinguish internal absorption from IGM damping wing?? Using 050904: fHI < 0.6 (2-sigma) by fitting both DLA and IGM profiles GRBs as Probes of Reionization Damping wing? GRB050904 Kawai et al. 2005

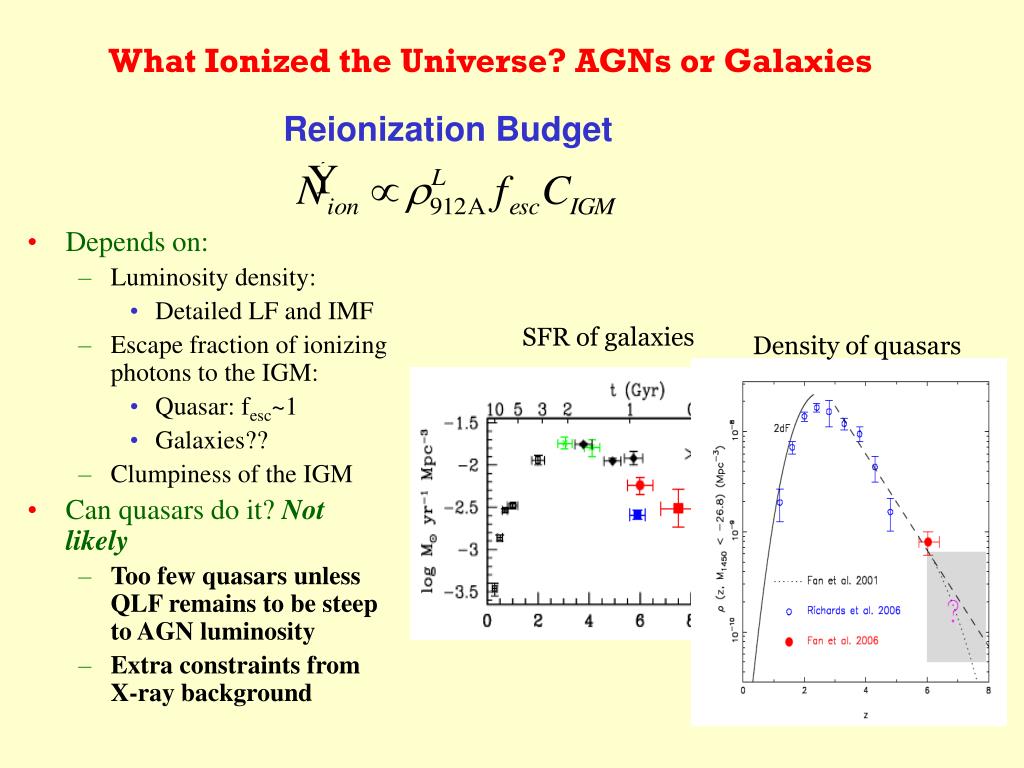

  12. What Ionized the Universe? AGNs or Galaxies Reionization Budget • Depends on: • Luminosity density: • Detailed LF and IMF • Escape fraction of ionizing photons to the IGM: • Quasar: fesc~1 • Galaxies?? • Clumpiness of the IGM • Can quasars do it? Not likely • Too few quasars unless QLF remains to be steep to AGN luminosity • Extra constraints from X-ray background SFR of galaxies Density of quasars

  13. Reionization by stellar sources? • Large uncertainties in reionization photon budget: • IGM clumpiness; IMF; escape efficiency • Large cosmic (sample) variance in deep field data • Galaxy luminosity function at high-z • Sources of reionization have not been identified! • Most likely dwarf galaxies Necessary for reionization 6<z<9 (Stiavelli et al 2003) Bouwens & Illingworth; Bunker et al. ; Gnedin Yan and Windhorst

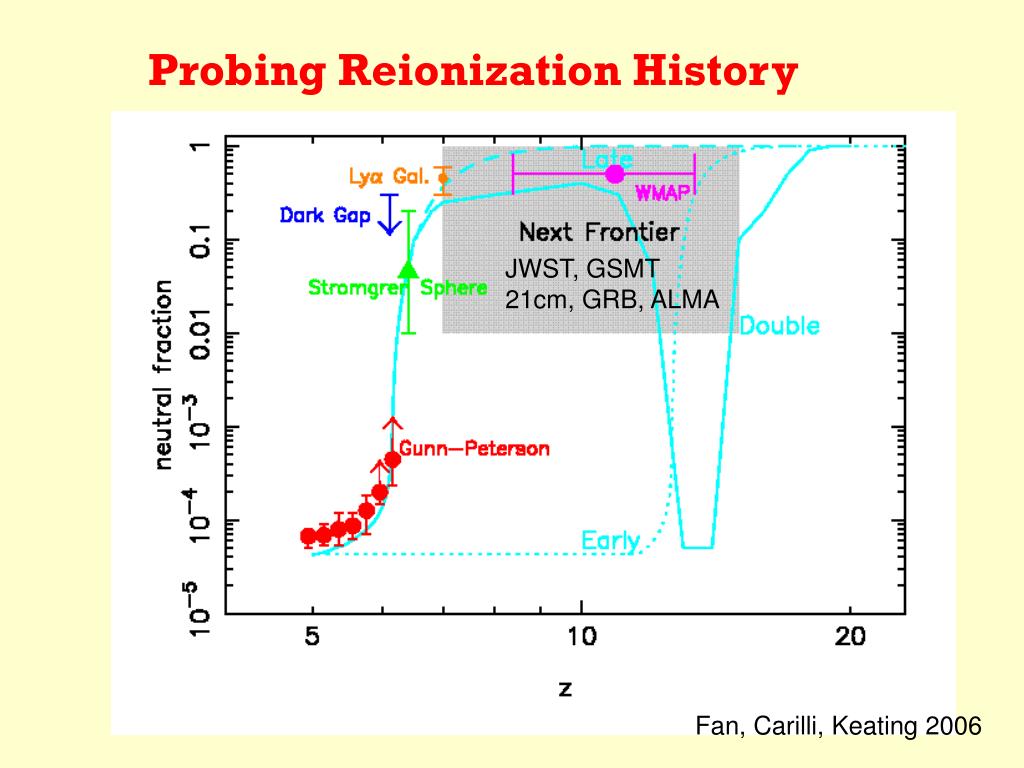

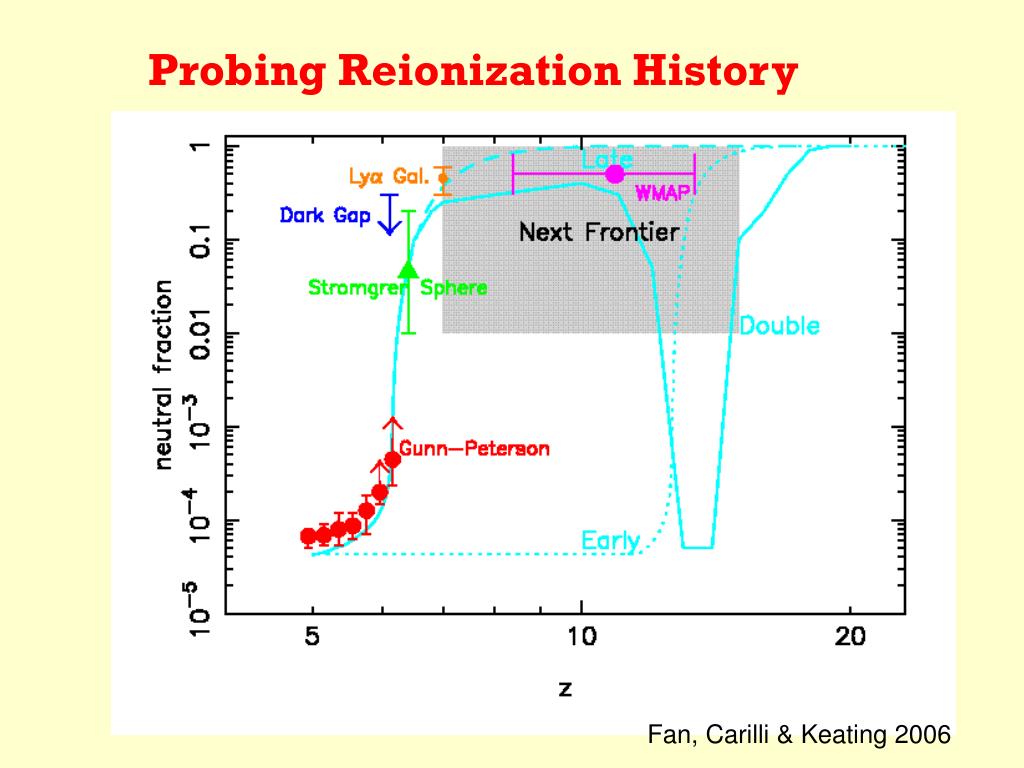

  14. Probing Reionization History Fan, Carilli & Keating 2006

  15. Quest to the Highest Redshift

  16. Next Generation Quasar Surveys • Optical surveys: limited to z<7 • New generations of red-sensitive CCD devices • Improved QE at 1 micron (Y band) • SUBARU/Princeton (2010+): a few hundred deg, Y<25;? • Pan-Starrs (2008+): 3: Y<22.5; 1000 deg2: Y<24; 30 deg2: Y<26 • LSST (2013+): 3: Y< 25 • Discovery of large number of quasars at z<7.5 • New generation of Near-IR surveys: • UKIDSS (2005 - 2012?): 4000 deg2: JAB<21 • VISTA/VHS (2008+): 20000 deg2: JAB<21 • VISTA/VIKING (2008+): 1500 deg2: JAB<22 • VISTA/VIDEO (2008+): 15 deg2: JAB<24.5 • Discovery of a handful of quasars at z=7-9

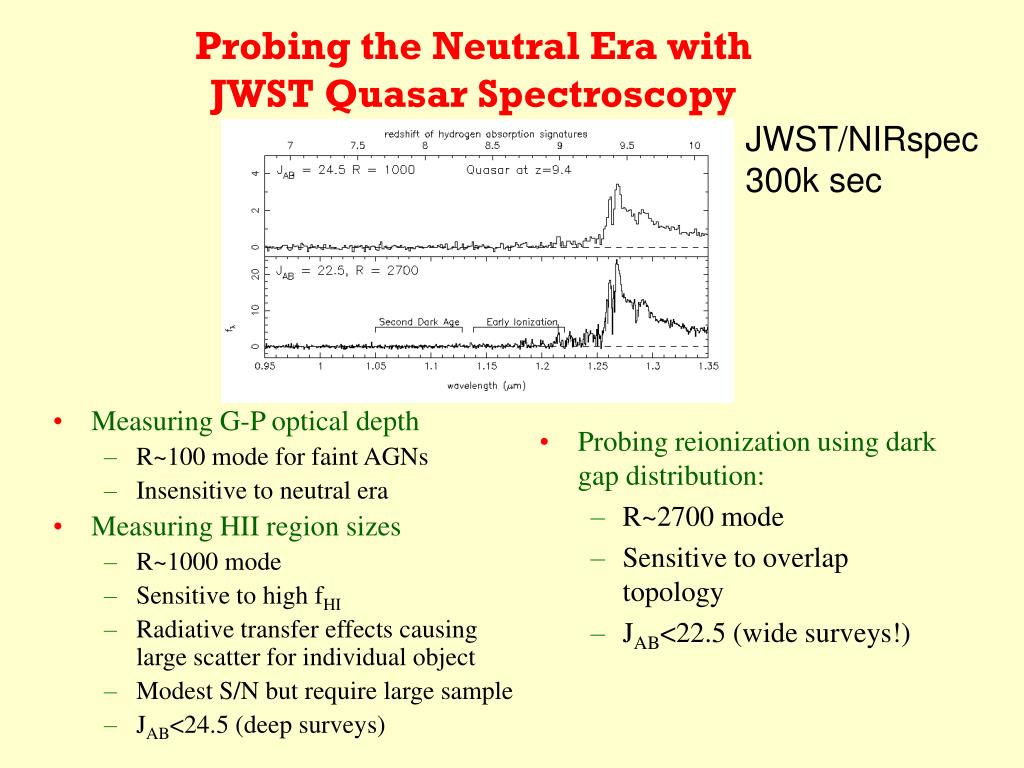

  17. Measuring G-P optical depth R~100 mode for faint AGNs Insensitive to neutral era Measuring HII region sizes R~1000 mode Sensitive to high fHI Radiative transfer effects causing large scatter for individual object Modest S/N but require large sample JAB<24.5 (deep surveys) Probing reionization using dark gap distribution: R~2700 mode Sensitive to overlap topology JAB<22.5 (wide surveys!) Probing the Neutral Era with JWST Quasar Spectroscopy JWST/NIRspec 300k sec

  18. Evolution of IGM Metals Evolution of CIV systems • Early Enrichment of the IGM by First stars • Lack of evolution in metal line density up to z~6 • OI Forest (Oh 2002) • OI and H have almost identical ionization potentials • In charge exchange equilibrium with H but much lower abundance • Fluctuating OI forest during neutral era to probe ionization topology and metal pollution in the IGM Ryan-Weber et al. OI system at z=6.26 Becker et al. 2006

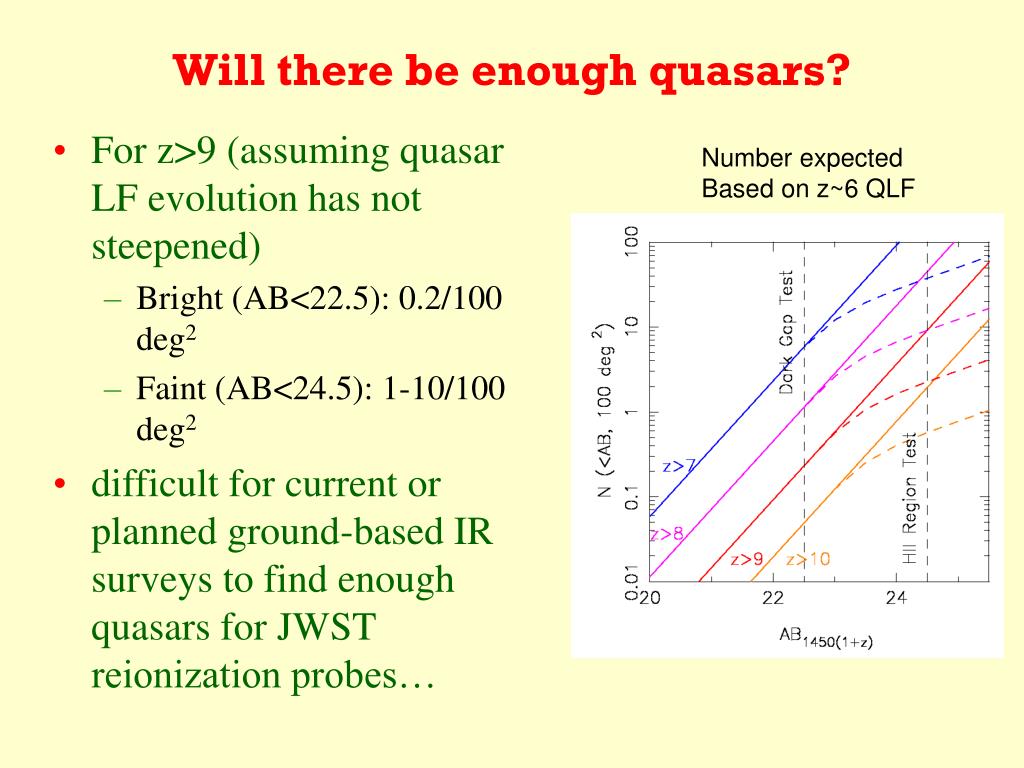

  19. Will there be enough quasars? • For z>9 (assuming quasar LF evolution has not steepened) • Bright (AB<22.5): 0.2/100 deg2 • Faint (AB<24.5): 1-10/100 deg2 • difficult for current or planned ground-based IR surveys to find enough quasars for JWST reionization probes… Number expected Based on z~6 QLF

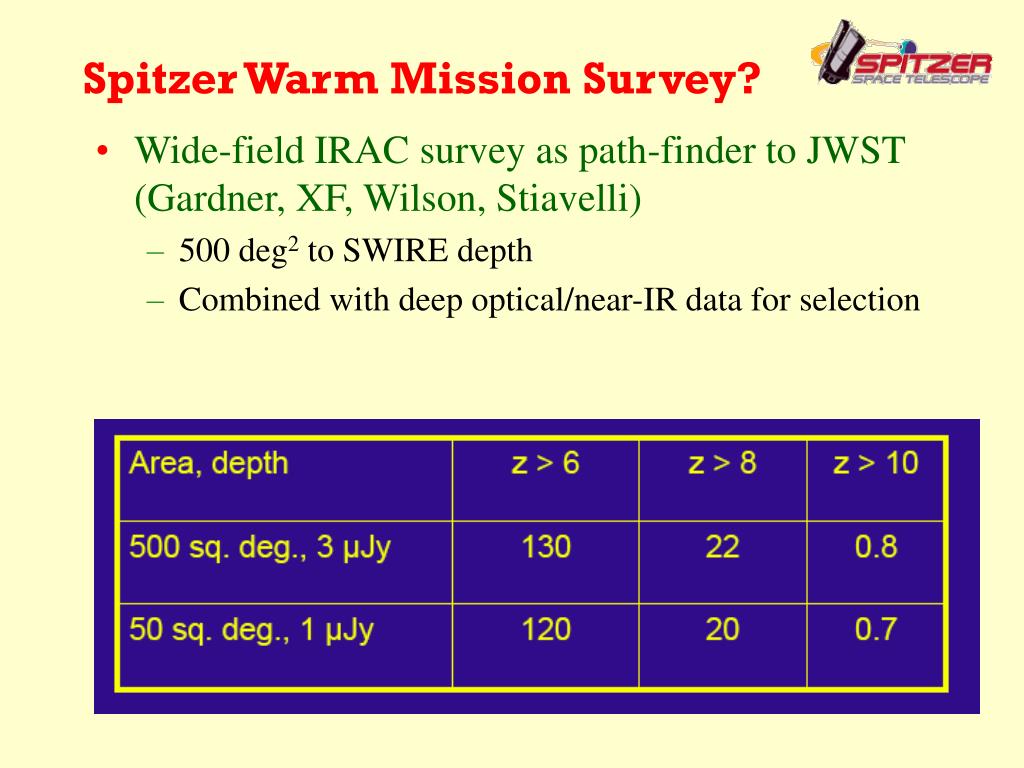

  20. Spitzer Warm Mission Survey? • Wide-field IRAC survey as path-finder to JWST (Gardner, XF, Wilson, Stiavelli) • 500 deg2 to SWIRE depth • Combined with deep optical/near-IR data for selection

  21. 4yr eROSITA ½yr e-ROSITA • All sky X-ray survey • PI. G. Hasinger • Launch 2011 • Expect: • 60 quasars at z>7 • 20 at z>8 • 5 at z>9

  22. Lyman  Emitter at z~10? • Keck blind spectroscopic survey along critical lines of high-z clusters • Six promising Ly emitter candidates at z=8.7 - 10.2 • Large abundance of low-L galaxies; providing sufficient reionization photons • Limit of ground-based search; extremely difficult to confirm spectroscopically Stark, Ellis et al.

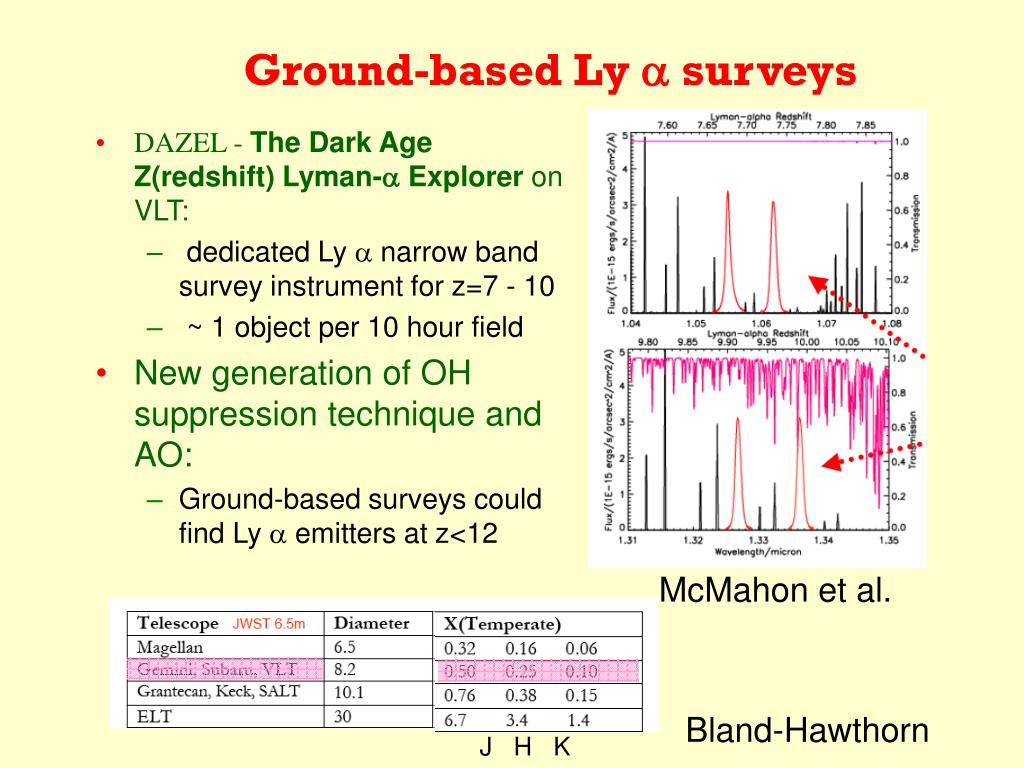

  23. Ground-based Ly  surveys • DAZEL - The Dark Age Z(redshift) Lyman- Explorer on VLT: • dedicated Ly  narrow band survey instrument for z=7 - 10 • ~ 1 object per 10 hour field • New generation of OH suppression technique and AO: • Ground-based surveys could find Ly  emitters at z<12 McMahon et al. Bland-Hawthorn J H K

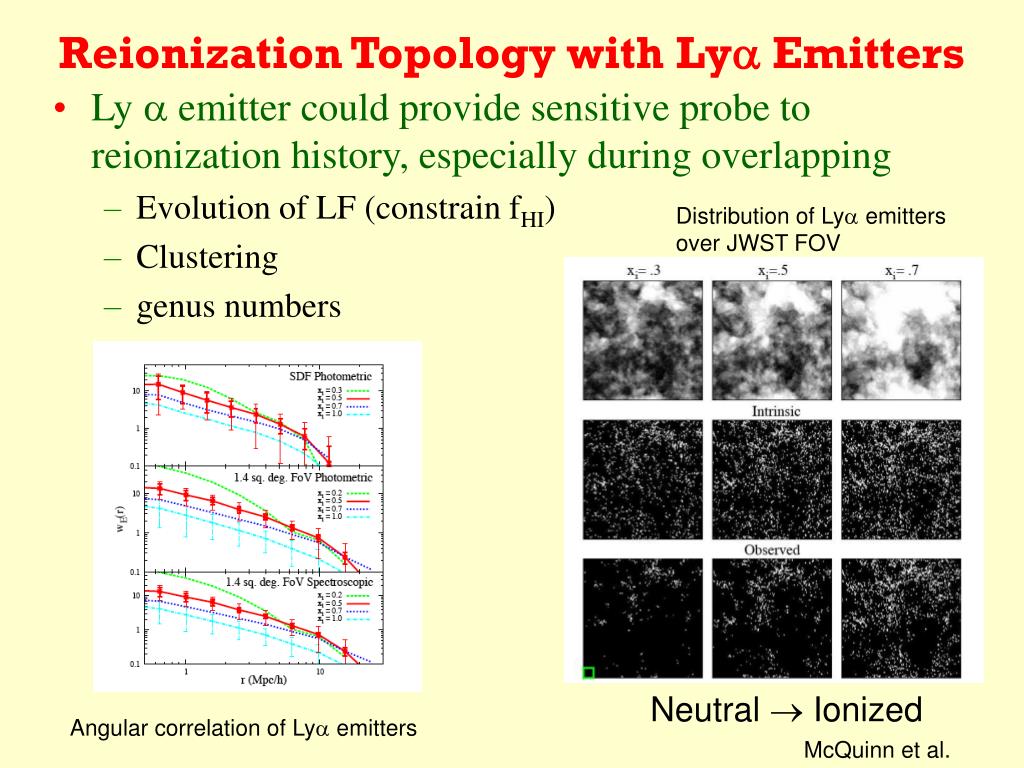

  24. Reionization Topology with Ly Emitters • Ly  emitter could provide sensitive probe to reionization history, especially during overlapping • Evolution of LF (constrain fHI) • Clustering • genus numbers Distribution of Ly emitters over JWST FOV Neutral  Ionized Angular correlation of Ly emitters McQuinn et al.

  25. Ly Emitter Surveys in JWST Era intrinsic observed • Interpretation of Ly emitters alone is highly model dependent: • Evolution of continuum LF • Uncertainties in Ly radiative transfer • Intrinsic clustering of galaxies etc. • Requires surveys of continuum and SF selected samples • Ly selected  continuum selected Rhoads 2007

  26. Synergetic survey of galaxies in reionization era FGS/TFI NIRSpec

  27. Synergetic Survey of Galaxies in Reionization Era • JWST will detect sources that reionization the Universe at z>10 • Ability to find high-z sources limited by whether the Universe managed to make them • Ground-based and JWST/TFI will detect Ly and HeII emitters to probe reionization history and topology • ALMA will provide dust/star-formation/dynamics Windhorst et al.

  28. Wish List to Theorists • Reionization Simulation • Volume: hundreds of Mpc • Resolution: dwarf galaxy halos and Lyman Limit Systems • Radiative transfer • Star formation prescriptions • Contribution from Pop III • Ly emission physics • Understanding escape fraction of ionization photons Gnedin and Fan 2006

  29. Escape Fraction: A Key Uncertainty • Escape fraction (as a function of z, L, age) affects: • Total reionization budget • HII region sizes • Ly emitter probe • Current measurements extremely uncertain • Shapley et al. at z~3: 2/14 detections • Siana et al. at z~1: fesc <0.02; evolution? • Large HST surveys underway • But how to measure it at z>6??? Siana et al. 2007

  30. Summary • What do we know now about reionization? • zrei = 6 - 13 • Overlapping probably late with extended reionization process • AGN not likely sources of reionization; situation for galaxies uncertain • What do we expect to know before JWST • Reionization history to z~8 from quasars/GRBs • Needs more powerful quasar surveys (Spitzer warm and eROSITA) • Small number of Ly emitters at z=7 - 10 • Lyman break-selected population at z~8-10 from WFC3: better constraints on reionization budget • Progress in reionization simulations • Roles of JWST • Absorption line probes using high-z quasars • Identify the reionization population • Mapping out Ly emitters at the peak of reionization, synergy with ALMA and GSMT/ELT

  31. Probing Reionization History JWST, GSMT 21cm, GRB, ALMA Fan, Carilli, Keating 2006
