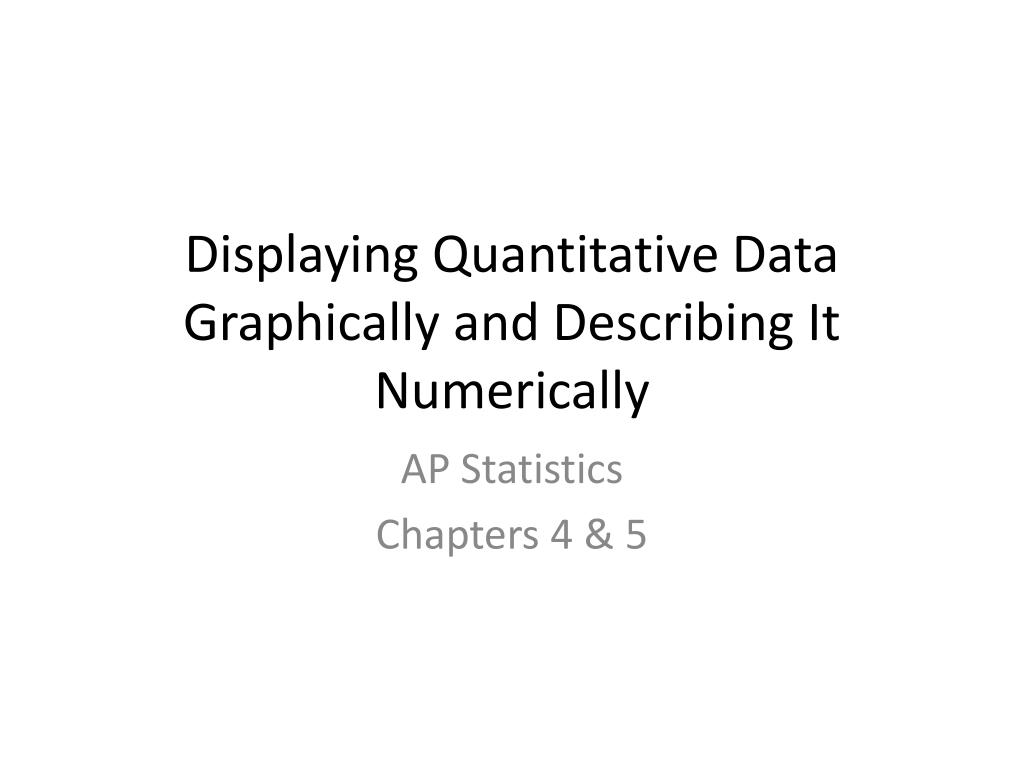

Displaying quantitative data graphically and describing it numerically

Displaying Quantitative Data Graphically and Describing It Numerically

AP Statistics

Chapters 4 & 5

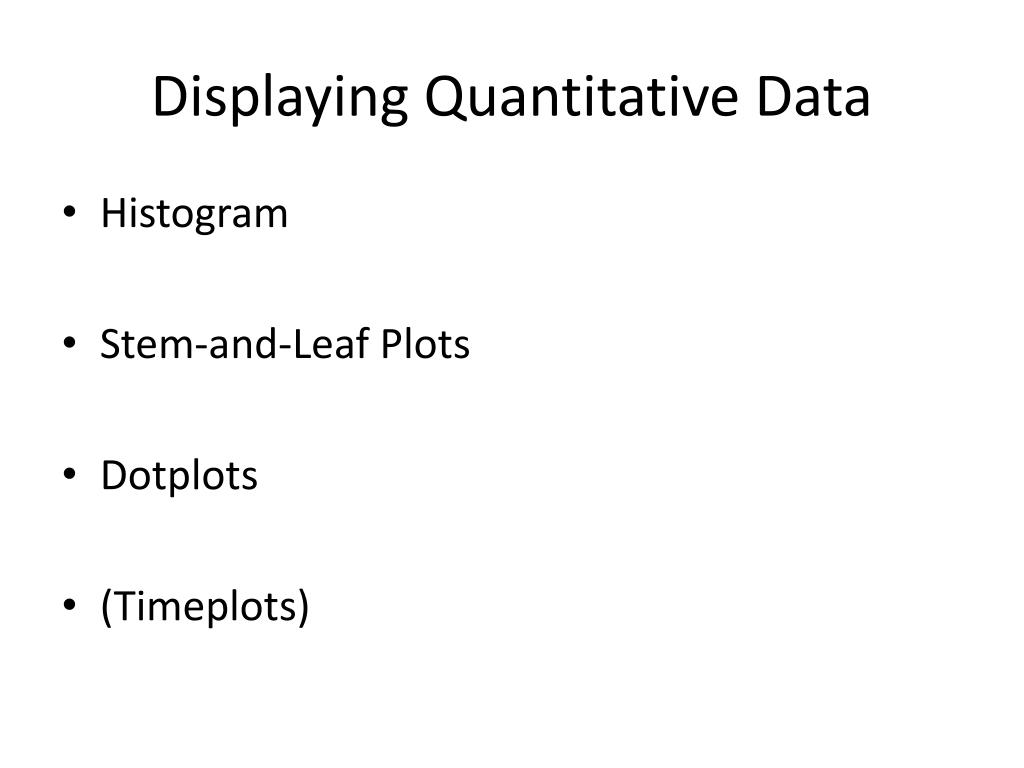

Displaying quantitative data
Displaying Quantitative Data Numerically

  • Histogram

  • Stem-and-Leaf Plots

  • Dotplots

  • (Timeplots)


Histograms
Histograms Numerically

  • Bins and counts give the distribution of the quantitative data

  • Bars touch—data is continuous

  • Relative frequency histogram—useful and shows percentages, not counts


Stem and leaf plot
Stem-and-Leaf Plot Numerically

  • Can see each individual data point

  • Stem is like bin

  • Might need to “split”

  • 34779 Key: 3 4 = 34

  • 6677789

  • 356777777

  • 0001

  • 99

  • 022222

    2 577799999 Key: 2 4 = 24

    3 44444

  • 667789999

  • 2333344444

    4 577779

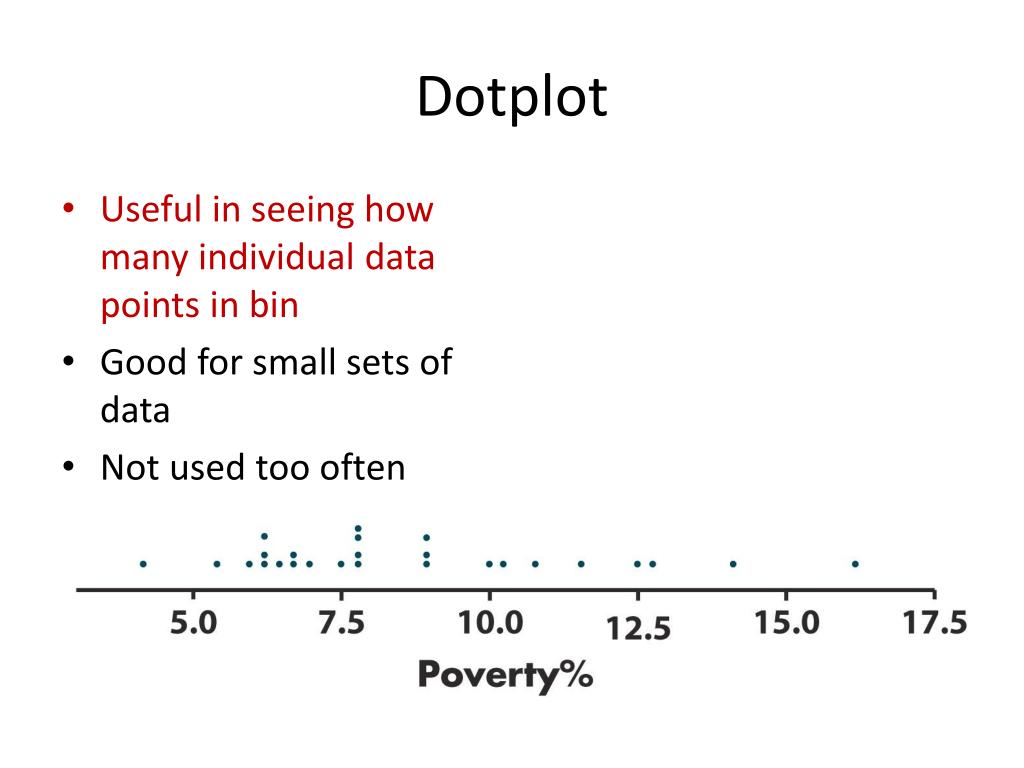

Dotplot
Dotplot Numerically

  • Useful in seeing how many individual data points in bin

  • Good for small sets of data

  • Not used too often


Describing a distribution
Describing a Distribution Numerically

  • Whenever you are describing a distribution you need to describe it by the

    • Shape

    • Center

    • Spread

    • Any Unusual points (outliers, gaps)


Shape
Shape Numerically

  • Is the shape?

    • Uniform, Symmetric, Skewed

  • How many modes (high points)

    • Unimodal, bimodal, multimodal


Center and spread
Center and Spread Numerically

  • How we describe the center and spread of a distribution depends on the shape of the distribution.


Skewed distribution
Skewed Distribution Numerically

  • Center: Median

  • Spread: Interquartile Range (IQR)

  • Both of these are “resistant”

  • Both should include units


Skewed distribution1
Skewed Distribution Numerically

How to find the IQR

1. Find median

2. Find the median of both halves of data

the lower median is 1st Quartile

the upper median is 3rd Quartile

3. Subtract the two quartile scores

** 1st Quartile = 25th percentile

** 3rd Quartile = 75th percentile


Symmetric distributions
Symmetric Distributions Numerically

  • Center: Mean

  • Spread: Standard Deviation

  • Both are not “resistant”

  • Both should include units


Standard deviation
Standard Deviation Numerically

  • Takes into account how far each value in a data set is from the mean

    Formula:


Properties of standard deviation Numerically

  • Only use with mean

  • If s = 0, there is no spread and all data pieces are same—otherwise s>0 and s gets larger as data pieces get more spread out.

  • A few outliers can really change the value of the standard deviation

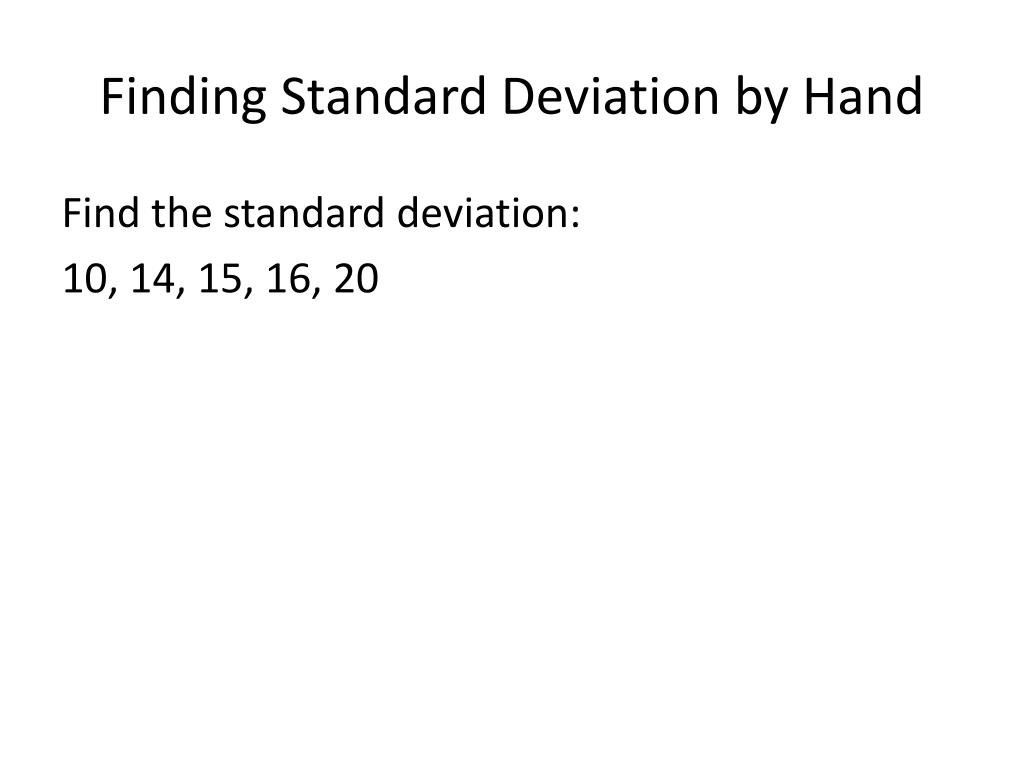

Finding standard deviation by hand
Finding Standard Deviation by Hand Numerically

Find the standard deviation:

10, 14, 15, 16, 20


Other information
Other information Numerically

  • If distribution is symmetric, then mean=median

  • If skewed right, mean>median

  • If skewed left, mean<median

  • Spread of distribution is just as important as the center

  • How accurate: one or two decimal points more than original data


Distributions with outliers
Distributions with Outliers Numerically

  • Really just data that seems unusual

  • Formally we compute fences and if data point is outside the fences, we consider it an outlier

  • Always use common sense

  • Upper fence:

  • Lower fence:


Distributions with outliers1
Distributions with Outliers Numerically

  • Tricky situation

  • Since outliers affect mean and standard deviation, it is usually better to use median and IQR

  • If the mean and median are not similar in value, report the median and IQR

  • If the mean and the median are similar in value, report the mean and standard deviation.

  • Sometimes (especially if the mean and median are not similar) it is a good idea to report your center and spread with and without the outlier and see what kind of effect removing the outlier has on the distribution.


Boxplots
Boxplots Numerically

  • Complement histograms by providing more specific information

  • Look at histogram and boxplot together

  • Most useful when comparing distributions


Boxplots1
Boxplots Numerically

5-Number Summary: Minimum, 1st Quartile Score, Median, 3rd Quartile Score, Maximum
