  1. Design of Statistical Investigations 11 Nested Factors Stephen Senn SJS SDI_11

  2. Crossed Factors • So far the treatment and blocking factors we have considered have been “crossed”. • In principle every level of one could be observed with every level of the other. • Every treatment in each block • Or at least the same treatments in various blocks • Each level of a factor in combination with each of another SJS SDI_11

  3. Nested Factors • Sometimes some factors can only appear within other factors • Blocks with sub-blocks • Example: Patients within given group allocated a particular sequence • Episodes of treatment within patients • Treatments with sub-treatments • Such factors are “nested” SJS SDI_11

  4. Exp_15Nested “Treatments” • Suppose that we wish to compare two beta-agonists in asthma, formoterol and salmeterol • Formoterol has three formulations • solution, single-dose dry-powder inhaler, multi-dose dry-powder inhaler • Salmeterol has two • suspension, multi-dose dry powder inhaler SJS SDI_11

  5. Exp_15Treatment Structure SJS SDI_11

  6. Exp_15Treatments • From one point of view we have five treatments • defined by combination of molecule and formulation • We may have a hierarchy of interest • primarily to compare molecules • then to compare formulations within molecules • possibly delivery type within formulations SJS SDI_11

  7. Exp_15 • Possible factors (levels) • A: Treatments ( Formoterol, Salmeterol) • B: Formoterol formulation (Solution, Powder) • B*: Salmeterol formulation (Suspension, Powder) • C: Formoterol powder device (Single, Multi) • Note that B* is not really the same as B and each of the lower level factors only has meaning in the context of the higher level SJS SDI_11

  8. Wilkinson and Roger Notation We encountered this in connection with factorial designs Now we add an operator / for nested designs A/B = A + A:B Not that if B is a factor nested within A, it has no meaning on its own. Hence the main effect B does not exist on its own. NB In their original papers Applied Statistics,1973,22,392-399, W&R used  instead of : as used in S-PLUS SJS SDI_11

  9. Exp_13 • We encountered this example before • We could regard this as an example of a nested design • Treatments, placebo, ISF, MTA • Doses within treatments SJS SDI_11

  10. Exp_13As nested design SJS SDI_11

  11. Exp_13Nested Analysis > #As before but treat as nested factors fit2 <- aov(AUC ~ Patient + Period + Active/Formul/Dose, na.action = na.exclude) > summary(fit2, corr = F) Df Sum of Sq Mean Sq F Value Pr(F) Patient 157 80.29301 0.511420 70.5027 0.0000000 Period 4 0.02092 0.005230 0.7210 0.5777861 Active 1 1.63959 1.639591 226.0286 0.0000000 Formul %in% Active 1 0.66308 0.663078 91.4097 0.0000000 Dose %in% (Active/Formul) 4 0.22666 0.056664 7.8115 0.0000038 Residuals 603 4.37411 0.007254 SJS SDI_11

  12. Random Treatment Effects • We now pick up a theme we alluded to in lecture 10 • Cases where our principle interest is in random effects • not random blocks • random treatments • This example has nesting SJS SDI_11

  13. Exp_16Clarke and Kempson Example 13.1 Four labs, A,B,C,D. Six samples of uniform batch given to each. However a sample intended for A is sent to B by mistake SJS SDI_11

  14. Fixed or Random? • If we are interested in the performance of these four labs, we can consider them as fixed • However we may be interested in using them to tell us how measurements vary in general from lab to lab • If they are a sample of such labs, we could consider the effects as random SJS SDI_11

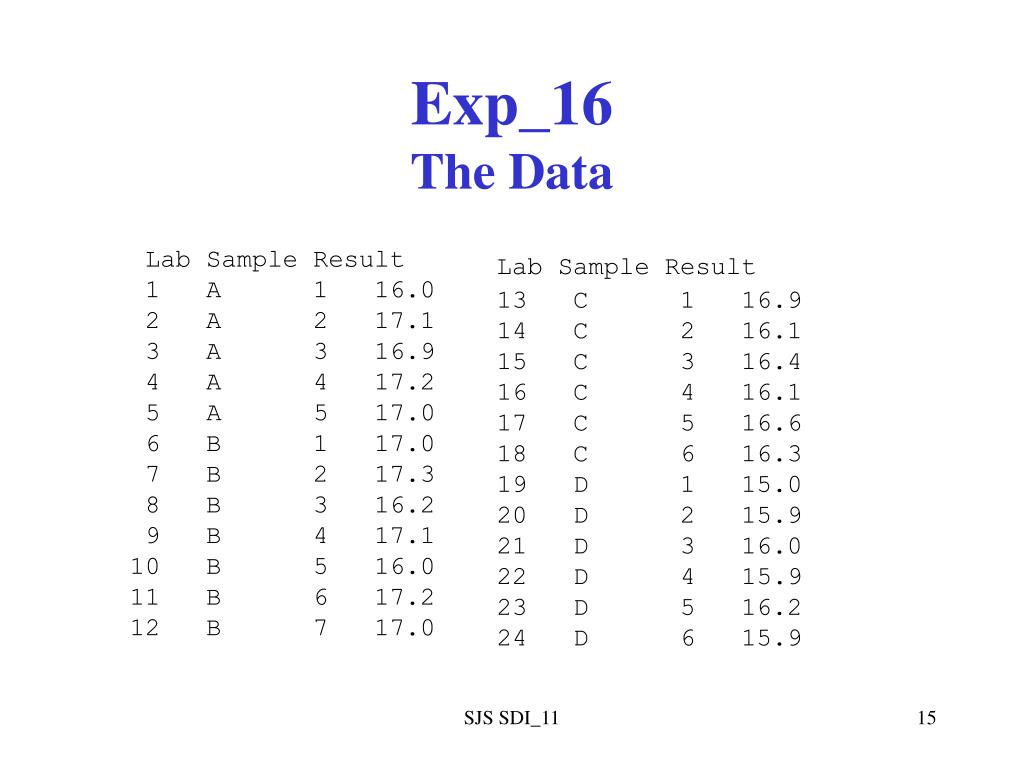

  15. Exp_16The Data Lab Sample Result 1 A 1 16.0 2 A 2 17.1 3 A 3 16.9 4 A 4 17.2 5 A 5 17.0 6 B 1 17.0 7 B 2 17.3 8 B 3 16.2 9 B 4 17.1 10 B 5 16.0 11 B 6 17.2 12 B 7 17.0 • Lab Sample Result • 13 C 1 16.9 • 14 C 2 16.1 • 15 C 3 16.4 • 16 C 4 16.1 • 17 C 5 16.6 • 18 C 6 16.3 • 19 D 1 15.0 • 20 D 2 15.9 • 21 D 3 16.0 • 22 D 4 15.9 • 23 D 5 16.2 • 24 D 6 15.9 SJS SDI_11

  16. SJS SDI_11

  17. Model SJS SDI_11

  18. Sums of Squares & Expectations SJS SDI_11

  19. SJS SDI_11

  20. ANOVA SJS SDI_11

  21. Calculations Exp_16 SJS SDI_11

  22. ANOVA Exp_16 SJS SDI_11

  23. Exp_16Components of Variance SJS SDI_11

  24. Exp_16S-PLUS Analysis > is.random(one.frame) <- T > varcomp.1 <- varcomp(Result ~ Lab, data = one.frame, method = "reml") > summary(varcomp.1) Call: varcomp(formula = Result ~ Lab, data = one.frame, method = "reml") Variance Estimates: Variance Lab 0.2000226 Residuals 0.1927181 Method: reml Approximate Covariance Matrix of Variance Estimates: Lab Residuals Lab 0.03612192 -0.00063555 Residuals -0.00063555 0.00379463 SJS SDI_11

  25. Exp_14 Revisited • > #Variance components analysis • Subject.ran <- data.frame(Subject) • > is.random(Subject.ran) <- T • > varcomp(lAUC ~ Subject + Formulation, data = Subject.ran) • Variances: • Subject Residuals • 0.0766226 0.003424223 • > varcomp(lAUC ~ Subject * Formulation, data = Subject.ran) • Variances: • Subject Subject:Formulation Residuals • 0.07679968 -0.0005244036 0.003764744 SJS SDI_11
