Presentation Transcript


Iso iec 15693 standard

ISO/IEC 15693 standard

J.-D. Chatelain


Iso iec 15693 standard

ISO/IEC 15693

Communication softwares

between operator’s console and TAG

Commands

between

operator’s console and RWM

Commands

between

RWM and TAG

Read/Write Module

TAG

Operator’s console

ISO/IEC 15693


Iso iec 15693 standard

ISO/IEC 15693

Communication interface RWM to TAG

  • Carrier frequency: 13.56 MHz ± 7kHz

  • ASK modulation 100%

and 10%


Iso iec 15693 standard

ISO/IEC 15693

Coding the information

Two types of coding are supported by the transponders

fully compliant with ISO 15693:

1 out of 256: one byte is coded at a time

Example: coding 197 = <C5> = 11000101

time


Iso iec 15693 standard

ISO/IEC 15693

Coding the information

1 out of 4: two bits are coded at a time

00

01

10

11

Example: coding 197 = <C5> = 11000101

time


Iso iec 15693 standard

ISO/IEC 15693

Start Of Frame (SOF) - End Of Frame (EOF)

Start of frame sequence to select

the « 1 out of 256 » coding mode

Start of frame sequence to select

the « 1 out of 4 » coding mode

End of frame sequence

for both coding modes


Iso iec 15693 standard

ISO/IEC 15693

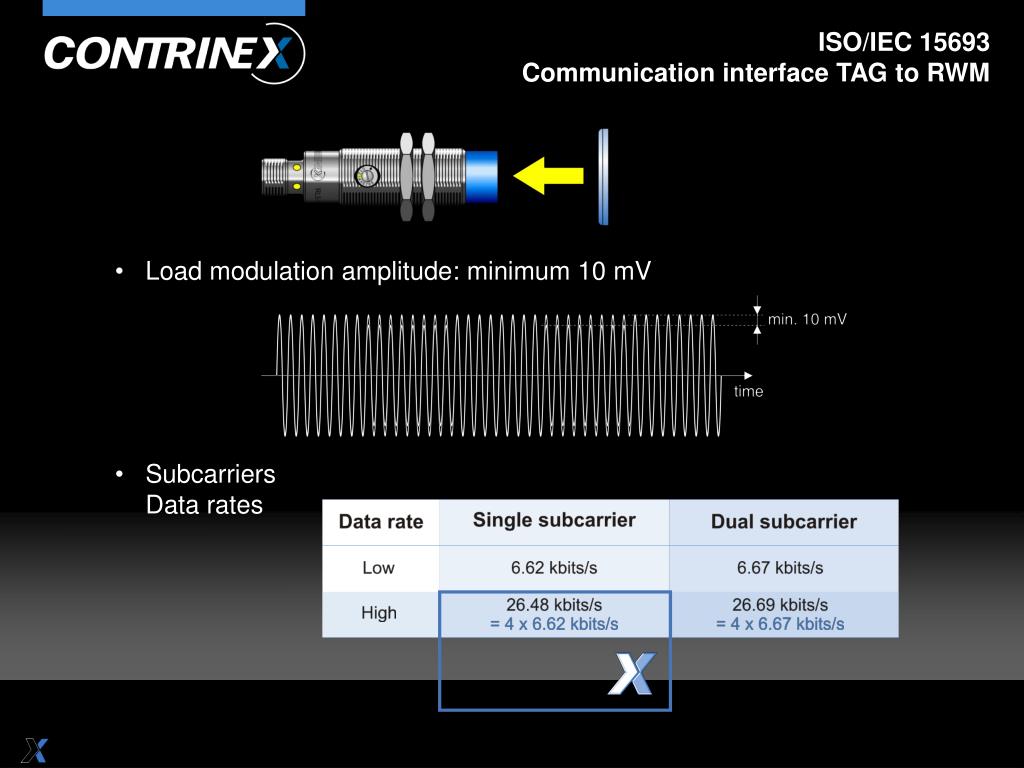

Communication interface TAG to RWM

  • Load modulation amplitude: minimum 10 mV

  • Subcarriers

  • Data rates


Iso iec 15693 standard

ISO/IEC 15693

Bit coding

Single subcarrier

Dual subcarrier

“0”

“1”


Iso iec 15693 standard

ISO/IEC 15693

Start Of Frame (SOF)

End Of Frame (EOF)

Single subcarrier

Dual subcarrier

SOF

EOF


Iso iec 15693 standard

ISO/IEC 15693

Commands supported by the tag


Iso iec 15693 standard

ISO/IEC 15693 standard

End of this chapter

J.-D. Chatelain
