  1. Anatomic and FunctionalGuidance of Neurosurgery. Robert L. Galloway Jr. Associate Professor of Biomedical Engineering and Neurosurgery Director, Center for Technology-Guided Therapy TGT

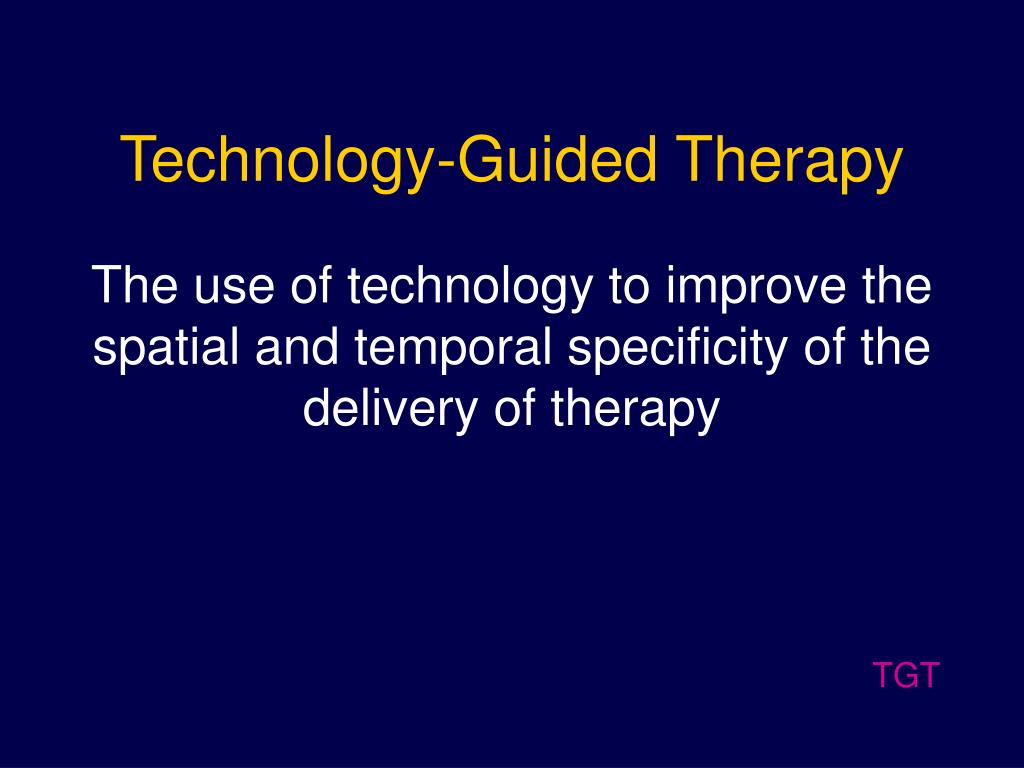

  2. Technology-Guided Therapy The use of technology to improve the spatial and temporal specificity of the delivery of therapy TGT

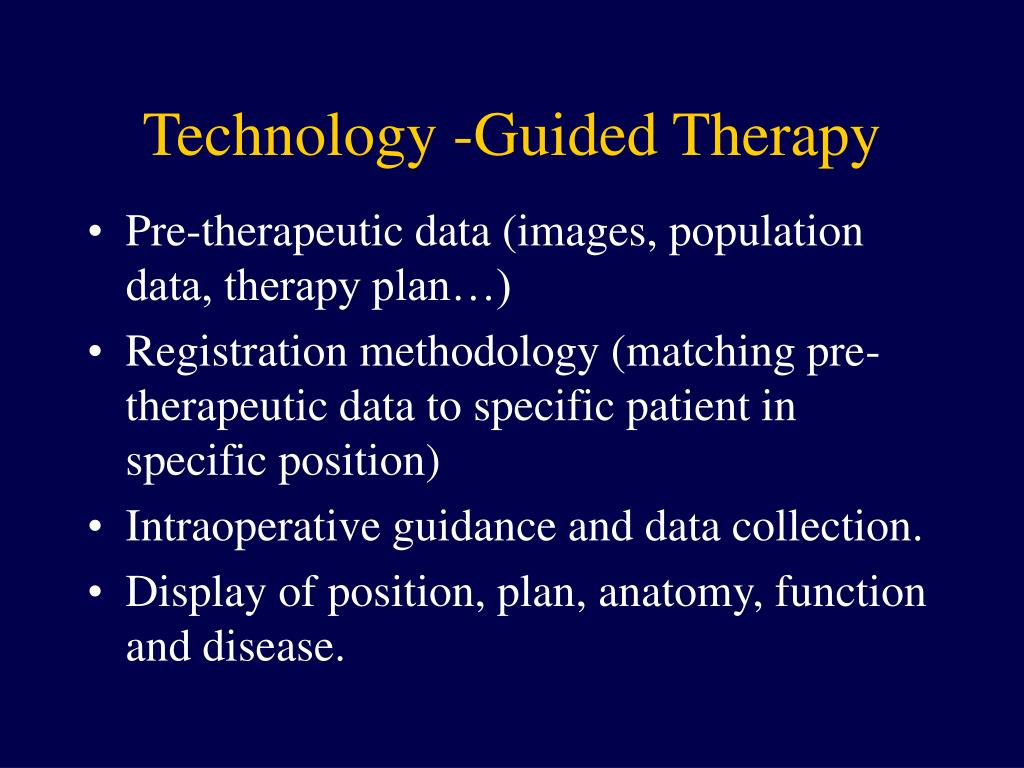

  3. Technology -Guided Therapy • Pre-therapeutic data (images, population data, therapy plan…) • Registration methodology (matching pre-therapeutic data to specific patient in specific position) • Intraoperative guidance and data collection. • Display of position, plan, anatomy, function and disease.

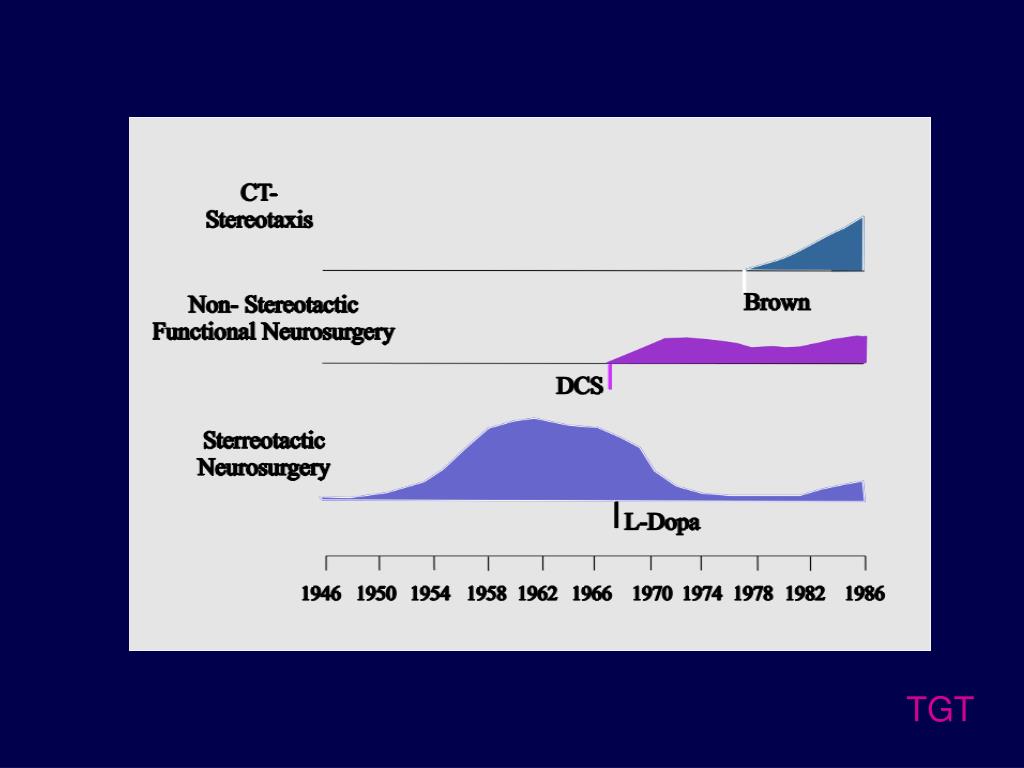

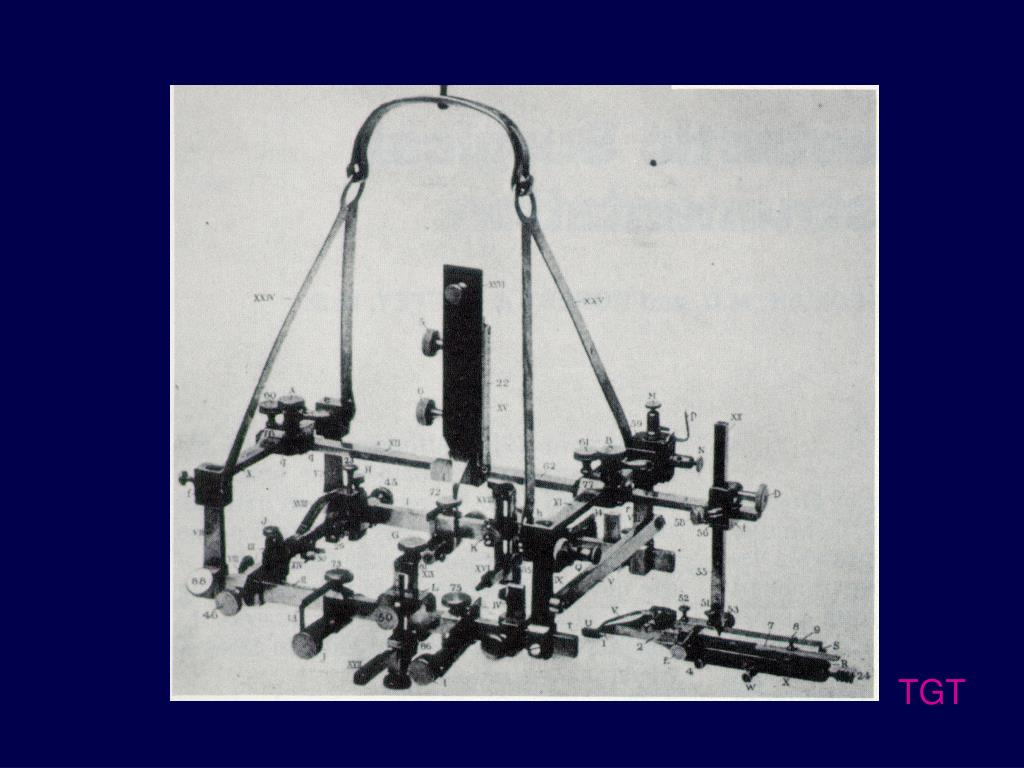

  4. History of Image-Guided Therapy • 1896 J.H. Clayton. X-Ray use in surgery • 1904 Horsley and Clarke. Stereotactic frame • 1946 Spiegel and Wycis. Stereotactic frame using xrays. • 1940’s~1950s: Leksell, Riechert-Mundinger, Talairach, Cooper... TGT

  5. TGT

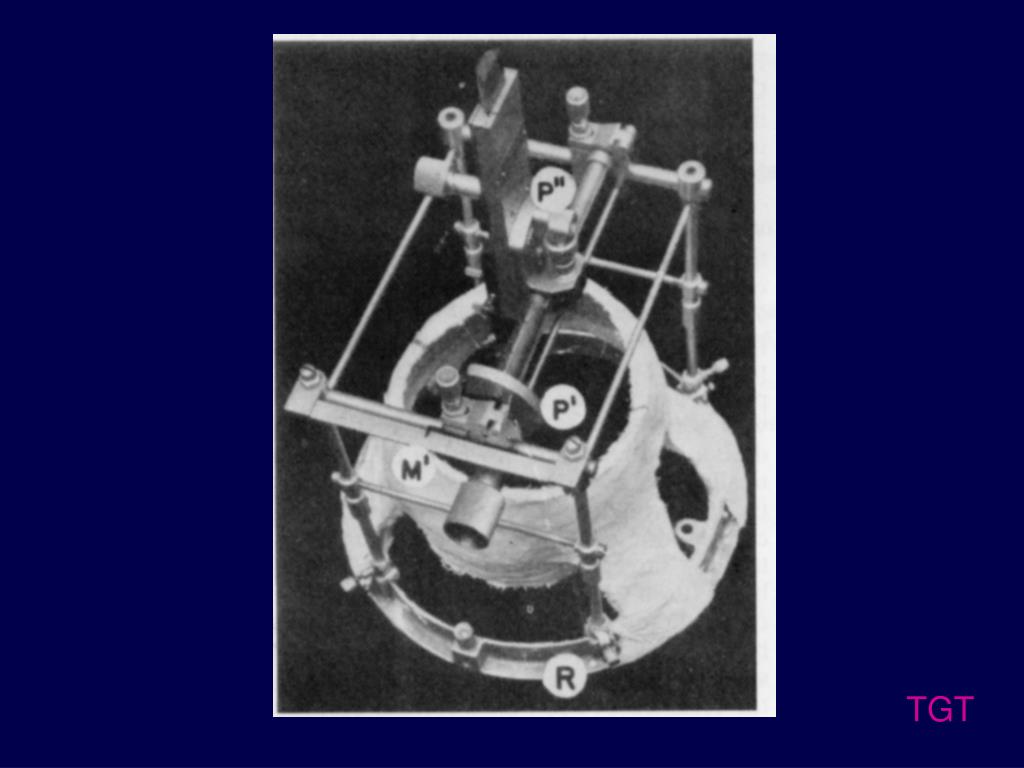

  6. TGT

  7. Problems with X-Ray film Stereotaxy • Target must be clearly visible in both images • Lack of apparent relationship between arc settings and position. • Best for electrophysiology-based ablation TGT

  8. TGT

  9. TGT

  10. TGT

  11. TGT

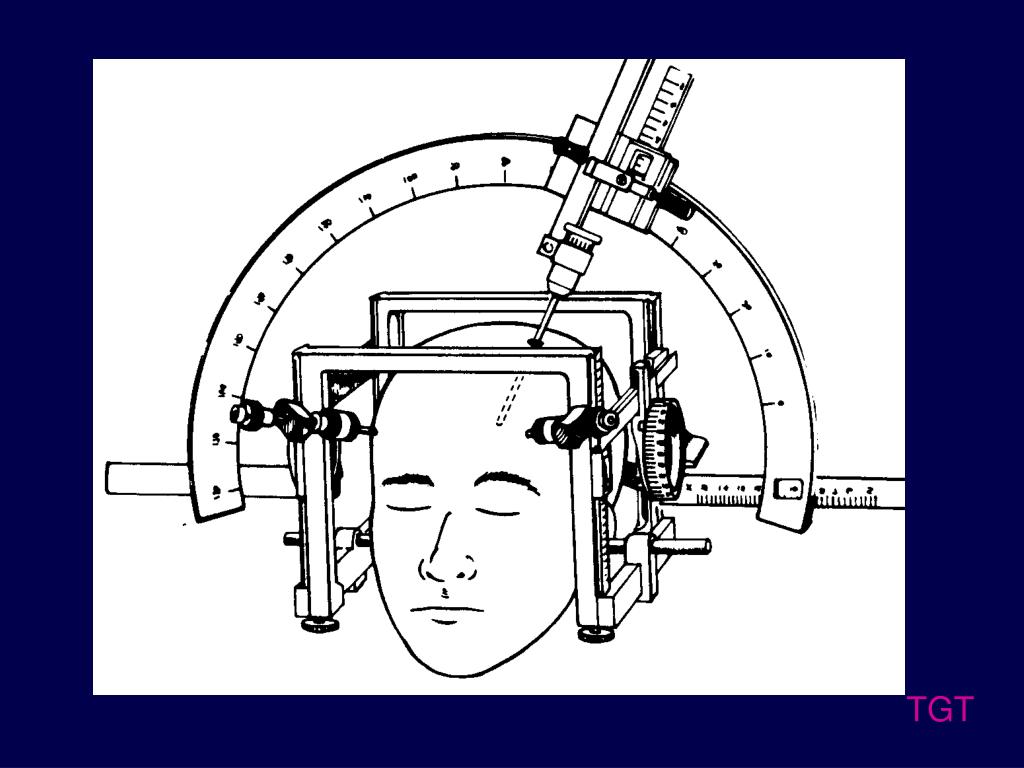

  12. Problems with Frame-Based Stereotaxy • Still point-based • Frame obstructs surgical field • Arc-based approach obscures relationship between target points and arc settings. TGT

  13. TGT

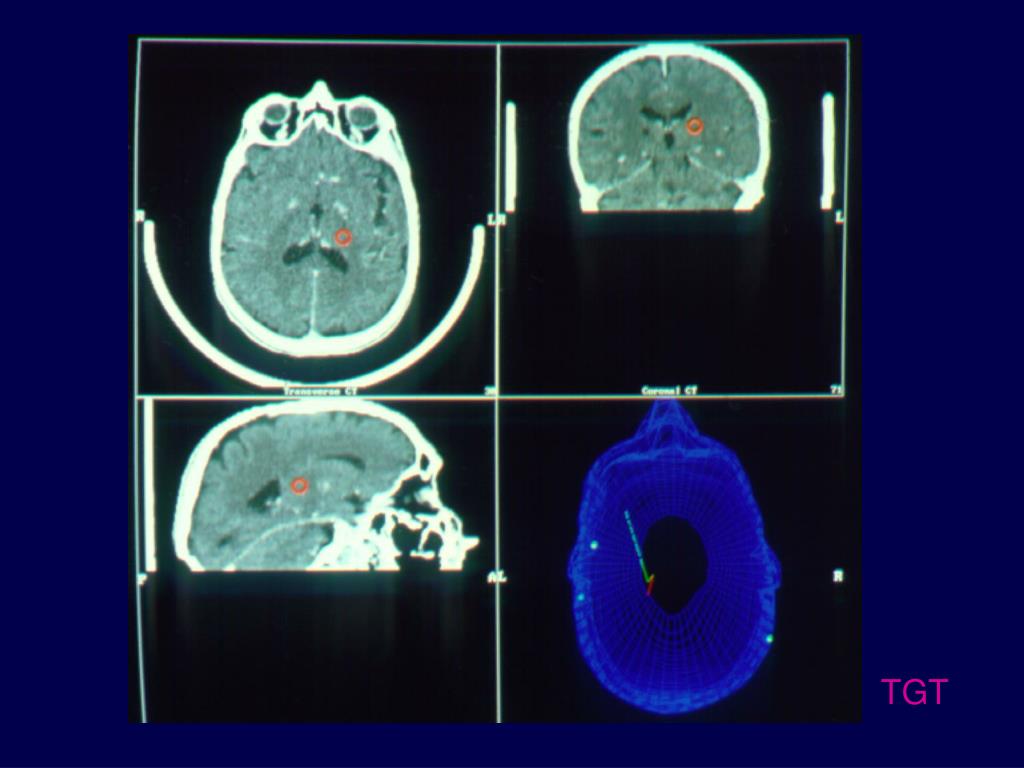

  14. TGT

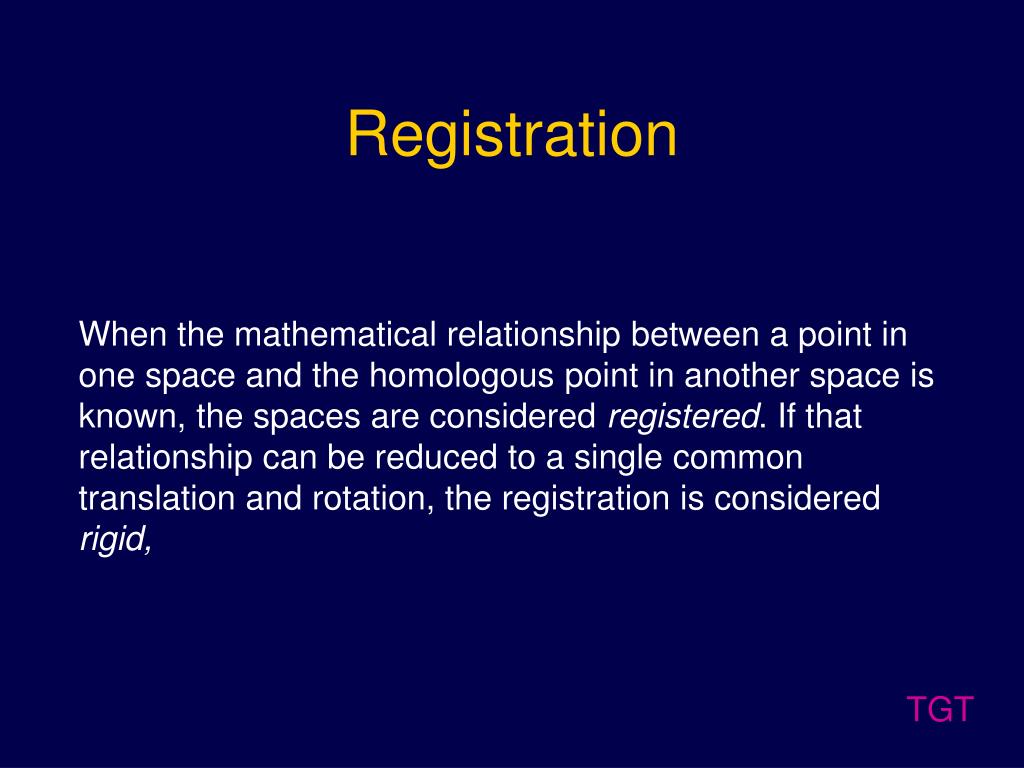

  15. Registration When the mathematical relationship between a point in one space and the homologous point in another space is known, the spaces are considered registered. If that relationship can be reduced to a single common translation and rotation, the registration is considered rigid, TGT

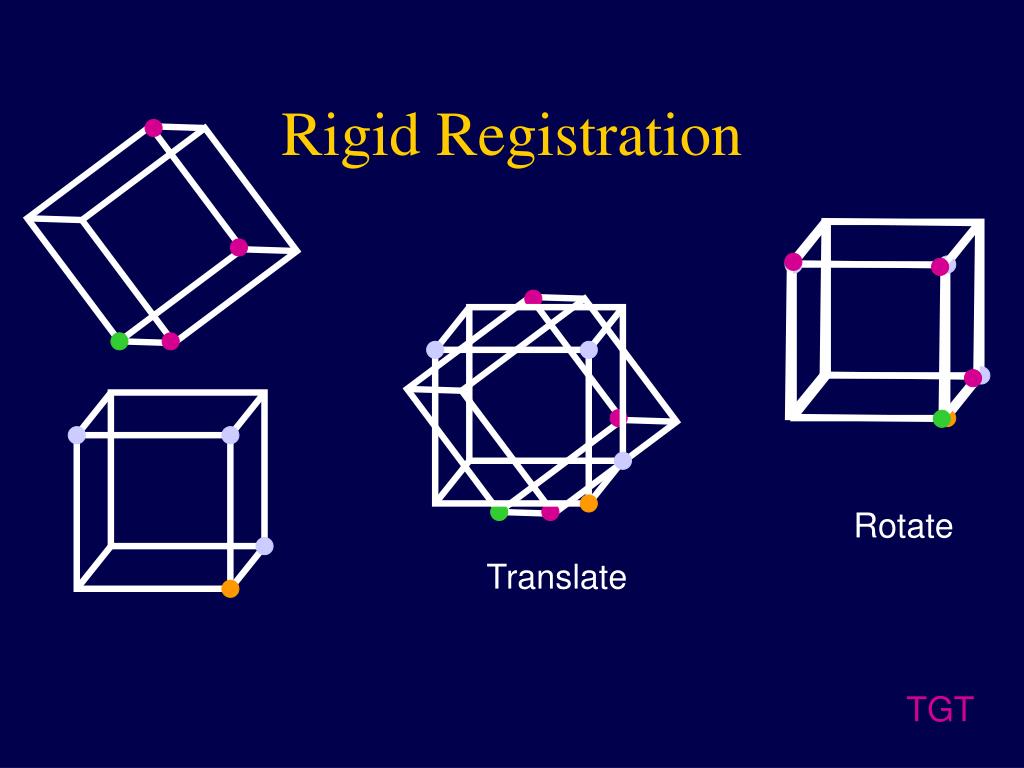

  16. Rigid Registration Rotate Translate TGT

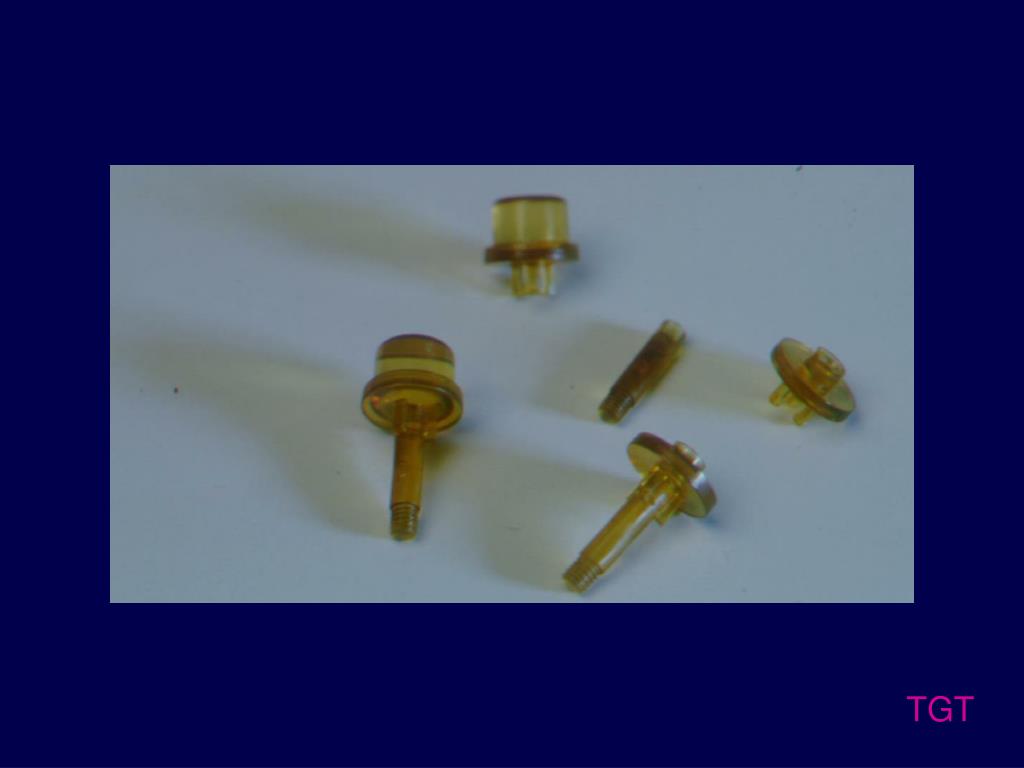

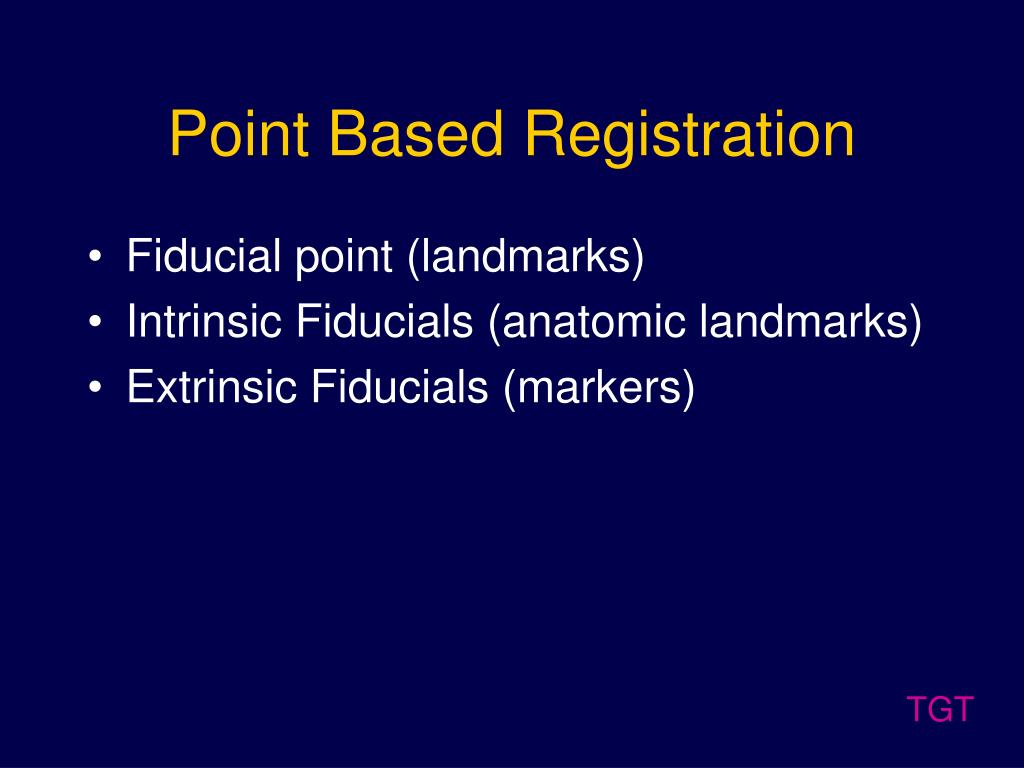

  17. Point Based Registration • Fiducial point (landmarks) • Intrinsic Fiducials (anatomic landmarks) • Extrinsic Fiducials (markers) TGT

  18. TGT

  19. TGT

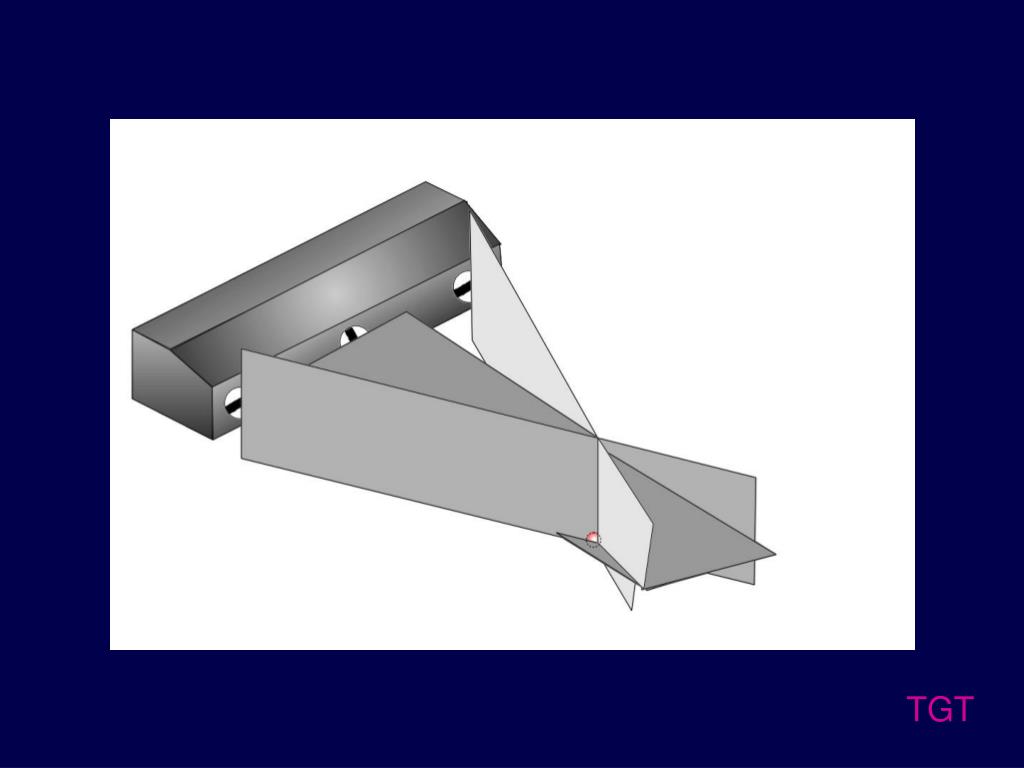

  20. TGT

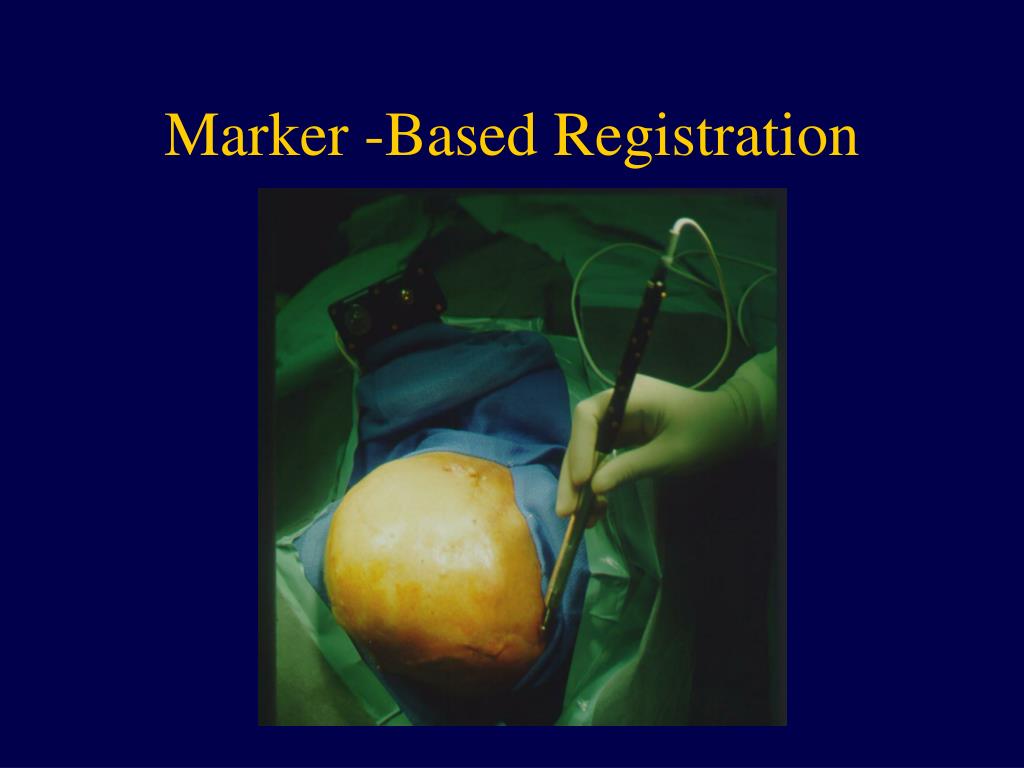

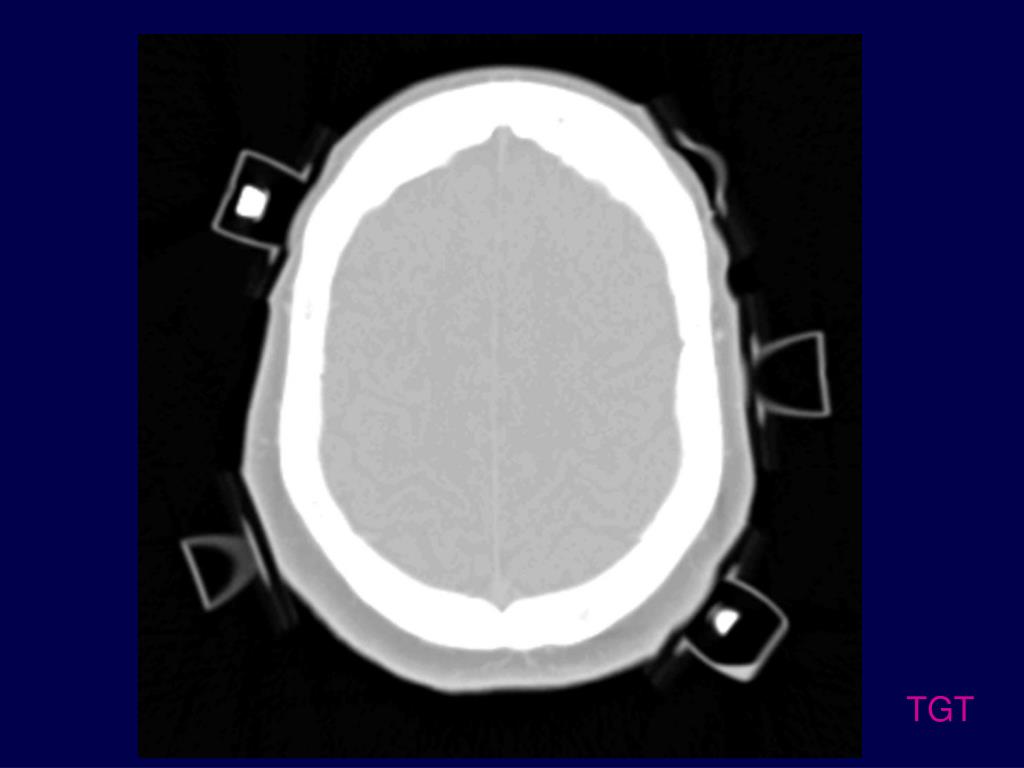

  21. Marker -Based Registration

  22. TGT

  23. New Methods of Registration Surface-Based Registration

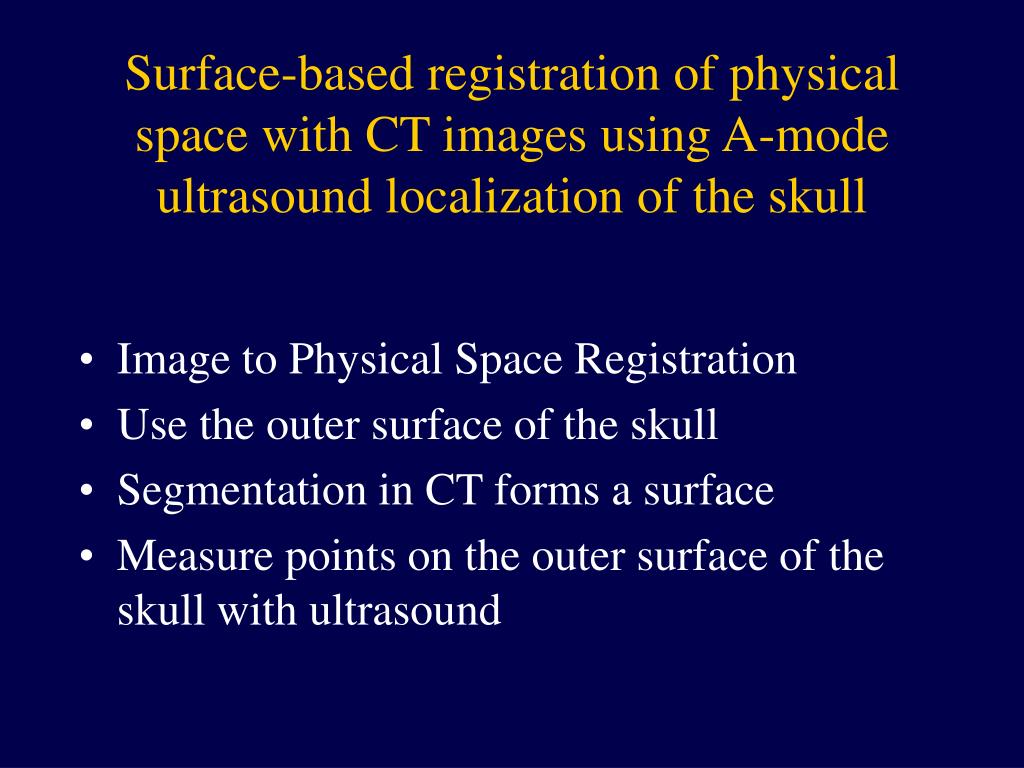

  24. Surface-based registration of physical space with CT images using A-mode ultrasound localization of the skull • Image to Physical Space Registration • Use the outer surface of the skull • Segmentation in CT forms a surface • Measure points on the outer surface of the skull with ultrasound

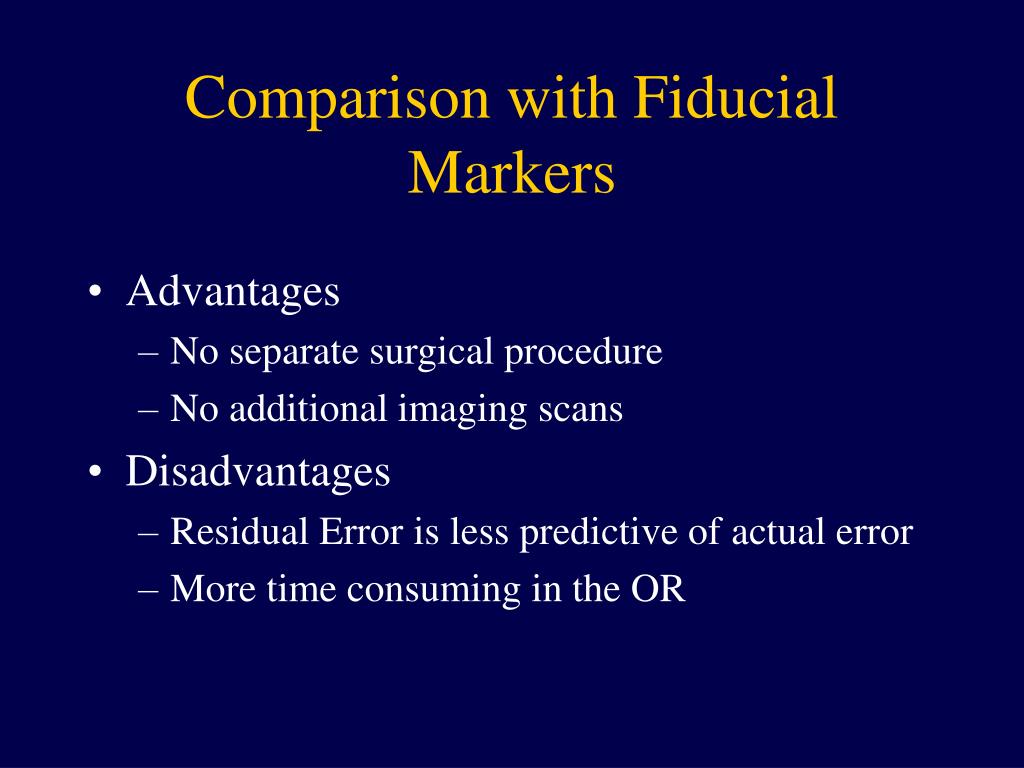

  25. Comparison with Fiducial Markers • Advantages • No separate surgical procedure • No additional imaging scans • Disadvantages • Residual Error is less predictive of actual error • More time consuming in the OR

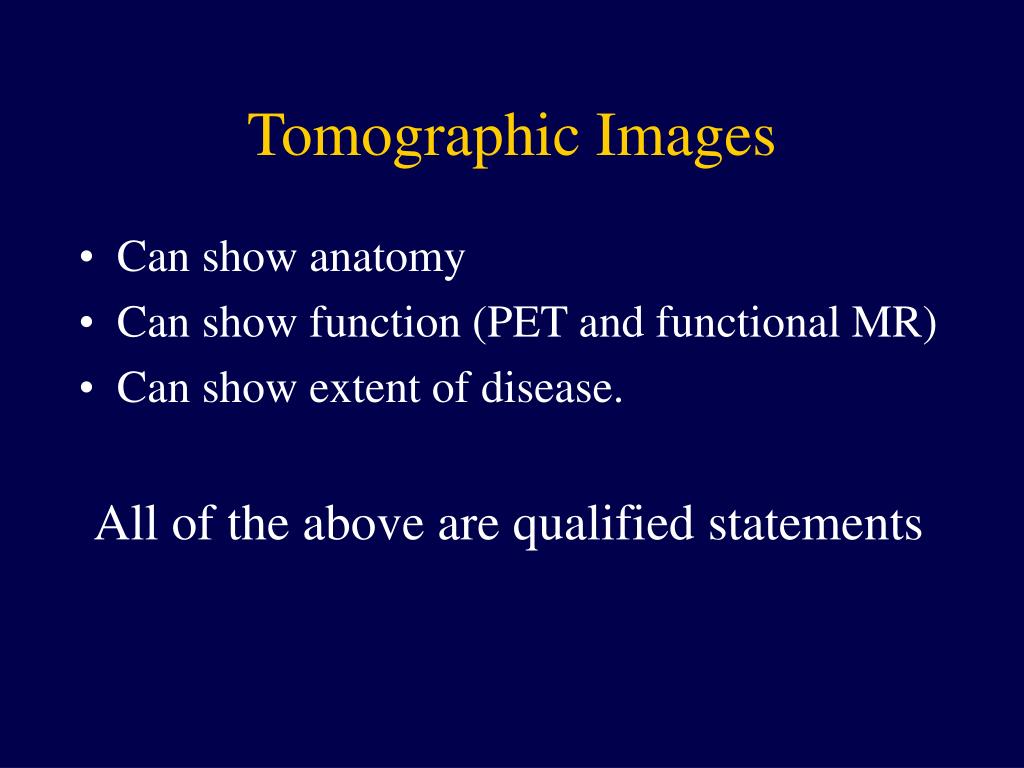

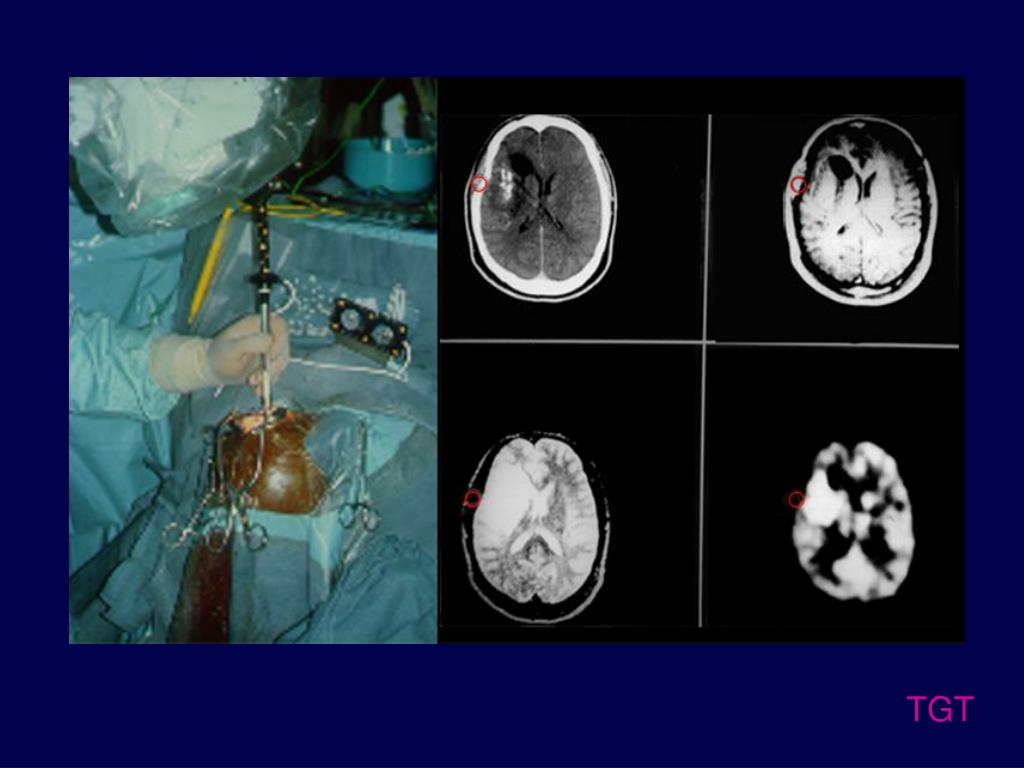

  26. Tomographic Images • Can show anatomy • Can show function (PET and functional MR) • Can show extent of disease. All of the above are qualified statements

  27. TGT

  28. TGT

  29. TGT

  30. TGT

  31. Surface Normal Uncertainty Surface TGT

  32. TGT

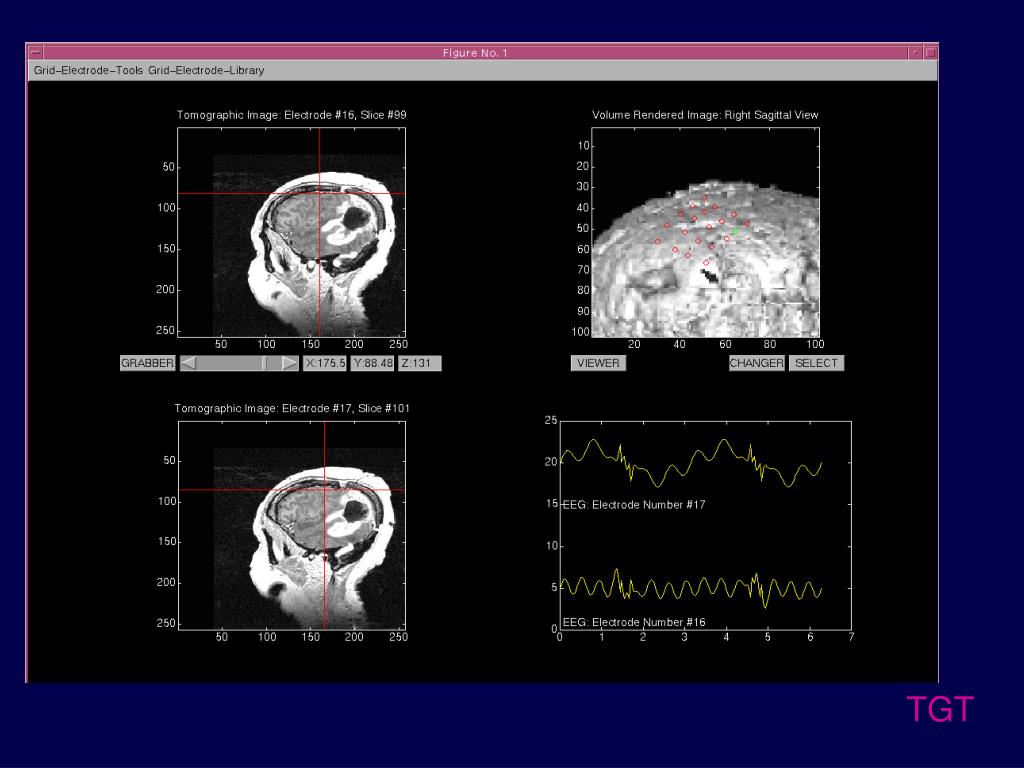

  33. TGT

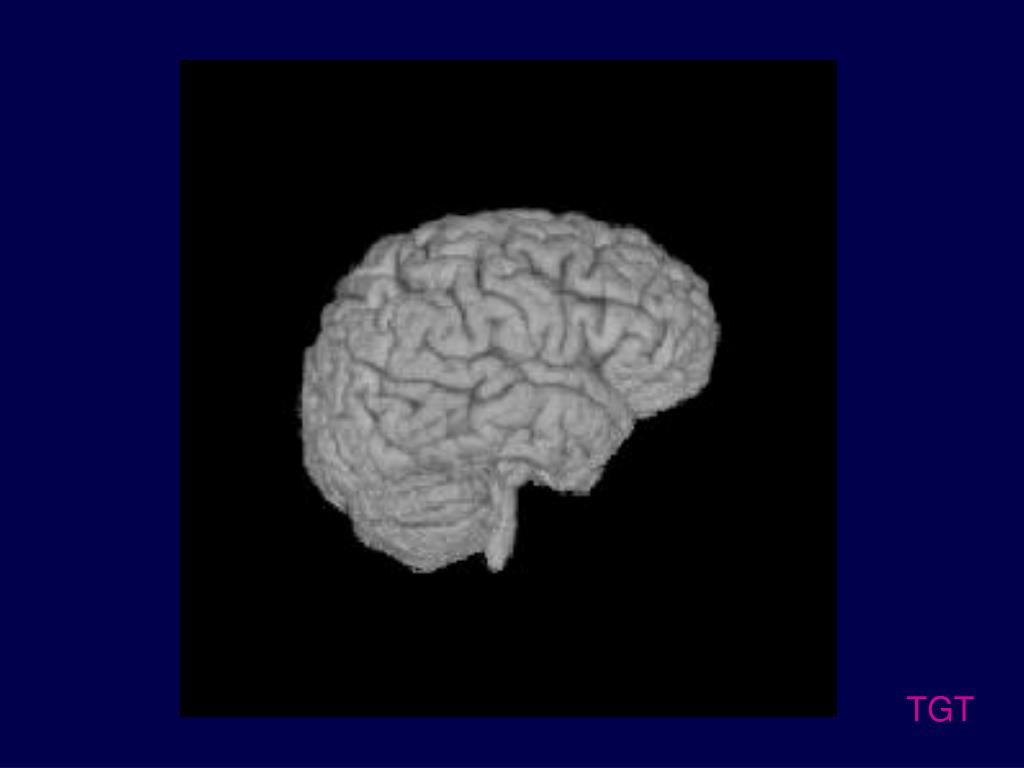

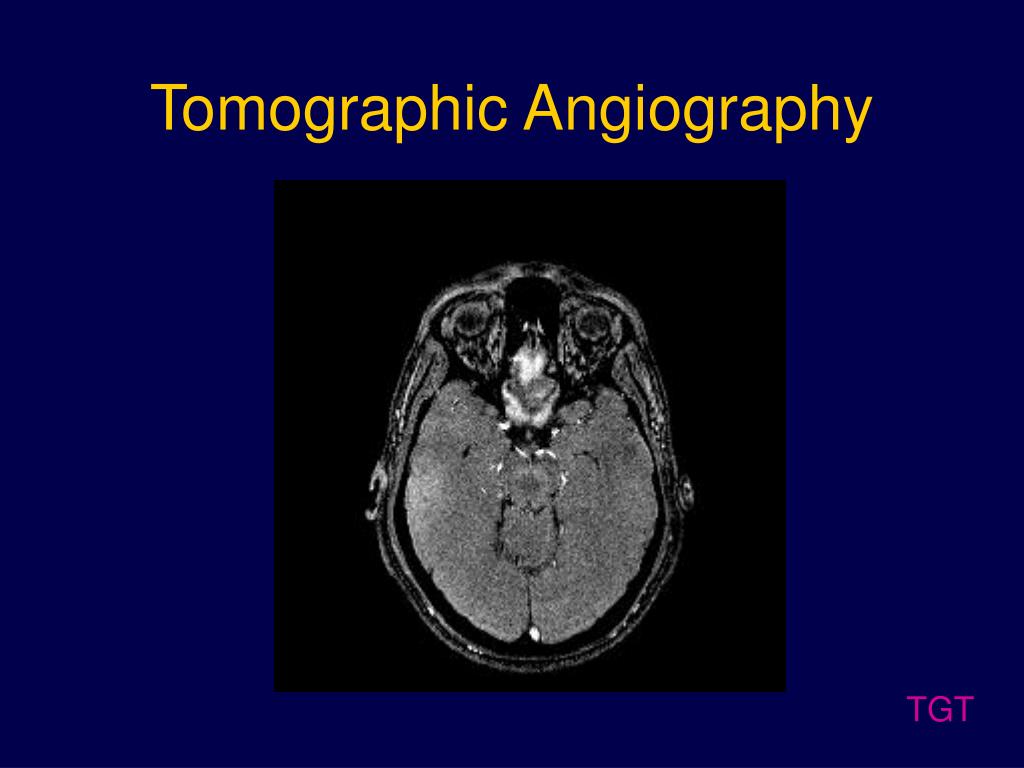

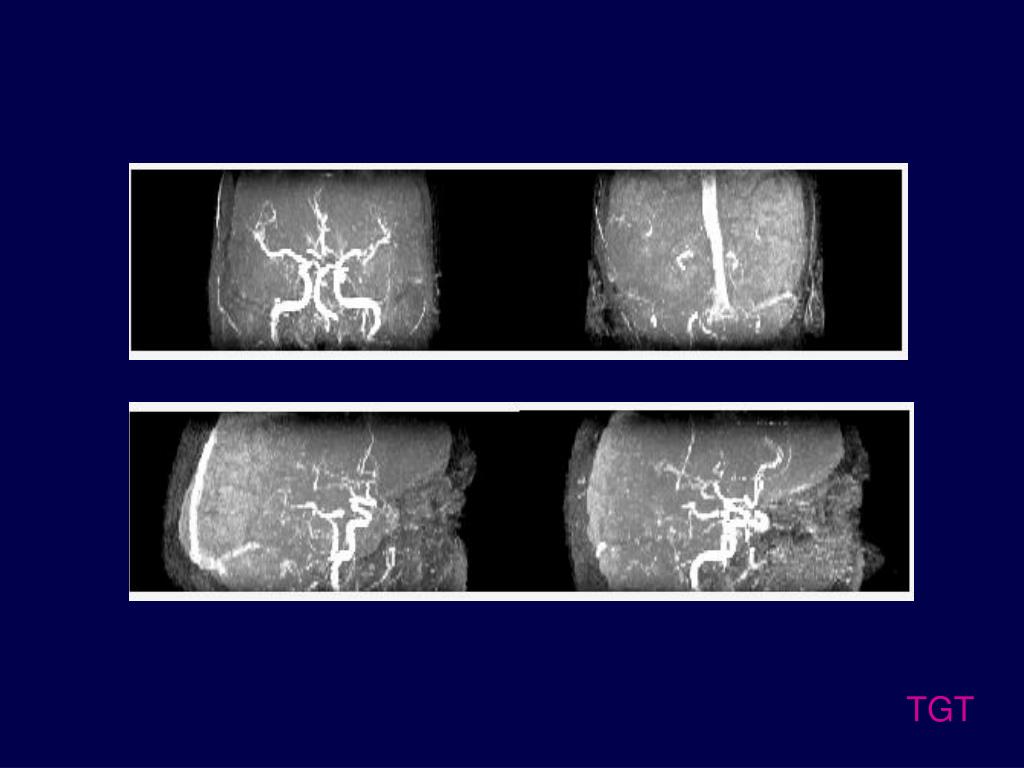

  34. Tomographic Angiography TGT

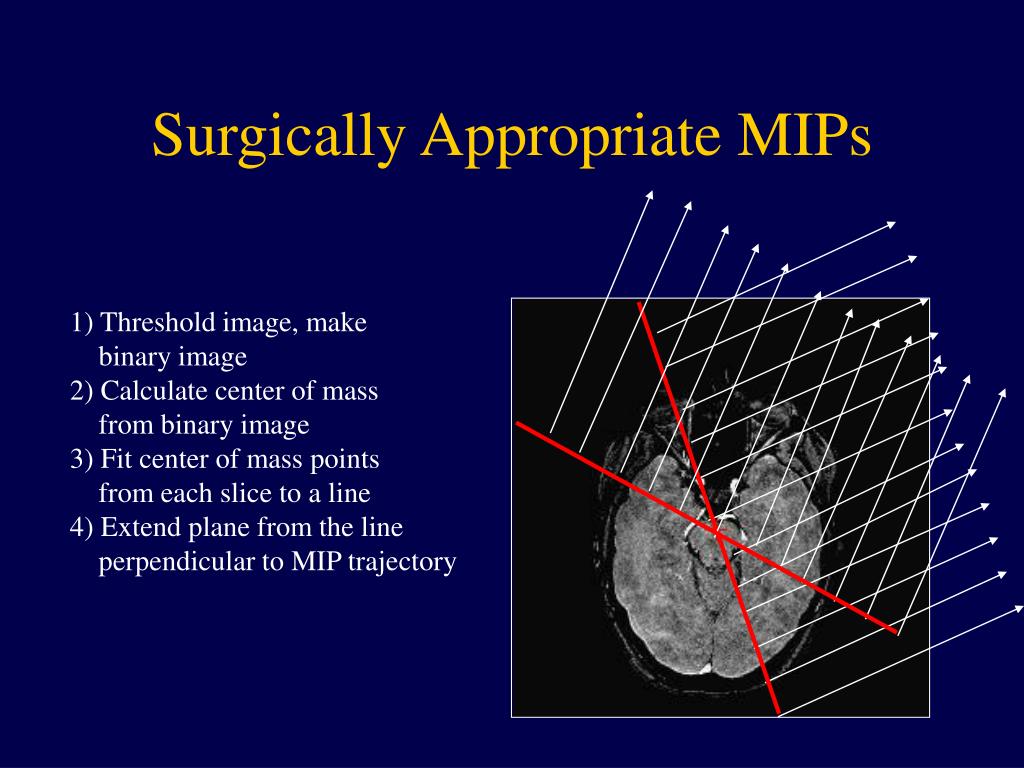

  35. Surgically Appropriate MIPs 1) Threshold image, make binary image 2) Calculate center of mass from binary image 3) Fit center of mass points from each slice to a line 4) Extend plane from the line perpendicular to MIP trajectory

  36. TGT

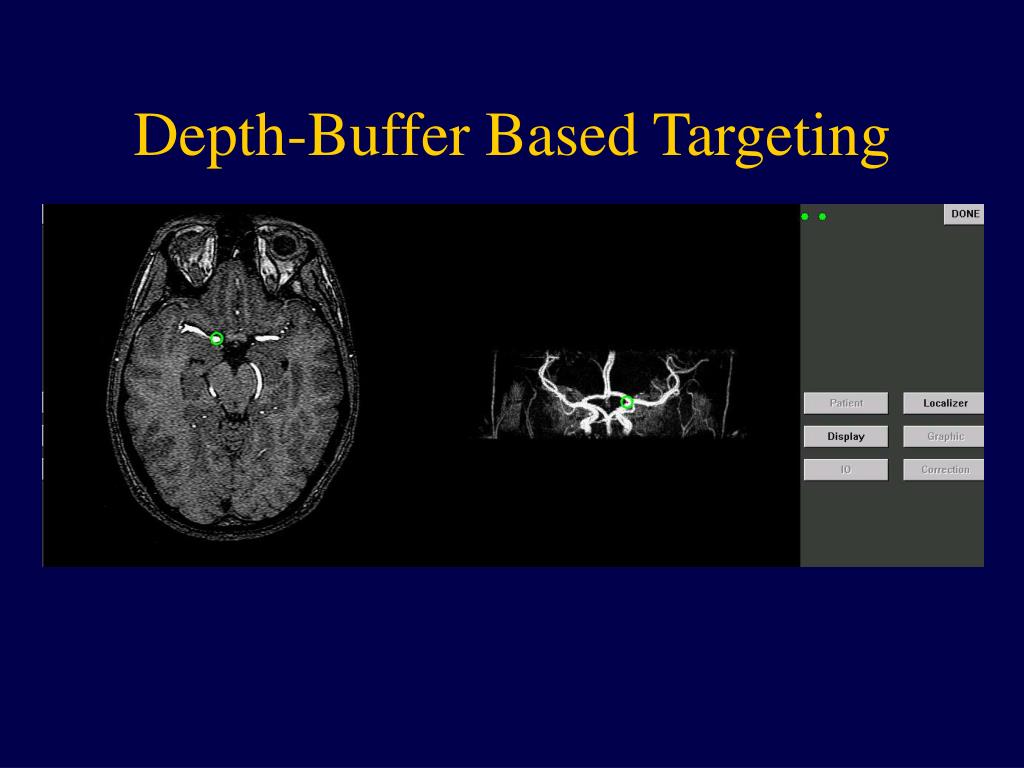

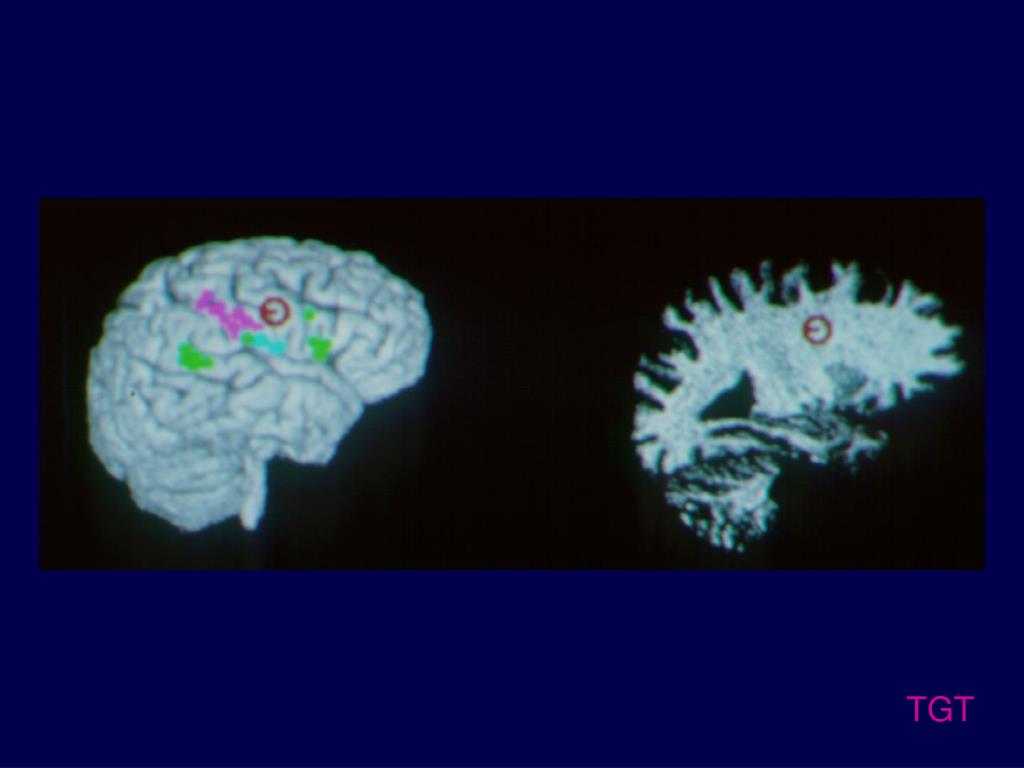

  37. Depth-Buffer Based Targeting

  38. Depth-Buffer Based Targeting

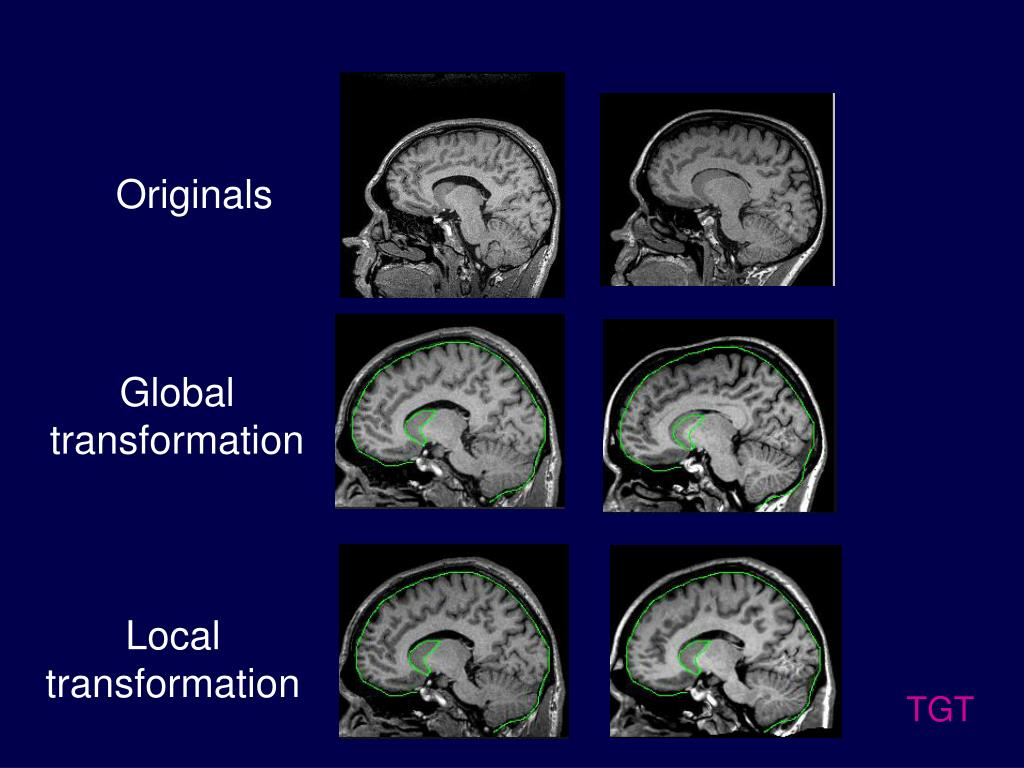

  39. Originals Global transformation Local transformation TGT

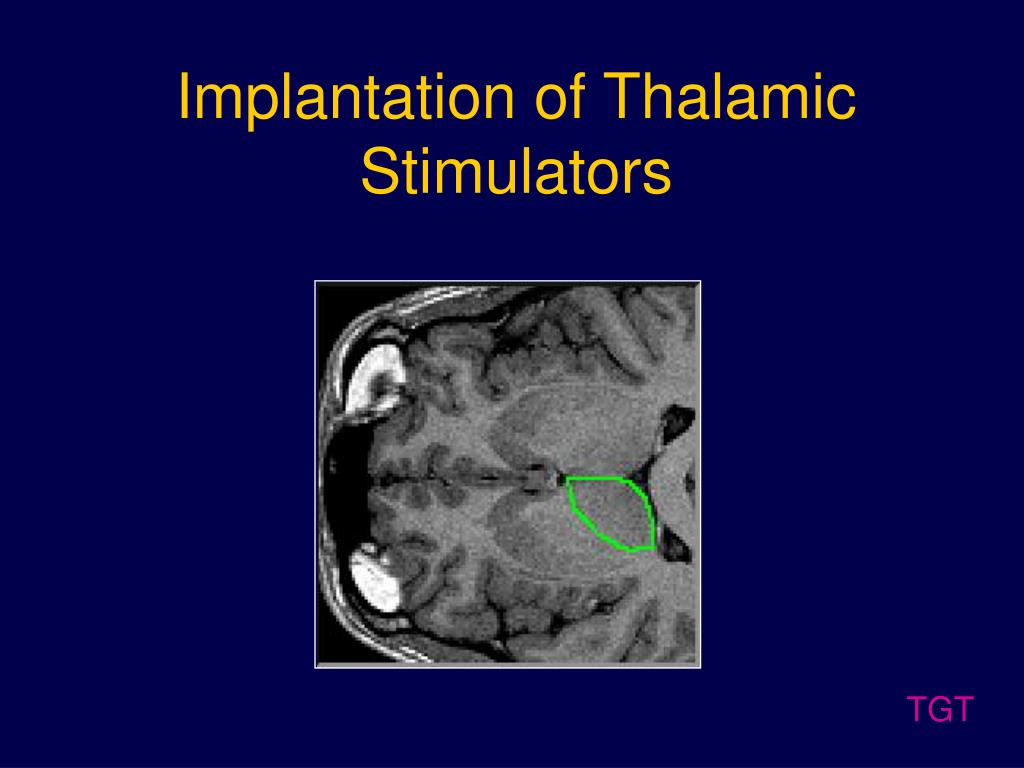

  40. Implantation of Thalamic Stimulators TGT

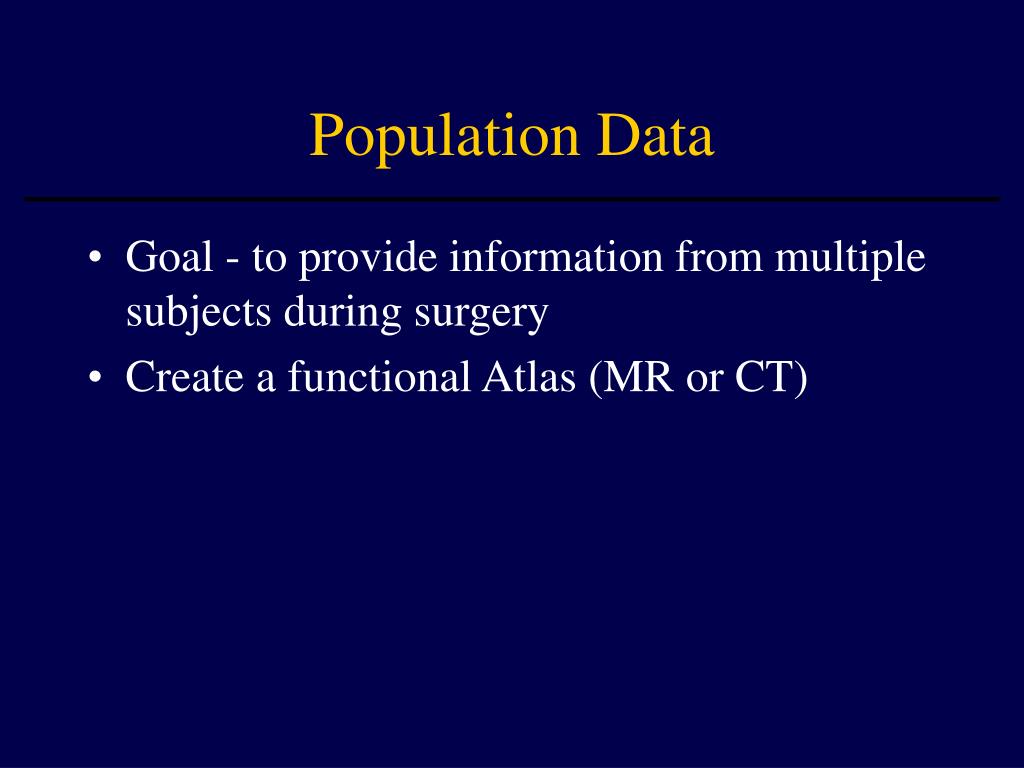

  41. Population Data • Goal - to provide information from multiple subjects during surgery • Create a functional Atlas (MR or CT)

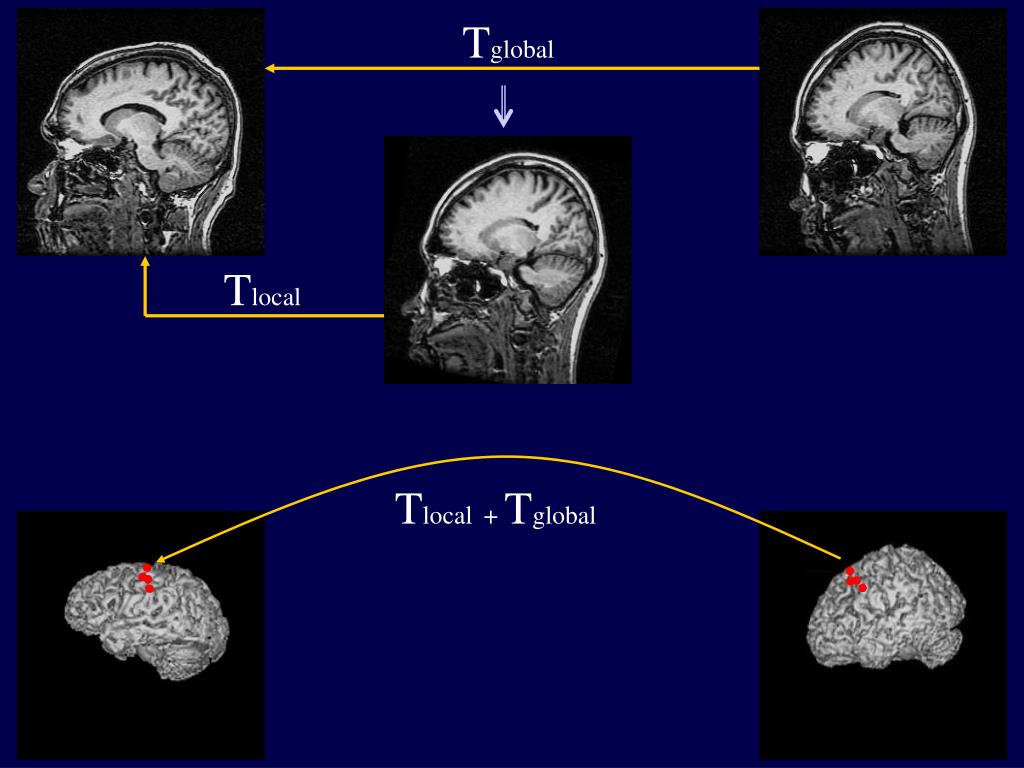

  42. Tglobal Tlocal Tlocal+ Tglobal

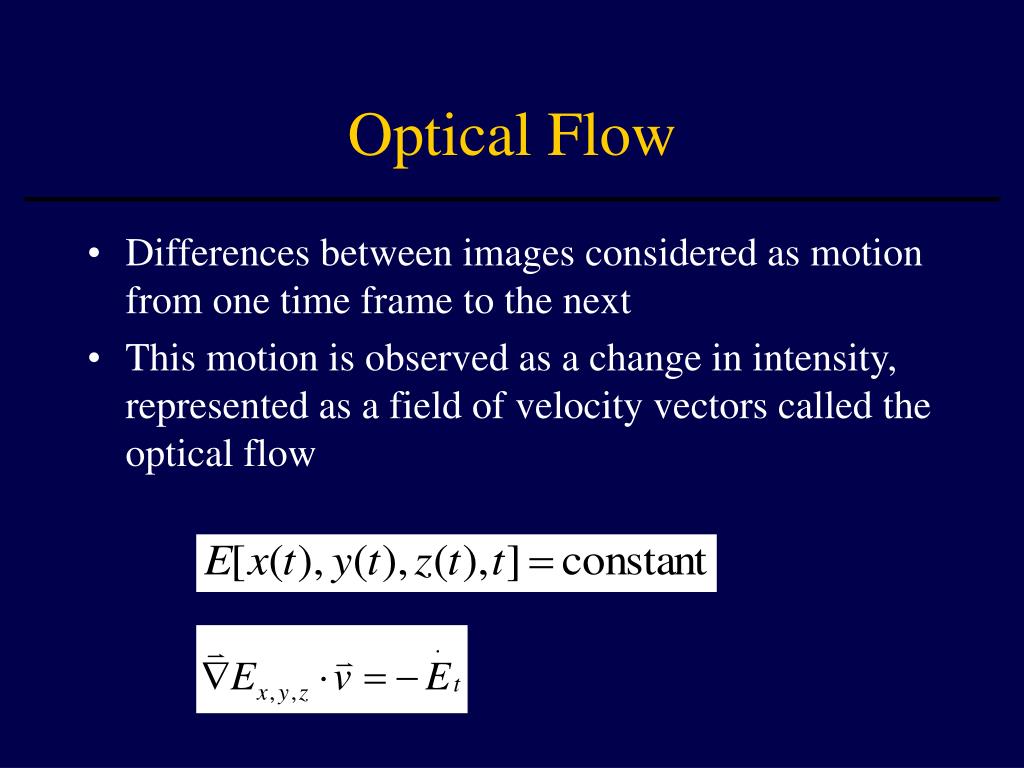

  43. Optical Flow • Differences between images considered as motion from one time frame to the next • This motion is observed as a change in intensity, represented as a field of velocity vectors called the optical flow

  44. Atlas Atlas  Patient Patient

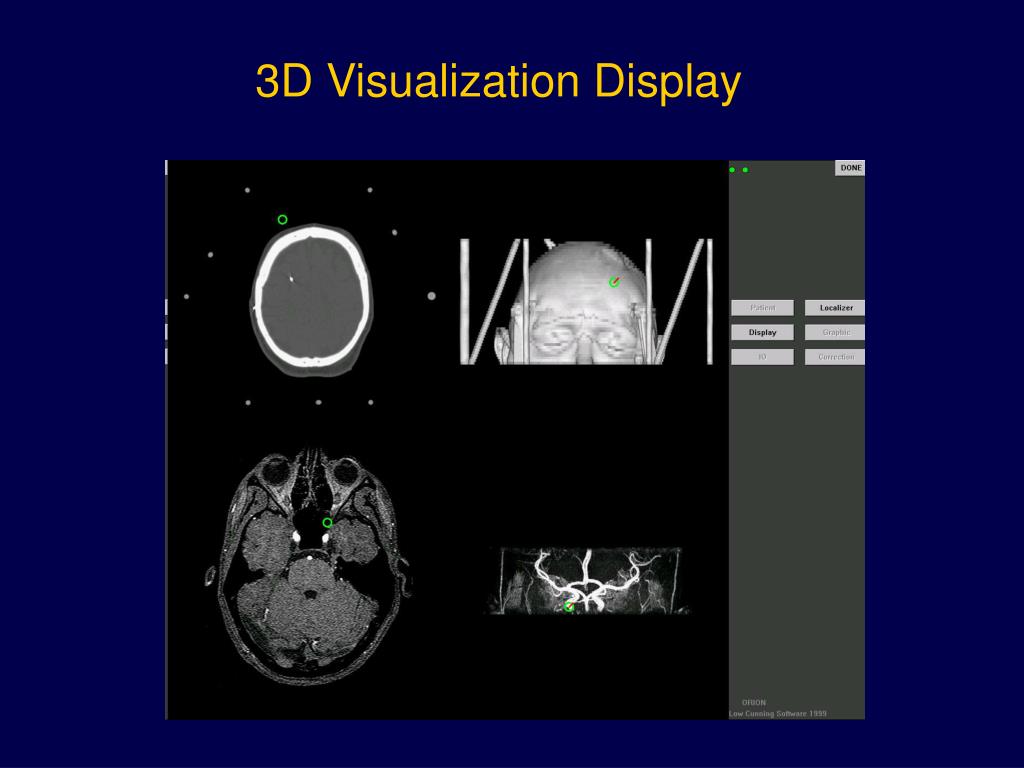

  45. 3D Visualization Display
