Pierre BlouchE-SURFMAR Programme Manager

SOT-4 – Geneva – 16-21 April 2007


Introduction

Introduction

VOS-TAG4 – Geneva – 12-13 April 2007


E surfmar

E-SURFMAR

  • Surface Marine Observation Programme EUMETNET

    • E-SURFMAR is an optional programme of the ground based EUMETNET Composite Observing System (EUCOS)

    • EUMETNET is the Conference of European National Meteorological Services (21 members in Jan. 2007)

    • 16 countries are participating in E-SURFMAR:Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Netherlands, Norway, Portugal, Spain, Sweden and United Kingdom

    • E-SURFMAR includes Voluntary Observing Ships (VOS) and Data Buoysactivities

    • E-SURFMAR represents ~45% of the "active" VOS in the World but 54% of the VOS observations(Sea Level Pressure)

SOT-4 – Geneva – 16-21 April 2007


Objectives and funding

Objectives and funding

  • Present main objectives

    • E-SURFMAR: to co-ordinate, optimise and progressively integrate the surface marine observation activities within the operational EUCOS framework

    • EUCOS: to optimise the ground observing system to improve short range forecasts over Europe (NWP)

Although the improving of short range forecasts over Europe is the main objective,VOS observations carried out by EUMETNET VOS outside the North Atlantic and its adjacent seas are also supported by the E-SURFMAR Programme(e.g. as a contribution to the WWW)

  • Funding

    • E-SURFMAR: is funded through contributions from participants

    • The share is based on the respective GNI of each participating country

SOT-4 – Geneva – 16-21 April 2007


Vos technical advisory group 1

VOS Technical Advisory Group (1)

  • Established in 2003

  • 4th meetinglast week : Geneva, 12-13 April 2007

  • Chair: Sara North (UK Met Office)

  • Vice-Chair: Volker Weidner (DWD)

VOS-TAG4 – Geneva – 12-13 April 2007


Vos technical advisory group 2

VOS Technical Advisory Group (2)

  • Terms of Reference (extracts)

    • Develop strategies to optimise the receipt of observations from VOS

    • Develop strategies to optimise and co-ordinate the ship recruitment and inspection regimes

    • Evaluate and develop future strategies for the use of automatic observing systems and electronic coding software

    • Investigate the possibility of establishing a more equitable means of distributingtransmission costs

    • Discuss and agree on financial arrangements to enable equitable funding

    • Optimise method of collection of metadata in accordance with WMO document n°47

    • Liase closely with JCOMM activities

VOS-TAG4 – Geneva – 12-13 April 2007


Data availability

Data Availability

VOS-TAG4 – Geneva – 12-13 April 2007


Network overview

Network Overview

Surface MarineObservations inthe EUCOS area

Feb. 2007

SOT-4 – Geneva – 16-21 April 2007


Vos ships

VOS Ships

Number of active shipsinto the EUCOS area

E-SURFMAR

E-SURFMAR

Automated VOS (AWS)

Conventional VOS

In 2006, EUMETENET VOS represented 48% of the world fleet (55% of the shipborne AWS)

VOS-TAG4 – Geneva – 12-13 April 2007


Vos observations

VOS Observations

Data AvailabilityAverage number of daily reportsfrom the EUCOS area

E-SURFMAR

E-SURFMAR

Conventional VOS

Automated VOS (AWS)

In 2006, EUMETENET ships data represented 55% of the whole GTS reports (76% into the EUCOS area of interest)

VOS-TAG4 – Geneva – 12-13 April 2007


Automation

Automation

VOS-TAG4 – Geneva – 12-13 April 2007


Aws in operation

AWS in operation

SOT-4 – Geneva – 16-21 April 2007


Developments

Developments

VOS-TAG4 – Geneva – 12-13 April 2007


New basic aws

New basic AWS

  • Baros station (under development)

    • New simple AWS almost ready to be tested aboard a ship

    • Based on a barometer, a GPS and an Iridium SBD transmitter

    • Autonomous and easy to install

External look - a 0.40 x 0.40 x 0.40 box - with 4 solar panels and - topped with a barometer port (air intake)

Pre-production should be allocated toE-ASAP ships not yet equipped with AWS(put on the roof of the container)

VOS-TAG4 – Geneva – 12-13 April 2007


Ship masking scheme

Ship Masking Scheme

  • E-SURFMAR supports the MASK method which consists in replacing ITU call signs by unique identifiers for GTS purposes

  • E-SURFMAR supports the idea of using a more secured method (ENCODE) when BUFR is fully operational

  • A trial is performed further to Resolution 3.4.4/2 (WMO EC-58)

  • A normalized format (TTTCCnn) is used to mask the call signs

  • True (ITU) call signs are given in Pub No47.

  • Suggestion: a repository of the cross-reference list of ship masks vs IMO Ids at JCOMMOPS (available through a restricted access)

  • Presently tested on Danish, French and UK ship borne AWS (48 units)

  • Also tested on manned ships reporting half compressed data (6 units)

  • Makes VOS management easier (e.g. for monitoring, for compensations…)

VOS-TAG4 – Geneva – 12-13 April 2007


Metadata database 1

Metadata Database (1)

  • E-SURFMAR Management Team needs the most recent metadata

    • To monitor the EUMETNET VOS data on a day-to-day basis

    • To evaluate the performances of the VOS network

    • To provide WMO with consolidated metadata

    • To compute compensations for observations and communications…

  • Present situation

    • National databases (or files) exist

    • WMO Pub 47 is not often updated although it is probably the lone available on the Web

  • Constraints

    • Exchange of XML files (since 1st July 2007)

    • Expensiveness of the DWD database

VOS-TAG4 – Geneva – 12-13 April 2007


Metadata database 2

Metadata Database (2)

  • The development of a metadata database is planned. Characteristics:

    • Simple: management of the Pub 47 metadata only + a few additional parameters if necessary

    • Available on the Web to VOS operators (in reading and writing)

    • Based on open source softwares (e.g. MySQL and PHP)

    • Able to manage XML files: import/export from/to other databases (national and WMO)

    • Developped through the present E-SURFMAR Management Budget (no extra fund required)

    • Used later to build FM96 BUFR reports from the raw VOS data (half compressed Inmarsat reports, Inmarsat Data Reports, Iridium…)

VOS-TAG4 – Geneva – 12-13 April 2007


Communications

Communications

VOS-TAG4 – Geneva – 12-13 April 2007


Communications for conventional vos

Communications for conventional VOS

  • Half Compression Technique

    • Implemented on TurboWin v4 by KNMI

    • Data processing developed and operating at Météo-France

    • Communications are 60% cheaper than through SAC 41 (0.40 €/report)

    • Six ships (two Dutch and 4 French) are participating in a successful trial

    • Deployments onboard ships may continue now

    • Deployment of the processing software to other NMSs than Météo-France should be possible soon

VOS-TAG4 – Geneva – 12-13 April 2007


Communications for aws

Communications for AWS

  • Full data compression

    • Full data compression and use of Inmarsat-C Data Reporting => 0.15 €/report(0.17 €/report) - 34 BATOS operating

    • Full data compression and use of Iridium SBD => 0.07 €/report(0.08 €/report) - 2 BAROS under development

  • Geostationnary Met. Satellites

    • DCP (Geostationnary Meteorological Satellites) => 0.00 €/report(0.07 €/report) - 18 MILOS operating

Cost figures include monthly fees if applicableFigures in brackets include an amortization of the transmitter over 10 years

VOS-TAG4 – Geneva – 12-13 April 2007


Compensations

Compensations

VOS-TAG4 – Geneva – 12-13 April 2007


Compensations for observations

Compensations for observations

VOS-TAG4 – Geneva – 12-13 April 2007


Compensations for communications

Compensations for communications

VOS-TAG4 – Geneva – 12-13 April 2007


Data quality and data monitoring

Data Quality and Data Monitoring

VOS-TAG4 – Geneva – 12-13 April 2007


Quality of slp measurements

Quality of SLP measurements

Data QualityRMS of differences betweenobservations and model outputs

Conventional VOS

Automated VOS (AWS)

Quality of SLP reported by conventional VOS is still worse than this from shipborne AWS but improvements are expected

VOS-TAG4 – Geneva – 12-13 April 2007


Blacklist of dubious ships data

Blacklist of dubious ships data

VOS-TAG4 – Geneva – 12-13 April 2007


E surfmar vos monitoring

E-SURFMAR VOS Monitoring

VOS-TAG4 – Geneva – 12-13 April 2007

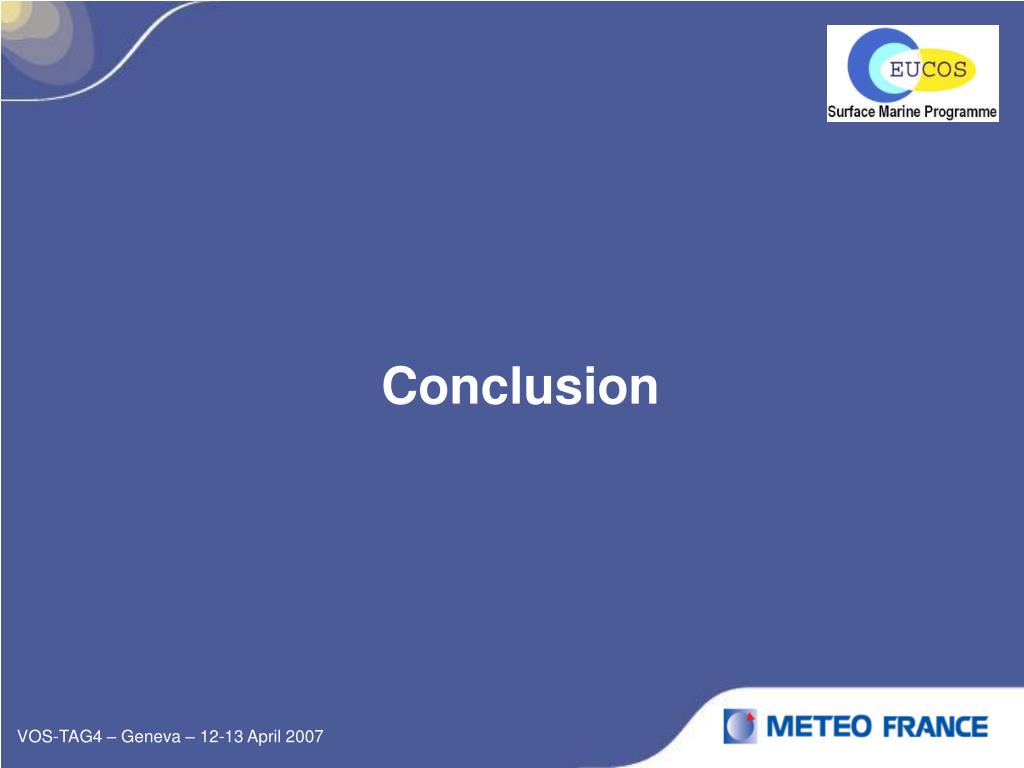

Conclusion

Conclusion

VOS-TAG4 – Geneva – 12-13 April 2007

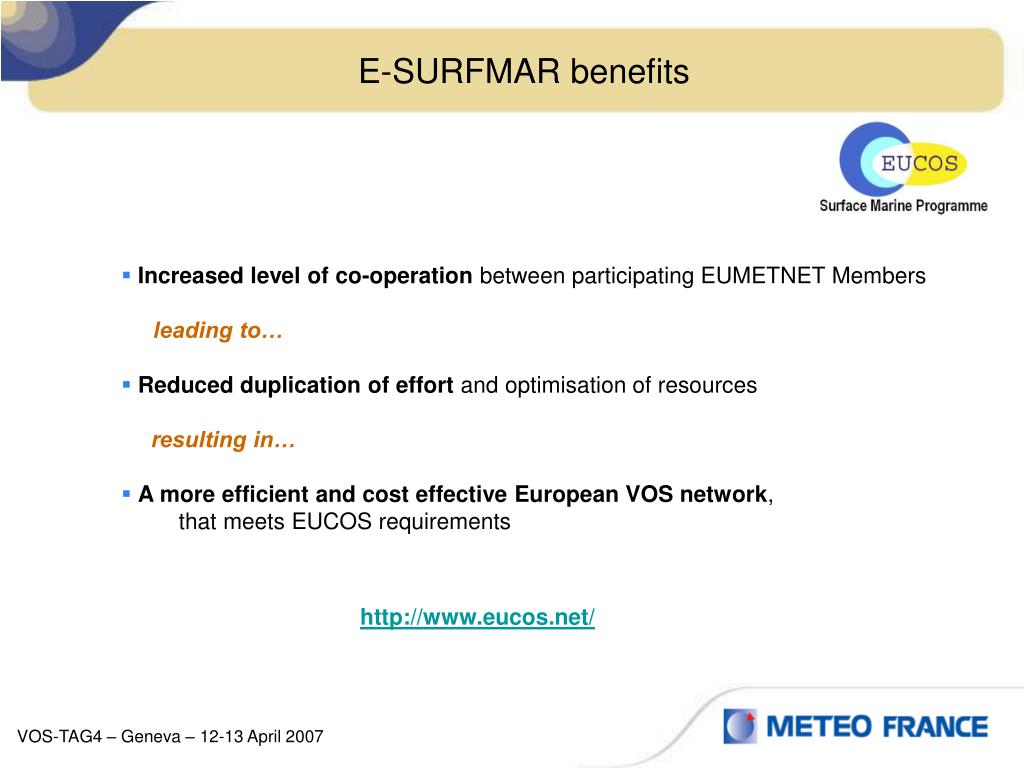

E surfmar benefits

E-SURFMAR benefits

  • Increased level of co-operationbetween participating EUMETNET Members

    leading to…

  • Reduced duplication of effort and optimisation of resources

    resulting in…

  • A more efficient and cost effective European VOS network, that meets EUCOS requirements

http://www.eucos.net/

VOS-TAG4 – Geneva – 12-13 April 2007


Questions

Questions ?
