Chris dowding pgy1 university of ottawa orthopedics

Chris Dowding, PGY1

University of Ottawa Orthopedics

Alignment Principals in TKA

  • Previous Presentations by Scott McGuffin andSeyonSathiaseelan


Objectives

Objectives

  • Review “Normal” Knee Biomechanics

  • Review “Normal” Knee Alignment

  • Discuss How Alignment is Restored/Maintained in TKA

  • Identify the Consequences of Poor Alignment in TKA

  • Brief review of New Literature


Knee biomechanics

Knee Biomechanics

  • Knee moves in several planes:

    • hinge joint (ginglymus)

    • sliding joint (arthrodial)

  • Change in alignment during ROM:

    • Femoral rollback

    • Internal Rotation of Tibia


Ginglymus hinge joint

Ginglymus (hinge) Joint

  • ROM – 3 Axes

    • Sagittal

      • Extension to -10°, Flexion to 150°

    • Coronal

      • Varus/Valgus play of <5°

    • Axial

      • IR 10°, ER 30°


Arthrodial gliding joint

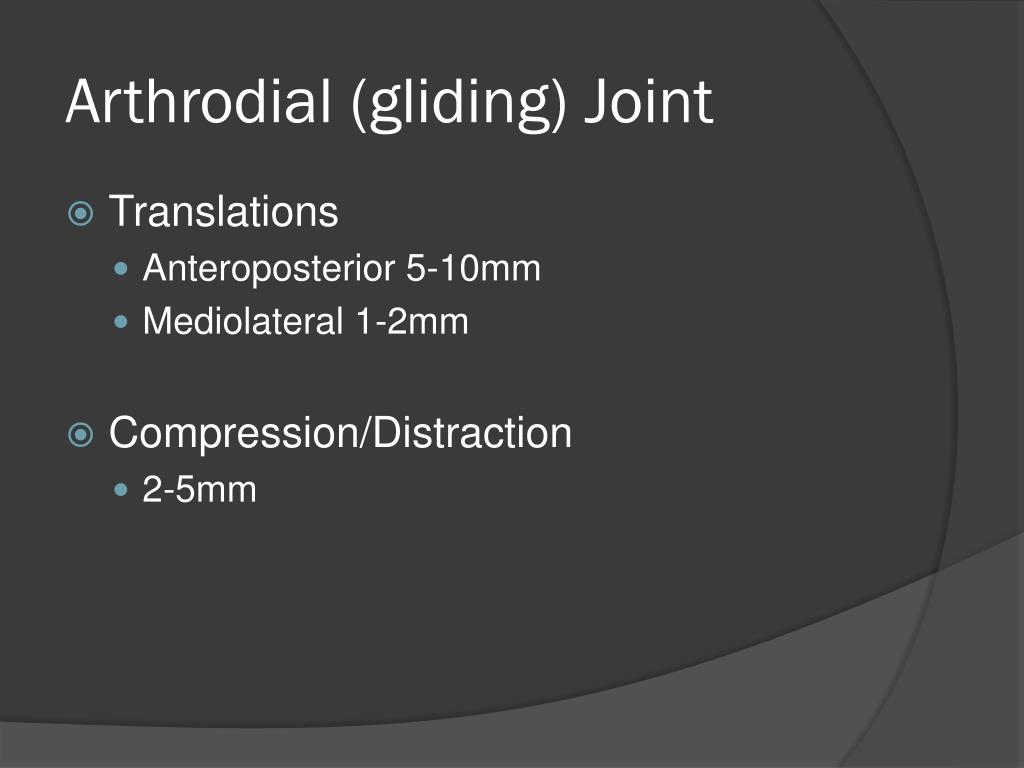

Arthrodial (gliding) Joint

  • Translations

    • Anteroposterior 5-10mm

    • Mediolateral 1-2mm

  • Compression/Distraction

    • 2-5mm


Femoral rollback

Femoral Rollback


Biomechanics flexion

Biomechanics - Flexion


Knee biomechanics1

Knee Biomechanics

  • Posterior translation of femoral condyles on the tibia during flexion

    • Medial 2mm

    • Lateral 20mm

  • Thus, internal rotation of tibia occurs during flexion


  • Alignment

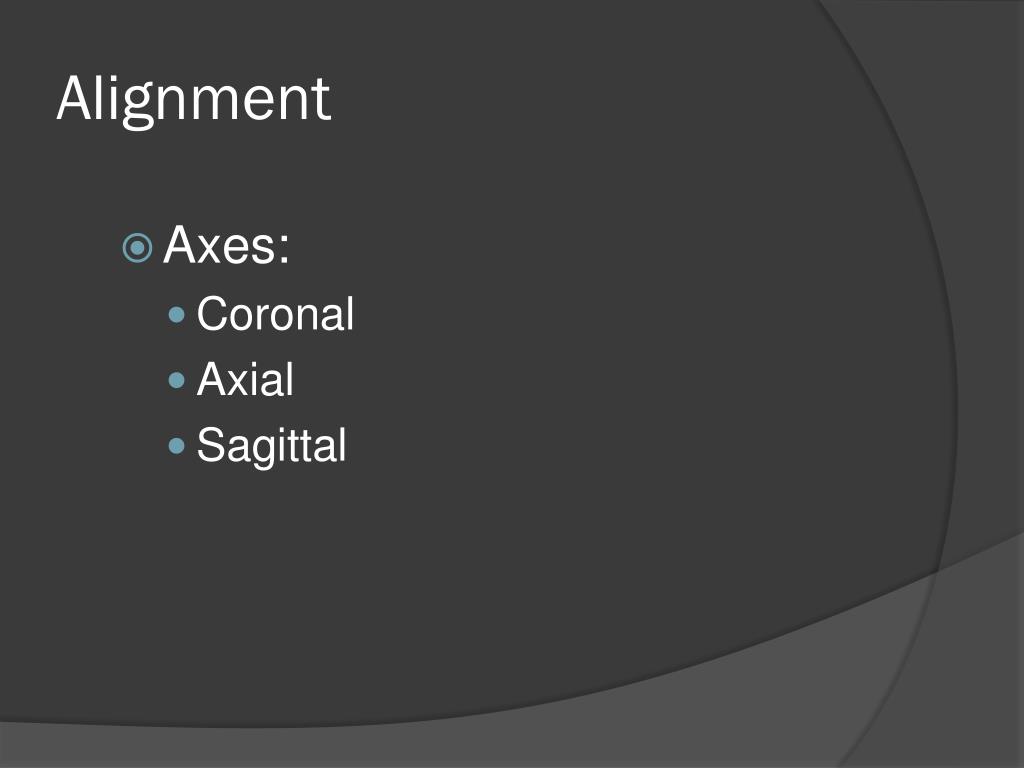

    Alignment

    • Axes:

      • Coronal

      • Axial

      • Sagittal


    Coronal alignment

    Coronal Alignment

    • Proximal tibia in 3° of varus from AAT/MAT

    • Distal femur in 9° of valgus from AAF

    • Thus, anatomical and mechanical axes of the femur diverge at 6° (femorotibial angle of 174°)

    81°

    93°


    Axial alignment of femur

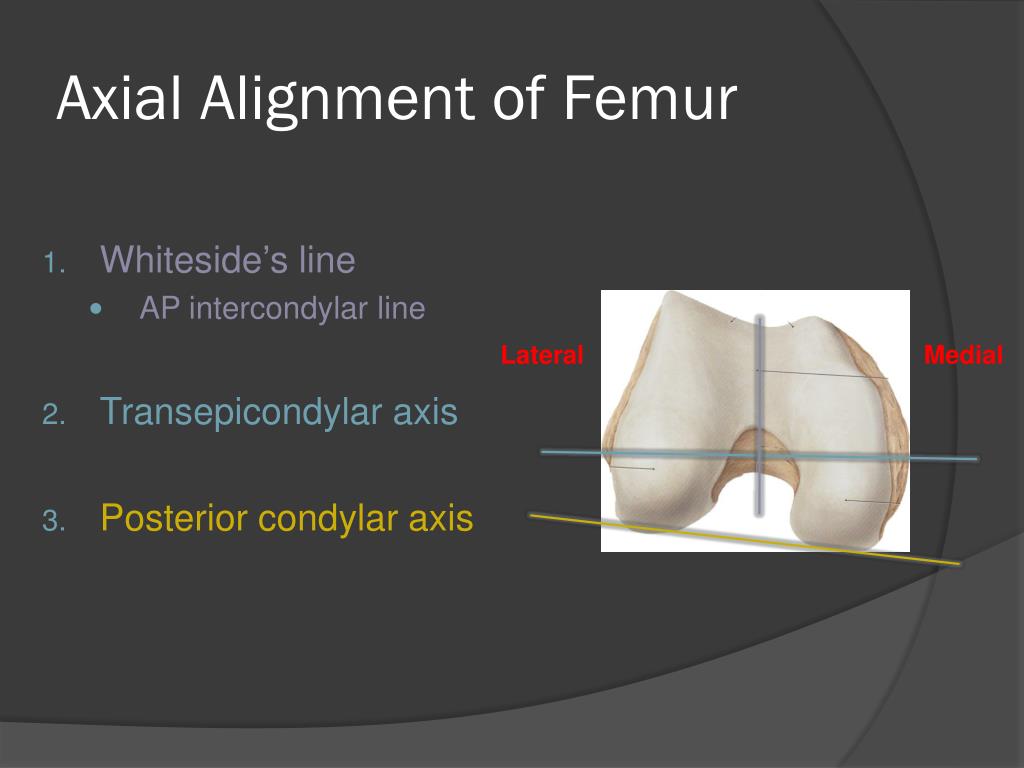

    Axial Alignment of Femur

    • Whiteside’s line

      • AP intercondylar line

    • Transepicondylar axis

    • Posterior condylar axis

    Lateral

    Medial


    Sagittal alignment

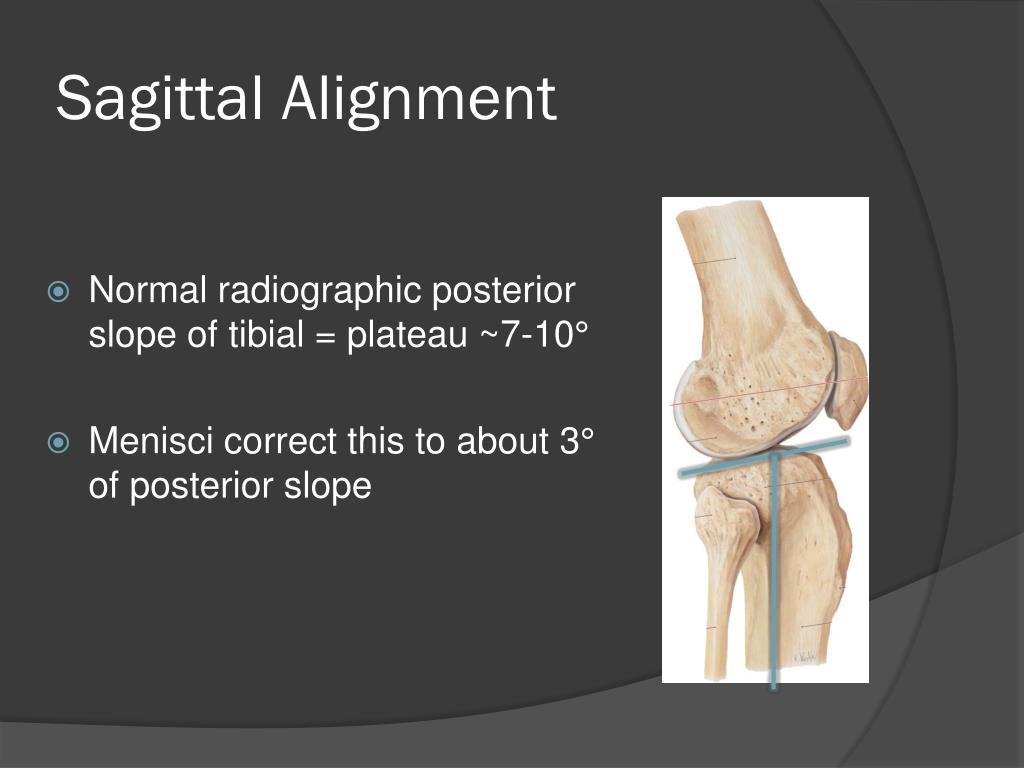

    Sagittal Alignment

    • Normal radiographic posterior slope of tibial = plateau ~7-10°

    • Menisci correct this to about 3° of posterior slope


    Q angle

    Q Angle

    • The angle between the extensor mechanism axis and a line joining the centre of the patella with the tibialtuberosity

      • Divergence = poor tracking of patella


    Goals of tka

    Goals of TKA

    • Restore overall mechanical axis (180°)

    • Balance ligaments

    • Maintain normal Q angle

    • Restore joint line


    Goals of tka1

    Goals of TKA

    • However:

      • If implants are placed in varus or valgus subsidence occurs:


    Goals of tka2

    Goals of TKA

    • Subsidence is bad because it defeats the purpose of TKA in the first place

    • How to prevent subsidence but retain overall joint alignment in order to maintain balanced ligament tension and proper gait mechanics?


    Native alignment

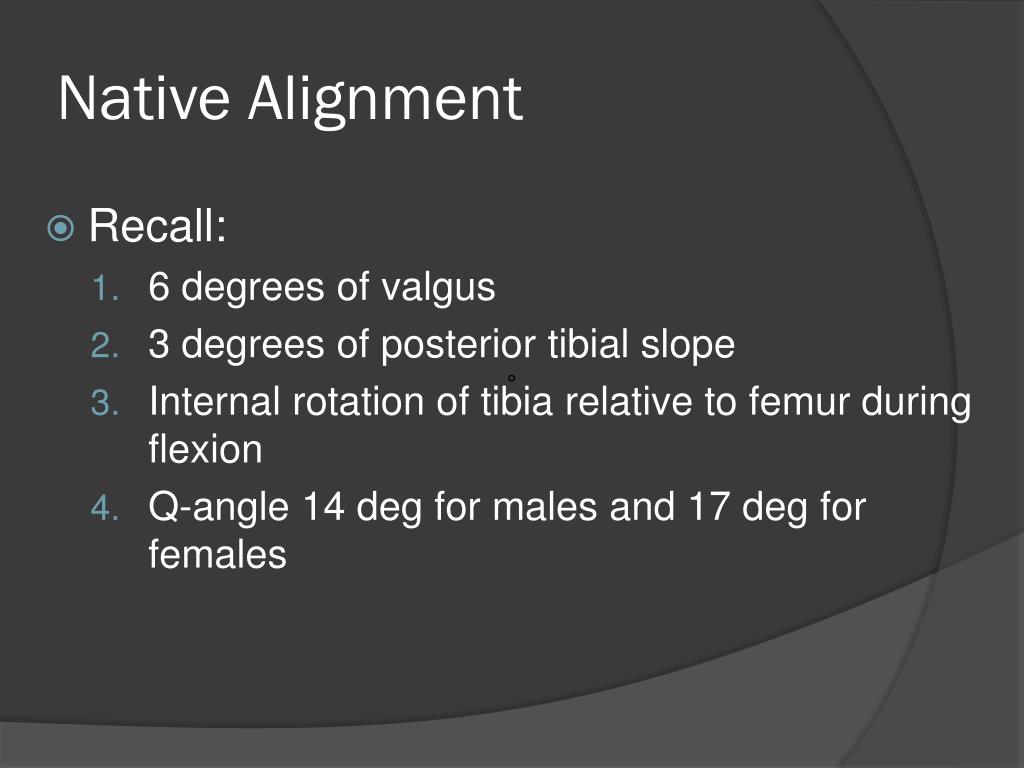

    Native Alignment

    • Recall:

      • 6 degrees of valgus

      • 3 degrees of posterior tibial slope

      • Internal rotation of tibia relative to femur during flexion

      • Q-angle 14 deg for males and 17 deg for females

    °


    Tibial cut

    Tibial Cut

    • Goal is to have the joint line perpendicular to the mechanical axis

    • By placing implants perpendicular to mechanical axis of each bone, it ensures that mechanical axis of limb goes through center of new joint


    Tibial cut1

    Tibial Cut

    • Tibial cut made perpendicular to mechanical axis to prevent varus subsidence of tibial component

    93°

    90°


    Tibial cut2

    Tibial Cut

    • Posterior slope 3°

    • Ensures adequate flexion space

    • Prevents anterior subsidence of tibial component


    Distal femoral cut

    Distal Femoral Cut

    • Increased lateral joint space with a perpendicular tibial cut

    • This is corrected by making a distal femoral valgus cut angle of 6° relative to the AAF, instead of the anatomic 9°

    • Distal femur now perpendicular to mechanical axis

    81°

    84°

    90°

    90°


    Posterior femoral cut

    Posterior Femoral Cut

    • Recall the axial alignment of the distal femur

    Lateral

    Medial


    Posterior femoral cut1

    Posterior Femoral Cut

    • Externally rotating the femoral component by 3° creates a symmetrical flexion gap


    Posterior femoral cut2

    Posterior Femoral Cut


    Flexion gap

    Flexion Gap


    Patellofemoral tracking

    Patellofemoral Tracking

    • Increased Q angle:

      • IR of femoral component

      • Valgus knee

      • Medialization of femoral component

      • IR of tibial component (medial 1/3 of TT)

      • Lateralization of the patellar dome


    Alignment in tka

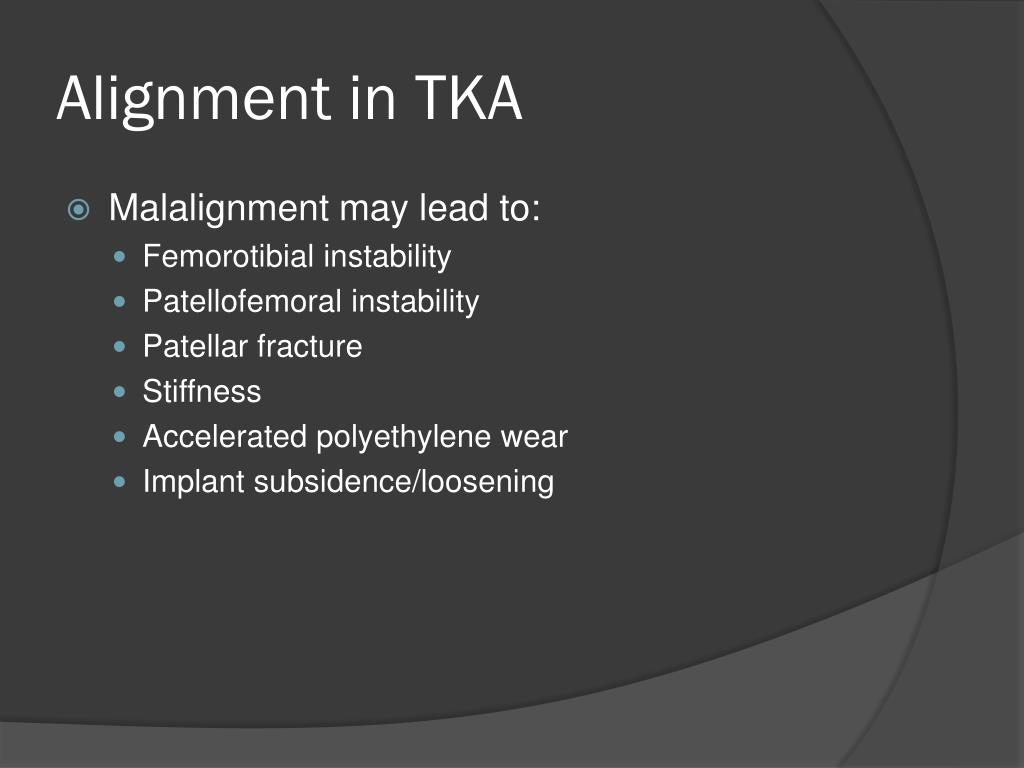

    Alignment in TKA

    • Malalignment may lead to:

      • Femorotibial instability

      • Patellofemoral instability

      • Patellar fracture

      • Stiffness

      • Accelerated polyethylene wear

      • Implant subsidence/loosening


    Research in knee alignment

    Research in Knee Alignment

    • Most new publications evaluate methods of obtaining and maintaining what we think is ideal alignment, rather than challenging or testing what ideal alignment is

    • Many publications deal with the use of navigation

      • Due to the importance of alignment with respect to positive outcomes navigation may become more and more popular

      • However it is expensive and potentially time consuming, so research is being done to determine whether it can be used to provide a significantly better outcome over traditional methods


    Research in knee alignment1

    Research in Knee Alignment

    • The advantages of computer assistance in total knee arthroplasty, Bar et. Al, AOTT 2011.

      • Retrospective case review 175 cases

      • Coronal alignment, incision length, hospital stay all favoured computer assisted TKA


    Research in knee alignment2

    Research in Knee Alignment

    • A computed tomography based study on rotational alignment accuracy of the femoral component in total knee arthroplasty using computer-assisted orthopaedic surgery, van der Linden-van der Zwaag et al, SICOT 2011

      • Prospective analysis of 20 TKA using navigation

        • Significant difference in rotation of femoral implant when measured by navigation vs. post op CT


    Research in knee alignment3

    Research in Knee Alignment

    • Anterolateral approach with tibial tubercle osteotomy versus standard medial approach for primary total knee arthroplasty: does it matter?, Hirschmann et al, Muskoloskeletal Disorders 2011.

      • Prospective multicenter study

      • Medial parapatellar vs. lateral patellar with tibial tubercle ostetomy

      • Comparison

        • Flexion and pain at two years

          • Lateral patellar gave more flexion (4 degrees), less pain (using scale)

        • However Medial parapatellar shorter OR time and less post-op complications
