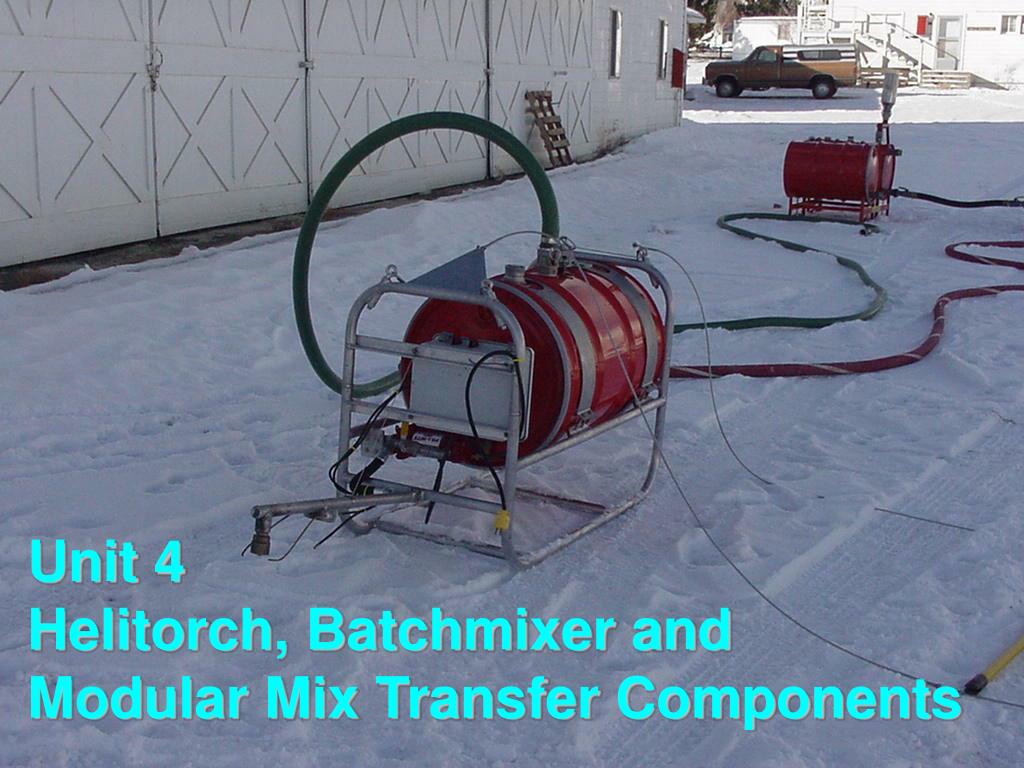

Unit 4Helitorch, Batchmixer and Modular Mix Transfer Components


Objectives l.jpg
Objectives

  • Know basic parts & mechanics of a Helitorch

  • Become familiar with the mixing systems


Slide3 l.jpg

Basic function of mixing system is to combine raw fuel with a gelling agent to create a thickened mixture, then transfer it to the helitorch



Helitorch primary parts l.jpg
Helitorch Primary Parts fuel via a helicopter.


Helitorch primary parts7 l.jpg
Helitorch Primary Parts fuel via a helicopter.

  • Frame

  • Fuel tank with sight glasses

  • Ignition system

  • Pump and positive shut-off nozzle

  • Clay&Bailey relief valve

  • Cam-lock and dry break fittings

  • Single point suspension with adjustable attachment point and electrical cable


Batchmixer l.jpg

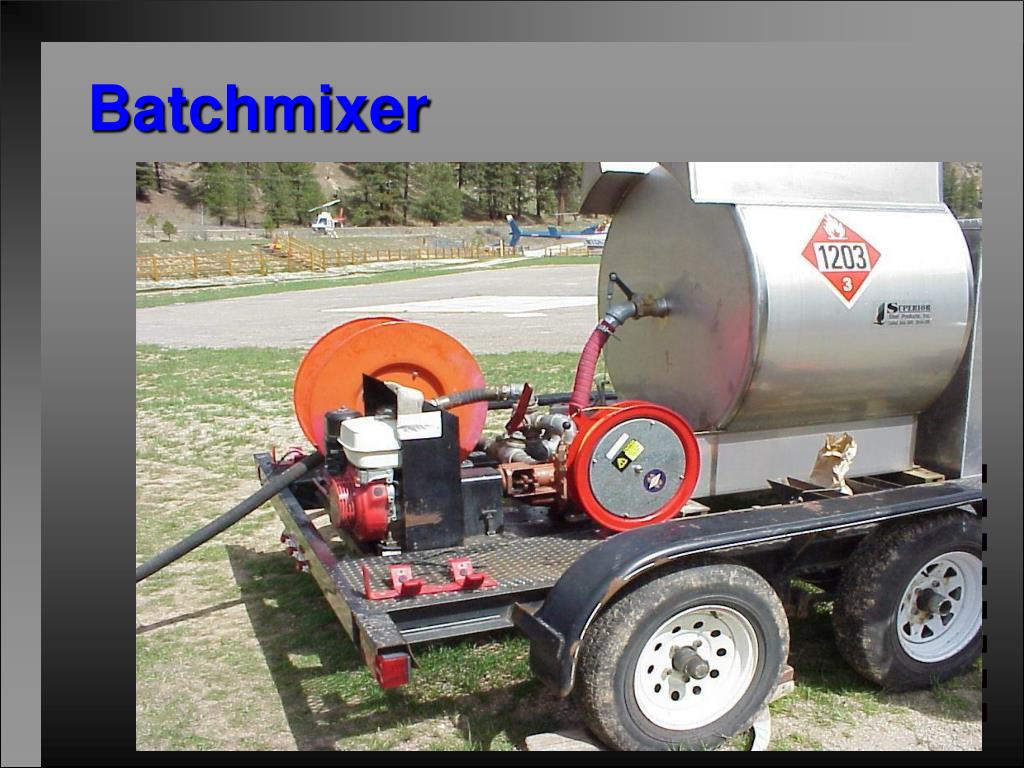

Batchmixer fuel via a helicopter.


Batchmixer12 l.jpg
Batchmixer fuel via a helicopter.

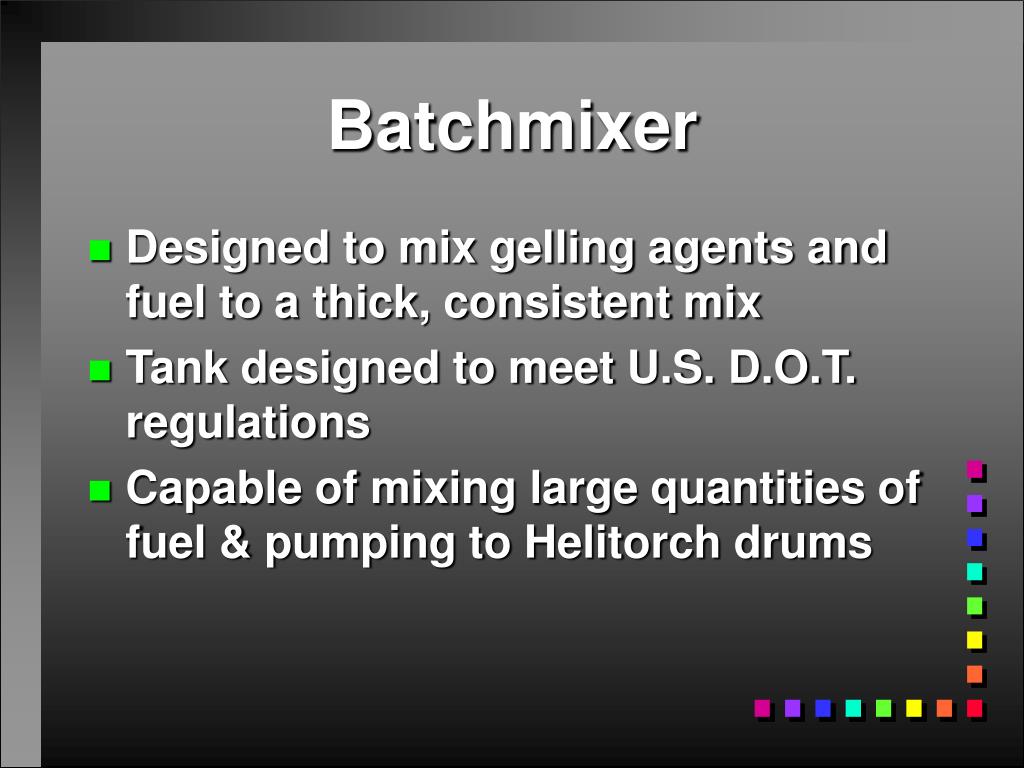

  • Designed to mix gelling agents and fuel to a thick, consistent mix

  • Tank designed to meet U.S. D.O.T. regulations

  • Capable of mixing large quantities of fuel & pumping to Helitorch drums


Batchmix components l.jpg
Batchmix Components fuel via a helicopter.


Batchmixer components l.jpg

Motor fuel via a helicopter.

Pump

Pressure gauge

Plumbing

3-way valve

MC 306 or DOT 406 tank

Fuel fill port

Mix/re-circulation tank

Discharge hose with dry break valves

Suction dry break fitting port

Suction hose with dry break valves

Emergency Shut Off handle with minimum 20 foot lanyard

Batchmixer Components


Modular mix transfer system l.jpg

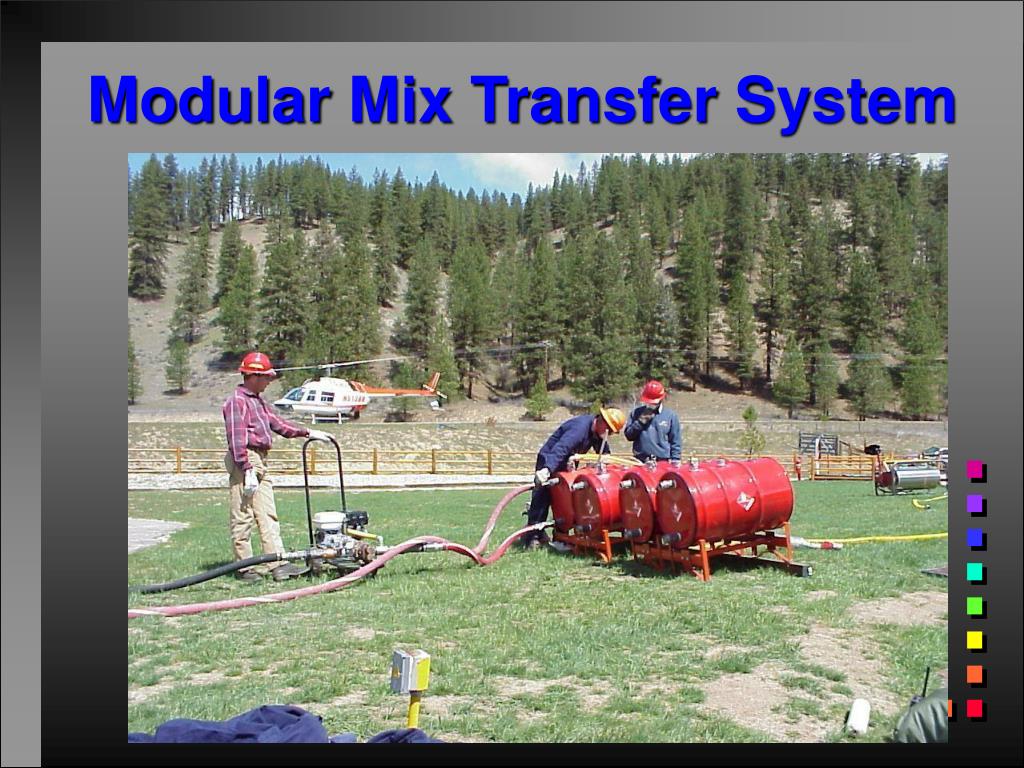

Modular Mix Transfer System fuel via a helicopter.


Modular mix transfer systems l.jpg
Modular Mix Transfer Systems fuel via a helicopter.

  • Same purpose as a batchmixer

  • Not hard plumbed to a mix tank

  • Pumps gelled fuels from one drum to another

  • Less costly to manufacture

  • D.O.T. regulated for public highway transportation


Transfer system components l.jpg
Transfer System Components fuel via a helicopter.


Modular mix transfer system components l.jpg

Motor fuel via a helicopter.

Pump

Pressure gauge

Approved drums

Fuel fill port

Clay/Bailey relief valve

Powder dispenser

Sight glasses

Discharge hose with dry break valves

Suction/re-circulation dry break fittings

Suction hose with dry break valves

Modular Mix Transfer System Components


Helitorch support kit contents ppe l.jpg
Helitorch Support Kit Contents fuel via a helicopter.- PPE -


Slide21 l.jpg
PPE fuel via a helicopter.

  • Nitrile , leather and cotton gloves

  • Cotton or non-static coveralls

  • OSHA/NIOSH approved dust masks

  • Chemical splash goggles

  • Ear plugs


Helitorch support kit contents cont l.jpg

Helitorch Support Kit Contents (cont’) fuel via a helicopter.

-Mixing Equipment-


Mixing equipment l.jpg
Mixing Equipment fuel via a helicopter.

  • Spring scale

  • Aluminum container for powder measuring

  • Non-ferrous mixing paddle

  • Commercial gelling agent

  • Fuel thermometer

  • Approved powder dispenser


Static bonding equipment l.jpg
Static Bonding Equipment fuel via a helicopter.


Static bonding l.jpg
Static Bonding fuel via a helicopter.

  • Bonding cables w/clamps and clips

  • Approved transparent vapor hose

  • Gasoline approved transfer hose

    • Both the vapor and fuel transfer hose should have wire helix and be continuity tested prior to use


Communications l.jpg
- Communications - fuel via a helicopter.


Communications29 l.jpg
Communications fuel via a helicopter.

  • Hand held radio with chest harness

  • Headset with hardhat or SPH 4/5 flight helmet with push to talk capability

  • Extra clam shells with extra batteries

  • Discrete radio frequency


Helitorch mixing system misc supplies and parts l.jpg
Helitorch/Mixing System Misc. supplies and parts fuel via a helicopter.

  • Extra drums

  • 24 volt system for running tests

  • Extra parts including: spark plug, drive belts, solenoid valve, single pole guarded electrical switch, propane regulator, dry break (male and female), grease w/gun

  • Propane bottles


Misc supplies cont l.jpg
MISC. Supplies cont. fuel via a helicopter.

  • O-ring

  • Grease Gun w/grease

  • 5 gal. Of diesel or jet A

  • Cotton rags, hand cleaner, steel wool, duct tape, wire brush, wire ties, garbage bags, etc.

  • 5 gal. Cubie of water

  • Tools and 2 large non-ferrous pipe wrenches

  • Spare drum seal(s)


Helibase equipment l.jpg
- Helibase Equipment - fuel via a helicopter.


Helibase equipment35 l.jpg
Helibase Equipment fuel via a helicopter.

  • 40-B:C fire extinguishers

  • Pad maker w/nails

  • Wind indicator, wind meter and thermometer

  • Helibase, No Smoking and Flammable signs

  • Barrier flagging with stakes


Helibase equipment cont l.jpg
Helibase Equipment cont. fuel via a helicopter.

  • First Responder Medical Kit w/burn blankets and eye wash

  • Crash Rescue Kit

  • Evacuation litter

  • 5-Gallon Class B foam

  • Fiber Tape
