  1. SIRTF Legacy From Molecular Cores to Planet-forming Disks

  2. Space Infrared Telescope Facility • Infrared Great Observatory • 3 -- 180 mm wavelength range • Background Limited Performance • 85 cm f/12 Beryllium Telescope, T < 5.5K • 6.5mm Diffraction Limit • Instrumental Capabilities • Imaging/Photometry, 3-180 mm • Spectroscopy, 5-40 mm • Spectrophotometry, 50-100mm • Planetary Tracking, 1 arcsec/sec • >75% of observing time for the General Scientific Community • 2.5 yr Lifetime/5 yr Goal • Launched in August 2003 (Delta 7920H) • Solar Orbit

  3. The Launch August 25, 2003, Kennedy Space Center

  4. First Light

  5. SIRTF Instrumentation Overview • Infrared Array Camera (IRAC), G.G.Fazio, SAO, PI. Wide-field (5x5 arcmin) imaging. Simultaneous viewing at 3.6, 4.5, 5.8, 8 mm InSb and Si:As IBC arrays, 256x256 pixel format • Infrared Spectrograph (IRS), J.R.Houck, Cornell, PI. R=600 echelle spectrographs, 10-20 and 20-40 mm R=50 long-slit spectrographs, 5-15 mm and 15-44 mm Imaging/Photometry, 15 mm Si:As and Si:Sb IBC arrays, 128x128 pixel format • Multi-band Imaging Photometer for SIRTF (MIPS), G.Rieke, Arizona, PI. Imaging and photometry: 24, 70, 160 mm; optimized for efficient large area surveys and superresolution; R~15 spectrophotometry, 50-100 mm Si:As IBC and Ge:Ga arrays, 128x128 and 32x32 format Stressed Ge:Ga array, 2x20 format

  6. SIRTF Legacy Science • Requirements • Large, coherent scientific investigations - not realizable as series of smaller GO Programs • Programs whose data are of general and lasting importance to the broad community and also stimulate SIRTF follow-on • Data are non-proprietary, enabling timely and effective opportunities for both SIRTF follow-on and archival research • Possible Scope • Legacy Programs typically have hundreds of hours of observing time • Legacy science may utilize up to 50% of the first year of SIRTF observing time

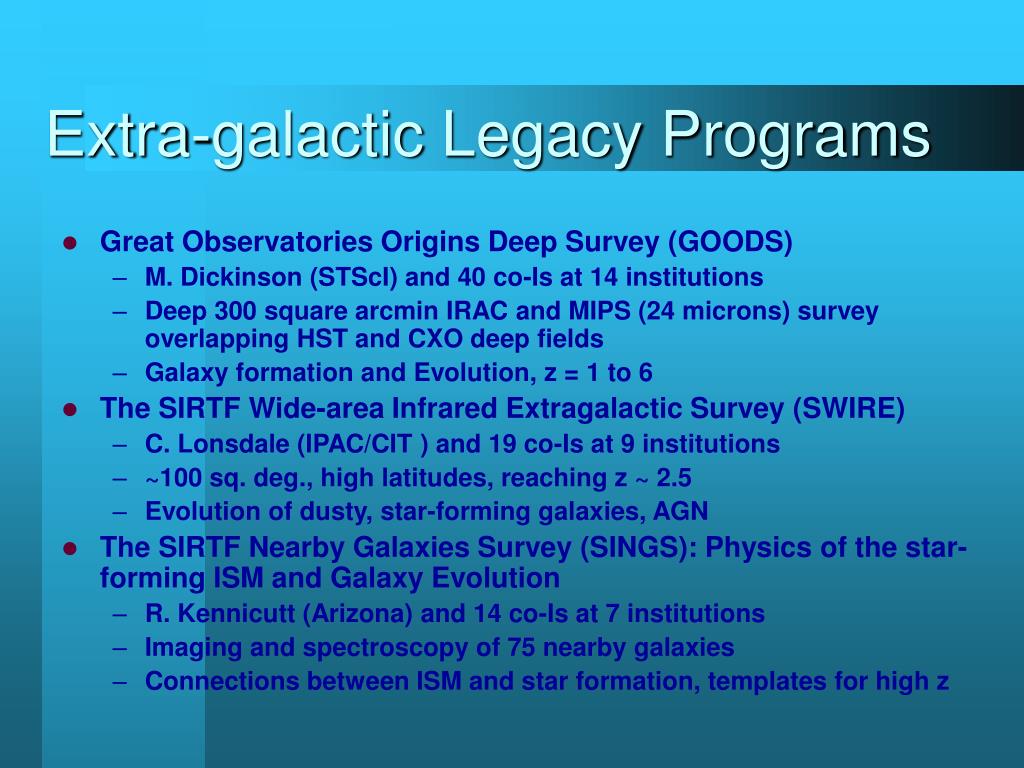

  7. Extra-galactic Legacy Programs • Great Observatories Origins Deep Survey (GOODS) • M. Dickinson (STScI) and 40 co-Is at 14 institutions • Deep 300 square arcmin IRAC and MIPS (24 microns) survey overlapping HST and CXO deep fields • Galaxy formation and Evolution, z = 1 to 6 • The SIRTF Wide-area Infrared Extragalactic Survey (SWIRE) • C. Lonsdale (IPAC/CIT ) and 19 co-Is at 9 institutions • ~100 sq. deg., high latitudes, reaching z ~ 2.5 • Evolution of dusty, star-forming galaxies, AGN • The SIRTF Nearby Galaxies Survey (SINGS): Physics of the star-forming ISM and Galaxy Evolution • R. Kennicutt (Arizona) and 14 co-Is at 7 institutions • Imaging and spectroscopy of 75 nearby galaxies • Connections between ISM and star formation, templates for high z

  8. GOODS Sky Coverage Area • SINGS 75 galaxies • SWIRE ~100 sq. deg. • GOODS ~0.1 sq. deg. SINGS SWIRE Extragalactic Science in the Legacy Program

  9. Galactic Legacy Programs • The SIRTF Galactic Plane Survey (GLIMPSE) • E. Churchwell (Wisconsin) and 13 co-Is at 6 institutions • 240 square deg. IRAC survey of inner Galactic plane • Galaxy structure and star formation • From Molecular Cores to Planet-forming Disks (c2d) • N. Evans (Texas) and 10 co-Is at 8 institutions • Imaging (IRAC and MIPS) and spectroscopy of star forming regions • Evolution of molecular cores to stars, disks, sub-stellar objects • The Formation and Evolution of Planetary Systems: Placing our Solar System in Context (FEPS) • M. Meyer (Arizona) and 18 co-Is at 12 institutions • Imaging and spectroscopy of 300 young stars with disks • Evolution from accretion disks to planet formation

  10. What will GLIMPSE see? l=300o to 320o, |b| <1o MSX 8 micron band (Price et al 2001) , b Known Objects in the GLIMPSE Survey Region

  11. Michael R. Meyer (Steward Observatory, The University of Arizona, P.I.) D. Backman (Franklin & Marshall College, D.P.I.) , S.V.W. Beckwith (STScI), J.M. Carpenter (Caltech), M. Cohen (UC-Berkeley), U. Gorti (NASA-Ames), T. Henning (MPIA), L. Hillenbrand (Caltech, D.P.I.), D. Hines (Steward), D. Hollenbach (NASA-Ames), J. Lunine (LPL), J.S. Kim (Steward), R. Malhotra (LPL), E. Mamajek (Steward), A. Moro-Martin (Steward), P. Morris (SSC), J. Najita (NOAO), D. Padgett (SSC), J. Rodmann (MPIA), M. Silverstone (Steward), D. Soderblom (STScI), J.R. Stauffer (SSC), B. Stobie (Steward), S. Strom (NOAO), D. Watson (Rochester), S. Weidenschilling (PSI), S. Wolf (Caltech), and E. Young (Steward). A SIRTF Legacy Science Program For more information please visit http://feps.as.arizona.edu The Formation & Evolution of Planetary Systems: Placing Our Solar System in Context

  12. The c2d Team • Co-investigators • Neal J. Evans II (Texas) • Lori E. Allen (SAO) • Geoffrey A. Blake (Caltech) • Paul M. Harvey (Texas) • David W. Koerner (Northern Arizona) • Lee G. Mundy (Maryland) • Philip C. Myers (SAO) • Deborah L. Padgett (SSC) • Anneila I. Sargent (Caltech) • Karl Stapelfeldt (JPL) • Ewine F. van Dishoeck (Leiden) • 34 Associates • 20 Affiliates

  13. Science Goals • Complete database for nearby (< 350 pc), Low mass (solar type) star formation • Follow evolution from starless cores to planet-forming disks • Coordinate with FEPS team to ensure complete coverage of 0 to 1 Gyr • Cover range of other variables (mass, rotation, turbulence, environment, …) to separate from evolution.

  14. Observations • (275 hr) Map ~5 large clouds, ~135 smaller cores with IRAC and MIPS (~20 sq. deg.) • (50 hr) Photometry of ~190 stars (IRAC and MIPS) • (75 hr) Spectroscopy of disk material (IRS) for about 200 targets

  15. Target Large Clouds • Perseus • Serpens • Ophiuchus • Lupus • Chamaeleon

  16. Ophiuchus (Overall view) Antares artifact Extinction Map (Cambresy 1999, Astr. Ap. 345)

  17. Ophiuchus AV = 3 and AORs IRAC AORS Outline of AV = 3 1o MIPS AORs

  18. Isolated Cores • Large sample selected based on • Extinction on sky survey • Molecular emission • Reasonably compact • Some isolated, single • Some in small groups

  19. Group of Cores (Mapping) IRAC MIPS Mapping mode, step = 280”

  20. Questions : Clouds and Cores • Spatial Structure of star formation • How do molecular cores become protostars and disks? • Very early evolution (sensitive to L ~ 10-3 Lsun). • Large sample finds rare objects • First hydrostatic core • Other transitional objects • Very deeply embedded protostars.

  21. An Evolutionary Sequence Shu collapse M = 0.29 Msun ro = 4396 AU Accretion rate= 1.1 x 10–6 Msun/yr Envelope gone at 270,000 yr Final star mass = 0.24 Msun Final disk mass = 0.05 Msun D = 320 pc Young & Evans, in prep.

  22. Questions: Brown Dwarfs • Early Evolution of Brown Dwarfs • 100’s of candidates down to 5 Mjup at 1 Myr • Detect circum-BD envelopes down to 1 Mjup • Detect circum-BD disks (4.5 Mjup to 70 m) • Recent detections in NIR (Muench et al.) • MIR with ISO (Comeron et al.) • High fraction with excesses at 3.8 m (Liu et al.)

  23. Formation of Brown Dwarfs 10 Myr old BD, L=0.007 Lsun, 4.5 Mjup Disk (Chiang et al.) Young BD, L=0.003 Lsun, 1 Mjup Envelope

  24. Scientific Questions: Disks • Do all solar-mass stars have disks? • Do weak-line T Tauri stars have debris disks? • Are there variables besides time? • What are the timescales for disk evolution? • How does the transition from accretion disks to debris disks depend on time and other factors?

  25. Evolution of Planet Forming disks • SIRTF studies will constrain disk masses • Early, through AV ~ 100 mag, can see • r = 5 AU, M = Mearth disks • Middle (~ 1 Myr to 1 Gyr) around sun-like stars • 0.1 Mmoon from 30–60 AU at 150 pc • MIR complementary to NIR, mm studies

  26. Detect Debris Disks to 0.1 Mmoon Model has 0.1 Mmoon of 30 mm size dust grains in a disk from 30–60 AU Bars are 3 s Model based on disks around A stars

  27. Protostellar Disks to Planetary Systems Cores to Disks FEPS Team

  28. NIR (< 0.1 AU) Excess vs. Cluster Age Hillenbrand, Meyer, and Carpenter (2002); see also Haisch et al. 2001. Terrestrial Planets? CAI Formation? Chrondrules?

  29. Spectral Evolution Questions • How do the dust, ice, gas in disks evolve? • Amorphous to crystalline silicates? • How does the icy component evolve? • How long does gas (H2) persist? • What is the spectral evolution of BDs? • If they form with disks, how does the dust evolve in those disks?

  30. Spectral Evolution Few My 10 My 100 My 5 Gy

  31. Data Products • First Delivery late May 2004 • Mosaics of IRAC and MIPS maps • Over very large areas (~20 sq. deg.) • Cleaned versions of mosaics • Catalogs of all sources, cross references • Spectral atlas of template disk spectra • Ancillary Data • submillimeter maps (Bolocam) • optical spectra (NOAO)

  32. Example of Bolocam Data Bolocam map of Perseus About half the data, Not fully reduced. RMS ~45 mJy 1 x 4 degrees Enoch et al. in prep.

  33. Perseus Map in 12CO from the COMPLETE team

  34. Additional Products • Analytical Tools for Modeling Disks and Envelopes • K. Dullemond: Disk codes • M. Wolfire : Envelope models • Enhanced data analysis tools • Contributing to IRS data reduction tool

  35. Separating Sources

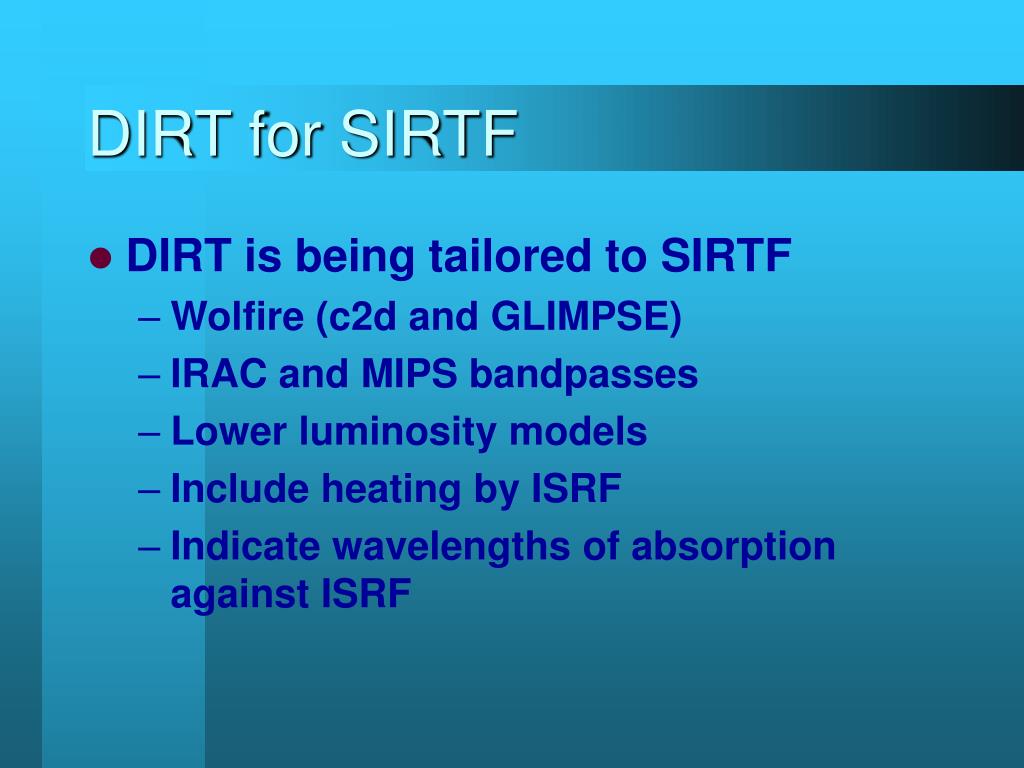

  36. DIRT for SIRTF • DIRT is being tailored to SIRTF • Wolfire (c2d and GLIMPSE) • IRAC and MIPS bandpasses • Lower luminosity models • Include heating by ISRF • Indicate wavelengths of absorption against ISRF

  37. A Sample of DIRT http://dustem.astro.umd.edu/wits/dirt/index.html

  38. Complementary Data • Complementary: not part of original prop. • Projects initiated by us, with others • JCMT SCUBA and IRAM MAMBO • Map isolated cores at 850/450 mm or 1300 mm • ESO time • SIMBA on SEST, submm mapping of far-south cores • SEST molecular line mapping of far-south cores • TIMMI-2 8–13 mm spectra, R~200 of cTTs • ISAAC 2.9–4 mm spectra of embedded objects • ADONIS images of wTTs • WFI maps in red, Ha of Cha and Lupus

  39. Complementary Data (cont.) • Other projects initiated by us • BIMA Key project • 360 hours • Projects initiated by others • CFHT optical imaging of clouds (Menard) • Time allocated for mapping of Perseus • snapshots of isolated cores approved • COMPLETE (Goodman et al.) • Molecular line, extinction, submm cont. • Key project to match Legacy survey • Others?

  40. Legacies • Molecular cloud extinction structure • Spectroscopic binary candidates • Shocks and outflows • Brown Dwarf candidates • Diffuse Emission– Dust properties • Web site: http://peggysue.as.utexas.edu/SIRTF/ • PASP paper (2003, 115, 965; preprint available on website)

  41. SIRTF and You • General Observer CFP: Nov. 2002 • First deadline Feb. 2004 • Includes archival studies • Eventually theory • Subsequent calls each year until 2007 • Note also SIRTF Fellows Program • Like Hubble Fellows • See http://sirtf.caltech.edu/SSC/ • Deadline is typically Nov.

  42. Thanks for the invitation…
