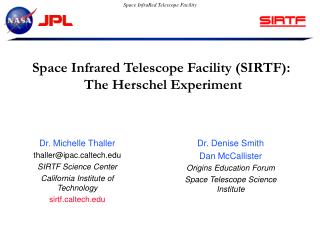

Space Infrared Telescope Facility (SIRTF): The Herschel Experiment

Dr. Michelle Thaller

[email protected]

SIRTF Science Center

California Institute of Technology

sirtf.caltech.edu

Dr. Denise Smith

Dan McCallister

Origins Education Forum

Space Telescope Science Institute


The origins program l.jpg
The Origins Program

Origins:

Where did we come from?Are we alone?

Space Infrared Telescope Facility

  • Exploring the universe in the infrared

  • Planned launch: December 2002

  • Expected lifetime: 5 years


The discovery of invisible light l.jpg
The Discovery of Invisible Light

A Fortunate Accident

In 1800, while placing thermometers in each color of the solar spectrum, Herschel places his “control” thermometer just outside the red end of the spectrum.

Result: the thermometer outside the visible spectrum registered the highest temperature!

The first detection of invisible light, which Herschel called infrared (“beneath red”) light.


The herschel experiment a classroom activity l.jpg
The Herschel Experiment: A Classroom Activity

Objective: To perform a version of the experiment of 1800, in which a form of radiation other than visible light was discovered by the famous astronomer Sir Frederick William Herschel.

Target Audience: Grades 7-9, easily extended to higher grades (10-12)


Herschel experiment set up l.jpg
Herschel Experiment Set-Up

  • Place a sheet of white paper inside a cardboard box

  • Tape three thermometers together and place inside box

  • Cut a small notch in the top of the box and position a small glass prism so that the spectrum is projected inside the box

  • Arrange the thermometers so that one is just outside the red end of the spectrum, with no visible light falling on it

Do not look directly at the Sun.


Results l.jpg
Results

The thermometers will register differences almost immediately.

After approx. 10 minutes, the thermometers show a 10 degree difference:

The highest temperature is found outside the visible spectrum, where infrared light is falling on the thermometers.


Team roles l.jpg
Team Roles

The Herschel Experiment can be done in groups of 2 to 4. Team members can be assigned the following roles:

  • Box-keeper – makes sure the thermometers are positioned properly and holds box if necessary

  • Timekeeper – announces times for temperature measurements

  • Measurer – reads the temperatures of the thermometers

  • Recorder – records the temperatures on the observation chart


Today s goals l.jpg
Today’s Goals

  • Adjust the prism in the notch until a broad spectrum is achieved.

  • Place thermometers in the blue, the yellow, and next to the red portions of the spectrum for 30 to 60 seconds, until a temperature difference is observed.

    • If 3 thermometers will not fit in the spectrum, place one thermometer in the yellow and one thermometer next to the red portion of the spectrum. Optional: Keep the 3rd thermometer in a shaded area of the box, as a control.

  • Using the Herschel Experiment Worksheet, continue taking data for 4 to 5 minutes.


Workshop discussion l.jpg
Workshop Discussion

Useful discussion questions for the workshop (and classroom) setting:

  • Did you observe a temperature rise in the infrared?

  • Did you encounter any difficulties while doing the experiment? If so, how did you solve them?

  • Consider recording the final thermometer readings and elapsed time for each group. Comparing results can lead to an interesting discussion of experimental uncertainties.


Additional questions l.jpg
Additional Questions

  • Insightful students may wonder why the blue thermometer doesn’t have the highest temperature. After all, doesn’t blue light have more energy than red light?

  • The answer lies in what the prism does to the light. Prisms spread blue light out, while red light remains more focused. After passing through the prism, the energy in the red and infrared parts of the spectrum is more concentrated.

  • A more thorough discussion can be found on the SIRTF website (sirtf.caltech.edu).


Helpful hints l.jpg
Helpful Hints

For best results, do experiment in direct sunshine, when the Sun is high (noon). Putting the prism in the cut notch provides stability and easy rotation.

Glass prisms work much better than plastic ones (this is Herschel’s original prism).

Blacken the bulbs of the thermometers with black paint. Flat black spray paint works best, but even a black magic marker will yield results.

The experiment WILL NOT WORK without the paint (Herschel soot-blackened his thermometers in the original experiment).


Herschel experiment ideas l.jpg
Herschel Experiment Ideas

  • Makes a great science fair activity:


The importance of infrared l.jpg
The Importance of Infrared

  • How is infrared light used in our daily lives?

  • Why would astronomers put a telescope in space to look at infrared light?


Infrared measures heat l.jpg
Infrared Measures Heat

Every object with a temperature above absolute zero radiates in the infrared.


Infrared in society l.jpg
Infrared in Society

  • Oceanography

  • Firefighting

  • Commercial Applications


Infrared astronomy detecting cool objects l.jpg
Infrared Astronomy: Detecting “Cool Objects”

Finding “brown dwarfs” helps us measure the mass of the universe.

Debris disks– signs of other solar systems?


Infrared astronomy viewing the invisible l.jpg
Infrared Astronomy: Viewing the “Invisible”

Dust absorbs visible light and re-emits it in the infrared.

Some galaxies emit most of their light in the infrared.


Infrared astronomy exploring the early universe l.jpg
Infrared Astronomy:Exploring the Early Universe

Just as the pitch of a train whistle changes as it passes an observer, the observed wavelength of light emitted by a moving object also shifts.

Visible light from very distant objects is shifted to the infrared.


Why a telescope in space l.jpg
Why a Telescope in Space?

Infrared light is mostly absorbed by our atmosphere.


For more information l.jpg
For More Information…

Michelle Thaller

[email protected]

SIRTF Science Center,

California Institute of Technology

sirtf.caltech.edu

Space Science Education

Resource Directory

Teachspacescience.org

Origins Education Forum

Origins.stsci.edu

Click on “Educator Resources”,

and then select “Curriculum Support”
