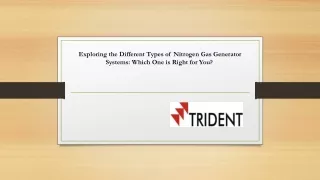

Exploring the Different Types of Nitrogen Gas Generator Systems:

1. Exploring the Different Types of Nitrogen Gas Generator Systems: Which One is Right for You?

2. Introduction:   • Regarding industrial applications requiring a reliable and continuous nitrogen gas supply, nitrogen gas generator systems are the go-to solution. These systems offer a cost-effective and convenient alternative to traditional methods of nitrogen gas sourcing. However, with various types of nitrogen gas generator systems available on the market, it can take time to determine which is best suited for your needs. This comprehensive guide will explore the different nitrogen gas generator system types and help you make an informed decision.   • Understanding these systems will ensure you find the right solution from a trusted nitrogen generator supplier, whether in pharmaceutical, food packaging, electronics, or any other industry requiring nitrogen gas.  • Types of Nitrogen Gas Generator Systems:  • PSA Nitrogen Gas Generator: Pressure Swing Adsorption dryers (PSA) nitrogen gas generators utilize carbon molecular sieve (CMS) technology to separate nitrogen molecules from other gases in the air. This system operates on adsorption and desorption, passing compressed air through a CMS bed, allowing nitrogen to be adsorbed while other gases are released. The adsorbed nitrogen is then collected and delivered as a continuous stream of high-purity nitrogen gas. PSA nitrogen gas generators are known for their energy efficiency, low maintenance requirements, and ability to produce nitrogen with varying purity levels, making them suitable for various applications.

3. Membrane Nitrogen Gas Generator: Membrane nitrogen gas generators employ a selective permeation process to separate nitrogen from oxygen and other trace gases in the air. This system utilizes hollow fiber membranes with selective permeability to allow nitrogen molecules to pass through while retaining other gases. The driving force for separation is the difference in gas permeability rates. Membrane nitrogen gas generators are compact, easy to install, and require minimal maintenance. However, their purity levels are typically lower than PSA systems, making them more suitable for applications where lower purity nitrogen is acceptable.  • Cryogenic Nitrogen Gas Generator: Cryogenic nitrogen gas generator systems rely on the liquefaction and subsequent distillation of air to produce high-purity nitrogen gas. This process involves cooling the air to extremely low temperatures, allowing the components to condense and separate. The nitrogen gas is then collected and warmed to room temperature, resulting in a high-purity nitrogen stream. Cryogenic nitrogen gas generators can produce nitrogen with very high purity levels, making them ideal for applications where absolute purity is essential, such as electronics. However, these systems are larger, require more maintenance, and have higher energy consumption than PSA and membrane systems.

4. Choosing the Right Nitrogen Gas Generator System: To determine the most suitable nitrogen gas generator system for your specific needs, several factors must be considered:  • Purity Requirements: Consider the required nitrogen purity for your application. PSA nitrogen gas generators can produce nitrogen with purity levels ranging from 95% to 99.9995%, while membrane systems typically achieve 95% to 99.5% purity levels. Cryogenic systems can provide even higher purity levels, up to 99.99999%.  • Flow Rate: Evaluate the required flow rate of nitrogen gas. Different generator systems have varying capacities and ensuring that the selected system can meet your demand is essential.  • Space and Installation: Consider the available space for the nitrogen gas generator system. Membrane systems are typically compact and easy to install, while cryogenic systems require more space due to their larger size.  • Energy Efficiency: Assess the energy consumption of the nitrogen gas generator system. PSA and membrane systems are known for energy efficiency, whereas cryogenic systems consume more energy. • Maintenance and Operational Costs: Evaluate the system's maintenance requirements and associated costs. PSA and membrane systems generally have lower maintenance needs compared to cryogenic systems.

5. Budget: Consider your budget and the initial investment in the nitrogen gas generator system. Each type of system has its associated costs, and finding the right balance between performance and affordability is crucial.  • Conclusion:   •  Selecting the appropriate nitrogen gas generator system is vital to meet the specific requirements of  your application. Consider factors such as purity requirements, flow rate, space availability, energy efficiency, maintenance costs, and budget. You can make an informed decision by understanding the different types of nitrogen gas generator systems and their respective advantages. Partnering with a reputable nitrogen generator supplier will ensure you receive expert guidance and a reliable system that caters to your specific needs. Remember, finding the right nitrogen gas generator system is a valuable investment that will contribute to the efficiency and success of your industrial processes.  • THANK YOU
