  1. Developing Software Synthesizers By: Dan Bogucki

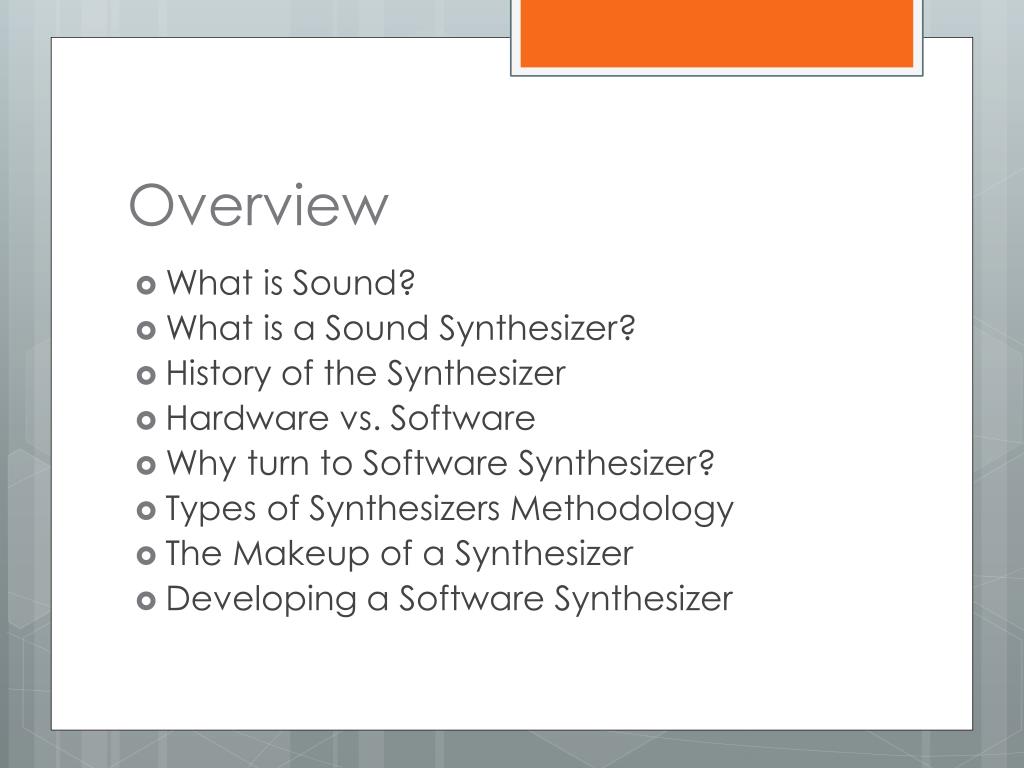

  2. Overview • What is Sound? • What is a Sound Synthesizer? • History of the Synthesizer • Hardware vs. Software • Why turn to Software Synthesizer? • Types of Synthesizers Methodology • The Makeup of a Synthesizer • Developing a Software Synthesizer

  3. What is Sound? • Sound is moving energy that travels as a pattern of changing pressure • Sound is the perceived vibration (oscillation) of air resulting from the vibration of a sound source • Sound source can be anything • Guitar sound board, speaker cone, hair dryer, vocal cord, etc

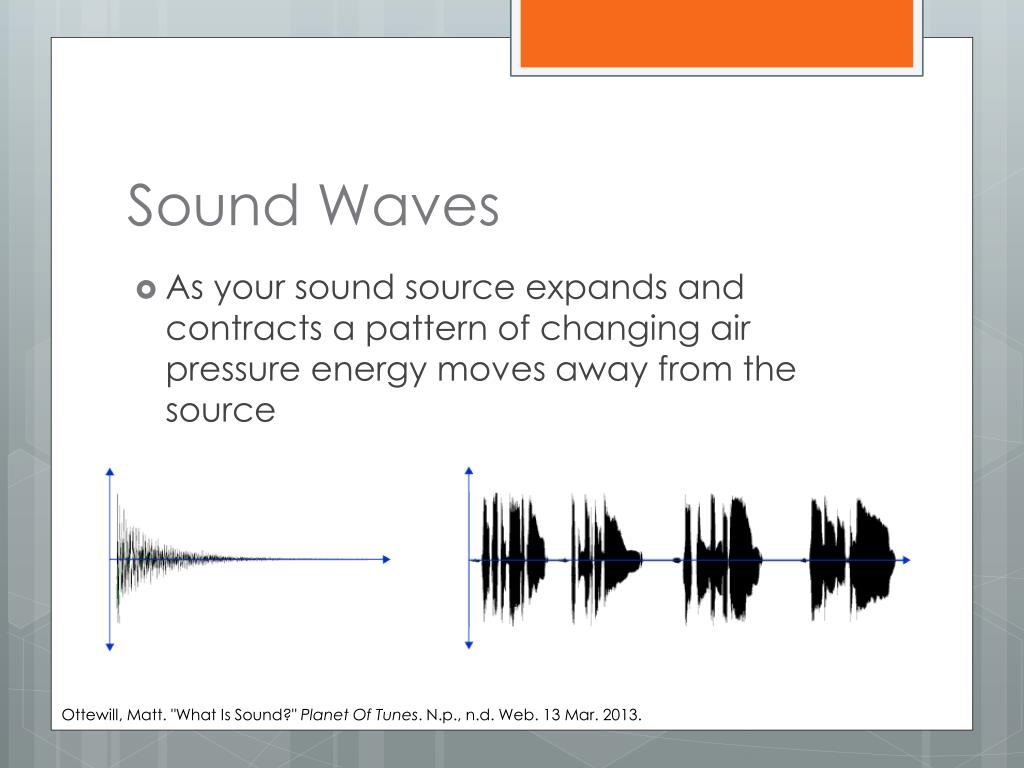

  4. Sound Waves • As your sound source expands and contracts a pattern of changing air pressure energy moves away from the source Ottewill, Matt. "What Is Sound?" Planet Of Tunes. N.p., n.d. Web. 13 Mar. 2013.

  5. Sound Waves • Four Types of basic waveforms • Sine • Square • Sawtooth • Triangle

  6. Sound Waves

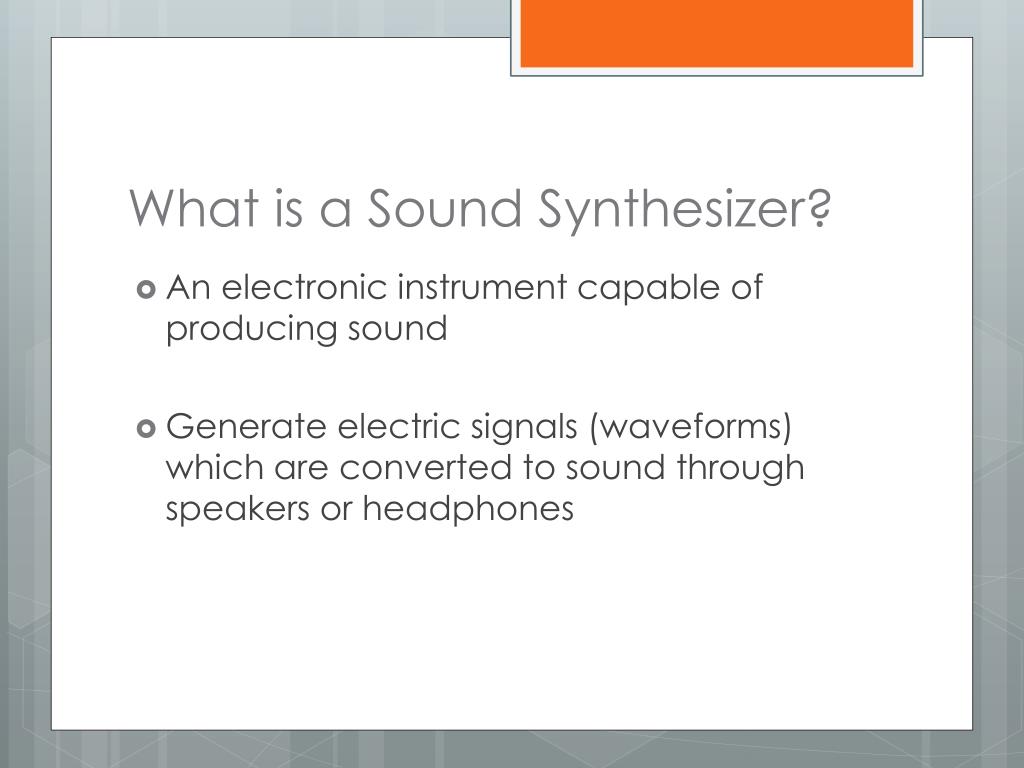

  7. What is a Sound Synthesizer? • An electronic instrument capable of producing sound • Generate electric signals (waveforms) which are converted to sound through speakers or headphones

  8. History of the Synthesizer • 1860 – Hermann von Helmholtz built an electro-mechanical oscillator • 1906 – Lee de Forest invented a vacuum-triode amplifier valve • 1950s – Transistors became available • 1961 – Harald Bode invented the Melochord, the first voltage controlled synthesizer • 1964 – Robert Moog constructed a transistor voltage-controlled oscillator and amplifier • 1966 – Moog launched the first commercial version of the Moog Synthesizer

  9. History Continued • 1950s – Max Mathews of Bell Telephone Lab began exploring the use of using digital computers as a means to generate sounds. • 1960 - Mathews produced MUSIC III • 1962 – MUSIC IV • 1968 – MUSIC V • 1968 – Barry Vercoe developed MUSIC 360 • 1973 – Vercoe developed MUSIC11 • 1979 – Australian Fairlight CMI synthesizer was introduced

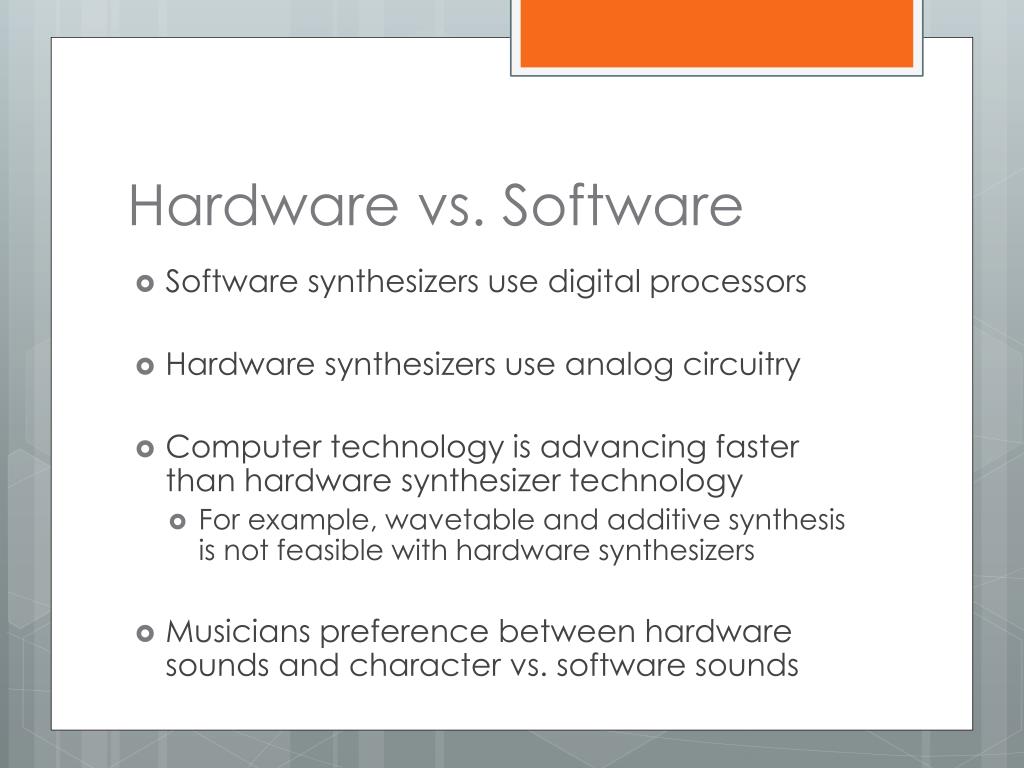

  10. Hardware vs. Software • Software synthesizers use digital processors • Hardware synthesizers use analog circuitry • Computer technology is advancing faster than hardware synthesizer technology • For example, wavetable and additive synthesis is not feasible with hardware synthesizers • Musicians preference between hardware sounds and character vs. software sounds

  11. Why Turn to Software Synthesizers? • Popularity of personal computers • More flexibility and invention for both the end user as well as the software itself • Cost

  12. Software Synthesizer Example https://www.youtube.com/watch?v=6FgKeGUZKiE

  13. Synthesizer Methodology • Additive Synthesis • Subtractive Synthesis • FM Synthesis • Wavetable Synthesis

  14. Additive Synthesis • Most fundamental method of sound synthesis • Based on the Fourier Theory • Produces sound by adding different sine waveforms together • This technique can potentially generate sounds similar to acoustic musical instruments

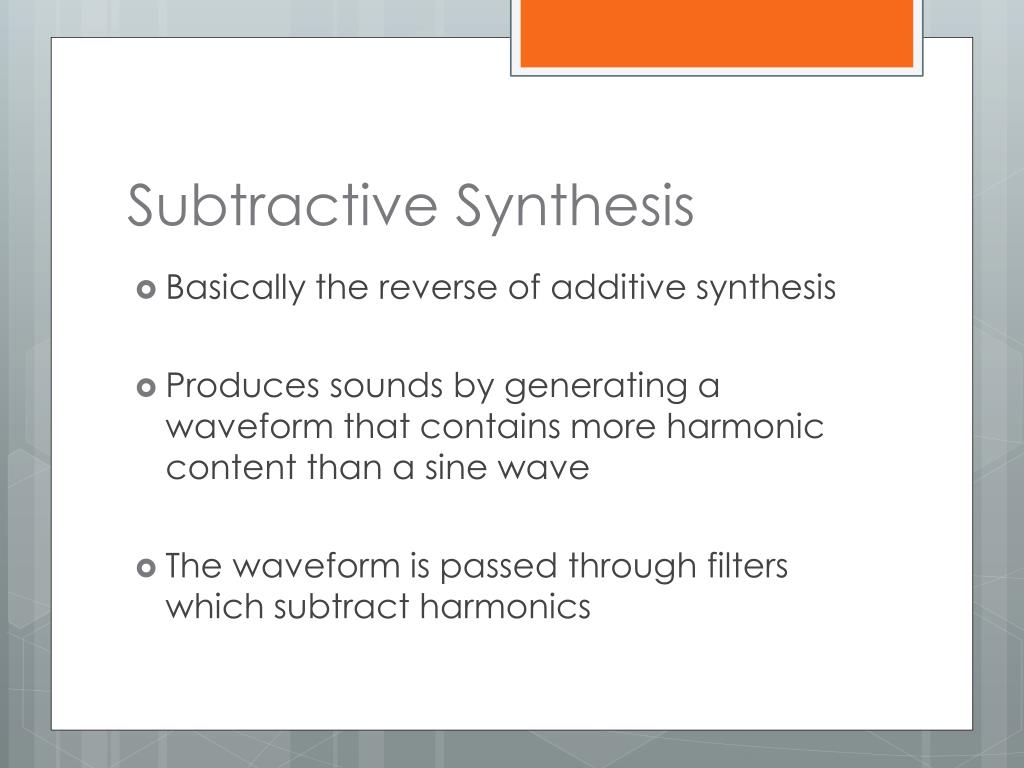

  15. Subtractive Synthesis • Basically the reverse of additive synthesis • Produces sounds by generating a waveform that contains more harmonic content than a sine wave • The waveform is passed through filters which subtract harmonics

  16. FM Synthesis • Uses FM sidebands as harmonics for synthesized waveforms. • Applied digitally through FM operators • Digital sine waveform and an envelope • Output is then used to modulate the frequency of another operator • Modulation of one sine wave by another produces more complex sounds • Used widely in radio transmission

  17. Wavetable Synthesis • Also known as sampling • Most widespread and popular method • Recorded or synthesized musical events are stored in the internal memory and are played back on demand • Provides a set of playback tools • Pitch Shifting • Looping • Enveloping

  18. General Makeup of a Synthesizer Today • Oscillators • Envelopes • Filters • Frequency Modulators • Samplers (in some synthesizers) • Functionality and options are endless

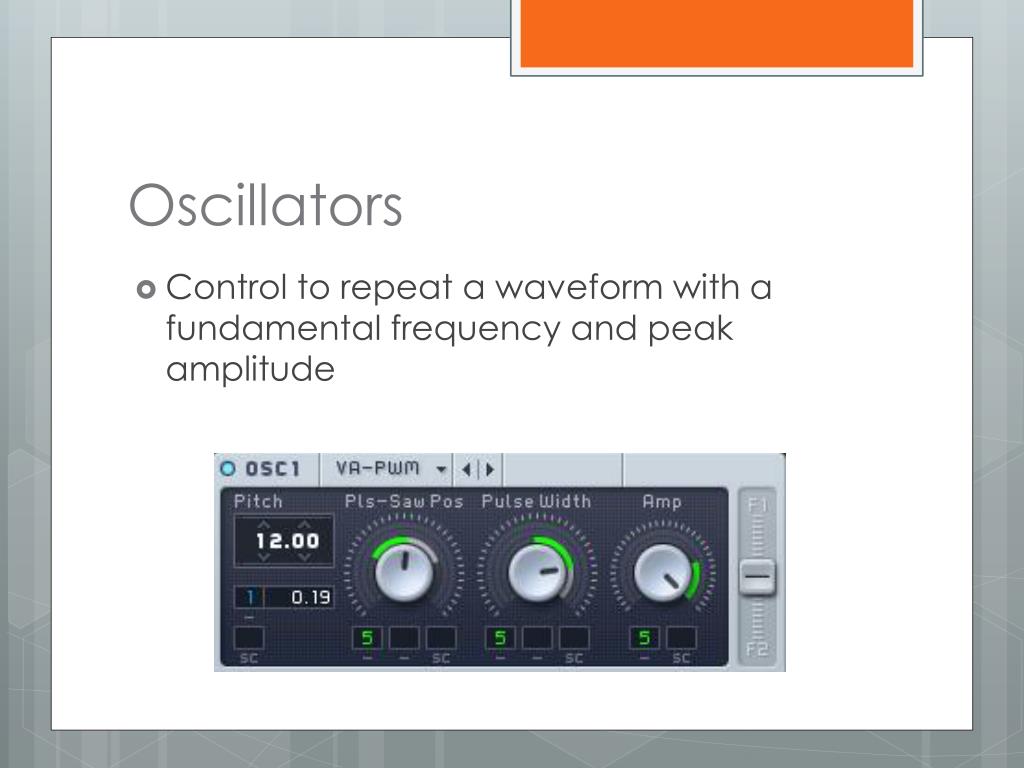

  19. Oscillators • Control to repeat a waveform with a fundamental frequency and peak amplitude

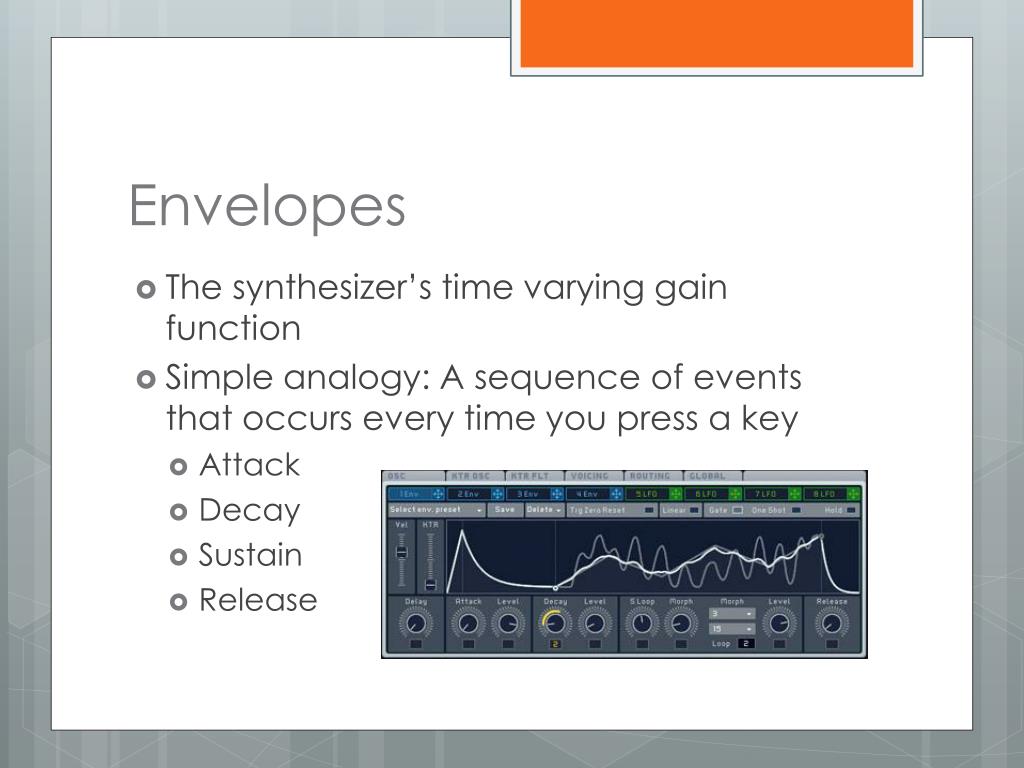

  20. Envelopes • The synthesizer’s time varying gain function • Simple analogy: A sequence of events that occurs every time you press a key • Attack • Decay • Sustain • Release

  21. Filters • Subtract frequency content • Behave like an equalizer • Four basic types • Low-pass • High-pass • Band-pass • Band-reject

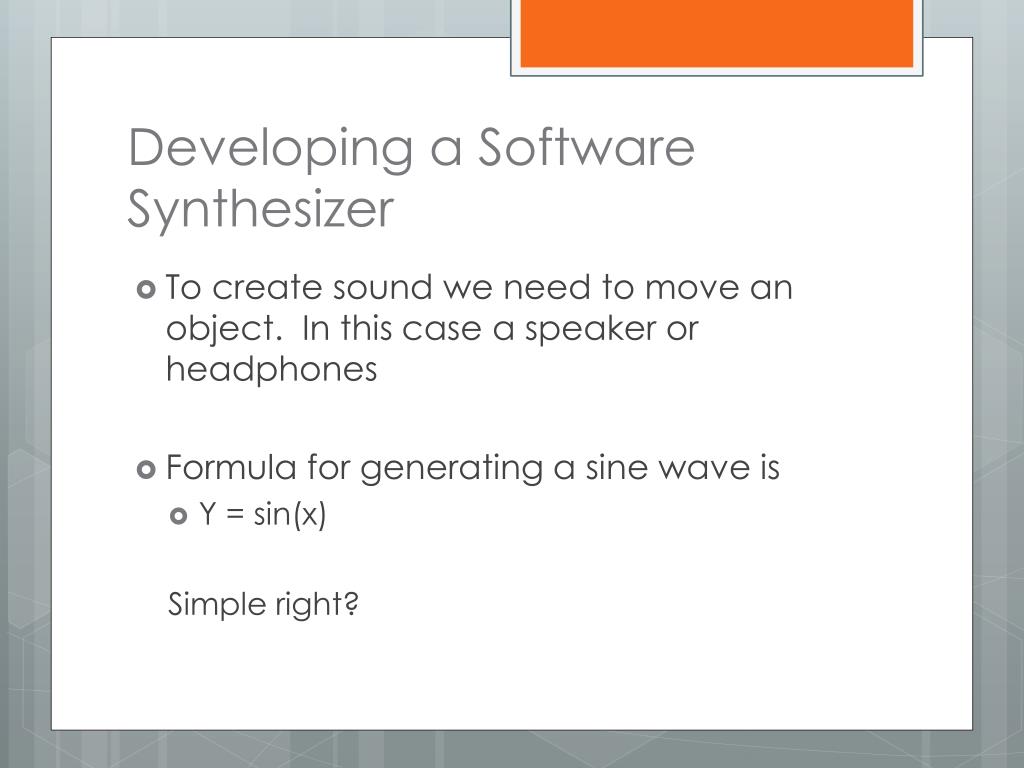

  22. Developing a Software Synthesizer • To create sound we need to move an object. In this case a speaker or headphones • Formula for generating a sine wave is • Y = sin(x) Simple right?

  23. Developing a Software Synthesizer • Many programming languages have standard mathematics libraries with many of the trigonometric functions represented • Most basic computer synthesis methods follow this same general scheme: a formula or function is defined that accepts a sequence of values as input

  24. Developing a Software Synthesizer • Computer soundcards have digital-to-analog converters • They are able to generate an electrical signal from a digital number that is given to it

  25. Producing a Simple Sine Wave • A cycle of a sine wave is 2π radians long • Sine waves have a peak amplitude of +/- 1 • A sample rate would be 44100 cycles per second – range of the entire human ear

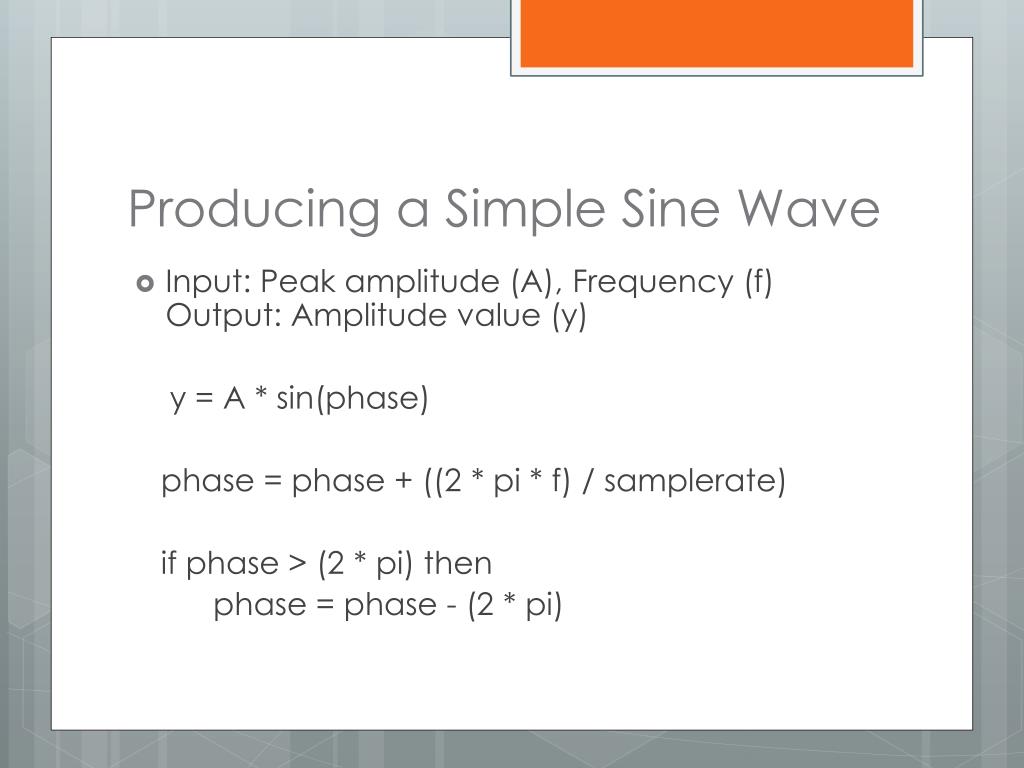

  26. Producing a Simple Sine Wave • Input: Peak amplitude (A), Frequency (f) Output: Amplitude value (y) y = A * sin(phase) phase = phase + ((2 * pi * f) / samplerate) if phase > (2 * pi) then phase = phase - (2 * pi)

  27. Producing a Square Wave • Input: Peak amplitude (A), Frequency (f) Output: Amplitude value (y) if phase < pi then y = A else y = -A phase = phase + ((2 * pi * f) / samplerate) if phase > (2 * pi) then phase = phase - (2 * pi)

  28. Virtual Studio Technology (VST) • Interface for integrating software audio synthesizer and effect plugins with audio editors • Use digital signal processing • VST is supported by a large number of audio applications

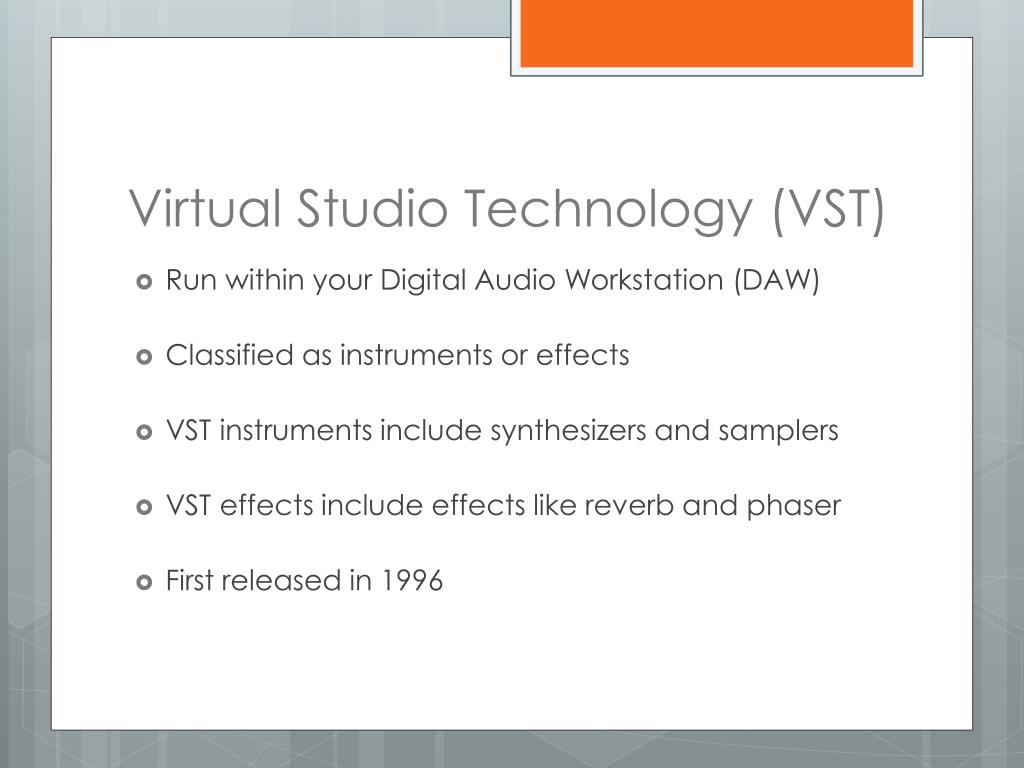

  29. Virtual Studio Technology (VST) • Run within your Digital Audio Workstation (DAW) • Classified as instruments or effects • VST instruments include synthesizers and samplers • VST effects include effects like reverb and phaser • First released in 1996

  30. Virtual Studio Technology (VST) • VST is the plugin standard for DAWs • Allows any third party developer to create a VST plugin for use within DAWs • Steinberg’s VST SDK is a set of C++ classes based around an underlying C API. • You can download the SDK from their website • Steinberg also developed the VST GUI (another set of C++ classes) which is also available to add graphical interface to your VST

  31. Virtual Studio Technology (VST) • There are several third party ports available • jVSTwRapper – Java version • Python ctypes-based VST wrapper • Noise and VST.NET – two .NET versions • LADSPA – Linux Audio Developers Simple Plugin API • JRUBY • And many more!

  32. Virtual Studio Technology (VST) • LADSPA Header File • http://www.ladspa.org/ladspa_sdk/ladspa.h.txt

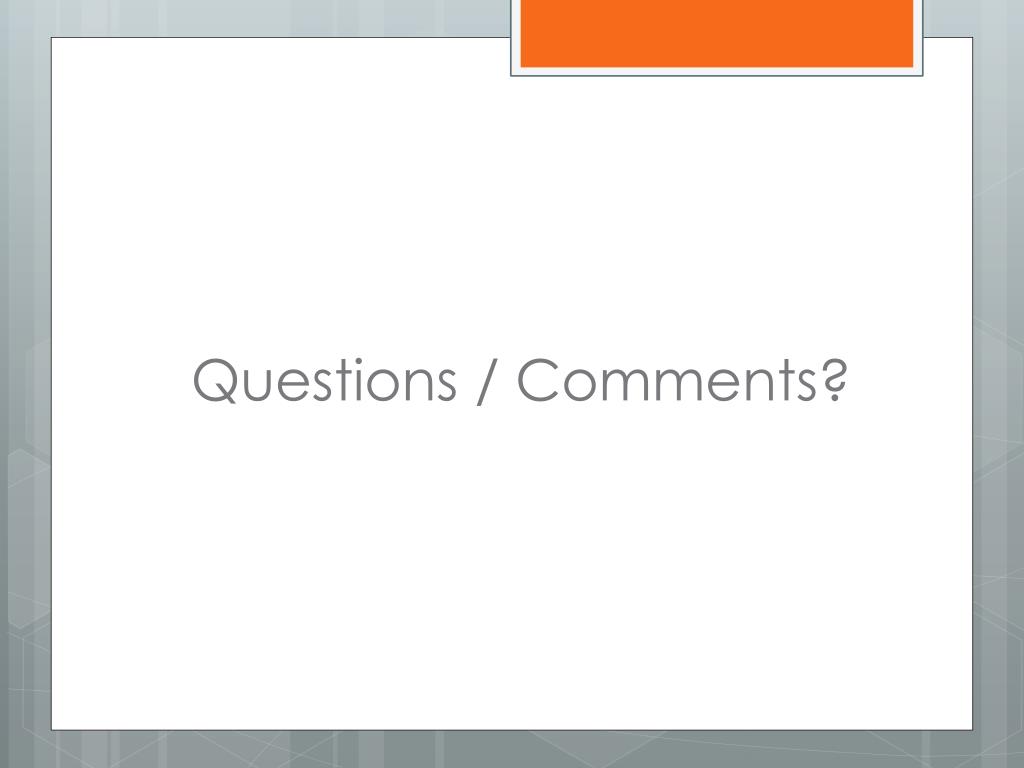

  33. Questions / Comments?
