Developing software on linux

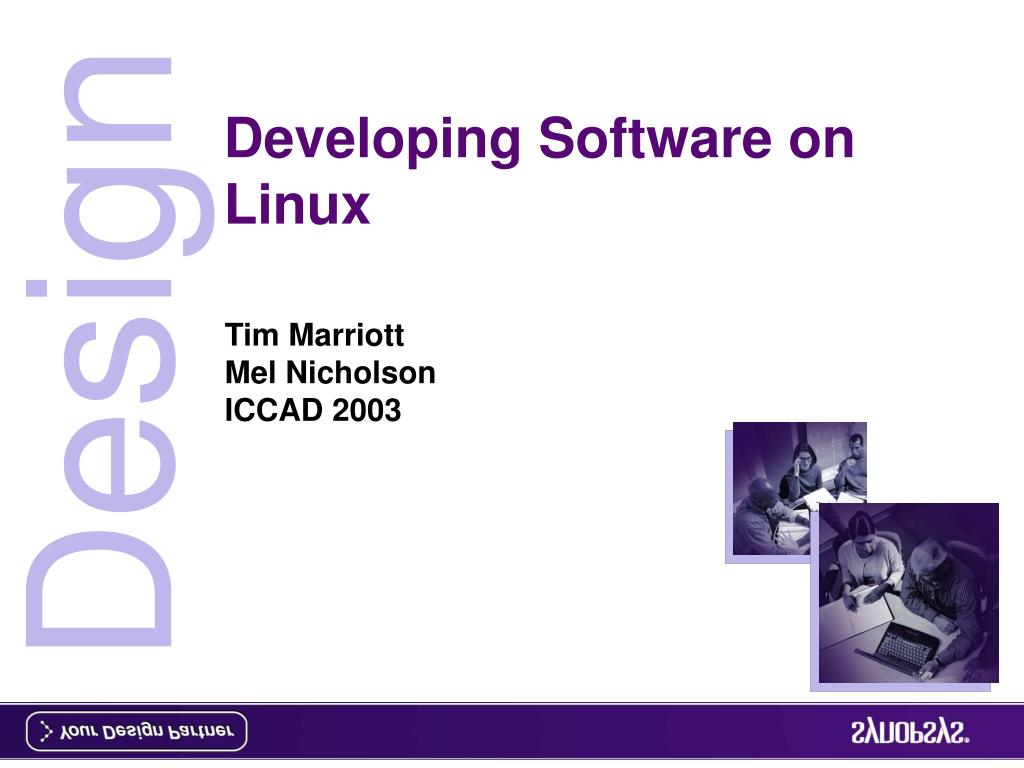

Developing Software on Linux

Tim Marriott

Mel Nicholson

ICCAD 2003


Introduction

Introduction

  • Why Linux?

  • Porting to Linux

  • Developing on Linux


Why linux

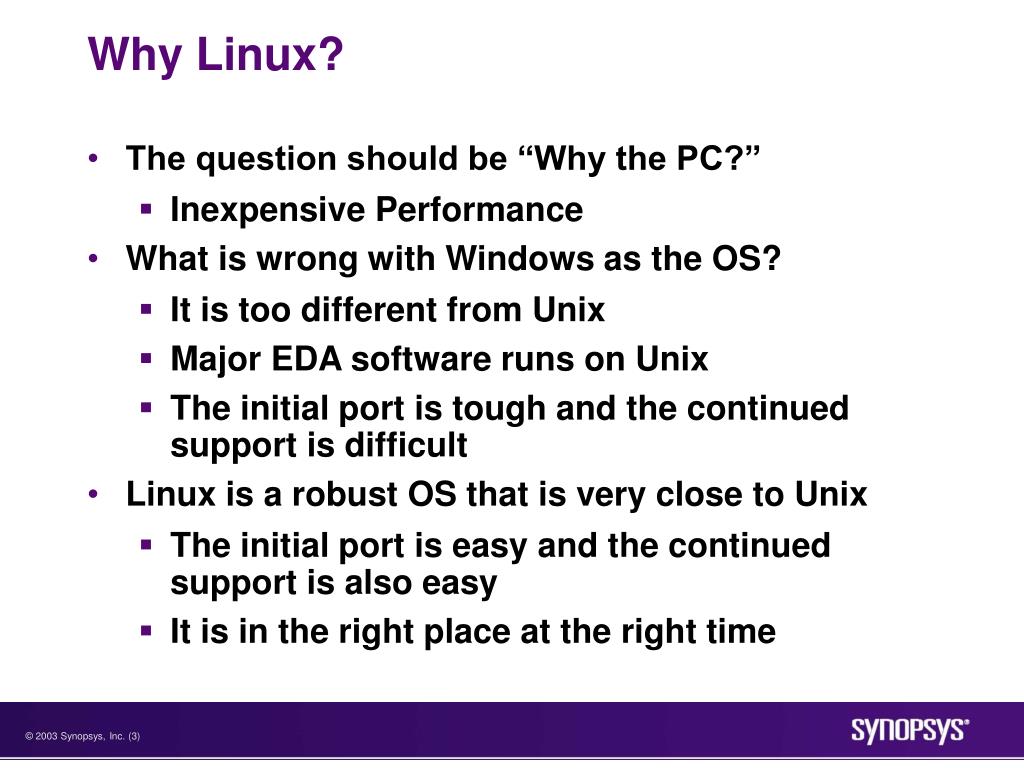

Why Linux?

  • The question should be “Why the PC?”

    • Inexpensive Performance

  • What is wrong with Windows as the OS?

    • It is too different from Unix

    • Major EDA software runs on Unix

    • The initial port is tough and the continued support is difficult

  • Linux is a robust OS that is very close to Unix

    • The initial port is easy and the continued support is also easy

    • It is in the right place at the right time


Why linux1

Why Linux?

  • We port to Linux because customers want it

    • Fast Hardware

    • Inexpensive Hardware

    • It’s an easy port

  • We develop on Linux because it increases our productivity

    • Fast Hardware

    • Inexpensive Hardware

    • Not a steep learning curve for our developers


Porting to linux

Porting to Linux

  • Porting Overview

  • What Linux to choose?

  • Problems with the Linux Support Story

  • The Enterprise is Coming

  • Porting Issues Encountered


Porting overview

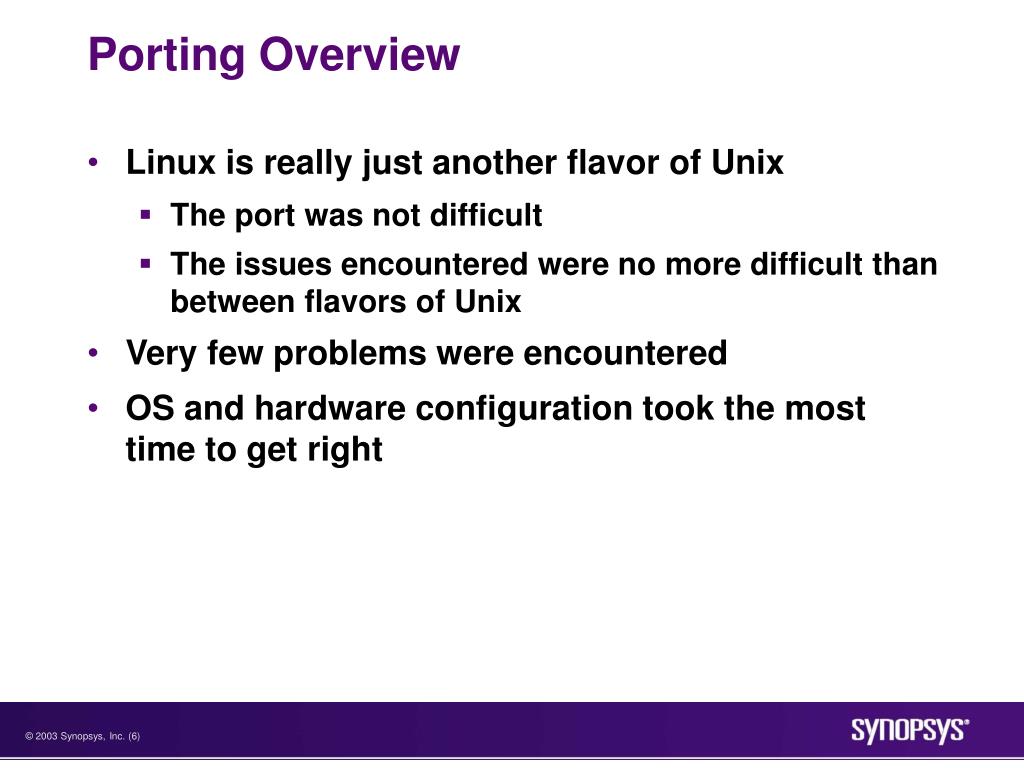

Porting Overview

  • Linux is really just another flavor of Unix

    • The port was not difficult

    • The issues encountered were no more difficult than between flavors of Unix

  • Very few problems were encountered

  • OS and hardware configuration took the most time to get right


What linux to choose

What Linux to Choose?

  • Versioned Linux was the gating factor to delivering a port

    • Can’t base a product on all variants of the OS that the open source community produces

  • Various companies supply versioned variants of Linux

    • Red Hat, SuSE, Caldera, Mandrake

    • Synopsys chose Red Hat


Problems with the linux support story

Problems with the Linux Support Story

  • Linux companies didn’t deliver a true enterprise support structure

    • Versions are not compatible

    • No long term support of versions

    • No compatibility guarantees between patches

    • Versions release very often

  • ISV’s stay with old versions for long periods of time

    • Synopsys is still based on Red Hat 7.2

  • Linux companies have recognized the flaw

    • Enterprise versions are becoming available

    • Consumer versions are unfriendly to business


The enterprise is coming

The Enterprise is Coming

  • Red Hat now only supports an Enterprise version

    • Yearly subscription based support

    • Guaranteed binary and API compatibility between versions

    • 12-18 months between major releases

  • Cost will increase

    • Stability will offset the additional cost

    • Red Hat Enterprise Linux WS $179 - $299 on x86

      • $792 on Itanium and AMD64

Information on this slide from http://www.redhat.com


Porting issues encountered

Porting Issues Encountered

  • Calling fclose() on a file that is not open crashes

    • Be sure to only call fclose() once per open file

  • Binary files are not platform independent due to Little Endian byte order

    • Must decide where you want to handle the conversion when reading/writing binary files


Porting issues encountered1

Porting Issues Encountered

  • Gcc doesn’t increment i++ until the end of the statement

    • result = foo(x[i++], x[i]);

    • Increment some other way

      • i and i+1 is one option

  • C compiler has problems with nested function calls and function calls in “if” statements

    • Use separate statements instead


Porting issues encountered2

Porting Issues Encountered

  • “/bin” and “/usr/bin” are separate directories

    • Make sure command location is defined for Linux

  • Default sorting order is not the same

    • Set environment variable LC_ALL to C


Porting issues encountered3

Porting Issues Encountered

  • Can’t initialize global scope to be stdout or stdin

    • stdout/stdin are not constant expressions and are therefore not suitable for initialization

  • If a NULL pointer is passed to fclose it will crash

    • Check the pointer

      • if (fd)

        fclose(fd);


Porting issues encountered4

Porting Issues Encountered

  • intptr_t is not defined in int_types.h

    • It is defined in stdint.h

  • SIGEMT is not defined

    • Do not use SIGEMT


Porting issues encountered5

Porting Issues Encountered

  • The default floating point precision varies

    • Uses native support of underlying hardware

    • Different results for register operation versus loaded

    • Makes golden-file based regression testing difficult

    • IEEE compliance options incur a performance penalty


Developing on linux

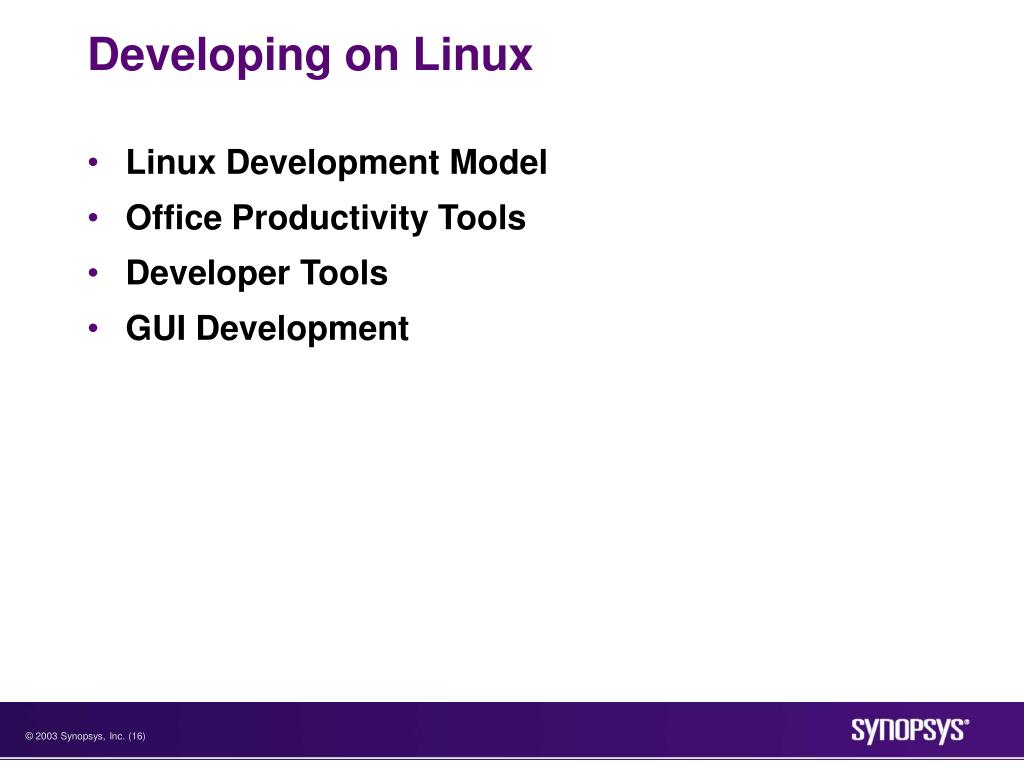

Developing on Linux

  • Linux Development Model

  • Office Productivity Tools

  • Developer Tools

  • GUI Development


Linux development model

Linux Development Model

SCM Data

Servers

Linux Box

2 CPU

4 GB Memory

Exceed

Vnc

Big Local

Disk

Windows Desktop

Computer Room


Office productivity tools

Office Productivity Tools

  • Windows Desktop avoids the office productivity tool issues

    • OpenOffice and StarOffice available on Linux

      • MS Office compatible

    • CodeWeavers CrossOver Office

      • Allows MS Office to run directly on Linux

    • VMware dual operating system capable


Developer tools

Developer Tools

  • Compilers

    • Gnu (gcc, g++)

    • Intel Compilers

  • Debuggers

    • gdb

    • Graphical front end, ddd


Developer tools1

Developer Tools

  • Editors (IDE’s)

    • Emacs, Vim

      • Highly configurable editors

      • Can tightly integrate gdb and SCM systems

    • Kdevelop

      • Full integrated MS Visual C++ style IDE

  • Source Control Systems

    • Clearcase, Perforce, CVS, RCS


Developer tools2

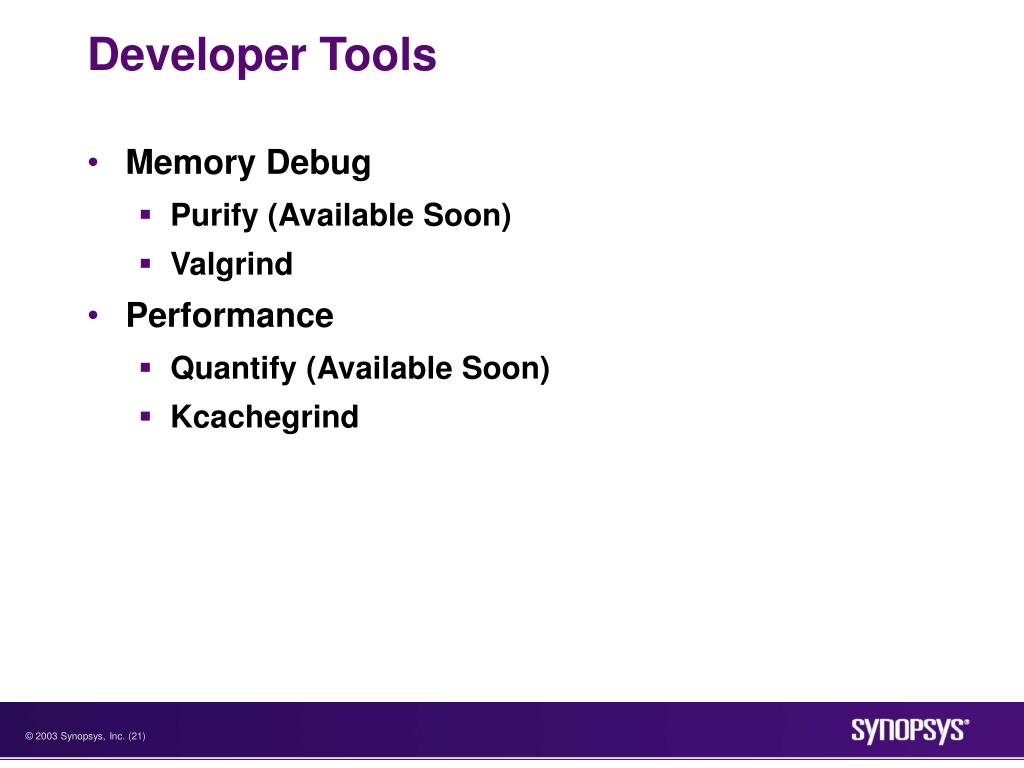

Developer Tools

  • Memory Debug

    • Purify (Available Soon)

    • Valgrind

  • Performance

    • Quantify (Available Soon)

    • Kcachegrind


Developer tools3

Developer Tools

  • Test Coverage

    • Purecov (Available Soon)

    • Gcov

  • Scripting Language

    • Perl, Tcl/Tk, Python, JavaScript


Gui development

GUI Development

  • Native GUI toolkits available

    • Gnome GTK+ is a C based public domain toolkit

    • LessTiff is Motif compatible library

    • Tcl/Tk provides scripting type capabilities

    • Java, AWT or Swing

    • Qt is a C++ class library commercially available from Trolltech

      • KDE is written in Qt

      • Portable across Linux/Unix/Windows platforms

      • Public Domain version available

  • Synopsys standardized on Qt


Summary

Summary

  • The PC has given us fast, inexpensive hardware

  • Linux enables EDA on the PC

  • Enterprise Linux makes this a viable solution

    • Stability, Compatibility, Predictability

  • Linux is a winning platform for EDA!

    • For customers and developers
