  1. BR seminar - Space Workshop - November 2006 Creation of electronic notices with SpaceCap software for submissions under Appendices 30, 30A and 30B Presented by Véronique Glaude BR/SSD/Space Notification and Plan division

  2. Presentation Broadcasting Space Service (BSS) Plan and associated feederlink –(Ap30/30A Art.4/5) • General submission schema and data organization in the SpaceCap software Exercice Creation of the AP30/4.1.3(Part A) electronic submission of the satellite network R13DN-LINK Annex1: Fixed Satellite Service (FSS) Plan – (Ap30B Art. 6/8) Annex2: Space Operating Function (SOF) service – (Ap30/30A Art.2A) BR seminar - Creation of electronic Plan submissions

  3. Ap30/30A – General submission schema Notices under Articles 4 and 5 of Ap30/30A submit Appendix 4 (Ap4) data items SPS (Space Plans Systems) database • Contains basic characteristics and reference situation of the assignments (Ap30/30A Plans, Lists and Article 4 networks, notified assignments under Article 5 and SOF Article 2A) • Similar structure as in SNS (SRS_ALL) database, with some differences in usage of the tables and fields Starting SpaceCap (version 5) software • open an SPS (Space Plans Systems) database • select the “Plan” button (on the top right toolbar) Note: “Open Plan for Inquiry only” option enables read only access BR seminar - Creation of electronic Plan submissions

  4. Ap30/30A - Data organization in the SpaceCap software (1) Common data to all frequencies of a network (satellite name, orbital position…) Attachments to submission (type (Paper, GXT, File), file name, description) Note: normally filled in through other data entry forms Strapping information for Region 2 Agreements reached Note: captured in the “Coordination” data entry form Satellite beam characteristics (satellite antenna gain, boresight…) Groups of frequencies (common characteristics such as polarization type and service area…) BR seminar - Creation of electronic Plan submissions

  5. Ap30/30A - Data organization in the SpaceCap software (2) Emission characteristics of a specific group (frequencies, power and modulation characteristics) Service area, test points and typical earth station antenna characteristics of a specific group Specific earth station antenna characteristics of a certain group in the case of feeder-link only (if any) BR seminar - Creation of electronic Plan submissions

  6. EXERCICE Creation of the AP30/4.1.3 (Part A) electronic submission of the satellite network R13DN-LINK Before starting: • BR space softwares installation required: SpaceCap, SpacePub, IDWMlight, GIMS • Printing a “paper copy” of the notice: SpCap_AP30_exercice.rtf Starting:SpaceCap The exercise consists of: • Capturing in SpaceCap the data of the “paper copy” • Creating with SpacePub the TSUM of the notice with the data captured • The TSUM created should be identical to the “paper copy” Solution:SpCap_AP30_solution.mdb “Step by step” data capture with tips on next slides… BR seminar - Creation of electronic Plan submissions

  7. Set Template to PLAN Set PLAN ID Select New Notice

  8. at least one “Group” of one “Beam” must be captured previously. For full-time operation = 0 to 24 Depending of the notice type, “beam identification” or “notice ID” of previously published notices

  9. List from the APL reference library BR seminar - Creation of electronic Plan submissions

  10. If blank, no MSPACE internal grouping applicable Select Common data BR seminar - Creation of electronic Plan submissions

  11. Close to capture other data… Common data BR seminar - Creation of electronic Plan submissions

  12. Automatic calculation As defined in Appendix 1 Click to capture modulation characteristic data… Automatic calculation ofchannel number from frequencyor Frequency from channel number BR seminar - Creation of electronic Plan submissions

  13. Modulation Characteristics List of references proposed BR seminar - Creation of electronic Plan submissions

  14. Up to 20 test points within the service area BR seminar - Creation of electronic Plan submissions

  15. List of attachments to the submission BR seminar - Creation of electronic Plan submissions

  16. List of agreements obtained from other adminsitrations BR seminar - Creation of electronic Plan submissions

  17. Creating a TSUM with SpacePub Electronic notice ready to be submitted to BR

  18. Ap4 data capture observation concerning specific items to Articles 4 and 5 of Ap30/30A (1) BR seminar - Creation of electronic Plan submissions

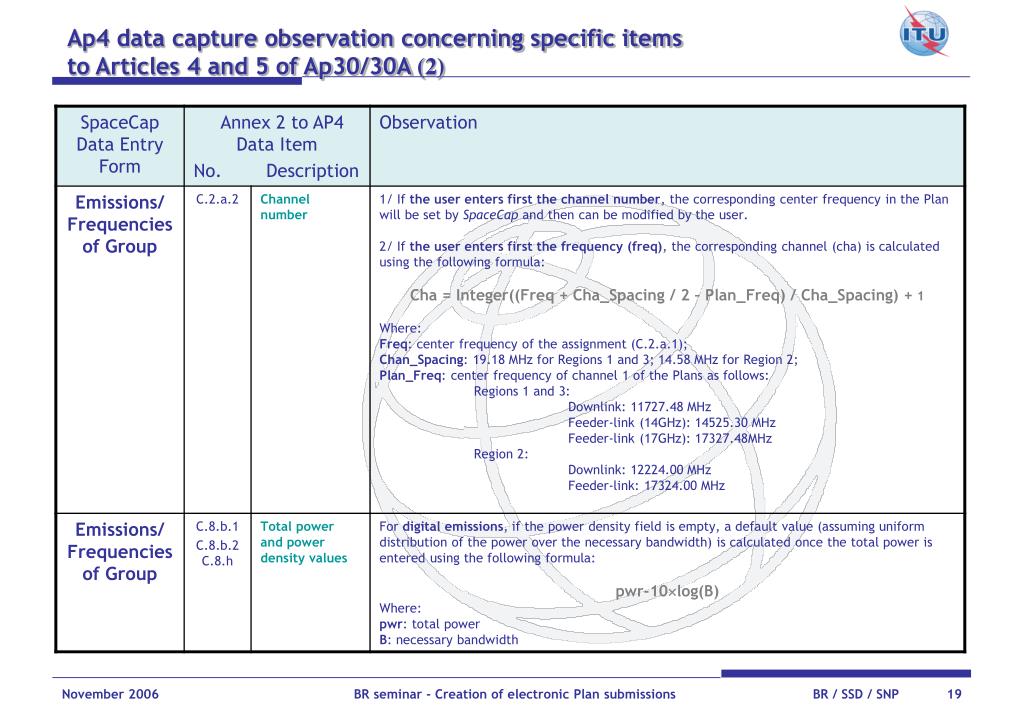

  19. Ap4 data capture observation concerning specific items to Articles 4 and 5 of Ap30/30A (2) BR seminar - Creation of electronic Plan submissions

  20. Ap4 data capture observation concerning specific items to Articles 4 and 5 of Ap30/30A (3) BR seminar - Creation of electronic Plan submissions

  21. Ap4 data capture observation concerning specific items to Articles 4 and 5 of Ap30/30A (4) BR seminar - Creation of electronic Plan submissions

  22. Ap4 data capture observation concerning strapping methodto Articles 4 and 5 of Ap30/30A Strapping method Description Condition Example Downlink Beam channels Feeder-link Beam channels Beam level strapping Connecting one downlink beam to a feeder-link beam For each downlink group of frequencies, a feeder-link group with frequencies having the same downlink channel number shall exist and vice-versa. Beam: Bmdl Grp1: 1, 3, 5, 7 Grp2: 2, 4, 6, 8 Beam: Bmfl Grp3: 1, 3, 5, 7 Grp4: 2, 4, 6, 8 Group level strapping Connecting one downlink group of frequencies to a feeder-link group of frequencies The channel numbers of the downlink group shall be equal to those of the feeder-link group. Beam: Bmdl Grp1: 1, 3, 5, 7 Beam: Bmfl Grp3: 1, 3, 5, 7 Assignment level strapping Connecting one downlink frequency to a feeder-link frequency Any downlink channel can be connected to any feeder-link channels. Beam: Bmdl Grp1: 3 Beam: Bmfl Grp4: 6 BR seminar - Creation of electronic Plan submissions

  23. Annex 1 Fixed Space Service (FSS) Plan Creation of electronic submissions Appendix 4 information submitted under Articles 6 and 8 of Appendix 30B (Ap30B) BR seminar - Creation of electronic Plan submissions

  24. FSS Plan – Art.6 and 8 of Ap30BData organization in the SpaceCap software (1) Common data to all frequencies of a network (satellite name, orbital position, Predetermined Arc…) Diagrams data (type (Paper, GXT, File), file name, description) Note: normally filled in through other data entry forms Agreements reached Note: captured in the “Coordination” data entry form Antenna beam characteristics (satellite antenna gain, boresight…) Groups of frequencies (common characteristics, service area…) BR seminar - Creation of electronic Plan submissions

  25. FSS Plan – Art.6 and 8 of Ap30BData organization in the SpaceCap software (2) Emission characteristics of a specific group (frequency bands available for 4500-4800MHz,6725-7025MHz, 10.70-10.95GHz, 11.20-11.45GHz, 12.75-13.25GHz, noise temperature (C/I protection ratio), power…) Service area, test points and typical earth station antenna characteristics of a specific group BR seminar - Creation of electronic Plan submissions

  26. Annex 2 Space Operating Function (SOF) Service Creation of electronic submissions Appendix 4 information submitted under Articles 2A Appendices 30 and 30A (Ap30/30A) BR seminar - Creation of electronic Plan submissions

  27. SOF – Art.2A of Ap30/30AData organization in the SpaceCap software (1) Common data to all frequencies of a network (satellite name, orbital position…) Diagrams data (type (Paper, GXT, File), file name, description) Note: normally filled in through other data entry forms Antenna beam characteristics (satellite antenna gain, boresight…) Groups of frequencies (common characteristics such as polarization type and service area…) BR seminar - Creation of electronic Plan submissions

  28. SOF – Art.2A of Ap30/30A Data organization in the SpaceCap software (2) Emission characteristics of a specific group (frequency guard bands available) Agreements reached Note: captured in the “Coordination” data entry form Associated earth station antenna characteristics of a specific group BR seminar - Creation of electronic Plan submissions

  29. Web links for further information Creation of electronic Ap30/30A notices with SpaceCap software: http://www.itu.int/ITU-R/space/plans/FAQ/SpaceCap5.html http://www.itu.int/ITU-R/software/space/spacecap/index.html SPS databases: http://www.itu.int/ITU-R/space/plans/AP30-30A/index.html http://www.itu.int/ITU-R/space/plans/MIFR/index.html BR seminar - Creation of electronic Plan submissions

  30. Your questions are welcome! veronique.glaude@itu.int BR seminar - Creation of electronic Plan submissions
