connected prototypes deep dive


Overview

Long Tail

Overview

Introduction to the dongle API

“Question Mark” application walkthrough

“VGANode” application walkthrough


Vodafonek3770 h

Long Tail

VodafoneK3770.h


Question mark plug and play ad hoc feedback point

Long Tail

Question Markplug-and-play ad-hoc feedback point


Mini thermal printer is very popular using ethernet

Long Tail

Mini thermal printer is very popular using ethernet:


Question mark thermal printer with dongle sms

Long Tail

Question Mark – thermal printer with dongle + SMS


Question mark

Long Tail

Question Mark

5V

GND

Adafruit thermal printer

mbed LPC1768

5v

GND

TX

RX

5V

D-

D+

GND

Vodafone K3770



Vganode

Long Tail

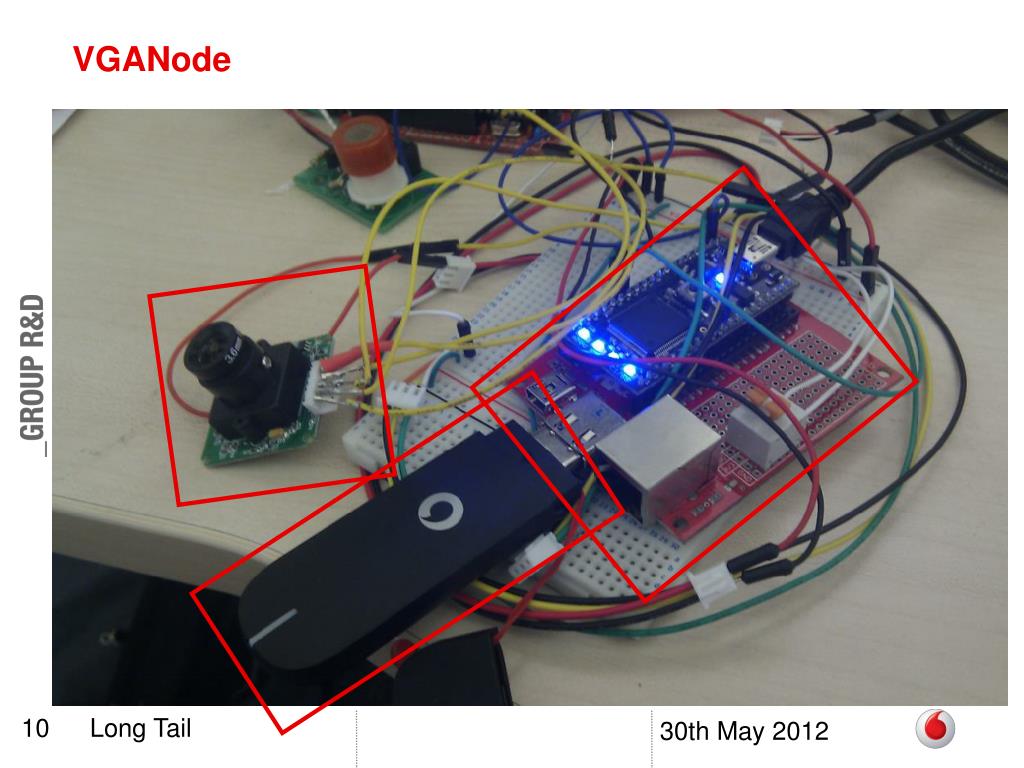

VGANode


Vganode1

Long Tail

VGANode


Vganode2

Long Tail

VGANode

5V

GND

LinkSprite Y201

mbed LPC1768

5v

GND

TX

RX

5V

D-

D+

GND

Vodafone K3770


Vganode code parts

Long Tail

VGANode – code parts

Camera driver

Client code

Server code


Camera driver

Long Tail

Camera driver

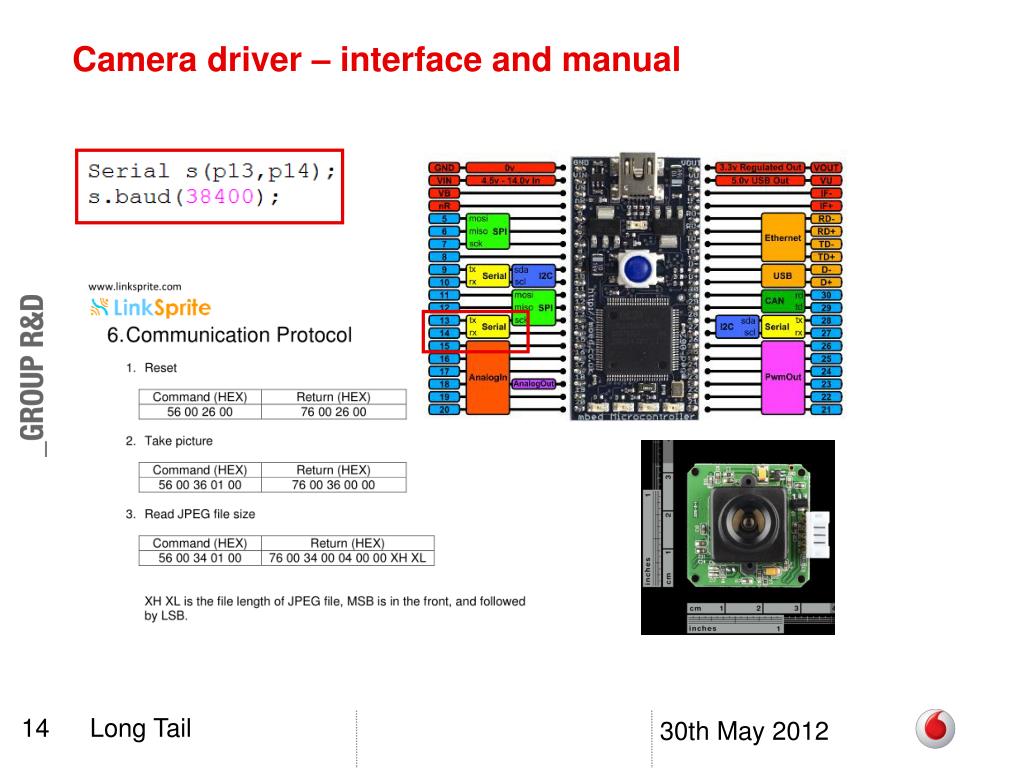

Camera driver interface and manual

Long Tail

Camera driver – interface and manual


Camera driver process overview

Long Tail

Camera driver – process overview

Define sequences

Push sequence

Read response

Example:


Camera driver getting picture if you can understand the docs

Long Tail

Camera driver- getting picture(if you can understandthe docs)

Take picture

Read file size

Bytes to read

Read file

EOF?

Memory address

Stop taking pictures


Client code

Long Tail

Client code

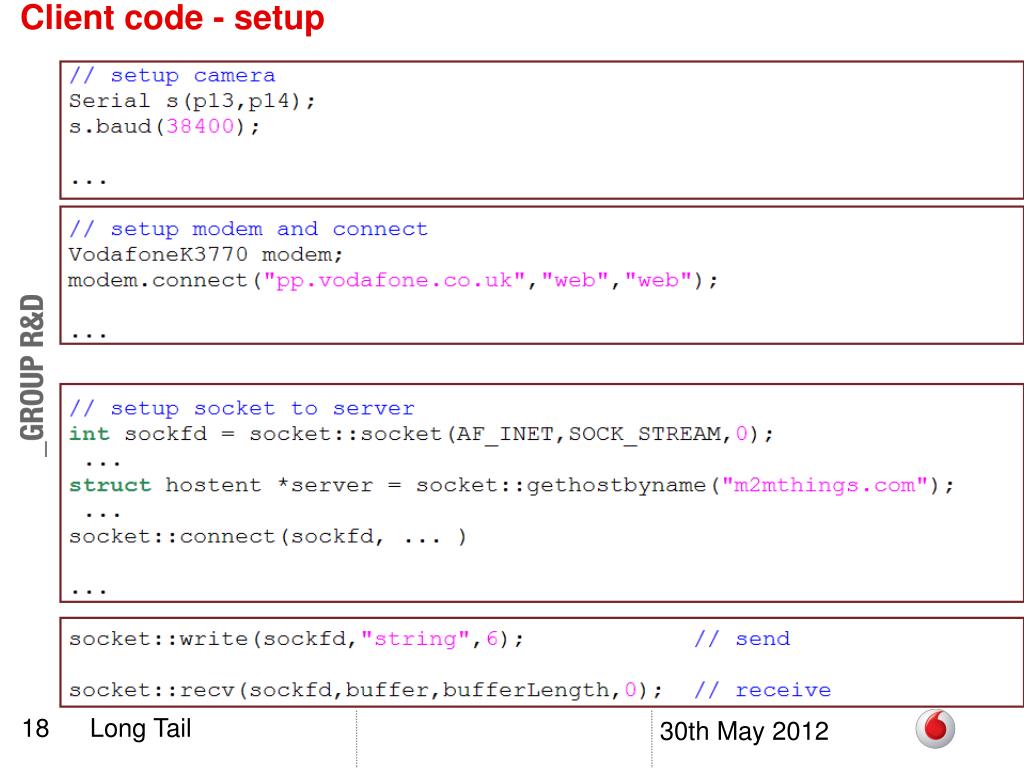

Client code setup

Long Tail

Client code - setup

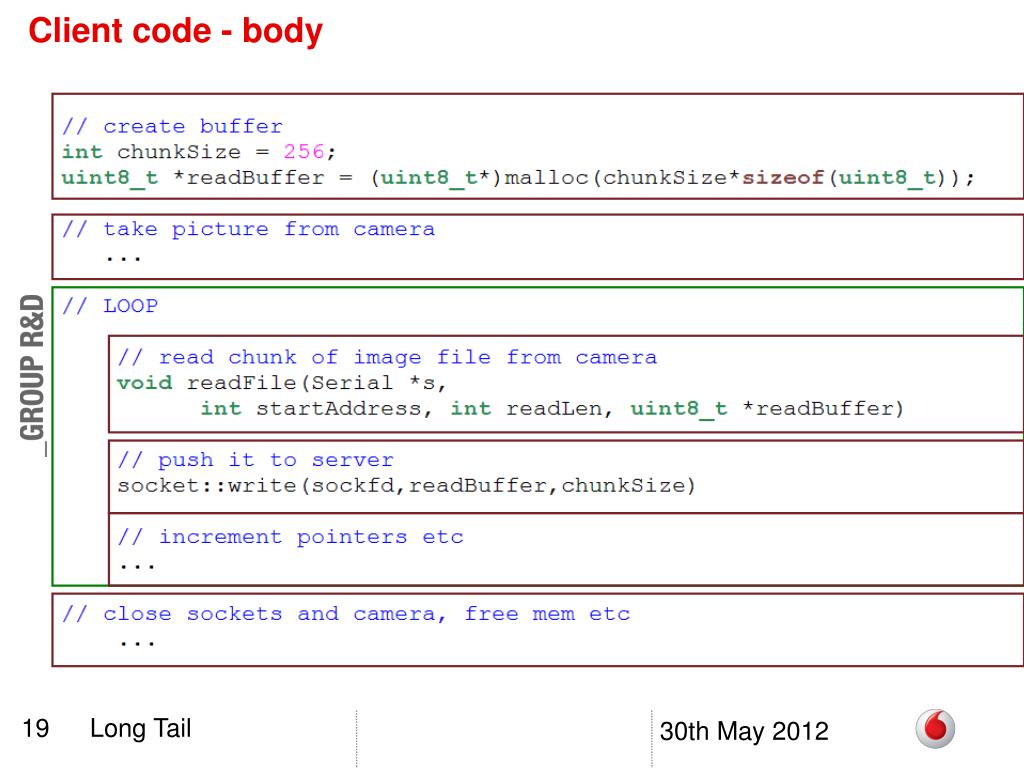

Client code body

Long Tail

Client code - body


Server code

Long Tail

Server code

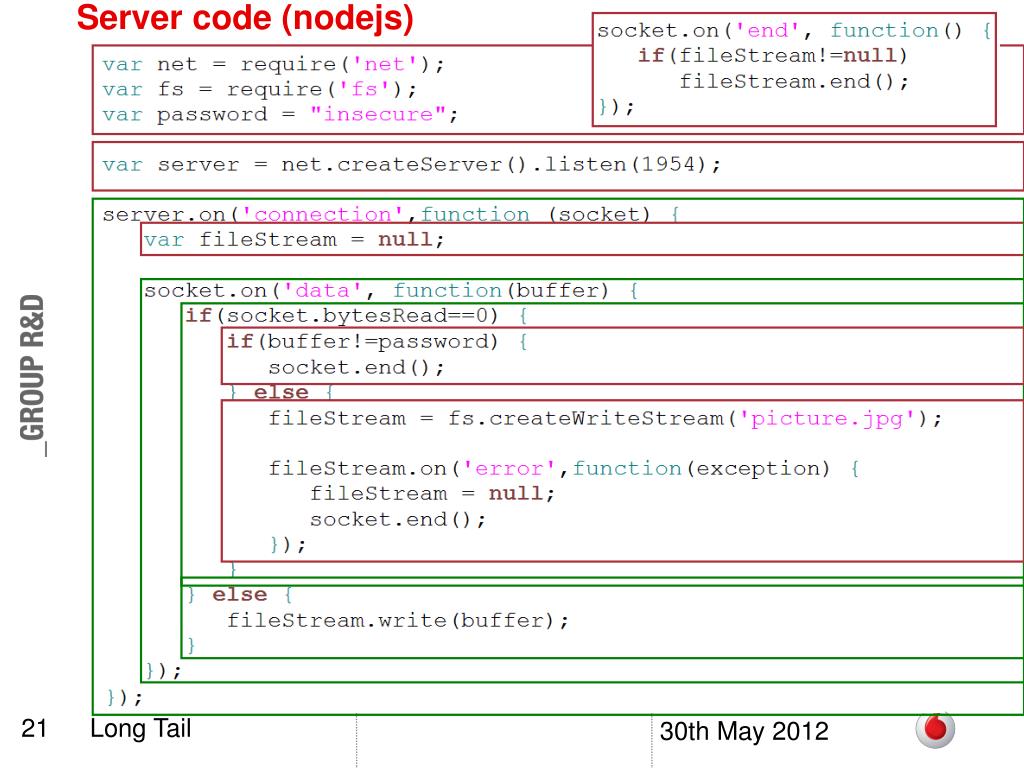

Server code nodejs

Long Tail

Server code (nodejs)


Overview1

Long Tail

Overview

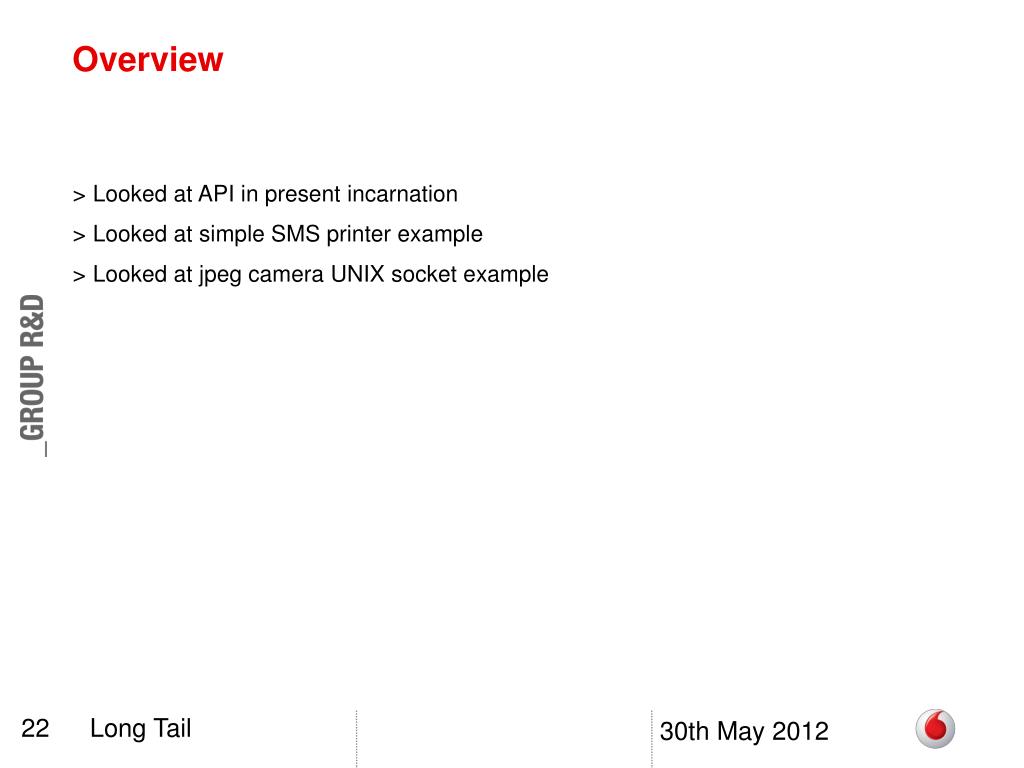

Looked at API in present incarnation

Looked at simple SMS printer example

Looked at jpeg camera UNIX socket example


Thanks for listening questions

Long Tail

Thanks for listening…questions?
