  1. CEVP ®Cost Estimate Validation ProcessTEA Conference 2004 Jay Drye, P.E. Assistant State Design Engineer Monica Bielenberg, P.E. CREM Program Manager

  2. Why an Estimate is Not a Number Estimates are uncertain . . . • Ultimate project cost and schedule cannot be known with certainty during estimating and design • Project cost and schedule are functions of many variables • scope and strategy • other policy • technical (e.g.,associated unit costs and quantities) They are essentially a snapshot in time . . . Therefore single number estimates are dangerous • “Number” hits the street before estimate is complete or more often does not include all of the uncertainty inherent to a project

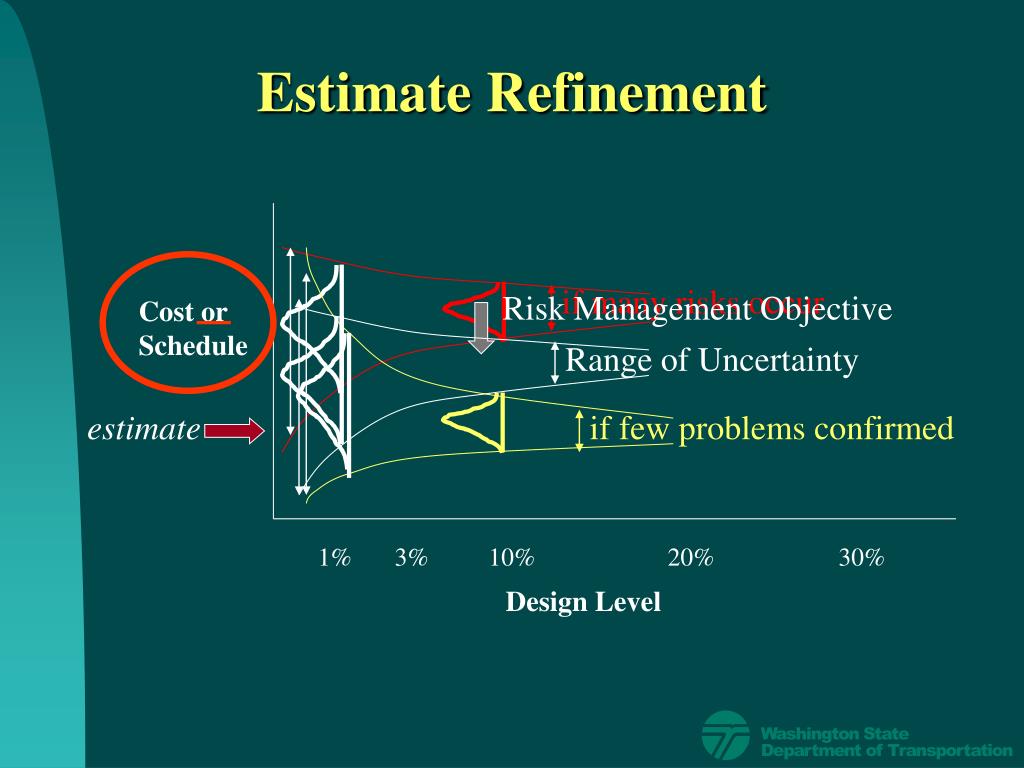

  3. if many risks occur Risk Management Objective Range of Uncertainty if few problems confirmed Estimate Refinement Cost or Schedule estimate 1% 3% 10% 20% 30% Design Level

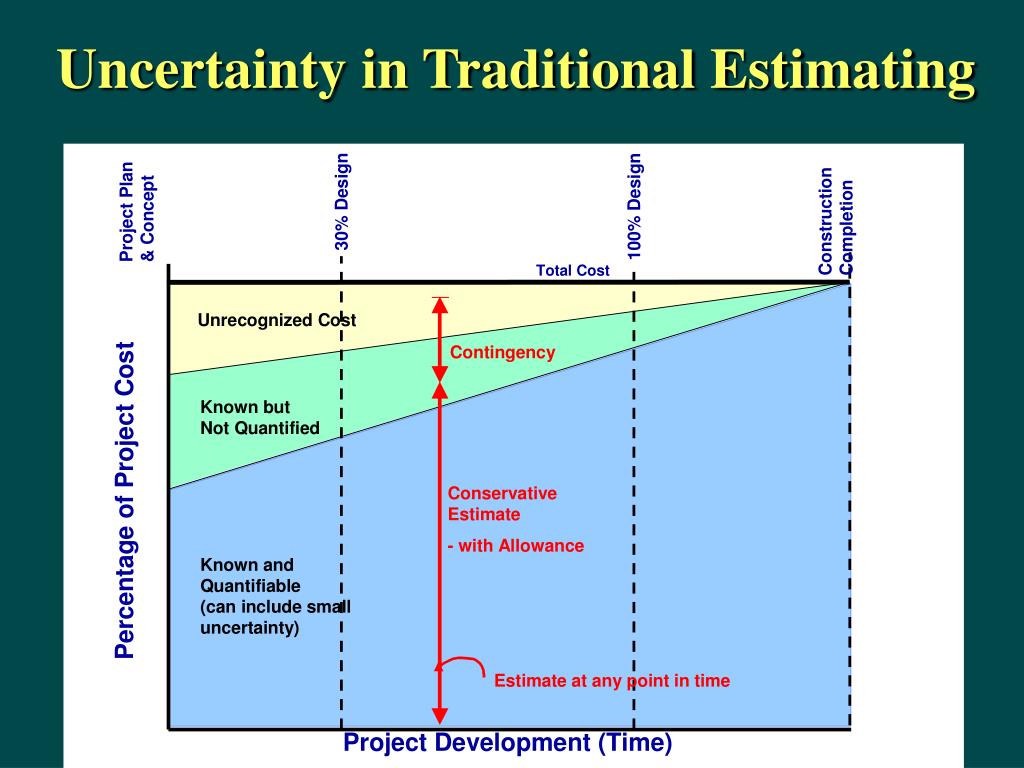

  4. Uncertainty in Traditional Estimating

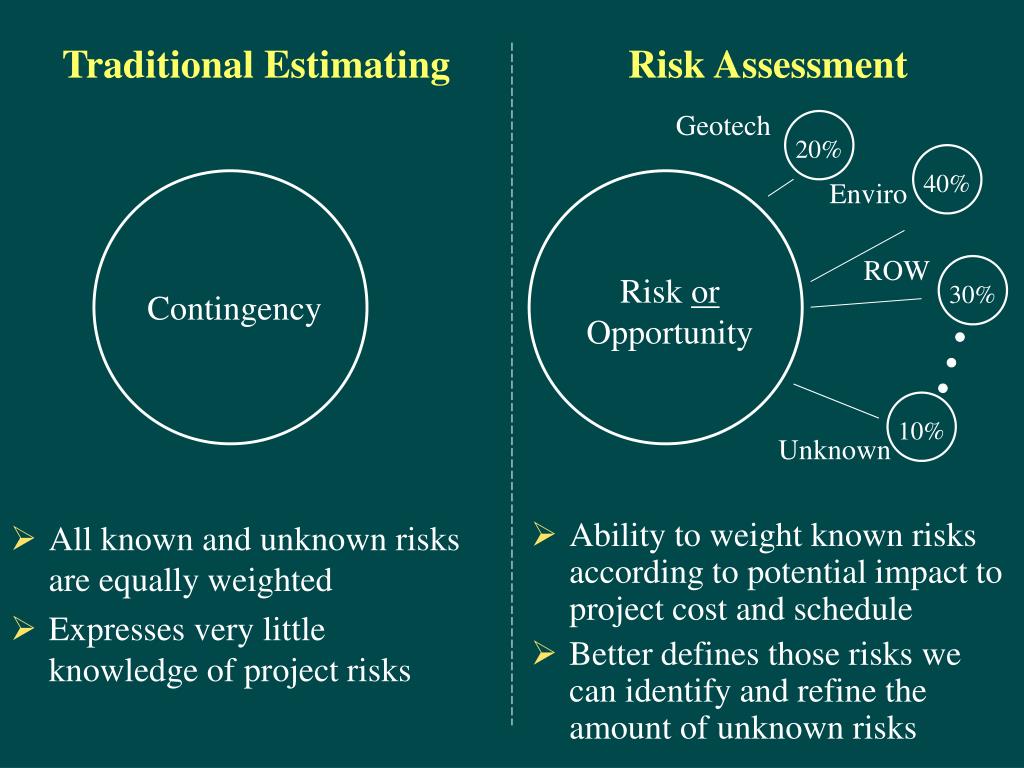

  5. All known and unknown risks are equally weighted Expresses very little knowledge of project risks Ability to weight known risks according to potential impact to project cost and schedule Better defines those risks we can identify and refine the amount of unknown risks Traditional Estimating Risk Assessment Geotech 20% 40% Enviro ROW Risk or Opportunity 30% Contingency 10% Unknown

  6. Poor assessments of uncertainty lead to poor estimates . . . Impacts of poor cost and schedule estimates include: • Cost and schedule over-runs or under-runs • Reduction in scope • Resource competition • Media attention / negative publicity • Public mistrust

  7. Impacts of Uncertainties: WSDOT We have a strong estimating track record: • Construction generally completed within 10% of Engineer’s Estimate • Cost of change orders during construction 6-7% of bid price • Overall programs delivered within 3-5% of total budgeted biennial program However . . . we have our share of ‘black-eyes’ too: SR 167 1990 $150 million 2000 $972 million

  8. A New Tool Emerged: CEVP® • Evaluate estimate • Break down known items, uncertain or “risky” items (contingencies, allowances, etc) • Build back up • Better defined, more accurate numbers • Include uncertain risk/opportunity events • Run simulation model • Integrated cost and schedule model • Express costs and durations to complete the project in terms of ranges (distributions) • Prioritize critical risk and opportunity factors to enable more-effective project management

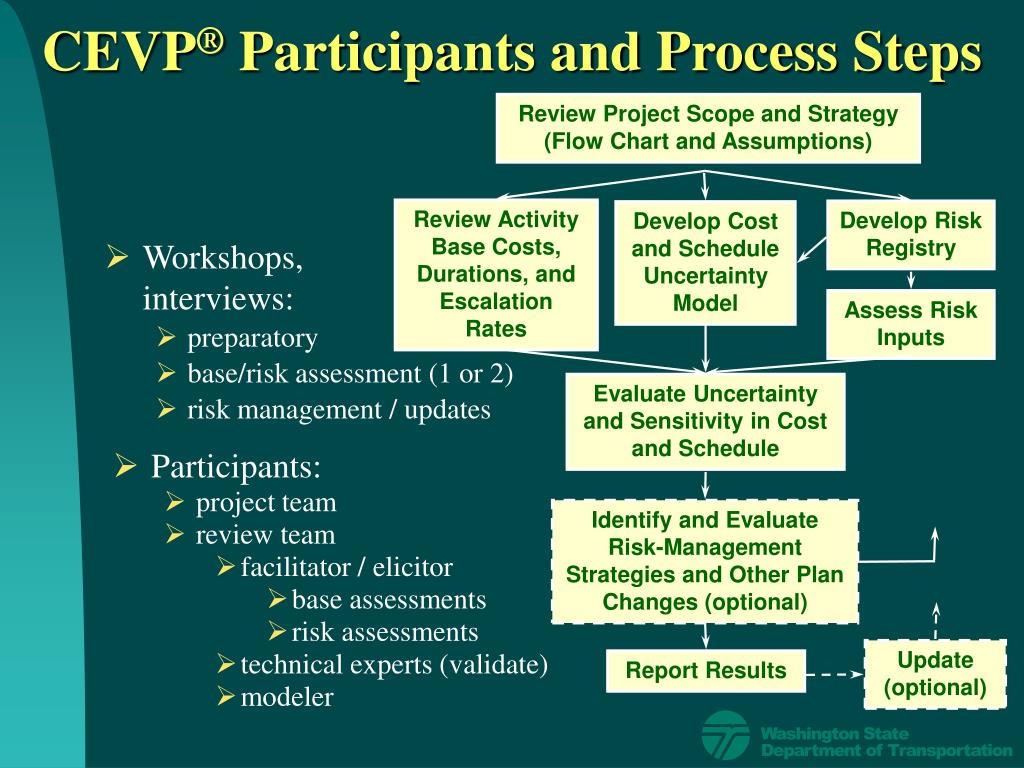

  9. Review Activity Base Costs, Durations, and Escalation Rates Develop Cost and Schedule Uncertainty Model Develop Risk Registry Assess Risk Inputs Evaluate Uncertainty and Sensitivity in Cost and Schedule Identify and Evaluate Risk-Management Strategies and Other Plan Changes (optional) Update (optional) Report Results CEVP® Participants and Process Steps Review Project Scope and Strategy (Flow Chart and Assumptions) • Participants: • project team • review team • facilitator / elicitor • base assessments • risk assessments • technical experts (validate) • modeler • Workshops, interviews: • preparatory • base/risk assessment (1 or 2) • risk management / updates

  10. CEVP® - Base Cost Determination • Determine the “base” costs - the most probable cost that can be expected if the project goes as planned • Remove all contingency - i.e. provision for unknowns (representing uncertainty - risk and opportunity) • Consider at the particular stage of the project: • What are our assumptions? Where do they come from? How valid are they, how do we know? • What do we know we know? (components, units, prices) • What do we know but can’t quantify? (allowances) • What do we know we don’t know? (uncertainty of items) • What don’t we know that we don’t know? (uncertainty)

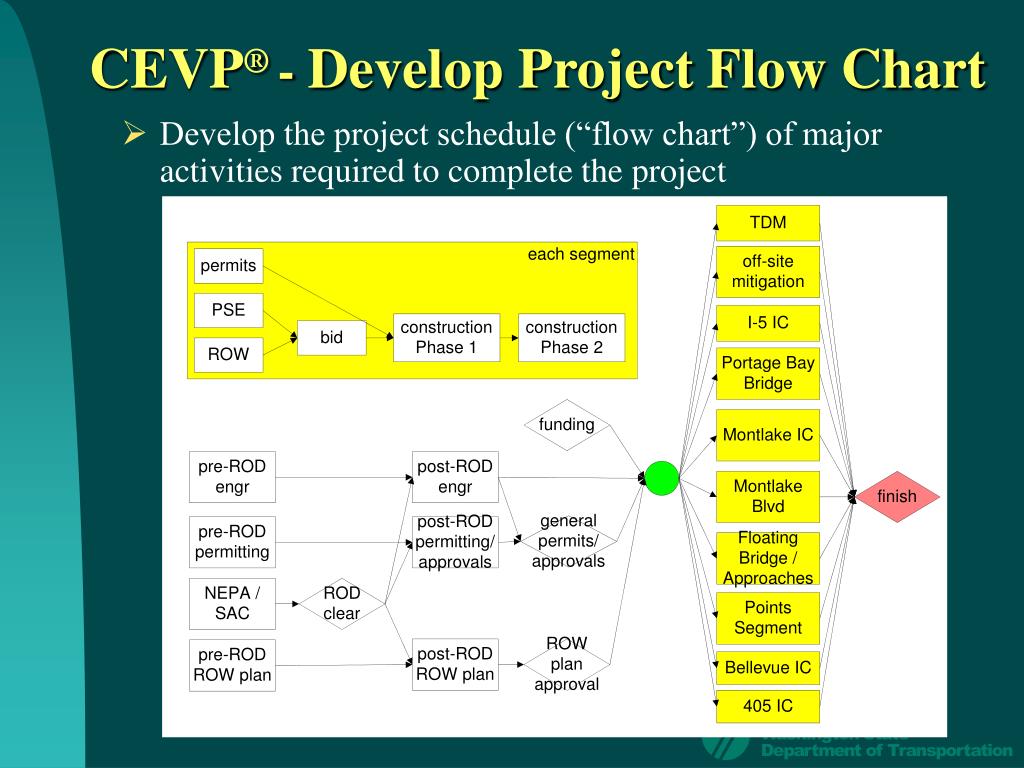

  11. CEVP® - Develop ProjectFlow Chart • Develop the project schedule (“flow chart”) of major activities required to complete the project

  12. Identify Risk + Opportunity Events(Assess Impact + Probability)

  13. Risk Event - Detail

  14. Uncertainty in Total Project Cost andDuration Event X Activity B Activity A End $ Start Activity C T Uncertainty in Activity “Base” Costs Event Y Uncertainty in Activity “Base” Durations Risk Events (likelihood of occurrence, and likelihood for cost and duration changes if the event occurs) Evaluate Uncertainty

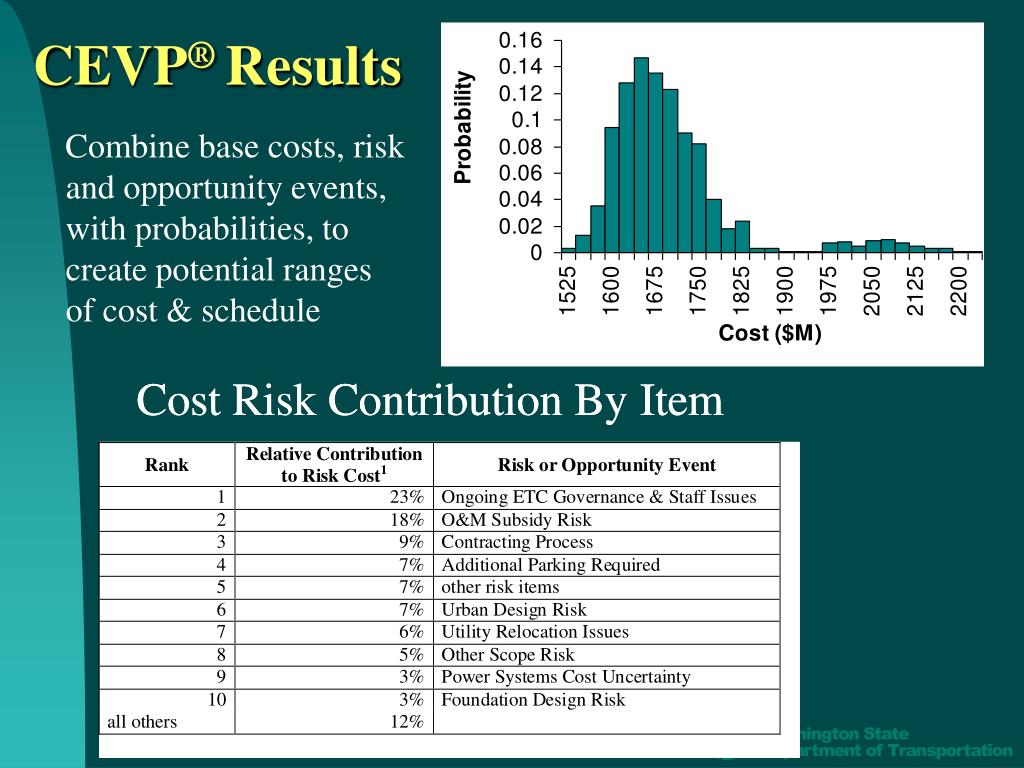

  15. CEVP®Results Combine base costs, risk and opportunity events, with probabilities, to create potential ranges of cost & schedule

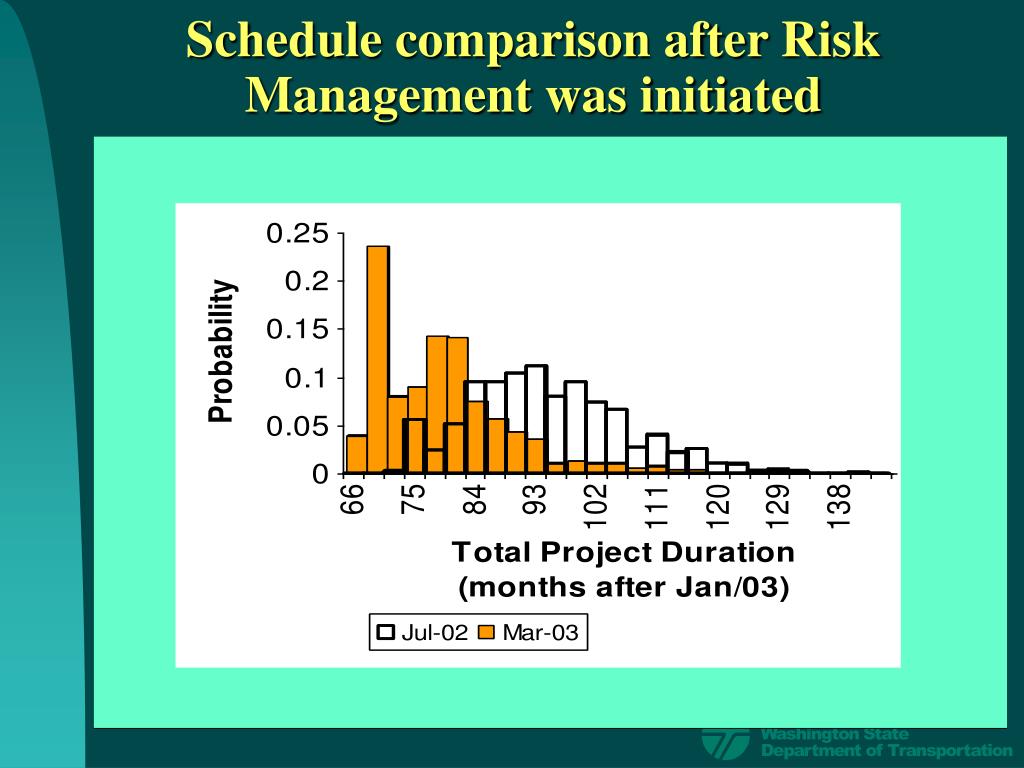

  16. Schedule comparison after Risk Management was initiated

  17. What does it take to do CEVP®? • A knowledgeable/committed owner (who wants to know the “potential cost”) • A well-shaped project estimate • Available/involved project team members • Sufficient independent subject matter experts • Skilled risk and cost elicitors (debiasing) • Risk modeling - technology and experience • Time / available funding

  18. “CEVP® produced very useful results” “…transportation department effort to plan more accurately and manage money more effectively…So give DOT some credit for those intimidating estimates. They should show us that it’s way past time to pass a funding package and get to work. Delay will only increase the cost.” Spokesman-Review June 2002 “The Transportation Department developed its new numbers through a new process called “cost estimate validation” or CEVP, which features another layer of review by outside experts…The agency’s Urban Corridors Administrator characterized it as an effort to deal more openly and honestly with risks and uncertainties. ” Seattle Times, June 2002 “Giving citizens a range of costs, including full disclosure of the variables, “is not only politically smart, but it’s common sense”…” Seattle Post-Intelligencer, June 2002

  19. CEVP® CEVP® has been registered by WSDOT to recognize their sponsorship of its development and to ensure that the term is not loosely applied in other settings to cost review procedures that contain less than all the tools and controls that have been incorporated into the process, as used at WSDOT.

  20. Questions ? ? ?
