  1. Emulsion Polymerization (2) • External variable (surfactant concentration) used to increase BOTHmolecular weight as well as rate of polymerization • Colloidal system easy to control • Thermal, viscosity issues • Reaction mixture in form of final product for coatings • Reaction product needs to be isolated from aqueous latex for many applications like rubber, elastomers, PVC, fluoropolymers, etc

  2. Variables and Other Characteristics • Redox Initiators • Hydrogen Peroxide w/ Ferrous Ion • Surfactant-Free Emulsion Polymerization • Initiator fragment affords amphiphilic character • Phase transfer catalysis (cyclodextran) • Microemulsion, Miniemulsion • Inverse emulsions • Core-Shell Particles • pH Control: Hollow Particles

  3. Various Emulsions • Emulsion Polymerization (macro) • Classic aqueous system • Particles range from 50-500 nm • Microemulsion Polymerization • Optically clear, smaller particles • No droplets, just micelles • Miniemulsion Polymerization • Between macro and micro systems, monomer droplets smaller than in macro systems

  4. Inverse Emulsion Polymerization • Standard emulsion polymerization uses water as the continuous phase, or oil-in-water (O/W) • Inverse Emulsions use: • Oil as the continuous phase, or water-in-oil (W/O) • Hydrophilic monomer (or aqueous solution of monomer) dispersed in oil, i.e. xylene/hexane • Like Acrylamide • Oil Soluble Initiator • Surfactant

  5. Surfactants H2O Oil

  6. Water 1% 1% 2% - 2% V V V 3% 3% V+L Multi M a R 4% 4% 5% CTAT 5% SDBS cationic surfactant anionic surfactant 1% 2% 3% 4% V Vesicles Multi Multiphase Region R Rod-like Micelles V + L Vesicles and Lamellar Phase a M Micelles Surfactant Assemblies - Rich Morphologies

  7. M P• PM• M Polymer Particle M M M M M Controlled Radical Polymerization in Microemulsion Monomer-Swollen Micelles Monomer Diffusion Microemulsion Nanoparticles Liu, S. Y.; Kaler, E. W. et al. Macromolecules 2006, 39, 4345

  8. Design of Polymeric Nanogelsfor DNA Delivery • Research Objectives: • Design nanogels < 200 nm in diameter using inverse micro-emulsion techniques with excellent solution stability (w/o toxic solvents!) • Control release profile of DNA by selection of monomer and crosslinker • composition and concentration • 3. Attach targeting ligands to surface of nanogels Release of DNA Diffusion Pathway McAllister, K.; Sazani, P.; Adam, M.; Cho, M.; Rubinstein, M.; Samulski, R. J.; DeSimone*, J. M. J. Am. Chem. Soc. 2002, 15198-15207

  9. Microemulsion Polymerizationand Isolation of Nanogels Addition of Initiator to oil phase and free radical polymerization Removal of heptane and surfactant by extraction and dialysis Step 1: Form microemulsion Step 2: Polymerize microemulsion Step 3: Extract and purify nanogels

  10. Designing Polymeric Nanogels Increasing Crosslinker + + + + + + Increasing Charge + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + Monomers Nanogels PEGdiacrylate n=8 2-Hydroxyethylacrylate 2-Acryloxytrimethyl- ammonium chloride

  11. Dynamic Light Scattering of Microemulsion Before and After Polymerization = 0% Cationic Monomer = 12% Cationic Monomer = 25% Cationic Monomer Diameter (nm) Crosslinker Concentration (wt %) After Polymerization Before Polymerization After Before

  12. Cross-linked Particles Adsorbed to Surface Low Crosslinking Particles Flatten and Spread High Crosslinking Particles Maintain Shape

  13. TEM Images of Nanogels 3% Crosslinker 50% Crosslinker 12% Crosslinker 0% Charge 12% Charge 66K Magnification Samples Stained with 1% PTA

  14. % HeLa Cells Living After 40 Hour Exposure to Nanogels % HeLa Cells Living Cationic (12%) Cationic (25%) Blank Non-ionic Polylysine

  15. Release of Dye Molecules from Non-ionic Nanogels Final Fluorescence Intensity in Bag Initial Fluorescence Intensity in Bag Dialysis for 24 hours at 37°C and at 4°C 37°C = 100% 4° C = 100% 37°C = 4% 4° C = 8%

  16. In Vitro Efficacy:Nanogel Uptake by HeLa Cells HeLa Cells Cells + Nanogels Nanogels Bound to Cells Add Nanogels Wash Cells

  17. HeLa Cells Exposed to Nanogels 0% Charge 12% Charge 25% Charge HeLa Cells Viewed at 400 x Magnification After 24 h exposure to nanogels (12% cross-linker) and PBS wash

  18. Confocal Microscopy of HeLa Cells Exposed to Rhodamine-Labeled Nanogels 0% Charge 12% Charge 25% Charge 3% Crosslinker 12% Crosslinker

  19. Future Directions • Determine maximum DNA length which does not induce aggregation • Evaluate in vitro delivery of DNA with nanogel/DNA complexes • Extend to hydrolytically degradable matrices, targeting ligands, diffusion barriers • Extend to peptides, pharmaceuticals, vaccines

  20. Murthy N et al. PNAS 2003;100:4995-5000

  21. Miniemulsion Polymerization for Dually-Triggered Degradable Nanogels Li, Z. C, et al. et al. J. Controlled Release 2011, 152, 57

  22. Core-shell Polymer Particles • General Practical Uses: • impact modification (soft core, hard shell) • providing chemical reactivity to latex particles • enhancement of adhesion properties (hard core, soft shell) • controlled-release drug delivery (water-soluble core) • prevent colors from showing through (hollow core) shell core Morphology: is determined by thermodynamic control (lowest surface free energy) and kinetic control. The second polymer doesn’t necessarily form the shell!

  23. Possible Morphologies 1st-stage polymer 2nd-stage polymer Thermodynamically Stable Morphologies Core-shell Inverted core-shell Half-Moon A Half-moon B Kinetically Trapped Morphologies Microdomains Raspberry Sandwich A B A B

  24. Hollow Particles & Ropaque™ Lower pH Raise pH microvoid Hollow particles in: paints, sunscreens, inks, cosmetics, fluorescent coatings, forgery- or counterfeiting-proof coated paper, paper products, etc. • Hollow polymer particles industrially important • Can replace use of TiO2 • Ropaque™ made by Rohm & Haas Kowalski, A.; Vogel, M. U.S. Patent 4,469,825. Blankenship, R.M.; Finch, W.C.; Mlynar, L.; Schultz, B.J. U.S. Patent 6,139,961.

  25. Hollow Particle Micrographs PMMA particles via W/O/W emulsion polymerization Core-shell hollow particles using methacrylic acid J. Poly. Sci. A: Polym. Chem., 2001, 39, 1435 Colloid Polym. Sci. 1999, 277, 252.

  26. Emulsion Polymerization for Dye-Labeled Nanoparticles Zhu, M. Q.; Li, A. D. Q. et al. J. Am. Chem. Soc. 2006, 128, 4303

  27. PGMA macroCTA as a Steric Stabiliser for the Aqueous Dispersion Polymerisation of HPMA Y. T. Li and S. P. Armes, Angewandte Chem., 2010, 49, 4042 PGMA65 RAFT CTA HPMA Targeting a longer core-forming block relative to the stabiliser block should lead to progressively larger sterically-stabilised nanolatexes?

  28. Scanning Electron Microscopy Studies Y. T. Li and S. P. Armes, Angewandte Chem., 2010, 49, 4042 105 nm PGMA65-PHPMA300latex 90 nm PGMA65-PHPMA200latex SEM images confirm spherical, near-monodisperse latexes

  29. Transmission Electron Microscopy Studies Y. T. Li and S. P. Armes, Angewandte Chem., 2010, 49, 4042 PGMA65-PHPMA50 PGMA65-PHPMA70 PGMA65-PHPMA100 200 nm 200 nm 200 nm Dh = 40 nm Dh = 29 nm Dh = 58 nm Negative staining using uranyl formate: Prof. S. Sugihara and Dr. A. Blanazs Scale bar: 100 nm

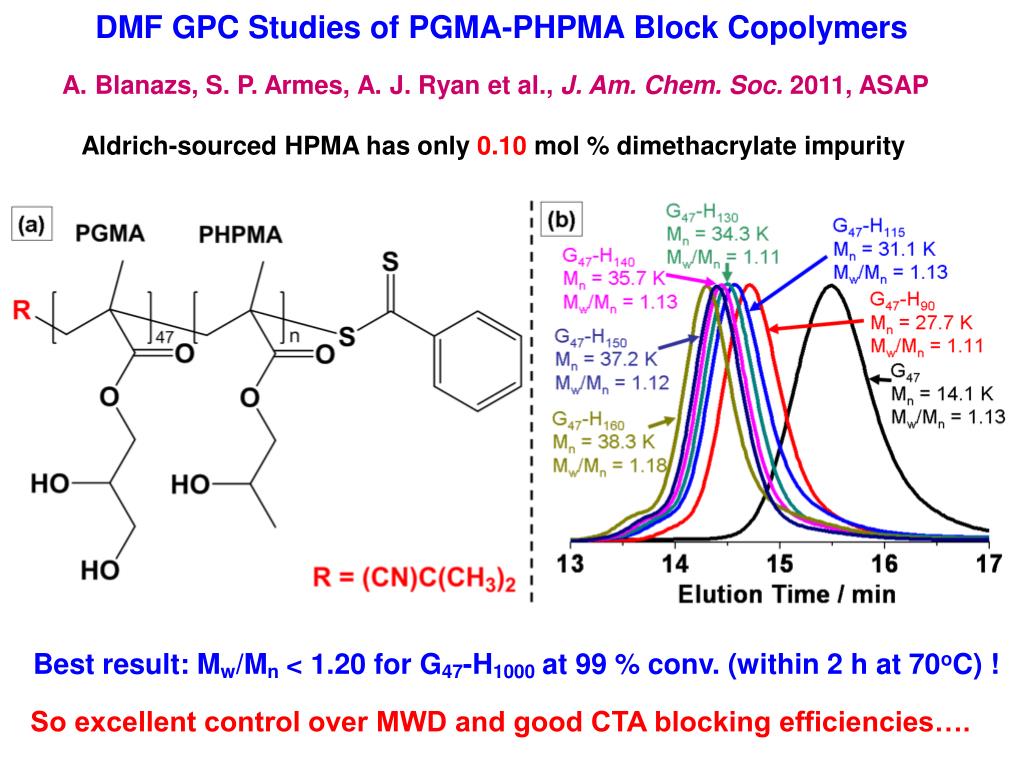

  30. DMF GPC Studies of PGMA-PHPMA Block Copolymers A. Blanazs, S. P. Armes, A. J. Ryan et al., J. Am. Chem. Soc. 2011, ASAP Aldrich-sourced HPMA has only 0.10 mol % dimethacrylate impurity Best result: Mw/Mn < 1.20 for G47-H1000 at 99 % conv. (within 2 h at 70oC) ! So excellent control over MWD and good CTA blocking efficiencies….

  31. More In Situ Studies: PGMA47-PHPMAx 77.5 min = 68 %, DP 131 84 mins = 75 %, DP 150 87 mins = 78 % DP 156 75 min = 62 %, DP 123 90 mins = 82 %, DP 164 225 mins = 100 % DP 200 65 min = 46 %, DP 92 • Blanazs, S. P. Armes, • J. Madsen, A. J. Ryan • and G. Battaglia • JACS, 2011, ASAP Scale bars: 200 nm
