Berker knx touch sensors

BERKER KNX TOUCH SENSORS


The berker touch sensors

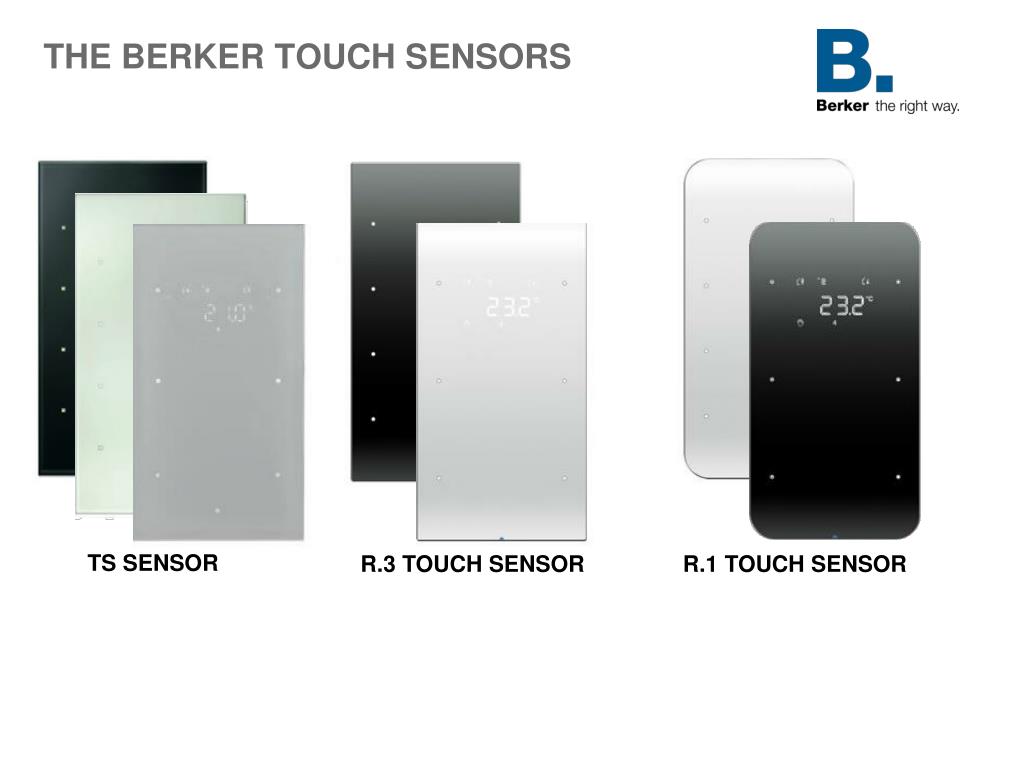

THE BERKER TOUCH SENSORS

TS SENSOR

R.3 TOUCH SENSOR

R.1 TOUCH SENSOR


The berker touch sensors1

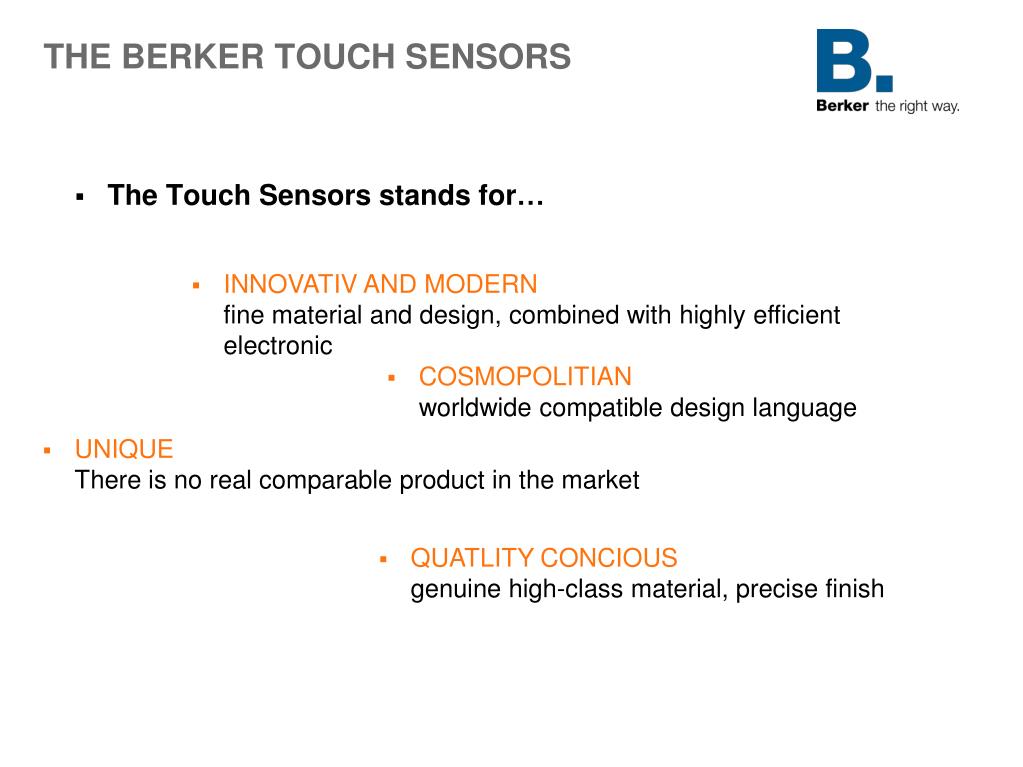

THE BERKER TOUCH SENSORS

  • The Touch Sensors standsfor…

  • INNOVATIV AND MODERNfine material and design, combined with highly efficient electronic

  • COSMOPOLITIANworldwide compatible design language

  • UNIQUEThere is no real comparable product in the market

  • QUATLITY CONCIOUSgenuine high-class material, precise finish


Berker knx touch sensors

TS SENSOR

R.1 / R.3 TOUCH SENSOR

TECHNOLOGY / DISPLAY

CUSTUMISED

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor

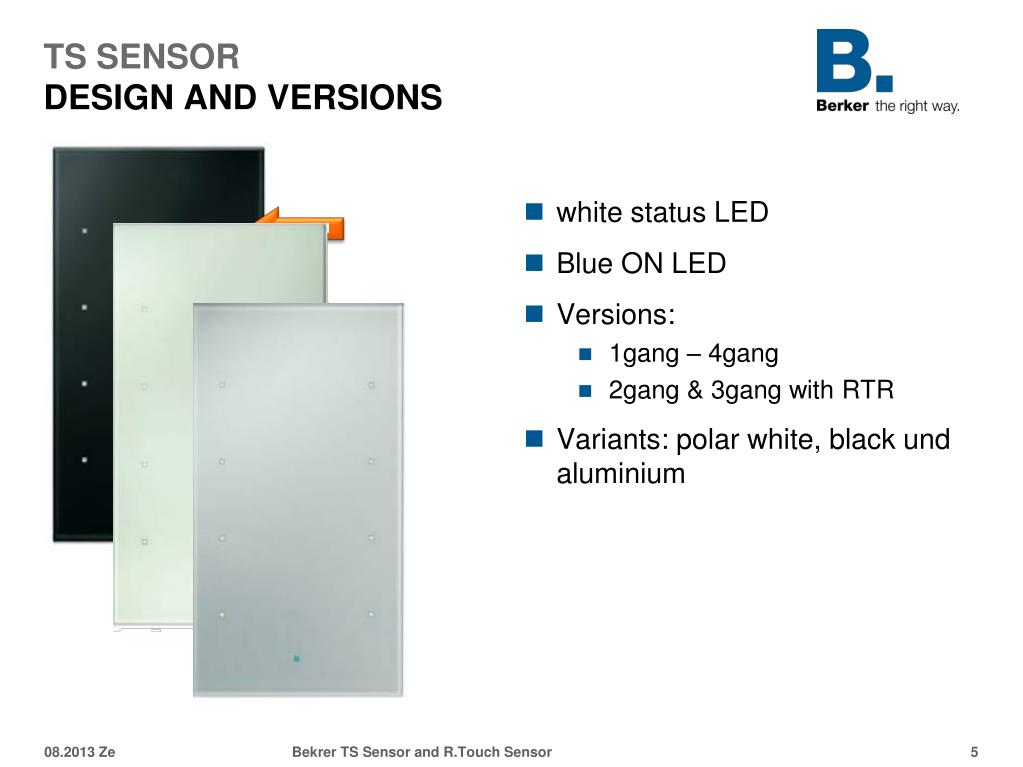

Ts sensor design and versions

TS SENSORDESIGN AND VERSIONS

  • white status LED

  • Blue ON LED

  • Versions:

    • 1gang – 4gang

    • 2gang & 3gang with RTR

  • Variants: polar white, black und aluminium

Bekrer TS Sensor and R.Touch Sensor


Ts sensor comfort overview

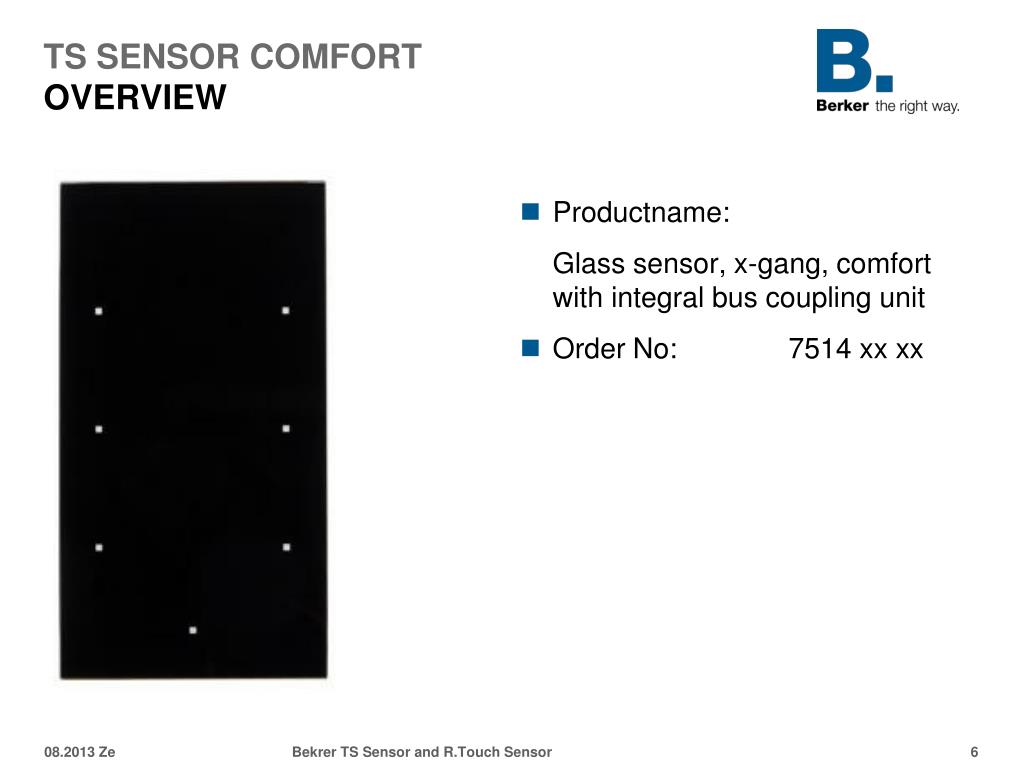

TS SENSOR COMFORTOVERVIEW

  • Productname:

    Glass sensor, x-gang, comfort with integral bus coupling unit

  • Order No: 7514 xx xx

Bekrer TS Sensor and R.Touch Sensor


Ts sensor comfort overview1

TS SENSOR COMFORTOVERVIEW

  • Only suitable for KNX/EIB

  • Integrated bus coupling unit

  • Internal temperature sensor

  • Connection for external temperature sensor (e.x. 161 Floor temperature sensor / remote sensor)

  • pure ETS Application (no PlugIn-Software)

Bekrer TS Sensor and R.Touch Sensor

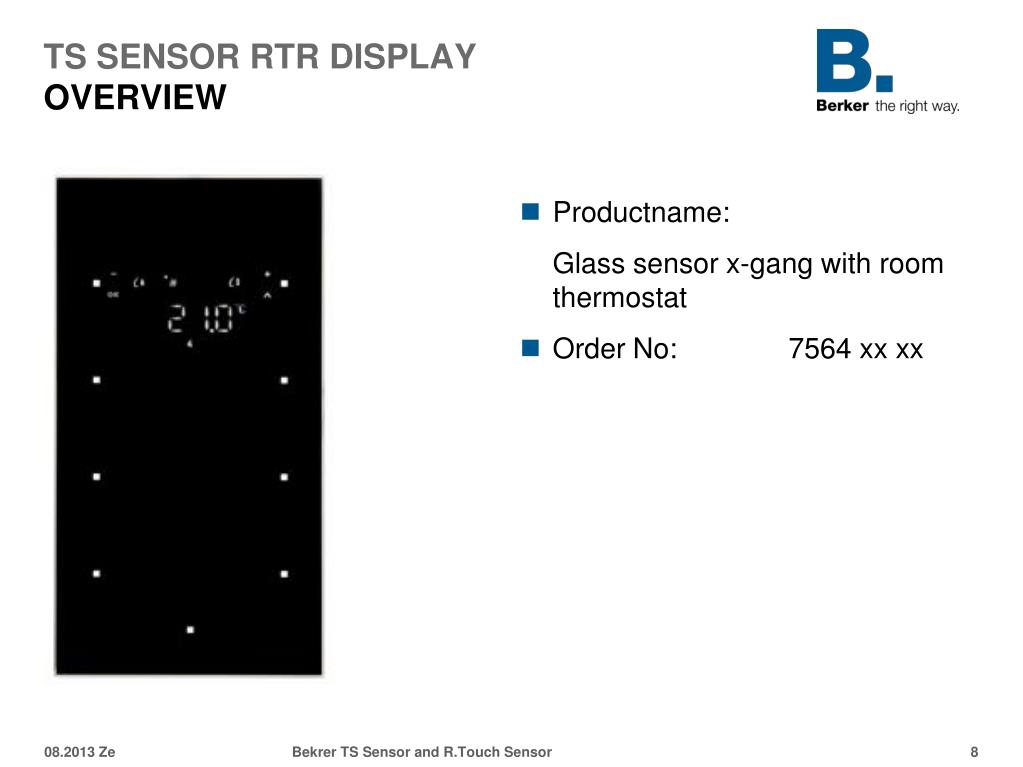

Ts sensor rtr display overview

TS SENSOR RTR DISPLAYOVERVIEW

  • Productname:

    Glass sensor x-gang with room thermostat

  • Order No: 7564 xx xx

Bekrer TS Sensor and R.Touch Sensor

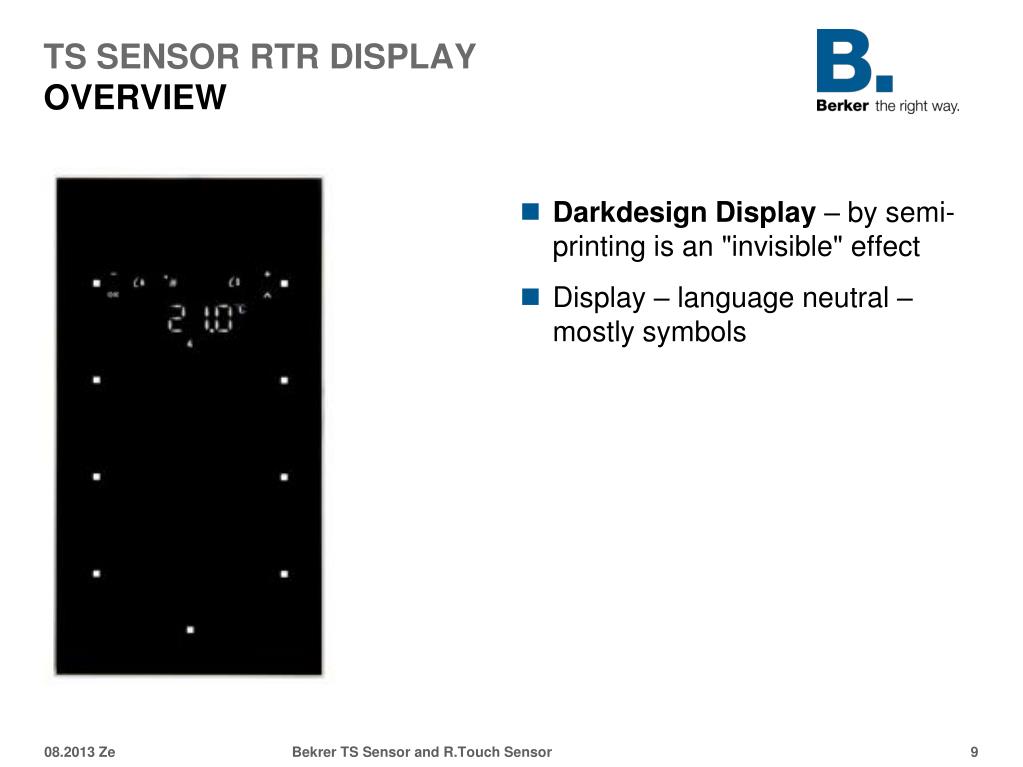

Ts sensor rtr display overview1

TS SENSOR RTR DISPLAYOVERVIEW

  • Darkdesign Display – by semi-printing is an "invisible" effect

  • Display – language neutral – mostly symbols

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display overview2

TS SENSOR RTR DISPLAYOVERVIEW

  • Only suitable for KNX/EIB

  • Integrated bus coupling unit

  • Internal temperature sensor

  • Connection for external temperature sensor (e.x. 161 Floor temperature sensor / remote sensor)

  • Seperate auxiliary power supply needed (18…30 V DC)

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display additional power

TS SENSOR RTR DISPLAYADDITIONAL POWER

  • TS Sensor RTR needs an additional power supply

  • KNX output without choke can be used

  • 2. Wire pair of KNX cable (yellow – white) can be used

  • Power consumption max. 0,5 W(i.e. 30 V ca. 17 mA)

e.g: 7591 00 03

Bekrer TS Sensor and R.Touch Sensor


Ts sensor mounting

TS SENSORMOUNTING

  • Low Building height (5,7mm)

  • Glass surface

  • Screwless mounting on special wallbox (1870 or 1871)

  • Optional adapter ring for anti dismanting protection and „shadow gap“

    • The adapter ring will incread the building hight up to 10,7mm

Bekrer TS Sensor and R.Touch Sensor


Ts sensor structure

TS SENSORSTRUCTURE

  • terminal connection for KNX/EIB bus cable

  • terminal connection for wired floor temperature/remote sensors (optional accessories)

  • Programming button – programming LED

  • terminal connection for additional power supply (ONLY TS SENSOR RTR)

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

TS SENSOR

R.1 / R.3 TOUCH SENSOR

TECHNOLOGY / DISPLAY

CUSTUMISED

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor design and versions

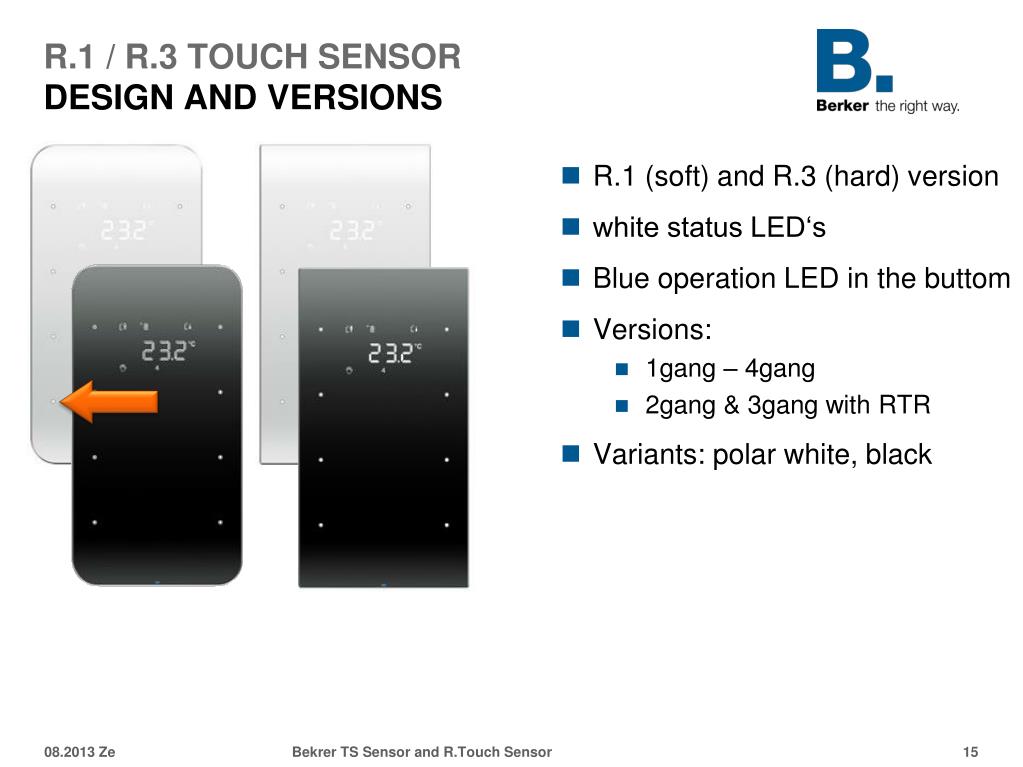

R.1 / R.3 TOUCH SENSORDESIGN AND VERSIONS

  • R.1 (soft) and R.3 (hard) version

  • white status LED‘s

  • Blue operation LED in the buttom

  • Versions:

    • 1gang – 4gang

    • 2gang & 3gang with RTR

  • Variants: polar white, black

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor overview

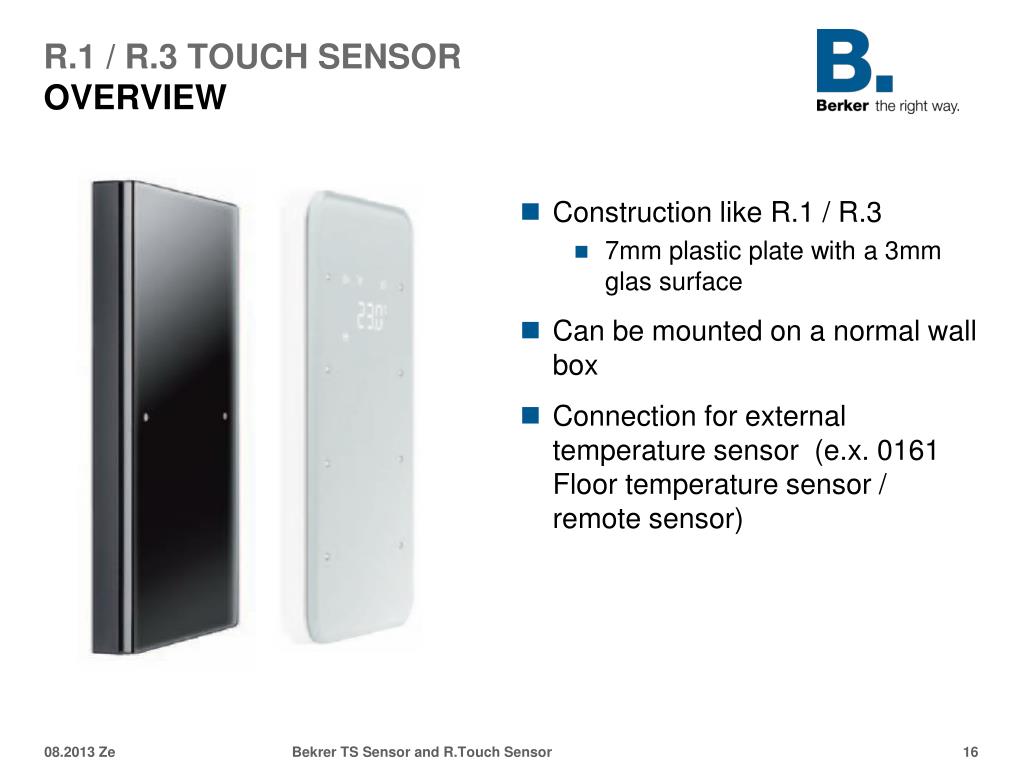

R.1 / R.3 TOUCH SENSOR OVERVIEW

  • Construction like R.1 / R.3

    • 7mm plastic plate with a 3mm glas surface

  • Can be mounted on a normal wall box

  • Connection for external temperature sensor (e.x. 0161 Floor temperature sensor / remote sensor)

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor comfort overview

R.1 / R.3 TOUCH SENSOR COMFORTOVERVIEW

  • Productname:

    Berker R.x Touch Sensor, x-gang comfort

  • Order No: 7514 xx xx

Bekrer TS Sensor and R.Touch Sensor

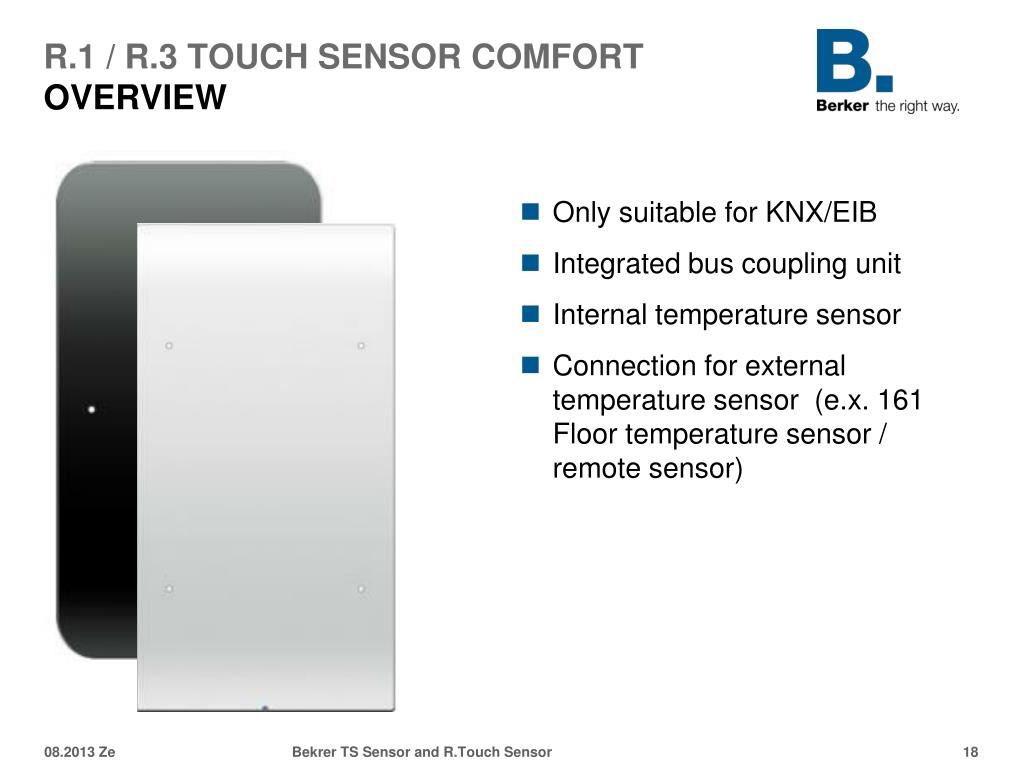

R 1 r 3 touch sensor comfort overview1

R.1 / R.3 TOUCH SENSOR COMFORTOVERVIEW

  • Only suitable for KNX/EIB

  • Integrated bus coupling unit

  • Internal temperature sensor

  • Connection for external temperature sensor (e.x. 161 Floor temperature sensor / remote sensor)

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor rtr overview

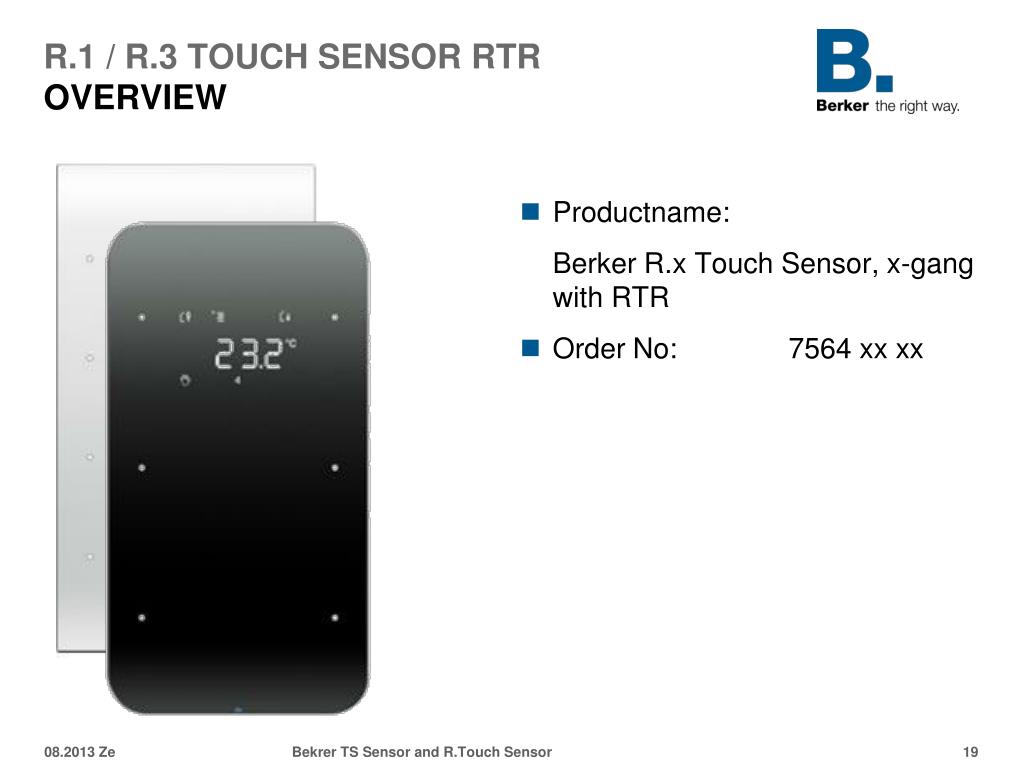

R.1 / R.3 TOUCH SENSOR RTROVERVIEW

  • Productname:

    Berker R.x Touch Sensor, x-gang with RTR

  • Order No: 7564 xx xx

Bekrer TS Sensor and R.Touch Sensor

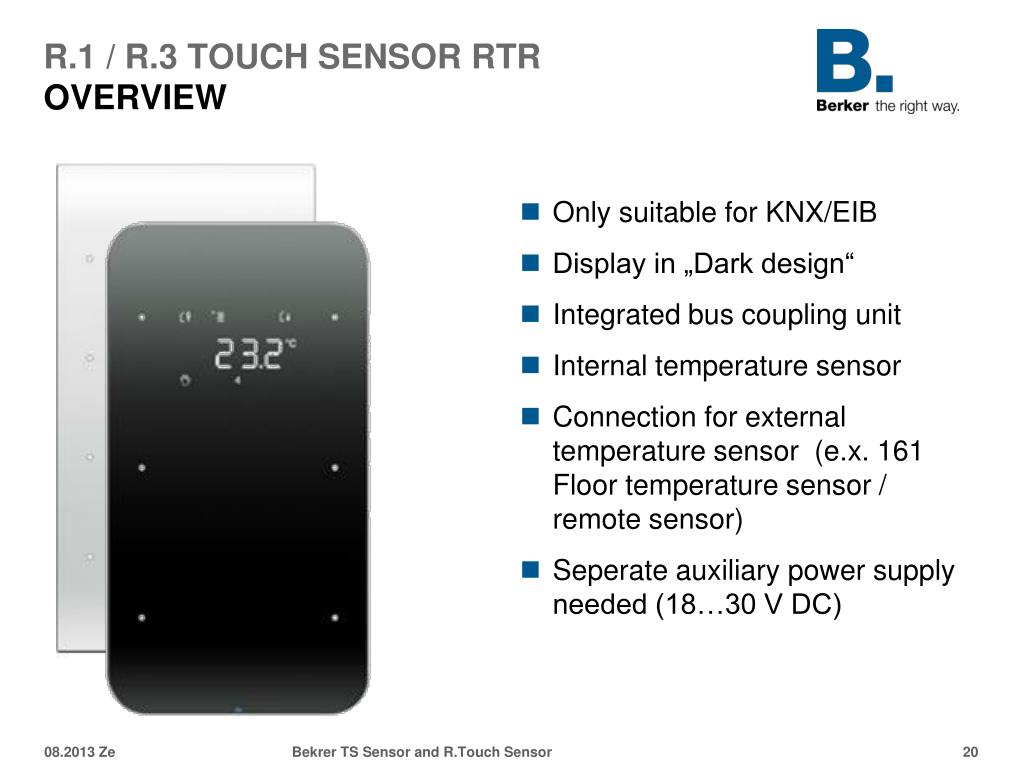

R 1 r 3 touch sensor rtr overview1

R.1 / R.3 TOUCH SENSOR RTROVERVIEW

  • Only suitable for KNX/EIB

  • Display in „Dark design“

  • Integrated bus coupling unit

  • Internal temperature sensor

  • Connection for external temperature sensor (e.x. 161 Floor temperature sensor / remote sensor)

  • Seperate auxiliary power supply needed (18…30 V DC)

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor mounting

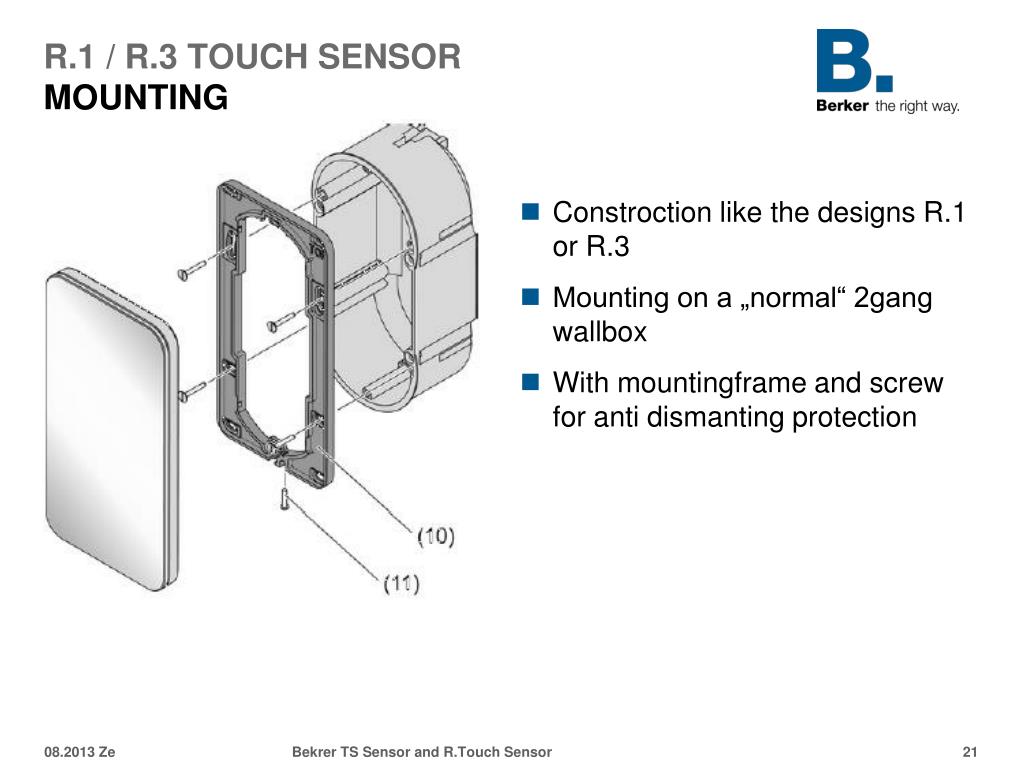

R.1 / R.3 TOUCH SENSORMOUNTING

  • Constroction like the designs R.1 or R.3

  • Mounting on a „normal“ 2gang wallbox

  • With mountingframe and screw for anti dismanting protection

Bekrer TS Sensor and R.Touch Sensor


R 1 r 3 touch sensor structure

R.1 / R.3 TOUCH SENSORSTRUCTURE

  • terminal connection for KNX/EIB bus cable

  • terminal connection for wired floor temperature/remote sensors (optional accessories)

  • Programming button – programming LED

  • terminal connection for additional power supply (ONLY TS SENSOR RTR)

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

TS SENSOR

R.1 / R.3 TOUCH SENSOR

TECHNOLOGY / DISPLAY

CUSTUMISED

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor


Ts sensor r x touch sensor technology

TS SENSOR / R.x TOUCH SENSORTECHNOLOGY

  • Functional Principle

(Quelle: Quantum)

Bekrer TS Sensor and R.Touch Sensor

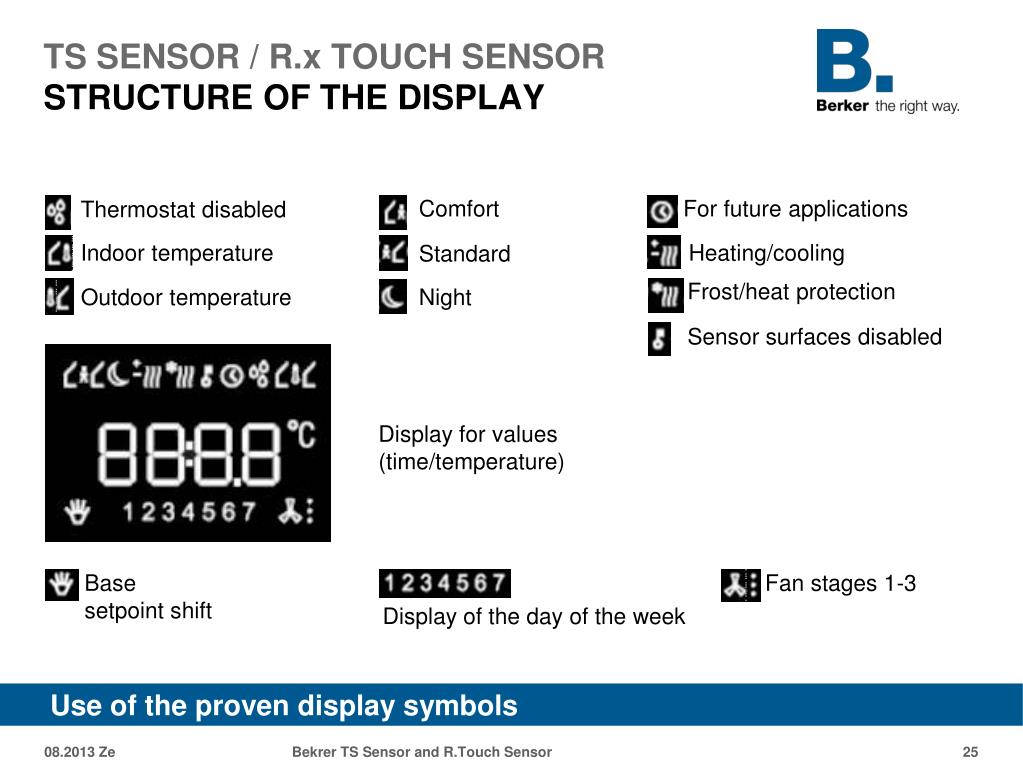

Ts sensor r x touch sensor structure of the display

Comfort

Thermostat disabled

Indoor temperature

Heating/cooling

Standard

Frost/heat protection

Outdoor temperature

Night

Sensor surfaces disabled

Display for values (time/temperature)

Basesetpoint shift

Fan stages 1-3

Display of the day of the week

TS SENSOR / R.x TOUCH SENSORSTRUCTURE OF THE DISPLAY

For future applications

Use of the proven display symbols

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

TS SENSOR

R.1 / R.3 TOUCH SENSOR

TECHNOLOGY / DISPLAY

CUSTUMISED

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor


Ts sensor r x touch sensor costumized

TS SENSOR / R.x TOUCH SENSORCOSTUMIZED

  • Example: TS Sensor Configurator

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

OVERVIEW

MOUNTING

DISPLAY

CONFIGURATION

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor

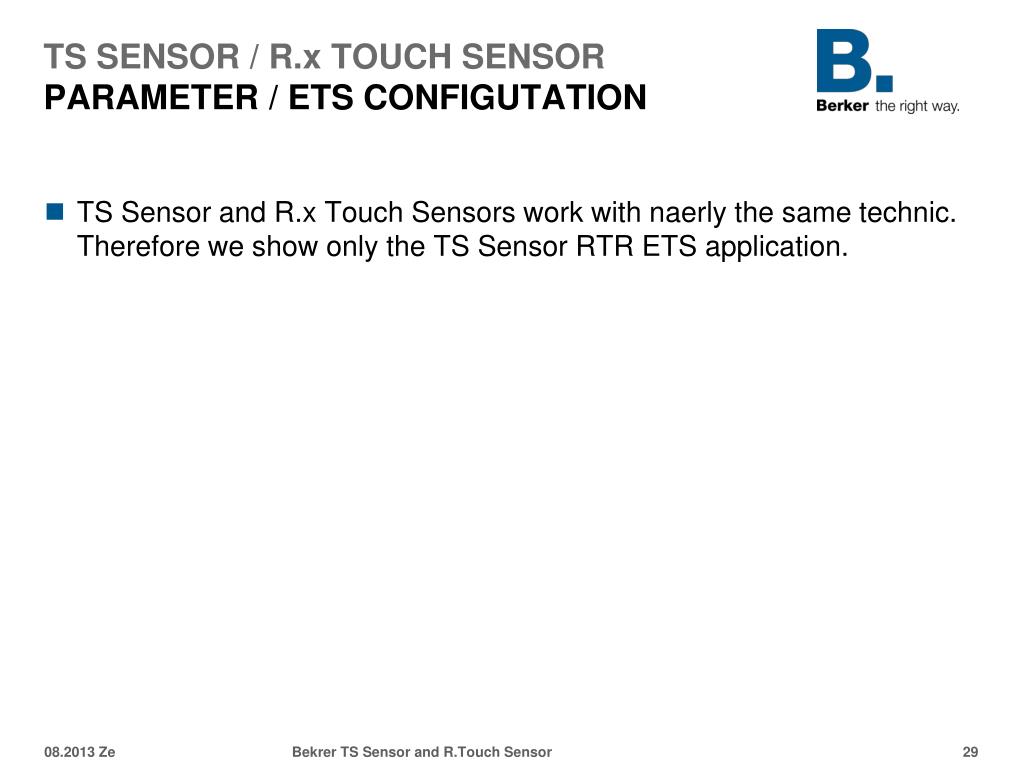

Ts sensor r x touch sensor parameter ets configutation

TS SENSOR / R.x TOUCH SENSORPARAMETER / ETS CONFIGUTATION

  • TS Sensor and R.x Touch Sensors work with naerly the same technic. Therefore we show only the TS Sensor RTR ETS application.

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter general

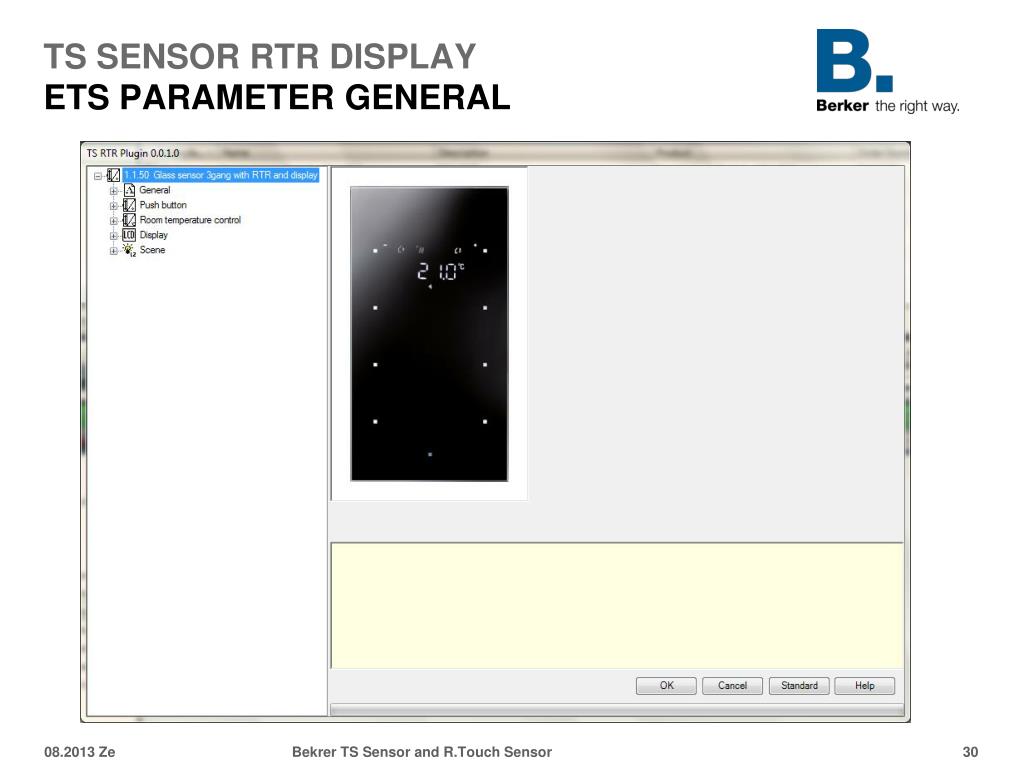

TS SENSOR RTR DISPLAYETS PARAMETERGENERAL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter

TS SENSOR RTR DISPLAYETS PARAMETER

  • Gerneral settings

  • Choose between „Rocker“ or „Button“ Function

Bekrer TS Sensor and R.Touch Sensor

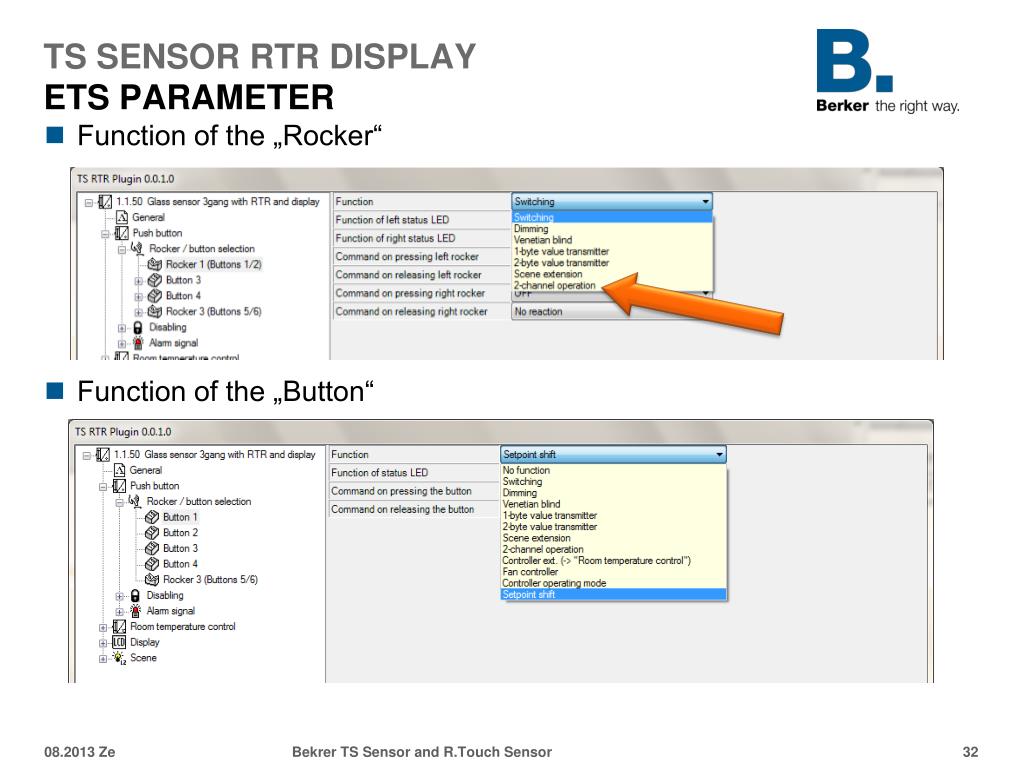

Ts sensor rtr display ets parameter1

TS SENSOR RTR DISPLAYETS PARAMETER

  • Function of the „Rocker“

  • Function of the „Button“

Bekrer TS Sensor and R.Touch Sensor

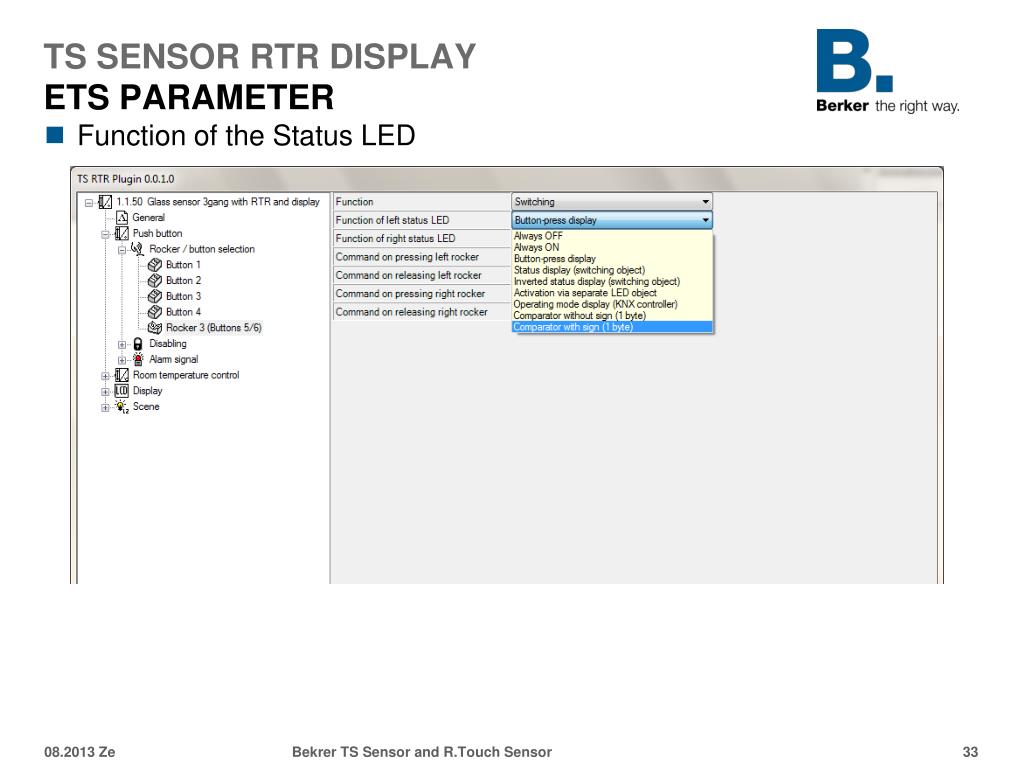

Ts sensor rtr display ets parameter2

TS SENSOR RTR DISPLAYETS PARAMETER

  • Functionofthe Status LED

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter disablefunction

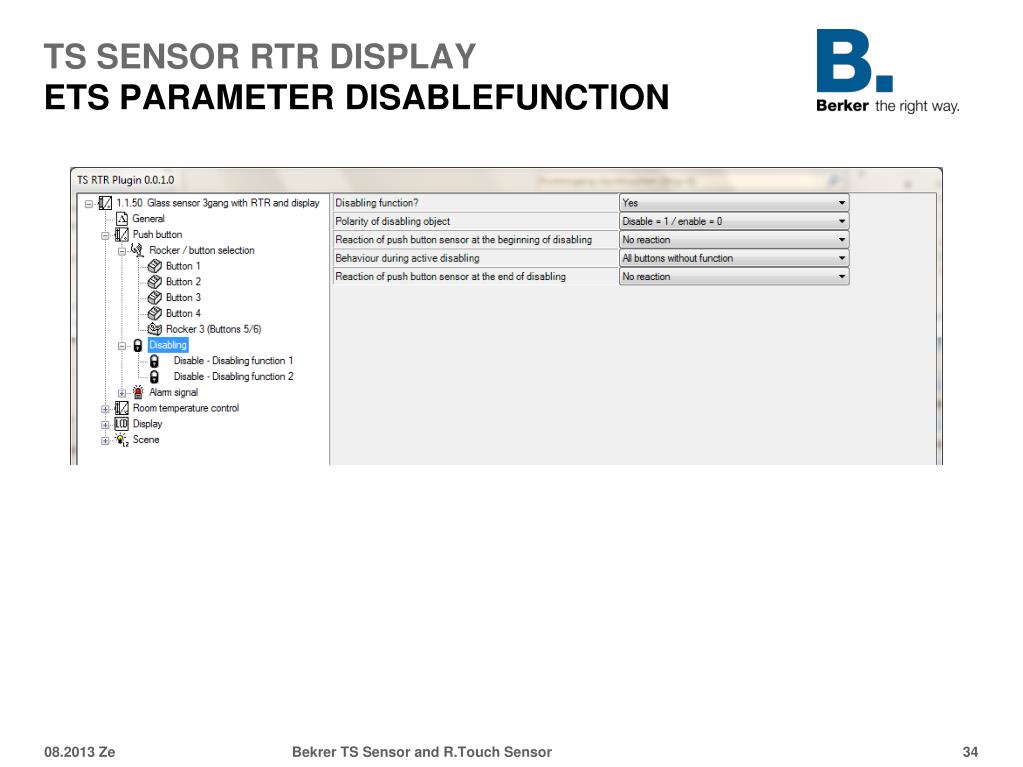

TS SENSOR RTR DISPLAYETS PARAMETER DISABLEFUNCTION

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter disablefunction1

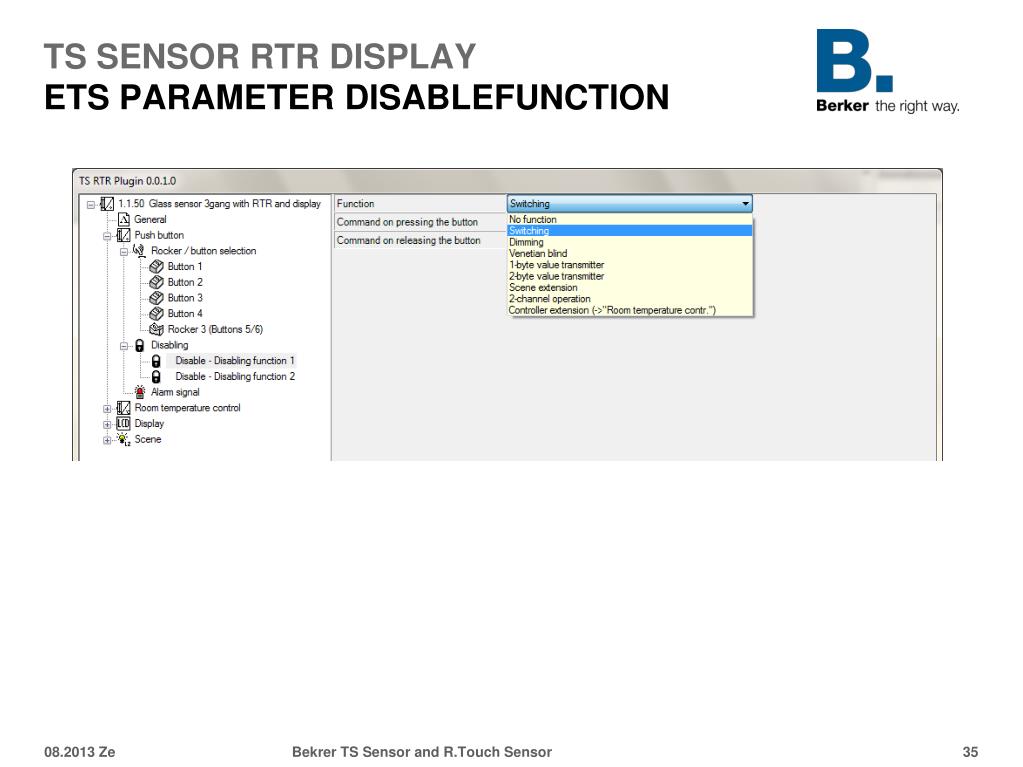

TS SENSOR RTR DISPLAYETS PARAMETER DISABLEFUNCTION

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter alarmsignal

TS SENSOR RTR DISPLAYETS PARAMETER ALARMSIGNAL

Todisplay an externalalarm (eg wind alarm)

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control

TS SENSOR RTR DISPLAYETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control1

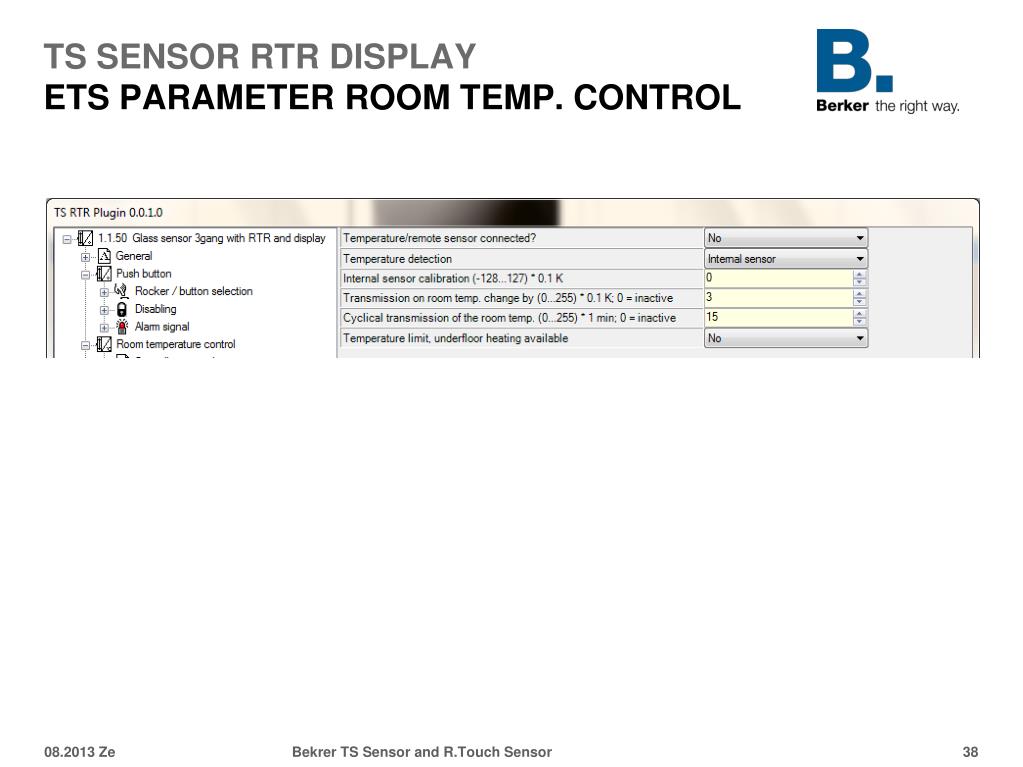

TS SENSOR RTR DISPLAYETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control2

TS SENSOR RTR DISPLAYETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control3

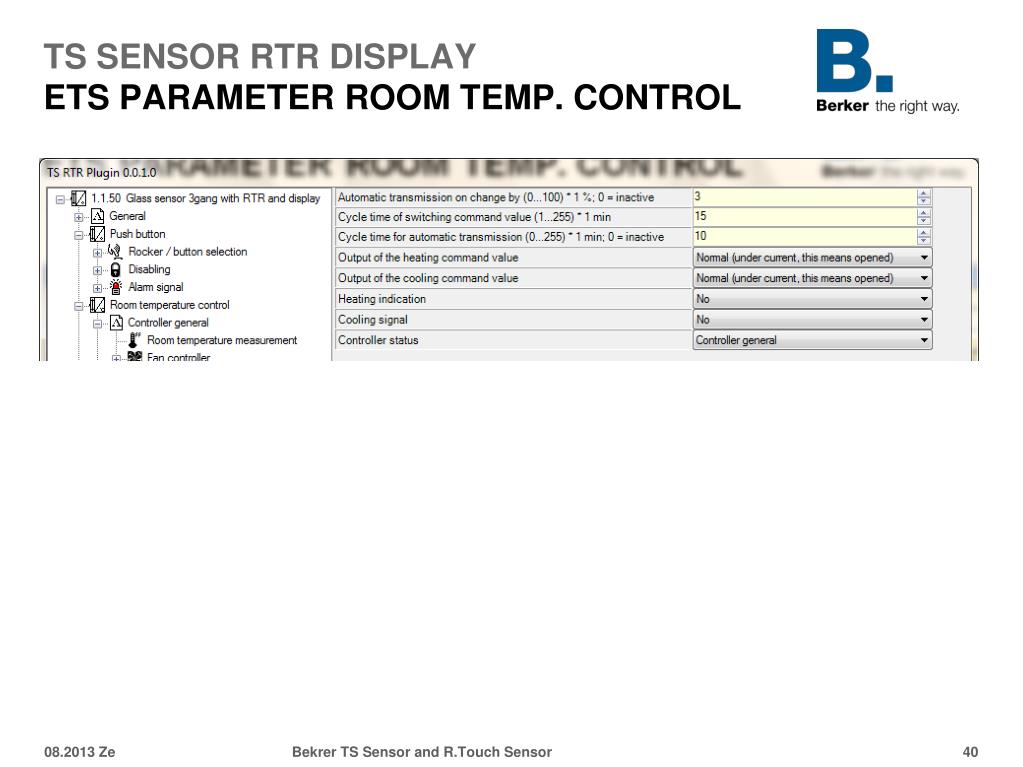

TS SENSOR RTR DISPLAYETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control4

TS SENSOR RTR DISPLAYETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control5

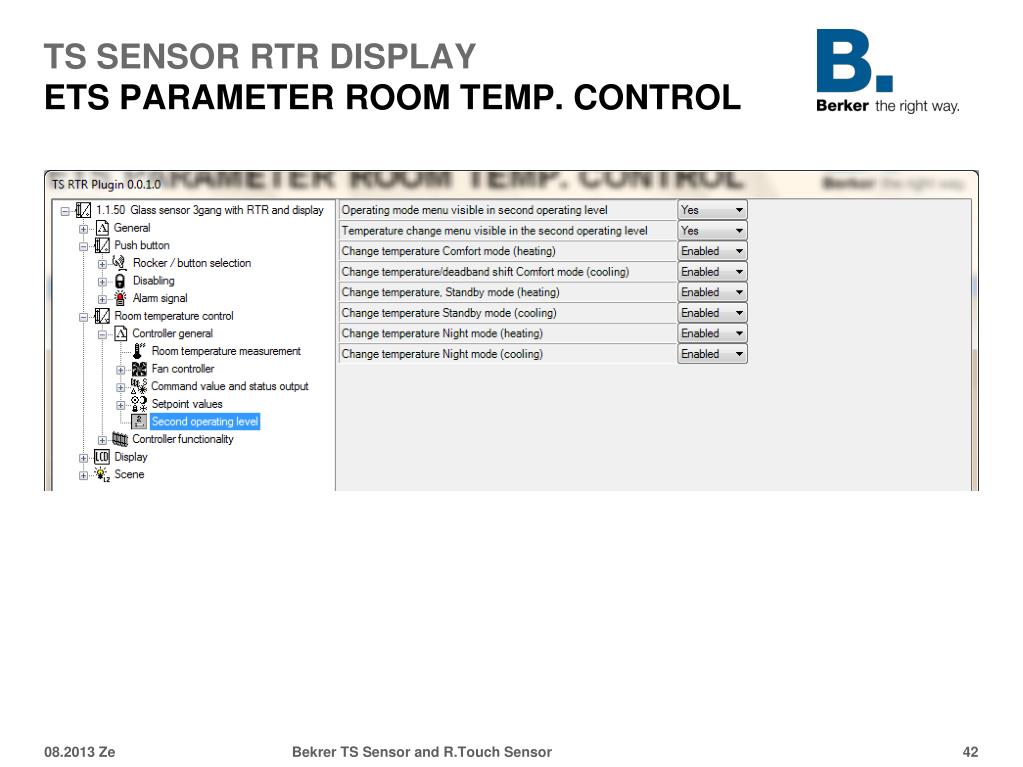

TS SENSOR RTR DISPLAY ETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter room temp control6

TS SENSOR RTR DISPLAY ETS PARAMETER ROOM TEMP. CONTROL

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter display settings

TS SENSOR RTR DISPLAYETS PARAMETER DISPLAY SETTINGS

Bekrer TS Sensor and R.Touch Sensor

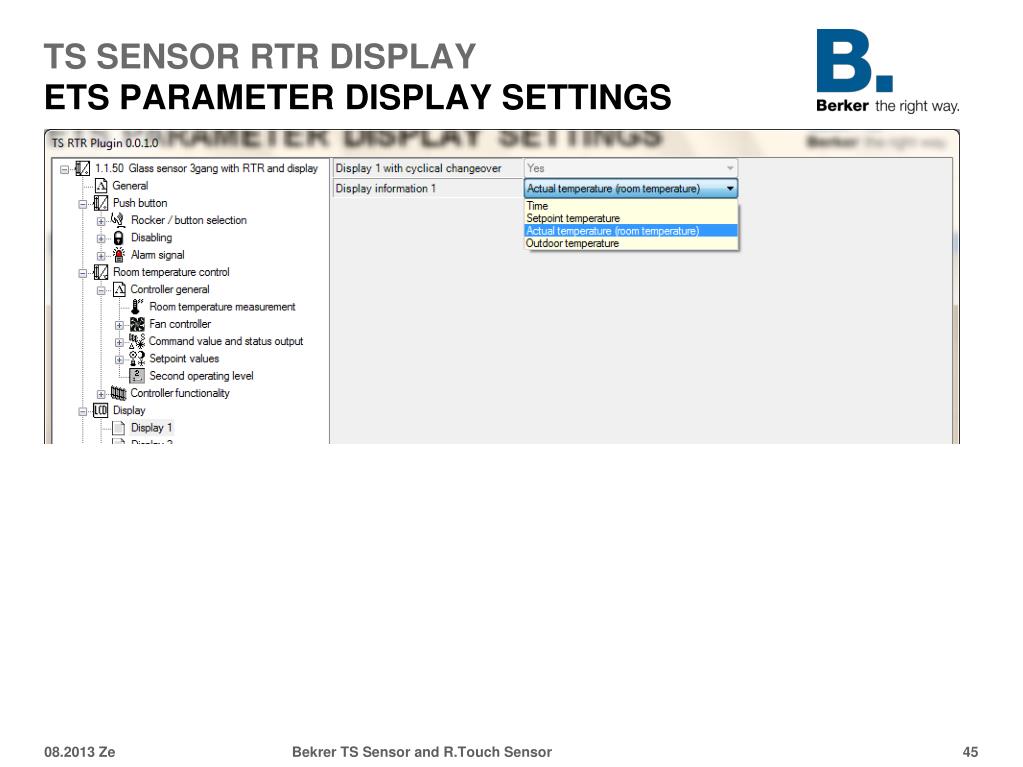

Ts sensor rtr display ets parameter display settings1

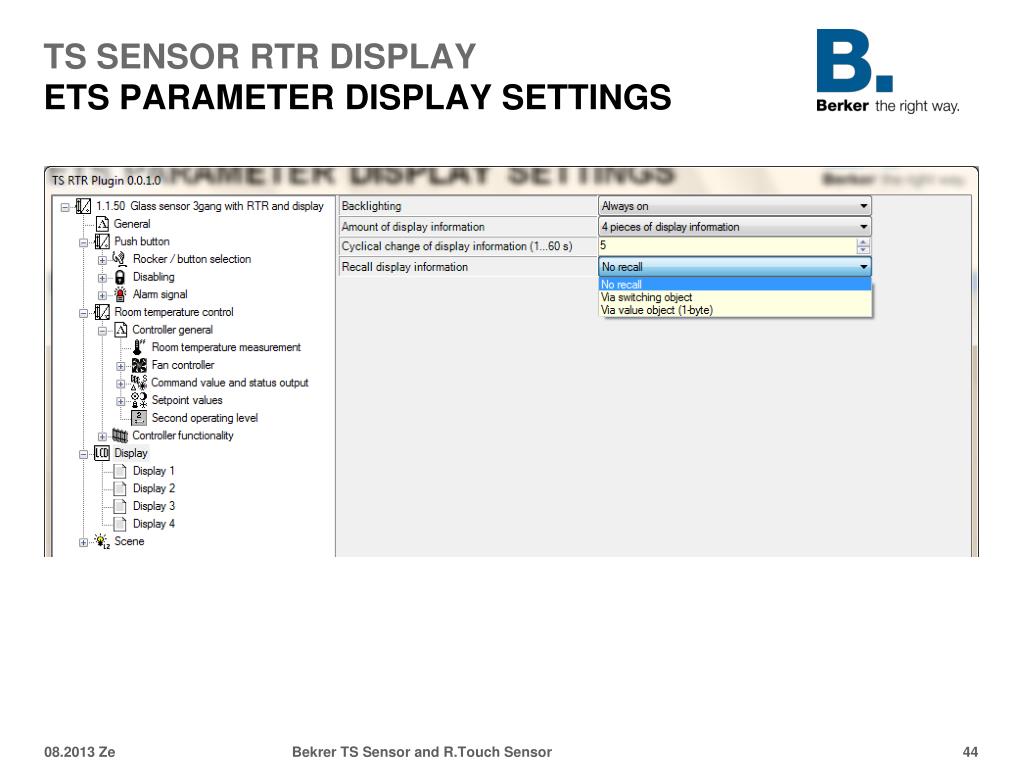

TS SENSOR RTR DISPLAYETS PARAMETER DISPLAY SETTINGS

Bekrer TS Sensor and R.Touch Sensor


In detail application utility

IN DETAILAPPLICATION – UTILITY

  • Single-family houses (private application)

    • Room control device

    • Display of set temperatures(e.g. as absolute display)

Bekrer TS Sensor and R.Touch Sensor

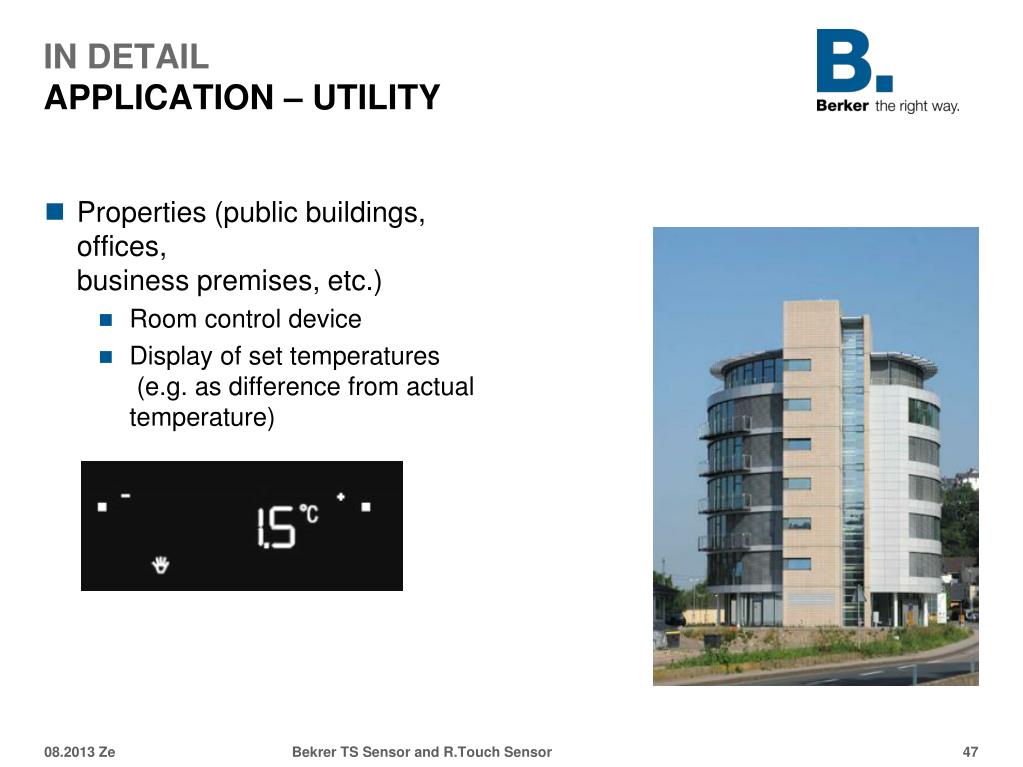

In detail application utility1

IN DETAILAPPLICATION – UTILITY

  • Properties (public buildings, offices, business premises, etc.)

    • Room control device

    • Display of set temperatures (e.g. as difference from actual temperature)

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter scene

TS SENSOR RTR DISPLAYETS PARAMETER SCENE

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display ets parameter scene1

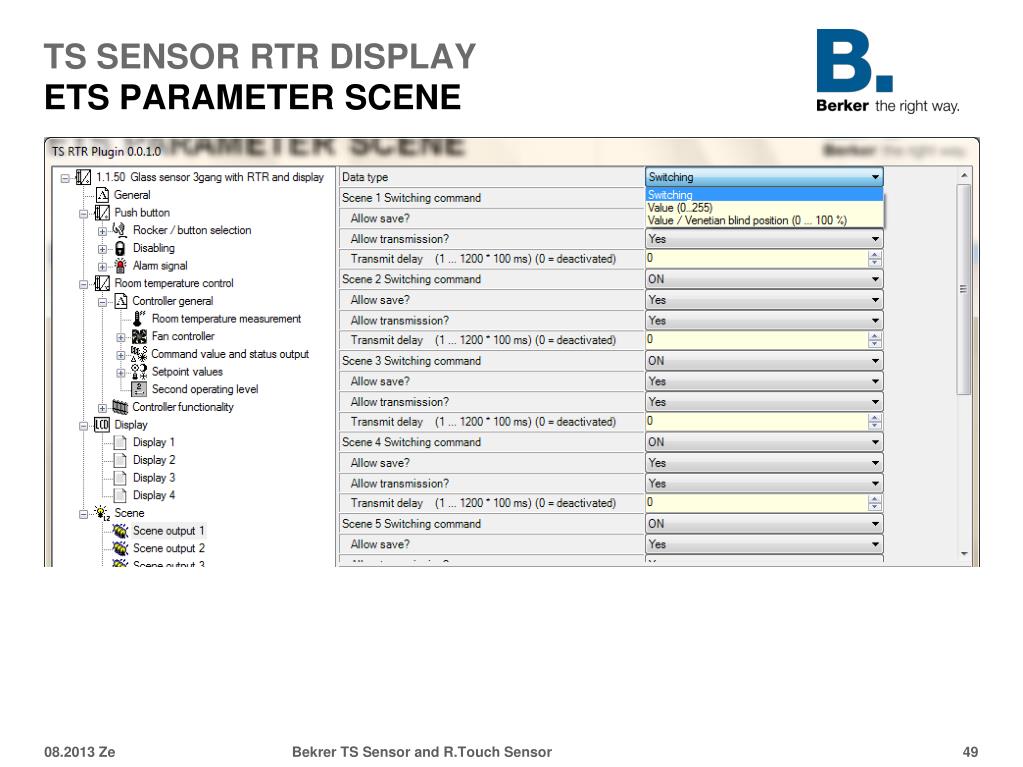

TS SENSOR RTR DISPLAYETS PARAMETER SCENE

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

OVERVIEW

MOUNTING

DISPLAY

CONFIGURATION

PARAMETER

TECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor


Ts sensor rtr display technical data

TS SENSOR RTR DISPLAYTECHNICAL DATA

Bekrer TS Sensor and R.Touch Sensor


Berker knx touch sensors

Thanks for your attention
