  1. KNX product offer

  2. System products 27.02.2013

  3. Voltage Supply TXA111 TXA112 Line/area coupler TA008 27.02.2013

  4. Technical data for power supply TXA111 • TXA111:- Single output voltage 30 V = filtered on bus connector terminal- Output current (nominal) 320 mA- 230 V quick connect connection technology - New design with identification plate

  5. Technical data for power supply TXA112 • TXA112:- Single output voltage 30 V = filtered on bus connector terminal- Output current (nominal) 640 mA- 230 V quick connect connection technology - New design with identification plate

  6. Technical data for line/area coupler TA008 • Status display line/areacoupler:- LED 1 to display the bus traffic on the main line (primary line) to the sub-line (secondary line)- LED power supply- LED 2 to display the bus traffic of the sub-line to the main line • Connection of the primary side (mainline) via the bus terminal(left bus terminal)

  7. Interfaces • RS232 interface TH001:USB interface TH101:- Supply voltage 30 V DC- to snap onto the DIN rail • - serves as an interface between PC and bus system • USB interface flush-mounting WYT710 + cover + frame- Supply voltage 30 V DC- to install in a 60 square mm flush mounted switch box- Serves as an interface between PC and bus system

  8. Sensor technology products 27.02.2013

  9. Sensors overview TXA306 TXA304 TXB304 TRB302B TX022 TK026 TCC520

  10. Binary inputs TXA304 TXA306 TXA310 TXB302 TXB304

  11. 4-fold binary input 230 V AC TXA304 • 4 x 230 V AC inputs, 4 modules wide Illuminated buttons may be used(max. 5 per input) • Different phases may be connected to the inputs • Extended ETS/KNX functions (e.g. heating, two-channel mode, blocking, weather alarm, periodic transmission, LED function, etc.)

  12. 10-fold 230 V AC binary input TXA310 • 10 x 230 V AC inputs, 6 PLE • Illuminated buttons may be used (max. 5 per input) • Different phases may be connected to the inputs • Extended ETS/KNX functions (e.g. heating, two-channel mode, blocking, weather alarm, periodic transmission, LED function, etc.) • New design

  13. 6-fold multifunction 230V AC binary input TXA306 • 6 multi-function inputs with auto-matic function recognition- 24V AC to 230V AC/DC- Floating inputs • Each input can have a different type of function • Extended ETS/KNX functions (e.g. heating, counter, blocking, weather alarm, periodic transmission, power failure monitoring, etc.)

  14. Binary inputs: 4-fold TXB304 and 2-fold TXB302 • For installation in a outlet box with60 mm diameter and a depth of 40 mm, or in a junction box TXB304

  15. Binary Input 4-fold + 4 LED outputs, TXB344 Binary input 2-fold + 2 LED outputs, TXB322 • System Engineering:- 4/2 inputs controllable via floating contacts only, e.g. - conventional buttons, switches - thermostats - signal contact (window contacts)- 4/2 free programmable outputs to the LED control, i.e. any desired 1-bit output-function can be displayed • Customer benefits- Small product for installation in a flush-mounted box - extensive applications TXB344

  16. Binary Input 4-fold + 4 LED outputs, TXB344 Binary input 2-fold + 2 LED outputs, TXB322 • Application:- Control panel- Status displays of outputs- Feedback from a switch • The exact function depends on the parameter settings

  17. Binary Input 4-fold + 4 LED outputs, TXB344 Binary input 2-fold + 2 LED outputs, TXB322 • Application: Control of the LED on the button WUE39 over the TXB322/344 (LED can display any preferred switching output status)

  18. 2 Channel - Time switch TX022

  19. 2 Channel - Time switch PC programmable

  20. 2 Channel - Time switch TX022 • Width: 2 modules wide • Functions:- On/Off, dimmer values, up/down • Send/receive date and time • Contact switching • Temporary forced switching On/Off • Continuous forced switching On/Off • Also with DCF77 connection (TX023)

  21. Actuators 27.02.2013

  22. Output devices TXA204A 4A TXA204B 10A TXA204C 16A TXA204D 16A C-Load TXA204A 4A TXA207B 10A TXA207C 16A TXA207D 16A C-Load TXA206A 4A TXA206B 10A TXA206C 16A TXA206D 16A C-Load TXA208A 4A TXA208B 10A TXA208C 16A TXA208D 16A C-Load

  23. Switch output, 1-fold, flush-mounted, TXB201A • 4A switch output, normally open • Dimensions: - diameter 53 mm - depth 24mm • For wire cross-sections up to 2.5 mm² • Protection class IP40

  24. Double, flush-mounted, switching output, TXB202A • 4A switch output, normally open • Dimensions: - diameter 53 mm - depth 29 mm • For wire cross-sections up to 2.5 mm² • Protection class IP20

  25. Binary output 4-fold, TXA204A, B, C, D 4 Outputs 4A/10A/16A/16AC-load with floating contactsfor lighting, heating and general consumers Switching between Auto (bus operation) and manual.Hence, in manual operating mode the individual outputs are switched. The current operating status is displayed on the LED's Manual operation lockable Logic functions(AND, OR, authorisation) 27.02.2013

  26. Binary output 6-fold, TXA206A, B, C, D • 6 Outputs 4A/10A/16A/16AC-load with floating contacts for lighting, heating and general consumers • Switching between Auto (bus operation) and manual.Hence, in manualoperating mode the individual outputs are switched. The active operating status is displayed on the LED's • Manual operation lockable • Logic functions(AND, OR, authorisation)

  27. Function overview TXA204/206A, B, C, D • Lighting:- Switch On/Off- Manual Mode lockable- Time functions (response, off-delay, time-delay switch mode)- forced functions- blocking functions- automatic functions (AND, OR, authorisation)- scene functions (32 per channel)- Operating hours counter- Send status • Heating:- valve protection- forced control- monitoring time

  28. Switch output TXA208A, B, C, D Quick connect Technology New design with identification plate Two functions:- Lighting (as with TXA204/206)- roller blinds/shutters Width: 6 PLE modules wide 8 lighting outputs or 4 blind/shutter outputs or a mix Power supply:- The BCU is supplied with 30 V DC via the bus TXA208A 27.02.2013

  29. Switch output TXA207A, B, C, D • Quick connect Technology • New design with identification plate • Two functions:- Lighting (as with TXA204/206)- roller blinds/shutters • Width: 6 modules wide • 10 lighting outputs or 5 blind/shutter outputs or a mix • Power supply:- The BCU is supplied with 30 V DC via the bus

  30. Blind/shutter output TXA223/224/225/226 • Manual operation:- Button push induces change from DOWN - STOP - UP - STOP - DOWN - . . . • Directions are blocked against each other in the device. Maximum run time can be set in the parameters • Turnaround delay is an adjustable parameter: 0.6 s, 1 s, 2 s, 3 s

  31. Blind/shutter output TXA227 / 228 • Directions are blocked against each other in the device. Maximum run time can be set in the parameters • Turnaround delay is an adjustable parameter: 0.6 s, 1 s, 2 s, 3 s • Status displays on the device:- LED's off: Motor stopped- Continuous red LED: Raising in progress- Continuous green LED: Lowering in progress- All Red LEDs flashing: wrong application program • Contact rating: 6A

  32. Presence detectors 27.02.2013

  33. Overview of TCCxxx ceiling installation presence detectors TCC520 TCC521E TCC510S TCC530E 15.03.2013

  34. KNX presence detectors Ceiling installed device On plaster mounting possible EEK05 accessories Remove protective cover and spring clip Plug it in and secure by turning Installation height 2.5 m - 3.5 m Registering small movements e.g. person working at a desk Setting the brightness and time on the device via ETS using the remote control (EE807) 15.03.2013

  35. Setting without disassembly of the device EE807 IR remote control for settings: - To configure the presence detectors,using the copy function- brightness in Lux, time delay, presence/absence, cell active/passive EE808 IR remote control end customer - On/Off and Scene calls SET button on the EE807 10 sec push: - Presence detector to physical addressing mode KNX presence detectors EE807 EE808 15.03.2013

  36. Presence detector with relay TCC520 ETS programmable only Relay output (presence channel) switches as a function of presenceand brightness Lighting channel Control of outputs viathe KNX bus EE807 EE808 15.03.2013

  37. Presence detector with relay TCC520 Auto/Test function In Auto/Test position the test mode is active for 2 minutes. In this mode the brightness range can be set Measured LUX value above: LED is green Measured LUX value below: LED is red After 2 minutes, changes to Auto mode with the basic settings 2 sec. 2 sec. Auto mode settings = movement 2 sec. 2 sec. the relay and lighting channel measured value set value 15.03.2013

  38. Presence detector with relay TCC520 Local output (relay) can be controlled via: presence detectors KNX command (button, timer etc.) 15.03.2013

  39. Presence detector with relay TCC520 Remote switching of the lighting channels and relays via KNX bus (remote switching) Remote control EE808 Independent of brightness Automatic operation Automatic action according to presence and brightness (e.g. On/Off) Remote switching is used to switch between present and absent " 0" on remote switching, back to "Automatic" mode Authorisation off: No post triggering of the time 5 minutes = movement Set time 5 minutes the relay and lighting channel 2 minutes 2 minutes 5 minutes Remote switching measured value set value = remote switching 15.03.2013

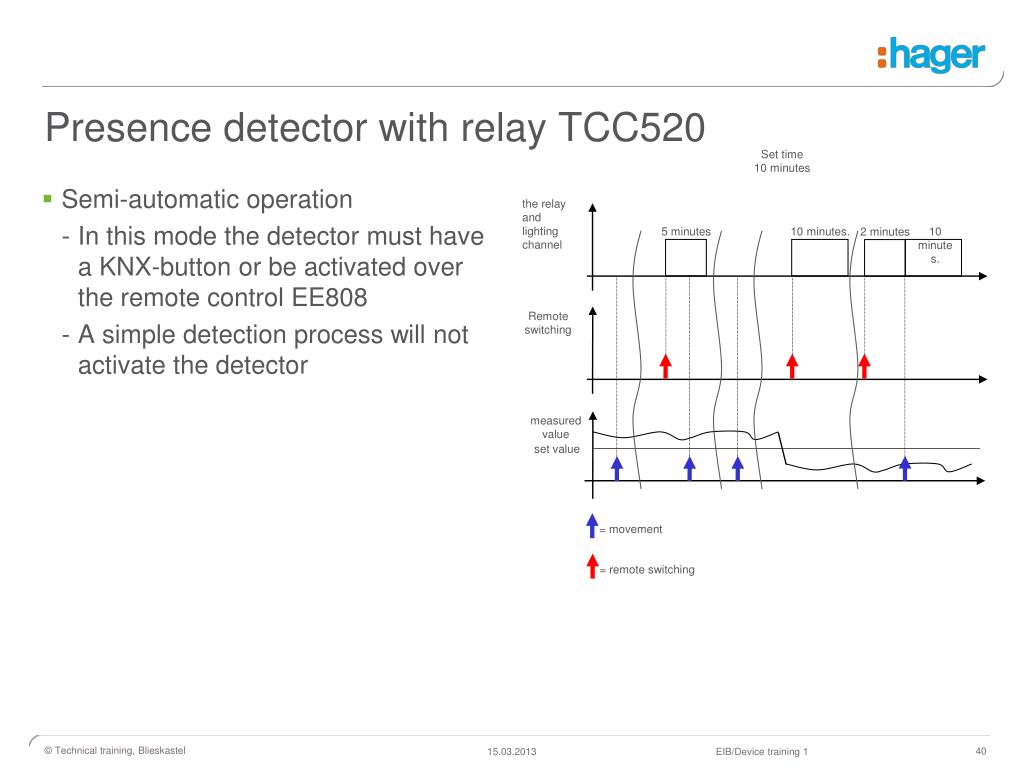

  40. Presence detector with relay TCC520 Semi-automatic operation In this mode the detector must have a KNX-button or be activated over the remote control EE808 A simple detection process will not activate the detector 5 minutes 10 minutes. = movement Set time 10 minutes the relay and lighting channel 10 minutes. 2 minutes Remote switching measured value set value = remote switching 15.03.2013

  41. Presence detector with relay TCC520 Master / Slave operation 3 possibilities for master/slave operation Master detector Slave detector Master/slave detection 15.03.2013

  42. KNX presence detector TCC521E Presence detector with integrated DALI output (constant lighting control) Integrated DALI output can control DALI EVGs directly or via a KNX Bus Dimmer or control DALI Gateways - setting via the potentiometer or with remote control- Max. 24 DALI/DSI ballasts can be connected directly (Broadcast)- for constant lighting control- ETS programmable only 3 modes of operation:- dimming function active in automatic mode- dimming function active with a local dimming set-point- dimming function inactive EE808: On/Off, dimming, scene call EE807 EE808 15.03.2013

  43. Presence detector 1 channel installation- ETS programmable STCC510S - TX100B programmable from V. 2.6.0 EE807: - IR remote control for settings EE808: - IR remote control for end customers (On/Off only) KNX presence detector TCC510S EEK005 EE807 EE808 15.03.2013

  44. Semi-automatic/automatic mode:  Semi-automatic:Device is activated once via button/remote control Active/passive switching of the light sensor: Active: Light off by increasing brightness, regardless of presence Passive: Light only off if no presence (movement detector function) Master/slave function KNX presence detector TCC510S 15.03.2013

  45. IR transmitter and receiver, affiliations TK124 EE85x/86x/87x WYT36xIR EE815/816 TCC520/521TCC510S/530E EE808 EE807 EE806 WYC22xC EE809 15.03.2013

  46. IR transmitter and receiver overview Existing IR transmitter:- EE809: 6 channel IR TK124: 24 channel IR EE808: 6 channel IR EE807: EE807: for setting bythe installer EE806: EE807: for setting bythe installer Existing IR receiver:- WYC22xC kallysto Movement detector Comfort- WYT36xIR tactile sensor IR- Conventional presence detector EE815/816- KNX presence detectors TCC520/521/510S/530E- Motion detector IP55 EE85x/86x/87x EE85x/86x/87x TK124 EE815/816 TCC520/521TCC510S WYT36xIR EE809 EE808 EE807 EE806 15.03.2013

  47. KNX presence detector TCC530E KNX presence detector, multi-channel- ETS programmable only 2-zone constant light adjustmentor lighting channel- two additional monitoring channels - setting via potentiometer on the front panel- settings also by remote control EE807- end customer remote control EE808 Semi-automatic/automatic mode EE807 EE808 15.03.2013

  48. One measurement-point controls 2 zones With freely selectable correction factor Z1 to Z2 2-zone constant light adjustment 15.03.2013

  49. In principle, the TCC530E has:- 1 lighting channel- 2 monitoring channels The lighting channel consists of 2 outputs (zone 1 and zone 2) which can be used to switch on and off or constantly control the lighting 3 modes are available:- Active: Definition of brightness set-point for presence/absence- Inactive: Definition of dimming set-point for presence/absence - Rules for the controlled object: The constant lighting control is enabled (1) or disabled (0) via an object. Presence recognition is thus disabled. The lighting channel is switched depending on movement and brightness The two tracking channels only recognise movement and are independent of brightness (which is not evaluated) Functions overview 15.03.2013

  50. Master/slave function such as TX510/TCC510S to extend thecoverage Presence detection can be disabled via the authorisation The presence detector can cyclically send the measured brightness to the bus Functions overview 15.03.2013
