  1. SmartBase TechnicalTrainingBubble jet Presented by: Juan-Pierre Lombard

  2. SmartBase Range Introduction New products New Segments Growing Markets New products New Segments Growing Markets New products New Segments Growing Markets

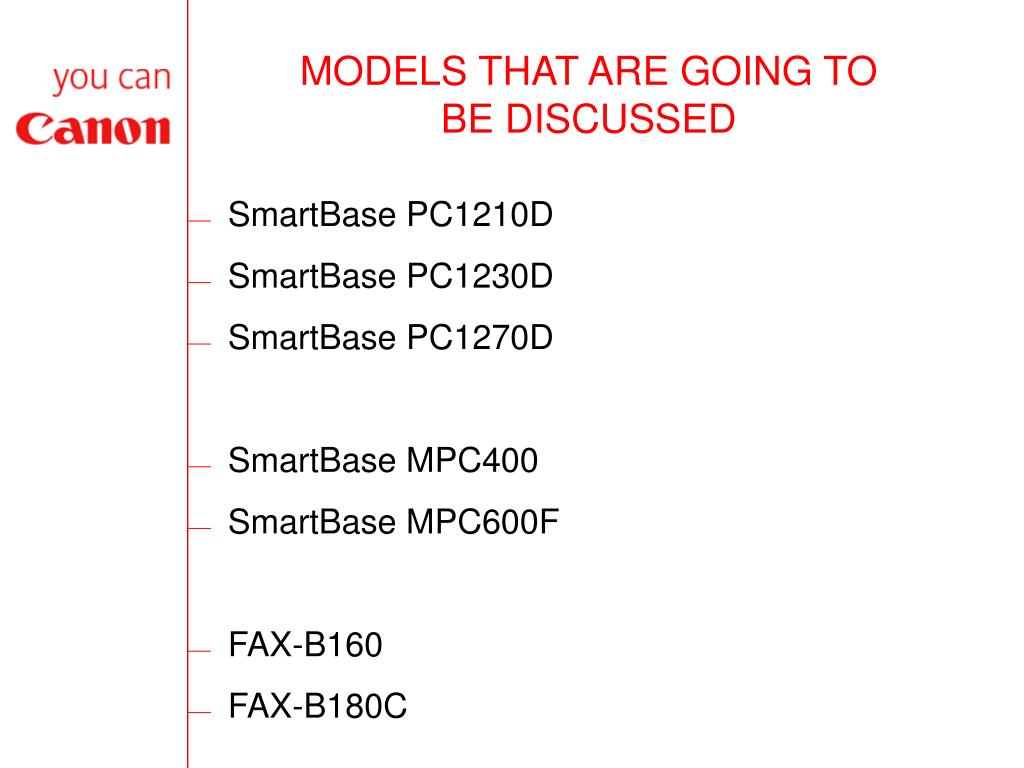

  3. MODELS THAT ARE GOING TO BE DISCUSSED • SmartBase PC1210D • SmartBase PC1230D • SmartBase PC1270D • SmartBase MPC400 • SmartBase MPC600F • FAX-B160 • FAX-B180C

  4. MPC 400

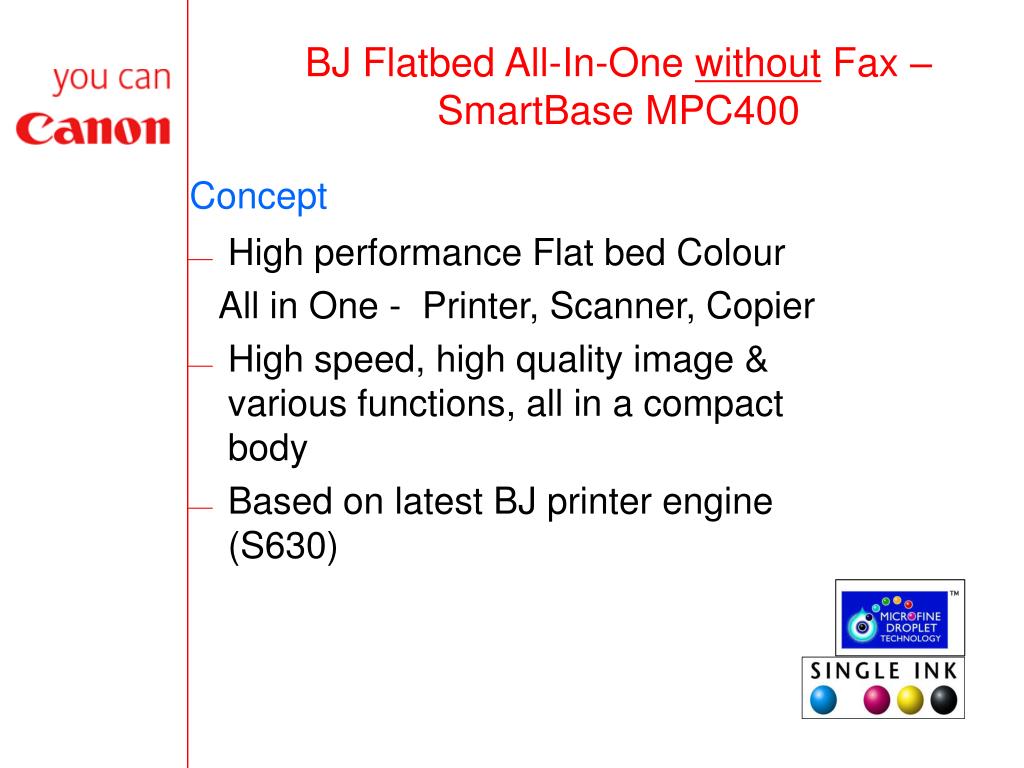

  5. BJ Flatbed All-In-One without Fax –SmartBase MPC400 Concept • High performance Flat bed Colour All in One - Printer, Scanner, Copier • High speed, high quality image & various functions, all in a compact body • Based on latest BJ printer engine (S630)

  6. MPC 600F

  7. BJ Flatbed All-In-One with Fax – SmartBase MPC600F Concept • High performance Flat bed Colour All in One - Printer, Fax, Scanner, Copier, PCFax • High speed, high quality image & various functions, all in a compact body • Based on latest BJ printer engine (S630)

  8. PRODUCT FEATURES • PRINT ENGINE IS BASED ON THE S630 PRINTER • BJ HEAD IS A PART (QY6 0034) • DUAL INTERFACE (Parallel & USB ) • MEMORY IS 4.3 MB (NOT UPGRADEABLE) • HIGH COLOUR INKS • PRODUCT LIFE • READER : 30 000 SHEETS OF COPY • RECORDER : 30 000 SHEETS OR 5 YEARS BK : 10 000 SHEETS OR 5 YEARS • SUPPORTED OS : WIN 95/98/ME/NT/2000/XP

  9. PRINTER FUNCTION MPC 400 AND MPC 600F • PRINTING METHOD : BUBBLE JET • PRINTING RESOLUTION : 2400 X 1200 DPI • PRINTING SPEED : 17 PPM BLK / 12 PPM CL • PRINTING DIRECTION : TWO WAY • ASF : 100 SHEETS A4/LTR/LGL • TRANSPARENCIES : 30 SHEETS • ENVELOPES : 10 SHEETS • BACK PRINT FILM : NONE • MEDIA WEIGHT : 64 TO 105 GSM • MANUAL FEED : NONE • CARTRIDGE LIFE : 775 PAGES BLK • 500 PAGES CYAN • 500 PAGES MEGENTA • 500 PAGES YELLOW

  10. COPY FUNCTION MPC 400 AND MPC600F • Copy Speed - up to 17CPM Mono/ up to 10 CPM Colour (Draft) • Copy Resolution B&W (600x600 dpi) Color (1200x1200 dpi) • First copy output time: 8 seconds • Extended copy functions: Mirror copy, Image repeat, Entire mode etc. • Copy Quality (color); normal, fine fast • Copy Quality (black); text, photo, draft • 99 page multicopy capacity and reduction/enlargement ranges of 25%/400% • ADF (600F only)

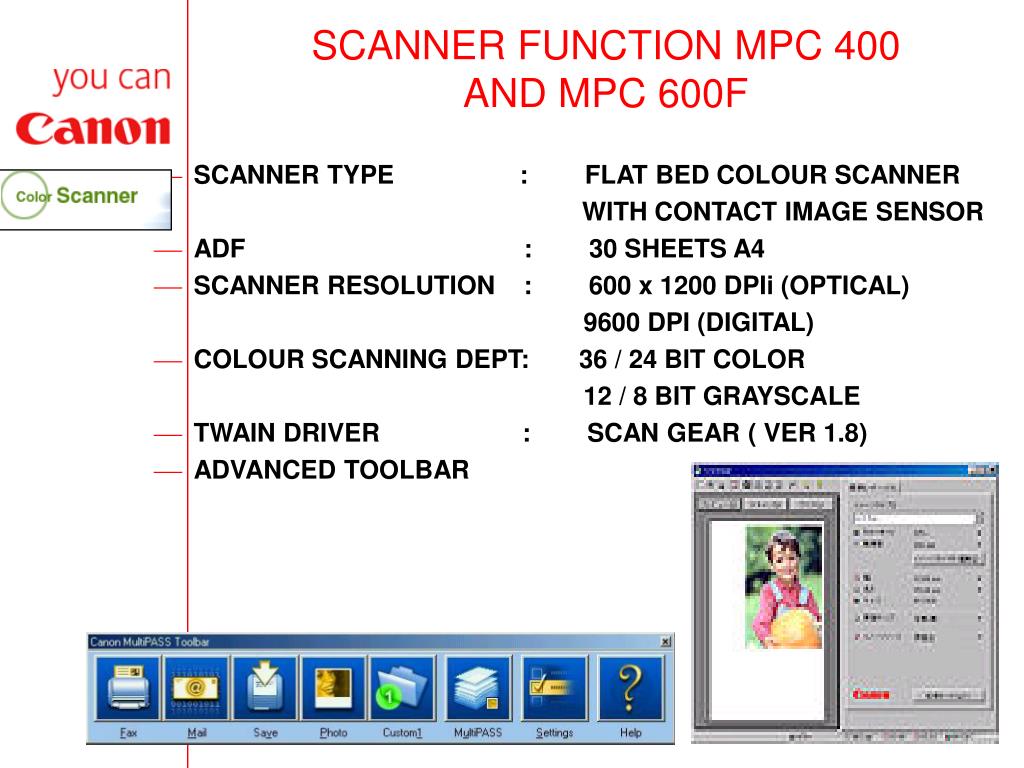

  11. SCANNER FUNCTION MPC 400AND MPC 600F • SCANNER TYPE : FLAT BED COLOUR SCANNER WITH CONTACT IMAGE SENSOR • ADF : 30 SHEETS A4 • SCANNER RESOLUTION : 600 x 1200 DPIi (OPTICAL) 9600 DPI (DIGITAL) • COLOUR SCANNING DEPT: 36 / 24 BIT COLOR 12 / 8 BIT GRAYSCALE • TWAIN DRIVER : SCAN GEAR ( VER 1.8) • ADVANCED TOOLBAR

  12. FAX FUNCTION FOR MPC 600FONLY • STANDALONE FAX : YES – MONO AND COLOUR • PC FAXING : YES • COMPATIBILITY : PSTN G3 • TRANSMISSION SPEED : 3SEC PER PAGE (MONO) (BASED ON ITUT CHART) : 1 MIN PER PAGE (COLOUR) • MODEM SPEED : 33.6 Kbps • FAX SCANNING SPEED : 5.3 SEC/PAGE A4 • FAX MEMORY : 270 PAGES (ITUT CHART) • SPEED DIALS : ONE TOUCH -9 LOCATIONS CODED - 100 LOCATIONS GROUP DIALING 108 LOCATIONS • ON-HOOK KEY : YES • REDIAL/ PAUSE : YES

  13. Continue • RECEIVE MODES : YES (4 CANON RX MODES) • REMOTE RECEPTION : YES • CODE : 25 • ERROR CORRECTION MODE (ECM) : YES • POLLING RX : YES • RECEIVED IMAGE REDUCTION : 70% - 100% • ACTIVITY REPORT : 20 TRANSACTION • REPORTS : ACTIVITY REPORT TX REPORT ERROR REPORT RX REPORT MULTI TX/RX REPORT MEMORY/SPEED DIAL LIST REPORTS

  14. Front View

  15. Operation Panel

  16. Component Layout Paper feed motor ASF motor Pick up roller Carriage belt Carriage motor Paper eject roller

  17. Continue

  18. Continue

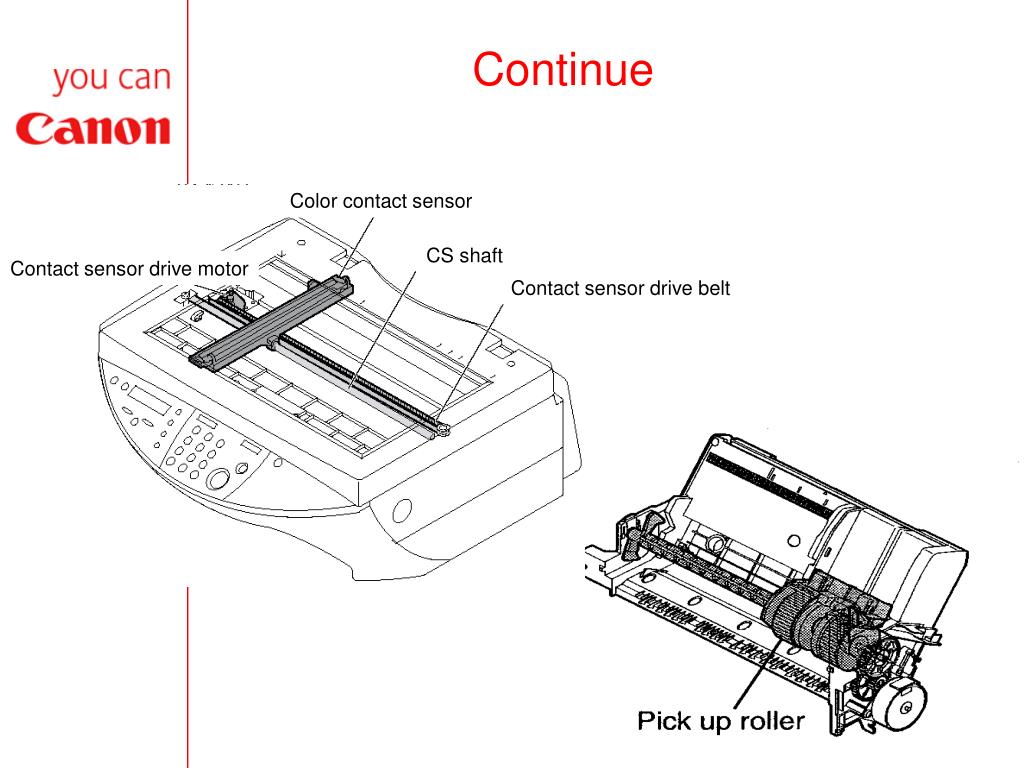

  19. Color contact sensor CS shaft Contact sensor drive motor Contact sensor drive belt Continue

  20. Electrical Layout OPCNT board PCNT (Printer Control) board Power Supply unit

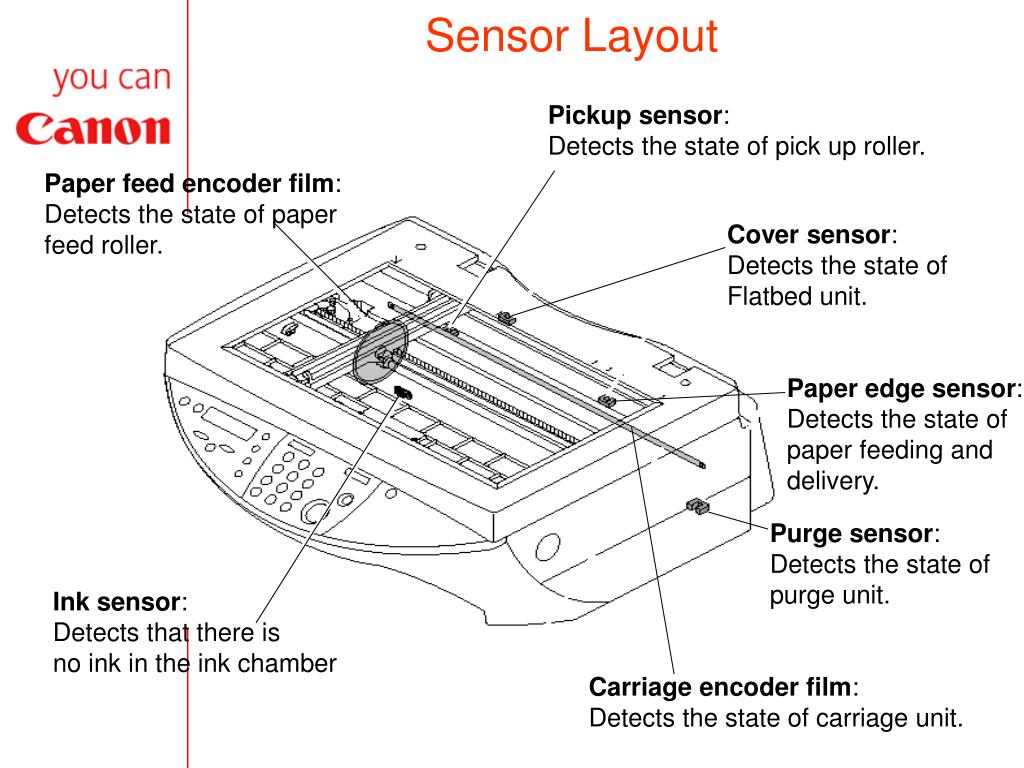

  21. Sensor Layout Pickup sensor: Detects the state of pick up roller. Paper feed encoder film: Detects the state of paper feed roller. Cover sensor: Detects the state of Flatbed unit. Paper edge sensor: Detects the state of paper feeding and delivery. Purge sensor: Detects the state of purge unit. Ink sensor: Detects that there is no ink in the ink chamber Carriage encoder film: Detects the state of carriage unit.

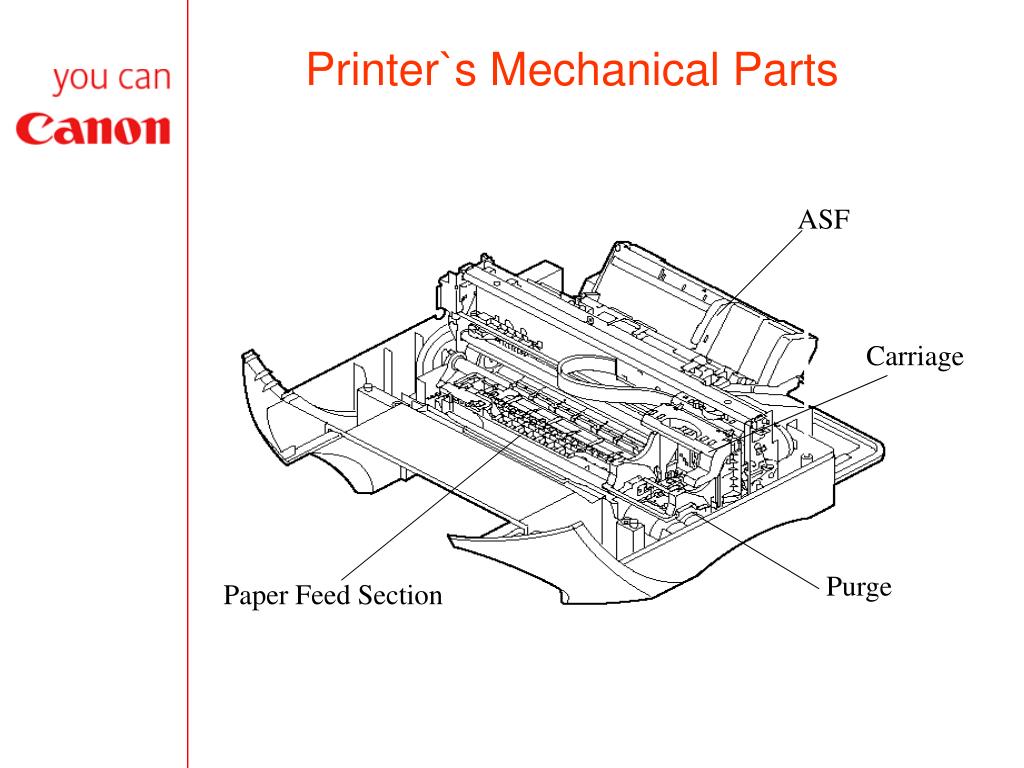

  22. Printer`s Mechanical Parts ASF Carriage Purge Paper Feed Section

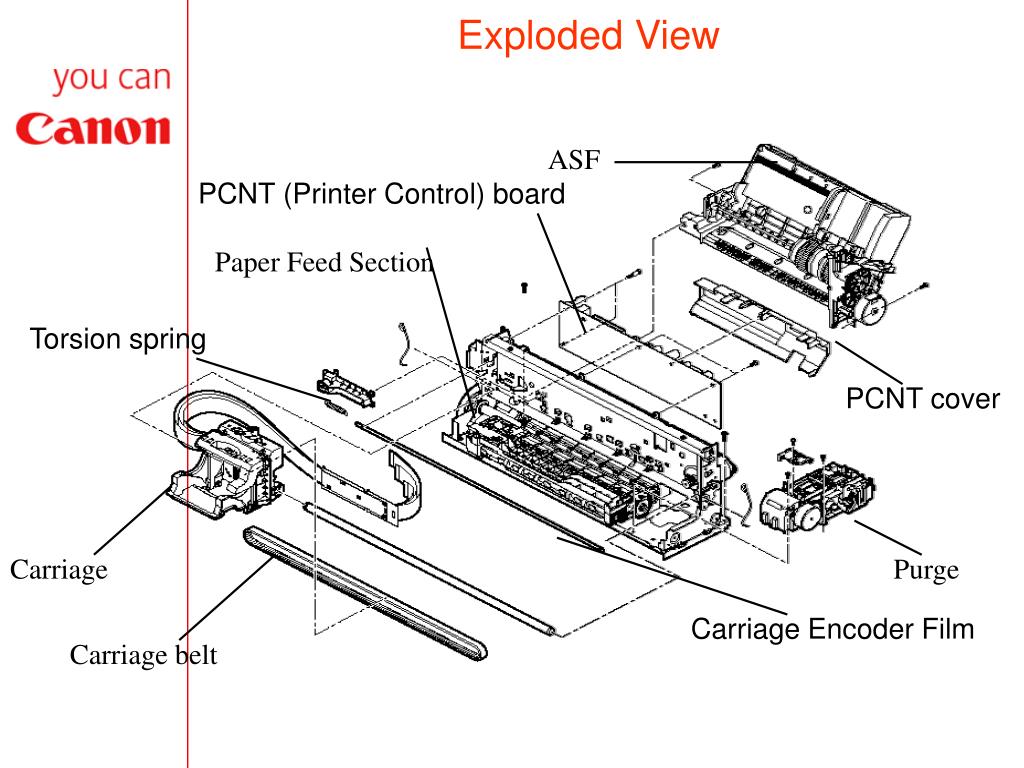

  23. Exploded View ASF PCNT (Printer Control) board Paper Feed Section Torsion spring PCNT cover Carriage Purge Carriage Encoder Film Carriage belt

  24. Paper Feed Section Paper feed roller: Transports the paper Nip Chin Pressure roller: Applies pressure on the paper on the separation pad to prevent transporting more than 1 sheet Pressure plate: Puts the next sheet in position for the paper feed roller Return pawl: Returns the paper remaining on the separation pad Separation pad: Separates the paper

  25. Ink Detection Ink Tank Prism • At the bottom of the ink tank • is an indentation that works • like a prism

  26. Ink Detection (cont`d) Air Ink Refracted Light Incident Light Reflected Light Incident Light LED Photo Transistor Ink Sensor Ink Sensor Ink Present No Ink

  27. Ink Tanks BCI-3eY YELLOW BCI-3eM MAGENTA BCI-3eC CYAN BCI-3eBK BLACK Single Ink - Detachable ink tanks for each color Pigment Black, dyes Color ink Weight (Net value): 32g Black, 11g color ink

  28. BJ Cartridge (Print Head) • Black: 320 nozzles, • 2-column vertical array • Color: 256 nozzles/color, • 2-column vertical array/color Supplied only as a service part. It will not be supplied as a consumable or optional part Part number: QY6-0034

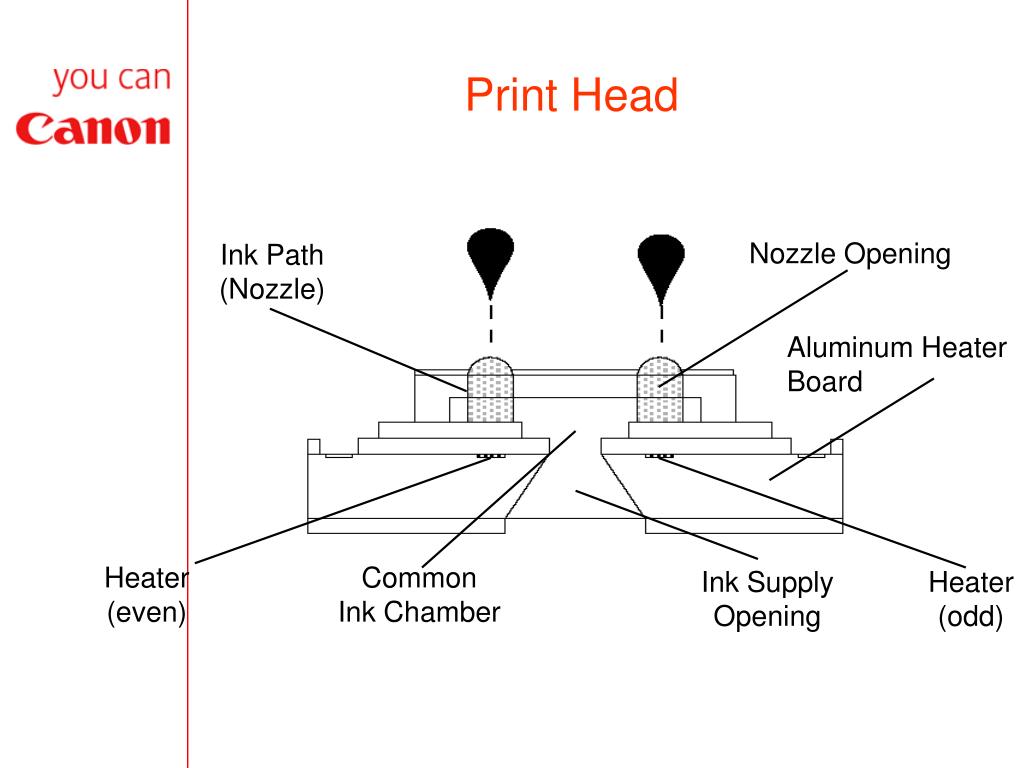

  29. Print Head Nozzle Opening Ink Path (Nozzle) Aluminum Heater Board Heater (even) Common Ink Chamber Ink Supply Opening Heater (odd)

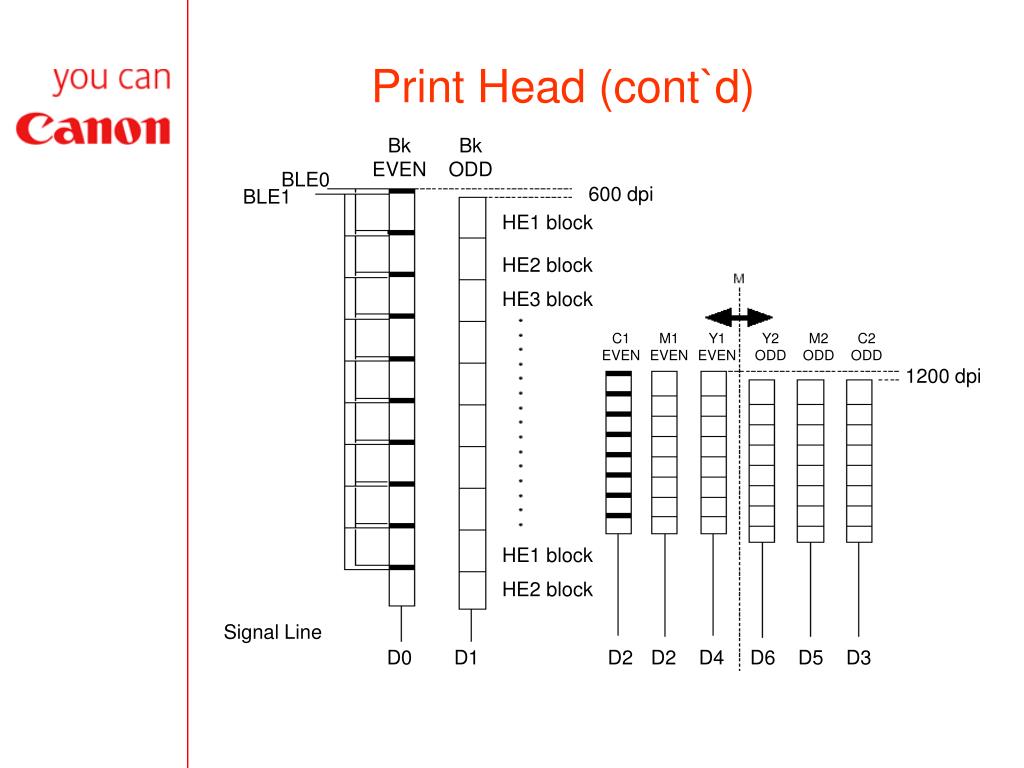

  30. Print Head (cont`d) Bk EVEN Bk ODD BLE0 600 dpi BLE1 HE1 block HE2 block HE3 block C1 EVEN M1 EVEN Y1 EVEN Y2 ODD M2 ODD C2 ODD 1200 dpi HE1 block HE2 block Signal Line D0 D1 D2 D2 D4 D6 D5 D3

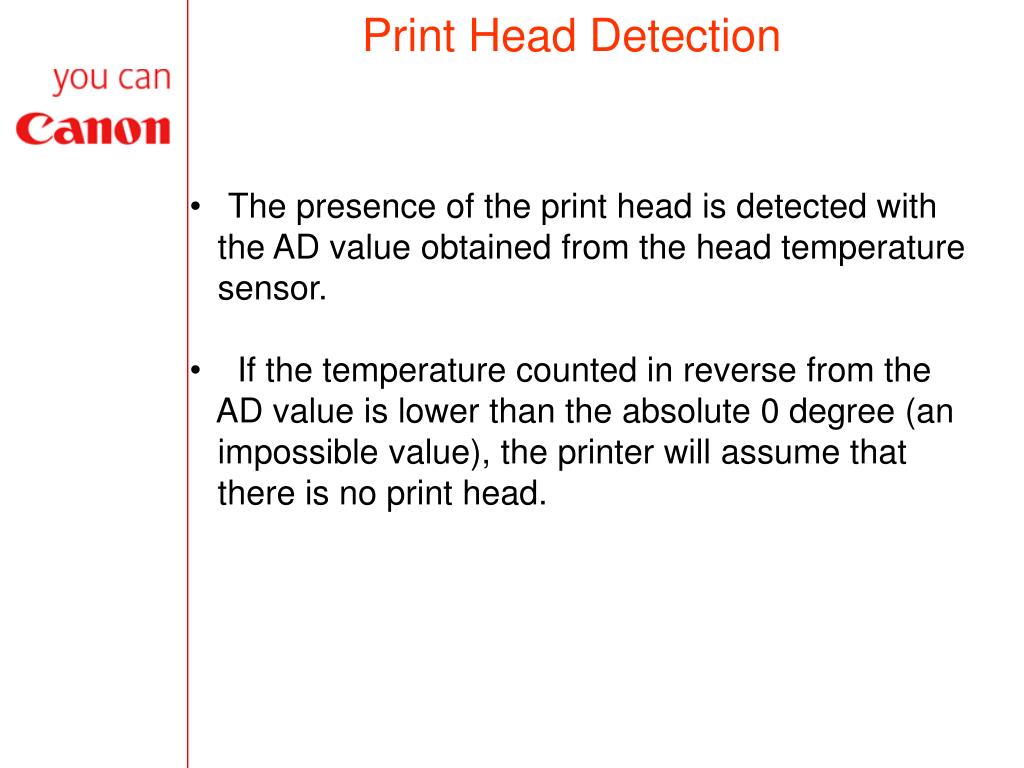

  31. Print Head Detection • The presence of the print head is detected with the AD value obtained from the head temperature sensor. • If the temperature counted in reverse from the AD value is lower than the absolute 0 degree (an impossible value), the printer will assume that there is no print head.

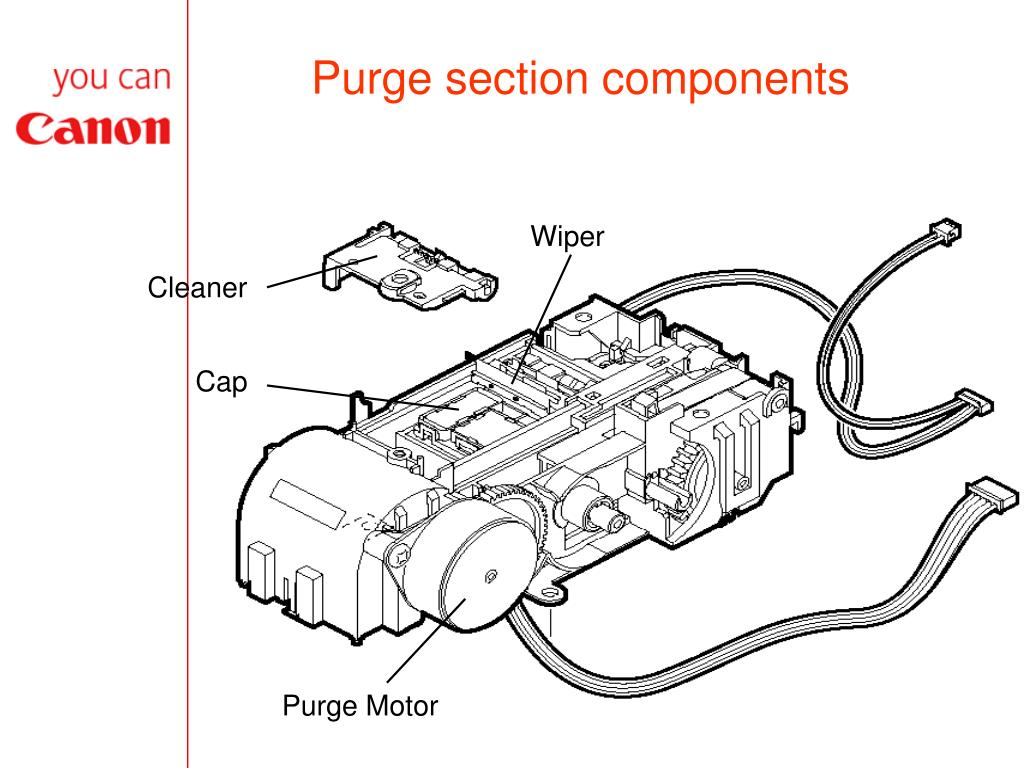

  32. Purge section components Wiper Cleaner Cap Purge Motor

  33. Pump operation Rotation Direction for Wire/Capping Rotation Direction for Ink Suction To Waste-Ink Absorber Valve Open Valve Closed Black Ink Tube Rotating Roller (inside) Color Ink Tube

  34. Carriage lock release • You can release the carriage lock manually • in one of two ways: a) On the back of the printer, push down the purge unit's locking pin. b) On the front of the printer, rotate the gear as shown by the arrow so that the locking pin goes down.

  35. Assembly and Disassenbly Red Screws • Do not Remove the Red Screws

  36. Data stored in PCNT board’s EEPROM: the volume of waste ink absorbed vertical line displacement correction data Replacing the PCNTboard: confirm the waste ink volume from the system dump list and make a note of it. after you have replaced the board, enter this value perform vertical line displacement correction. Service and MaintenancePCNT board replacement

  37. Replacement of the absorbers • The waste ink absorbers are designed to sop up any excess ink ejected during the cleaning operation. • The volume of ink absorbed is counted and these data stored in the EEPROM on the PCNT board. • Once the volume is judged to have reached 100%, the message "CHECK PRINTER" (error code ##342) will be displayed, and printing will stop. • To clear this error, you need to replace the waste ink absorbers and reset the waste ink volume counter.

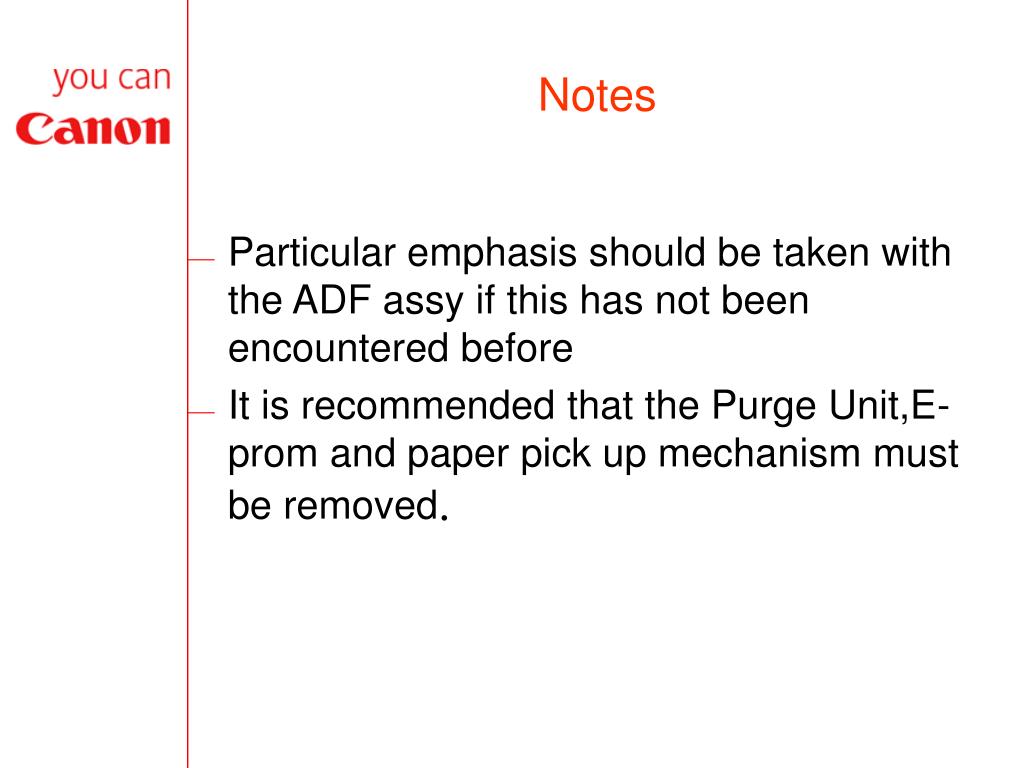

  38. Notes • Particular emphasis should be taken with the ADF assy if this has not been encountered before • It is recommended that the Purge Unit,E-prom and paper pick up mechanism must be removed.

  39. CS Adjustment • This scanner adjustment is performed automatically if the Sram data is corrupted. • If the SCNT board,Contact Sensor or battery are replaced or if the copied image,colour or brightness is faulty the CS Led Adjustment must be carried out.

  40. Vertical Line Alignment Adjustment • At the first installation of the material or after replacing print head, this adjustment has to be done

  41. Service modes
