  1. Chapter 26 Properties of Light

  2. Visible light originates with accelerated motion of electrons. It is an electromagnetic wave phenomenon.

  3. 1. ELECTROMAGNETICWAVES • Accelerating charges give off EM waves. • Demo - Tesla Coil, Radio, and Fluorescent Lamp • EM Wave – Next Slide

  4. Electromagnetic Wave Velocity • A certain speed is required to satisfy conservation of energy requirements. • That speed is c. • c = 300 million m/s • Large Number of Dots – Next Slide = 186,000 mi/s

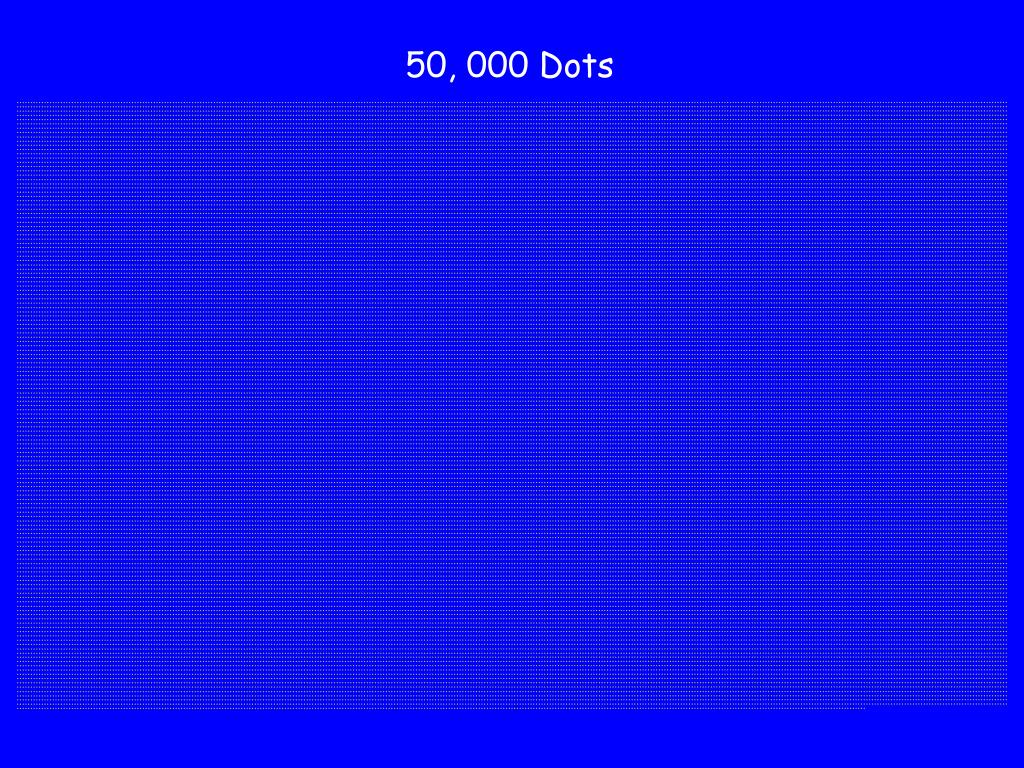

  5. 50, 000 Dots

  6. Maxwell discovered the nature of light.

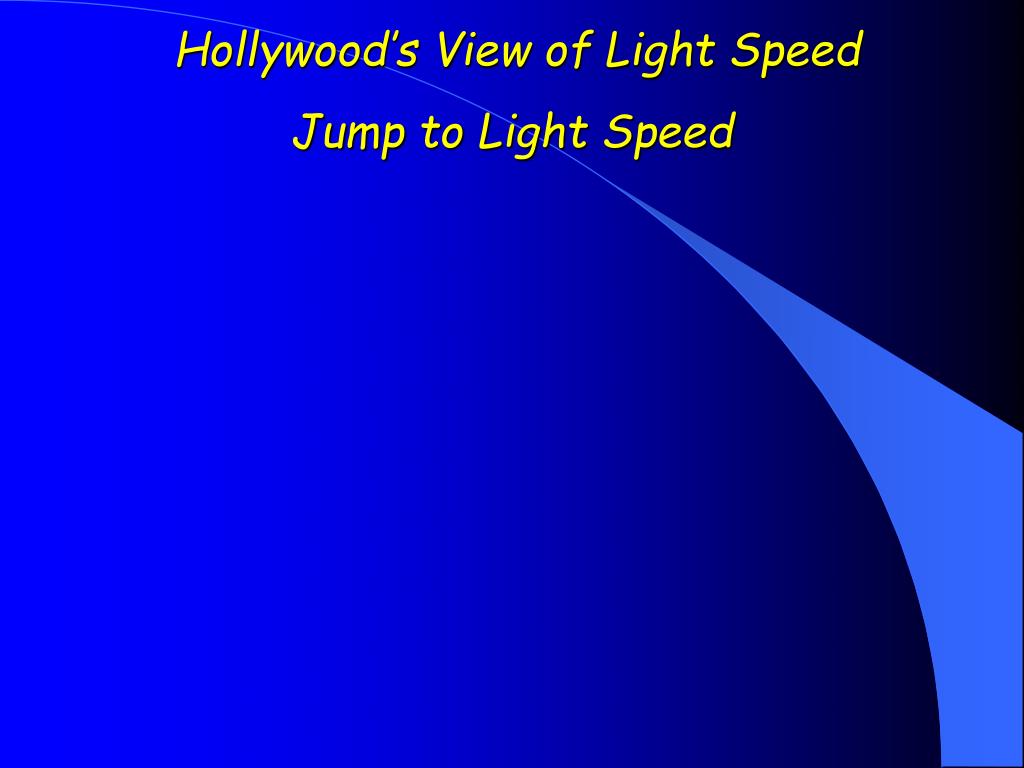

  7. Hollywood’s View of Light Speed Jump to Light Speed

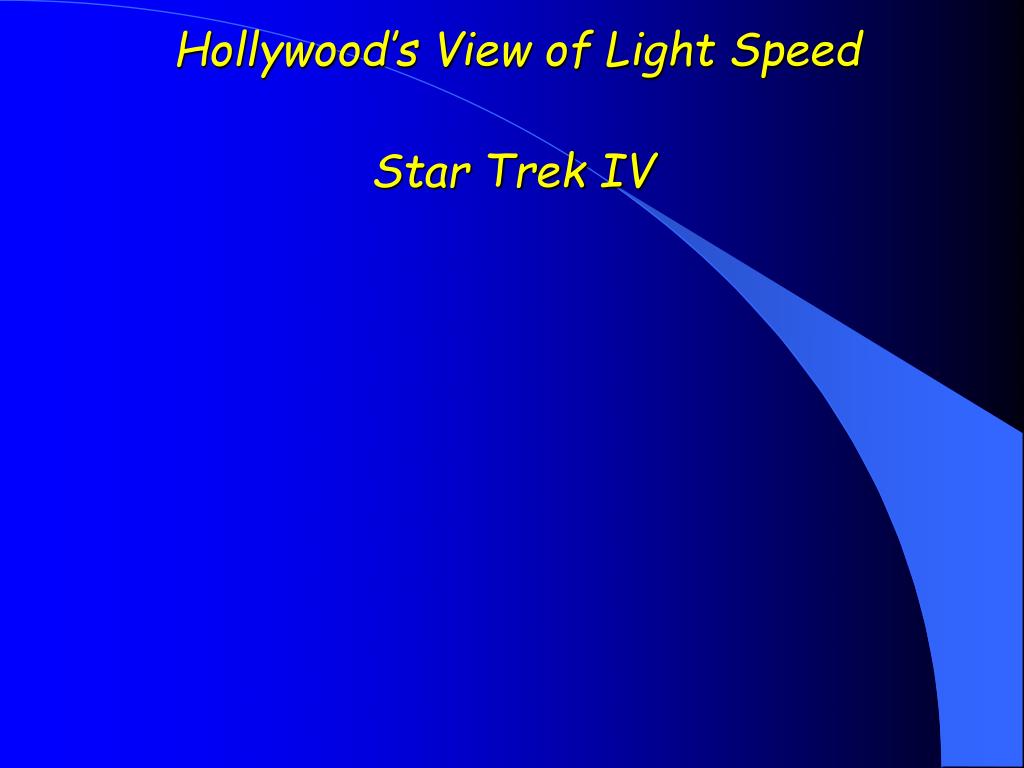

  8. Hollywood’s View of Light Speed Star Trek IV

  9. THE ELECTROMAGNETIC SPECTRUM

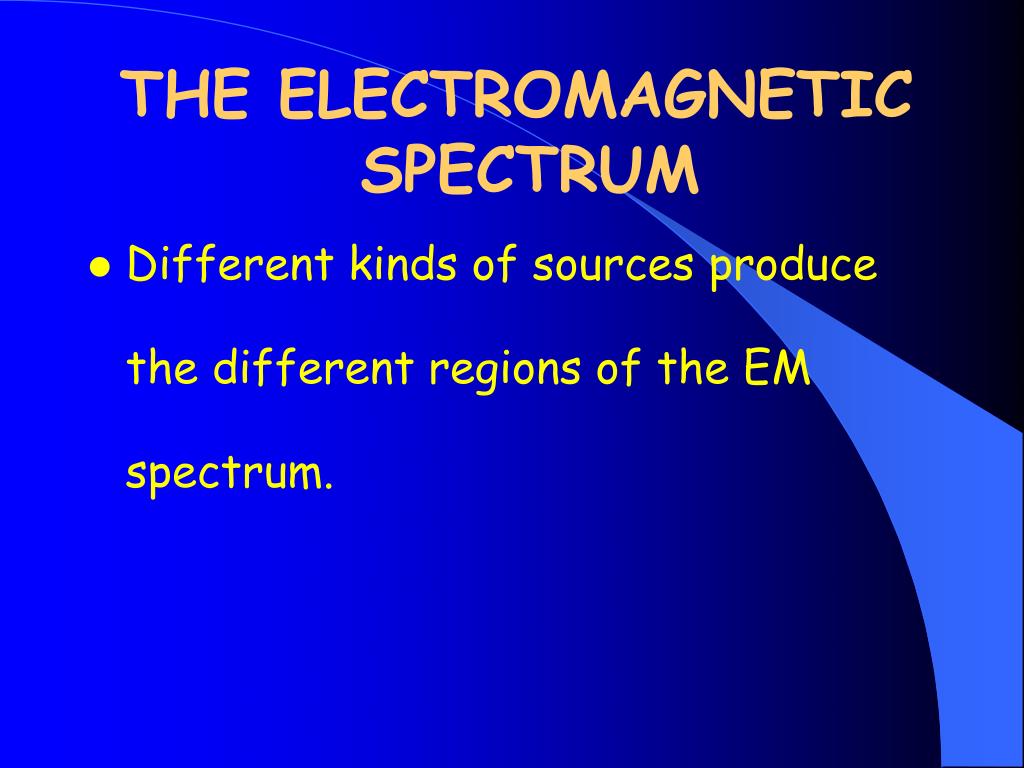

  10. THE ELECTROMAGNETIC SPECTRUM • Different kinds of sources produce the different regions of the EM spectrum.

  11. EM Waves Sources THE ELECTROMAGNETIC SPECTRUM Radio Waves Vibrating charges Molecular rotations Microwaves Infrared Molecular vibrations Visible Atomic vibrations Ultraviolet Atomic vibrations Atomic vibrations X-rays Gamma rays Nuclear vibrations

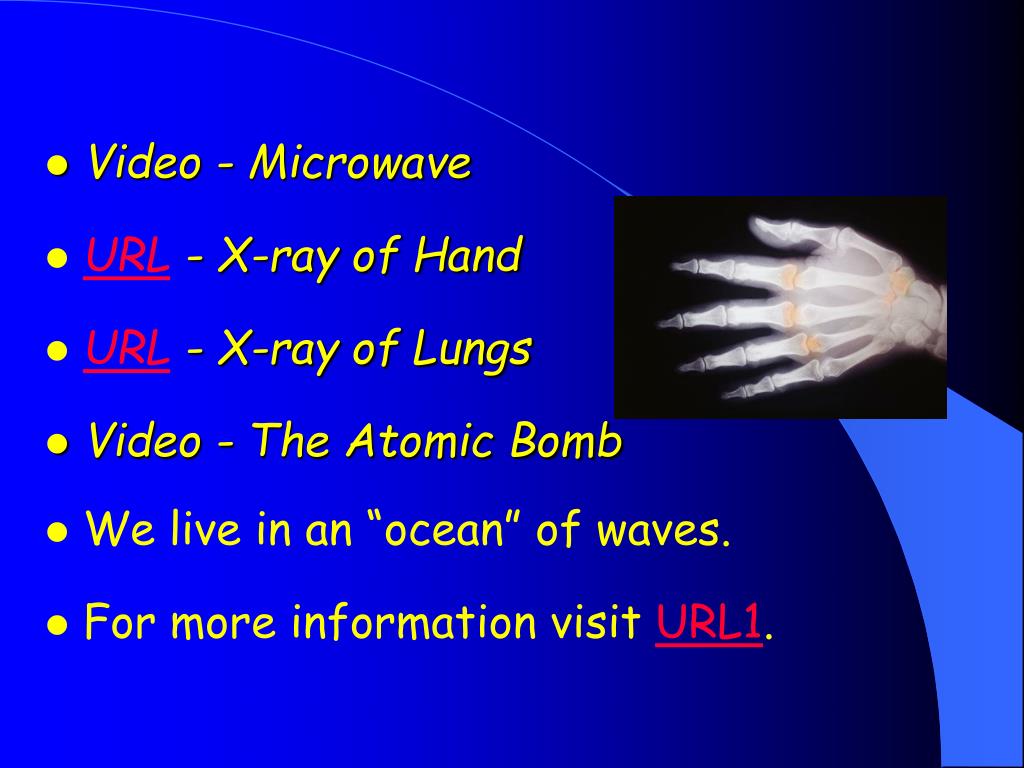

  12. Video - Microwave • URL - X-ray of Hand • URL - X-ray of Lungs • Video - The Atomic Bomb • We live in an “ocean” of waves. • For more information visit URL1.

  13. 2. TRANSPARENT MATERIALS • Atom Spring Model – Next Slide

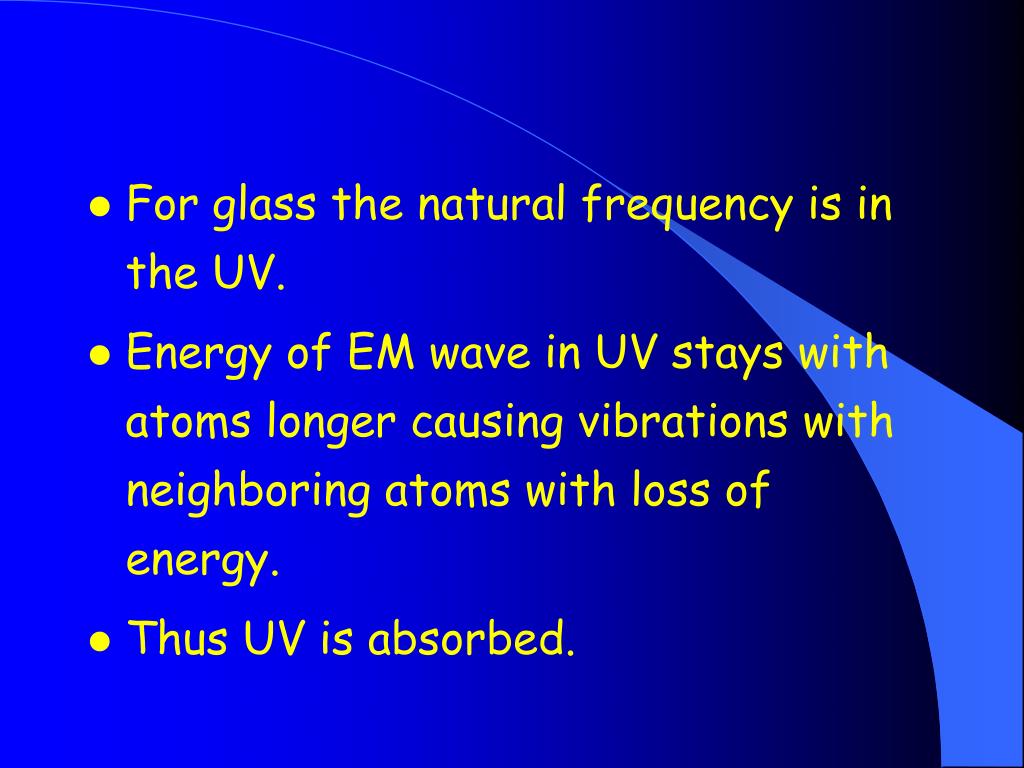

  14. For glass the natural frequency is in the UV. • Energy of EM wave in UV stays with atoms longer causing vibrations with neighboring atoms with loss of energy. • Thus UV is absorbed.

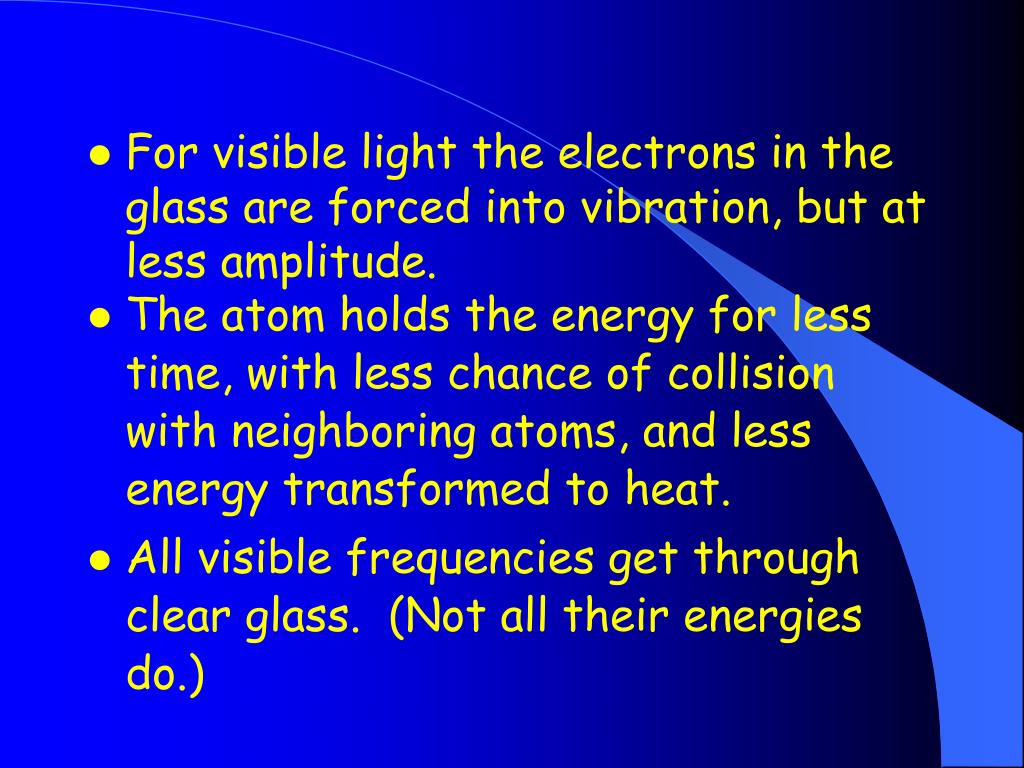

  15. For visible light the electrons in the glass are forced into vibration, but at less amplitude. • The atom holds the energy for less time, with less chance of collision with neighboring atoms, and less energy transformed to heat. • All visible frequencies get through clear glass. (Not all their energies do.)

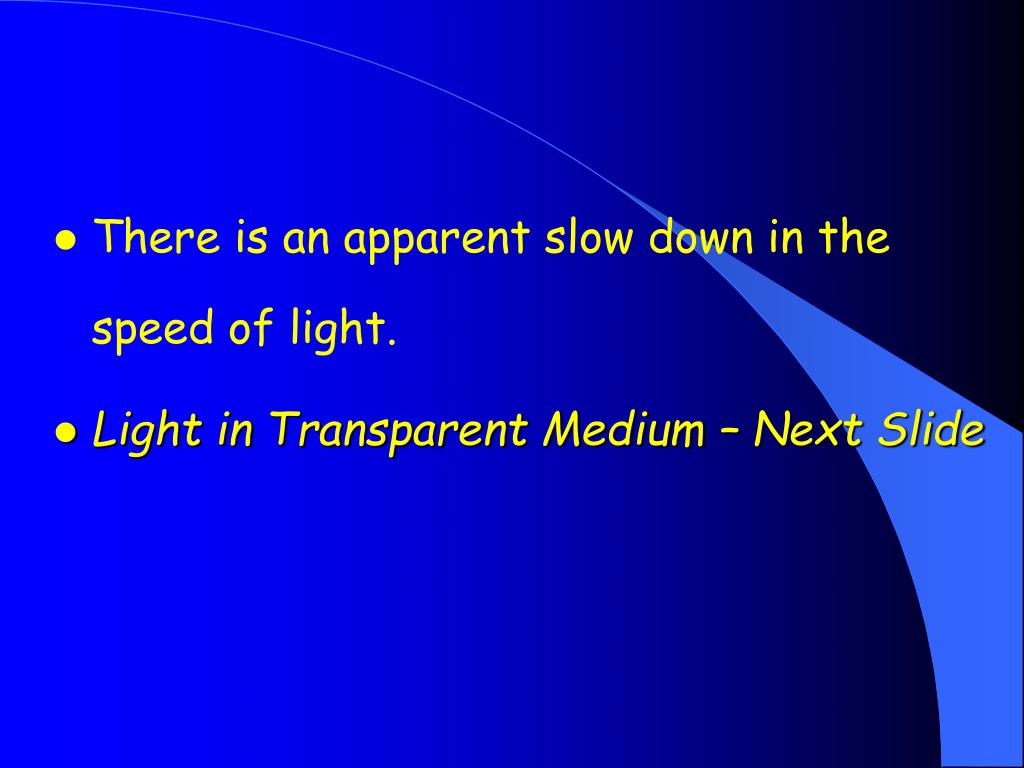

  16. There is an apparent slow down in the speed of light. • Light in Transparent Medium – Next Slide

  17. Besides the UV, heat waves (IR) don't get through either.

  18. TRANSLUCENT MATERIALS • Frosted glasses are good examples of translucent materials. • They scatter light on transmission. • You can’t read or identify objects from light passing through translucent materials. • Demo – Wax Paper

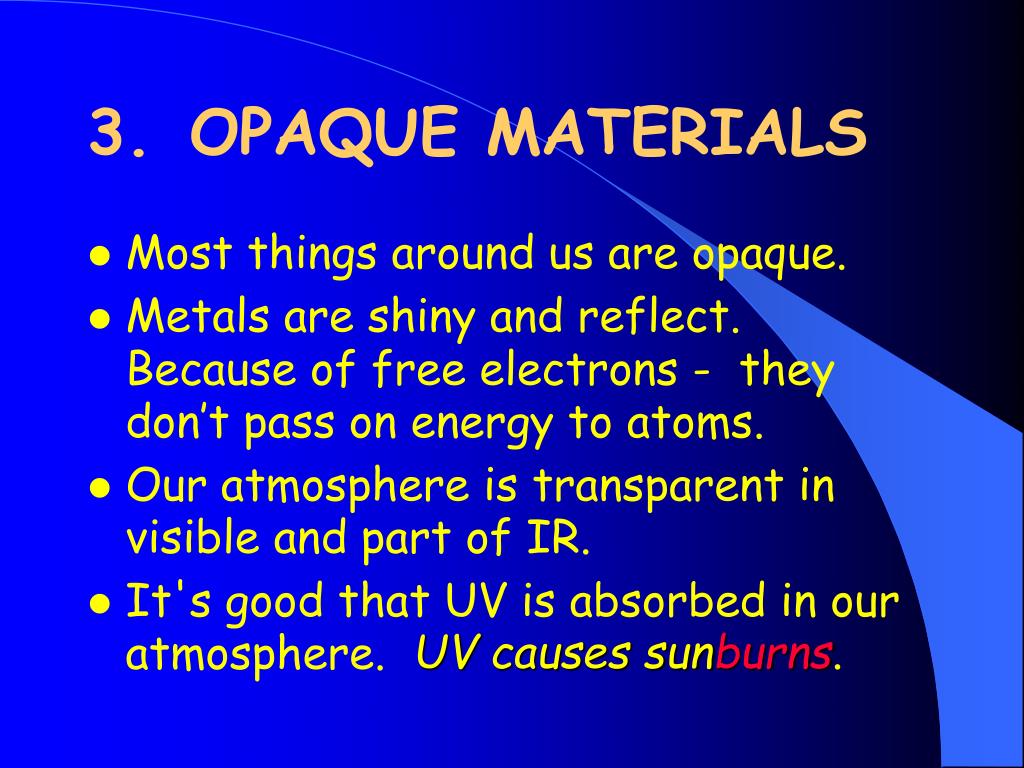

  19. 3. OPAQUE MATERIALS • Most things around us are opaque. • Metals are shiny and reflect. Because of free electrons - they don’t pass on energy to atoms. • Our atmosphere is transparent in visible and part of IR. • It's good that UV is absorbed in our atmosphere. UV causes sunburns.

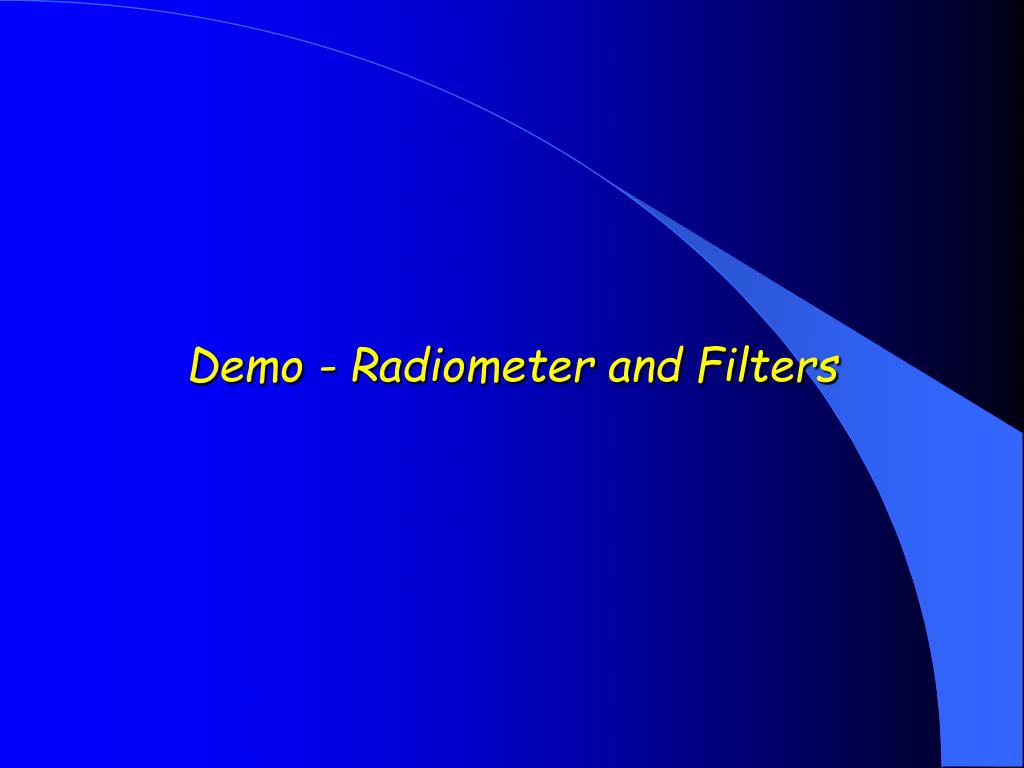

  20. Demo - Radiometer and Filters

  21. SHADOWS

  22. Penumbra Umbra

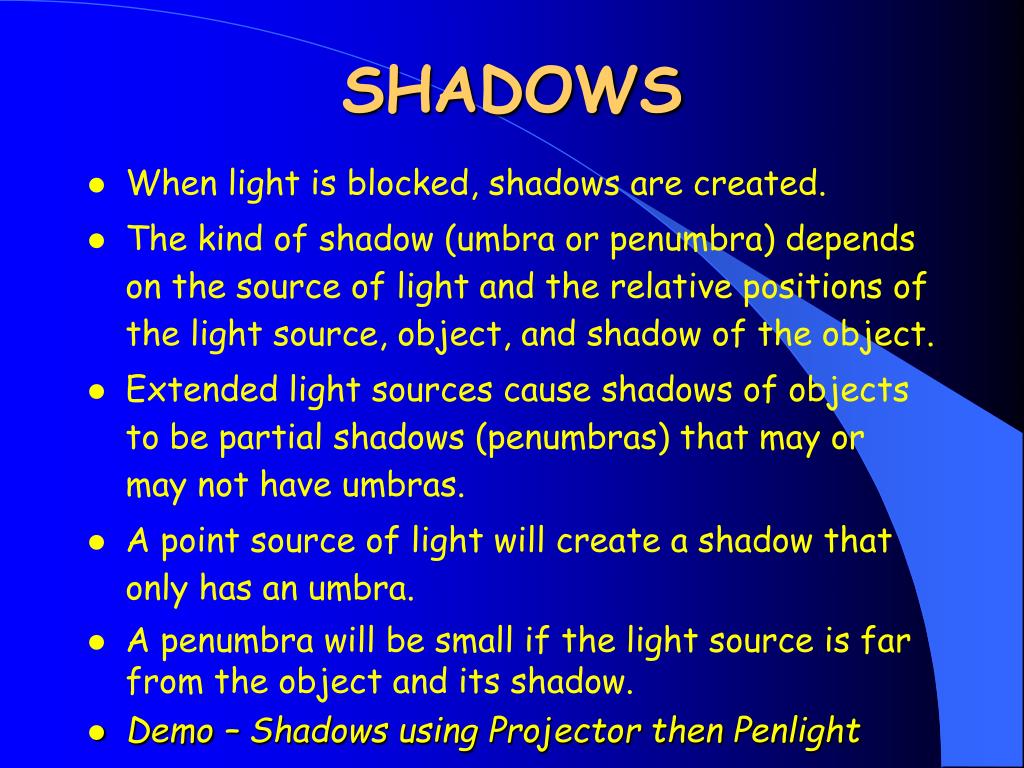

  23. SHADOWS • When light is blocked, shadows are created. • The kind of shadow (umbra or penumbra) depends on the source of light and the relative positions of the light source, object, and shadow of the object. • Extended light sources cause shadows of objects to be partial shadows (penumbras) that may or may not have umbras. • A point source of light will create a shadow that only has an umbra. • A penumbra will be small if the light source is far from the object and its shadow. • Demo – Shadows using Projector then Penlight

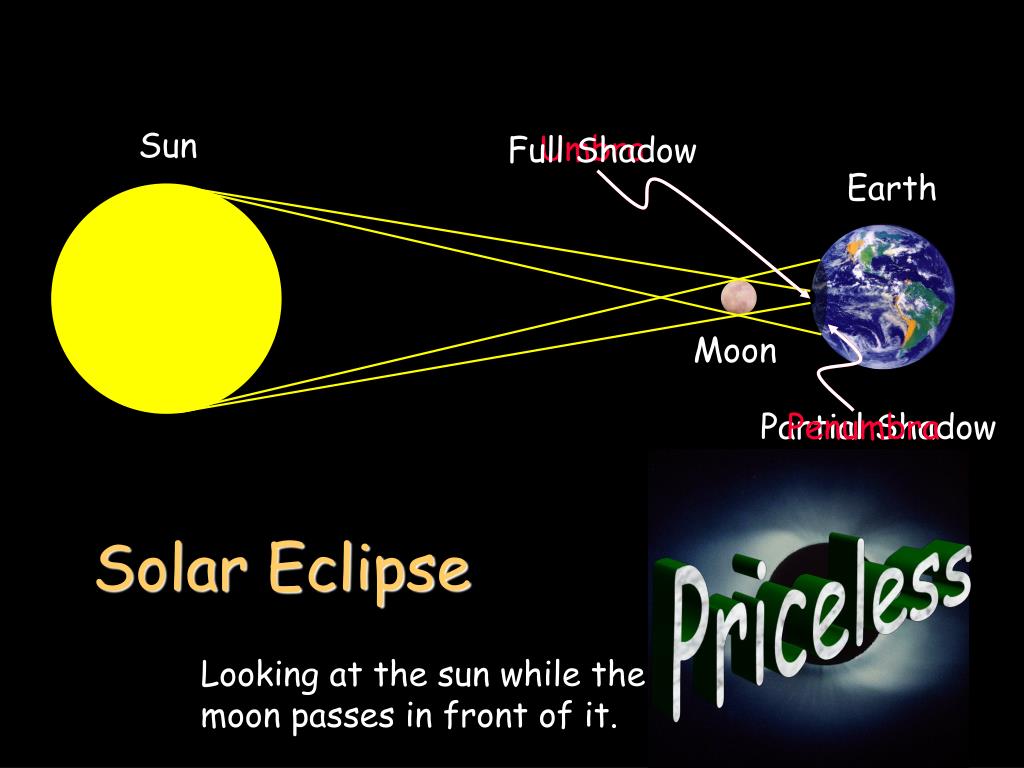

  24. Solar Eclipse Sun Umbra Full Shadow Earth Moon Partial Shadow Penumbra Priceless Looking at the sun while the moon passes in front of it.

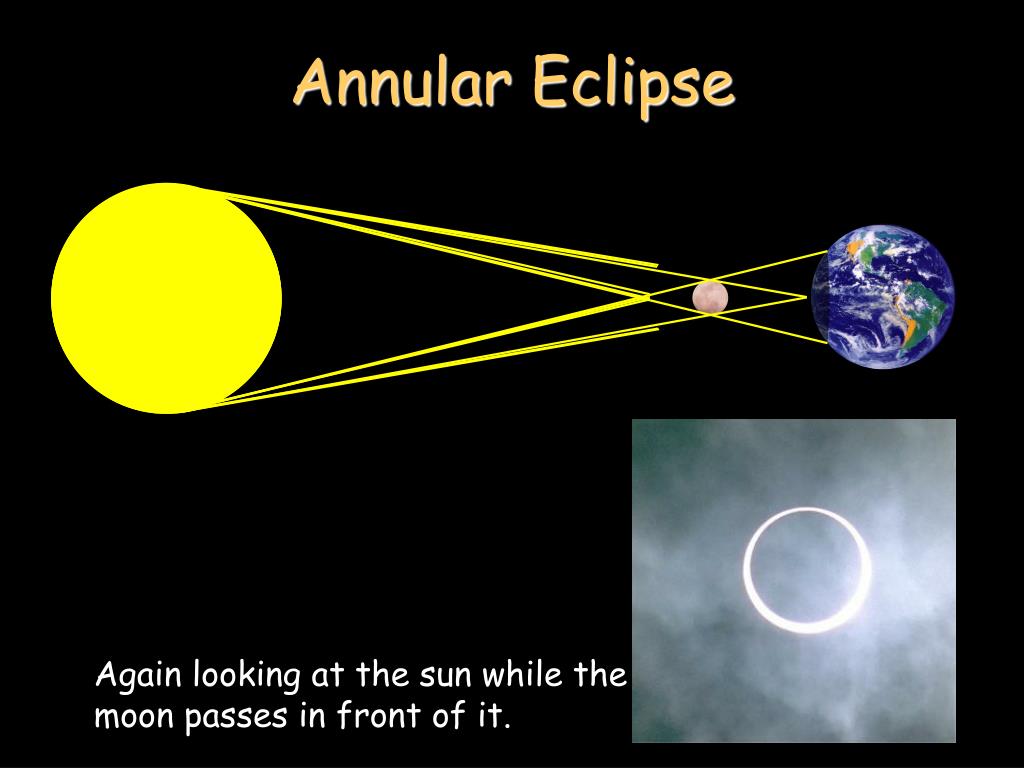

  25. Annular Eclipse Again looking at the sun while the moon passes in front of it.

  26. Lunar Eclipse Full Moon Phase New Moon Phase Earth’s shadow Looking at the moon while it passes through the earth’s shadow.

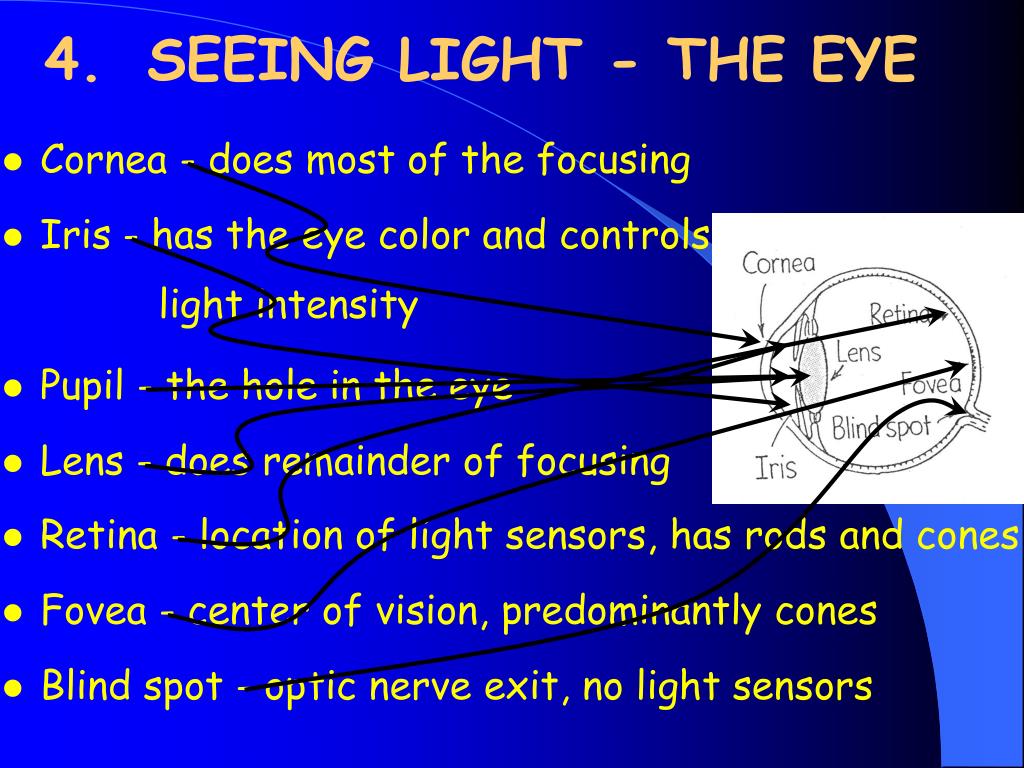

  27. 4. SEEING LIGHT - THE EYE • Cornea - does most of the focusing • Iris - has the eye color and controls light intensity • Pupil - the hole in the eye • Lens - does remainder of focusing • Retina - location of light sensors, has rods and cones • Fovea - center of vision, predominantly cones • Blind spot - optic nerve exit, no light sensors

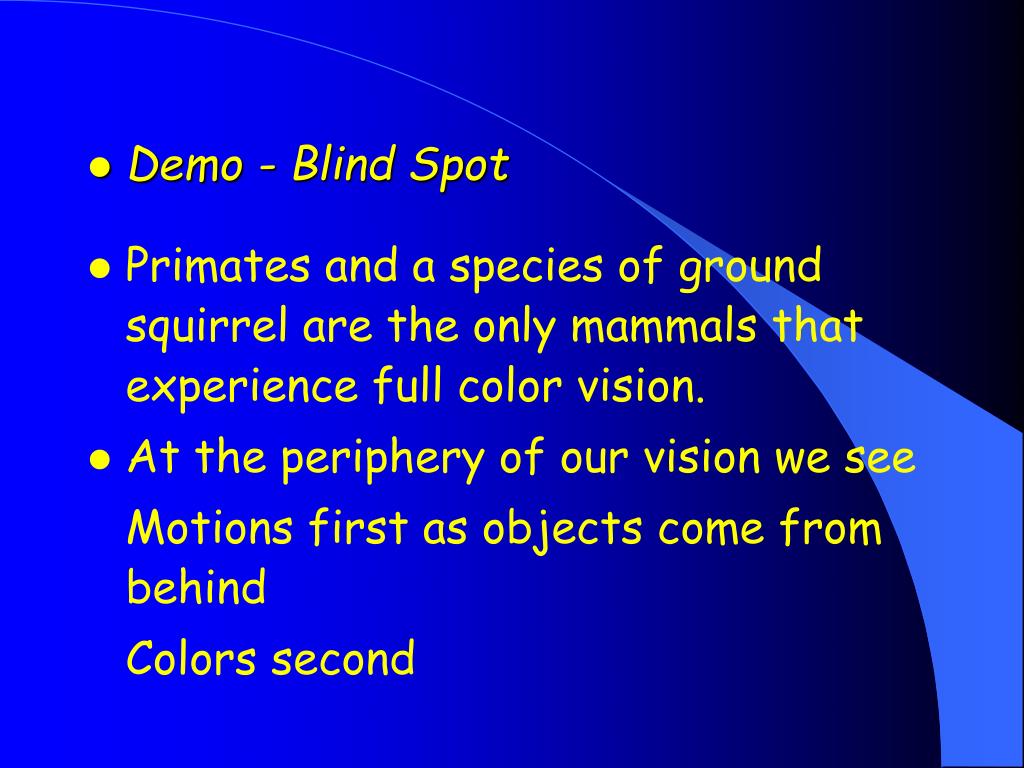

  28. Demo - Blind Spot • Primates and a species of ground squirrel are the only mammals that experience full color vision. • At the periphery of our vision we see Motions first as objects come from behind Colors second

  29. Rods are more sensitive to low light levels than cones are. • Examples: stars and twilight • Demo - Turn off Room Lights • Rods see blue better. Blue will appear much brighter than red in dim light, though the red might be much brighter than the blue in bright light.

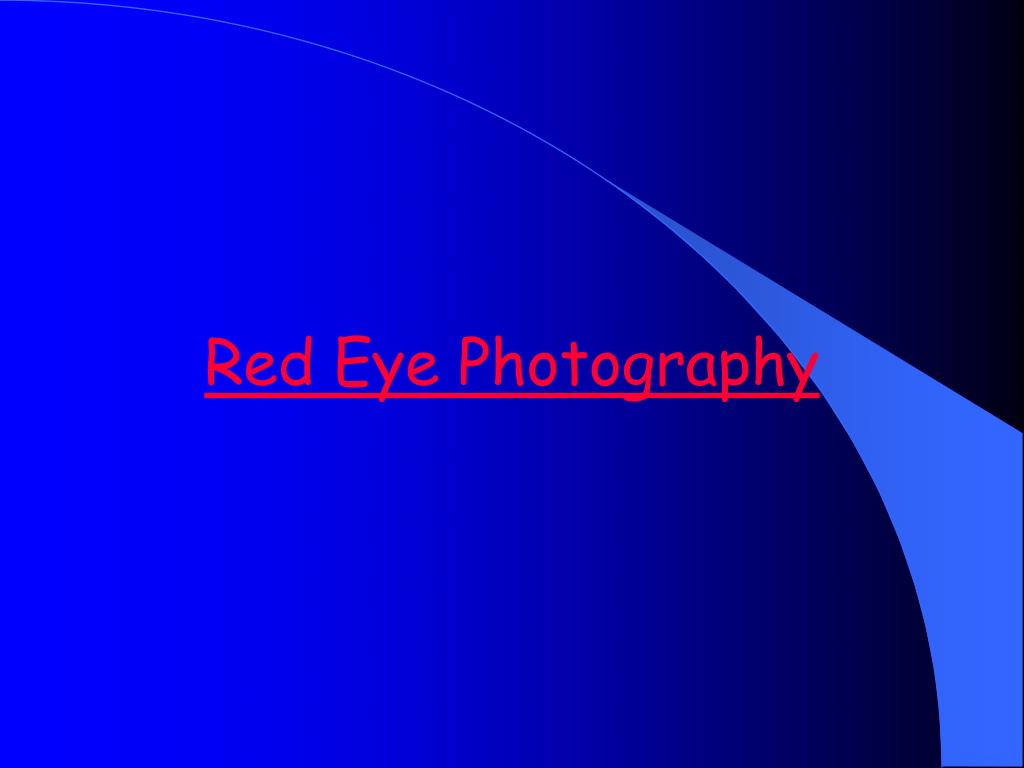

  30. Red Eye Photography

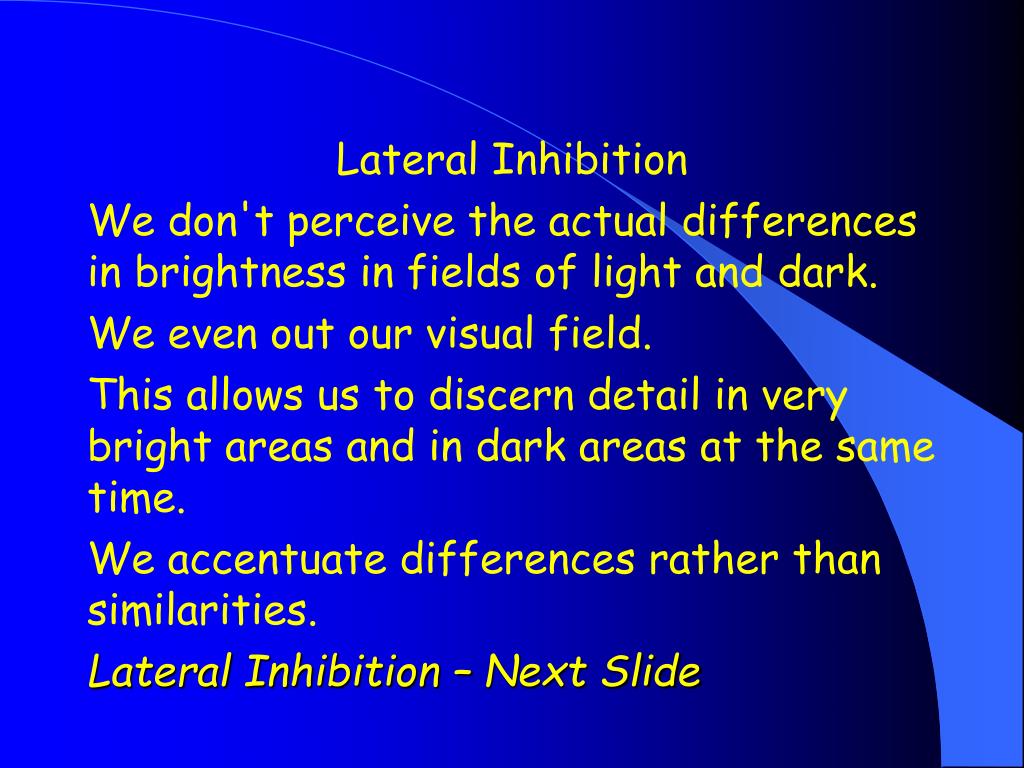

  31. Lateral Inhibition We don't perceive the actual differences in brightness in fields of light and dark. We even out our visual field. This allows us to discern detail in very bright areas and in dark areas at the same time. We accentuate differences rather than similarities. Lateral Inhibition– Next Slide

  32. Chapter 26 Review Questions

  33. The speed of light (a) has never been measured (b) is about the same as that of sound (c) is infinitely fast (d) is very fast, but not infinite

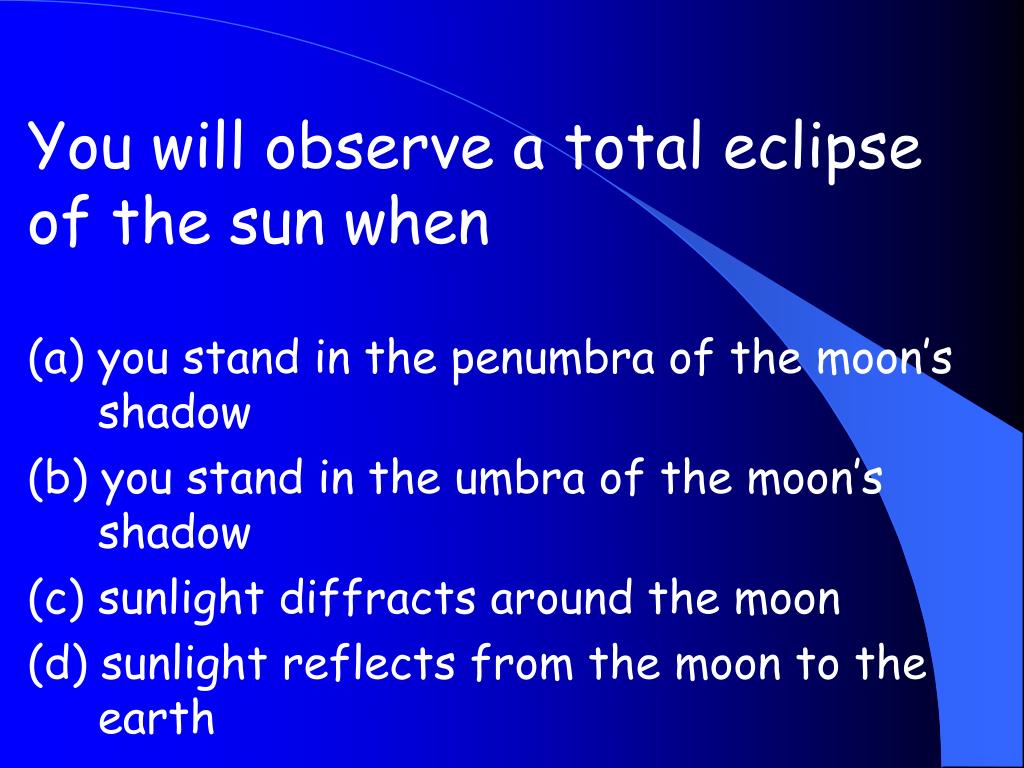

  34. You will observe a total eclipse of the sun when (a) you stand in the penumbra of the moon’s shadow (b) you stand in the umbra of the moon’s shadow (c) sunlight diffracts around the moon (d) sunlight reflects from the moon to the earth

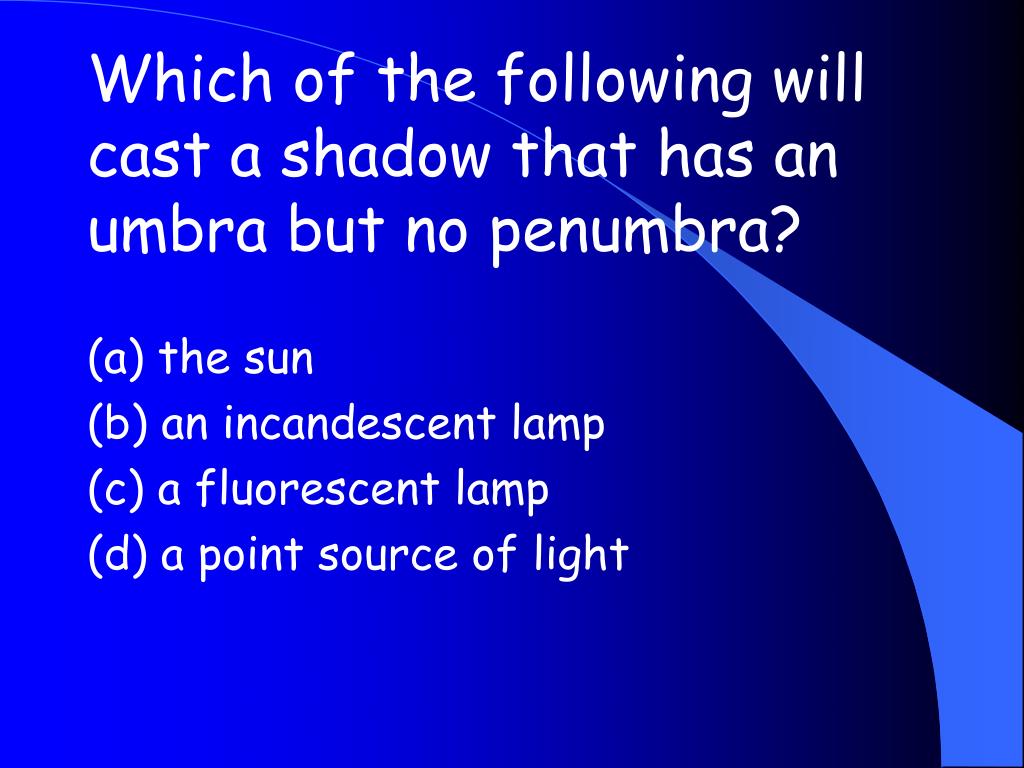

  35. Which of the following will cast a shadow that has an umbra but no penumbra? (a) the sun (b) an incandescent lamp (c) a fluorescent lamp (d) a point source of light

  36. What is the purpose of the pupil in an eye? (a) to adjust the focal length of the lens (b) to adjust the amount of light passing through the lens (c) to focus the image (d) to change the width of the field of view
