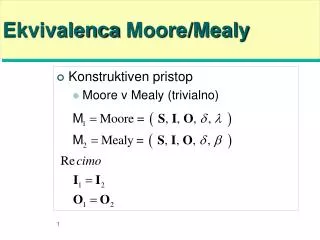

  1. Ekvivalenca Moore/Mealy • Konstruktiven pristop • Moore v Mealy (trivialno)

  2. Sk/0k Stanje v Moore-ovem avtomatu a a b b c c

  3. a/ok a/oo b/ok Sk b/op c/ok c/oq Stanje Mealy-evem avtomatu

  4. Pretvorba Mealy v Moore • Zgradimo nova stanja, ki sestojijo iz trenutnega stanja združenega z vsemi možnimi izhodi. Nekatera stanja z izhodi so lahko nedoseglijva. • Naprednejša metoda bi generirala novo množico stanj, ki bi jo sestavljale zgolj tiste kombinacije stanje/izhod, ki jih doseže glava puuščice.

  5. Pretvorba Mealy v Moore

  6. Pretvorba Mealy v Moore

  7. Tabela Mealy-evih stanj

  8. Ekvivalentna tabela Moore-ovih stanj
