Vsepr

VSEPR


Valence shell electron pair repulsion

Valence Shell Electron Pair Repulsion

  • Electron pairs orient themselves so as to make the angles between themselves as large as possible

  • Repulsion follows Coulomb’s law

  • This includes bonded as well as non-bonded pairs


Molecular geometry

Molecular Geometry

  • Non-bonded pairs are not seen on the molecule but they do affect it

  • In determining molecular geometries, multiple bonds are considered like single bonds

  • Six types of molecular geometries


Electron pair geometry

Electron Pair Geometry

  • Geometry if unshared pair thought of as a bond

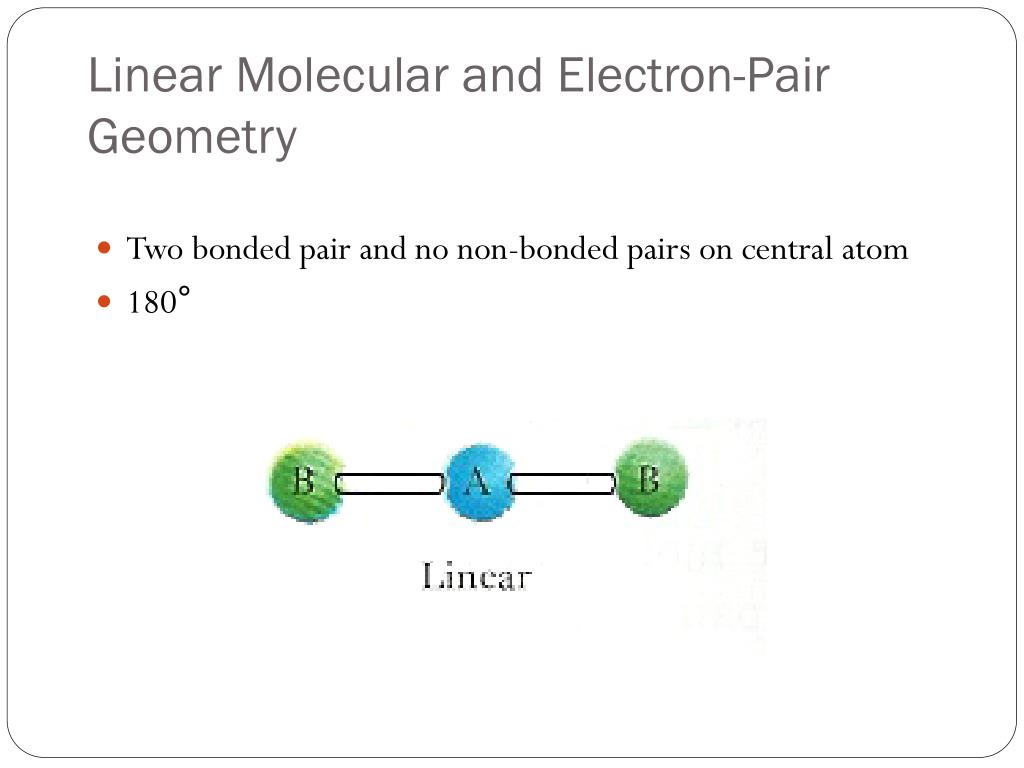

Linear molecular and electron pair geometry

Linear Molecular and Electron-Pair Geometry

  • Two bonded pair and no non-bonded pairs on central atom

  • 180°


Trigonal planer molecular and electron pair geometry

TrigonalPlaner Molecular and Electron-Pair Geometry

  • Three bonded pair and no non-bonded pairs

  • 120° between bonds


Bent molecular and trigonal planer electron pair geometry

Bent Molecular and Trigonal Planer Electron-Pair Geometry

  • Two bonded pair and one non-bonded pair

  • 120° between bonds


Tetrahedral molecular and electron pair geometry

Tetrahedral Molecular and Electron-Pair Geometry

  • Four bonded pairs

  • 109.5° between bonds

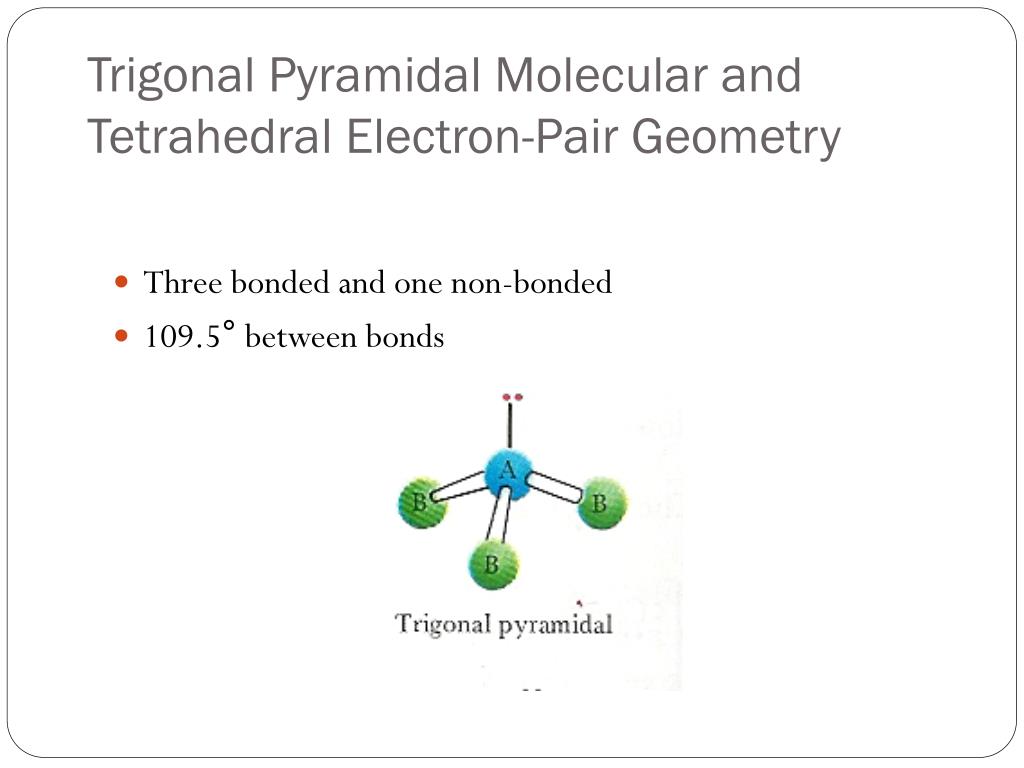

Trigonal pyramidal molecular and tetrahedral electron pair geometry

TrigonalPyramidal Molecular and Tetrahedral Electron-Pair Geometry

  • Three bonded and one non-bonded

  • 109.5° between bonds


Bent molecular and tetrahedral electron pair geometry

Bent Molecular and Tetrahedral Electron-Pair Geometry

  • Two bonded and two non-bonded

  • 104.5° between bonds


Non bonding pairs

Non-Bonding Pairs

  • Exert greater repulsive forces on adjacent pairs than bonded electrons do

  • Example – All of these have tetrahedral electron pair geometries

    • CH4 109.5°

    • NH3 107°

    • H2O 104.5°


More geometries of expanded octets

More Geometries of Expanded Octets
