13.6 Homework

13.6 Homework. 9) P = π 10) P = π /2 11) P = π /5; ± π /10 12) P = (2 π )/3; ± π /3 13) P = π /4; ± π /8 14) P = (3 π 2 )/2; ±(3 π 2 )/4 15) 16) 17) 18). Section 13.7. Translating Sine and Cosine Functions. Translating Functions. y = a • f ( b ( x – h )) + k

theola
Download Presentation

13.6 Homework

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 13.6 Homework 9) P = π 10) P = π/2 11) P = π/5; ± π/10 12) P = (2 π)/3; ± π/3 13) P = π/4; ± π/8 14) P = (3π2)/2; ±(3π2)/4 15) 16) 17) 18)

  2. Section 13.7 Translating Sine and Cosine Functions

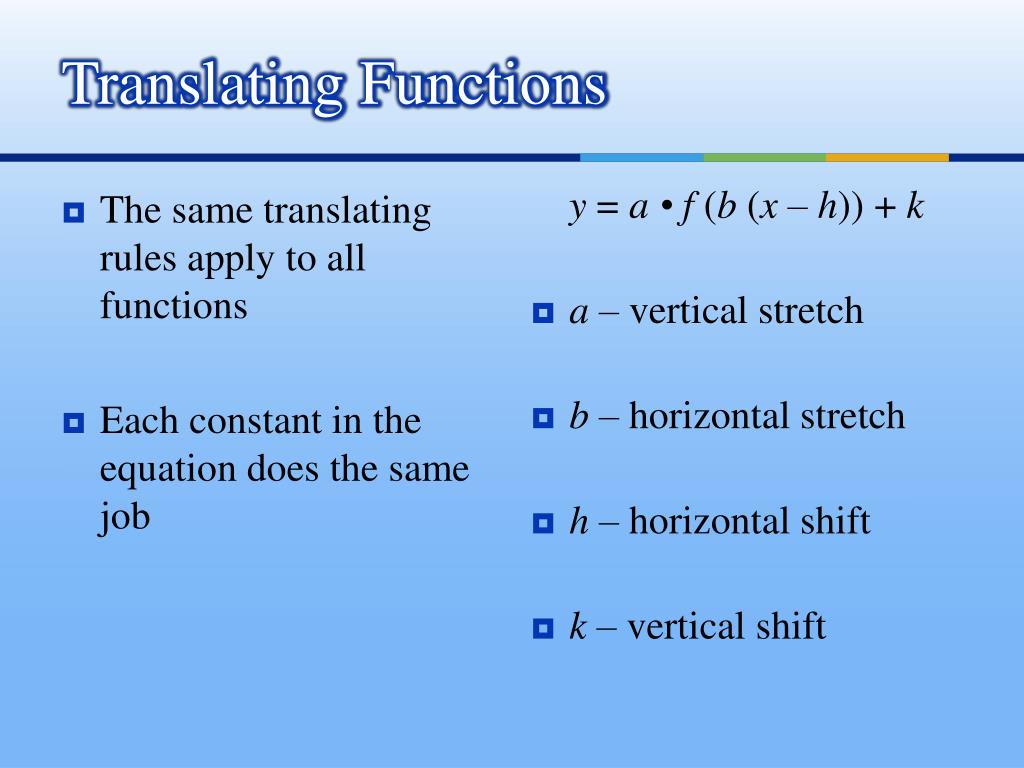

  3. Translating Functions y = a •f (b (x – h)) + k • a – vertical stretch • b – horizontal stretch • h – horizontal shift • k – vertical shift • The same translating rules apply to all functions • Each constant in the equation does the same job

  4. Phase Shift What is the value of h in each function? Describe the phase shift in terms of left or right. • g (x) = f (x + 1) h = –1; left 1 • m (x) = f (x – 3) h = 3; right 3 • y = sin (x + π) h = –π; left π • In periodic functions the horizontal shift is also called the “phase shift” • The phase shift tells us how far around the unit circle we need to start to have the same results

  5. Graphing Translations A phase shift moves the graph sideways k moves the graph up or down

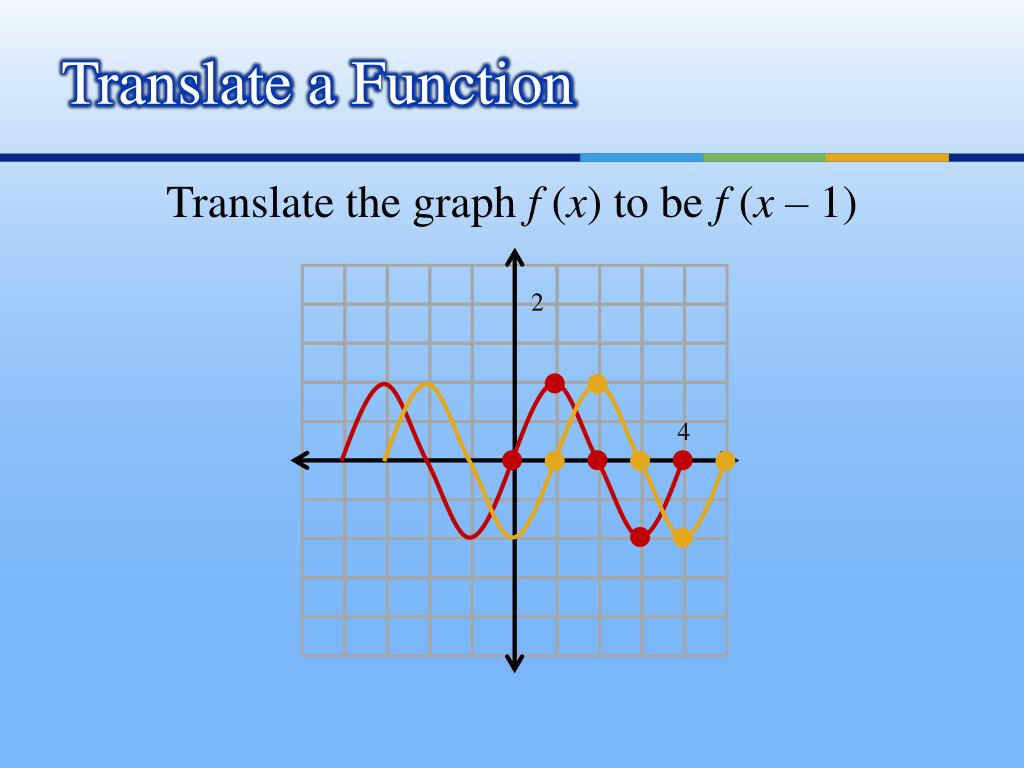

  6. Translate a Function Translate the graph f (x) to be f (x – 1) 2 4

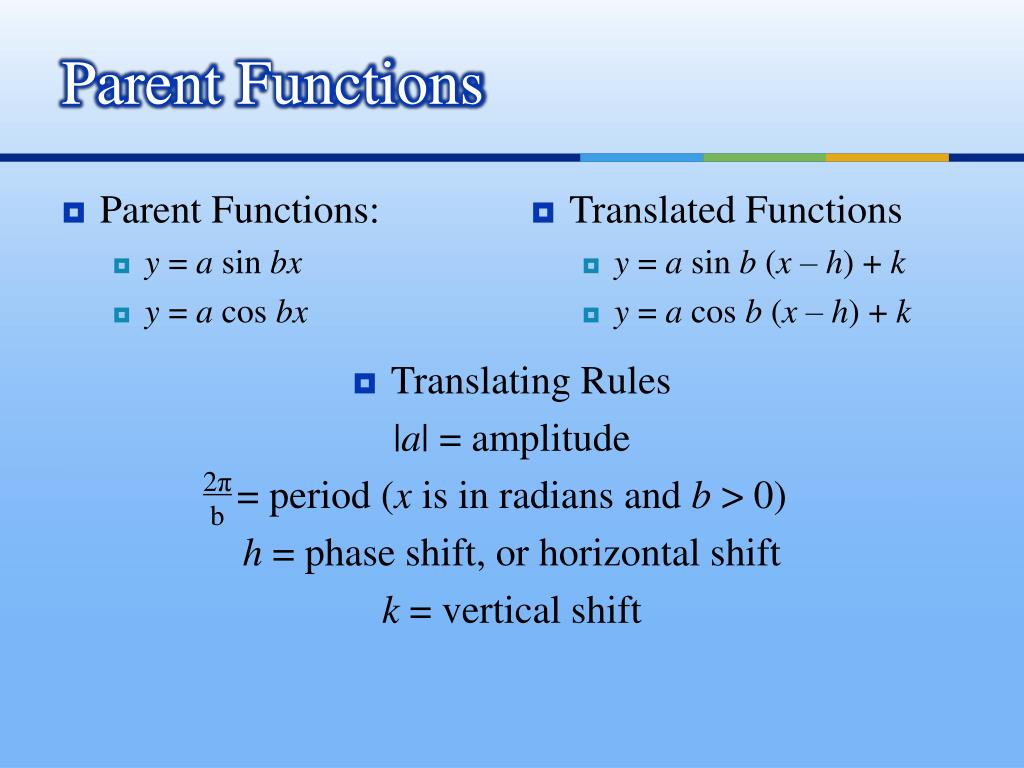

  7. Parent Functions • Parent Functions: • y = a sin bx • y = a cos bx • Translated Functions • y = a sin b (x – h) + k • y = a cos b (x – h) + k • Translating Rules • |a| = amplitude • = period (x is in radians and b > 0) • h = phase shift, or horizontal shift • k = vertical shift 2π b

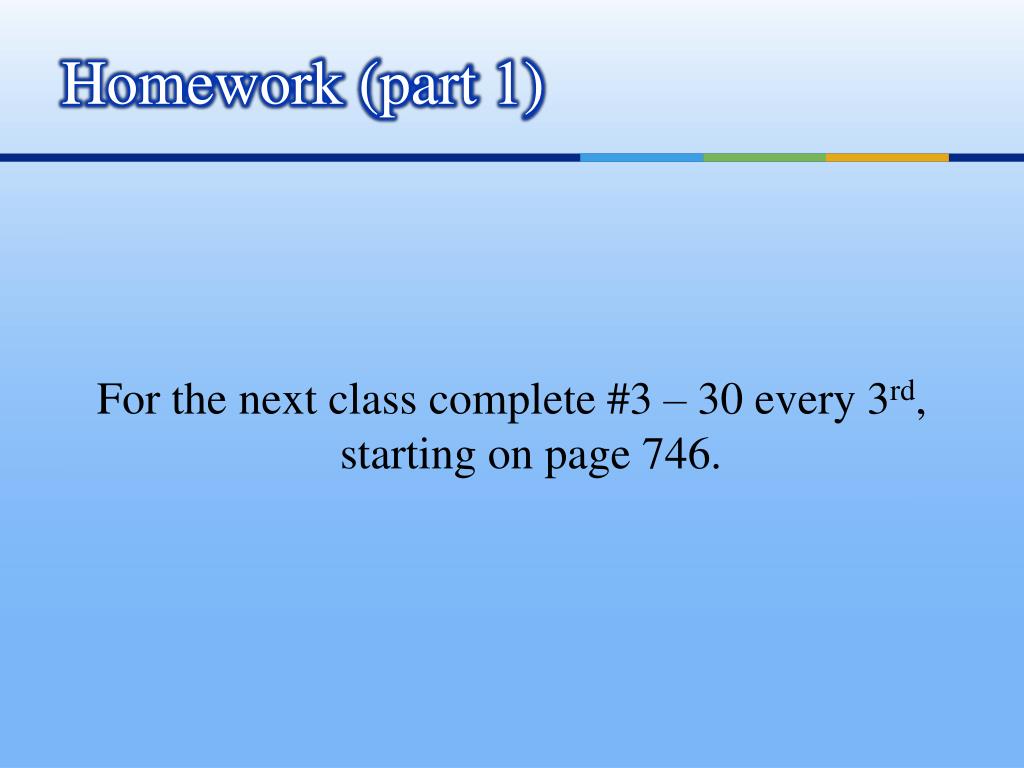

  8. Homework (part 1) For the next class complete #3 – 30 every 3rd, starting on page 746.

  9. Homework (part 1) Answers 3) h = 1.6; right 1.6 6) h = 5π/7; right 5π/7 9) 12) 15) 18) Amp: 4, Per: π, Left 1, down 2 21) 24) 27) 30)

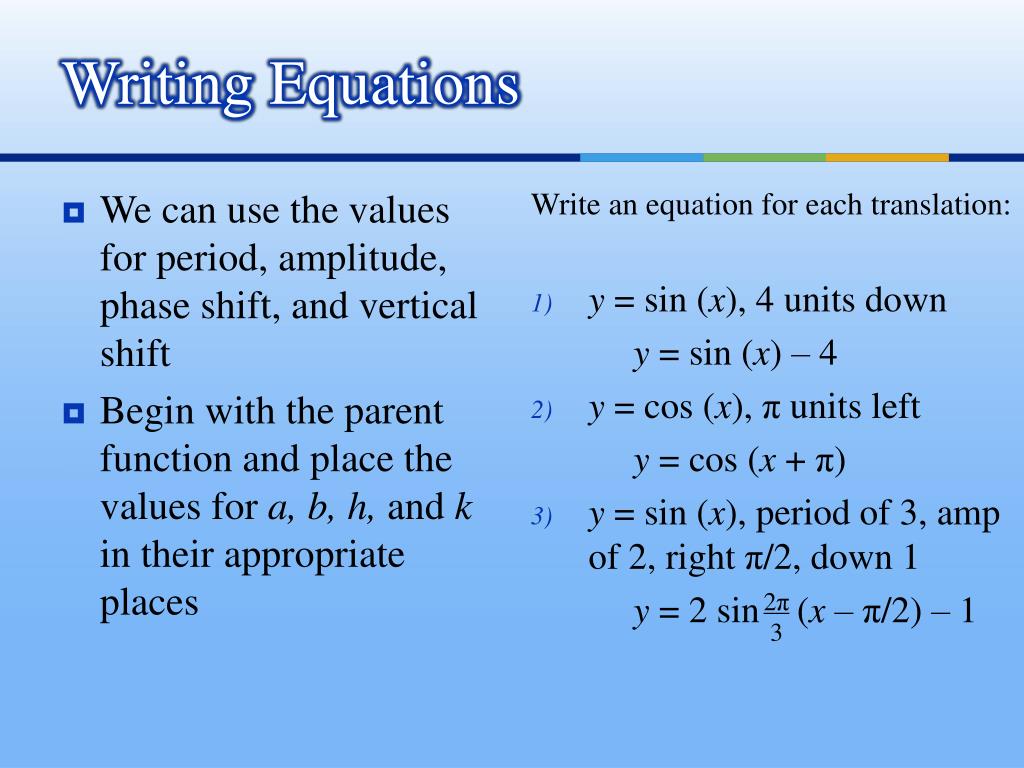

  10. Writing Equations • We can use the values for period, amplitude, phase shift, and vertical shift • Begin with the parent function and place the values for a, b, h, and k in their appropriate places Write an equation for each translation: • y = sin (x), 4 units down y = sin (x) – 4 • y = cos (x), π units left y = cos (x + π) • y = sin (x), period of 3, amp of 2, right π/2, down 1 y = 2 sin (x – π/2) – 1 2π 3

  11. Weather Cycles Plot a graph of the data (in degrees) and write a cosine function to model the information. Let a > 0. y = 21 cos (x – 180) + 63 50˚F A M J A S O N D J F M J J

  12. Homework (part 2) For the next class complete #34 – 43 starting on page 746.
