  1. Control Flow/ Thread Execution © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  2. Objective • To understand the implications of control flow on • Branch divergence overhead • SM execution resource utilization • To learn better ways to write code with control flow • To understand compiler/HW predication designed to reduce the impact of control flow • There is a cost involved. © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  3. Quick terminology review • Thread: concurrent code and associated state executed on the CUDA device (in parallel with other threads) • The unit of parallelism in CUDA • Warp: a group of threads executed physicallyin parallel in G80/GT200 • Block: a group of threads that are executed together and form the unit of resource assignment • Grid: a group of thread blocks that must all complete before the next kernel call of the program can take effect © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  4. Grids and Blocks • A kernel is executed as a grid of thread blocks • All threads share global memory space • A thread block is a batch of threads that can cooperate with each other by: • Synchronizing their execution using barrier • Efficiently sharing data through a low latency shared memory • Two threads from two different blocks cannot cooperate © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2010 ECE 408, University of Illinois, Urbana-Champaign

  5. CUDA Thread Block: Review • Programmer declares (Thread) Block: • Block size 1 to 512 concurrent threads • Block shape 1D, 2D, or 3D • Block dimensions in threads • All threads in a Block execute the same thread program • Threads share data and synchronize while doing their share of the work • Threads have thread id numbers within Block • Thread program uses thread id to select work and address shared data CUDA Thread Block Thread Id #:0 1 2 3 … m Thread program Courtesy: John Nickolls, NVIDIA © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2010 ECE 408, University of Illinois, Urbana-Champaign

  6. How thread blocks are partitioned • Thread blocks are partitioned into warps • Thread IDs within a warp are consecutive and increasing. If block is 1D then threadID=threadIdx.x • Warp 0: thread 0, …thread 31; • Warp 1: thread 32 ,…, thread 63 • Warp n: thread 32*n ,…., thread 32(n+1)-1 • For blocks with # of threads not a multiple of 32 • Last warp padded with extra threads to fill up the 32 threads • e.g. a block: 48 threads; 2 warps; warp 1 padded with 16 extra threads © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  7. How thread blocks are partitioned: 2D Thread Blocks 3D Thread blocks are portioned in a similar way (i.e. threads with ThreadIDx.z=1 follow threads withThreadIDx.z=0 and so on © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  8. How thread blocks are partitioned (cont.) • Partitioning is always the same • Thus you can use this knowledge in control flow • The exact size of warps may change from generation to generation of devices • However, DO NOT rely on any ordering between warps • If there are any dependencies between threads, you must __syncthreads() to get correct results © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  9. Control Flow Instructions • Hardware executes an instruction for all threads in the same wrap before moving to next instruction • SIMT: single instruction, multiple thread execution • Works well when all threads in a wrap follow the same control flow path • Main performance concern with branching is divergence; i.e. threads within a single warp take different paths • Different execution paths are serialized • Example: if-then-else executed in two passes • One pass for threads executing the then path • Second pass for threads executing the else path • The control paths taken by the threads in a warp are traversed one at a time until there is no more. © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  10. Control Flow Instructions (cont.) • A common case: avoid divergence when branch condition is a function of thread ID • Example with divergence: • If (threadIdx.x > 2) { } • This creates two different control paths for threads in a block • Branch granularity < warp size; threads 0 and 1 follow different path than the rest of the threads in the first warp • Example without divergence: • If (threadIdx.x / WARP_SIZE > 2) { } • Also creates two different control paths for threads in a block • Branch granularity is a whole multiple of warp size; all threads in any given warp follow the same path © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  11. Parallel Reduction • Given an array of values, “reduce” them to a single value in parallel • Examples • sum reduction: sum of all values in the array • Max reduction: maximum of all values in the array • Typically parallel implementation: • Recursively halve # threads, add two values per thread • Takes log(n) steps for n elements, requires n/2 threads © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  12. A Vector Reduction Example • Assume an in-place reduction using shared memory • The original vector is in device global memory • The shared memory used to hold a partial sum vector • Each iteration brings the partial sum vector closer to the final sum • The final solution will be in element 0 © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  13. A simple implementation • Assume we have already loaded array into __shared__ float partialSum[] unsigned int t = threadIdx.x; for (unsigned int stride = 1; stride < blockDim.x; stride *= 2) { __syncthreads(); if (t % (2*stride) == 0) partialSum[t] += partialSum[t+stride]; } © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  14. Vector Reduction with Bank Conflicts Array elements 0 1 2 3 4 5 6 7 8 9 10 11 1 0+1 2+3 4+5 6+7 8+9 10+11 2 0...3 4..7 8..11 3 0..7 8..15 iterations © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  15. Vector Reduction with Branch Divergence Thread 0 Thread 2 Thread 4 Thread 6 Thread 8 Thread 10 0 1 2 3 4 5 6 7 8 9 10 11 1 0+1 2+3 4+5 6+7 8+9 10+11 2 0...3 4..7 8..11 3 0..7 8..15 iterations Array elements © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  16. Some Observations • In each iteration, two control flow paths will be sequentially traversed for each warp • Threads that perform addition and threads that do not • Threads that do not perform addition may cost extra cycles depending on the implementation of divergence • No more than half of threads will be executing at any time • All odd index threads are disabled right from the beginning! • On average, less than ¼ of the threads will be activated for all warps over time. • Starting with the 5th iteration, entire warps in each block will be disabled, poor resource utilization but no divergence. • This can go on for a while, up to 4 more iterations (512/32=16= 24), where each iteration only has one thread activated until all warps retire © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  17. Short comings of the implementation • Assume we have already loaded array into • __shared__ float partialSum[] unsigned int t = threadIdx.x; for (unsigned int stride = 1; stride < blockDim.x; stride *= 2) { __syncthreads(); if (t % (2*stride) == 0) partialSum[t] += partialSum[t+stride]; } BAD: Divergence due to interleaved branch decisions © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  18. A better implementation • Assume we have already loaded array into • __shared__ float partialSum[] unsigned int t = threadIdx.x; for (unsigned int stride = blockDim.x >> 1; stride > 1; stride >> 1) { __syncthreads(); if (t < stride) partialSum[t] += partialSum[t+stride]; } © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

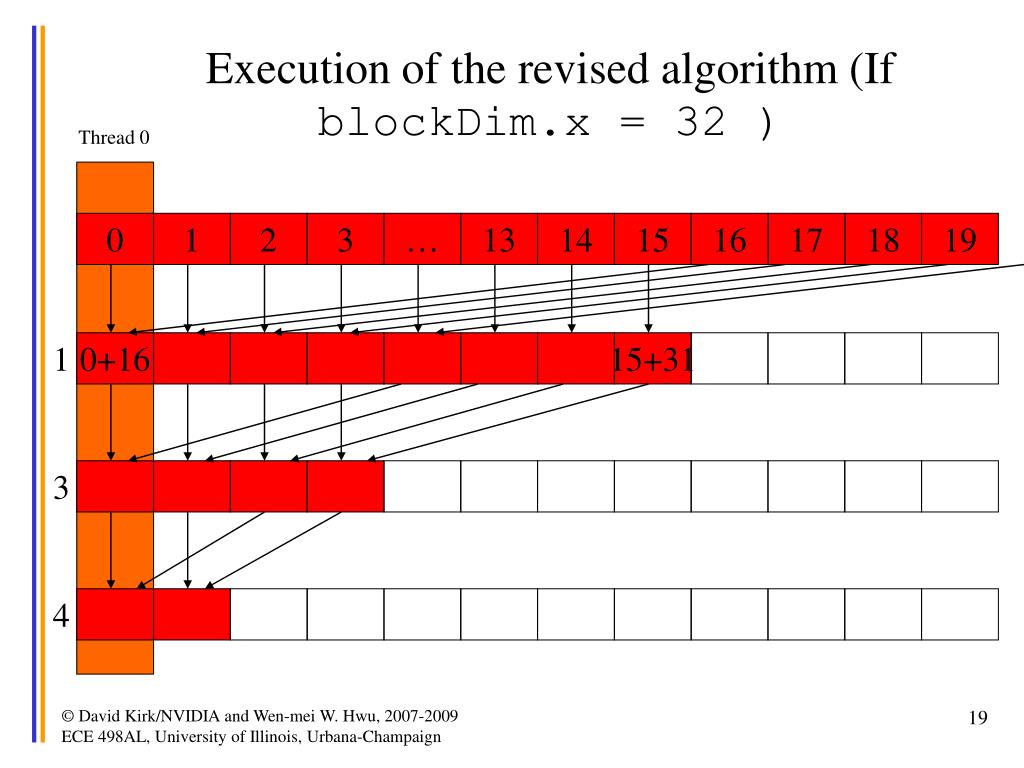

  19. Execution of the revised algorithm (If blockDim.x = 32 ) Thread 0 0 1 2 3 … 13 14 15 16 17 18 19 1 0+16 15+31 3 4 © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  20. No Divergence using revised algorithm • IfblockDim.x = 512; • In 1st iteration • Threads 0 through 255 execute add • Threads 256 through 511 do not • Pair-wise sums stored in elements 0 - 255 after • All threads in warps 1 - warp 8 execute add statement • Warps 9 - warp 15 execute all skip the add • All threads in each warp take the same path • There is no thread divergence! © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  21. Some Observations About the New Implementation • Only the last 5 iterations will have divergence • Entire warps will be shut down as iterations progress • For a 512-thread block, 4 iterations to shut down all but one warps in each block • Better resource utilization, will likely retire warps and thus blocks faster © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  22. A Potential Further Refinement • For last 6 loops only one warp active (i.e. tid’s 0..31) • Shared reads & writes are SIMD synchronous within a warp So skip __syncthreads() and unroll last 6 iterations unsigned int t = threadIdx.x; for (unsigned int stride = blockDim.x >> 1; stride > 1; stride >> 1) { __syncthreads(); if (t < stride) partialSum[t] += partialSum[t+stride]; } © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  23. A Potential Further Refinement but bad idea unsigned int tid = threadIdx.x; for (unsigned int d = n>>1; d > 32; d >>= 1) { __syncthreads(); if (tid < d) shared[tid] += shared[tid + d]; } __syncthreads(); if (tid < 32) { // unroll last 6 predicated steps; Shared reads //and writes are SIMD synchronus within a wrap shared[tid] += shared[tid + 32]; shared[tid] += shared[tid + 16]; shared[tid] += shared[tid + 8]; shared[tid] += shared[tid + 4]; shared[tid] += shared[tid + 2]; shared[tid] += shared[tid + 1]; } This would not work properly if warp size decreases; need __synchthreads() between each statement! However, having ___synchthreads() in if statement is problematic. © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  24. Predicated Execution Concept • <p1> LDR r1,r2,0 • If p1 is TRUE, instruction executes normally • If p1 is FALSE, instruction treated as NOP © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  25. Predication Example : : if (x == 10) c = c + 1; : : : : LDR r5, X p1 <- r5 eq 10 <p1> LDR r1 <- C <p1> ADD r1, r1, 1 <p1> STR r1 -> C : : © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  26. Predication very helpful for if-else A A B C D B C D © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign

  27. If-else example : : p1,p2 <- r5 eq 10 <p1> inst 1 from B <p1> inst 2 from B <p1> : : <p2> inst 1 from C <p2> inst 2 from C : : : : p1,p2 <- r5 eq 10 <p1> inst 1 from B <p2> inst 1 from C <p1> inst 2 from B <p2> inst 2 from C <p1> : : schedule The cost is extra instructions will be issued each time the code is executed. However, there is no branch divergence. © David Kirk/NVIDIA and Wen-mei W. Hwu, 2007-2009 ECE 498AL, University of Illinois, Urbana-Champaign
