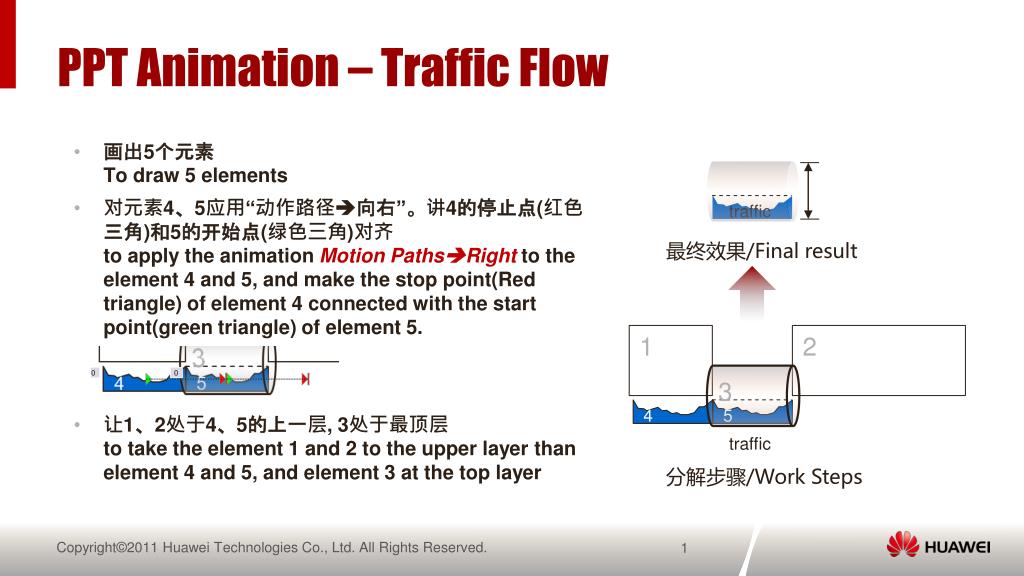

  1. PPT Animation – Traffic Flow • 画出5个元素To draw 5 elements • 对元素4、5应用“动作路径向右”。讲4的停止点(红色三角)和5的开始点(绿色三角)对齐to apply the animation Motion PathsRightto the element 4 and 5, and make the stop point(Red triangle) of element 4 connected with the start point(green triangle) of element 5. • 让1、2处于4、5的上一层, 3处于最顶层to take the element 1 and 2 to the upper layer than element 4 and 5, and element 3 at the top layer traffic 最终效果/Final result 1 2 3 4 5 traffic 分解步骤/Work Steps

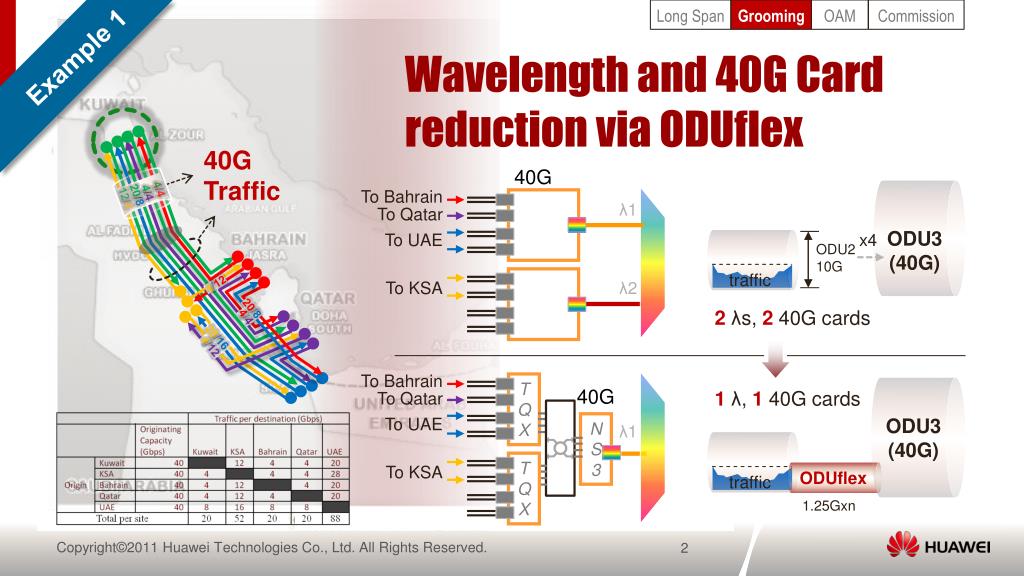

  2. Long Span Grooming OAM Commission Wavelength and 40G Card reduction via ODUflex Example 1 40G Traffic 40G 40G/100G 40G/100G 40G/100G 40G/100G 4/4 4/4 To Bahrain 20/8 12/4 ODU3 (40G) λ1 To Qatar TQX TQX To UAE x4 ODU2 10G NS3 … … traffic VC ODU PKT To KSA λ2 4/12 2λs,240G cards 20/8 4/4 28/16 4/12 To Bahrain 40G 1λ, 140G cards To Qatar ODU3 (40G) To UAE λ1 ODUflex To KSA traffic 1.25Gxn w/o OTN w/i OTN drop add w/o OTN w/i OTN

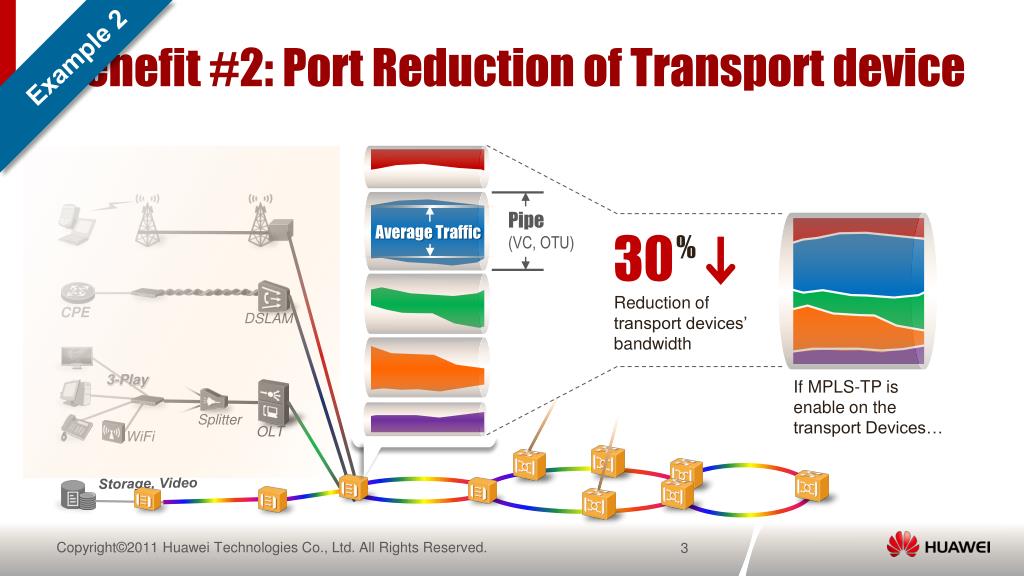

  3. Benefit #2: Port Reduction of Transport device Example 2 Pipe (VC, OTU) Average Traffic Reduction of transport devices’ bandwidth CPE DSLAM 30 % 3-Play If MPLS-TP is enable on the transport Devices… Splitter OLT WiFi Storage, Video Maximum bandwidth
