  1. An Overview of What’s New in SCALE 5 S.M. Bowman, D. F. Hollenbach, M. D. DeHart, B. T. Rearden, I. C. Gauld, and S. Goluoglu Oak Ridge National Laboratory American Nuclear Society 2002 Winter Meeting

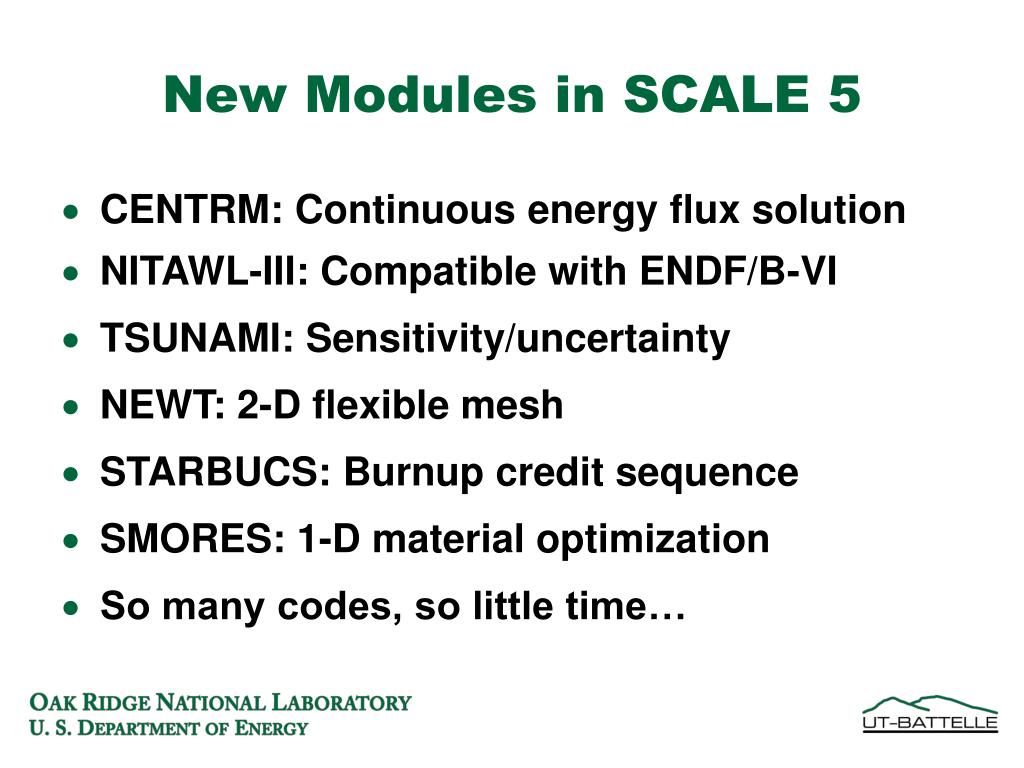

  2. New Modules in SCALE 5 • CENTRM: Continuous energy flux solution • NITAWL-III: Compatible with ENDF/B-VI • TSUNAMI: Sensitivity/uncertainty • NEWT: 2-D flexible mesh • STARBUCS: Burnup credit sequence • SMORES: 1-D material optimization • So many codes, so little time…

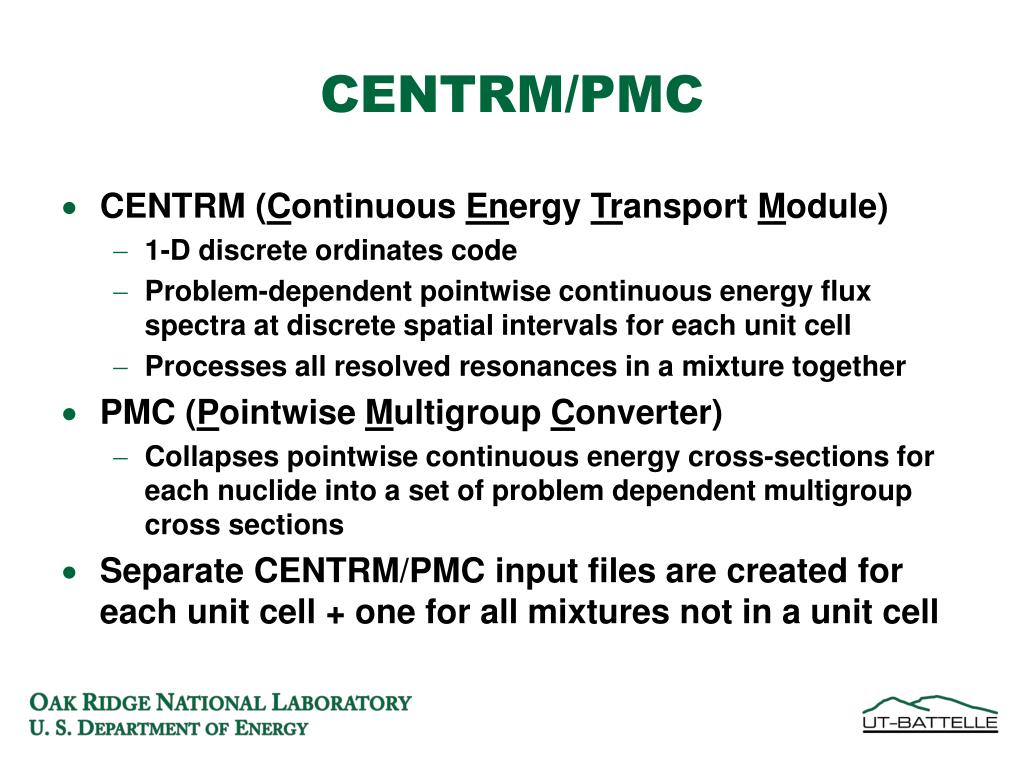

  3. CENTRM/PMC • CENTRM (Continuous Energy Transport Module) • 1-D discrete ordinates code • P roblem-dependent pointwise continuous energy flux spectra at discrete spatial intervals for each unit cell • Processes all resolved resonances in a mixture together • PMC (Pointwise Multigroup Converter) • Collapses pointwise continuous energy cross-sections for each nuclide into a set of problem dependent multigroup cross sections • Separate CENTRM/PMC input files are created for each unit cell + one for all mixtures not in a unit cell

  4. CENTRM/PMC (Cont.) • Eliminate many of the limitations inherent in the Nordheim Integral Treatment used by NITAWL • Overlapping resonances • Multiple fissile materials in unit cell • Assumed flux profile • Process discrete level inelastic cross-section data • Explicitly model rings in a fuel pin for spatial effect on the flux and cross sections

  5. CENTRM/PMC (Cont.) • Problem-dependent multigroup cross sections with accuracy of continuous energy cross sections • ENDF/B-V continuous energy cross-section data files for CENTRM in SCALE 5 • Correspond to ENDF/B-V 238- and 44‑group libraries • ENDF/B-VI continuous energy data for CENTRM under development for later release

  6. SCALE 5 Criticality Sequence with CENTRM

  7. NITAWL-III • Can process multi-pole data, compatible with ENDF/B-VI cross-section data • ENDF/B-VI multigroup library under development • Processes cross-section data in the resolved resonance range for each nuclide individually • Still limited to one fuel mixture per unit cell

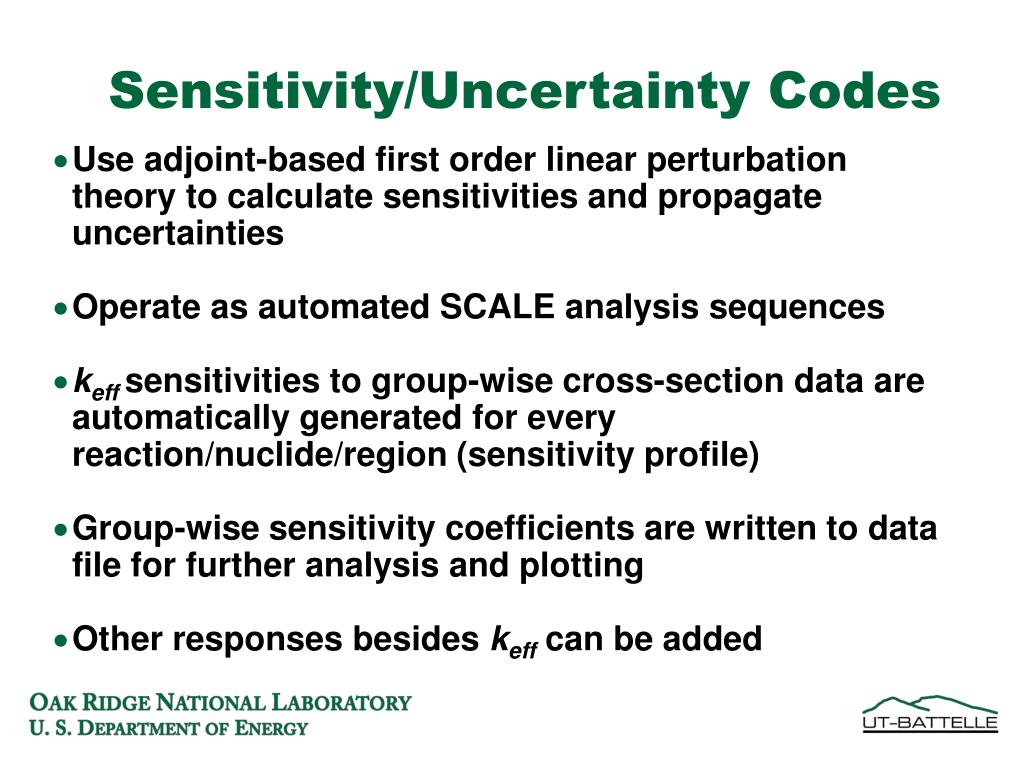

  8. Sensitivity/Uncertainty Codes • Use adjoint-based first order linear perturbation theory to calculate sensitivities and propagate uncertainties • Operate as automated SCALE analysis sequences • keff sensitivities to group-wise cross-section data are automatically generated for every reaction/nuclide/region (sensitivity profile) • Group-wise sensitivity coefficients are written to data file for further analysis and plotting • Other responses besides keff can be added

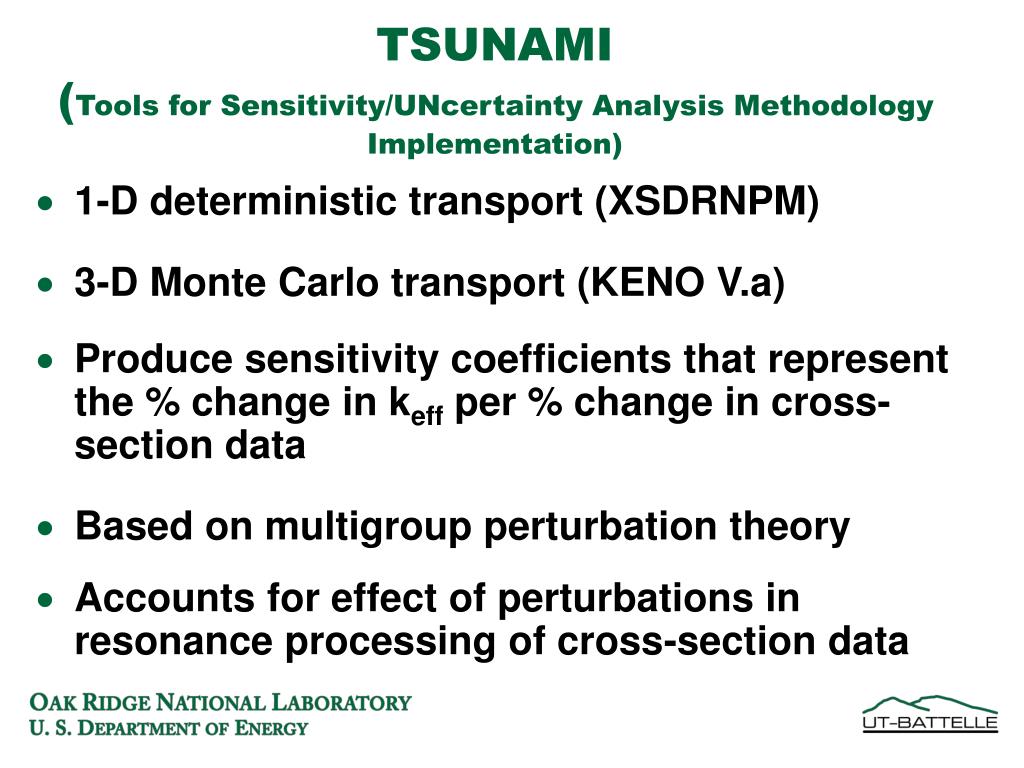

  9. TSUNAMI(Tools for Sensitivity/UNcertainty Analysis Methodology Implementation) • 1-D deterministic transport (XSDRNPM) • 3-D Monte Carlo transport (KENO V.a) • Produce sensitivity coefficients that represent the % change in keff per % change in cross-section data • Based on multigroup perturbation theory • Accounts for effect of perturbations in resonance processing of cross-section data

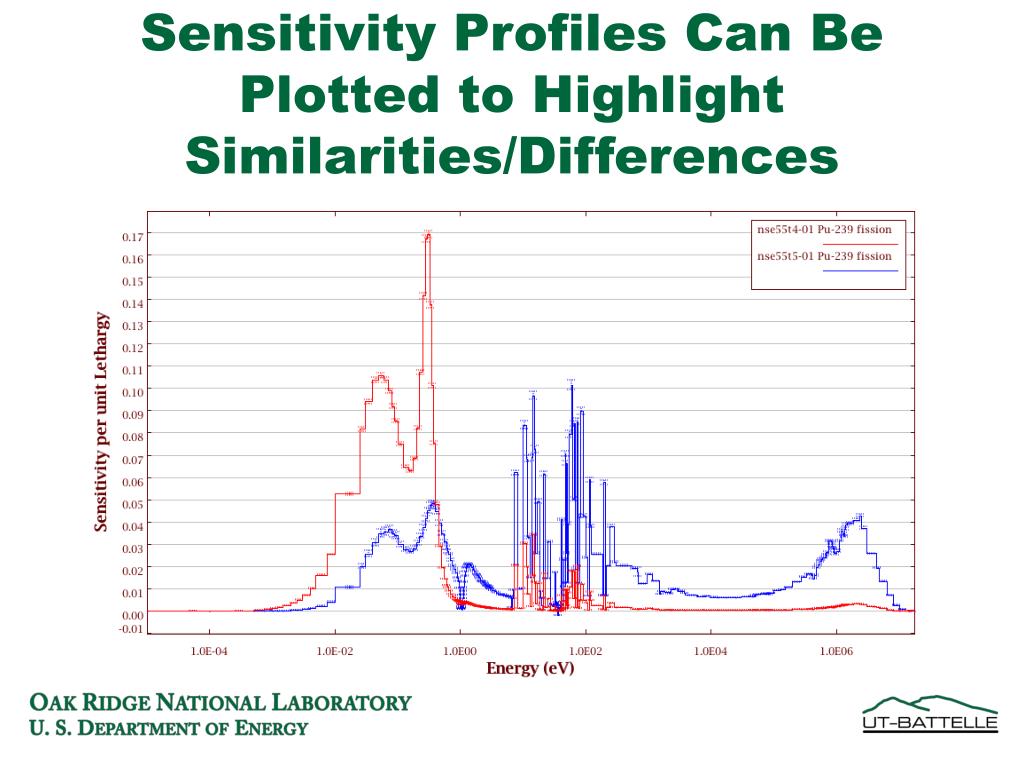

  10. Sensitivity Profiles Can Be Plotted to Highlight Similarities/Differences

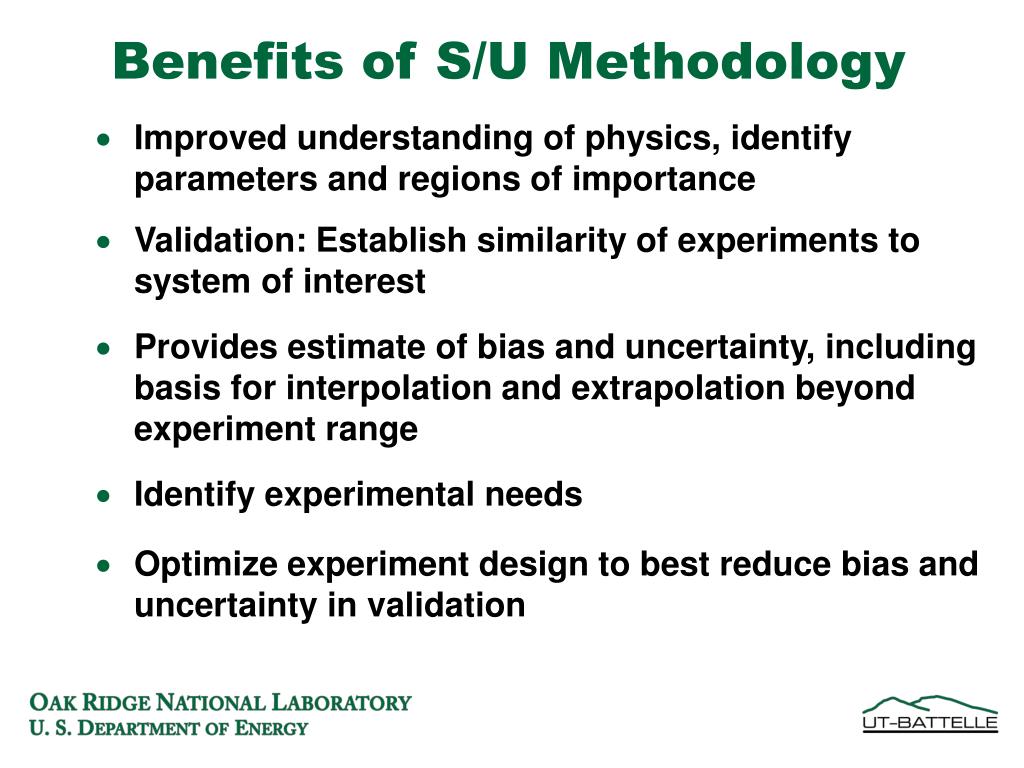

  11. Benefits of S/U Methodology • Improved understanding of physics, identify parameters and regions of importance • Validation: Establish similarity of experiments to system of interest • Provides estimate of bias and uncertainty, including basis for interpolation and extrapolation beyond experiment range • Identify experimental needs • Optimize experiment design to best reduce bias and uncertainty in validation

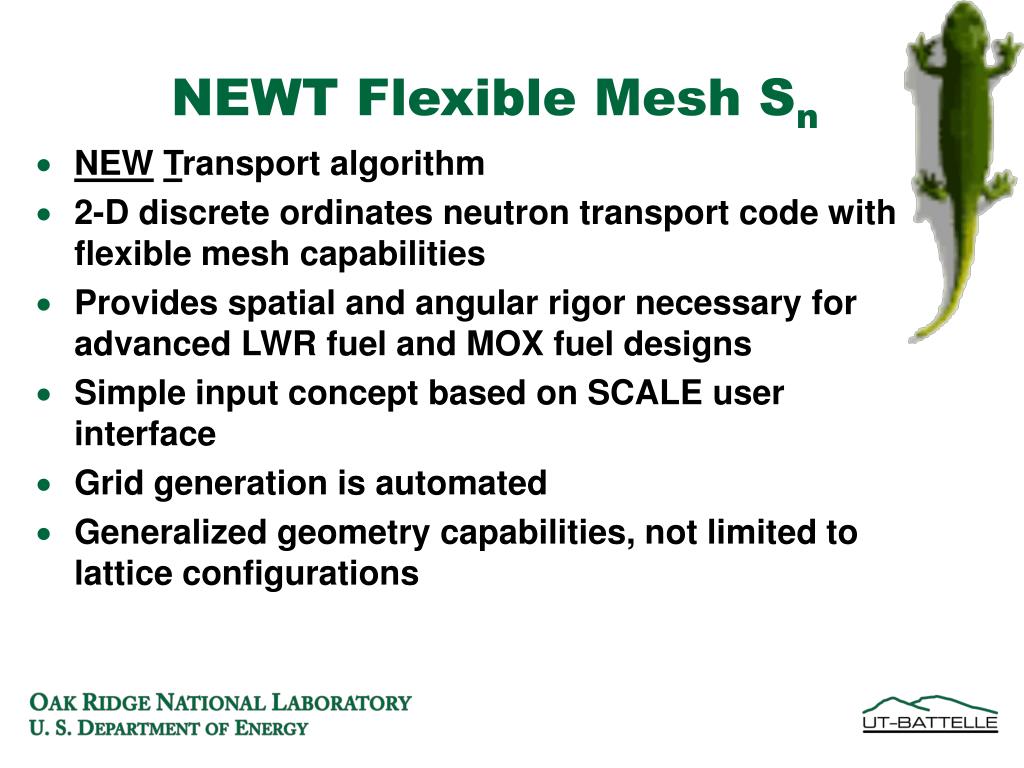

  12. NEWT Flexible Mesh Sn • NEWTransport algorithm • 2-D discrete ordinates neutron transport code with flexible mesh capabilities • Provides spatial and angular rigor necessary for advanced LWR fuel and MOX fuel designs • Simple input concept based on SCALE user interface • Grid generation is automated • Generalized geometry capabilities, not limited to lattice configurations

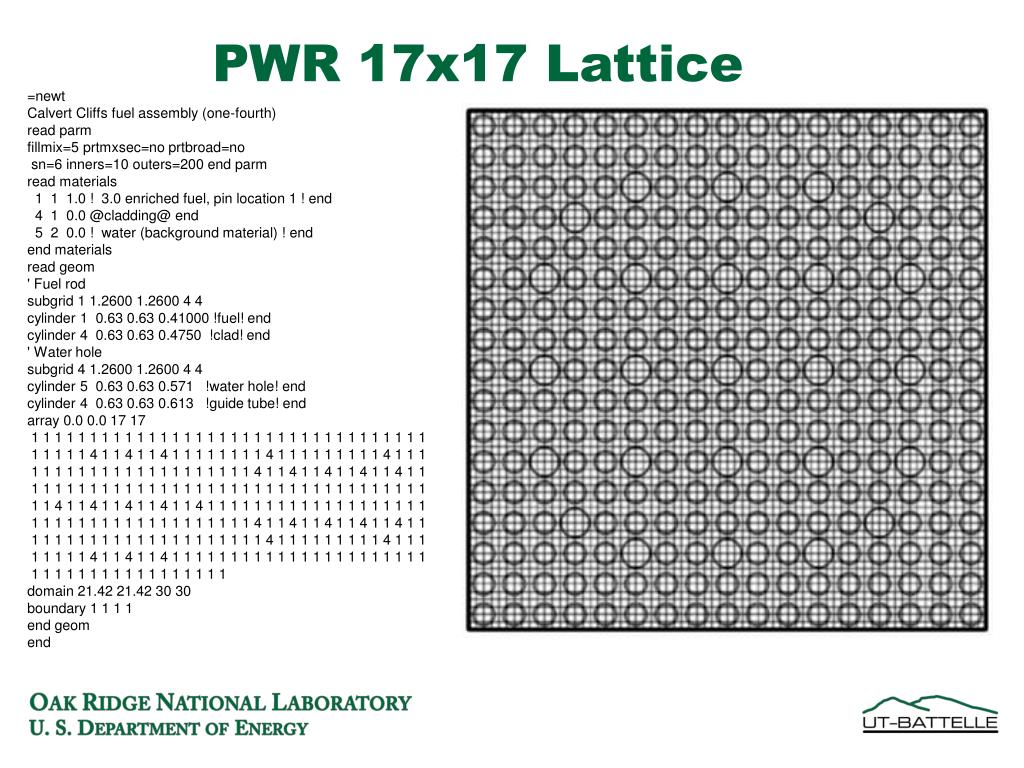

  13. PWR 17x17 Lattice =newt Calvert Cliffs fuel assembly (one-fourth) read parm fillmix=5 prtmxsec=no prtbroad=no sn=6 inners=10 outers=200 end parm read materials 1 1 1.0 ! 3.0 enriched fuel, pin location 1 ! end 4 1 0.0 @cladding@ end 5 2 0.0 ! water (background material) ! end end materials read geom ' Fuel rod subgrid 1 1.2600 1.2600 4 4 cylinder 1 0.63 0.63 0.41000 !fuel! end cylinder 4 0.63 0.63 0.4750 !clad! end ' Water hole subgrid 4 1.2600 1.2600 4 4 cylinder 5 0.63 0.63 0.571 !water hole! end cylinder 4 0.63 0.63 0.613 !guide tube! end array 0.0 0.0 17 17 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 4 1 1 4 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 4 1 1 4 1 1 4 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 4 1 1 4 1 1 4 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 4 1 1 4 1 1 4 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 4 1 1 4 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 domain 21.42 21.42 30 30 boundary 1 1 1 1 end geom end

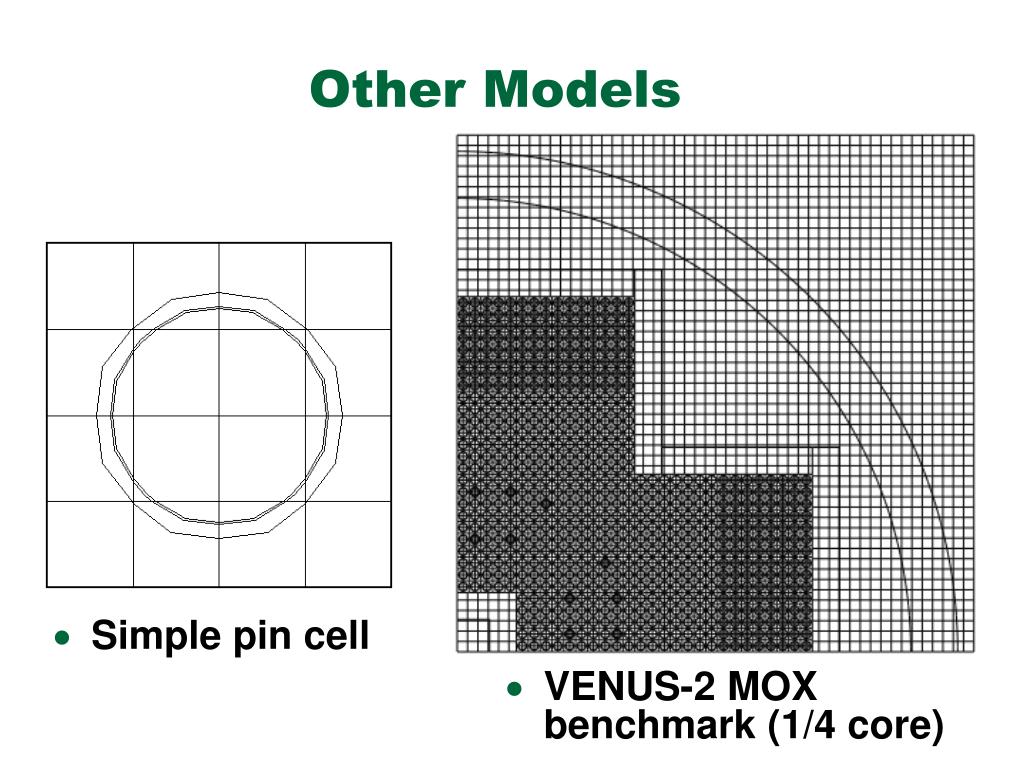

  14. Other Models • Simple pin cell • VENUS-2 MOX benchmark (1/4 core)

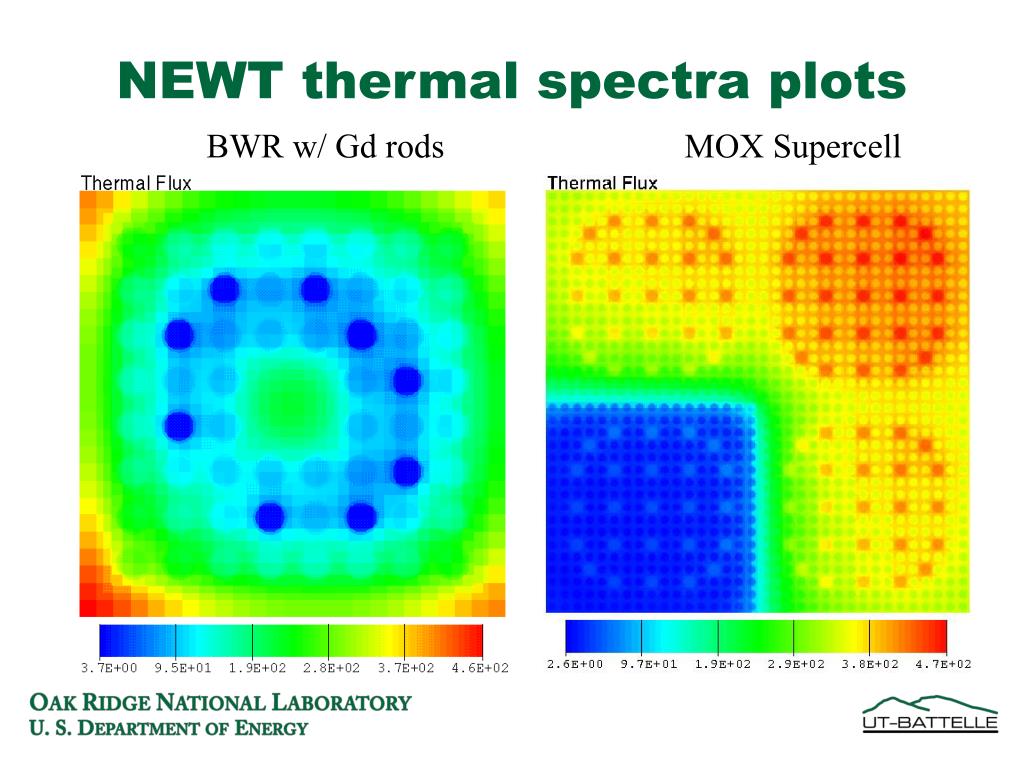

  15. NEWT thermal spectra plots BWR w/ Gd rods MOX Supercell

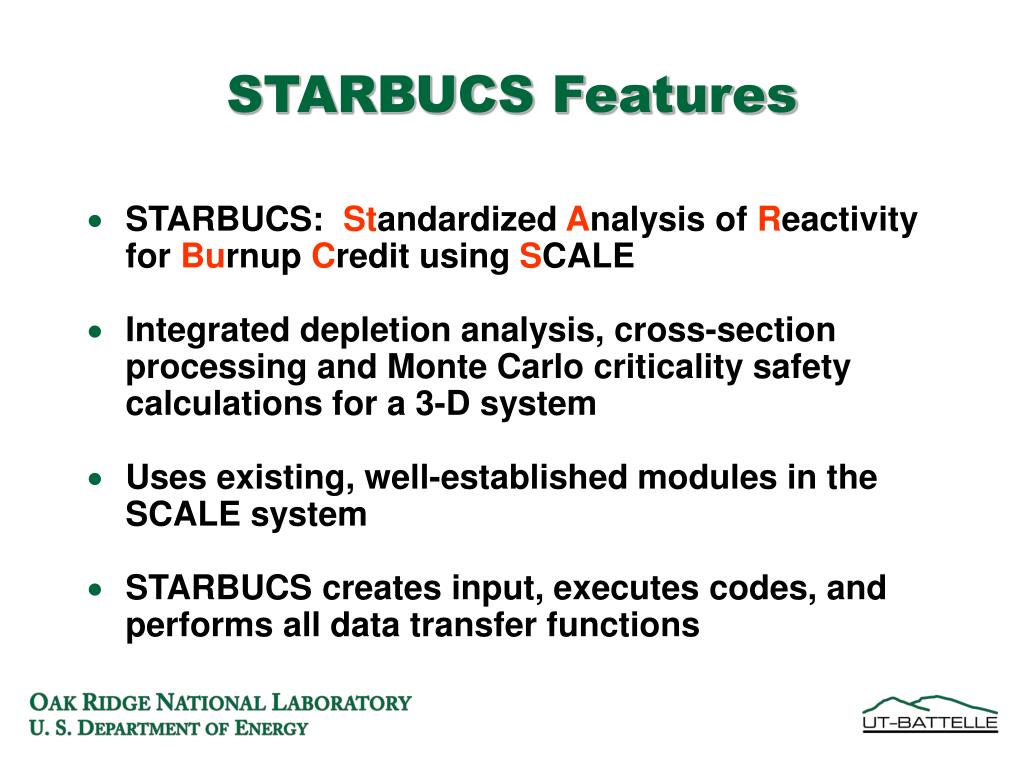

  16. STARBUCS Features • STARBUCS: Standardized Analysis of Reactivity for Burnup Credit using SCALE • Integrated depletion analysis, cross-section processing and Monte Carlo criticality safety calculations for a 3-D system • Uses existing, well-established modules in the SCALE system • STARBUCS creates input, executes codes, and performs all data transfer functions

  17. STARBUCS Features (cont.) • Depletion analysis methodology • Uses the ORIGEN-ARP sequence • Cross-sections for depletion in ORIGEN-S obtained by interpolation of an existing ARP library • Interpolation on enrichment, burnup, moderator density • The analysis is extremely fast and accurate • Criticality safety analysis • KENO V.a or KENO VI • Multigroup, 3-D analysis capability

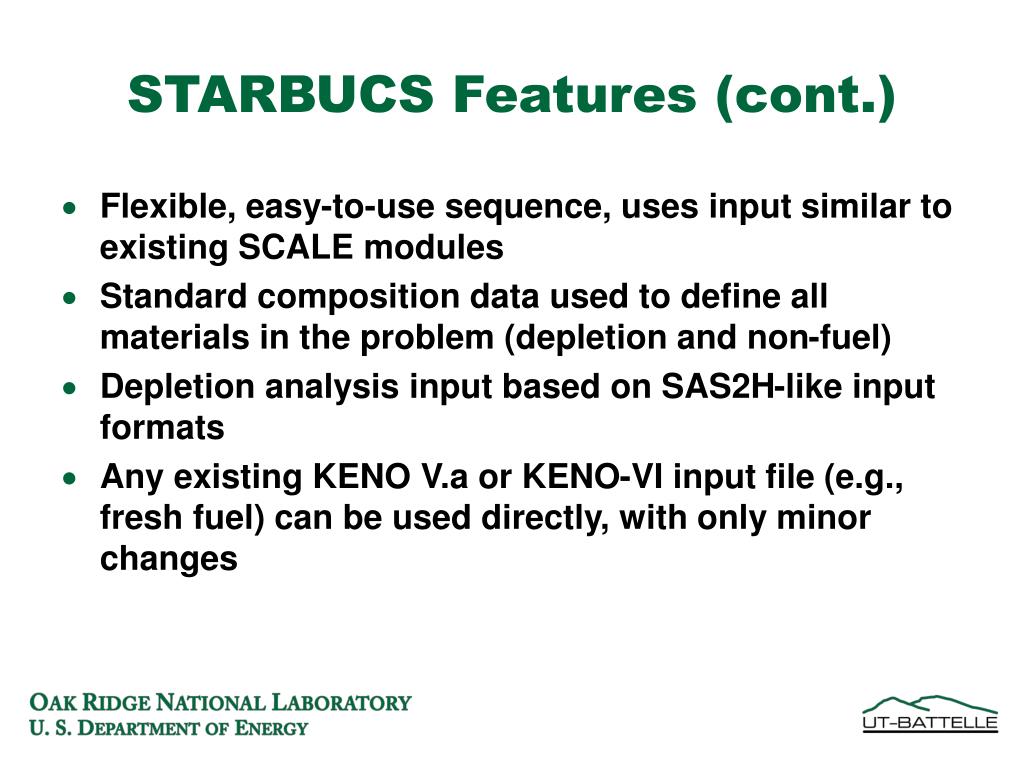

  18. STARBUCS Features (cont.) • Flexible, easy-to-use sequence, uses input similar to existing SCALE modules • Standard composition data used to define all materials in the problem (depletion and non-fuel) • Depletion analysis input based on SAS2H-like input formats • Any existing KENO V.a or KENO-VI input file (e.g., fresh fuel) can be used directly, with only minor changes

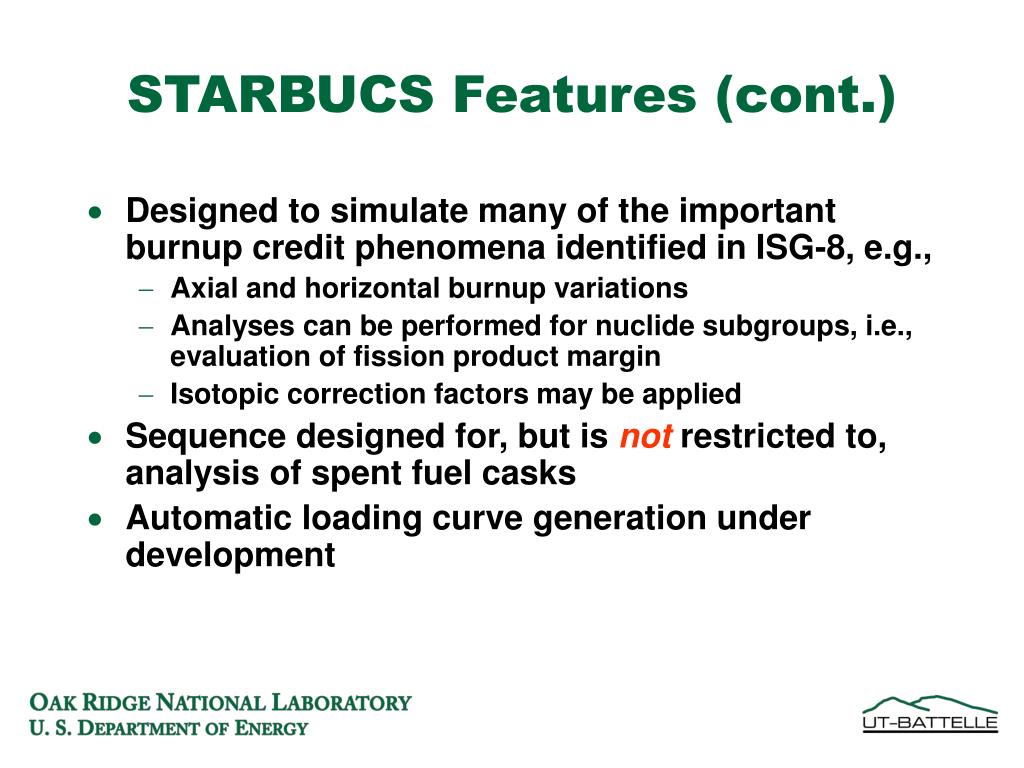

  19. STARBUCS Features (cont.) • Designed to simulate many of the important burnup credit phenomena identified in ISG-8, e.g., • Axial and horizontal burnup variations • Analyses can be performed for nuclide subgroups, i.e., evaluation of fission product margin • Isotopic correction factors may be applied • Sequence designed for, but is not restricted to, analysis of spent fuel casks • Automatic loading curve generation under development

  20. Data Flow in a BUC Analysis • Spent fuel compositions for each spatial region (typically 10-18 regions) • separate burnup calculation for each region • interpolation on compositions unreliable • Extract nuclides for analysis • Treatment of isotopic uncertainties - apply bias and/or uncertainty correction factors (if applicable) • Resonance processing of multigroup cross sections • Criticality calculation

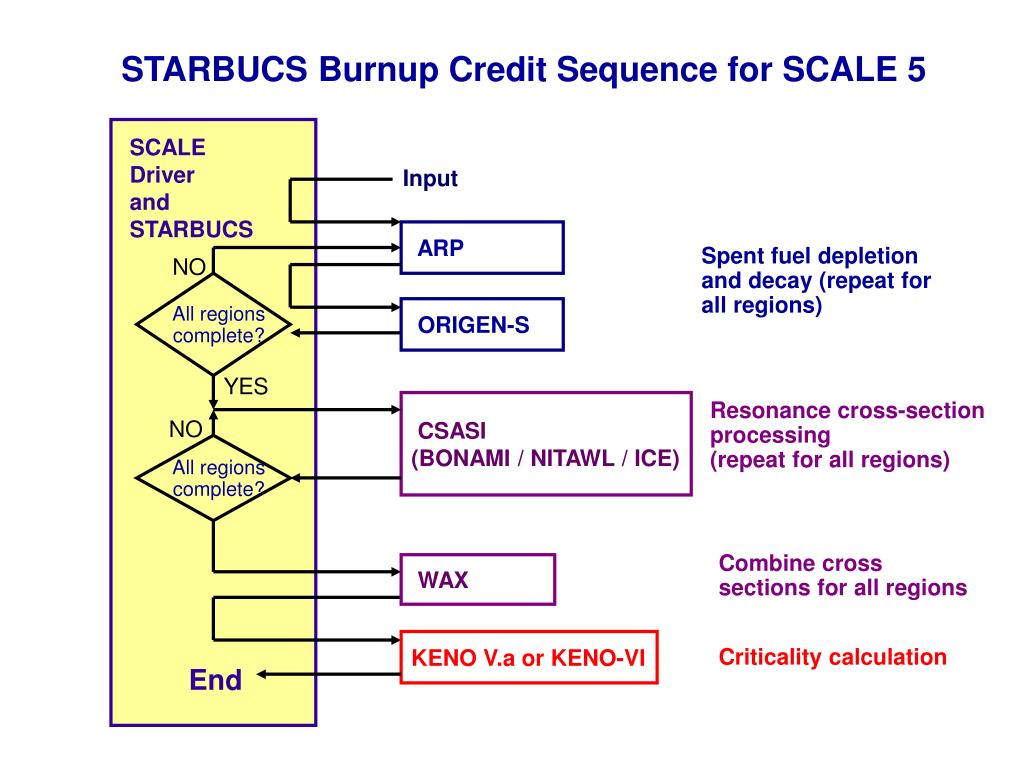

  21. STARBUCS Burnup Credit Sequence for SCALE 5 SCALE Driver and STARBUCS Input ARP Spent fuel depletion and decay (repeat for all regions) NO All regions complete? ORIGEN-S YES CSASI (BONAMI / NITAWL / ICE) Resonance cross-section processing (repeat for all regions) NO All regions complete? Combine cross sections for all regions WAX KENO V.a or KENO-VI Criticality calculation End

  22. SMORES • SCALE Material Optimization and REplacement Sequence • Performs automated 1-D optimization for criticality safety analysis

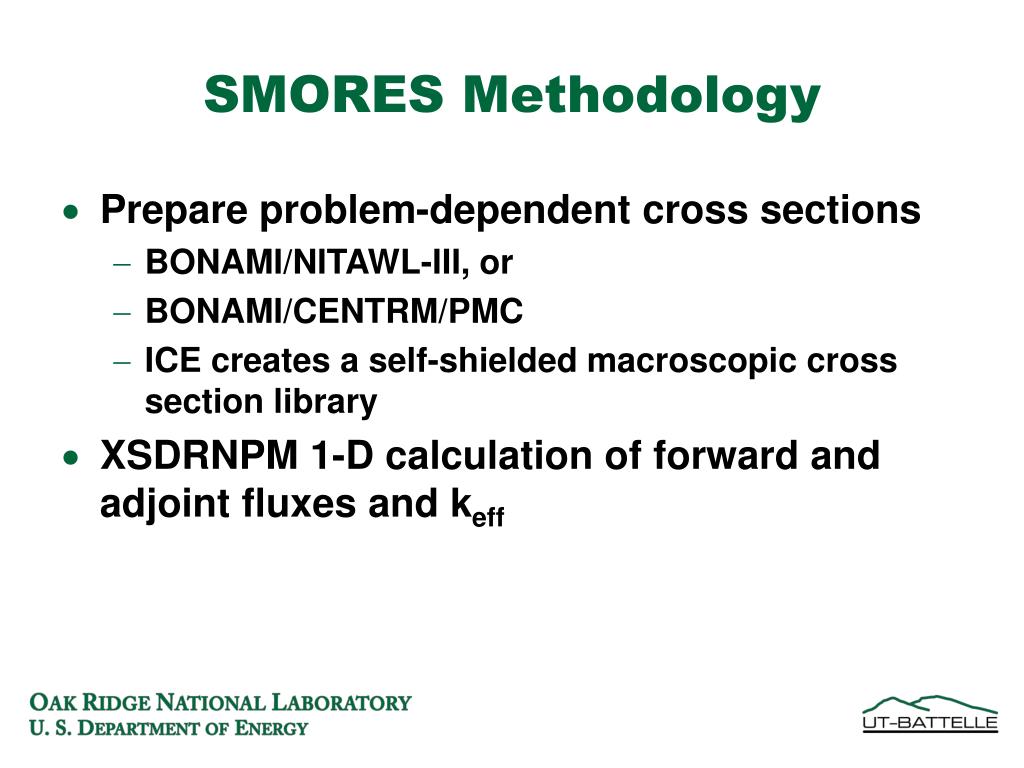

  23. SMORES Methodology • Prepare problem-dependent cross sections • BONAMI/NITAWL-III, or • BONAMI/CENTRM/PMC • ICE creates a self-shielded macroscopic cross section library • XSDRNPM 1-D calculation of forward and adjoint fluxes and keff

  24. SMORES Method (Cont.) • Calculate the effectiveness functions and perform the optimization • SWIF: First-order linear perturbation theory • Determine the configuration that results in the highest keff with given fissile amount • Redistribute the fissile material and remove/redistribute other materials • Determine the configuration that yields the specified keff with minimum amount of fissile material • Remove/redistribute the fissile and other materials

  25. SMORES Example • Spherical fissile system with 239PuO2, polyethylene, and beryllium • Eight equal-thickness zones • Flat fissile material profile (initial keff = 0.7) • Determine maximum keff for the system H2O

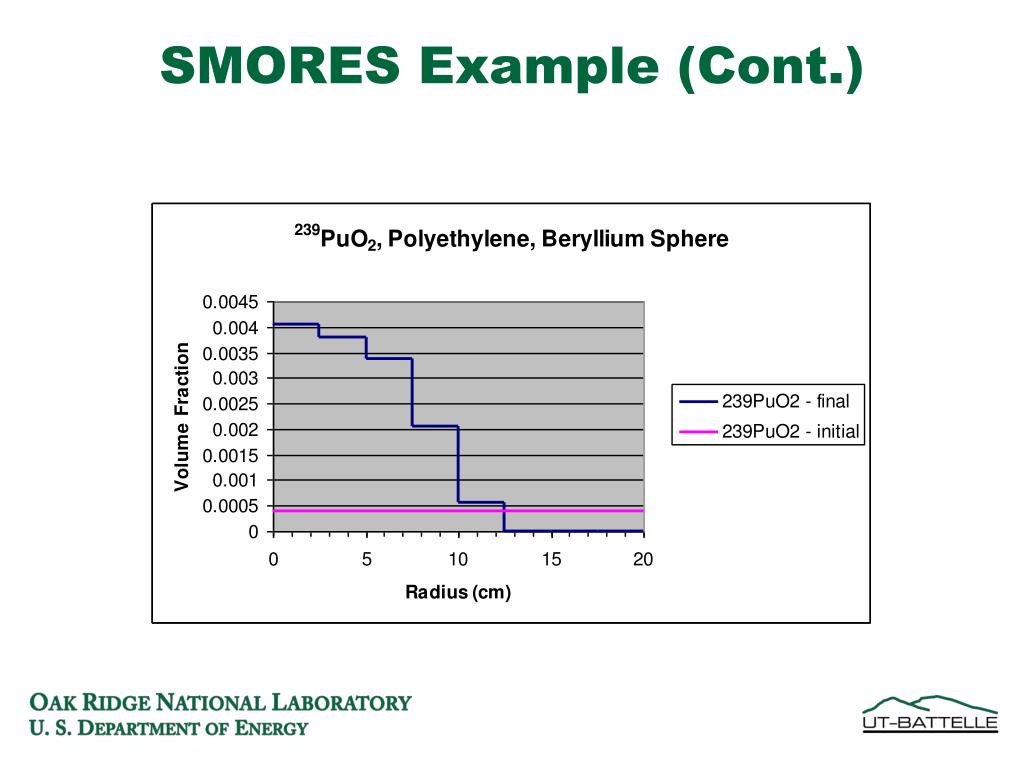

  26. SMORES Example (Cont.)

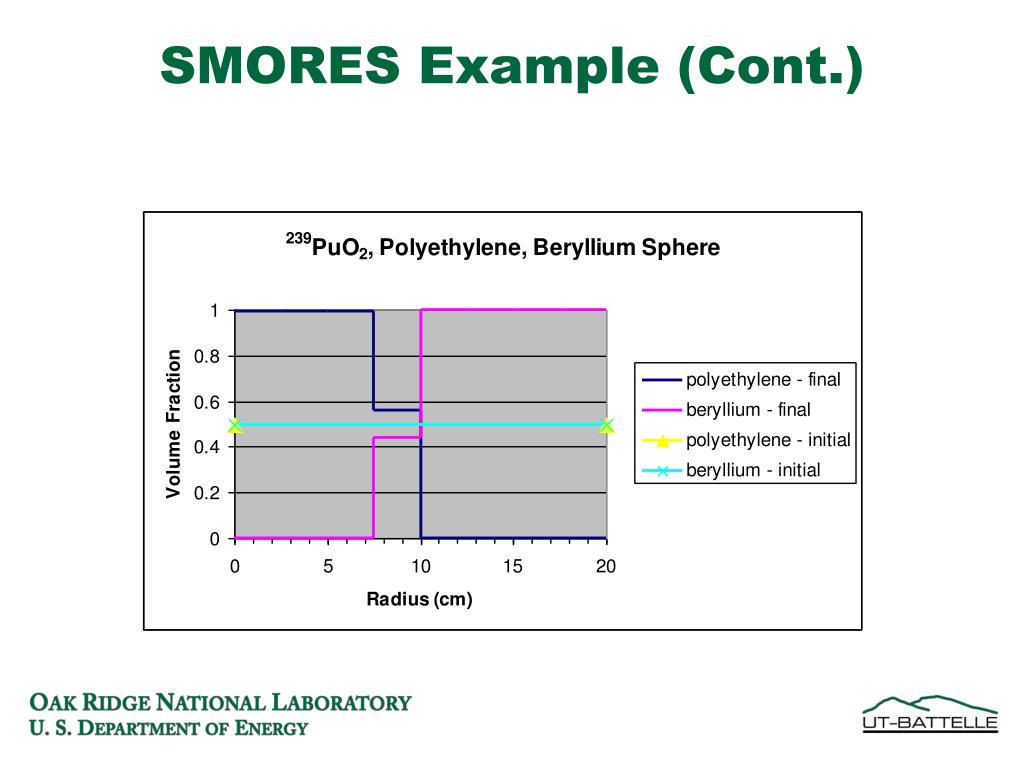

  27. SMORES Example (Cont.)

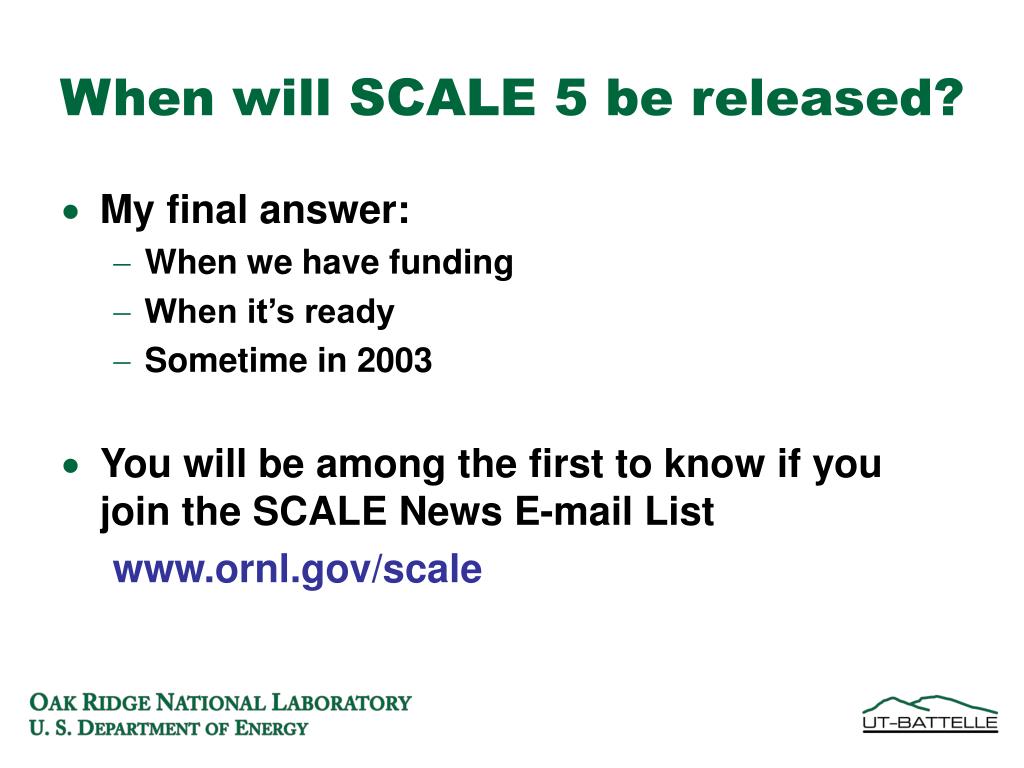

  28. When will SCALE 5 be released? • My final answer: • When we have funding • When it’s ready • Sometime in 2003 • You will be among the first to know if you join the SCALE News E-mail List www.ornl.gov/scale
