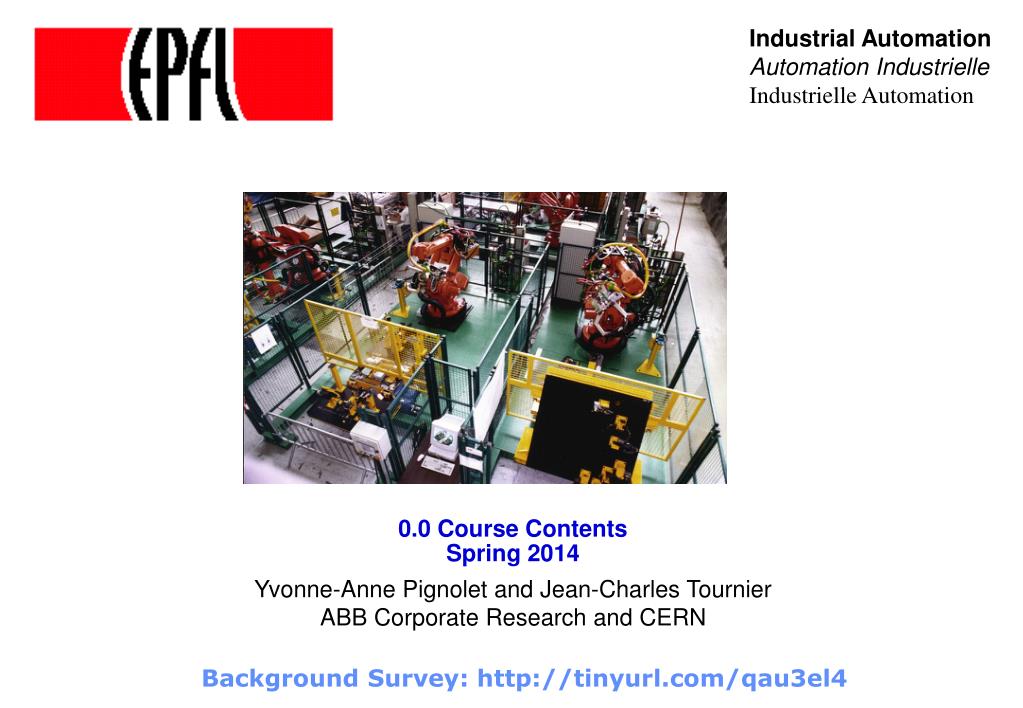

1. Industrial Automation Automation IndustrielleIndustrielle Automation 0.0 Course ContentsSpring 2014 Yvonne-Anne Pignolet and Jean-Charles Tournier ABB Corporate Research and CERN Background Survey: http://tinyurl.com/qau3el4

2. Course Goals • Raise interest for industrial automation systems • Understand industrial control systems (purpose, structure) • Methods and trade-offs in real-time systems • Understand the terms in publications and standards • Be able to analyze a plant and propose automation solutions • Compare automation solutions with other domains • Analyze reliability, availability and safety of systems • Become productive in an industrial company or utility rapidly

3. Organisation of Course numbers refer to the chapter enterprise 6 execution 8 5 real-time supervision dependability 4 device access 9 3 communication networks 2.2 2.3 field devices, controllers 2.1 sensors, actors physical plant

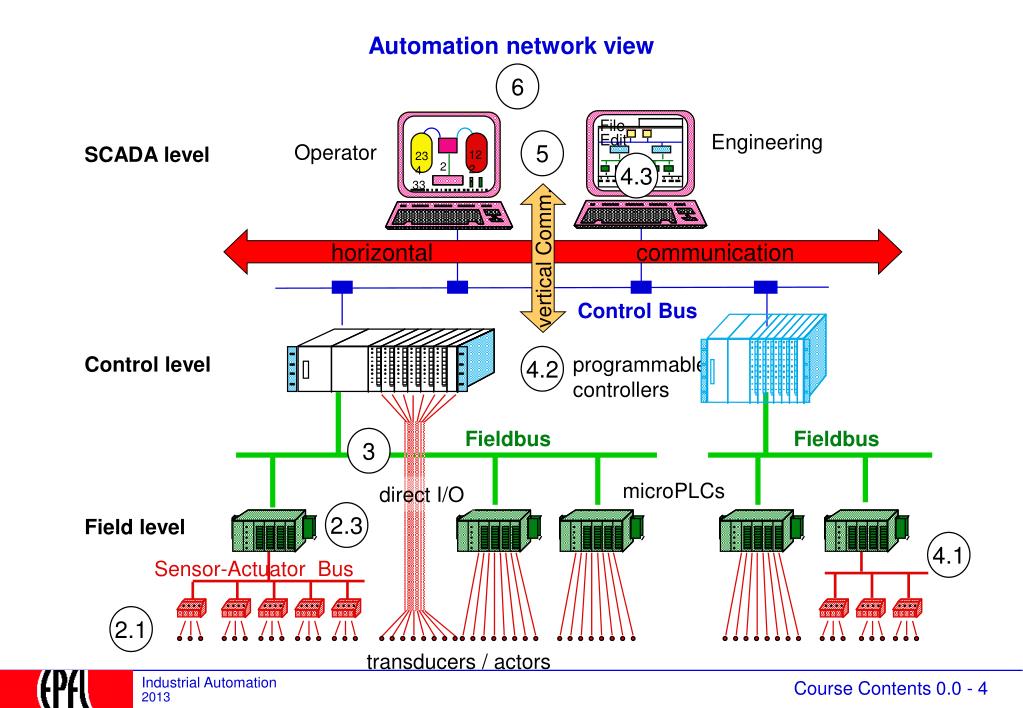

4. File Edit 12 23 2 2 4 33 Automation network view 6 Engineering 5 Operator SCADA level 4.3 horizontal communication vertical Comm. Control Bus 4.2 Control level programmablecontrollers Fieldbus Fieldbus 3 microPLCs direct I/O 2.3 Field level 4.1 Sensor-Actuator Bus 2.1 transducers / actors

5. Organization of the course • instrumentation: hardware: how is the state of a plant read and controlled • controllers: hardware and software how controllers operate and how they are programmed • industrial communication networks: how are real-time data exchanged, in the field and in the plant • application protocols for devices how do devices appear to the programmer and operator • software interface to application: how does the application accesses the process data • operator interface and SCADA how do operators see the plant they supervise • manufacturing execution systems how is production planned and executed • plant configuration and engineering how is a control system planned, engineered and tested • failures in a control system how to deal with unreliable elements in a control system • safety how to evaluate and prevent safety hazards • standards how standards help the industry

6. Prerequisites for a career in automation • Curiosity: I want to understand • Basic Physics: I can make a model of my world • Mathematics I know how to calculate • Programming: I can structure • Systematic Work: I can plan • Initiative: I try various strategies to make things works • Language: I can speak with colleagues from other domains and cultures

7. Lecture, Exercises, Homework, Lab, Excursion, and Exam Homework 12h Lecture + exerciselessons 12 x 3h Lab at Siemens 8h Dr Jean-Charles Tournier CERN Geneva Dr Yvonne-Anne Pignolet ABB Corporate Research Baden-Dättwil All components are part of the course (at the oral exam, questions on the class, lab, and homework may be asked). Homework handed out on April 8, to be presented at end of course. Course slides and questions to prepare for exam are available on the web (moodle / http://lamspeople.epfl.ch/kirrmann)

8. Timeline # Date Chapter Content Lecturer 1 Feb 18 1 Introduction, automation and plants YA 2 Feb 25 2 Control and programmable logic controllers (PLCs) YA 3 March 4 2 Programming of PLCs YA 4 March 11 3 Industrial communication networks, field busses YA 5 March 18 5 Human Interface and Supervision JC 6 March 25 4 Industrial communication protocols YA 7 April 1 Laboratory at Siemens – Group 1 (8h00-16h00) Siemens 8 April 8 8 Real-Time Aspects JC 9 April 15 9 Overview Dependability JC April 22 no course (EPFL vacations) 10 April 29 Laboratory at Siemens – Group 2 (8h00-16h00) Siemens 11 May 69 Reliability analysis JC 12 May 13 9 Dependable architecture JC 13 May 20 9 Safety evaluation JC 14 May 27 Presentation of homework JC/YA

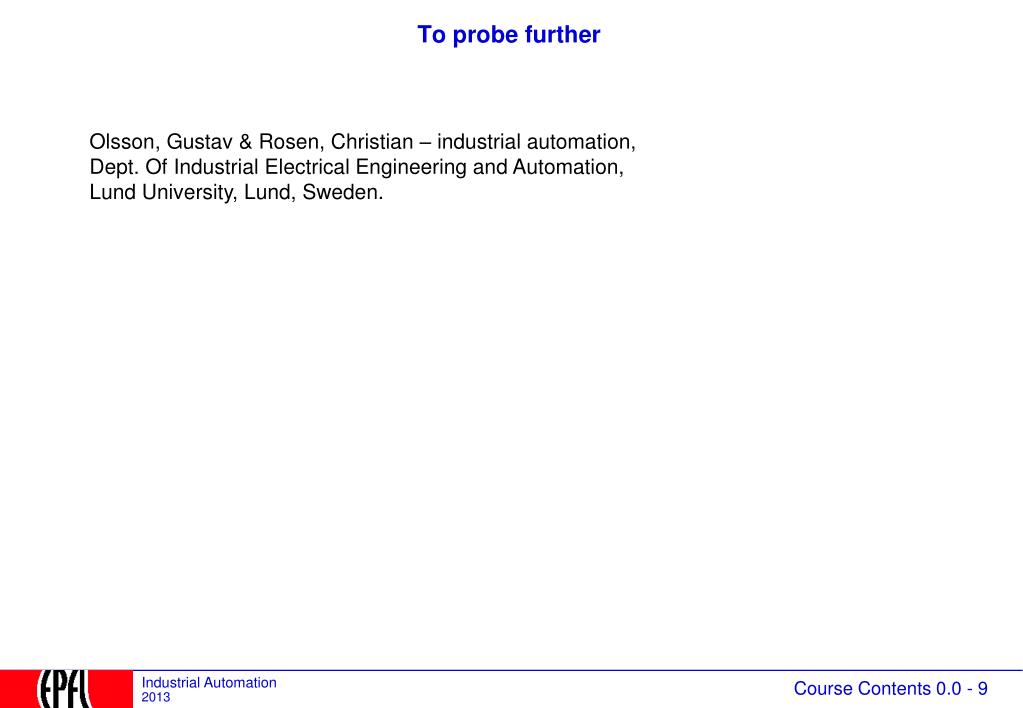

9. To probe further Olsson, Gustav & Rosen, Christian – industrial automation, Dept. Of Industrial Electrical Engineering and Automation, Lund University, Lund, Sweden.
