CYST-MURAL NODULE

CYST-MURAL NODULE. Differential diagnosis: Pilocytic astrocytoma Pleomorphic xanthoastrocytoma Ganglion cell tumors Hemangioblastoma. FREQUENTLY CALCIFIED TUMORS. Oligodendroglioma Pilocytic astrocytoma Subependymal giant cell astrocytoma Ependymoma/ subependymoma

Download Presentation

CYST-MURAL NODULE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CYST-MURAL NODULE Differential diagnosis: • Pilocytic astrocytoma • Pleomorphic xanthoastrocytoma • Ganglion cell tumors • Hemangioblastoma

  2. FREQUENTLY CALCIFIED TUMORS • Oligodendroglioma • Pilocytic astrocytoma • Subependymal giant cell astrocytoma • Ependymoma/ subependymoma • Choroid plexus papilloma • Ganglion cell tumor • Central neurocytoma • Pineal cyst • Meningioma • Craniopharyngioma • Vascular malformations • Retinoblastoma

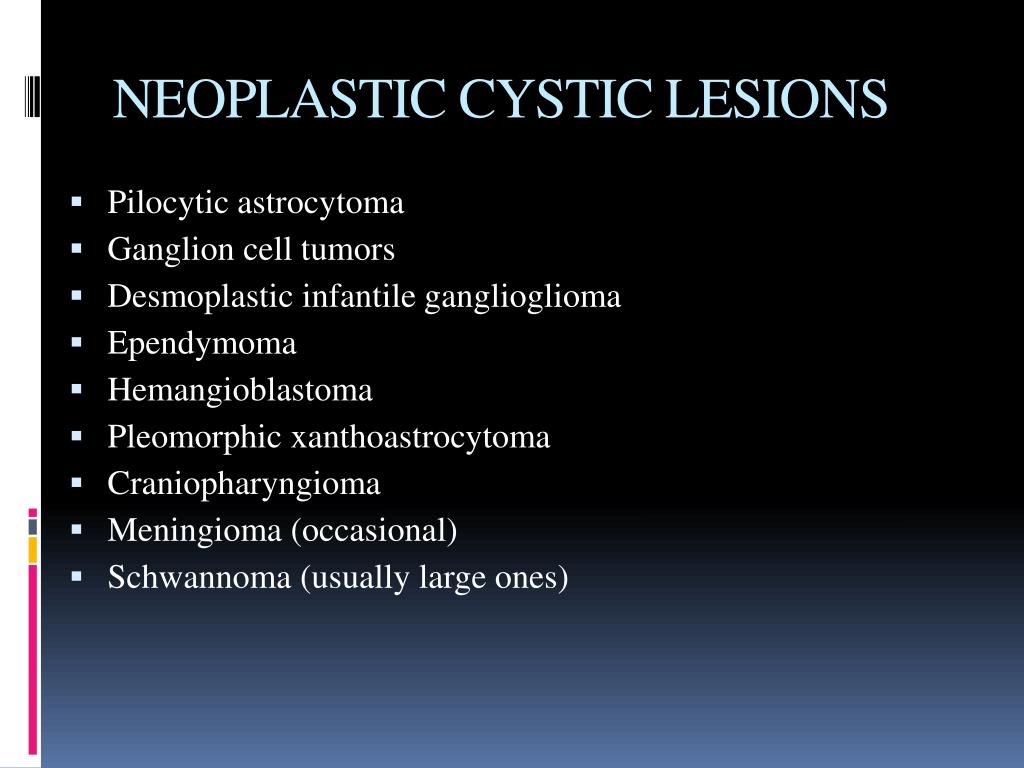

  3. NEOPLASTIC CYSTIC LESIONS • Pilocytic astrocytoma • Ganglion cell tumors • Desmoplastic infantile ganglioglioma • Ependymoma • Hemangioblastoma • Pleomorphic xanthoastrocytoma • Craniopharyngioma • Meningioma (occasional) • Schwannoma (usually large ones)

  4. INTRAVENTRICULAR TUMORS • Ependymoma (lateral, 3rd, 4th) • Subependymoma (lateral, 4th) • Subependymal giant cell astrocytoma (lateral) • Choroid plexus tumors (lateral, 3rd, 4th) • Pilocytic astrocytoma (lateral, 3rd, 4th) • Central neurocytoma (lateral, 3rd) • Papillary craniopharyngioma (3rd) • Colloid cyst (3rd) • Meningioma (lateral, 3rd, 4th)

  5. REACTION OF NEURON TO INJURY Acute neuronal injury: • Shrinkage of cell body, pyknosis of nucleus, disappearance of the nucleolus, loss of Nissl substance, intense eosinophilia of cytoplasm Red Neuron Subacute & chronic neuronal injury: • Degeneration- cell loss often selective, reactive gliosis Axonal reaction: • Regeneration of the axon- enlargement & rounding up of cell body, peripheral displacement of nucleus, dispersion of nissl substance to the periphery of cell Subcellular alterations: • Neuronal inclusions, neurofibrillary tangles.

  6. NEURON-NISSL STAINED-CENTRAL CHROMATOLYSIS

  7. REACTION OF ASTROCYTES TO INJURY • Gliosis: hypertrophy & hyperplasia of astrocytes. • Gemistocytic astrocyte: Nucleus of astrocyte enlarges, prominent nucleolus, cytoplasm expands becomes bright pink and irregular displacing nucleus to periphery • Rosenthal fibers: thick elongated brightly eosinophilic structures with irregular contours, within astrocytic processes • Corpora amylacea: polyglucosan bodies faintly basophilic PAS positive concentrically lamellated

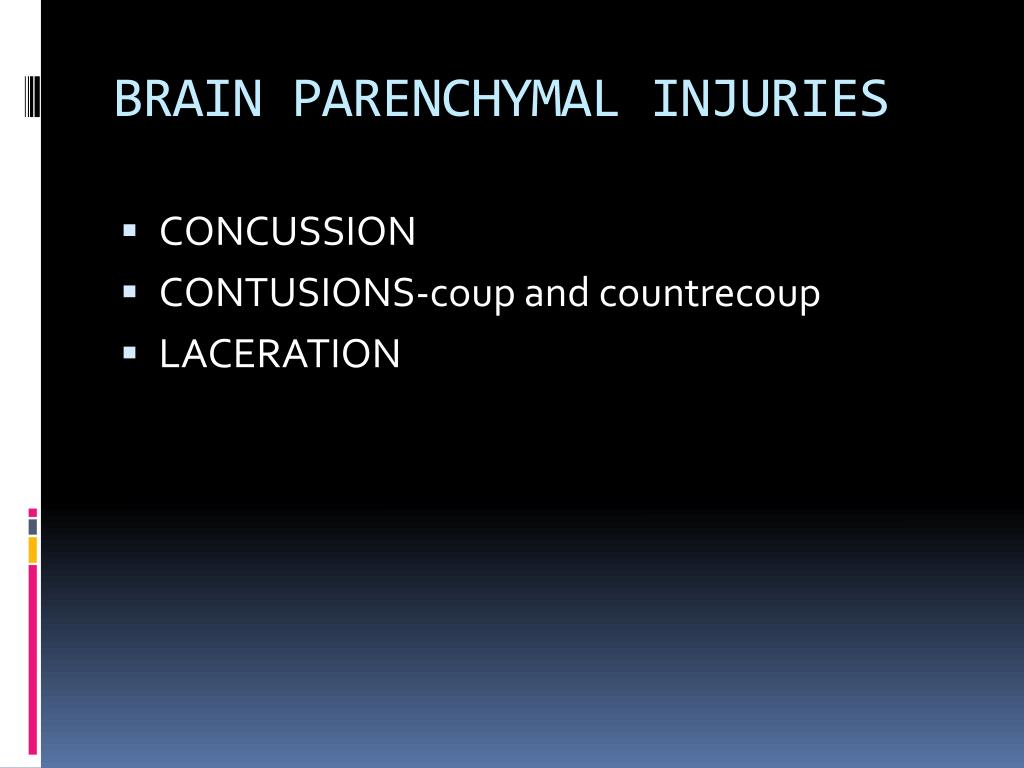

  8. BRAIN PARENCHYMAL INJURIES • CONCUSSION • CONTUSIONS-coup and countrecoup • LACERATION

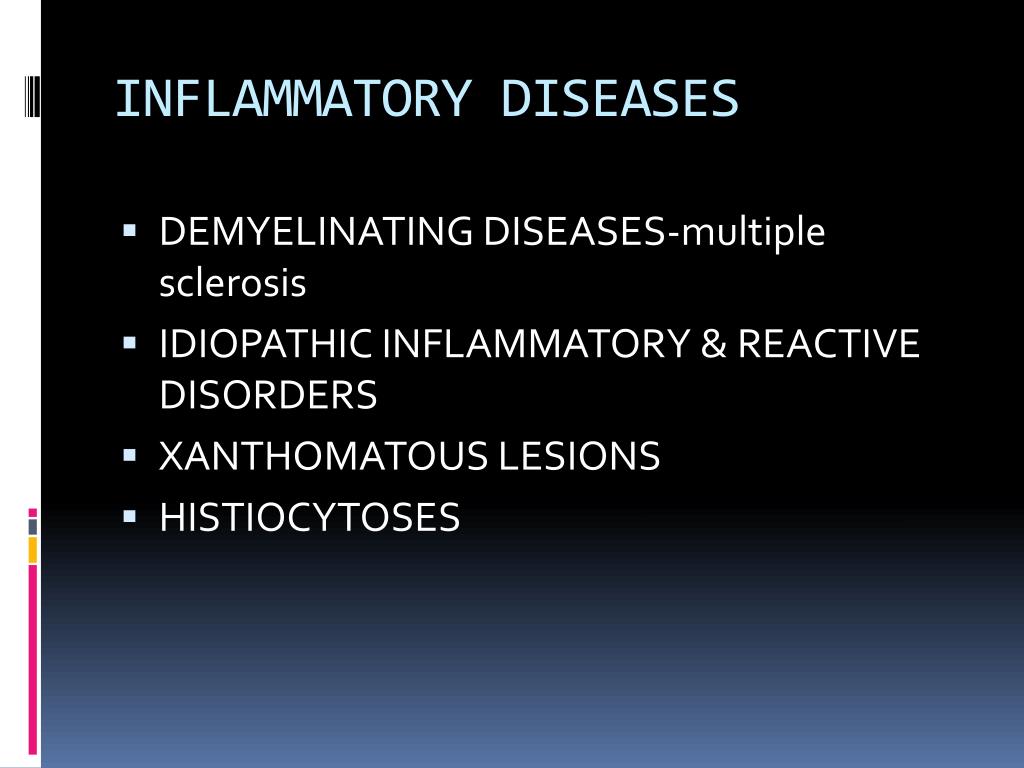

  9. INFLAMMATORY DISEASES • DEMYELINATING DISEASES-multiple sclerosis • IDIOPATHIC INFLAMMATORY & REACTIVE DISORDERS • XANTHOMATOUS LESIONS • HISTIOCYTOSES

  10. MULTIPLE SCLEROSIS Presentation: May present as space occupying tumors with mass effect, edema and disruption of blood brain barrier, neurological deficit due to involvement of cranial nerves, spinal cord lesion cause sensory/motor impairement • CT MRI : diffuse / ring-like enhancement • Gross: Lesions sharply delineated from adjacent white matter. • Microscopy: Diffuse infiltration of foamy macrophages, reactive astrocytosis, perivascular aggregates of small lymphocytes and plasma cells • Pathogenesis: Cellular immune response against components of myelin sheath, demyelination casused by activated macrophages • CSF EXAM- mild elevation of protein , moderate pleocytosis, gamma globulin increased most patient shows oligoclonal bands

  11. MULTIPLE SCLEROSIS Brown plaque

  12. MULTIPLE SCLEROSIS

  13. CEREBROVASCULAR DISORDERS

  14. INFARCTION • Cerebral blood flow—50 ml/min per 100 gm of tissue. • Two principal types of ischemic injury • GLOBAL CEREBRAL ISCHEMIA • FOCAL CEREBRAL ISCHEMIA

  15. GLOBAL CEREBRAL ISCHEMIA • Cause: (diffuse ischemic encephalopathy) generalized reduction of cerebral perfusion e.g. shock cardiac arrest, severe hypotension • Morphology: Swollen brain, widened gyri, narrowed sulci, little demarcation b/w white and gray matter • Early changes12-24 hrs: acute neuronal cell change- red neurons, microvacuolization, cytoplasmic eosinophilia, nuclear pyknosis and karyorhexis. These changes later appear in astrocytes and glial cells. infiltration of neutrophils • Subacute changes 24hrs-2wks: necrosis, influx of macrophages, reactive gliosis and vascular proliferation. • Border zone (water shed) infarct: wedge shaped , lie at most distal fields of arterial irrigation

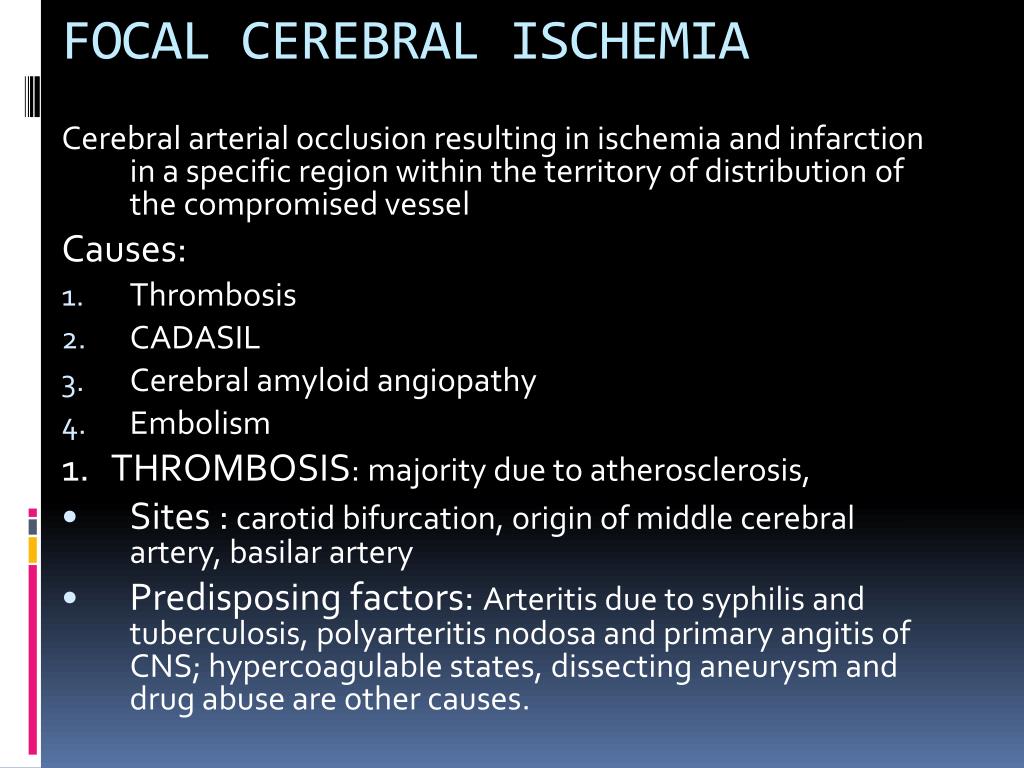

  16. FOCAL CEREBRAL ISCHEMIA Cerebral arterial occlusion resulting in ischemia and infarction in a specific region within the territory of distribution of the compromised vessel Causes: • Thrombosis • CADASIL • Cerebral amyloid angiopathy • Embolism 1. THROMBOSIS: majority due to atherosclerosis, • Sites : carotid bifurcation, origin of middle cerebral artery, basilar artery • Predisposing factors: Arteritis due to syphilis and tuberculosis, polyarteritis nodosa and primary angitis of CNS; hypercoagulable states, dissecting aneurysm and drug abuse are other causes.

  17. THROMBOSIS

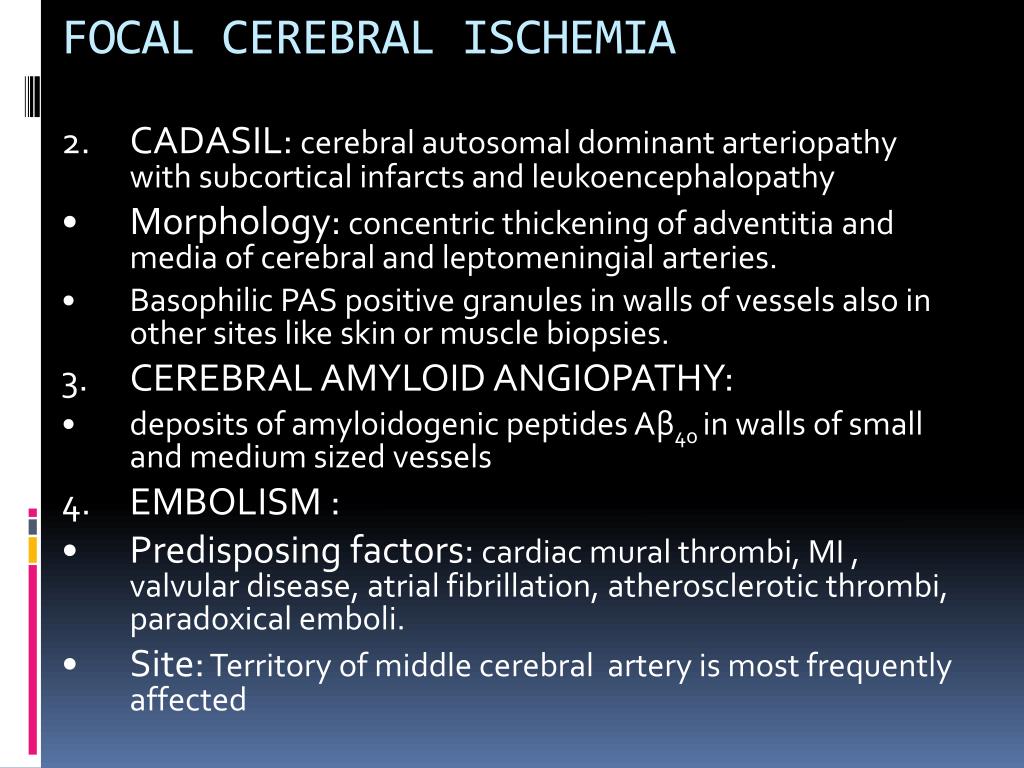

  18. FOCAL CEREBRAL ISCHEMIA • CADASIL: cerebral autosomal dominant arteriopathy with subcortical infarcts and leukoencephalopathy • Morphology: concentric thickening of adventitia and media of cerebral and leptomeningial arteries. • Basophilic PAS positive granules in walls of vessels also in other sites like skin or muscle biopsies. • CEREBRAL AMYLOID ANGIOPATHY: • deposits of amyloidogenic peptides Aβ40 in walls of small and medium sized vessels • EMBOLISM : • Predisposing factors: cardiac mural thrombi, MI , valvular disease, atrial fibrillation, atherosclerotic thrombi, paradoxical emboli. • Site: Territory of middle cerebral artery is most frequently affected

  19. Focal infarction with punctate hemorrhages caused by an embolus
