  1. Educated Spray A Geometry Thomas Furlong Prof. Caroline Genzale August 2012

  2. Notes for geometry use: • The following presentation outlines the method utilized to smooth the STL file created from x-ray tomography measurements of nozzles 210675 and 210677 • Due to the low resolution of the x-ray tomography measurements (~4 microns), there is still uncertainty in the ability to capture real features and asymmetry • Nozzle 210675 has a convergence near the outlet on the order of the measurement resolution and is not captured in the smoothed geometry • Nozzle 210677 features a more significant convergence, which is captured in the smoothed geometry • This presentation is intended to be the first step towards the ultimate goal of fully understanding the geometry of Spray A and Spray B nozzles and the implications of these geometries

  3. The Starting STL File • The STL file is oriented such that the Z-axis is oriented along the orifice center and centered at the (0,0) X and Y coordinates

  4. Step 1- Theta Slices • The STL file is cut into discrete theta regions of size π/150 to stipulate 300 splines to define the geometry • The x-ray tomography STL file contains a limited number of data points • A larger discrete theta region of size π/10 is then necessary to produce each spline fit • A vertical spline curve is created at each one of these locations with ~12 nodes per 0.1 micron Y X

  5. Step 1- Theta Slices • All STL points within the bounds are utilized in obtaining the spline fit Upper Bound Spline Location Lower Bound Y X

  6. Step 1- Theta Slices • Additional splines utilize partially overlapping regions • The rotation between the two upper bounds is equivalent to the rotation between the spline points (π/150) Overlapping region Neighboring Spline Non-overlapping region Y X

  7. Step 2 – Outlet Identification • For each theta slice, the minimum diameter in the outlet region is found and defined as the local outlet location • The local outlet locations do not occur at a consistent vertical location (Z-axis) Max=0.175 Outlet Vertical Location (mm) Mean=0.101 Min=0.0857

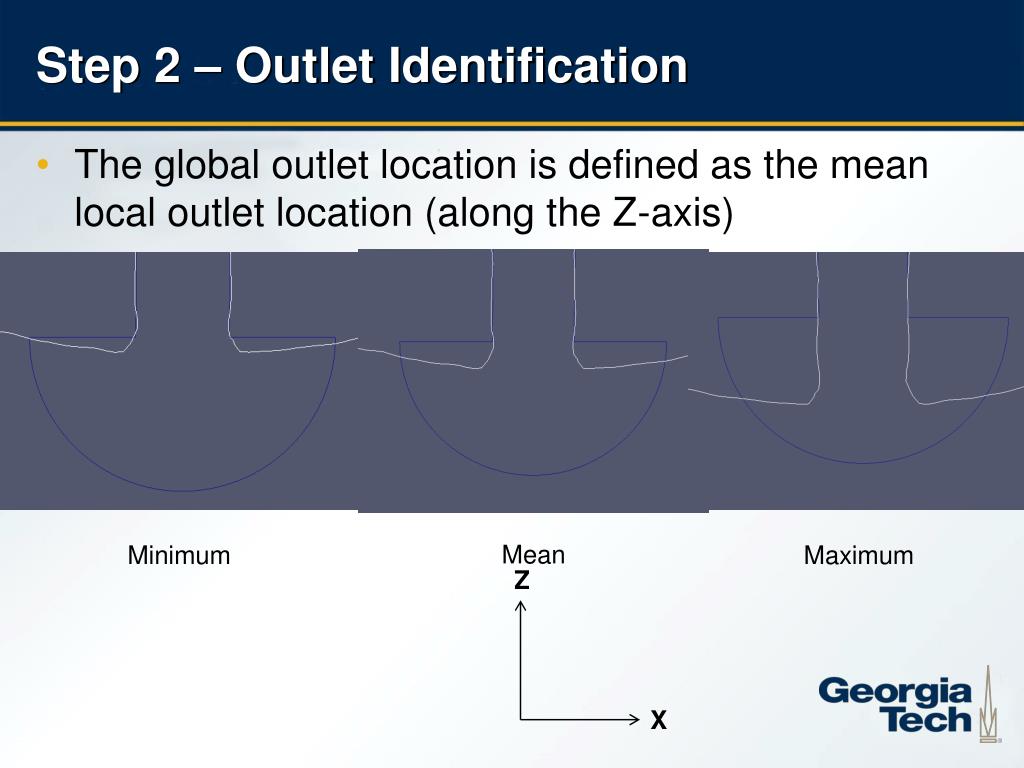

  8. Step 2 – Outlet Identification • The global outlet location is defined as the mean local outlet location (along the Z-axis) Mean Minimum Maximum Z X

  9. Step 3 – Spline Fit • Vertical spline creation via theta slices • Nozzle, orifice, and sac splines are generated separately using the function spap2 • Knots are first defined utilizing the matlab splinetool and hardcoded • The knot locations are iterated using the ‘newknt’ function to minimize spline fit errors with the current theta slice knots=augknt([min(R_orf(:,2)),0.7966,1.0702,1.1137,1.1495],3); f1_orf=spap2(knots,3,R_orf(:,2),R_orf(:,1)); for k=1:10 f1_orf=spap2(newknt(f1_orf),3,R_orf(:,2),R_orf(:,1)); end

  10. Step 3 – Spline Fit • The outlet region Note: No convergence trend in tomography points for 675

  11. Step 3 – Spline Fit • The turning region

  12. Turning Angle Calculation • The turning angle is defined from Kastengren et al. (2012) using two lines, one within the sac and one within the orifice

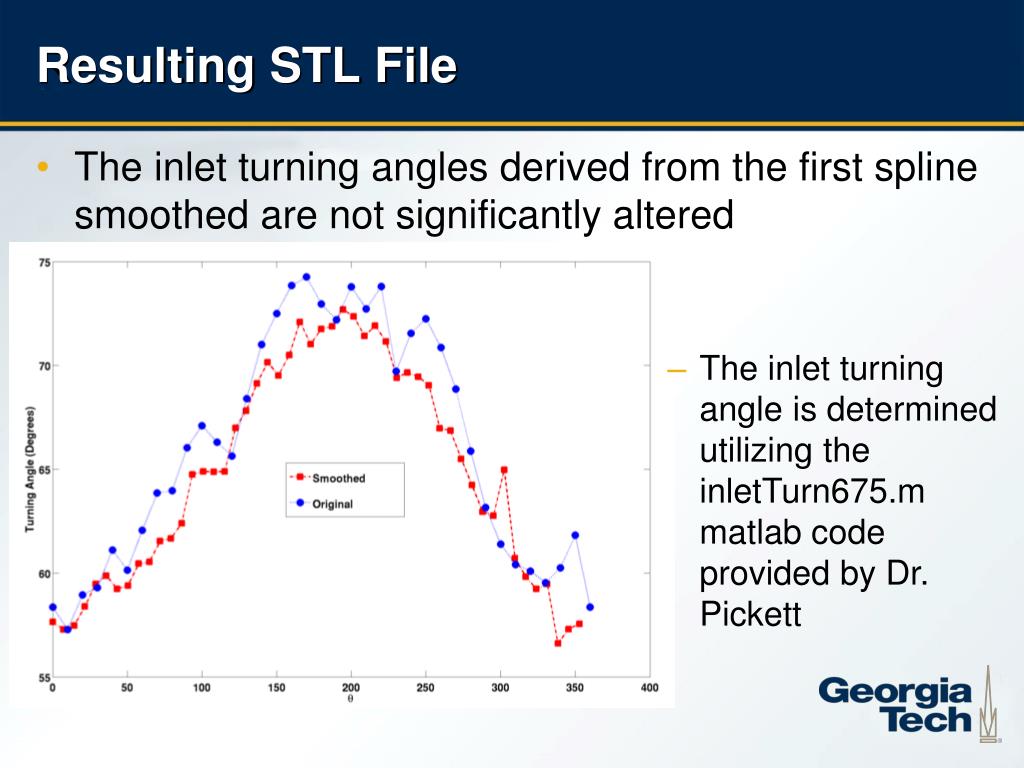

  13. Resulting STL File • The inlet turning angles derived from the first spline smoothed are not significantly altered • The inlet turning angle is determined utilizing the inletTurn675.m matlab code provided by Dr. Pickett

  14. Resulting STL File • However it is insufficient for meshing without connectivity between the splines • Figure shows the interior of the STL file near the sac/orifice turning junction Inconsistencies

  15. Step 4 – Establish Connectivity Between Splines • The second geometry fit is done utilizing vertical slices (instead of theta slices) to generate connectivity points at consistent Z locations • Select a region of data of size ΔZ (0.1 micron) • Create a spline fit around the data (200 nodes) • Utilizes two splines, one on the top and a second on the bottom (see next slide) • Each ΔZ contains ~12 nodes as stated before (defined via first spline) ΔZ

  16. Step 4 – Establish Connectivity Between Splines • Consistent connectivity is established without altering geometry significantly

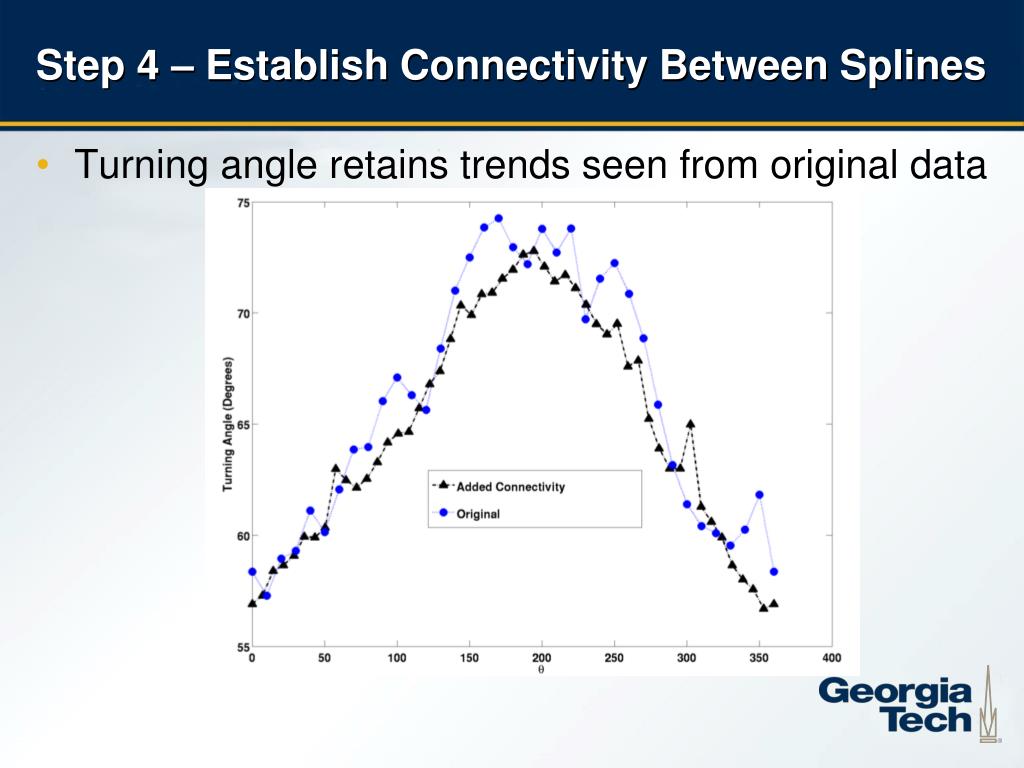

  17. Step 4 – Establish Connectivity Between Splines • Turning angle retains trends seen from original data

  18. Step 5 – Add an Outlet Semisphere • A semisphere is added to the outlet to enable proper meshing

  19. Step 5 – Resulting STL • The resulting STL file is smooth, capable of being meshed well, and represents the outlet diameter and turning angle of the tomography measurements

  20. Outlet Diameter Comparison • Using a circle fit function (assumes circular orifice) we can compare the representative outlet diameters* • Optical microscopy • 89.4 μm • Tomography • 86.74 μm • Smoothed geometry • 89.11 μm *Utilizes the mean z location as the outlet

  21. Axial Diameter Comparison • The axial diameter of the smoothed geometry predominately captures the tomography data • Utilizing the mean z location as the outlet • This 2-dimensional representation assumes a circular orifice Z-axis

  22. Discussion of Outlet Convergence • The current method does not capture an outlet convergence due to the inability of the splines to capture some fluctuations and not others • The spline method cannot distinguish between: • Fluctuations due to noise • Real fluctuations of the same magnitude 3 μm

  23. Nominal Mesh Comparison • Spray A Mesh on ECN website

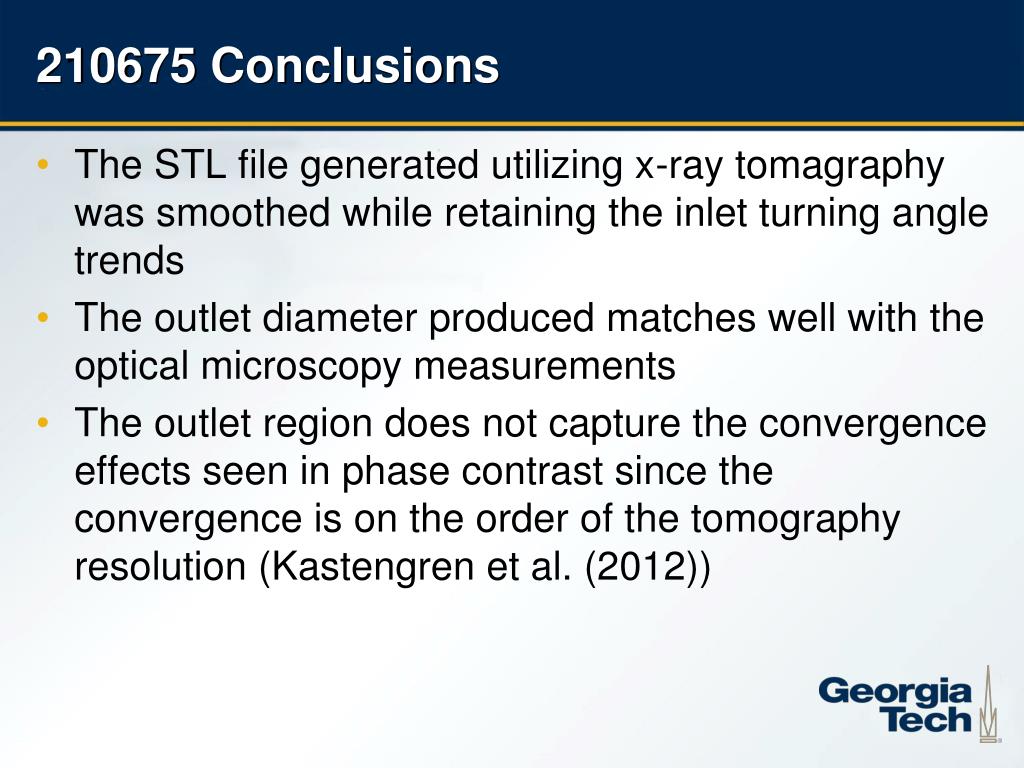

  24. 210675 Conclusions • The STL file generated utilizing x-ray tomagraphy was smoothed while retaining the inlet turning angle trends • The outlet diameter produced matches well with the optical microscopy measurements • The outlet region does not capture the convergence effects seen in phase contrast since the convergence is on the order of the tomography resolution (Kastengren et al. (2012))

  25. 210677 Smoothing • A similar process was implemented for nozzle 210677 • A more distinct convergence section allowed for the nozzle to be split into 3 sections to create a spline (sac, orifice, and outlet)

  26. 210677 Outlet Diameter • The outlet diameter provides a reasonable comparison to the optical microscopy • Optical microscopy • 83.61 μm • Tomography • 83 μm • Phase contrast • 84.13 μm • Smoothed geometry • 84.53 μm

  27. 210677 Axial Diameter • The axial diameter matches well with respect to the original STL file with some offsets with experiments

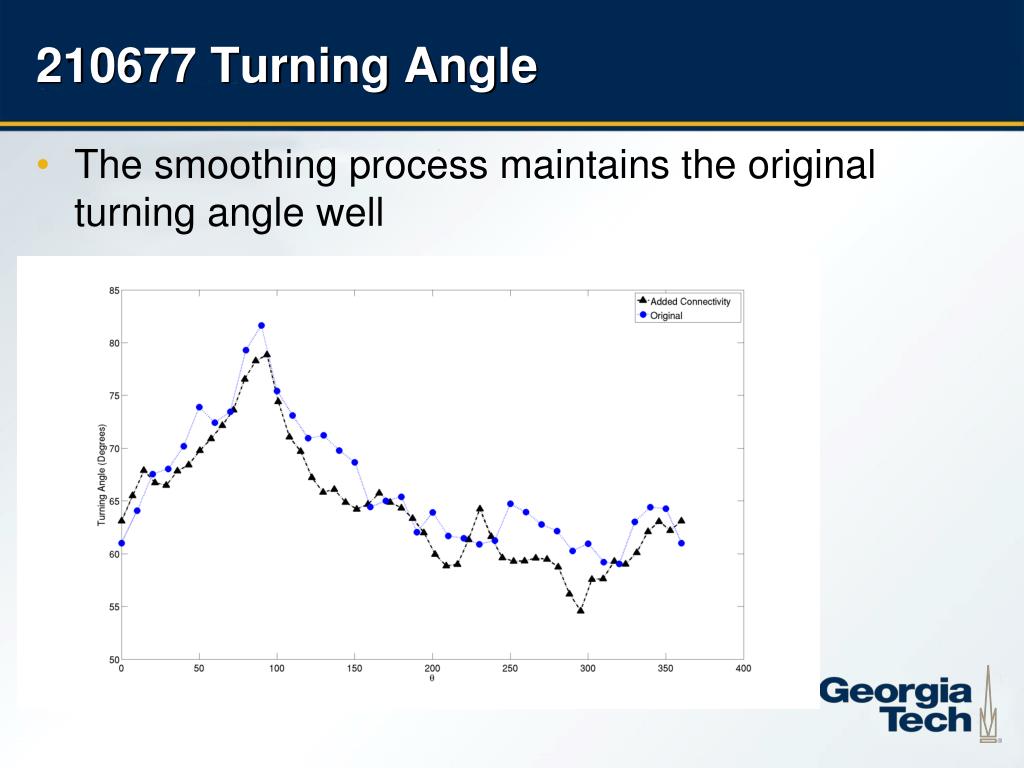

  28. 210677 Turning Angle • The smoothing process maintains the original turning angle well

  29. Axial Diameter 675/677 Comparison

  30. Turning Angle 675/677 Comparison
