Effects of edfa gain on rf phase noise in a wdm fiber optic link

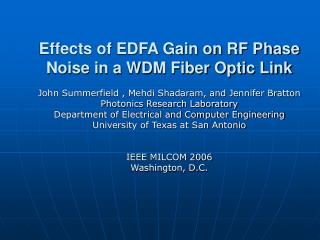

Effects of EDFA Gain on RF Phase Noise in a WDM Fiber Optic Link

John Summerfield , Mehdi Shadaram, and Jennifer Bratton

Photonics Research Laboratory

Department of Electrical and Computer Engineering

University of Texas at San Antonio

IEEE MILCOM 2006

Washington, D.C.


Outline

Outline

  • Transmission of Reference Signals via Optical Fibers

  • Noise Sources

  • Phase Noise

  • Link Under Investigation

  • Results


Rf transmission via optical fibers

RF Transmission via Optical Fibers

  • Phased Array Antenna

  • Reference Signals for Timing and Synchronization

  • Doppler Radar

  • CATV

  • Passband Signal Transmission


Noise sources

Noise Sources

  • Optical Transmitter

  • Fiber Cable

  • Optical Amplifier

  • Photo Receiver


Phase noise

Phase Noise


What causes phase noise

What Causes Phase Noise?

  • Temperature fluctuation of the link

  • Fluctuation of longitudinally applied stress

  • Relative intensity noise of the laser

  • Back reflections in the cable

  • Bias fluctuations of the photodiode

  • Bias fluctuations of either directly modulated laser or the external modulator

  • Amplified spontaneous emission noise

  • Etc.


Analysis additive phase noise by the optical amplifier

=

w

+

E

(

t

)

2

GP

cos(

t

)

E

(

t

)

t

in

o

ASE

M

[

]

(

)

å

=

d

w

+

p

d

+

f

E

(

t

)

2

S

f

cos

2

i

f

t

ASE

ASE

o

i

=

-

i

M

=

-

c

S

(

G

1

)

n

hf

ASE

SP

Analysis(Additive phase noise by the optical amplifier)


Analysis cont additive phase noise by the optical amplifier

a

Assume

<< 1

M

[

]

(

)

å

=

Â

a

w

+

Â

a

d

w

+

p

d

+

f

i

GP

cos(

t

)

GP

S

f

cos

2

i

f

t

t

o

c

o

ASE

c

i

=

-

i

M

(

)

é

ù

S

=

ASE

S

(

f

)

10

log

dB

/

Hz

ê

ú

f

c

GP

ë

û

o

Analysis (Cont.)(Additive phase noise by the optical amplifier)


Link under investigation

Link Under Investigation

  • 8.8 Km Fiber Link with an EDFA located at 4.4 Km

  • Single Light source operating at 1560nm

  • 100MHz RF reference signal


Link under investigation cont

Link Under Investigation (Cont.)


Link under investigation cont1

Link Under Investigation (Cont.)


Edfa output power vs edfa gain

16

15

14

EDFA output Power dBm

13

12

11

27

29

31

33

35

37

39

41

43

EDFA Gain dB

EDFA Output Power vs. EDFA Gain


Additive rf phase noise vs log offset frequency

-60

-65

-70

-75

-80

dBc/Hz

-85

-90

-95

-100

-105

1

10

100

1000

Log Offset Freq

Additive RF Phase noise vs. Log Offset Frequency


Gain effects

Gain Effects

  • Starting at 44 dB EDFA gain, for every dB decrease in optical gain there is a 2 dB decrease in additive phase noise.

  • Maximum additive phase noise occurs at the maximum gain with a value near -65 dBc/Hz.

  • Decreasing EDFA gain below 33 dB will not necessarily result in further additive phase noise reduction, or will reduce at a different rate.


Additive phase noise vs edfa gain

-60

-65

-70

-75

-80

dBc/Hz

-85

-90

-95

-100

-105

27

29

31

33

35

37

39

41

43

45

EDFA Gain dB

Additive Phase Noise vs. EDFA Gain


Conclusion

Conclusion

  • In conclusion, the additive phase noise in a link with an EDFA is affected by the gain of the amplifier. In order to increase the phase stability of the link, the EDFA should be operated at higher optical input levels. These higher input power levels can be achieved by placing an EDFA as close as possible to the transmitter.
