Presentation Transcript

Memory 1 l.jpg

Memory (1)

Atkinson shiffrin 1968 model of memory l.jpg

Atkinson & Shiffrin (1968) Model of Memory

Visual sensory store l.jpg

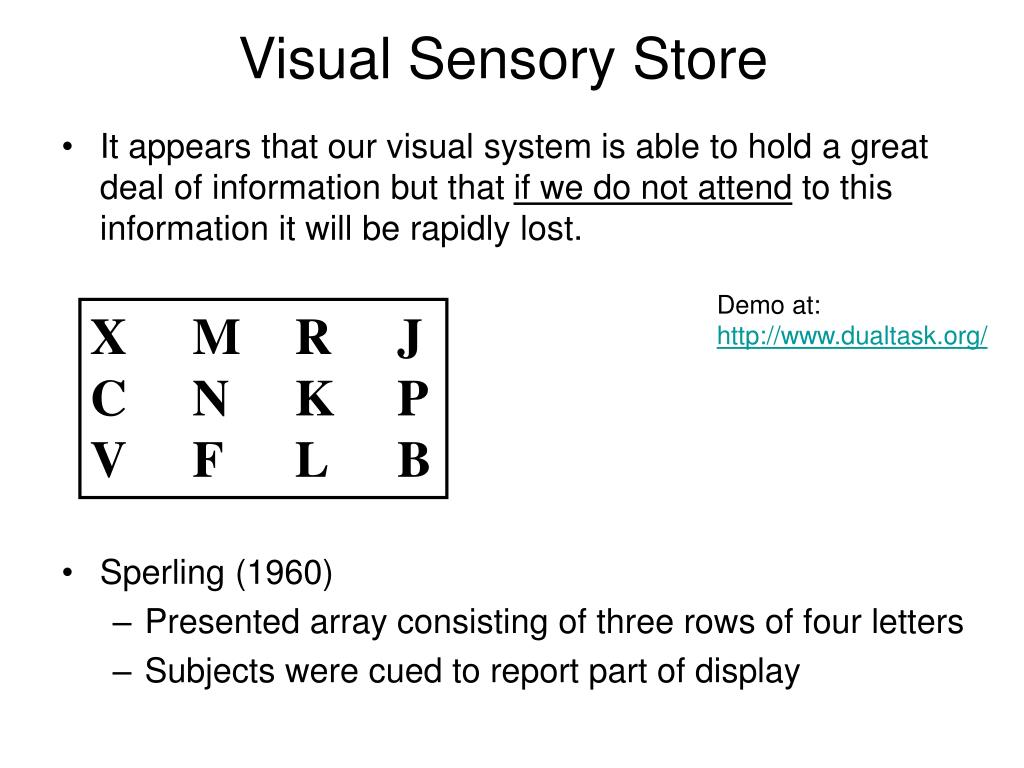

Visual Sensory Store

  • It appears that our visual system is able to hold a great deal of information but that if we do not attend to this information it will be rapidly lost.

  • Sperling (1960)

    • Presented array consisting of three rows of four letters

    • Subjects were cued to report part of display

Demo at:




Visual sensory memory l.jpg

Visual Sensory Memory

  • Vary the delay of cue in partial report

  • After one second, performance reached asymptote

Mean number of words reported

Delay of cue (in seconds)

Iconic memory l.jpg

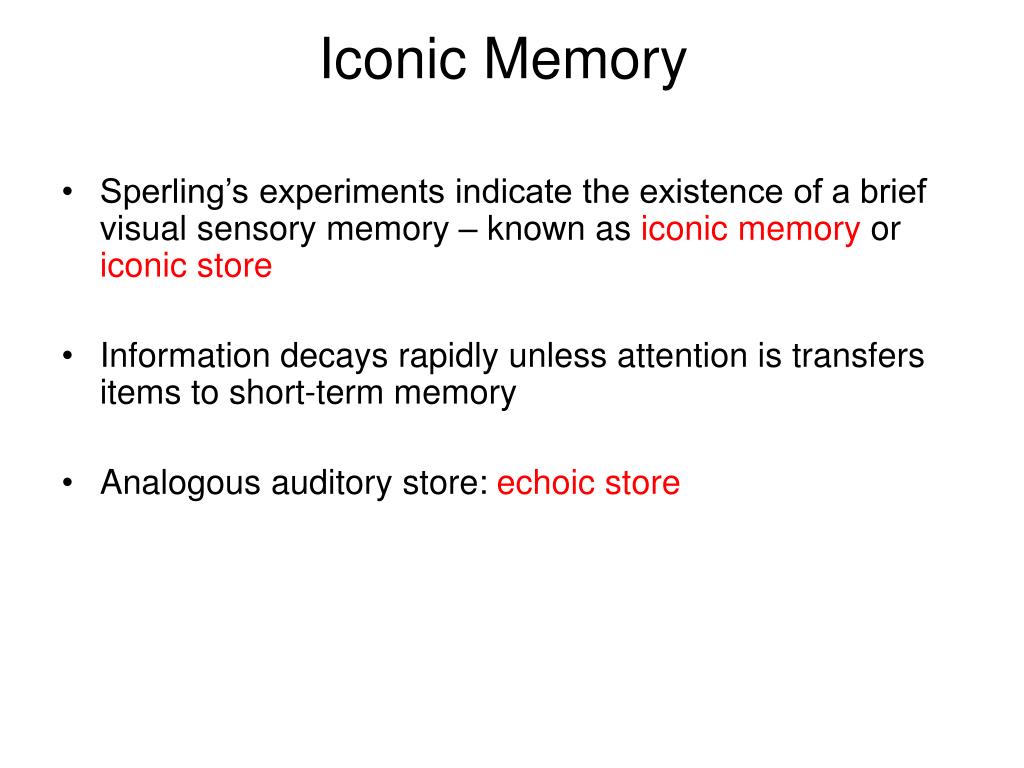

Iconic Memory

  • Sperling’s experiments indicate the existence of a brief visual sensory memory – known as iconic memory or iconic store

  • Information decays rapidly unless attention is transfers items to short-term memory

  • Analogous auditory store: echoic store

Atkinson shiffrin 1968 model of memory6 l.jpg

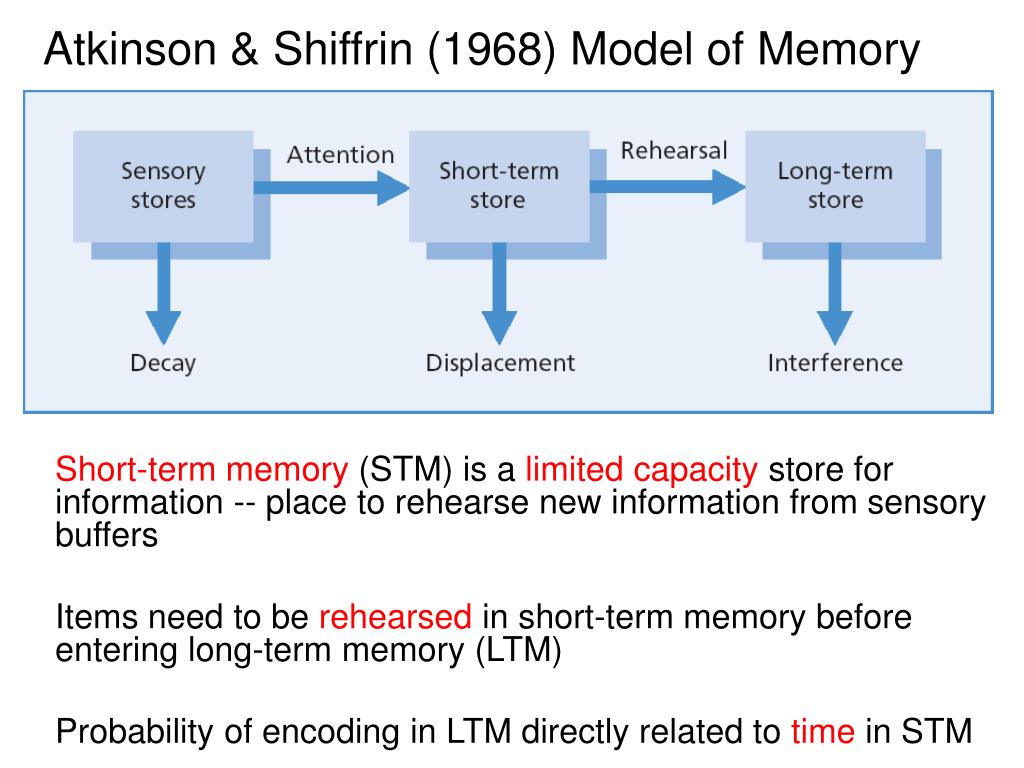

Atkinson & Shiffrin (1968) Model of Memory

Short-term memory (STM) is a limited capacity store for information -- place to rehearse new information from sensory buffers

Items need to be rehearsed in short-term memory before entering long-term memory (LTM)

Probability of encoding in LTM directly related to time in STM

A memory test l.jpg

a memory test...

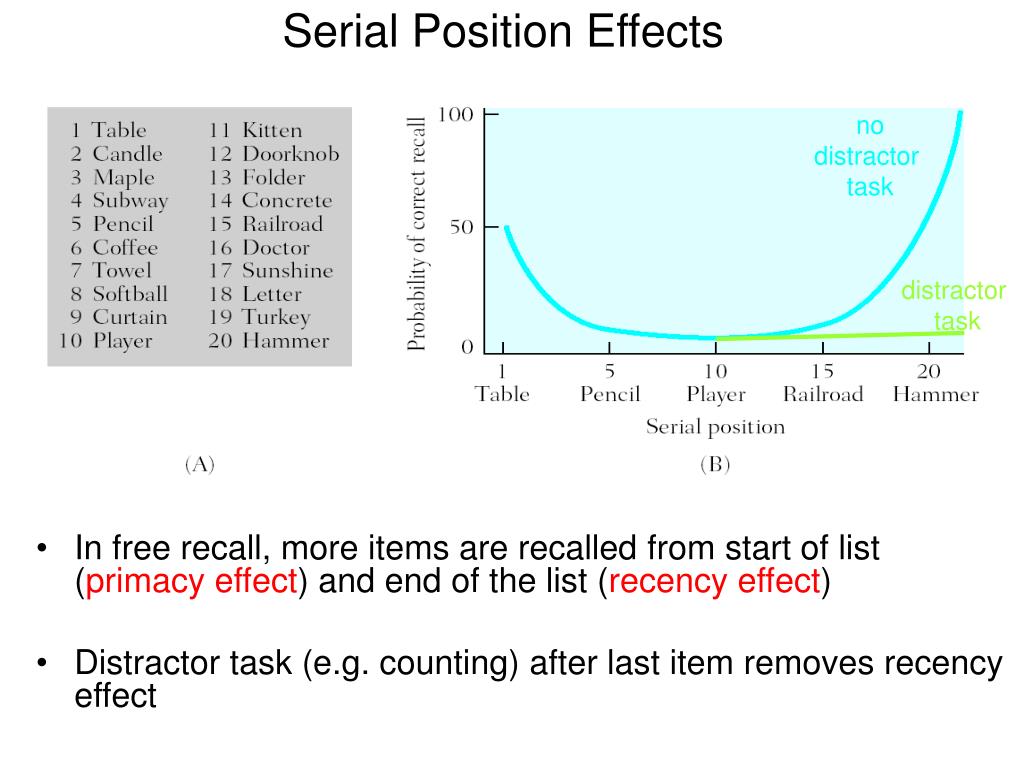

Serial position effects l.jpg

In free recall, more items are recalled from start of list (primacy effect) and end of the list (recency effect)

Distractor task (e.g. counting) after last item removes recency effect

Serial Position Effects

nodistractor task

distractor task

Serial position effects9 l.jpg

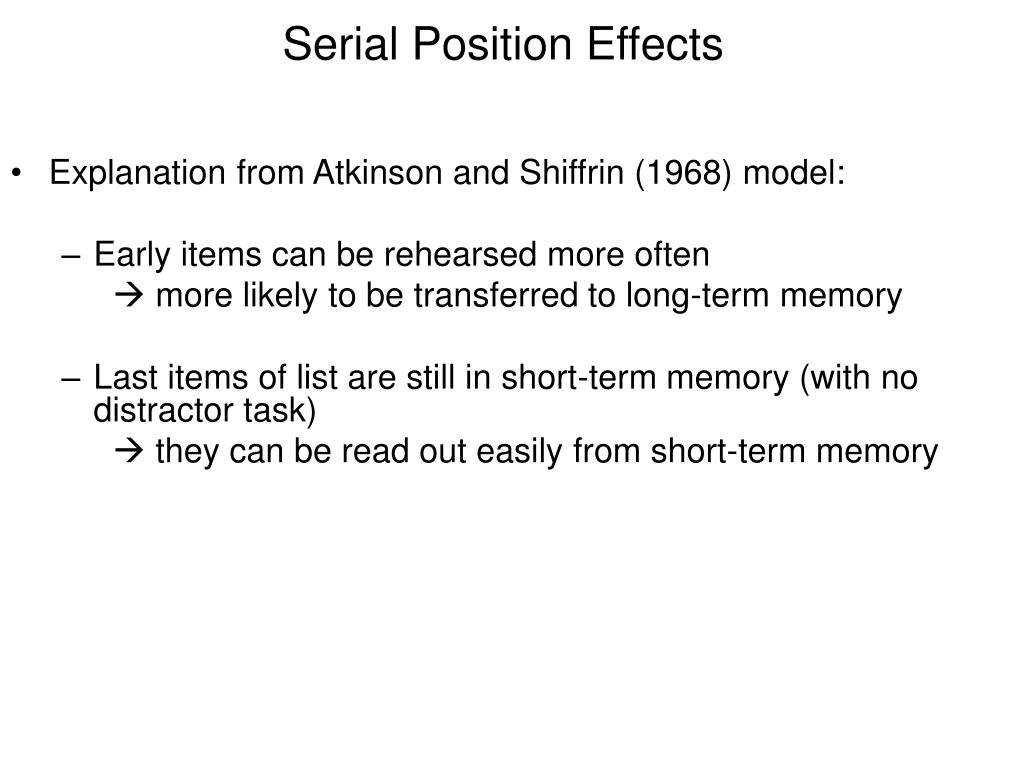

Explanation from Atkinson and Shiffrin (1968) model:

Early items can be rehearsed more often

 more likely to be transferred to long-term memory

Last items of list are still in short-term memory (with no distractor task)

 they can be read out easily from short-term memory

Serial Position Effects

Forgetting over time in short term memory l.jpg

Forgetting over time in short-term memory.

Peterson and Peterson (1959)

Baddeley s working memory system l.jpg

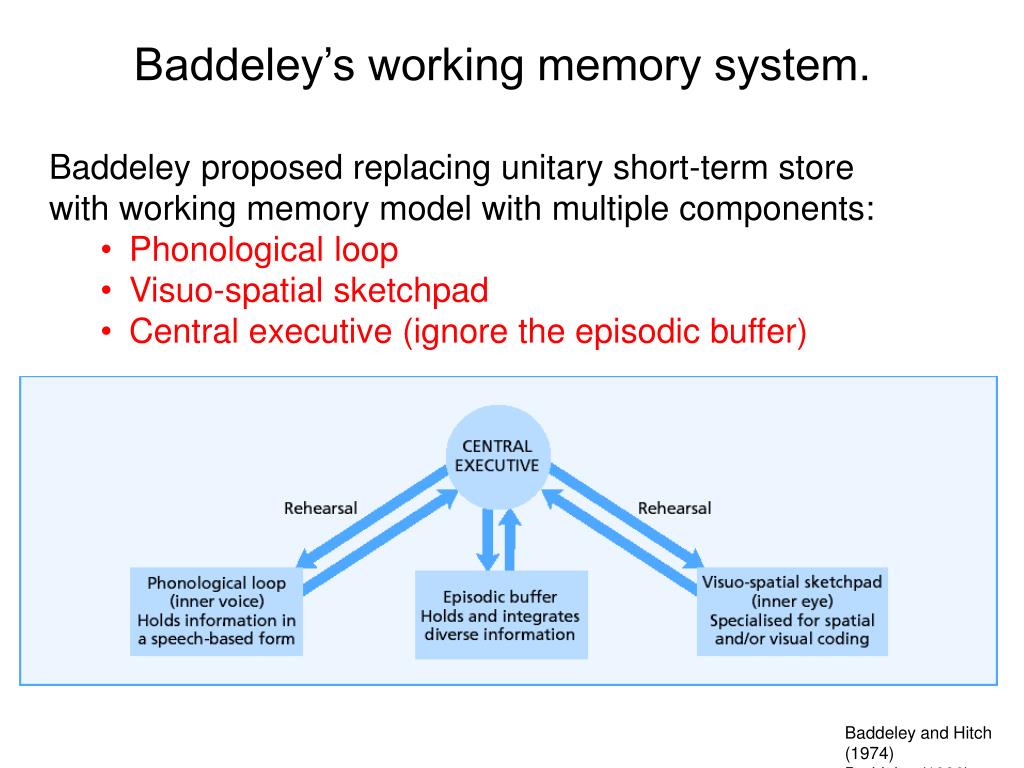

Baddeley’s working memory system.

  • Baddeley proposed replacing unitary short-term store with working memory model with multiple components:

    • Phonological loop

    • Visuo-spatial sketchpad

    • Central executive (ignore the episodic buffer)

  • Baddeley and Hitch (1974)

  • Baddeley (1986)

Phonological loop a k a articulatory loop l.jpg

Phonological Loop(a.k.a. articulatory loop)

  • Stores a limited number of sounds – number of words is limited by pronunciation time, not number of items

  • Experiment:

  • Word length effect – mean number of words recalled in order (list 1  4.2 words; list 2  2.8 words)

  • Phonological loop stores 1.5 - 2 seconds worth of words









Switzerland Nicaragua Afghanistan Venezuela Philippines


Two routes to phonological loop l.jpg

Two routes to phonological loop

Articulatory control process

  • Articulatory control process converts visually presented words into a speech code

  • Articulatory suppression (e.g. saying “the” all the time) disrupts phonological loop

  • Prediction:

    • Word length effect depends on phonological loop

    • With articulatory suppression, visuallypresented items should not display word length effect


Speech code




Slide14 l.jpg

Immediate word recall as a function of modality of presentation (visual vs. auditory), presence vs. absence of articulatory suppression, and word length.

Baddeley et al. (1975).

Working memory and language differences l.jpg

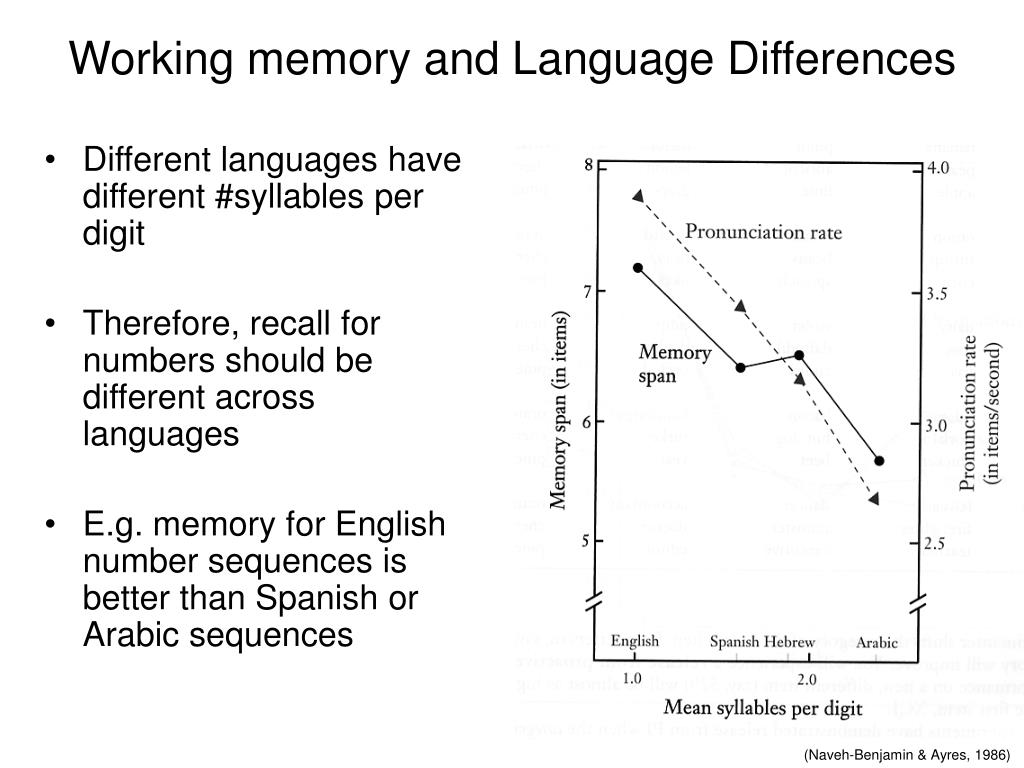

Different languages have different #syllables per digit

Therefore, recall for numbers should be different across languages

E.g. memory for English number sequences is better than Spanish or Arabic sequences

Working memory and Language Differences

(Naveh-Benjamin & Ayres, 1986)

Evaluation of the evidence for the phonological loop l.jpg

Evaluation of the Evidence for the Phonological Loop

  • Accounts for phonological similarity and the word-length effect

  • Support from neuroimaging studies

  • Baddeley, Gathercole, and Papagno (1998)

    • Its function may be to learn new words

Encoding retrieval effects l.jpg

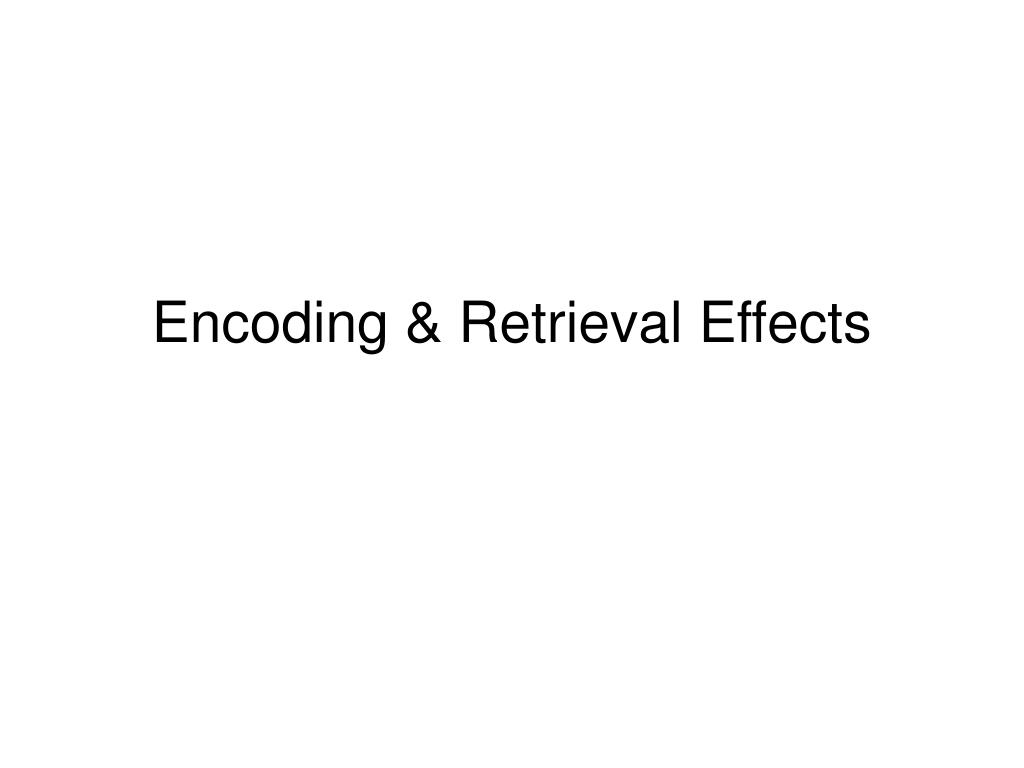

Encoding & Retrieval Effects

Levels of processing craik lockhart 1972 l.jpg

Levels of Processing(Craik & Lockhart, 1972)

Levels of processing effect:

Deeper levels of processing (e.g., emphasizing meaning)

leads to better recall.

Encoding specificity principle l.jpg

Encoding Specificity Principle

  • Recollection performance depends upon the interaction between the properties of the encoded event and the properties of the retrieval information

Context change l.jpg

Context Change

  • Information learned in a particular context is better recalled if recall takes place in the same context

  • Similarly, information learned in a particular context may be difficult to recall in a dramatically different context

Godden baddeley 1975 1980 l.jpg

Godden & Baddeley (1975, 1980)

Memory experiment with deep-sea divers

  • Deep-sea divers learned words either on land or underwater

  • They then performed a recall or recognition test on land or underwater

Mood dependent memory l.jpg

Mood-dependent Memory

  • Easier to remember happy memories in a happy state and sad memories in a sad state.

  • Subjects study positive or negative words in normal state. Test in positive or negative induced states.

     mood primes certain memory contents

Kenealy (1997).

State dependent recall l.jpg

State-dependent recall

  • Does physical state matter?

  • Eich et al. (1975): study while smoking normal or marijuana cigarette. Test words under same or different physical condition

Forgetting l.jpg


Forgetting functions l.jpg

Forgetting Functions

  • Ebbinghaus (1885/1913): Forgetting over time as indexed by reduced savings.

  • Most forgetting functions show:

  • Negative acceleration

    • Rate of change gets smaller and smaller with delay

  • Power law of forgetting

Forgetting26 l.jpg


Why do we forget?

Some possibilities:

  • Memory has disappeared

     decay theory

  • Memory is still there but we can’t retrieve it

     repression

     inhibition theory

     interference theory

What is repression l.jpg

What is Repression?

  • “Something happens that is so shocking that the mind grabs hold of the memory and pushes it underground, into some inaccessible corner of the unconscious.”- Loftus (1993)

  • Some self-help book (“Courage to Heal”) relate repressed memories to sexual abuse

Recovered memory vs false memory l.jpg

Recovered memory vs. False Memory

  • How do we know whether repressed memories are accurate?

  • In some cases, traumatic information is misremembered or simply “made up”

    • Loftus has been involved in many cases

    • Points out problems of

      • hypnosis

      • suggestive questioning

      • dream interpretations

Elizabeth Loftus

False memory in the lab l.jpg

False Memory in the Lab

  • Deese, Roediger, McDermott paradigm

  • Study the following words

  • Recall test ....

  • Recognition memory testUse ratings 1) sure new 2) probably new 3) probably old 4) sure old

  • TEST:




















Results l.jpg


  • Critical lure (“sleep”) are words not presented but similar to studied words. These words are often falsely recalled (sleep: 61% of Ss.)

  • Recognition memory results

    proportion of items classified with confidence levels:

    confidence rating4321

    studied items.

    not studied


    critical lure.

(e.g. “REST”)

(e.g. “COFFEE”)

(e.g. “SLEEP”)

Subjects reporting recovered memories are more vulnerable to false memories l.jpg

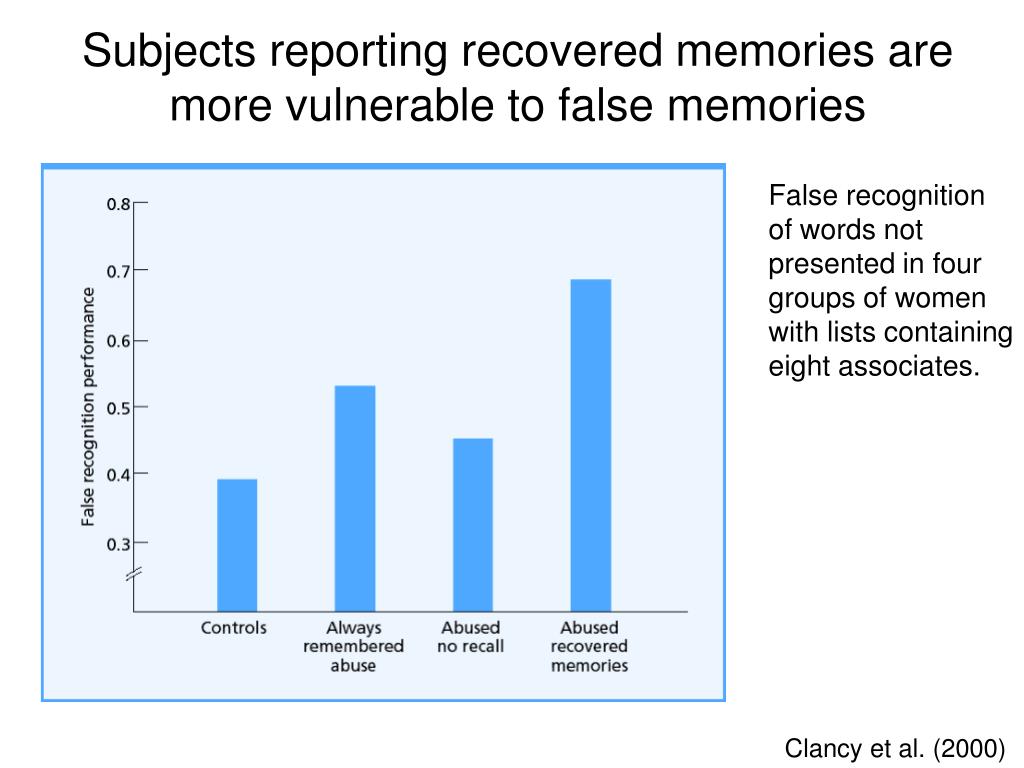

Subjects reporting recovered memories are more vulnerable to false memories

False recognition of words not presented in four groups of women with lists containing eight associates.

Clancy et al. (2000)

Proactive and retroactive interference l.jpg

Proactive and retroactive interference

Inhibitory mechanisms in forgetting l.jpg

Cued recall as a function of the number of times the cues had been presented before for recall (respond condition) or for suppression (suppress condition).

Inhibitory mechanisms in Forgetting

Anderson and Green (2001)
