  1. It’s all about SCALE!!

  2. How to scale up web service in the past ? Source: http://www.slideshare.net/mallipeddi/scalable-lamp-development-for-growing-web-apps

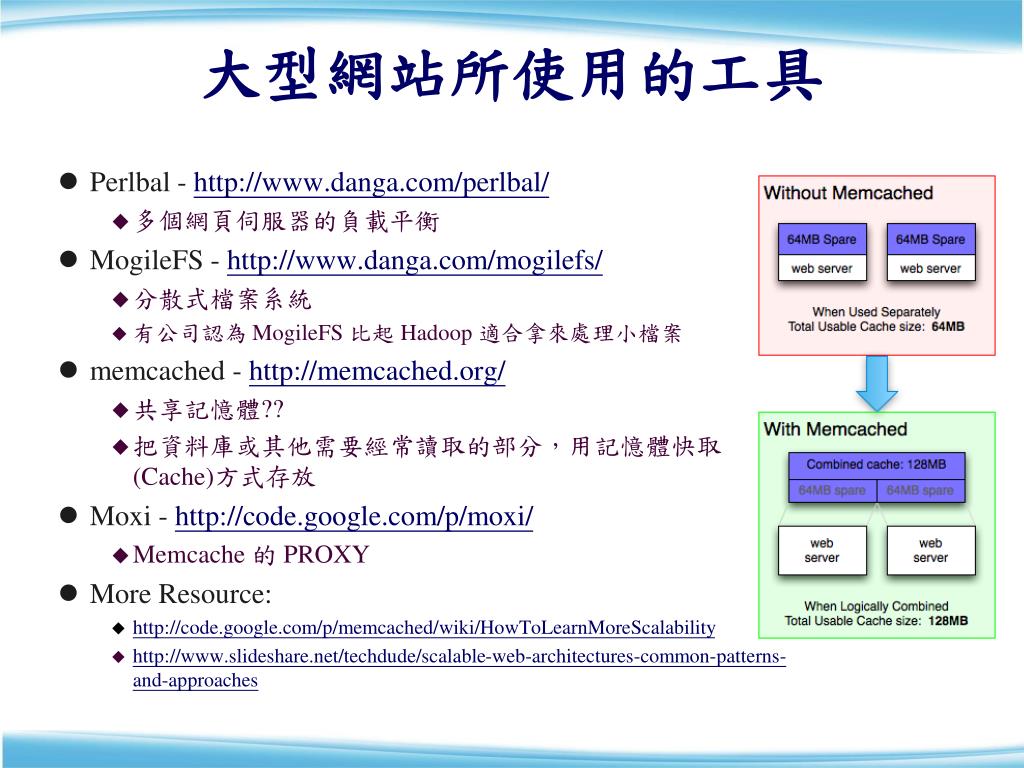

  3. 大型網站所使用的工具 • Perlbal - http://www.danga.com/perlbal/ • 多個網頁伺服器的負載平衡 • MogileFS - http://www.danga.com/mogilefs/ • 分散式檔案系統 • 有公司認為 MogileFS 比起 Hadoop 適合拿來處理小檔案 • memcached - http://memcached.org/ • 共享記憶體?? • 把資料庫或其他需要經常讀取的部分,用記憶體快取(Cache)方式存放 • Moxi - http://code.google.com/p/moxi/ • Memcache 的 PROXY • More Resource: • http://code.google.com/p/memcached/wiki/HowToLearnMoreScalability • http://www.slideshare.net/techdude/scalable-web-architectures-common-patterns-and-approaches

  4. Source: http://mashraqi.com/2008/07/memcached-for-mysql-advanced-use-cases_09.html

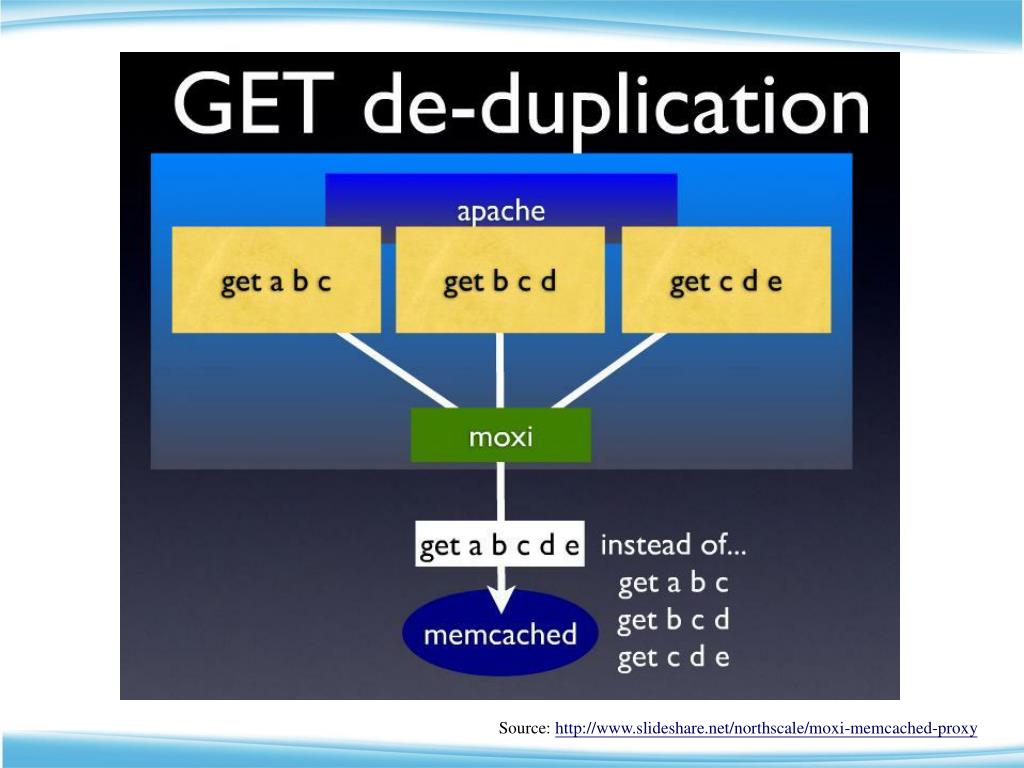

  5. Source: http://www.slideshare.net/northscale/moxi-memcached-proxy

  6. Source: http://www.slideshare.net/northscale/moxi-memcached-proxy

  7. 教育訓練課程 HBase Intro 王耀聰 陳威宇 jazz@nchc.org.tw waue@nchc.org.tw

  8. HBase is a distributed column-oriented database built on top of HDFS.

  9. HBase is .. • A distributed data store that can scale horizontally to 1,000s of commodity servers and petabytes of indexed storage. • Designed to operate on top of the Hadoop distributed file system (HDFS) or Kosmos File System (KFS, aka Cloudstore) for scalability, fault tolerance, and high availability. • Integrated into the Hadoop map-reduce platform and paradigm.

  10. Benefits • Distributed storage • Table-like in data structure • multi-dimensional map • High scalability • High availability • High performance

  11. Who use HBase • Adobe – 內部使用 (Structure data) • Kalooga – 圖片搜尋引擎 http://www.kalooga.com/ • Meetup – 社群聚會網站 http://www.meetup.com/ • Streamy – 成功從 MySQL 移轉到 Hbase http://www.streamy.com/ • Trend Micro – 雲端掃毒架構 http://trendmicro.com/ • Yahoo! – 儲存文件 fingerprint 避免重複 http://www.yahoo.com/ • More - http://wiki.apache.org/hadoop/Hbase/PoweredBy

  12. Backdrop • Started toward by Chad Walters and Jim • 2006.11 • Google releases paper on BigTable • 2007.2 • Initial HBase prototype created as Hadoop contrib. • 2007.10 • First useable HBase • 2008.1 • Hadoop become Apache top-level project and HBase becomes subproject • 2008.10~ • HBase 0.18, 0.19 released

  13. HBase Is Not … • Tables have one primary index, the row key. • No join operators. • Scans and queries can select a subset of available columns, perhaps by using a wildcard. • There are three types of lookups: • Fast lookup using row key and optional timestamp. • Full table scan • Range scan from region start to end.

  14. HBase Is Not …(2) • Limited atomicity and transaction support. • HBase supports multiple batched mutations of single rows only. • Data is unstructured and untyped. • No accessed or manipulated via SQL. • Programmatic access via Java, REST, or Thrift APIs. • Scripting via JRuby.

  15. Why Bigtable? • Performance of RDBMS system is good for transaction processing but for very large scale analytic processing, the solutions are commercial, expensive, and specialized. • Very large scale analytic processing • Big queries – typically range or table scans. • Big databases (100s of TB)

  16. Why Bigtable? (2) • Map reduce on Bigtable with optionally Cascading on top to support some relational algebras may be a cost effective solution. • Sharding is not a solution to scale open source RDBMS platforms • Application specific • Labor intensive (re)partitionaing

  17. Why HBase ? • HBase is a Bigtable clone. • It is open source • It has a good community and promise for the future • It is developed on top of and has good integration for the Hadoop platform, if you are using Hadoop already. • It has a Cascading connector.

  18. HBase benefits than RDBMS • No real indexes • Automatic partitioning • Scale linearly and automatically with new nodes • Commodity hardware • Fault tolerance • Batch processing

  19. Data Model • Tables are sorted by Row • Table schema only define it’s column families . • Each family consists of any number of columns • Each column consists of any number of versions • Columns only exist when inserted, NULLs are free. • Columns within a family are sorted and stored together • Everything except table names are byte[] • (Row, Family: Column, Timestamp)  Value Column Family Row key TimeStamp value

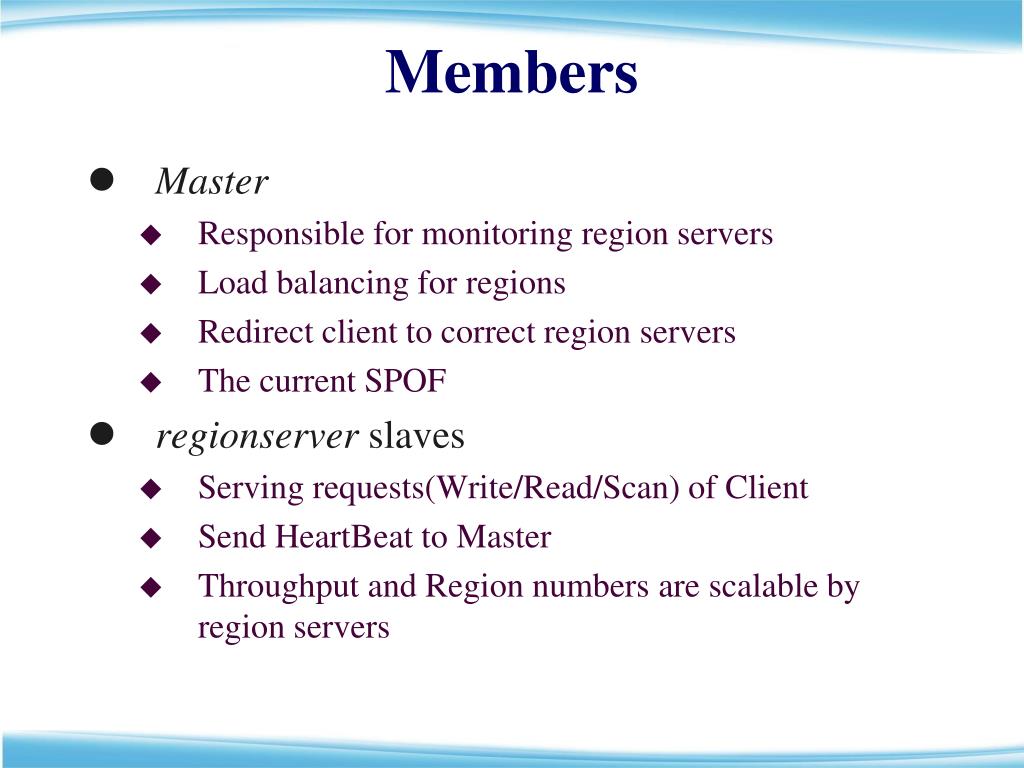

  20. Members • Master • Responsible for monitoring region servers • Load balancing for regions • Redirect client to correct region servers • The current SPOF • regionserver slaves • Serving requests(Write/Read/Scan) of Client • Send HeartBeat to Master • Throughput and Region numbers are scalable by region servers

  21. Regions • 表格是由一或多個 region 所構成 • Region 是由其 startKey 與 endKey 所指定 • 每個 region 可能會存在於多個不同節點上,而且是由數個HDFS 檔案與區塊所構成,這類 region 是由 Hadoop 負責複製

  22. 實際個案討論 – 部落格 • 邏輯資料模型 • 一篇 Blog entry 由 title, date, author, type, text 欄位所組成。 • 一位User由 username, password等欄位所組成。 • 每一篇的 Blog entry可有許多Comments。 • 每一則comment由 title, author, 與 text 組成。 • ERD

  23. 部落格 – HBase Table Schema • Row key • type (以2個字元的縮寫代表)與 timestamp組合而成。 • 因此 rows 會先後依 type 及 timestamp 排序好。方便用 scan () 來存取 Table的資料。 • BLOGENTRY 與 COMMENT的”一對多”關係由comment_title, comment_author, comment_text 等column families 內的動態數量的column來表示 • 每個Column的名稱是由每則 comment的 timestamp來表示,因此每個column family的 column 會依時間自動排序好

  24. Architecture

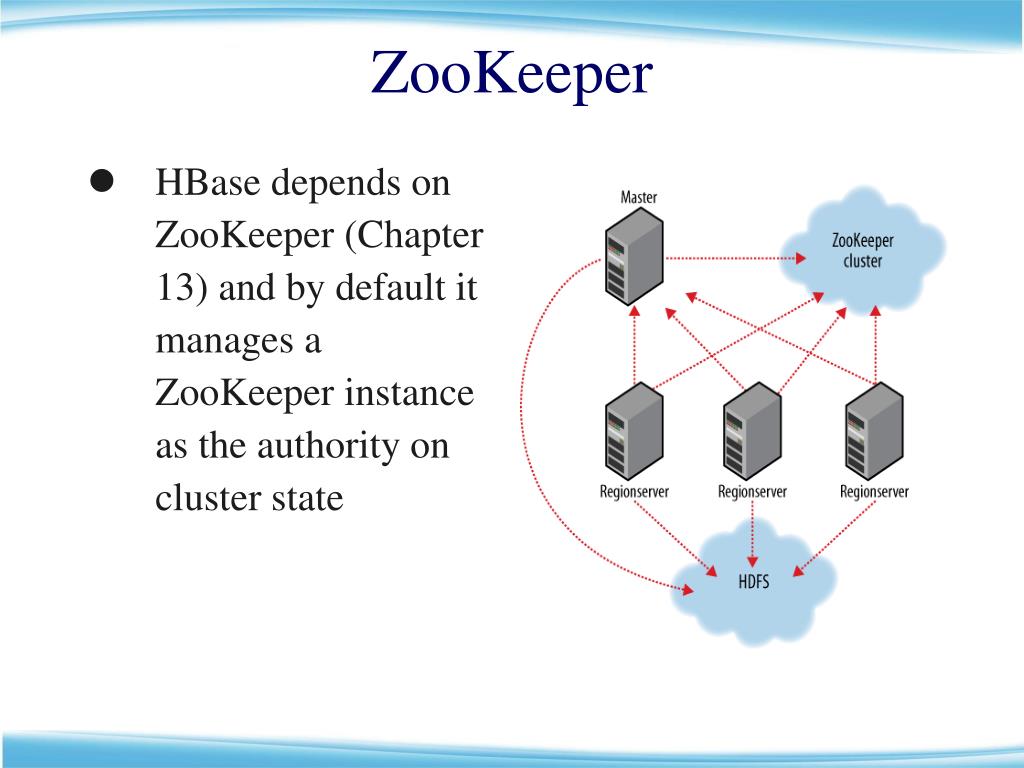

  25. ZooKeeper • HBase depends on ZooKeeper (Chapter 13) and by default it manages a ZooKeeper instance as the authority on cluster state

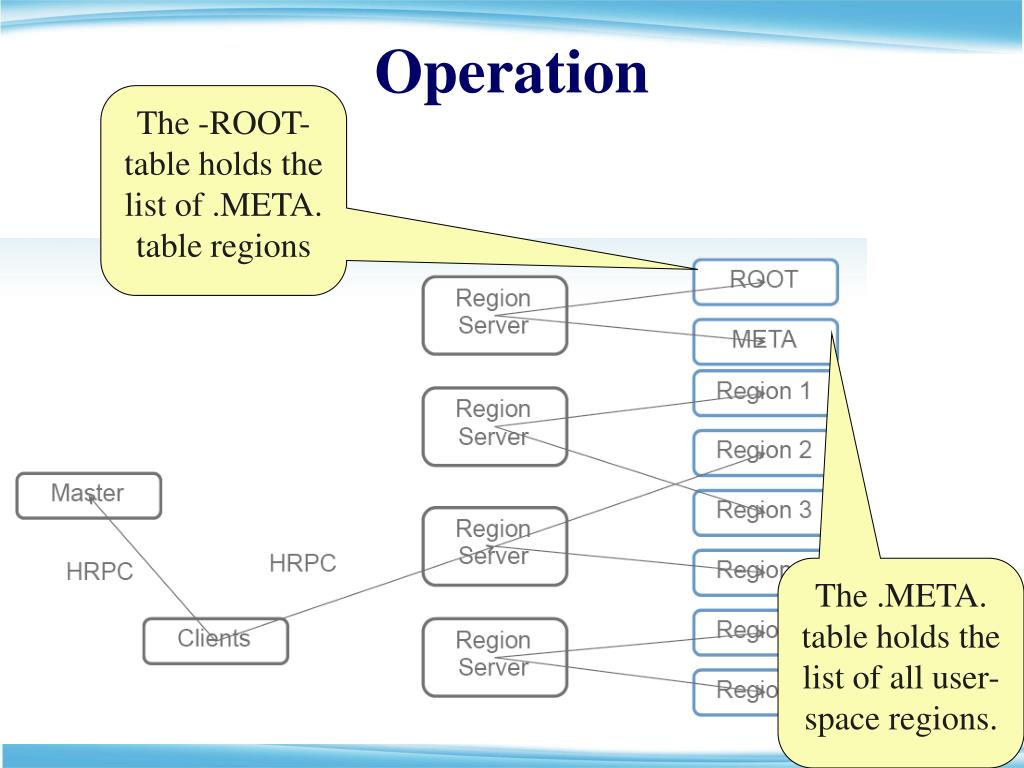

  26. Operation The -ROOT- table holds the list of .META. table regions The .META. table holds the list of all user-space regions.

  27. Installation (1) 啟動Hadoop… $ wget http://ftp.twaren.net/Unix/Web/apache/hadoop/hbase/hbase-0.20.3/hbase-0.20.3.tar.gz$ sudo tar -zxvf hbase-*.tar.gz -C /opt/$ sudo ln -sf /opt/hbase-0.20.3 /opt/hbase$ sudo chown -R $USER:$USER /opt/hbase $ sudo mkdir /var/hadoop/ $ sudo chmod 777 /var/hadoop

  28. Setup (1) $ vim /opt/hbase/conf/hbase-env.sh export JAVA_HOME=/usr/lib/jvm/java-6-sunexport HADOOP_CONF_DIR=/opt/hadoop/confexport HBASE_HOME=/opt/hbaseexport HBASE_LOG_DIR=/var/hadoop/hbase-logsexport HBASE_PID_DIR=/var/hadoop/hbase-pidsexport HBASE_MANAGES_ZK=trueexport HBASE_CLASSPATH=$HBASE_CLASSPATH:/opt/hadoop/conf $ cd /opt/hbase/conf$ cp /opt/hadoop/conf/core-site.xml ./$ cp /opt/hadoop/conf/hdfs-site.xml ./$ cp /opt/hadoop/conf/mapred-site.xml ./

  29. Setup (2) <configuration> <property>    <name> name </name>   <value> value </value>  </property> </configuration>

  30. Startup & Stop • 全部啟動/關閉 $ bin/start-hbase.sh $ bin/stop-hbase.sh • 個別啟動/關閉 $ bin/hbase-daemon.sh start/stop zookeeper $ bin/hbase-daemon.sh start/stop master $ bin/hbase-daemon.sh start/stop regionserver $ bin/hbase-daemon.sh start/stop thrif $ bin/hbase-daemon.sh start/stop rest

  31. Testing (4) $ hbase shell > create 'test', 'data' 0 row(s) in 4.3066 seconds > list test 1 row(s) in 0.1485 seconds > put 'test', 'row1', 'data:1', 'value1' 0 row(s) in 0.0454 seconds > put 'test', 'row2', 'data:2', 'value2' 0 row(s) in 0.0035 seconds > put 'test', 'row3', 'data:3', 'value3' 0 row(s) in 0.0090 seconds > scan 'test' ROW COLUMN+CELL row1 column=data:1, timestamp=1240148026198, value=value1 row2 column=data:2, timestamp=1240148040035, value=value2 row3 column=data:3, timestamp=1240148047497, value=value3 3 row(s) in 0.0825 seconds > disable 'test' 09/04/19 06:40:13 INFO client.HBaseAdmin: Disabled test 0 row(s) in 6.0426 seconds > drop 'test' 09/04/19 06:40:17 INFO client.HBaseAdmin: Deleted test 0 row(s) in 0.0210 seconds > list 0 row(s) in 2.0645 seconds

  32. Connecting to HBase • Java client • get(byte [] row, byte [] column, long timestamp, int versions); • Non-Java clients • Thrift server hosting HBase client instance • Sample ruby, c++, & java (via thrift) clients • REST server hosts HBase client • TableInput/OutputFormat for MapReduce • HBase as MR source or sink • HBase Shell • JRuby IRB with “DSL” to add get, scan, and admin • ./bin/hbase shell YOUR_SCRIPT

  33. Thrift $ hbase-daemon.sh start thrift $ hbase-daemon.sh stop thrift • a software framework for scalable cross-language services development. • By facebook • seamlessly between C++, Java, Python, PHP, and Ruby.  • This will start the server instance, by default on port 9090 • The other similar project “rest”

  34. References • <趨勢科技>HBase 介紹 • http://www.wretch.cc/blog/trendnop09/21192672 • Hadoop: The Definitive Guide • Book, by Tom White • HBase Architecture 101 • http://www.larsgeorge.com/2009/10/hbase-architecture-101-storage.html
