EXAMPLE 2

The endpoints of FG are F (–1, 2) and G (1, 2) . Reflect the segment in the line y = x . Graph the segment and its image. EXAMPLE 2. Graph a reflection in y = x.

tarak
Download Presentation

EXAMPLE 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

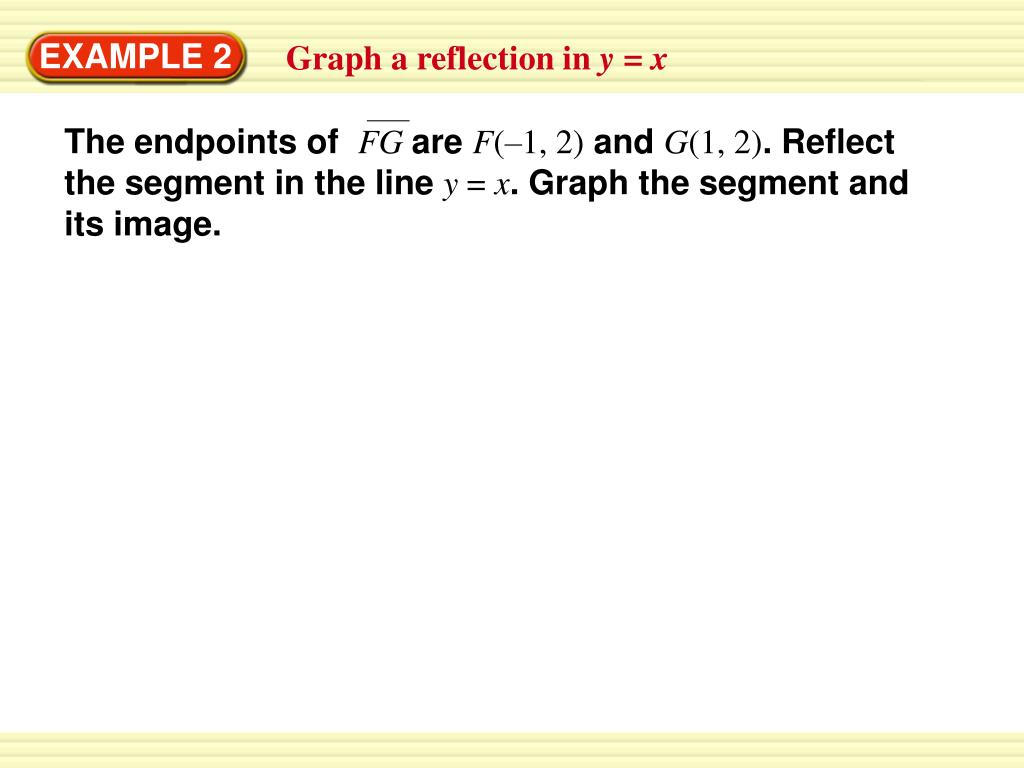

  1. The endpoints of FG are F(–1, 2) and G(1, 2). Reflect the segment in the line y = x. Graph the segment and its image. EXAMPLE 2 Graph a reflection in y = x

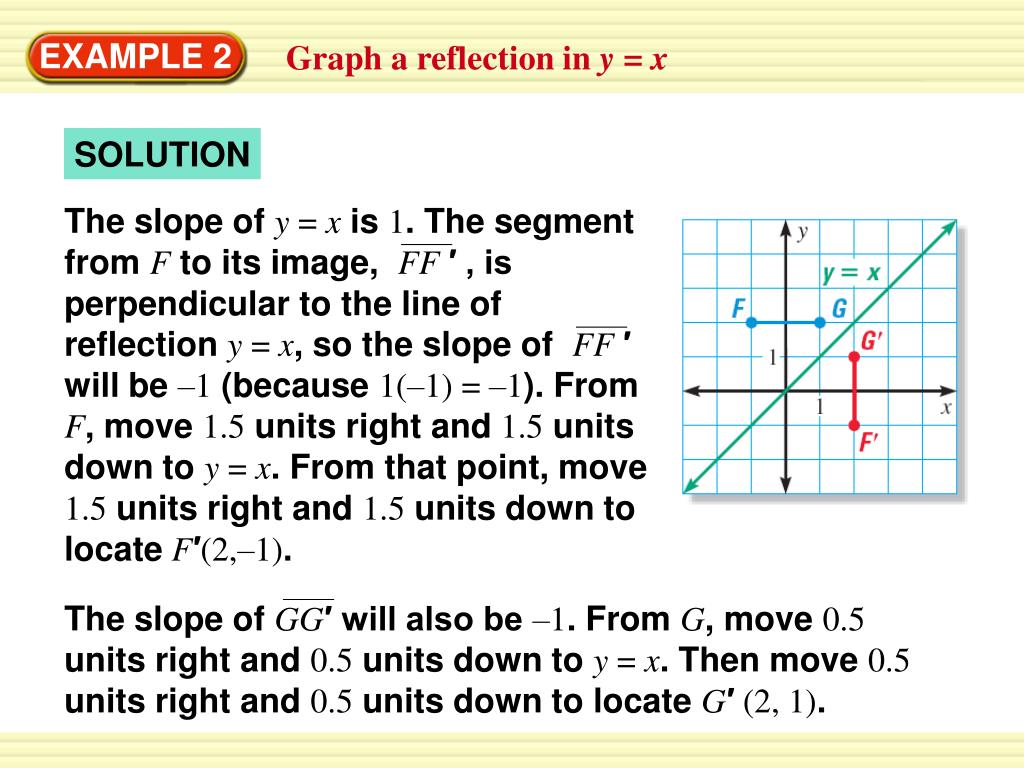

  2. The slope of GG′ will also be –1. From G, move 0.5 units right and 0.5 units down to y = x. Then move 0.5 units right and 0.5 units down to locate G′(2, 1). The slope of y = xis 1. The segment from Fto its image, FF ′ , is perpendicular to the line of reflection y = x, so the slope of FF ′ will be –1 (because 1(–1) = –1). FromF, move 1.5 units right and 1.5 units down to y = x. From that point, move 1.5 units right and 1.5 units down to locateF′(2,–1). EXAMPLE 2 Graph a reflection in y = x SOLUTION

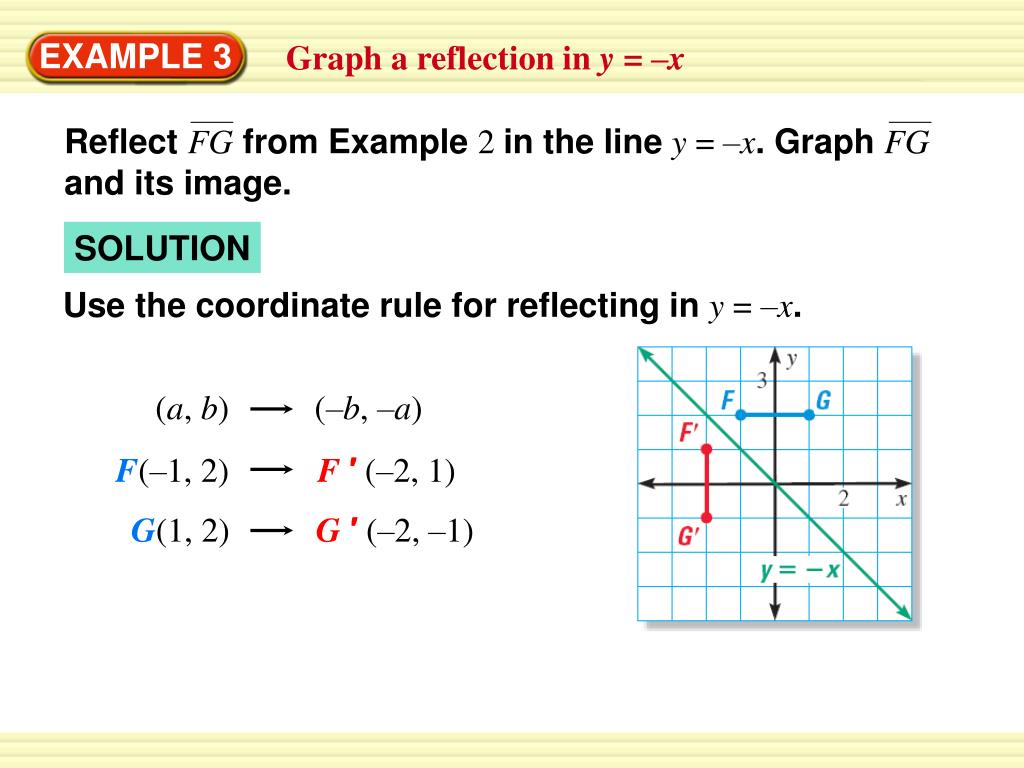

  3. Reflect FGfrom Example 2 in the line y = –x. Graph FGand its image. (a, b) (–b, –a) F(–1, 2) F ′(–2, 1) G(1, 2) G ′(–2, –1) EXAMPLE 3 Graph a reflection in y = –x SOLUTION Use the coordinate rule for reflecting in y = –x.

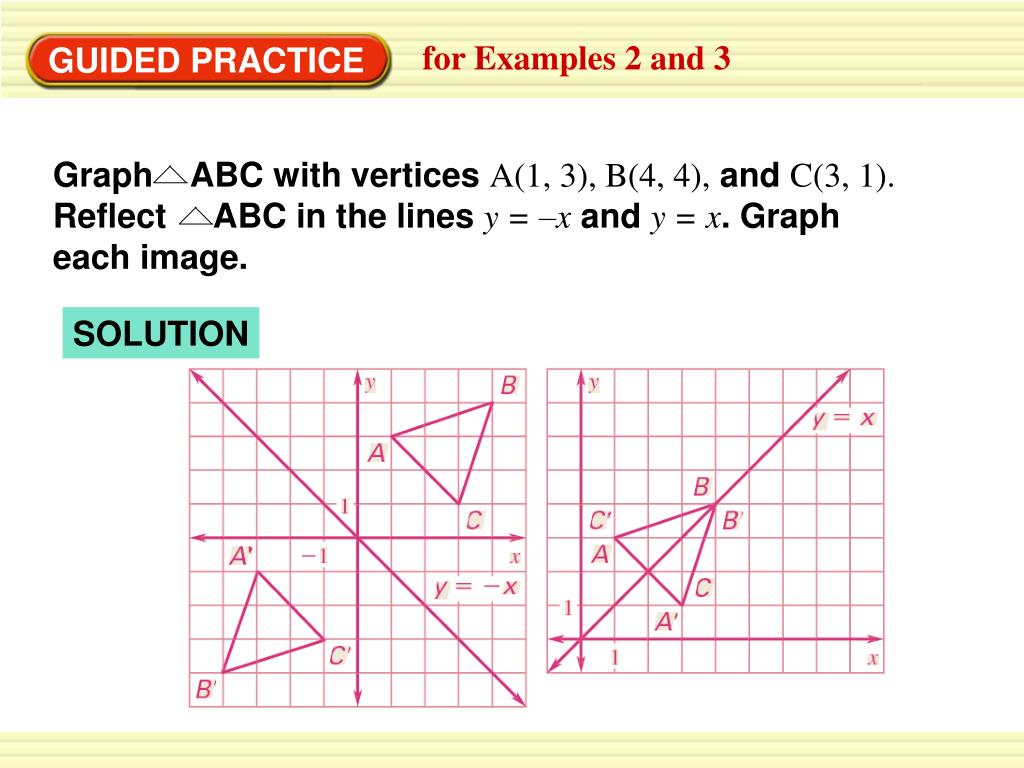

  4. SOLUTION for Examples 2 and 3 GUIDED PRACTICE Graph ABC with vertices A(1, 3), B(4, 4), and C(3, 1). Reflect ABC in the lines y = –x and y = x. Graph each image.

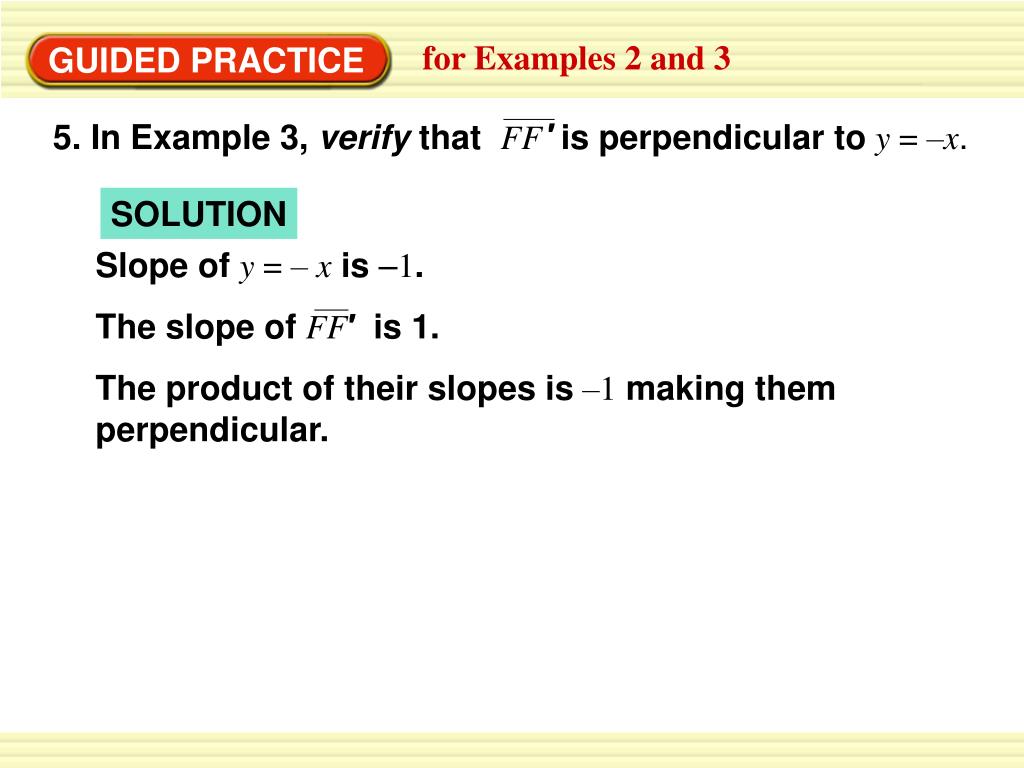

  5. Slope of y = – xis –1. The slope of FF′ is 1. The product of their slopes is –1 making them perpendicular. for Examples 2 and 3 GUIDED PRACTICE ′ 5. In Example 3, verify that FF is perpendicular to y = –x. SOLUTION
