Presentation Transcript


Multiple data transfer instructions

Multiple data transfer instructions

ARM also supports multiple loads and stores:

LDM/LDMIA/LDMFD: load multiple registers starting from

[base register],

update base register afterwards

LDM <Rn>!,<registers>

LDM <Rn>,<registers>

STM/STMIA/STMEA: store multiple registers starting at

[base register],

update base register after


Multiple data transfer instructions1

Multiple data transfer instructions

  • General syntax:

  • op{cond}<address-mode> <rn>{!}, <reg-list>{^}

    • op : LDM, STM

    • Cond: an optional condition code

    • Address-mode:

  • iaIncrementaddress after each transfer

    • ib– Incrementaddress before each transfer.

    • da – Decrement address aftereach transfer

    • db– Decrementaddress before each transfer

      • fd – full descending stack

      • ed – emptydescending stack

      • fa – fullascending stack

      • ea – empty ascending stack.


Multiple data transfer instructions2

Multiple data transfer instructions

  • Rn is the base register containing the initial memory address for the transfer.

  • ! is an optional suffix.

    • - If ! is present, the final address is written back into Rn.

  • reg-list

    • a list of registers to be loaded or stored.

    • can be a comma-separated list or an rx-ry style range.

  • may contain any or all of r0 - r15

  • the registers are always loaded in order regardless to how the registers are ordered in the list.


  • Multiple data transfer instructions3

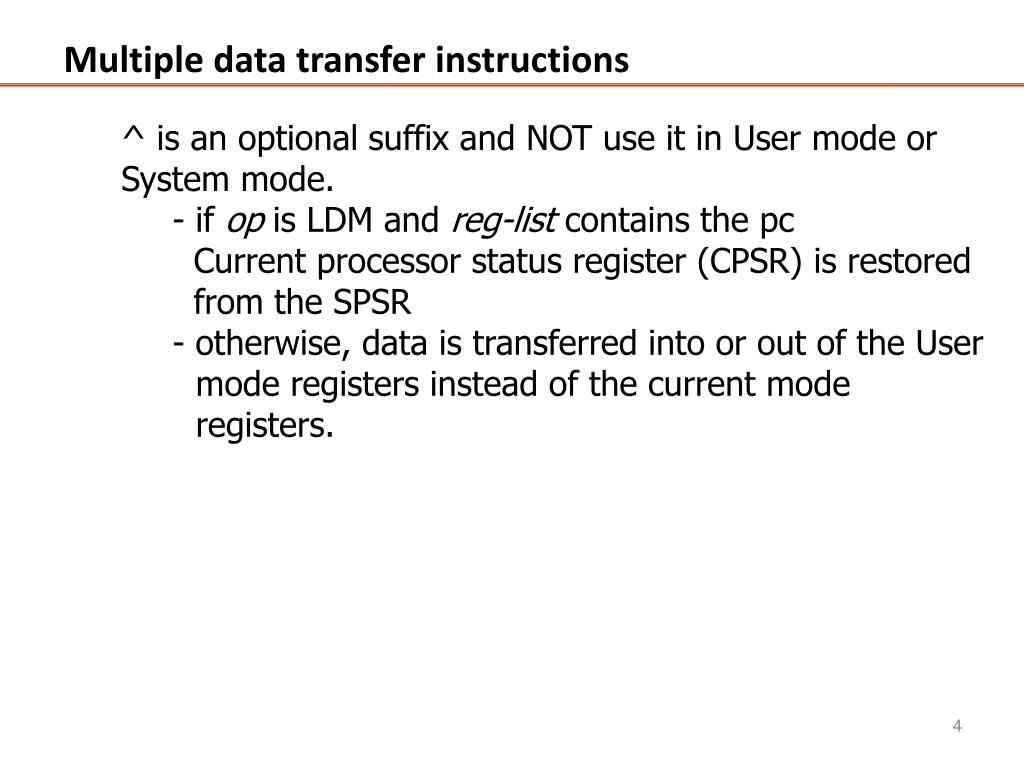

    Multiple data transfer instructions

    • ^ is an optional suffix and NOT use it in User mode or

    • System mode.

      • - if op is LDM and reg-list contains the pc

    • Current processor status register (CPSR) is restored

      • from the SPSR

    • - otherwise, data is transferred into or out of the User

    • mode registers instead of the current mode

    • registers.


    Multiple data transfer instructions4

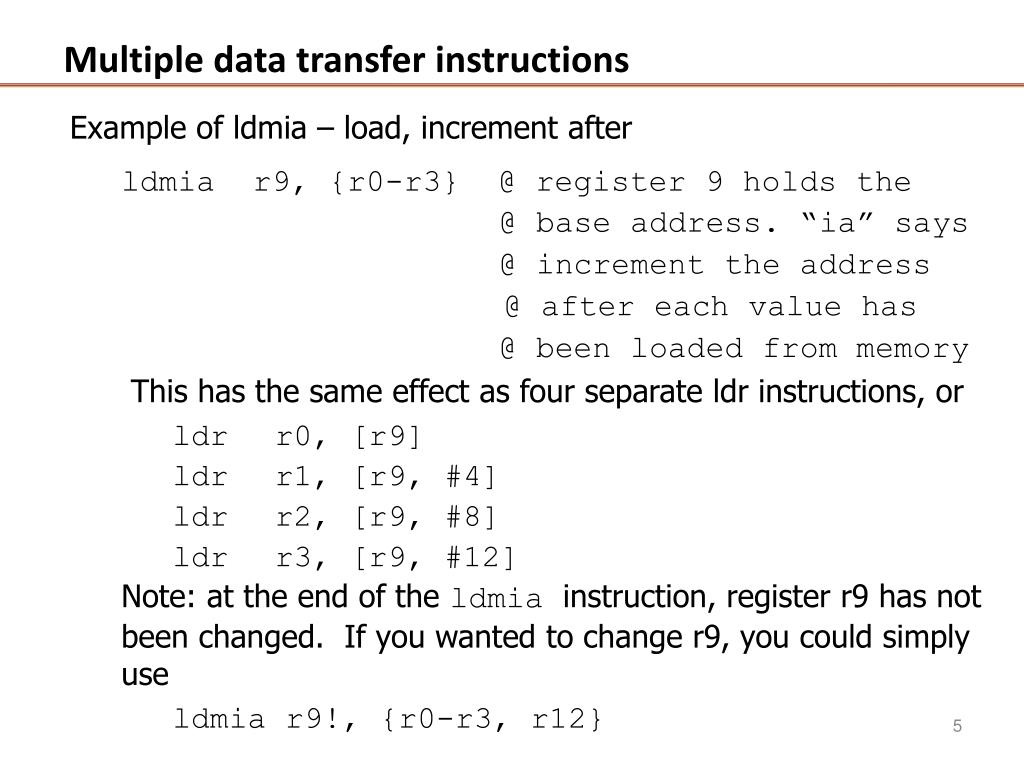

    Multiple data transfer instructions

    • Example of ldmia – load, increment after

    • ldmia r9, {r0-r3} @ register 9 holds the

    • @ base address. “ia” says

    • @ increment the address

    • @ after each value has

    • @ been loaded from memory

      • This has the same effect as four separate ldr instructions, or

        • ldrr0, [r9]

        • ldrr1, [r9, #4]

        • ldrr2, [r9, #8]

        • ldrr3, [r9, #12]

      • Note: at the end of the ldmiainstruction, register r9 has not been changed. If you wanted to change r9, you could simply use

        • ldmia r9!, {r0-r3, r12}


    Multiple register data transfer instuctions

    Multiple register data transfer instuctions

    • ldmia – Example 2

      • ldmia r9, {r0-r3, r12}

        • Load words addressed by r9 into r0, r1, r2, r3, and r12

        • Increment r9 after each load.

    • Example 3

    • ldmia r9, {r5, r3, r0-r2, r14}

      • load words addressed by r9 into registers r0, r1, r2, r3, r5, and r14.

      • Increment r9 after each load.

    • ldmib, ldmda, ldmdb work similar to ldmia

    • Stores work in an analogous manner to load instructions


    Multiple register data transfer instuctions1

    Multiple register data transfer instuctions

    • Common usage of multiple data transfer instructions

    • Stack

      • Function calls

      • Context switches

      • Exception handlers


    Multiple register data transfer instuctions2

    Multiple register data transfer instuctions

    • Stack

    • When making nested subroutine calls, we need to store the current state of the processor.

    • The multiple data transfer instructions provide a mechanism for storing state on the runtime stack (pointed to by the stack pointer, R13 or sp)

    • stack addressing:

      • – stacks can ascend or descend memory

      • – stacks can be full or empty

      • – ARM multiple register transfers support all forms of the

      • stack


    Multiple register data transfer instuctions3

    Multiple register data transfer instuctions

    • Stack

      • Ascending stack: grows up

      • Descending stack: grows down

    • A stack pointer (sp) holds the address of the current top of the stack

      • Fullstack: pointing to the last valid data item pushed onto the stack

      • Emptystack: pointing to the vacant slot where the next data item will be placed


    Multiple register data transfer instuctions4

    Multiple register data transfer instuctions

    • Stack Processing

    • ARM support for all four forms of stacks

      • Full ascending (FA): grows up; stack pointer points to the highest address containing a valid item

      • Empty ascending (EA): grows up; stack pointer points to the first empty location

      • Full descending (FD): grows down; stack pointer points to the lowest address containing a valid data

      • Empty descending (ED): grows down; stack pointer points to the first empty location below the stack


    Stack last in first out memory

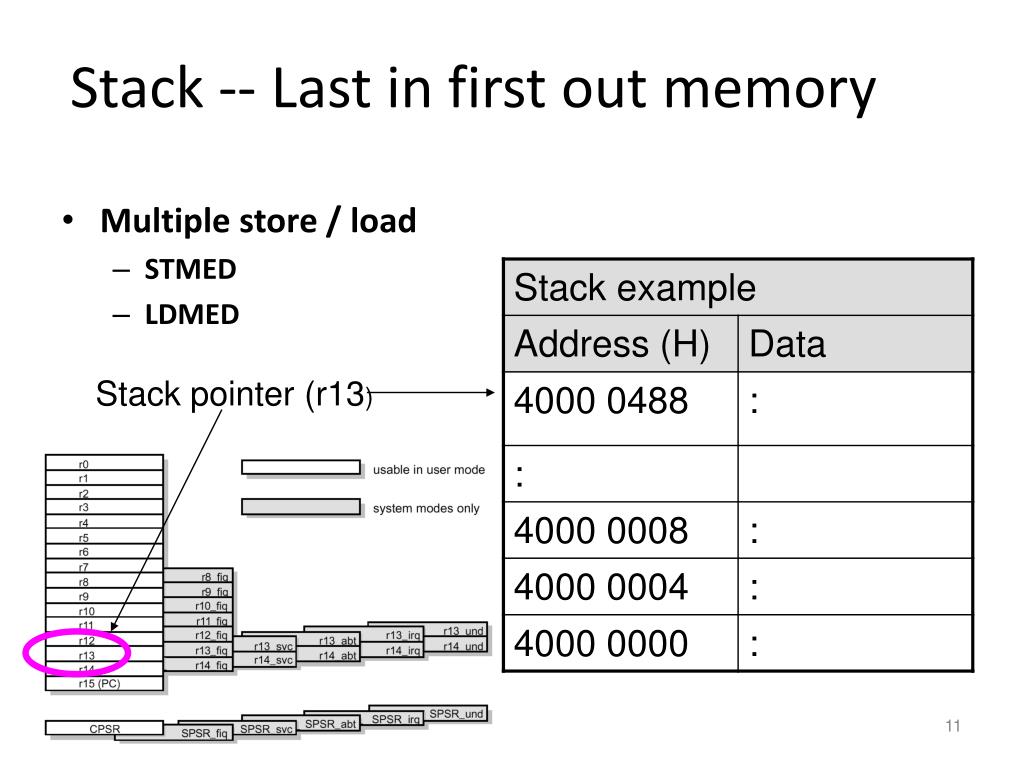

    Stack -- Last in first out memory

    • Multiple store / load

      • STMED

      • LDMED

    Stack pointer (r13)


    Stack push operation st ore m ultiple e mpty d escending stmed instruction

    Stack Push operationStore multiple empty descending; STMED instruction

    “Empty” means Stack Pointer is

    pointing to an empty location

    • SUB1STMEDr13!, {r0-r2, r14}@ push

    • ;work & link registers

    • It stores data on stack and decreases r13

    New

    Old

    Old

    New


    Stack pop operation l oa d m ultiple e mpty d escending ldmed instruction

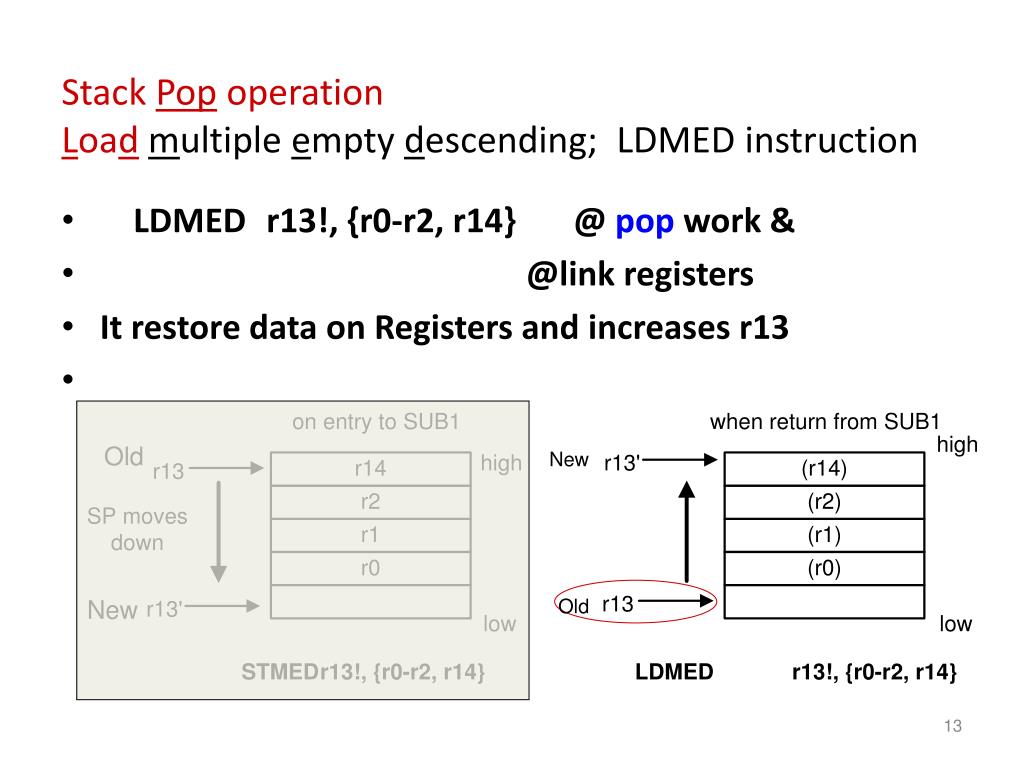

    Stack Pop operationLoadmultiple empty descending; LDMED instruction

    • LDMEDr13!, {r0-r2, r14}@ pop work &

    • @link registers

    • It restore data on Registers and increases r13

    Old

    New

    New

    Old


    Nested subroutines

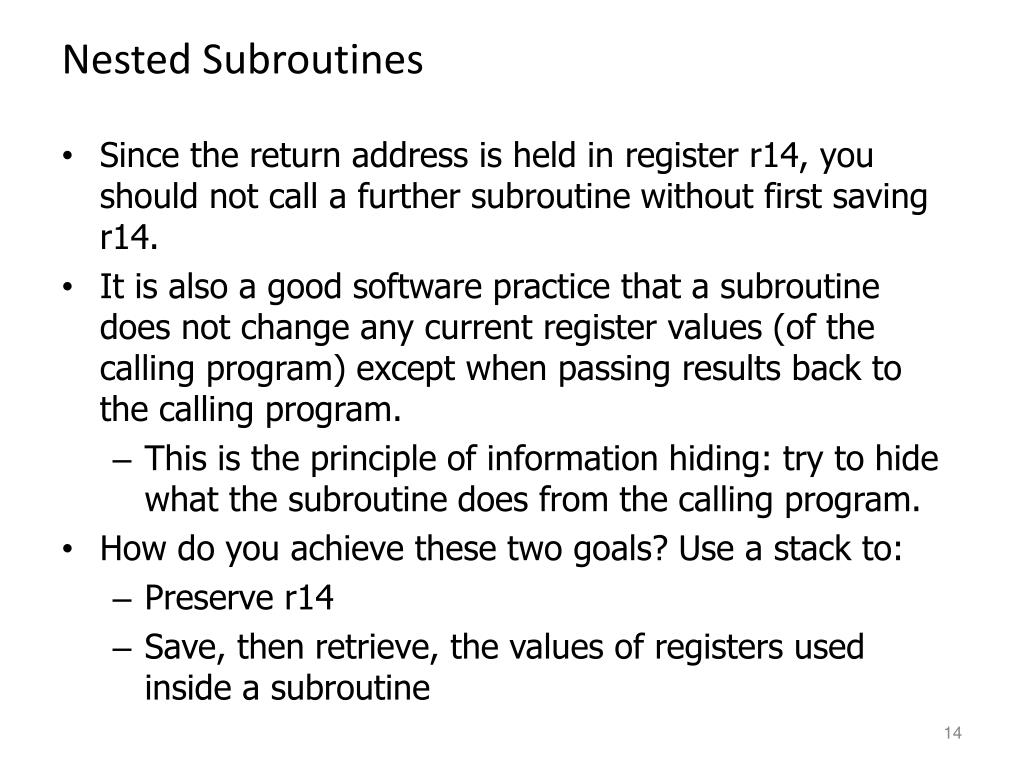

    Nested Subroutines

    • Since the return address is held in register r14, you should not call a further subroutine without first saving r14.

    • It is also a good software practice that a subroutine does not change any current register values (of the calling program) except when passing results back to the calling program.

      • This is the principle of information hiding: try to hide what the subroutine does from the calling program.

    • How do you achieve these two goals? Use a stack to:

      • Preserve r14

      • Save, then retrieve, the values of registers used inside a subroutine


    Details of how to p reserve data inside a subroutine using stack

    Details of how to preserve data inside a subroutine using STACK

    BLSUB1

    …..

    SUB1STMEDr13!, {r0-r2, r14}@ push work & link registers

    …. @stmed=store multiple empty descending

    BLSUB2@ jump to a nested subroutine

    LDMEDr13!, {r0-r2, r14}@ pop work & link registers

    MOVpc, r14@ return to calling program

    New

    Old

    Old

    New


    Stm e d store multiple e mpty descending ldm e d load multiple e mpty descending

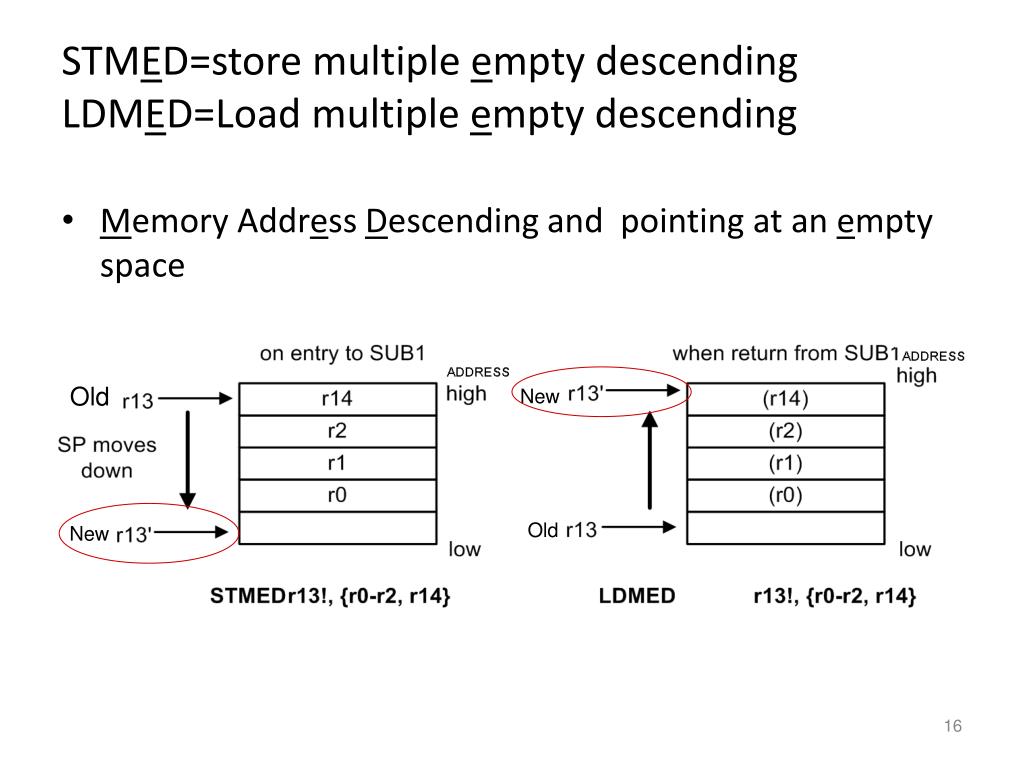

    STMED=store multiple empty descendingLDMED=Load multiple empty descending

    • Memory Address Descending and pointing at an empty space

    Old

    New

    Old

    New


    Exercise 2

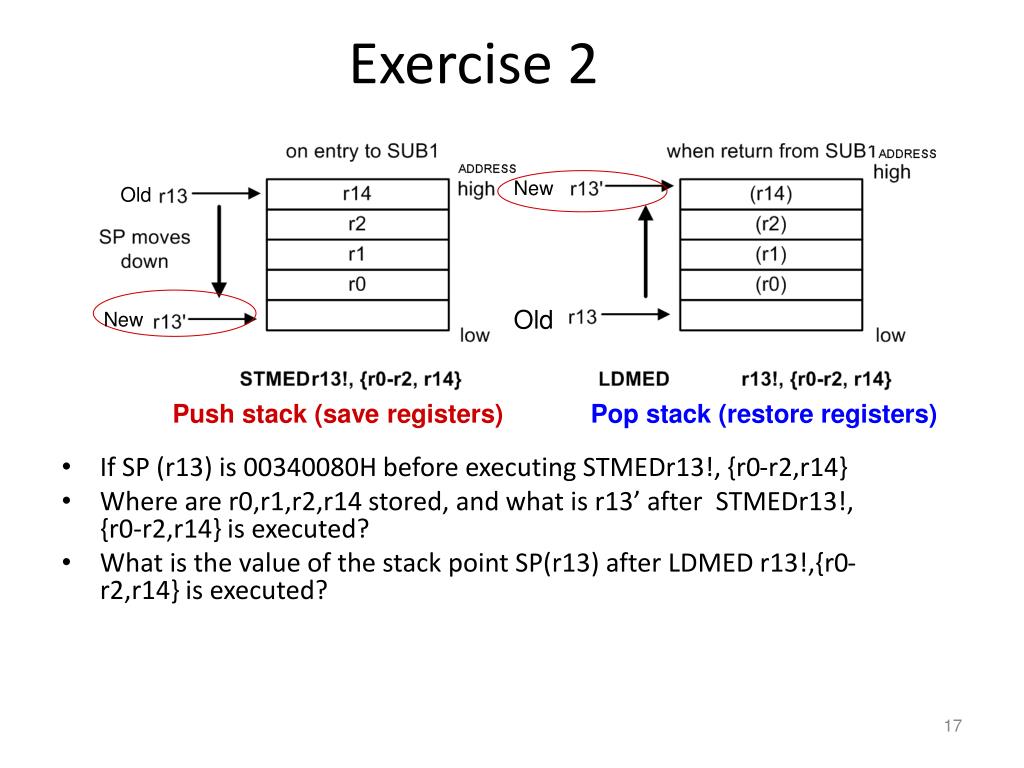

    Exercise 2

    New

    Old

    • If SP (r13) is 00340080H before executing STMEDr13!, {r0-r2,r14}

    • Where are r0,r1,r2,r14 stored, and what is r13’ after STMEDr13!, {r0-r2,r14} is executed?

    • What is the value of the stack point SP(r13) after LDMED r13!,{r0-r2,r14} is executed?

    Old

    New

    Push stack (save registers)

    Pop stack (restore registers)


    Different versions of stm store multiple memory

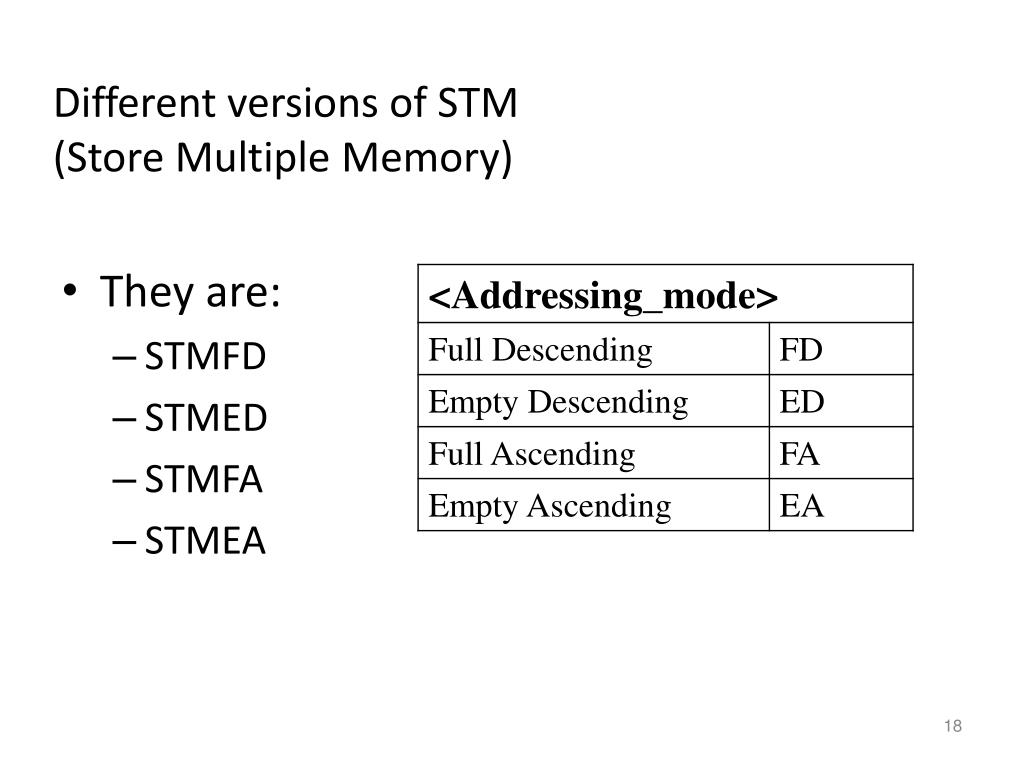

    Different versions of STM (Store Multiple Memory)

    • They are:

      • STMFD

      • STMED

      • STMFA

      • STMEA


    Difference between e mpty and f ull in stm e d and stm f d of stack push operations

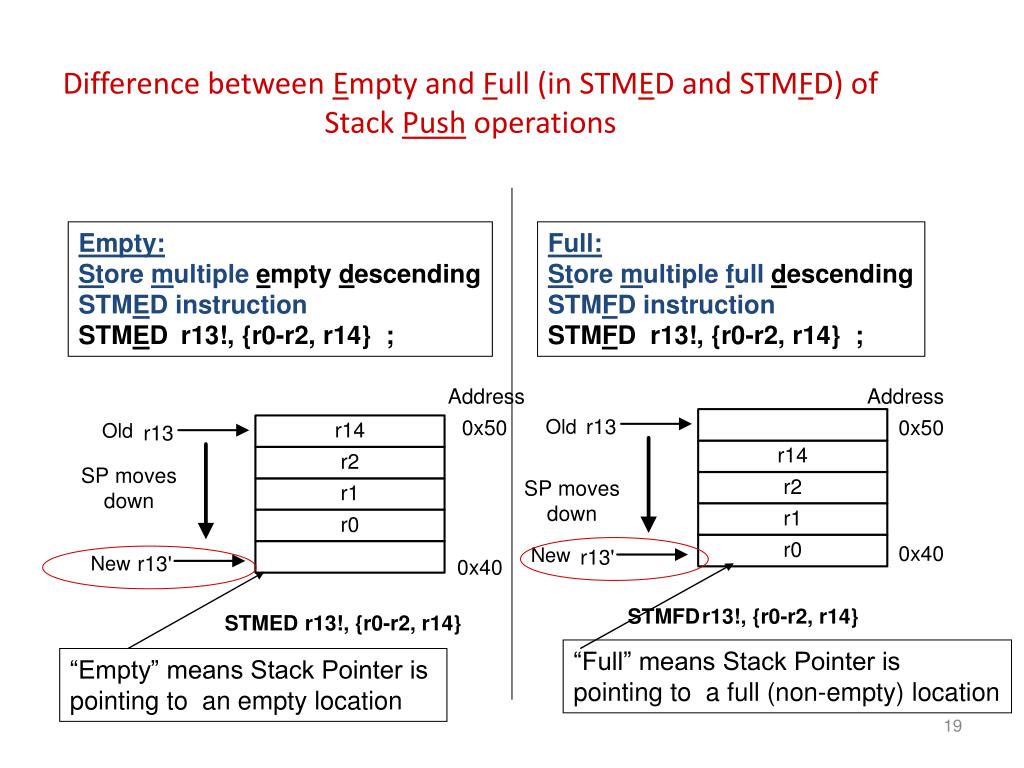

    Difference between Empty and Full (in STMED and STMFD) of Stack Push operations

    Empty:

    Store multiple empty descendingSTMED instruction

    STMEDr13!, {r0-r2, r14};

    Full:

    Store multiple fulldescendingSTMFD instruction

    STMFDr13!, {r0-r2, r14};

    Old

    Old

    New

    New

    “Full” means Stack Pointer is

    pointing to a full (non-empty) location

    “Empty” means Stack Pointer is

    pointing to an empty location


    Difference between a scending and d escending in stmf a and stmf d of stack push operations

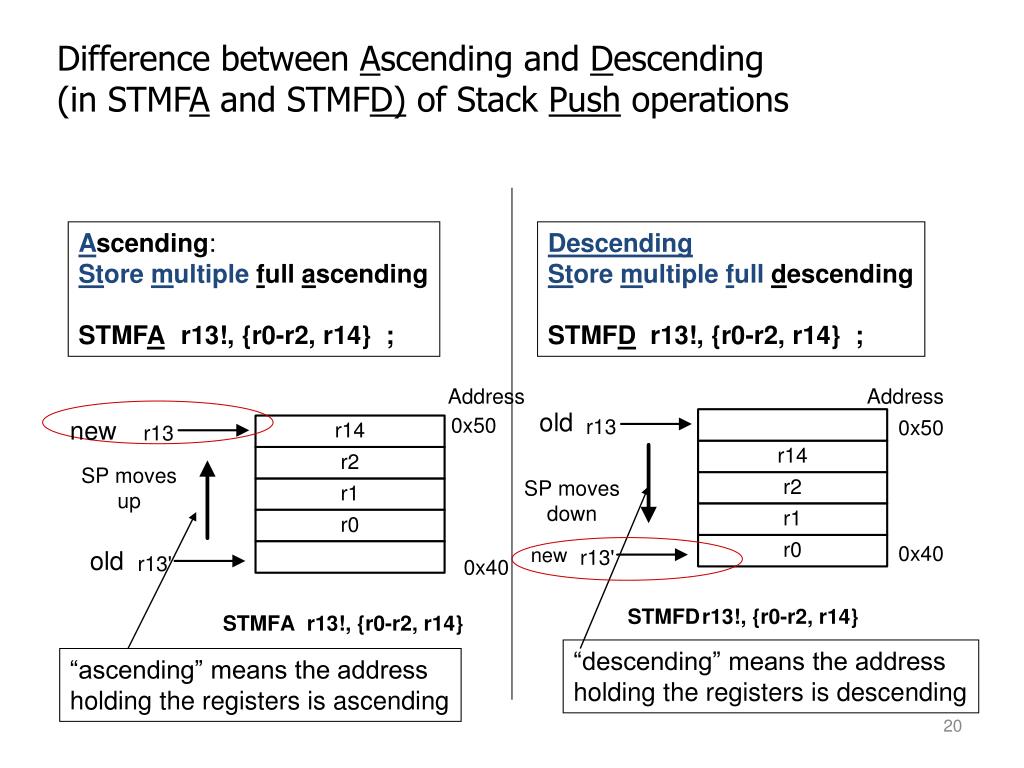

    Difference between Ascending and Descending(in STMFA and STMFD) of Stack Push operations

    Ascending:

    Store multiple full ascending

    STMFAr13!, {r0-r2, r14};

    Descending

    Store multiple fulldescending

    STMFDr13!, {r0-r2, r14};

    old

    new

    new

    old

    “descending” means the address

    holding the registers is descending

    “ascending” means the address

    holding the registers is ascending
