  1. SISTEMA URINARIA Ginus Partadiredja Bagian Fisiologi FK UGM

  2. SISTEMA URINARIA • Fungsi ginjal (ren) • Anatomi ginjal • Proses produksi urine • Filtrasi oleh glomerulus • Reabsorbsi oleh tubulus • Sekresi oleh tubulus • Evaluasi fungsi ginjal • Transportasi, penyimpanan, dan ekskresi urine

  3. Fungsi ginjal: • Regulasi komposisi ion darah • Regulasi pH darah • Regulasi volume darah • Regulasi tekanan darah • Pemeliharaan osmolaritas darah (300 mOsm/l) • Produksi hormon (calcitriol & erythropoetin) • Regulasi tingkat glukosa darah • Ekskresi sampah benda asing

  4. Anatomi Ginjal • Anatomi eksternal: • Retroperitoneal • Renal fascia • Adipose capsule • Renal capsule • Renal hilum http://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG http://www.netterimages.com/images/vtn/000/000/002/2122-150x150.jpg

  5. Nephroptosis (Ginjal melayang/ mengambang) • Orang amat kurus  kapsula adiposa & fasia renalis berkurang  ginjal turun dari posisi normal • Akibat: ureter tertekuk  blokade urine & sakit • Insidensi: 1 dari 4 orang  kelemahan jaringan fibrosa • Perempuan 10 X > Laki-laki

  6. Anatomi Ginjal • Anatomi internal • Cortex renalis • Medulla renalis • Pyramid renalis • Papilla renalis • Collumna renalis • Ductus papillaris • Calyx minor • Calyx major • Pelvis renalis • Sinus renalis http://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG

  7. http://kidney.niddk.nih.gov/kudiseases/pubs/solitarykidney/images/nephronkidA.gifhttp://kidney.niddk.nih.gov/kudiseases/pubs/solitarykidney/images/nephronkidA.gif

  8. http://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DGhttp://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG

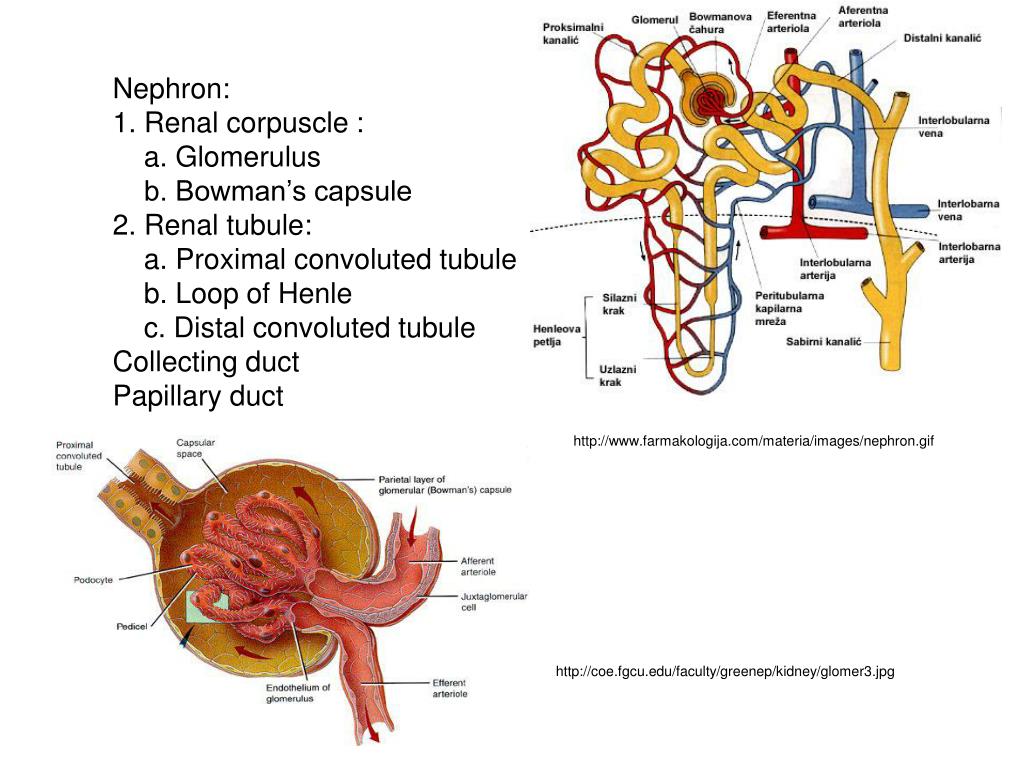

  9. Nephron: 1. Renal corpuscle : a. Glomerulus b. Bowman’s capsule 2. Renal tubule: a. Proximal convoluted tubule b. Loop of Henle c. Distal convoluted tubule Collecting duct Papillary duct http://www.farmakologija.com/materia/images/nephron.gif http://coe.fgcu.edu/faculty/greenep/kidney/glomer3.jpg

  10. Vaskularisasi Ginjal • Renal arteryRenal vein • Segmental arteries • Interlobar arteriesInterlobar veins • Arcuate arteriesArcuate veins • Interlobular arteriesInterlobular veins Peritubular venules • Afferent arterioles Peritubular capillaries • Glomerular capillariesEfferent arterioles Vasa recta http://www.geocities.com/biology_4e/cross_section_of_kidney.jpg

  11. http://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DGhttp://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG

  12. Ginjal = 0.5% total body mass • 20-25% cardiac output istirahat via arteri renalis • Renal blood flow = 1200 mL/ menit

  13. PROSES PRODUKSI URINE • Filtrasi oleh glomerulus • Reabsorbsi oleh tubulus • Sekresi oleh tubulus http://www.colorado.edu/eeb/web_resources/cartoons/nephr.gif

  14. Filtrasi oleh Glomerulus • Filtrat glomerular = 150 l (F)/ 180 l (M); Fraksi filtrasi (16-20%); 99% filtrat direabsorbsi (ekskresi 1-2 l) • Net filtration pressure (NFP) • Glomerular blood hydrostatic pressure (GBHP) = 55 mmHg • Capsular hydrostatic pressure (CHP) = 15 mmHg • Blood colloid osmotic pressure (BCOP) = 30 mmHg NFP = GBHP – CHP – BCOP = 10 mmHg

  15. Glomerular Filtration Rate (GFR): jumlah filtrat • terbentuk di dalam corpusculi renalis per menit = • 125 ml/min (M) atau 105 ml/min (F) • Regulasi GFR • Autoregulasi renal • Mekanisme myogenik • Umpan balik tubuloglomerular • Regulasi saraf simpatis • Regulasi hormonal • Angiotensin II • Atrial natriuretic peptide (ANP)

  16. Autoregulasi renal • Mekanisme myogenik: • BP  RBF  GFR  regangan arteriola afferent  • kontraksi otot arteriola afferent  lumen menyempit  • GFR ke tingkat semula • Umpan balik tubuloglomerular: • BP  GFR  cairan lewat cepat di tubulus  • rebasorbsi Na, Cl, air di PCT & loop of Henle  • deteksi oleh macula densa  inhibisi sekresi NO  • arteriola afferen konstriksi  RBF  GFR ke normal

  17. http://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DGhttp://images.google.co.id/imgres?imgurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg&imgrefurl=http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/Urinary%2520System.htm&h=490&w=800&sz=135&hl=id&start=3&tbnid=PjiUmIL-b7BE7M:&tbnh=88&tbnw=143&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG

  18. 2. Regulasi saraf simpatis  norepinephrine • istirahat: stimulasi rendah arteriola a & e dilatasi  autoregulasi • renal & GFR tetap • stimulasi moderat: arteriola a & e konstriksi  restriksi aliran darah masuk & keluar glomerulus  GFR sedikit • stimulasi kuat: vasokonstriksi arteriola a > e  RBF  GFR  urine •  aliran darah ke jaringan lain

  19. Prinsip-prinsip Reabsorbsi & Sekresi Tubulus • Reabsorbsi: 99% air dikembalikan ke darah • Tubulus proximalis berperan besar dalam reabsorbsi • Reabsorbsi: Na+, K+, Ca2+, Cl- , HCO3- , HPO42- • Protein & peptida  reabsorbsi pinositosis • Tubulus distalis  “fine tuning” reabsorbsi • Sekresi: H+, K+, NH4+, kreatinin, obat-obatan (penisilin) • Sekresi H+ kontrol pH darah • Sekresi substansi sampah • Rute reabsorbsi: • Paraseluler & Transeluler • Mekanisme transport: • Transport aktif primer (hidrolisis ATP) • Transport aktif sekunder (symporters & antiporters) • Transport maksimum (mg/min)  glukosa darah > 200 mg/ml

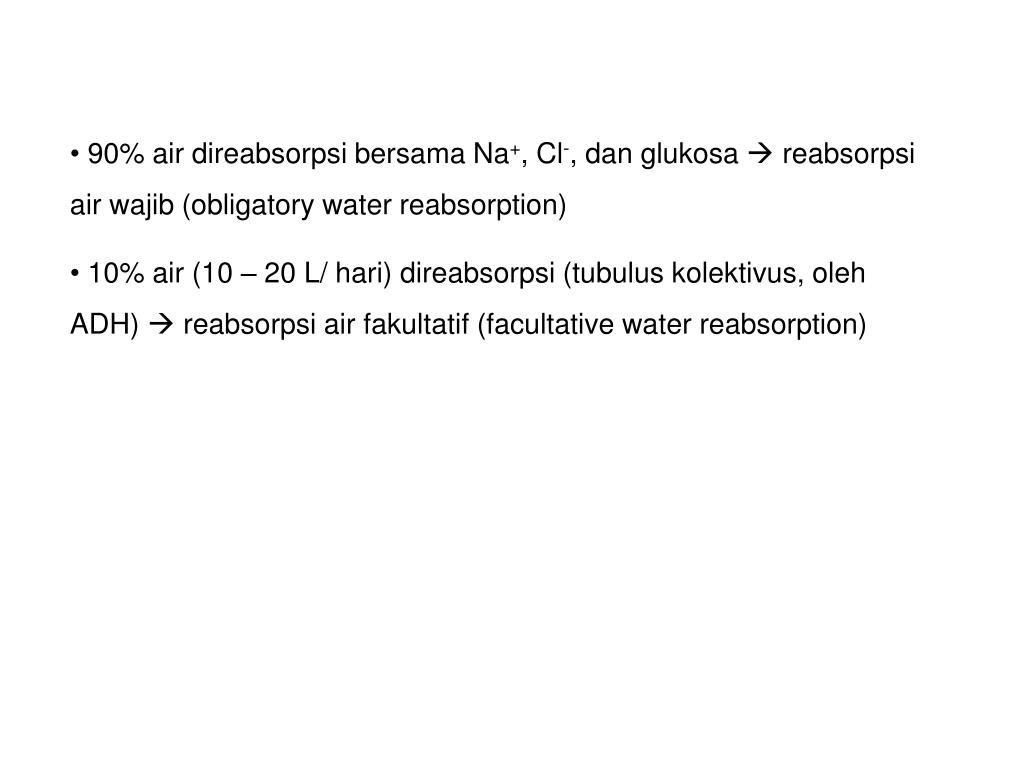

  20. 90% air direabsorpsi bersama Na+, Cl-, dan glukosa  reabsorpsi air wajib(obligatory water reabsorption) • 10% air (10 – 20 L/ hari) direabsorpsi (tubulus kolektivus, oleh ADH)  reabsorpsi air fakultatif (facultative water reabsorption)

  21. Substansi Terfiltrasi, Direabsorpsi, & Diekskresikan ke Dalam Urine * Dengan asumsi GFR = 180 l/ hari; **Selain difiltrasi & direabsorpsi, urea disekresi; ***K+ difiltrasi & semua direabsorpsi oleh tubulus kontortus & ansa Henle, & disekresi oleh sel principal duktus kolektivus

  22. Rebasorbsi & Sekresi di Tubulus Proximalis http://people.eku.edu/ritchisong/554images/proximal_tubule.jpg • Reabsorbsi ion (terutama Na+ dan air terbesar; 65%) • Reabsorbsi dng sistem Na+ symport: glukosa & asam amino • (100%), asam laktat, ion-ion fosfat (HPO42-) dan sulfat (SO42-) • Sistem Na+ /H+ antiport: Na+dan HCO3- (80-90%) • Osmosis air (tub. prox. & descending limb of Henle -> permeable) • Difusi pasif: Cl- (50%),K+ (65%), Ca2+, Mg2+, HPO42+ • Hepatosit: Ammonia (NH3)  urea  filtrasi & sekresi • Deaminasi asam amino  ammonia

  23. Reabsorbsi di Loop of Henle • Akhir tubulus proximalis: osmolaritas = darah • Loop of Henle: • Descending limb  reabsorbsi 15% air • Thick ascending limb  impermeable thd. air • Reabsorbsi HCO3- (10-20%) • Sistem Na+ -K+ -2Cl- symport: • Reabsorbsi Na+ & Cl- (35%) • K+ kembali ke tubulus • Reabsorbsi kation: Na+, K+,Ca2+ (20-30%), Mg2+ • Akhir loop of Henle: osmolaritas

  24. http://www.mscd.edu/~biology/2320course/2320images/nephron.jpghttp://www.mscd.edu/~biology/2320course/2320images/nephron.jpg

  25. Reabsorbsi di Tubulus Distalis • Sistem Na+ -Cl- symport • Hormon parathyroid  reabsorbsi Ca2+ • Reabsorbsi air 10-15% • Akhir tubulus distalis: 90-95% ion & air terserap http://www.varimed.hu/hypertension/pha/img/pha_577.gif

  26. Reabsorbsi & Sekresi di Ductus Collectivus Principal cells: reabsorbsi Na+ & sekresi K+ • Intercalated cells: reabsorbsi K+ & HCO3- ; sekresi H+ http://users.rcn.com/jkimball.ma.ultranet/BiologyPages/N/nephron.gif

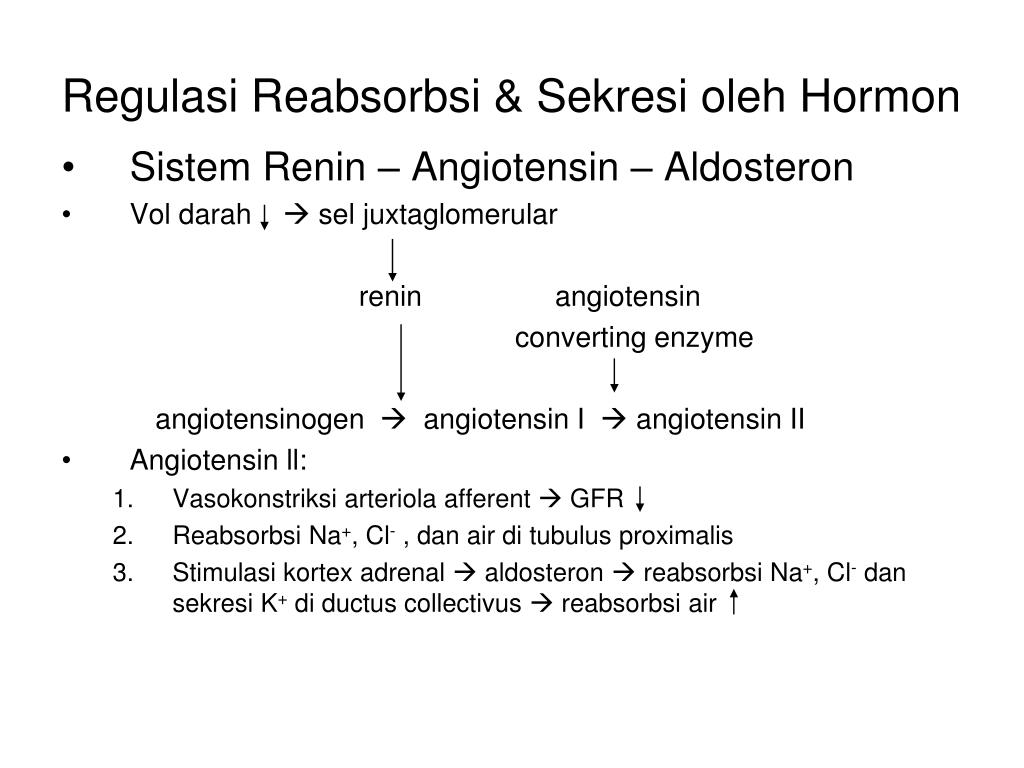

  27. Regulasi Reabsorbsi & Sekresi oleh Hormon • Sistem Renin – Angiotensin – Aldosteron • Vol darah  sel juxtaglomerular renin angiotensin converting enzyme angiotensinogen  angiotensin I  angiotensin II • Angiotensin ll: • Vasokonstriksi arteriola afferent  GFR • Reabsorbsi Na+, Cl- , dan air di tubulus proximalis • Stimulasi kortex adrenal  aldosteron  reabsorbsi Na+, Cl- dan sekresi K+ di ductus collectivus  reabsorbsi air

  28. Hormon Antidiuretik (ADH)/ Vasopressin • Reabsorbsi air di bagian akhir tubulus distalis & • ductus collectivus (urine = 400 – 500 mL) • Osmolaritas plasma  osmoreseptor • hipothalamus  hipophysis  ADH  tubulus • distalis & ductus collectivus • Atrial Natriuretic Peptide (ANP) • Volume darah  ANP dari jantung • Inhibisi reabsorbsi Na & air di tubulus proximal & ductus collectivus • Inhibisi sekresi aldosteron & ADH

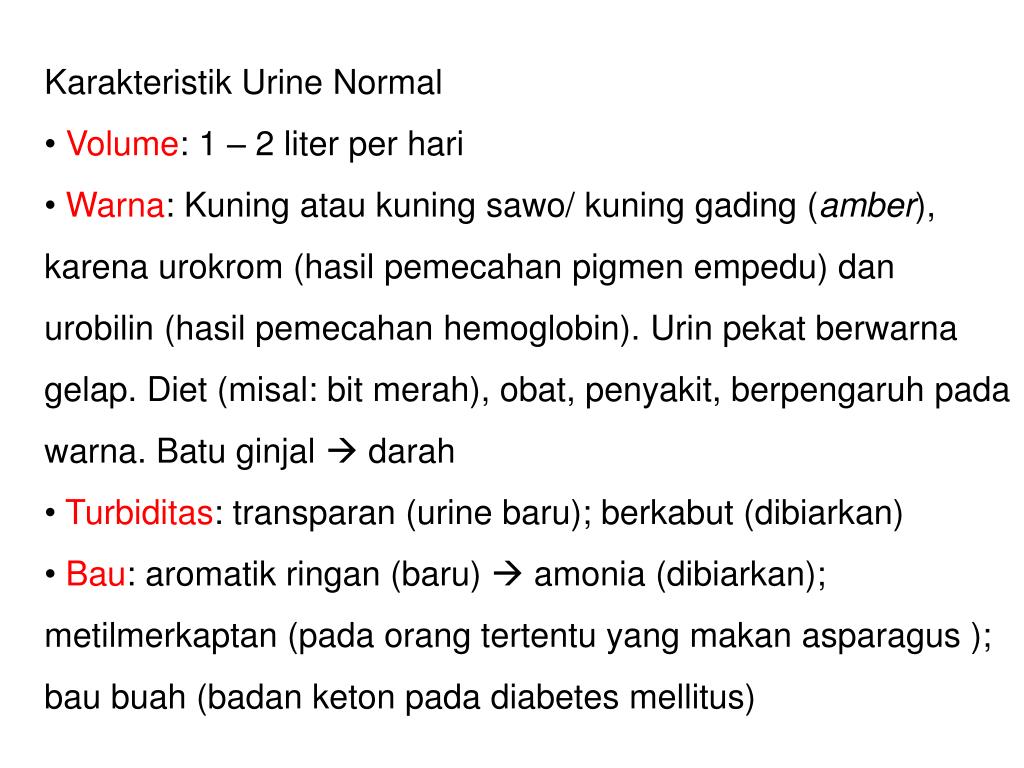

  29. Karakteristik Urine Normal • Volume: 1 – 2 liter per hari • Warna: Kuning atau kuning sawo/ kuning gading (amber), karena urokrom (hasil pemecahan pigmen empedu) dan urobilin (hasil pemecahan hemoglobin). Urin pekat berwarna gelap. Diet (misal: bit merah), obat, penyakit, berpengaruh pada warna. Batu ginjal  darah • Turbiditas: transparan (urine baru); berkabut (dibiarkan) • Bau: aromatik ringan (baru)  amonia (dibiarkan); metilmerkaptan (pada orang tertentu yang makan asparagus ); bau buah (badan keton pada diabetes mellitus)

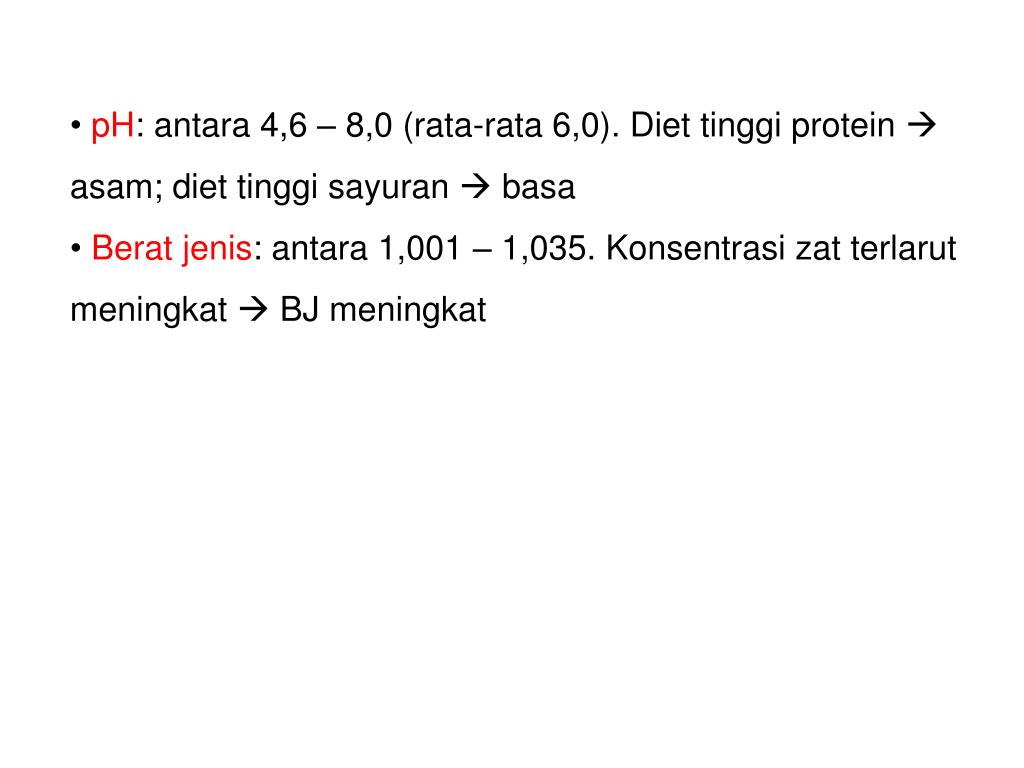

  30. pH: antara 4,6 – 8,0 (rata-rata 6,0). Diet tinggi protein  asam; diet tinggi sayuran  basa • Berat jenis: antara 1,001 – 1,035. Konsentrasi zat terlarut meningkat  BJ meningkat

  31. Diuresis • Memperlambat reabsorbsi air • Terapi hipertensi • Diuretik alami: kopi, teh, soda (inhibisi reabsorbsi Na+), alkohol (inhibisi ADH) • Mekanisme kerja kebanyakan diuretik: inhibisi reabsorbsi Na+ • Furosemide (Lasix)  inhibisi Na+ K+ 2 Cl- symporters di thick ascending limb of the loop of Henle • Chlorthiazide (Diuril)  tubulus distalis (inhibisi Na+ Cl- symporters)

  32. Evaluasi Fungsi Ginjal • Urinalisis • Tes darah • Blood Urea Nitrogen (BUN) • Katabolisme asam amino  urea  nitrogen • GFR  BUN • Kreatinin plasma • Katabolisme fosfat kreatinin dari otot skelet • Fungsi ginjal  Kreatinin darah • Renal plasma clearance: volume darah yang dibersihkan dari substansi tertentu per unit per waktu (mL/ menit) • Renal plasma clearance substansi C = U X V P

  33. Transportasi, Penyimpanan, dan Eliminasi Urine • Urine duktus kolektivus = urine vesica urinaria • Ureter (peristaltik) • Vesica Urinaria • Vesicoureteral reflux • Ureterorenal reflex (konstriksi a. afferen) • Refleks micturitio • Urethra • Inkontinensia urine http://hcd2.bupa.co.uk/images/factsheets/kidney_stones.gif

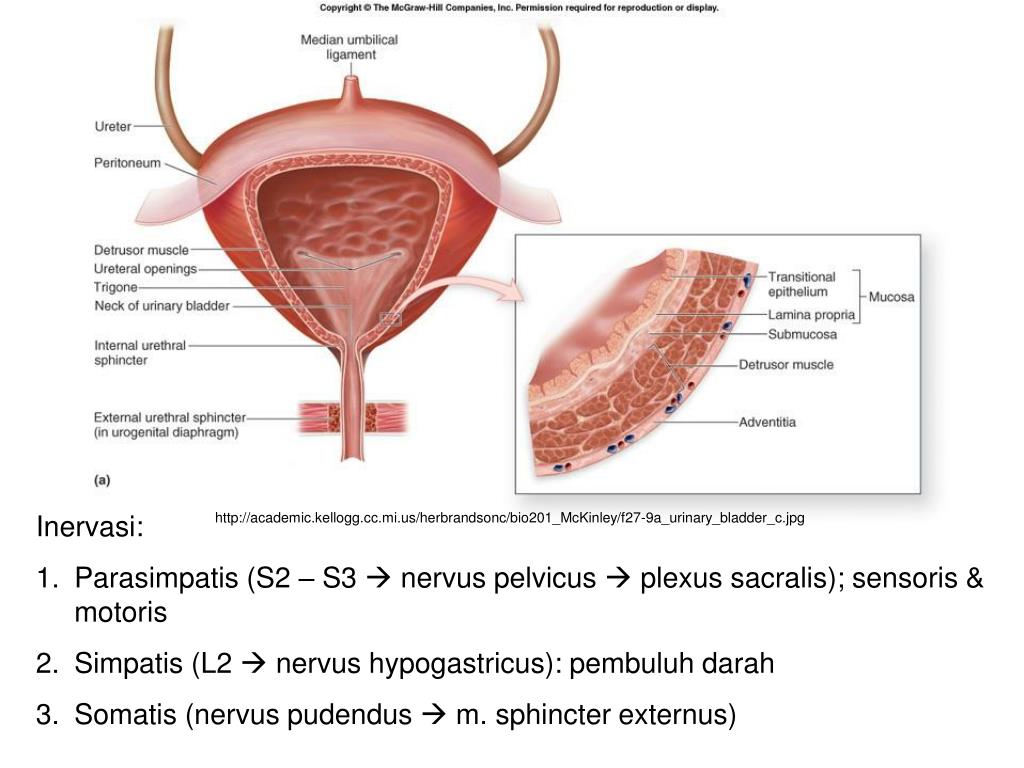

  34. Inervasi: • Parasimpatis (S2 – S3  nervus pelvicus  plexus sacralis); sensoris & motoris • Simpatis (L2  nervus hypogastricus): pembuluh darah • Somatis (nervus pudendus  m. sphincter externus) http://academic.kellogg.cc.mi.us/herbrandsonc/bio201_McKinley/f27-9a_urinary_bladder_c.jpg

  35. http://images.google.co.id/imgres?imgurl=http://clem.mscd.edu/~raoa/bio2320/uriphys/img038.jpg&imgrefurl=http://clem.mscd.edu/~raoa/bio2320/uriphys/sld038.htm&h=539&w=719&sz=43&hl=id&start=1&tbnid=RIxPxSlvLPYN0M:&tbnh=105&tbnw=140&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DGhttp://images.google.co.id/imgres?imgurl=http://clem.mscd.edu/~raoa/bio2320/uriphys/img038.jpg&imgrefurl=http://clem.mscd.edu/~raoa/bio2320/uriphys/sld038.htm&h=539&w=719&sz=43&hl=id&start=1&tbnid=RIxPxSlvLPYN0M:&tbnh=105&tbnw=140&prev=/images%3Fq%3Dmicturition%2Breflex%26svnum%3D10%26hl%3Did%26lr%3D%26sa%3DG

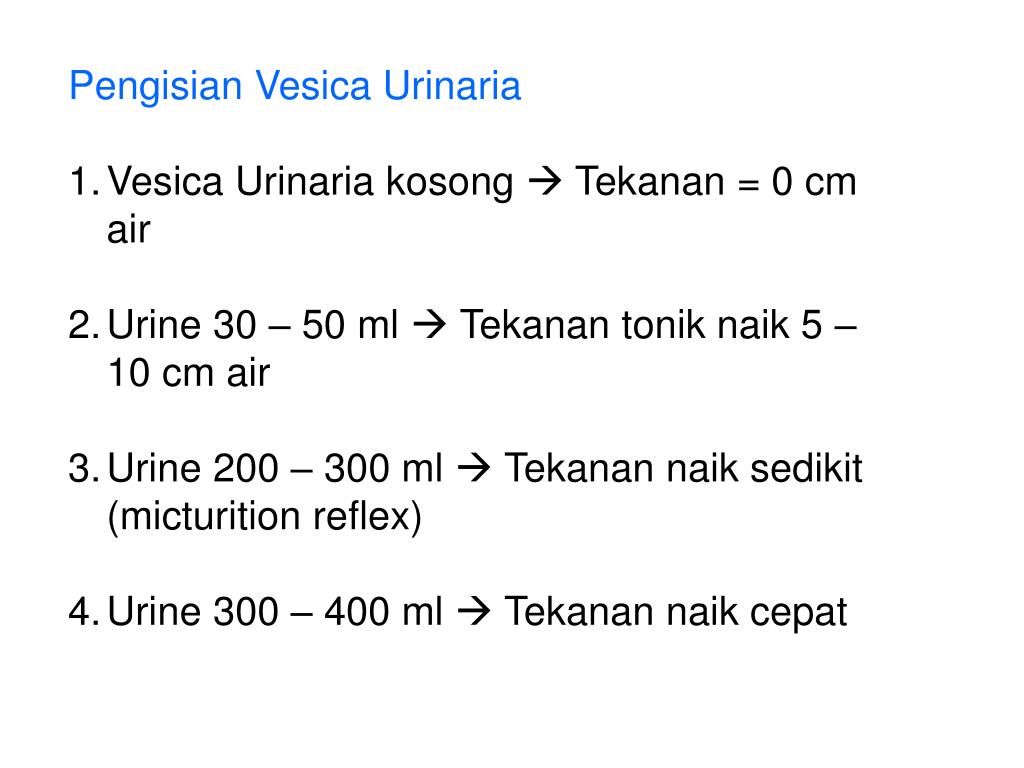

  36. Pengisian Vesica Urinaria • Vesica Urinaria kosong  Tekanan = 0 cm air • Urine 30 – 50 ml  Tekanan tonik naik 5 – 10 cm air • Urine 200 – 300 ml  Tekanan naik sedikit (micturition reflex) • Urine 300 – 400 ml  Tekanan naik cepat

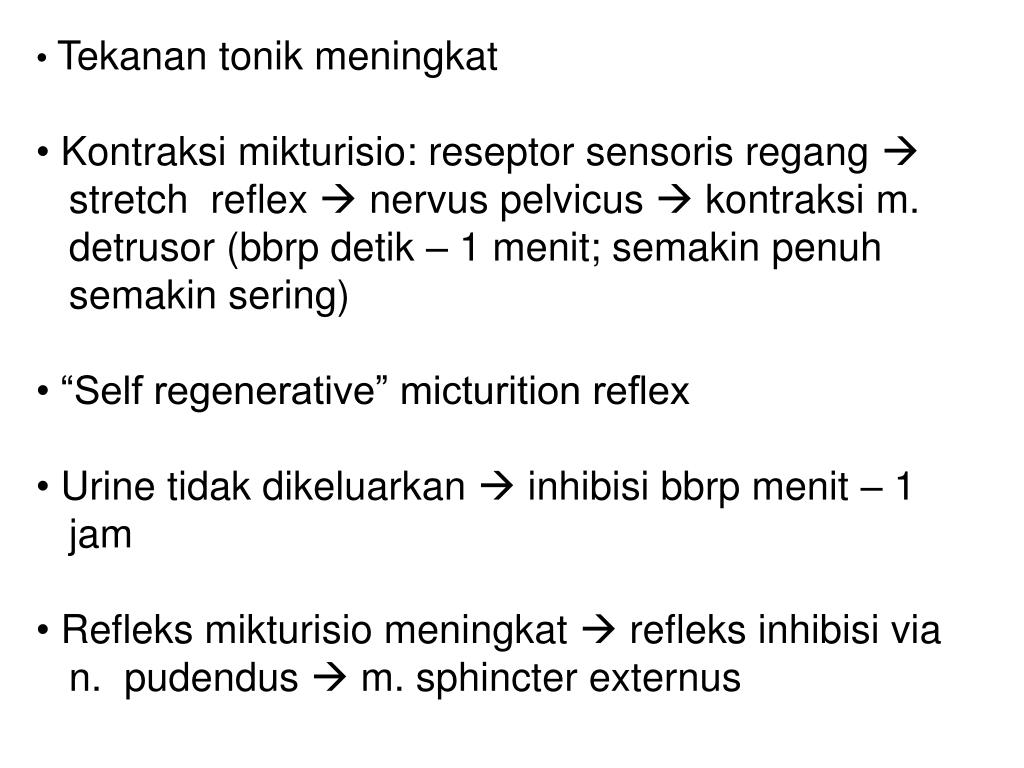

  37. Tekanan tonik meningkat • Kontraksi mikturisio: reseptor sensoris regang  • stretch reflex  nervus pelvicus  kontraksi m. • detrusor (bbrp detik – 1 menit; semakin penuh • semakin sering) • “Self regenerative” micturition reflex • Urine tidak dikeluarkan  inhibisi bbrp menit – 1 • jam • Refleks mikturisio meningkat  refleks inhibisi via • n. pudendus  m. sphincter externus

  38. Fasilitasi & Inhibisi Mikturisio oleh Otak • Pusat-pusat fasilitasi & inhibisi di batang otak terutama pons • Pusat-pusat di korteks serebri, terutama inhibisi tapi dapat menjadi eksitatoris • Pengaturan miksi oleh otak/ pusat-pusat atas: • Inhibisi parsial • Mencegah mikturisio via kontraksi tonik m. sphincter externus • Fasilitasi pusat mikturisio sakral  refleks mikturisio & inhibisi m. sphincter externus • Urinasi sadar  kontraksi abdomen

  39. Abnormalitas mikturisio • Destruksi serabut saraf sensoris  hilang kontrol  overflow incontinence (tabes dorsalis pada syphilis  radiks dorsalis) • Kerusakan spinal di atas regio sacral • “spinal shock” kemudian refleks kembali • Kerusakan parsial medula spinalis/ batang otak • Sinyal inhibitoris hilang • Impuls fasilitasi tak terkontrol  urinasi sering, tak terkontrol

  40. Pembentukan Urine Encer & Pekat • Total volume cairan tubuh konstan • Homeostasis: Ginjal memproduksi urine encer/ pekat • ADH mengontrol kepekatan urine

  41. Pembentukan Urine Encer • Osmolaritas cairan interstisiil  osmolaritas cairan tubuler • Symporters Na+, K+, Cl- pada thick ascending limb dari loop of Henle • Thick ascending limb tak permeable terhadap air  150 mOsm/l di akhir loop of Henle • Tubulus kontortus distalis tak terlalu permeable terhadap air & tak diregulasi oleh ADH • Kadar ADH rendah, duktus kolektivus tak permeable terhadap air  65 – 70 mOsm/l

  42. Pembentukan Urine Pekat • Asupan air sedikit/ kehilangan air banyak • ADH  urine pekat (4x), 1200 mOsm/l • Gradien osmotik cairan interstisial (Na+, Cl-, urea) • Perbedaan permeabilitas dan reabsorbsi air & zat terlarut di loop of Henle panjang (nephron juxtaglomerular) & duktus kolektivus • Countercurrent flow

  43. Proses Produksi Urine Pekat • Symporters di thick ascending limb (Na+, K+, Cl-)  gradien osmotik di medula renalis. Air tak direabsorbsi • Duktus kolektivus menyerap air (karena ADH) • Duktus kolektivus di medula bagian dalam menyerap urea (karena difusi & permeable terhadap urea)  akumulasi di jaringan interstisial • Difusi urea ke descending & thin ascending limb of Henle • Urea tetap di lumen thick ascending limb, tubulus distalis, duktus kolektivus kortikal (karena tak permeable terhadap urea  siklus 2 – 4 berulang (daur ulang urea)

  44. Countercurrent Mechanism • Osmolaritas cairan interstisial meningkat dari 300 mOsm/l (korteks renalis)  1200 mOsm/l (medula renalis) • Arah aliran descending limb >< ascending limb of Henle • Descending limb: Air keluar via osmosis; tak permeable terhadap zat terlarut kecuali urea  osmolaritas tubular (1200 mOsm/l) • Ascending limb: Na+, Cl- symporters; tak permeable terhadap air; osmolaritas tubular (100 mOsm/ l)

  45. Vasa recta • Osmolaritas awal masuk vasa recta = 300 mOsm/l • Osmolaritas mengikuti loop of Henle • Descending limb: Na+, Cl- masuk (cairan interstisial •  vasa recta) • Ascending limb: Na+, Cl-, urea, keluar (vasa recta •  cairan interstisial); air masuk (cairan interstisial •  vasa recta) • Osmolaritas akhir vasa recta = 320 mOsm/l

  46. Rujukan • Tortora GJ & Derrickson B, 2006. Principles of Anatomy and Physiology, 11th ed, John Wiley & Sons, Inc, pp 992 – 1035 • Guyton AC & Hall JE, 2006. Textbook of Medical Physiology, 11th ed, Elsevier Inc, pp. 311 - 314
