  1. RESPIRATORY SYSTEM STRUCTURE

  2. LOOK AT FIGURE 17-2 pg 355

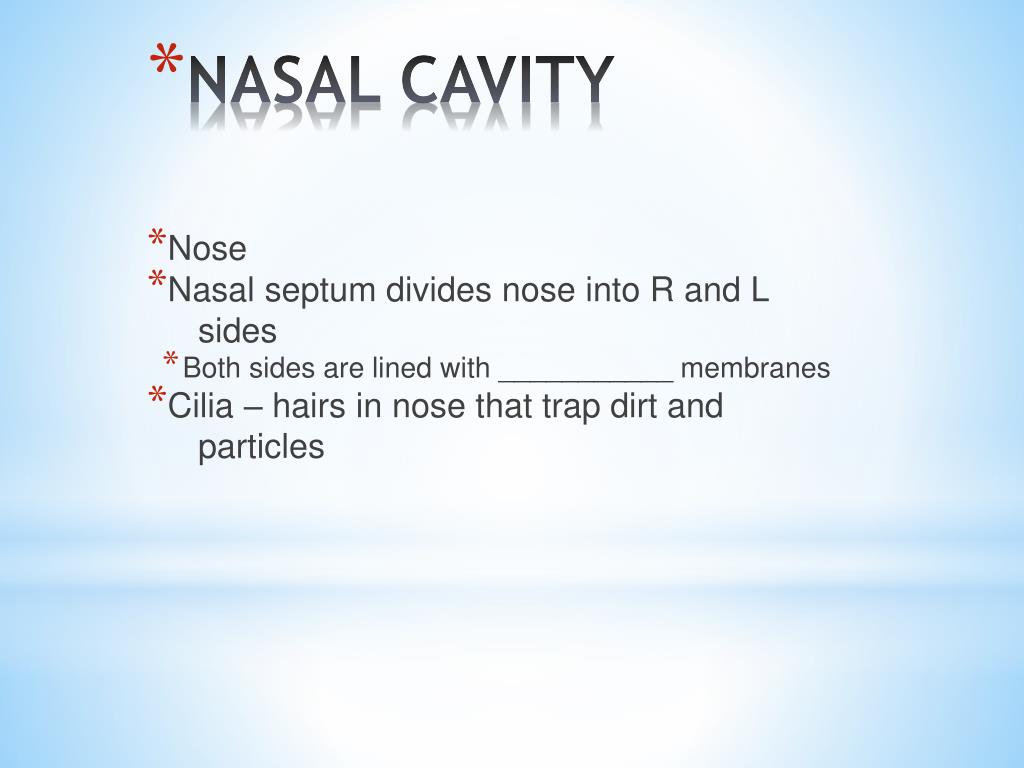

  3. NASAL CAVITY • Nose • Nasal septum divides nose into R and L sides • Both sides are lined with ___________ membranes • Cilia – hairs in nose that trap dirt and particles

  4. SINUSES • Cavities in skull filled with air • Frontal, maxillary, sphenoid, and ethmoid • Connected to nasal cavity by ducts • Lined with mucous membrane • Helps to warm and moisten air passing through them • Give resonance to the voice • SEE FIGURE 17-3 pg 355

  5. PHARYNX • Throat • Serves as a common passageway for air and food • 5” long • Can be subdivided into: • Nasopharynx • Oropharynx • laryngopharynx

  6. LARYNX • Voice box • Triangular chamber below pharynx • Composed of nine fibrocartilaginous plates • Adams apple – largest of the plates • Contains vocal cords • Become larger in males during puberty which makes Adams apple more prominent • Lined with mucous membrane • Epiglottis – flap of cartilage that covers larynx during swallowing • SEE FIGURE 17-4 pg 356

  7. TRACHEA • Windpipe • Tubelike passageway that extends from the larynx, passes in front of esophagus, and continues to form the 2 bronchi • 4 ½” long • Walls have bands of C-shaped cartilage • Lined with ciliated mucous membrane • FIGURE 17-4

  8. BRONCHI AND BRONCHIOLES • Lower end of trachea divides into R and L bronchus • Right bronchus is shorter, wider, and more vertical • Become bronchial tubes and bronchioles as branches enter lungs • FIGURE 17-5 pg 358

  9. ALVEOLI • Clusters of thin-walled sacs made of single layer epithelial tissue • Inner surfaces covered with surfactant • What does surfactant do? • Each alveolus surrounded by capillaries • Why? • FIGURE 17-5

  10. LUNGS • Fill thoracic cavity • Upper part = apex • Lower part = base • Lung tissue porous and spongy, it floats • Due to alveoli and air it contains • R lung larger and broader but shorter, 3 lobes (superior, middle, and inferior) • L lung smaller, narrower, and longer, has 2 lobes (superior and inferior) • FIGURE 17-6 pg 359

  11. PLEURA • Membrane that covers lungs (thin, moist, and slippery tough endothelial cells) • Double-walled sac • Space is pleural cavity • Pleural cavity filled with pleural fluid to prevent friction

  12. MEDIASTINUM • Interpleural space • Between lungs along the medial plane of the thorax and extends from the sternum to vertebrae • Contains the thoracic viscera
