Securing OpenStack with Intel Trusted Computing

1. Securing OpenStack with Intel Trusted Computing OpenStack Summit Atlanta 2014 12 May 2014 Christian Huebner Cloud Architect chuebner@mirantis.com

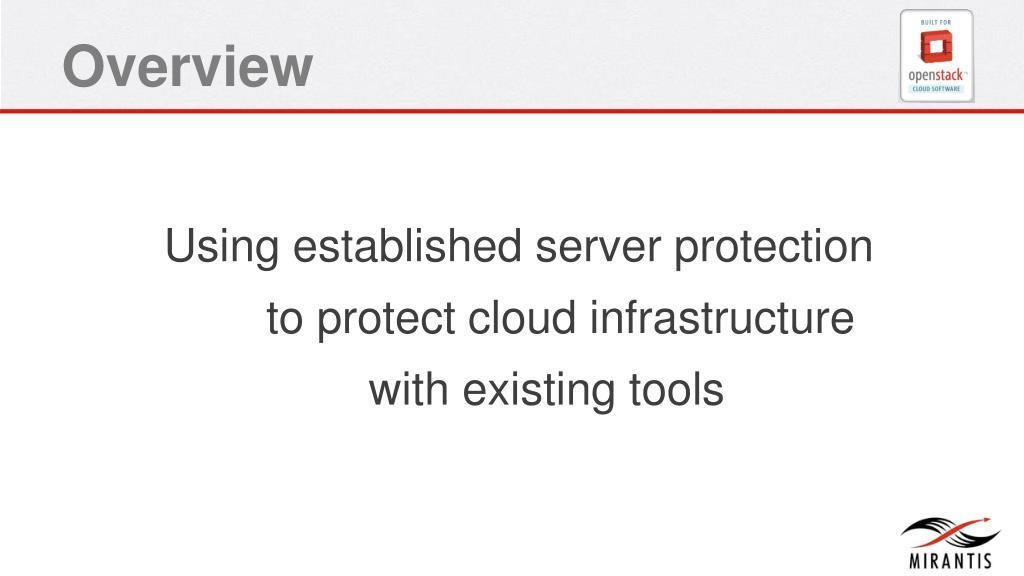

2. Overview Using established server protection to protect cloud infrastructure with existing tools

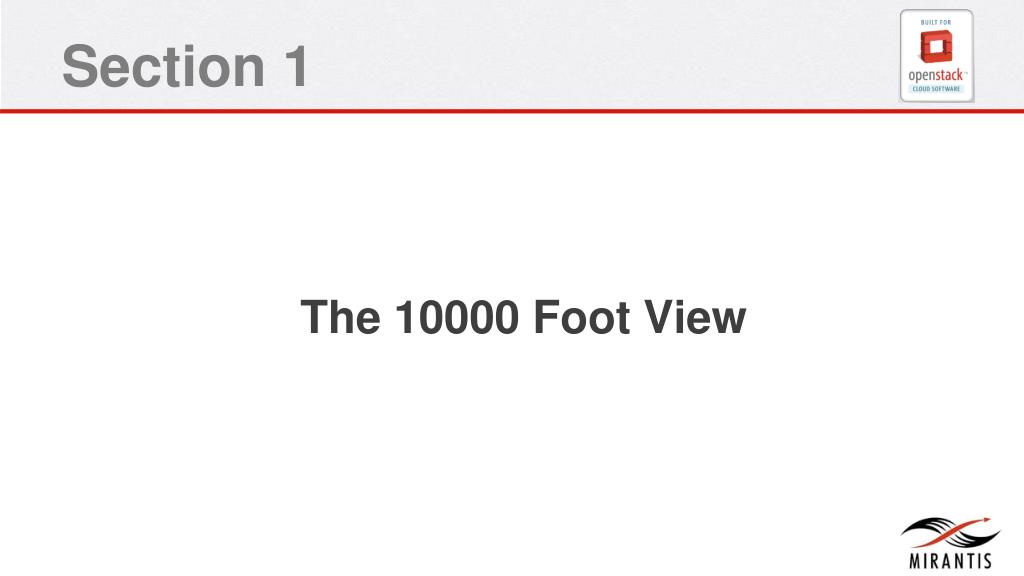

3. Section 1 The 10000 Foot View

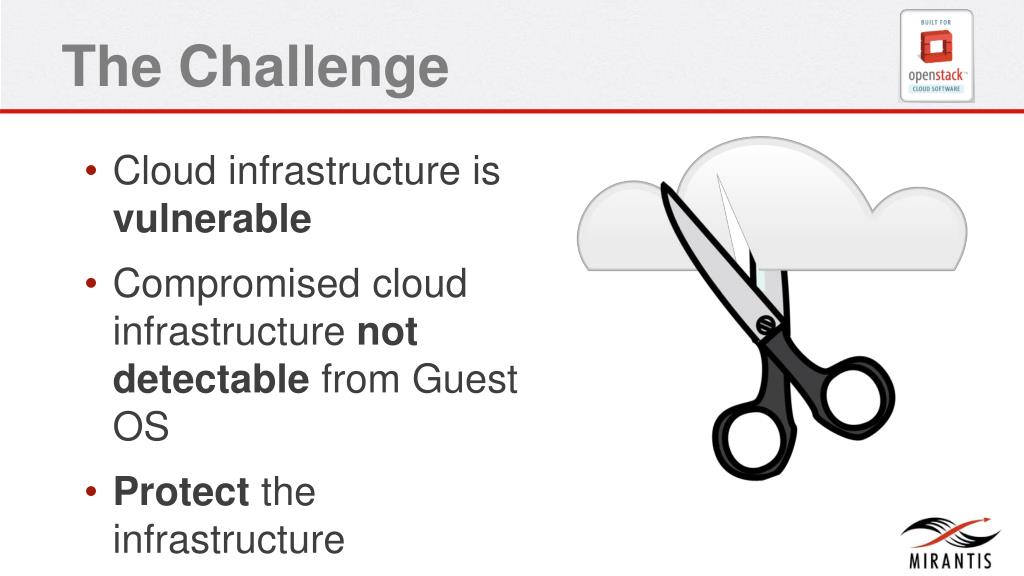

4. The Challenge • Cloud infrastructure is vulnerable • Compromised cloud infrastructure not detectable from Guest OS • Protect the infrastructure

5. Established Server Protection • Intel Trusted Computing (TXT) • measures system components during boot • BIOS/UEFI • Boot loader • OS startup • stores metrics in hardware device (TPM) • provides verificationwith a remote server

6. How Does This Apply To The Cloud? • Cloud infrastructure consists of traditional bare-metal servers • Servers can be secured with Intel TXT • We need a mechanism to make the cloud TXT aware • This mechanism exists today

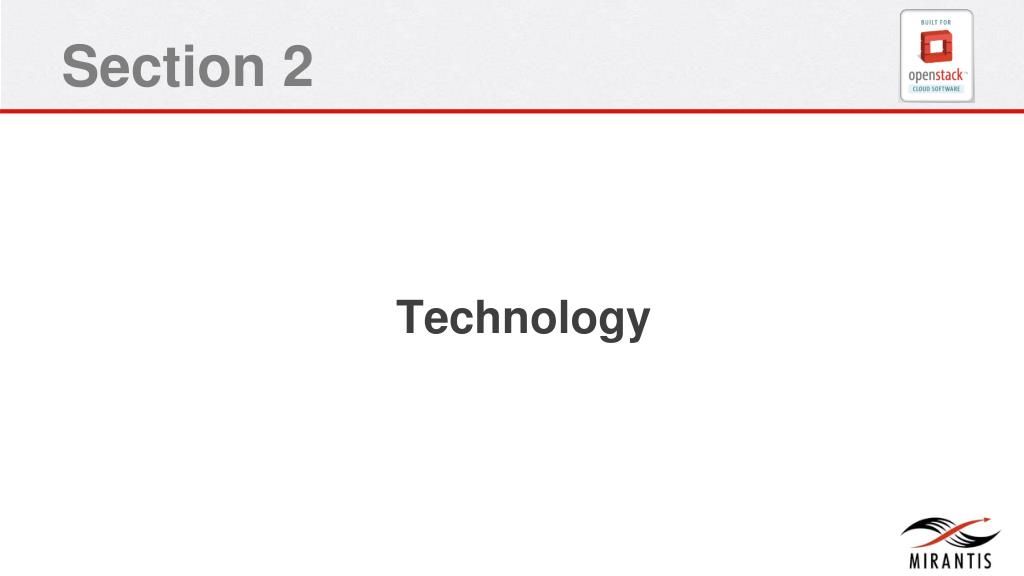

7. Section 2 Technology

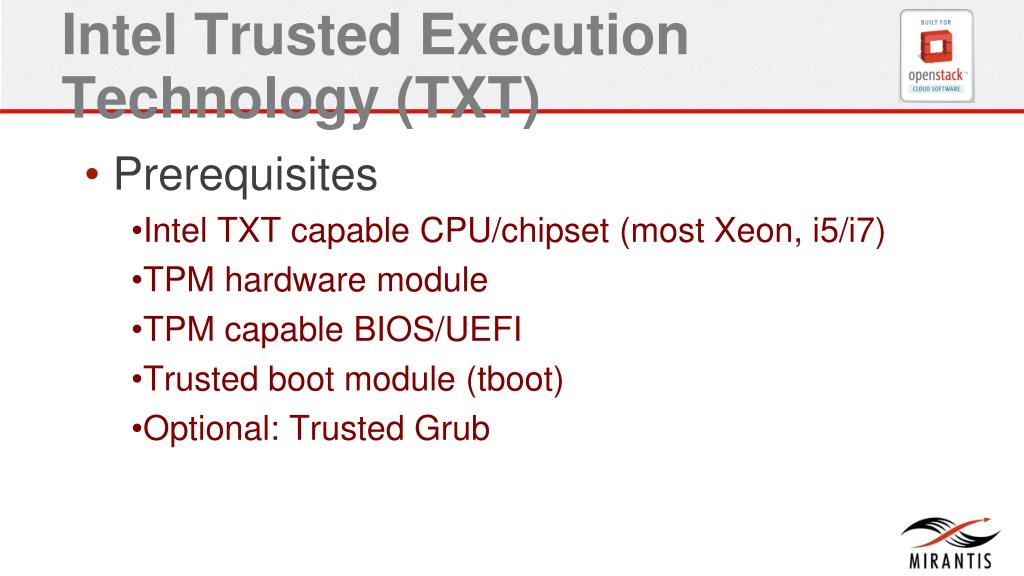

8. Intel Trusted Execution Technology (TXT) • Prerequisites • Intel TXT capable CPU/chipset (most Xeon, i5/i7) • TPM hardware module • TPM capable BIOS/UEFI • Trusted boot module (tboot) • Optional: Trusted Grub

9. How does Intel TXT work? • Prerequisites • Boot sequence (example: tboot / Linux) • BIOS, attested by hardware, loads (trusted) bootloader • Bootloader loads tboot, which wraps around kernel • Tboot loads kernel, initrd • On legacy platforms SINIT module may be required • SINIT functionality is part of BIOS on modern platforms

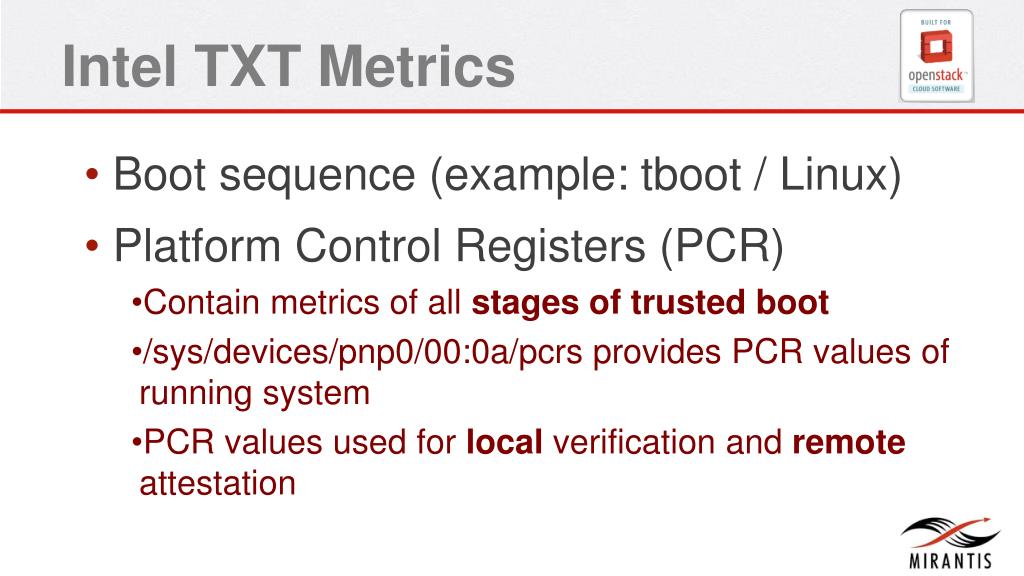

10. Intel TXT Metrics • Boot sequence (example: tboot / Linux) • Platform Control Registers (PCR) • Contain metrics of all stages of trusted boot • /sys/devices/pnp0/00:0a/pcrs provides PCR values of running system • PCR values used for local verification and remote attestation

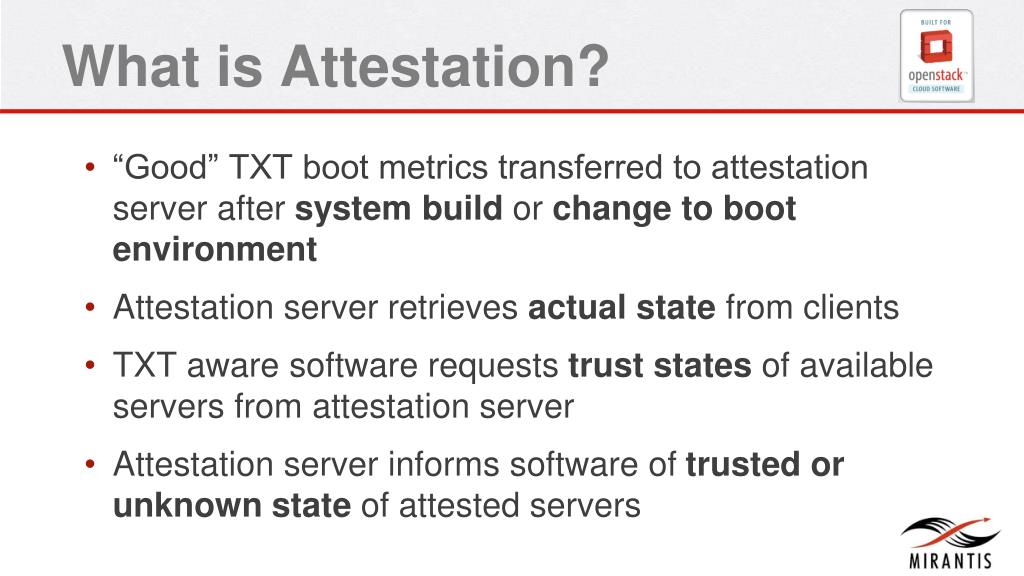

11. What is Attestation? • “Good” TXT boot metrics transferred to attestation server after system build or change to boot environment • Attestation server retrieves actual state from clients • TXT aware software requests trust states of available servers from attestation server • Attestation server informs software of trusted or unknown state of attested servers

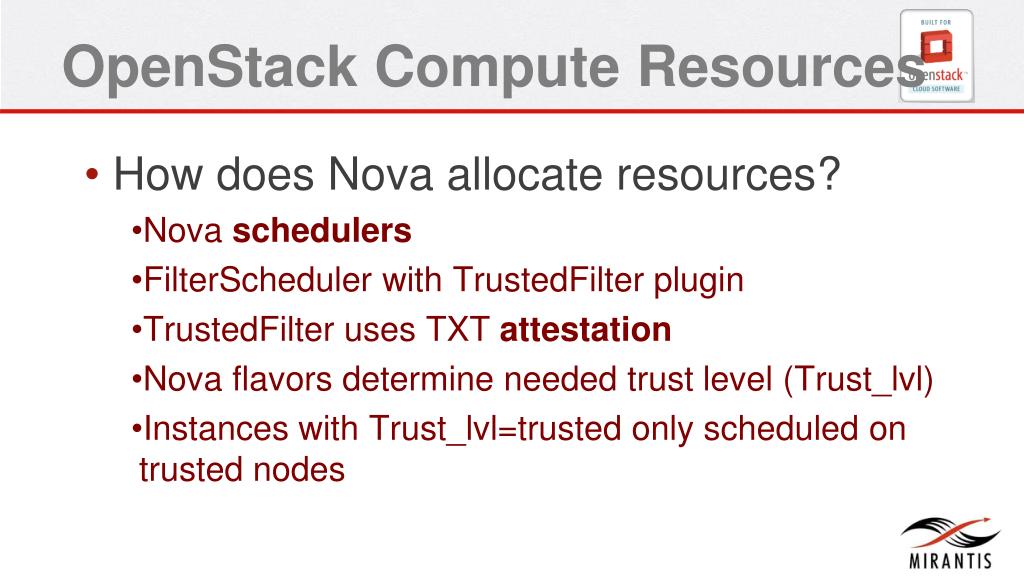

12. OpenStack Compute Resources • How does Nova allocate resources? • Nova schedulers • FilterScheduler with TrustedFilter plugin • TrustedFilter uses TXT attestation • Nova flavors determine needed trust level (Trust_lvl) • Instances with Trust_lvl=trusted only scheduled on trusted nodes

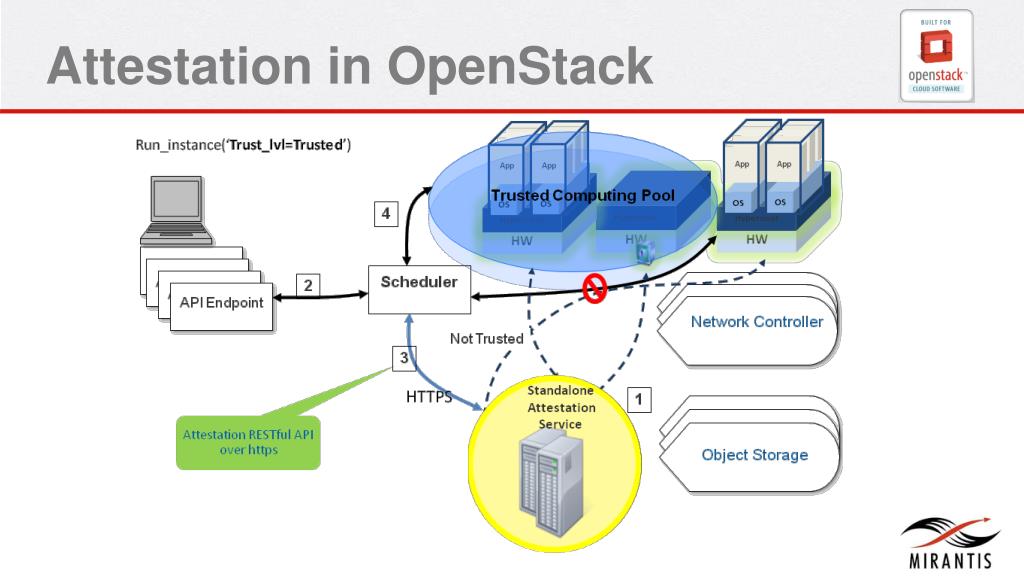

13. Attestation in OpenStack

14. Attestation in OpenStack • Attestation server has known good state for all clients • Attestation server polls actual state from all clients (1) • Attestation server compares states and builds pool of trusted nodes • TrustedFilter has cache of trusted nodes that gets updated periodically from attestation server • TrustedFilterselects node from trusted pool for launch

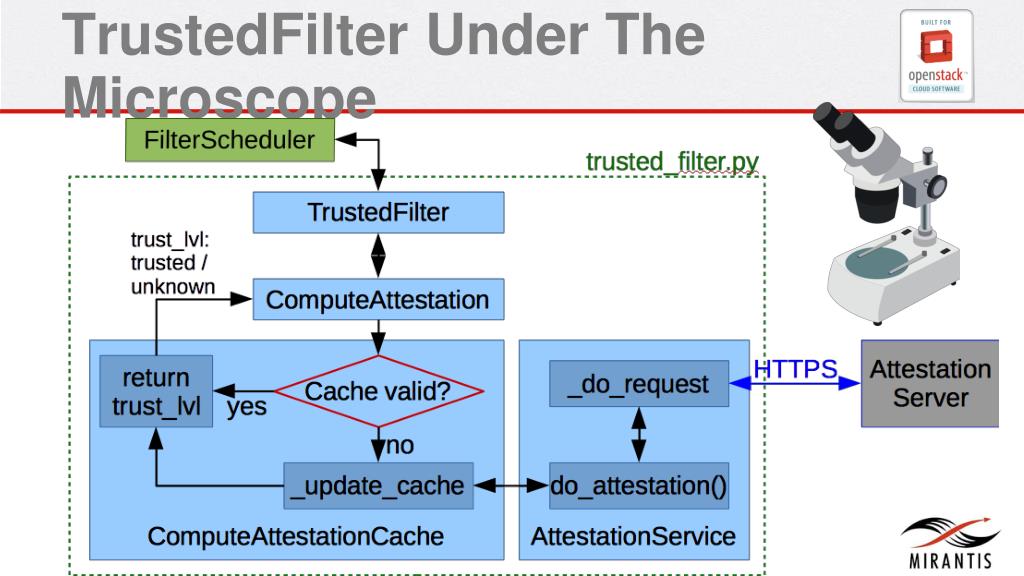

15. TrustedFilter Under The Microscope

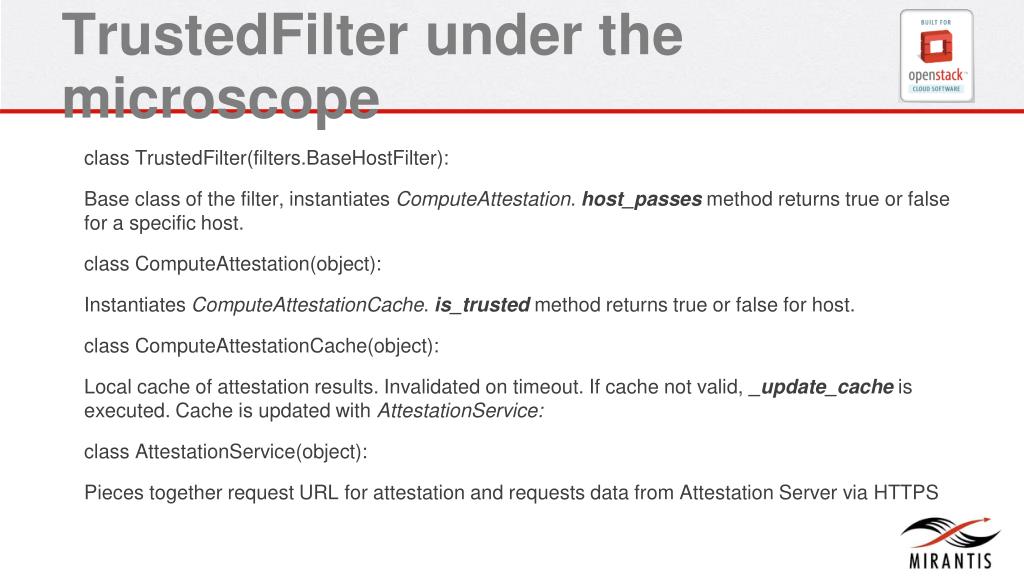

16. TrustedFilter under the microscope class TrustedFilter(filters.BaseHostFilter): Base class of the filter, instantiates ComputeAttestation. host_passes method returns true or false for a specific host. class ComputeAttestation(object): Instantiates ComputeAttestationCache. is_trusted method returns true or false for host. class ComputeAttestationCache(object): Local cache of attestation results. Invalidated on timeout. If cache not valid, _update_cache is executed. Cache is updated with AttestationService: class AttestationService(object): Pieces together request URL for attestation and requests data from Attestation Server via HTTPS

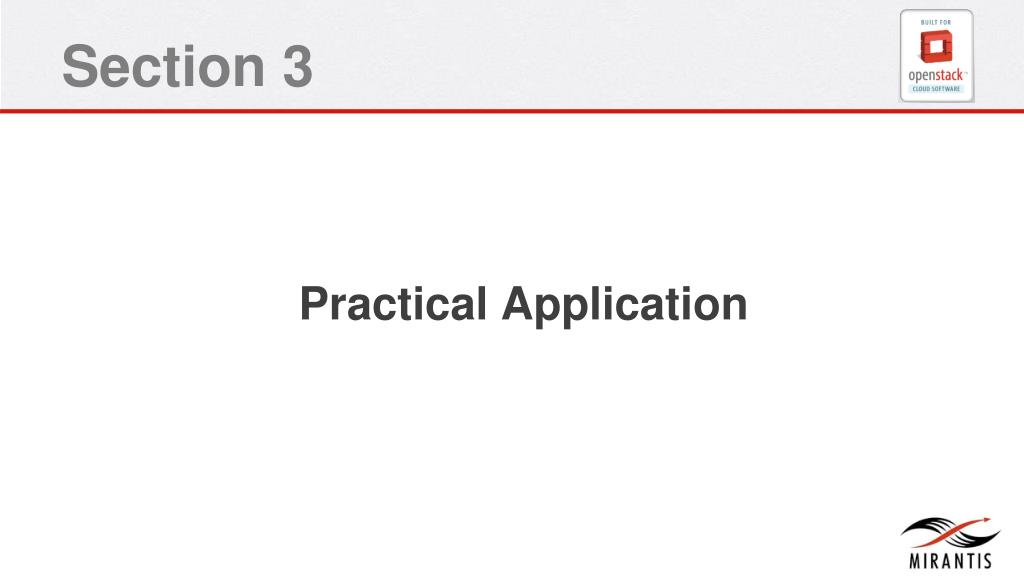

17. Section 3 Practical Application

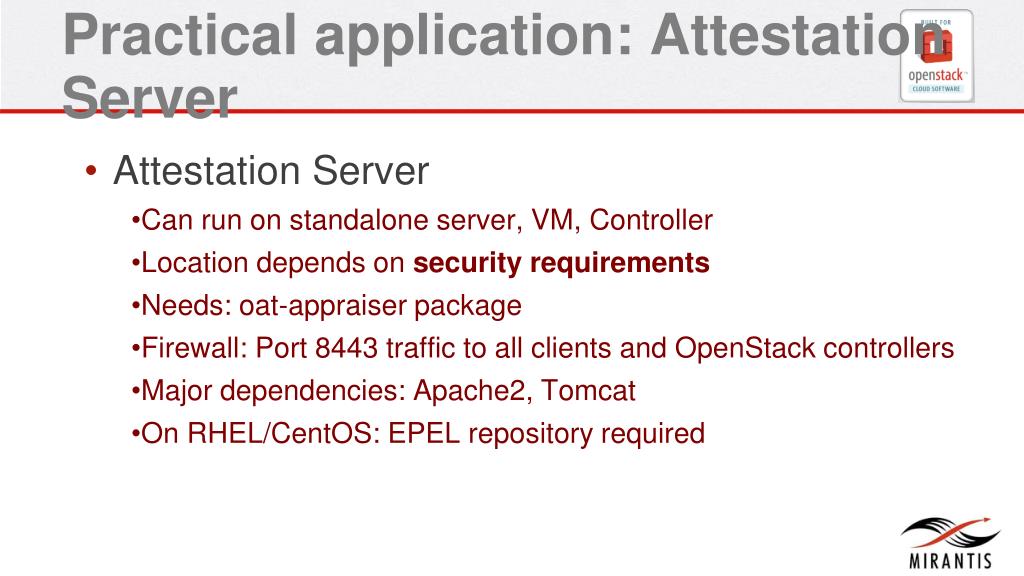

18. Practical application: Attestation Server • Attestation Server • Can run on standalone server, VM, Controller • Location depends on security requirements • Needs: oat-appraiser package • Firewall: Port 8443 traffic to all clients and OpenStack controllers • Major dependencies: Apache2, Tomcat • On RHEL/CentOS: EPEL repository required

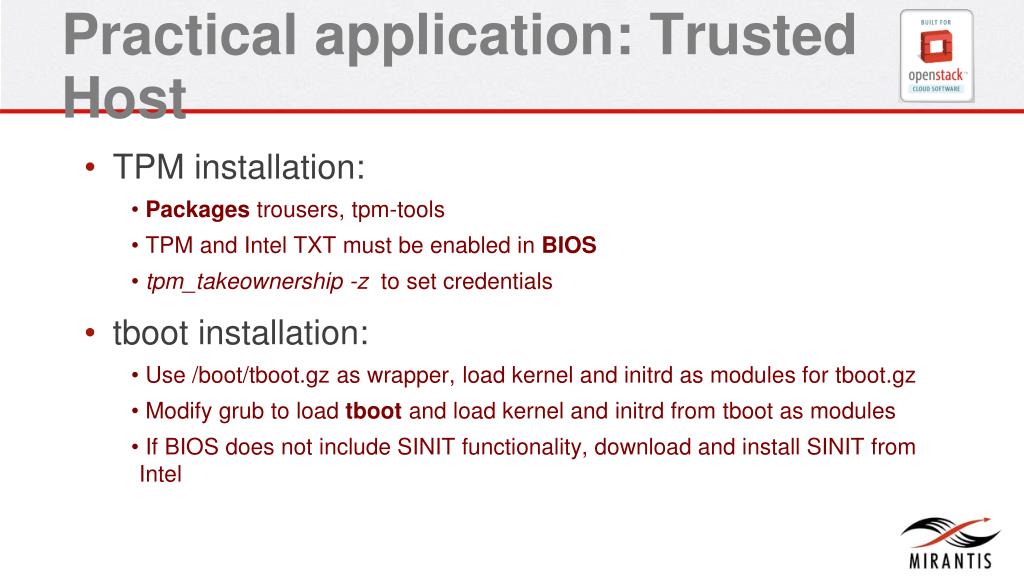

19. Practical application: Trusted Host • TPM installation: • Packages trousers, tpm-tools • TPM and Intel TXT must be enabled in BIOS • tpm_takeownership -z to set credentials • tboot installation: • Use /boot/tboot.gz as wrapper, load kernel and initrd as modules for tboot.gz • Modify grub to load tbootand load kernel and initrd from tboot as modules • If BIOS does not include SINIT functionality, download and install SINIT from Intel

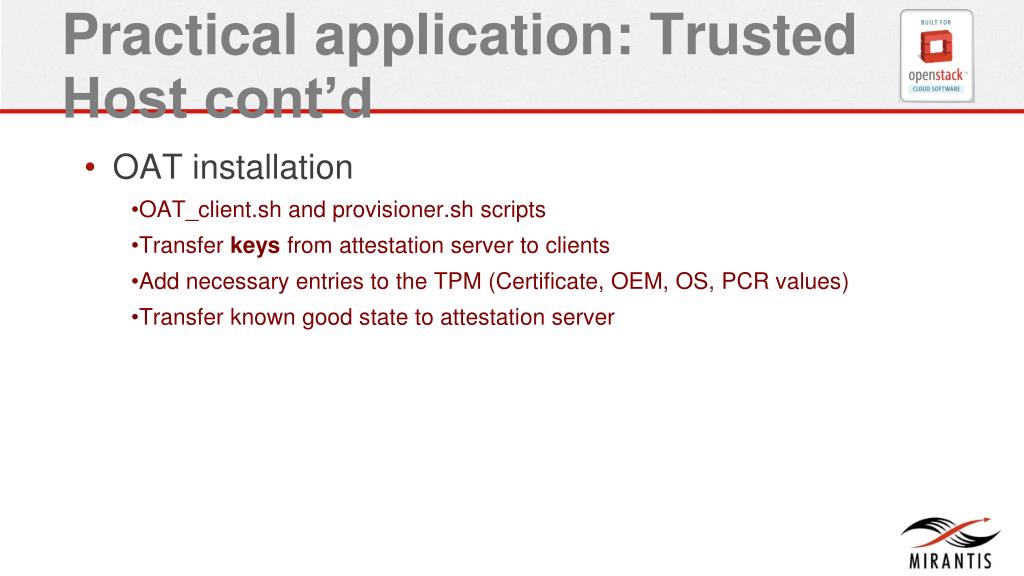

20. Practical application: Trusted Host cont’d • OAT installation • OAT_client.shand provisioner.sh scripts • Transfer keys from attestation server to clients • Add necessary entries to the TPM (Certificate, OEM, OS, PCR values) • Transfer known good state to attestation server

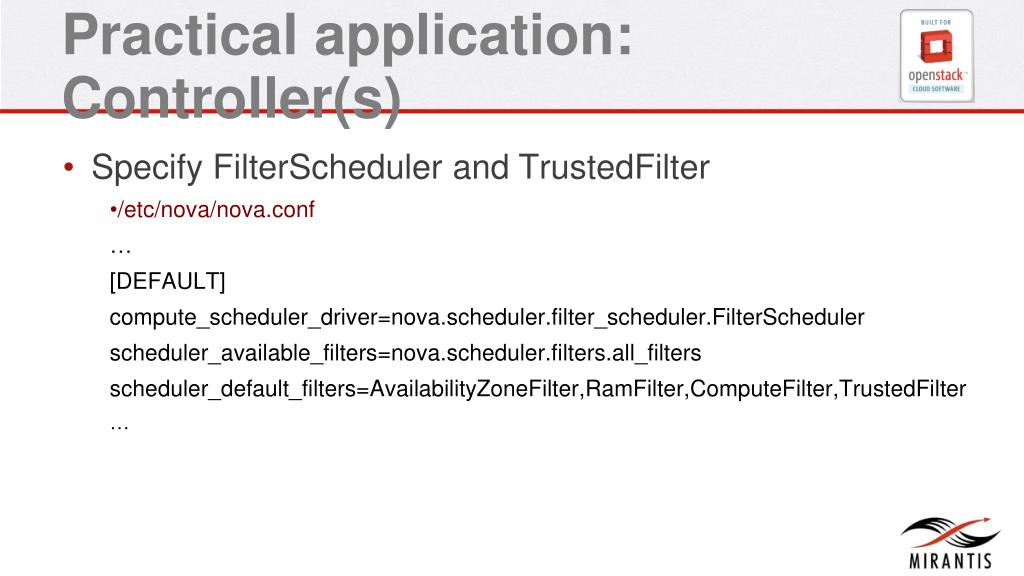

21. Practical application: Controller(s) • Specify FilterScheduler and TrustedFilter • /etc/nova/nova.conf … [DEFAULT] compute_scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler scheduler_available_filters=nova.scheduler.filters.all_filters scheduler_default_filters=AvailabilityZoneFilter,RamFilter,ComputeFilter,TrustedFilter …

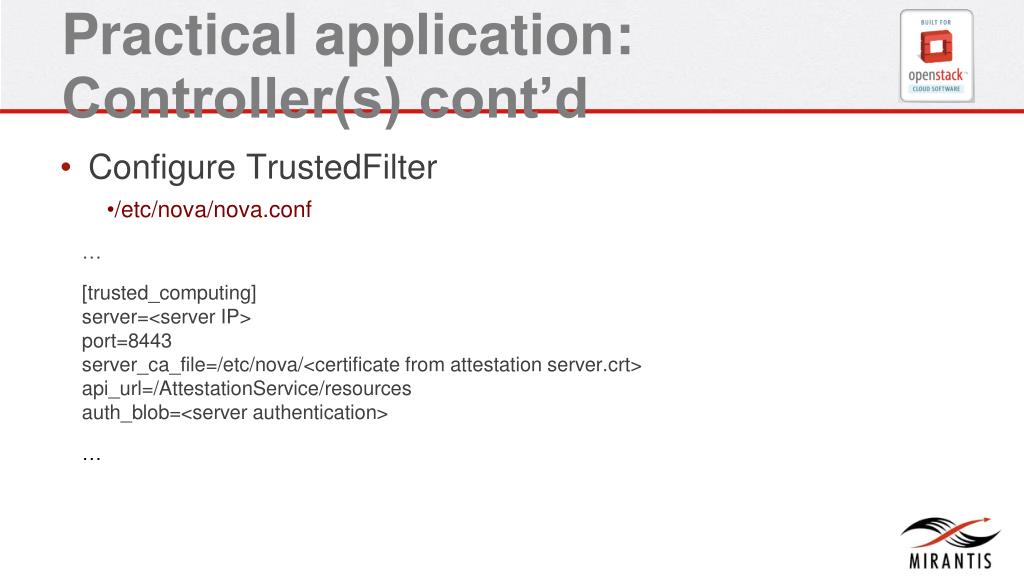

22. Practical application: Controller(s) cont’d • Configure TrustedFilter • /etc/nova/nova.conf … [trusted_computing] server=<server IP> port=8443server_ca_file=/etc/nova/<certificate from attestation server.crt>api_url=/AttestationService/resourcesauth_blob=<server authentication> …

23. How to use OpenStack with TXT • Operation: • Modify flavors to require trust: $ nova flavor-key myflavor set trust:trusted_host trusted • Build instances with trusted flavors • Trusted instances will only be scheduled on trusted nodes

24. Summary • Intel TXT protects infrastructure • Attestation allows centralized verification • Nova uses attestation to get trusted pool • Nova flavors set up to define trust level • Nova only schedules trusted workload on hosts from trusted pool

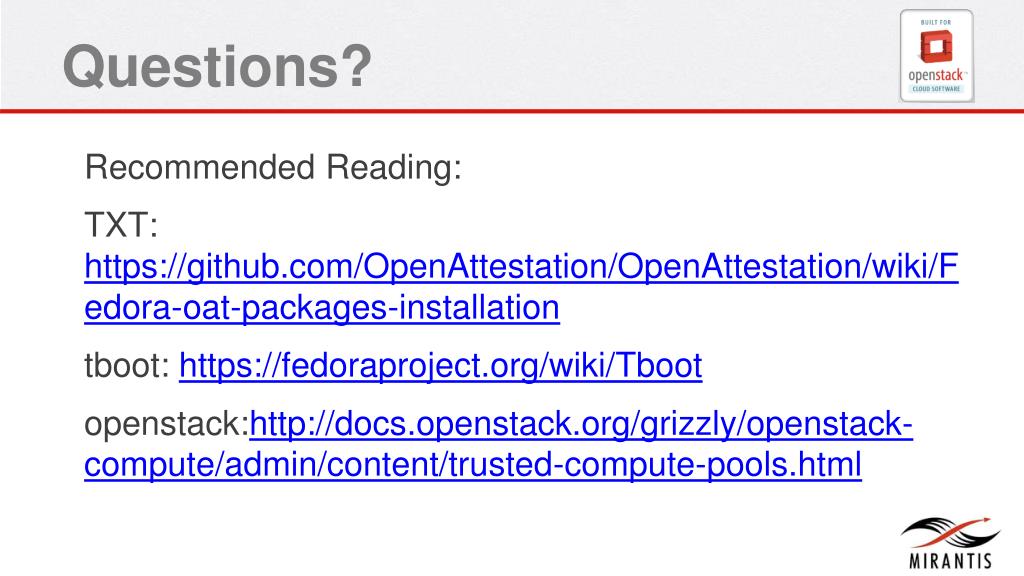

25. Questions? Recommended Reading: TXT: https://github.com/OpenAttestation/OpenAttestation/wiki/Fedora-oat-packages-installation tboot: https://fedoraproject.org/wiki/Tboot openstack:http://docs.openstack.org/grizzly/openstack-compute/admin/content/trusted-compute-pools.html

26. Thank you. • Christian Huebner | Cloud Architectchuebner@mirantis.com
