  1. Deploying Openstack with Tripleo Tom Howley, Dublin, May 2014

  2. OpenStack® Professional Services We’re hiring… Linux System Engineers (Galway) – all levels Architects, System Integrators (Dublin) hp.com/jobssearch for OpenStack Ireland Or contact our Recruiting lead: james.houlder@hp.com

  3. Introductions • Tom Howley • Member of the Helion CloudOS Core Engineering team • Member of the HP Cloud Cinder/Bock Engineering team • Member of the IAAS Shared Services / High Availability team

  4. I hope to cover • HP Helion Public Cloud Deployment • Motivation for Tripleo • Tripleo Overview • Diskimage Builder • os-collect/refresh/apply-configsuite • Heat and Heat templates • The Developer Experience • Current Challenges + Future Work (Openstack Atlanta Update)

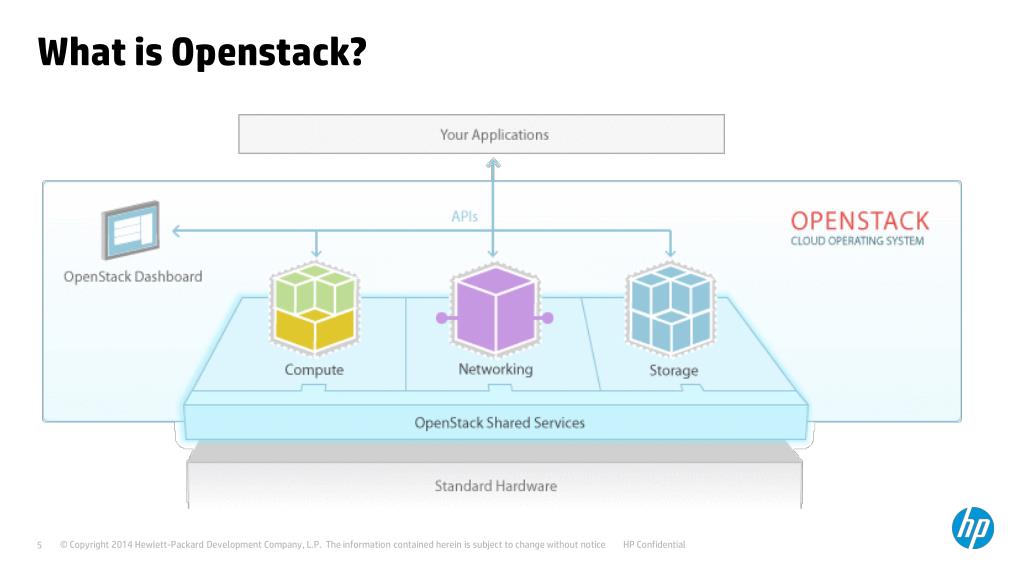

  5. What is Openstack?

  6. Lots of moving parts to install, maintain, upgrade

  7. We used Chef for HP Public Cloud See http://wiki.opscode.com/display/chef/Home Download + Apply Cookbook Recipes Git Repo Chef Server Node 1 Node 2 Cookbooks, Roles, Environments, Data bags, Node Settings Pull/Push Chef files Node 3 Node 4 Management Desktop: git + knife

  8. Chef Recipe Role Node Resource Install RabbitMQ RMQ recipe Configure users, vhosts… host-0001 RabbitMQ HA Server Install pacemaker HA recipe Write corosync conf file

  9. Some limitations of Chef • Single-node view • Ok, there are environments – just a global set of attributes • Tend to think in node roles • Lacks orchestration • Not easy to describe inter-node dependencies • Required for install and upgrades (ideally of the rolling variety) • Tendency towards snowflakes • No facility for roll-back • Does not do baremetal install • Common set of cookbooks/recipes upstream? • Stackforge Chef repo: AT&T, IBM, Rackspace + others • but other repos do exist

  10. Lots of moving parts to install, maintain, upgrade

  11. Who in their right mind would use Openstack to deploy Openstack? And where does this gratuitous recursion end?

  12. Enter Tripleo From https://wiki.openstack.org/wiki/TripleO#TripleO_-_OpenStack_on_OpenStack • “TripleO is a program aimed at installing, upgrading and operating OpenStack clouds using OpenStack's own cloud facilities as the foundations - building on nova, neutron and heat to automate fleet management at datacentre scale (and scaling down to as few as 2 machines).”

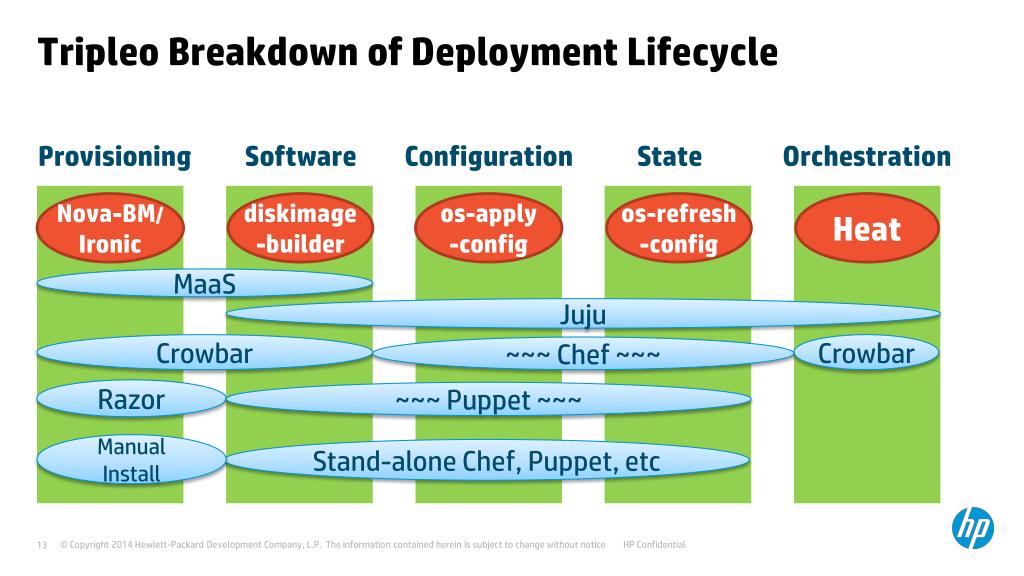

  13. Tripleo Breakdown of Deployment Lifecycle Provisioning Software Configuration State Orchestration Nova-BM/ Ironic diskimage -builder os-apply -config os-refresh -config Heat MaaS Juju Crowbar Crowbar ~~~ Chef ~~~ Razor ~~~ Puppet ~~~ Manual Install Stand-alone Chef, Puppet, etc

  14. Tripleo Deployment • Heat stack defines the cluster • Heat drives the Nova API to deliver images to machines • Virtual machines in developer test • Bare metal Nova for CI/CD and production deployment

  15. Diskimage Builder Golden Images Images created independent of deploy with Internet access Encapsulate a known good set of software Excludes configuration and persistent state • these are placed on a separate state partition • / is then mounted read-only Deploy never needs Internet access Equivalent of packages at cluster level • Golden image per node type Configuration occurs at install (for invariants) or deploy time (for local config)

  16. Undercloud vs. Overcloud Nova cannot reliably run two different hypervisors in one cloud today So we run two+ clouds:→ the undercloud, a bare metal cloud that runs on, and owns, all the hardware → the overcloud, a regular VM based cloud running as a tenant on the bare metal cloud OpenStack (KVM) OpenStack (KVM) OpenStack (Bare metal)

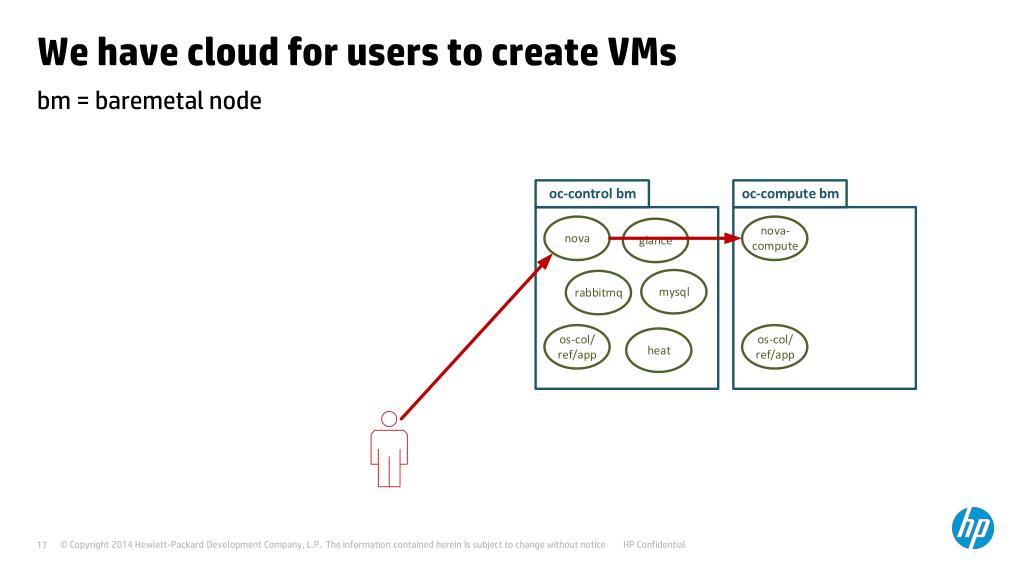

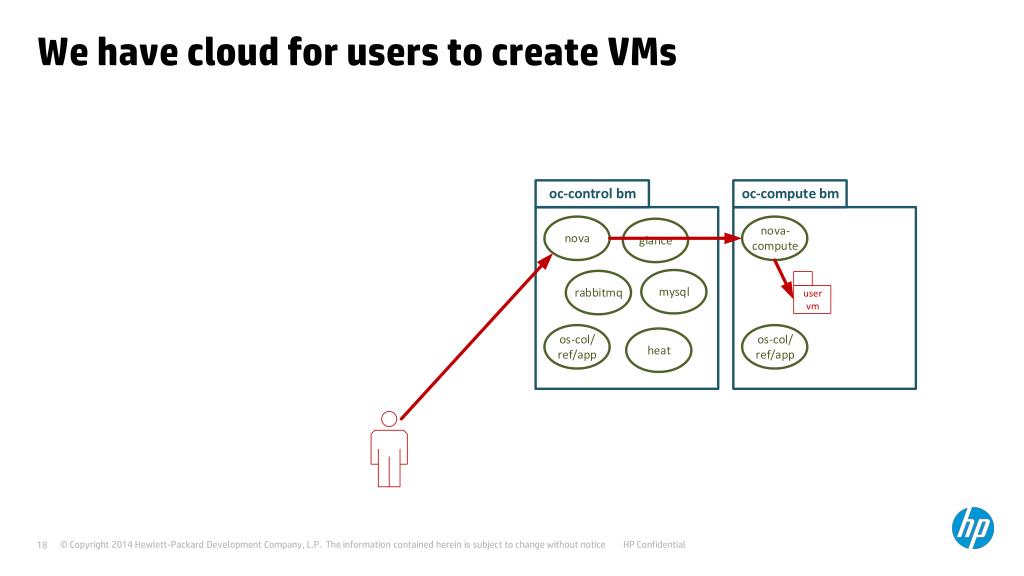

  17. We have cloud for users to create VMs bm = baremetal node

  18. We have cloud for users to create VMs

  19. We have cloud for users to create VMs

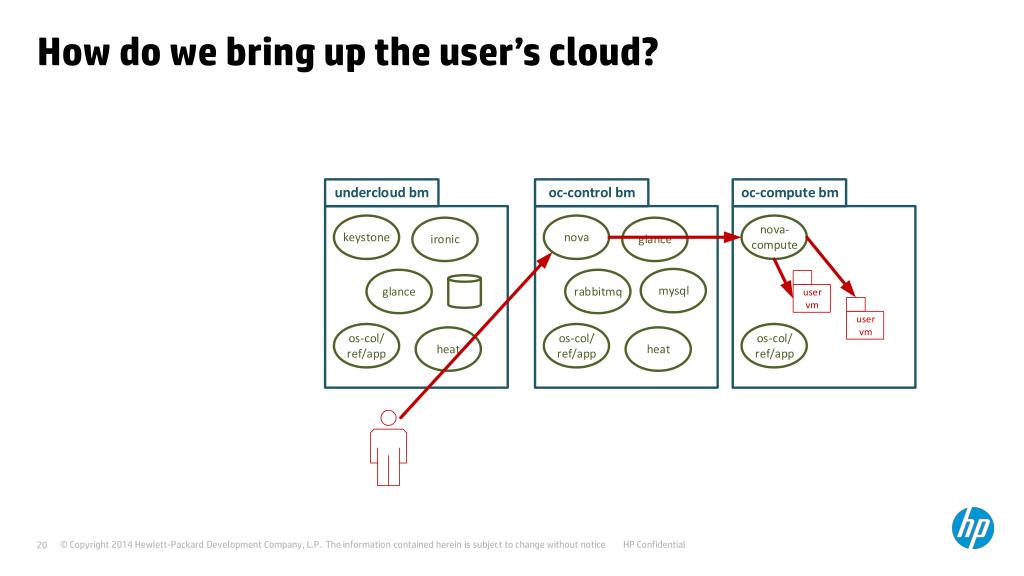

  20. How do we bring up the user’s cloud?

  21. How do we bring up the undercloud?

  22. So lets see Tripleo in action And I don’t mean a demo!

  23. Tripleo Deploy Flow - Image build Build the seed image

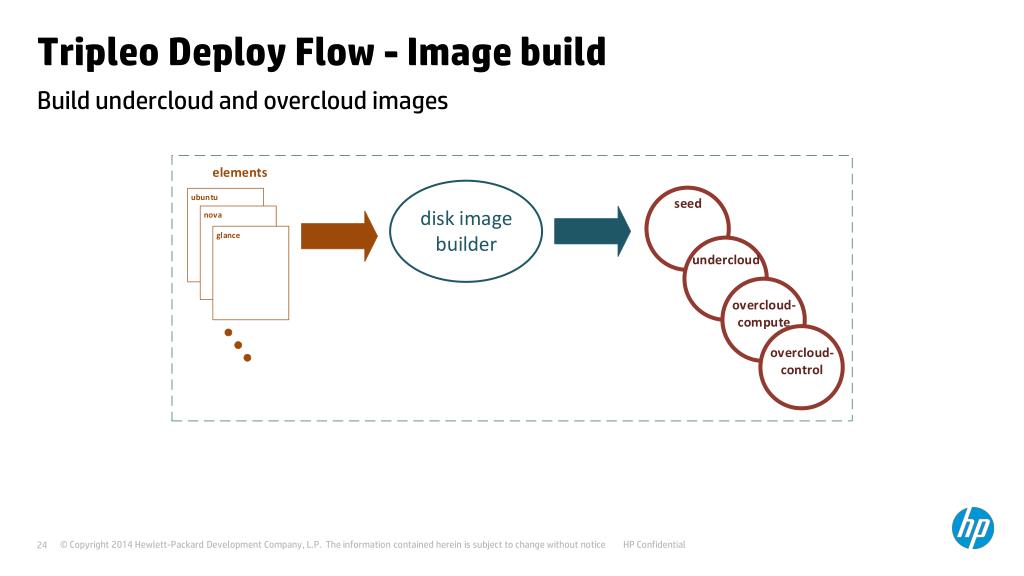

  24. Tripleo Deploy Flow - Image build Build undercloud and overcloud images

  25. Tripleo Deploy Flow - Seed Launch the Seed

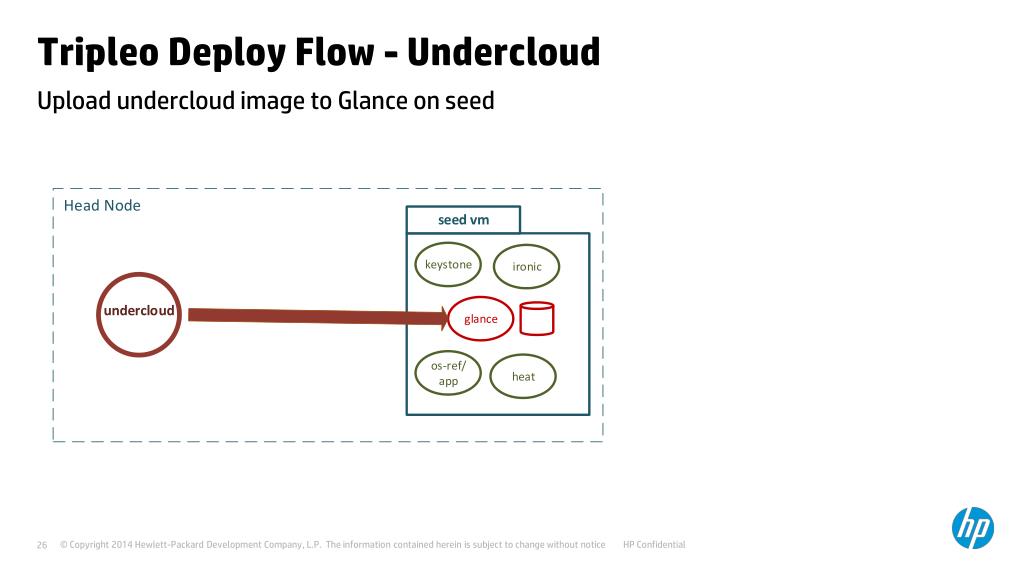

  26. Tripleo Deploy Flow - Undercloud Upload undercloud image to Glance on seed

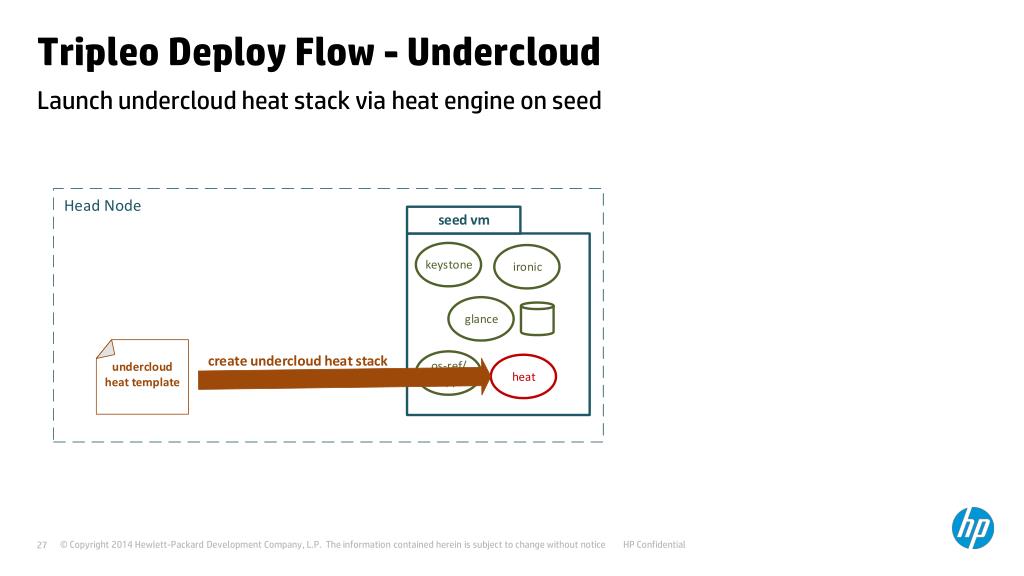

  27. Tripleo Deploy Flow - Undercloud Launch undercloud heat stack via heat engine on seed

  28. Tripleo Deploy Flow - Undercloud Heat launches the undercloud node

  29. Tripleo Deploy Flow - Undercloud Transfer undercloud image over iscsi connection

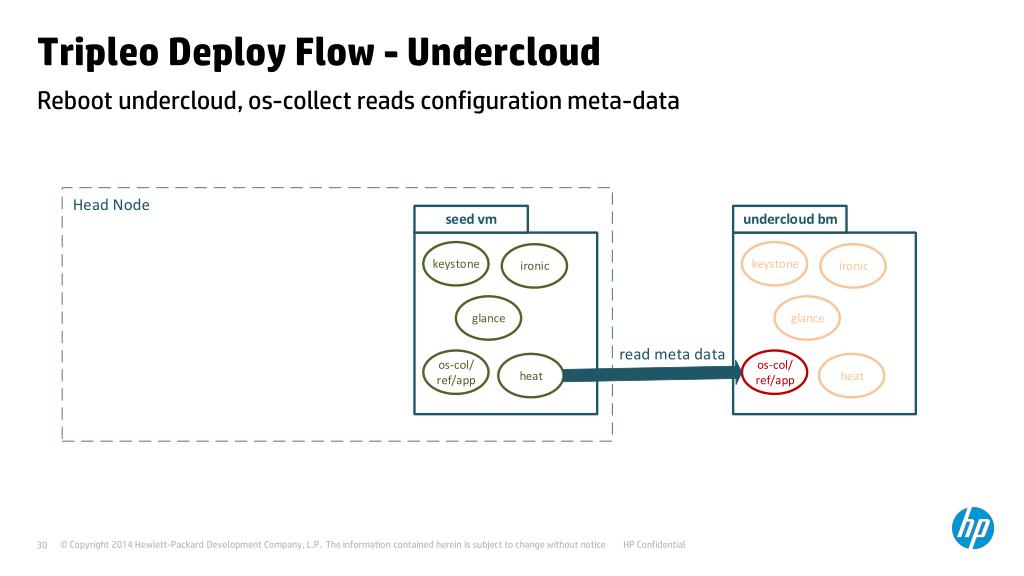

  30. Tripleo Deploy Flow - Undercloud Reboot undercloud, os-collect reads configuration meta-data

  31. Tripleo Deploy Flow - Undercloud Undercloudos-refresh/os-apply configures + launches services

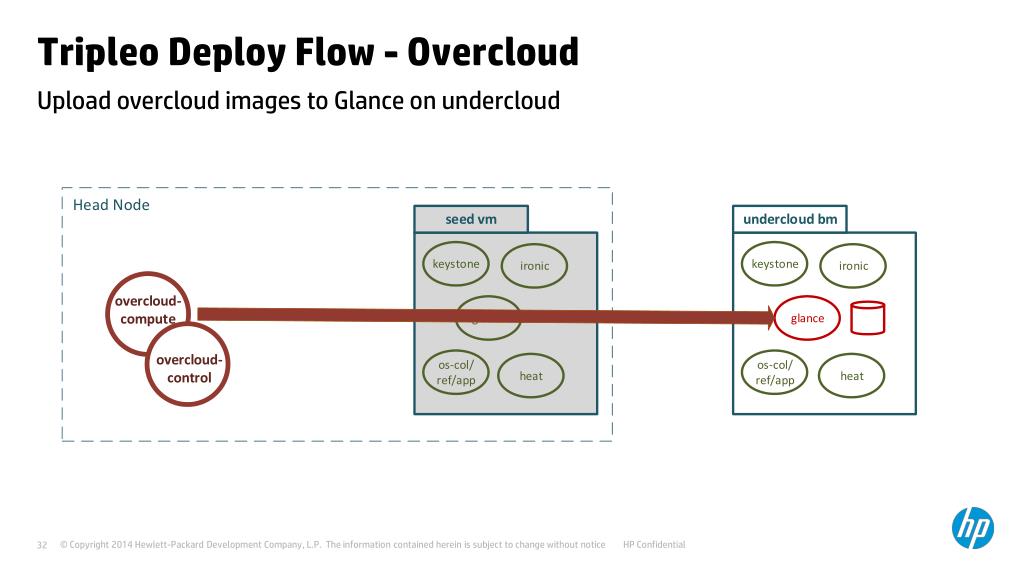

  32. Tripleo Deploy Flow - Overcloud Upload overcloud images to Glance on undercloud

  33. Tripleo Deploy Flow - Overcloud Launch overcloud heat stack via heat engine on undercloud

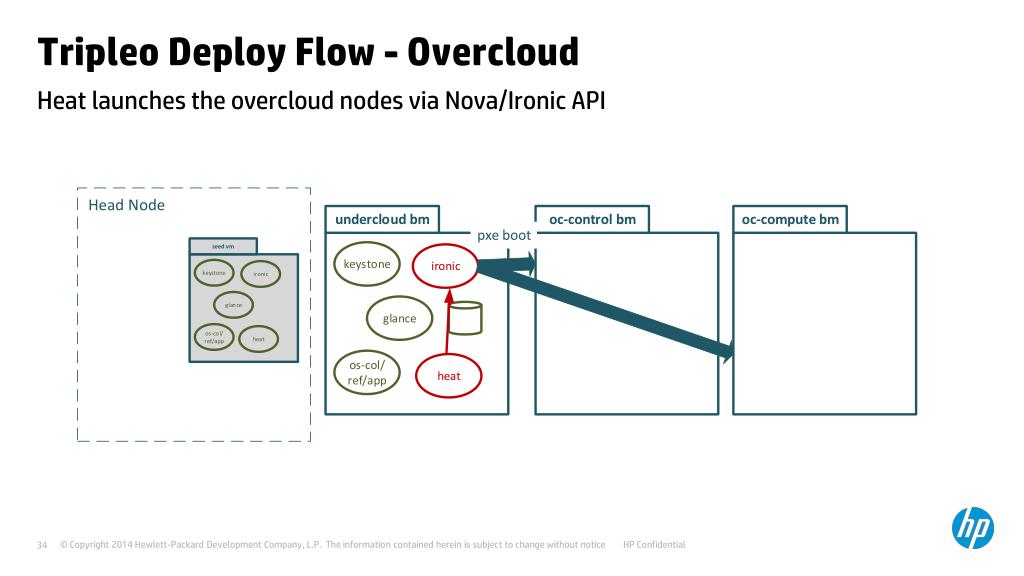

  34. Tripleo Deploy Flow - Overcloud Heat launches the overcloud nodes via Nova/Ironic API

  35. Tripleo Deploy Flow - Overcloud Transfer overcloud images over iscsi connection

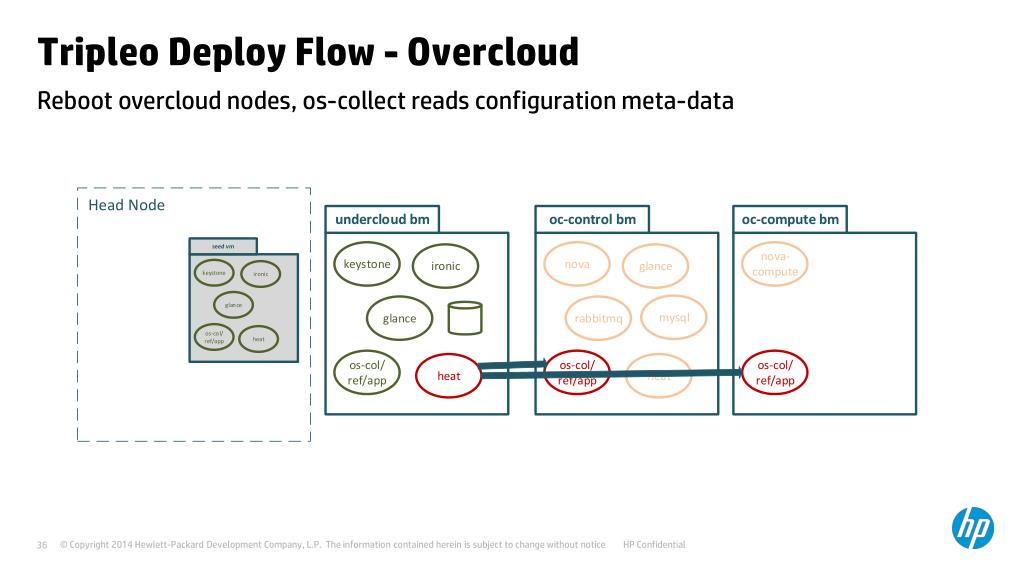

  36. Tripleo Deploy Flow - Overcloud Reboot overcloud nodes, os-collect reads configuration meta-data

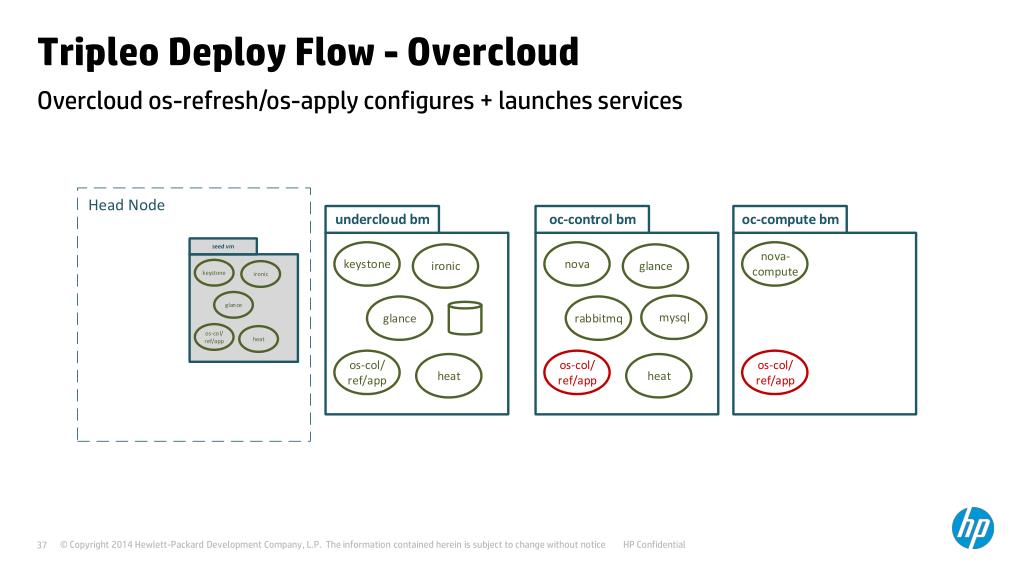

  37. Tripleo Deploy Flow - Overcloud Overcloud os-refresh/os-apply configures + launches services

  38. We now have a working cloud for users!

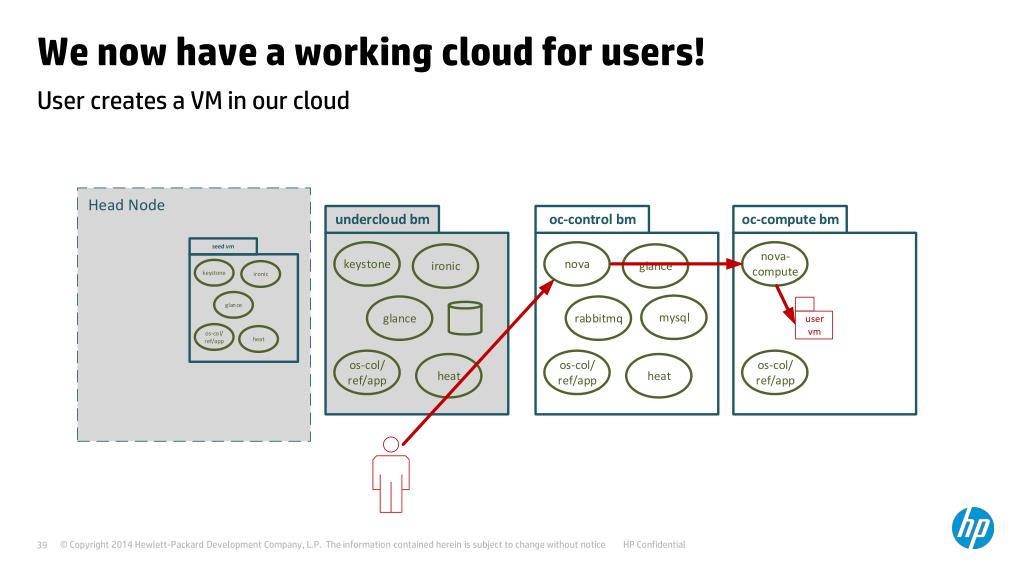

  39. We now have a working cloud for users! User creates a VM in our cloud

  40. We now have a working cloud for users! and another one….

  41. Tripleo Components Quick review of DIB, os-collect/apply/refresh-config and Heat

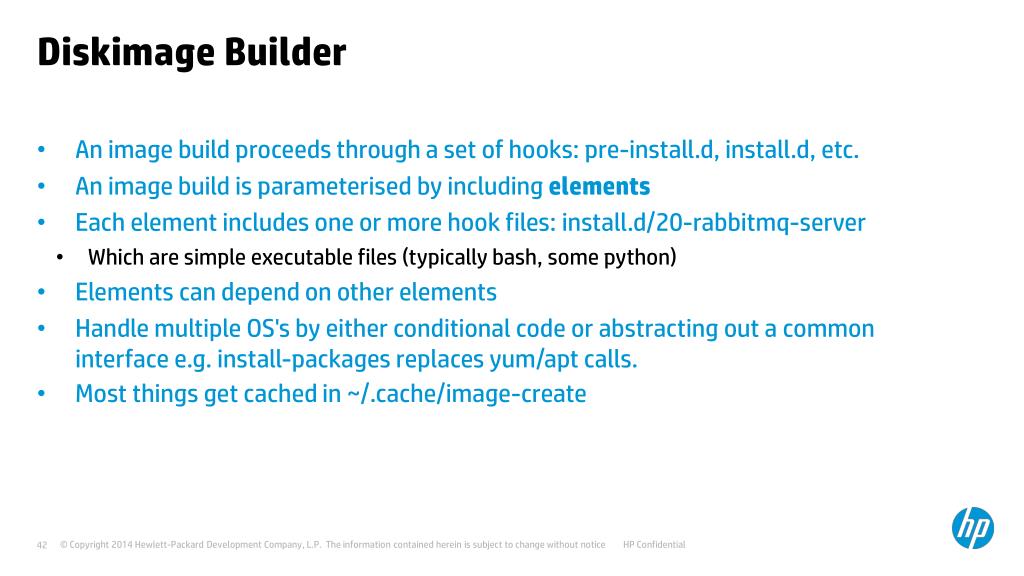

  42. Diskimage Builder • An image build proceeds through a set of hooks: pre-install.d, install.d, etc. • An image build is parameterised by including elements • Each element includes one or more hook files: install.d/20-rabbitmq-server • Which are simple executable files (typically bash, some python) • Elements can depend on other elements • Handle multiple OS's by either conditional code or abstracting out a common interface e.g. install-packages replaces yum/apt calls. • Most things get cached in ~/.cache/image-create

  43. Diskimage Builder tripleo-image-elements • apache2 fedora-rdo-icehouse keepalived nova pypi-openstack • bm-dnsmasq fedora-rdo-icehouse-repository keystone nova-apiqpidd • boot-stack geardmariadb nova-baremetalrabbitmq-server • ceilometer glance mariadb-dev nova-compute remove-serial-console • ceilometer-agent-central haproxymemcached nova-ironic salt-master • ceilometer-agent-compute heat mysql nova-kvm salt-minion • ceilometer-agent-notification heat-apimysql-common novnc seed-stack-config • ceilometer-api heat-cfntoolsmysql-devntpsnmpd • ceilometer-collector heat-engine mysql-mariadb-compatopenstack-clients stackuser • check_mk-agent horizon mysql-migration openstack-db swift • cinder hosts nagios3 openstack-ssl swift-proxy • cinder-apiicinga-core network-utilsos-apply-config swift-storage • cinder-lioicinga-web neutron os-collect-configsysctl • cinder-tgt __init__.py neutron-dhcp-agent os-refresh-config tempest • cinder-volume iptables neutron-network-node os-svc-install tripleo-cd • common-venv ironic neutron-openvswitch-agent pip-and-virtualenvtripleo-heat-templates • debian-mirror ironic-api neutron-ovs-cleanup pip-manifest tripleo-staging • devstack ironic-conductor neutron-server postfix tuskar • diskimage-builder jenkinsnfs-server pypi-mirror use-ephemeral

  44. Diskimage Builder Anatomy of an element

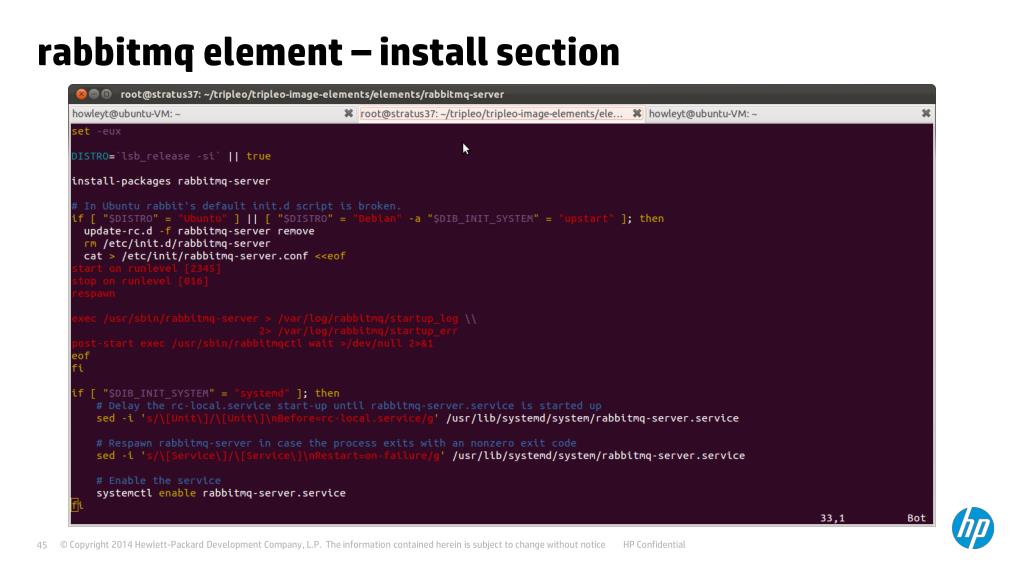

  45. rabbitmq element – install section

  46. Diskimage Builder To create an image using dib tool • disk-image-create -a $(IMAGE_ARCH) -o $(IMAGE_NAME) $(IMAGE_ELEMENTS) • disk-image-create -a i386 -o $TRIPLEO_ROOT/overcloud-compute ubuntu nova-compute nova-kvm neutron-openvswitch-agent os-collect-configdhcp-all-interfaces

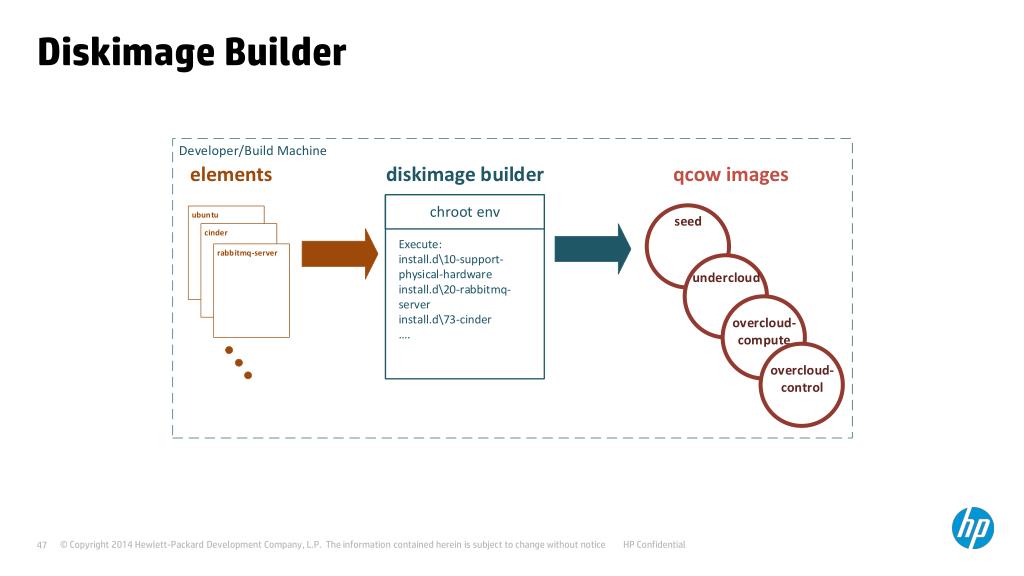

  47. Diskimage Builder

  48. os-apply-config mustache = logic-less templates, snippet of cinder.conf sample: • [DEFAULT] • {{#cinder.verbose}} • verbose={{cinder.verbose}} • {{/cinder.verbose}} • {{#cinder.debug}} • # Print debugging output (set logging level to DEBUG instead • # of default WARNING level). (boolean value) • debug={{cinder.debug}} • {{/cinder.debug}} • auth_strategy= keystone • sql_connection={{cinder.db}} • ….

  49. os-apply-config This input hash: • { • “cinder”: { • “verbose”: False, • “debug”: True, • “db”: “mysql://cinder:mypassword@10.0.0.5/cinder” • }

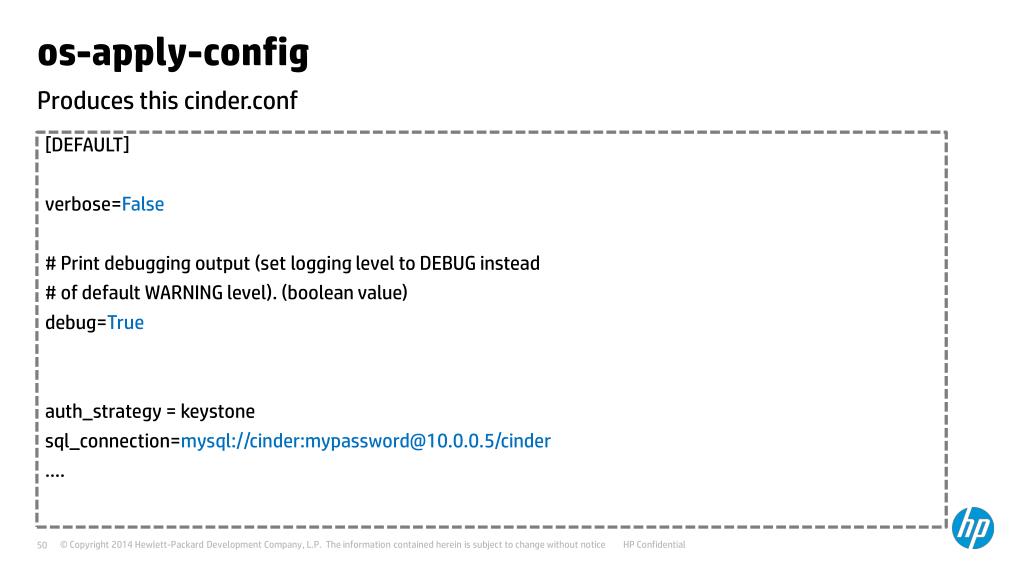

  50. os-apply-config Produces this cinder.conf • [DEFAULT] • verbose=False • # Print debugging output (set logging level to DEBUG instead • # of default WARNING level). (boolean value) • debug=True • auth_strategy= keystone • sql_connection=mysql://cinder:mypassword@10.0.0.5/cinder • ….
