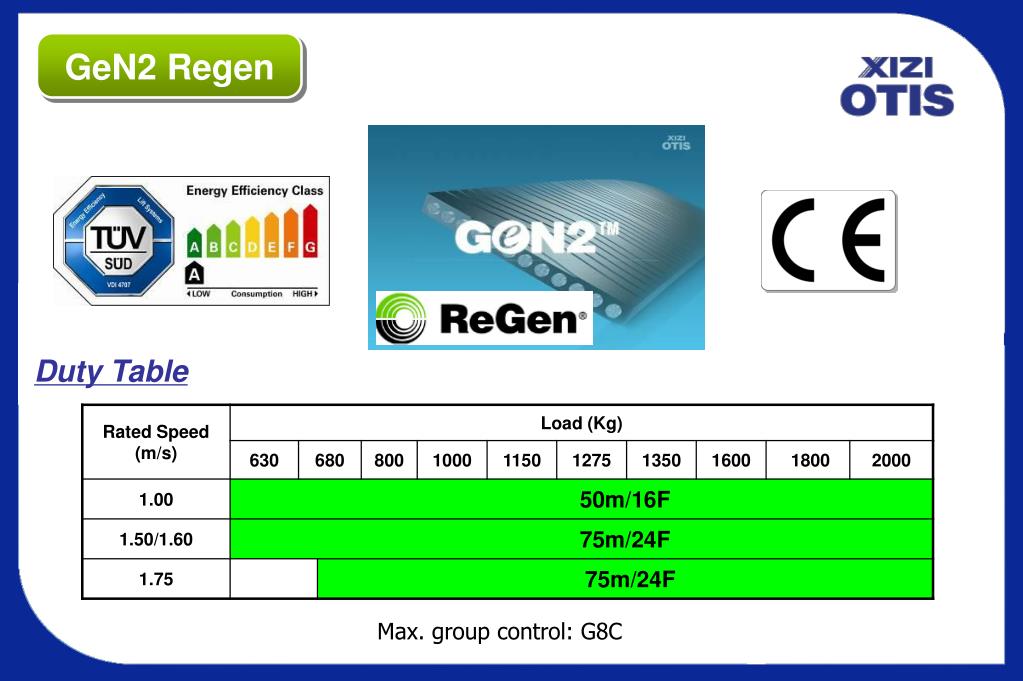

  1. GeN2 Regen Duty Table Max. group control: G8C

  2. GeN2 Regen Gen2 Machine (MOR) Shenling Governor CSB NGSOK Regen Drive Controller AES/AMS Space saving, energy saving, environmental friendly and excellent ride quality

  3. GeN2 Regen • Size: 30×3 & 60x3 • Steel cords: 12 & 24 • Cord diameter 1.67mm • Breaking load: 32KN & 64KN OTIS unique technology- Coated Steel Belt (CSB) • 20% less in weight while 2-3 times life time • Lubrication free Technology from helicopter (Sikorsky)

  4. GeN2 Regen Roped Machine Gen2 Machine CSB makes GeN2 Regen machine much smaller • Diameter of sheave:100mm • Groove:3/5 • Brake voltage:24V • Insulation class: F • Diameter of sheave:115mm • Groove:5 • Brake voltage:24V • Insulation class: F

  5. GeN2 Regen CSB Monitor • CSB monitor (RBI) • Resistance Based Inspection (RBI) for CSB • Dynamic inspection of CSB status • LED indication • Elevator level at nearest floor when failure inspected • REM interface • A component, not a tool

  6. GeN2 Regen OTIS GECB Controller board • Motorola 32 bit CPU with 1M Flash memory. • Rear time failure clinic automatically • CAN BUS 2.0 communication • CE Comply • ESD to avoid jobsite damage • Up to100 floors and 4m/s ESD: Electro-Static discharge

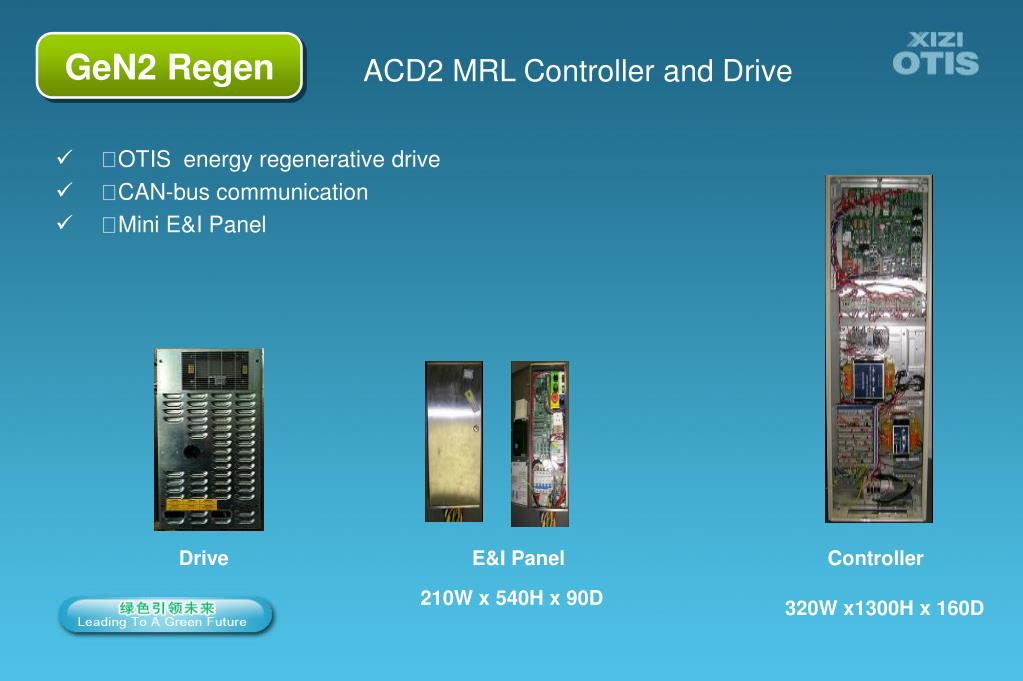

  7. GeN2 Regen ACD2 MRL Controller and Drive • OTIS energy regenerative drive • CAN-bus communication • Mini E&I Panel Drive E&I Panel Controller 210W x 540H x 90D 320W x1300H x 160D

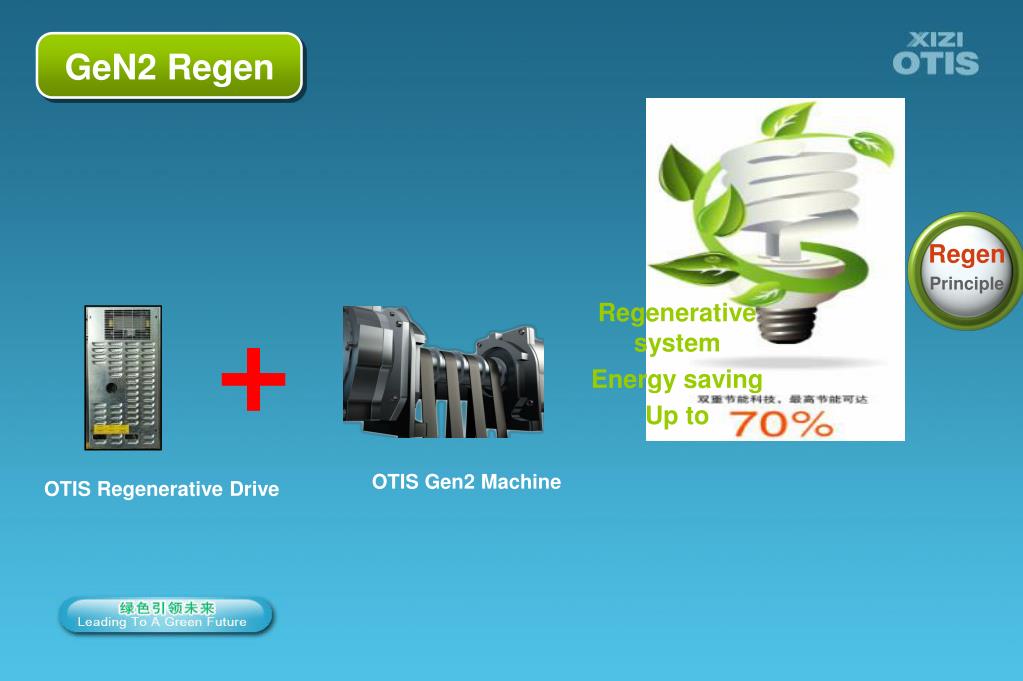

  8. GeN2 Regen Regenerative system Energy saving Up to Regen Principle + OTIS Gen2 Machine OTIS Regenerative Drive

  9. GeN2 Regen NGSOK Door operator Key parameters: • PM motor, energy saving • VVVF controller • Motor drive directly, no gearbox • Disc motor, space saving • Easier for installation • Max. moving mass: 200kg • Motor IP: 44 • Side opening is availble OP=900~1300 • Standard opening height:2100/2000 For Gen2 Regen and also for all other passenger elevators

  10. GeN2 Regen Safety Components E3 Qualified – Otis US design qualification – Otis US MFG process control – Otis US change control – Reliable – Durable – Traceability Safety Gear Speed governor Oil buffer Comparison

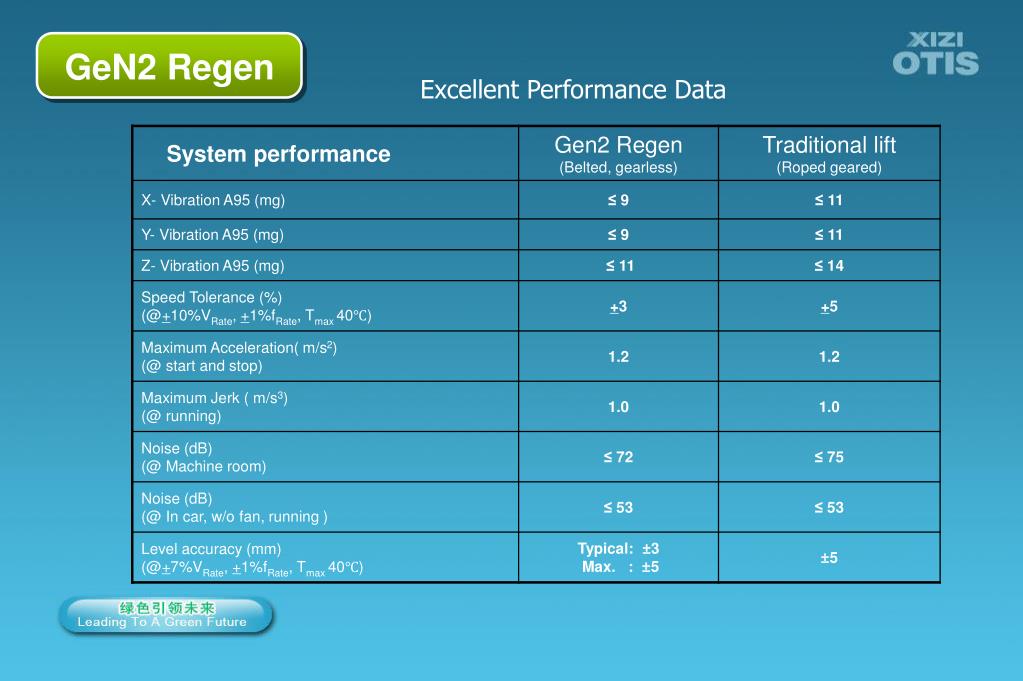

  11. GeN2 Regen Excellent Performance Data
