Making a Color-Magnitude Diagram for Globular Cluster Omega Centauri

Making a Color-Magnitude Diagram for Globular Cluster Omega Centauri. Jay Anderson, STScI. 1. This is the Early-Release Image of Omega Centauri, taken by WFC3/UVIS on board the Hubble Space Telescope (HST). http://hubblesite.org/gallery/wallpaper/pr2009025q/. 2.

Download Presentation

Making a Color-Magnitude Diagram for Globular Cluster Omega Centauri

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Making a Color-MagnitudeDiagram for Globular Cluster Omega Centauri Jay Anderson, STScI 1

  2. This is the Early-Release Image of Omega Centauri, taken by WFC3/UVIS on board the Hubble Space Telescope (HST) http://hubblesite.org/gallery/wallpaper/pr2009025q/ 2

  3. A close up of the central region. 3

  4. This image was made by combiningseparate red, green, and blue images. 4

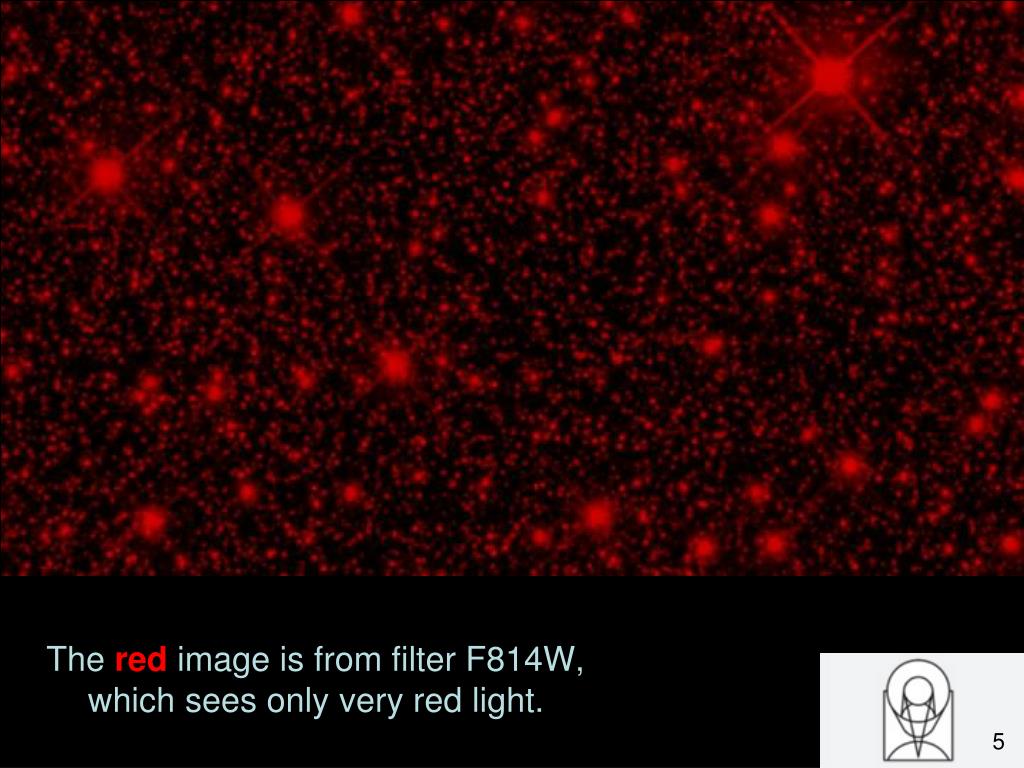

  5. The red image is from filter F814W, which sees only very red light. 5

  6. The green image is from filter F336W, which sees only blue light. 6

  7. The blue image is from filter F225W, which sees only ultra-violet light. 7

  8. The combined image again. 8

  9. The colors are so extreme because… 9

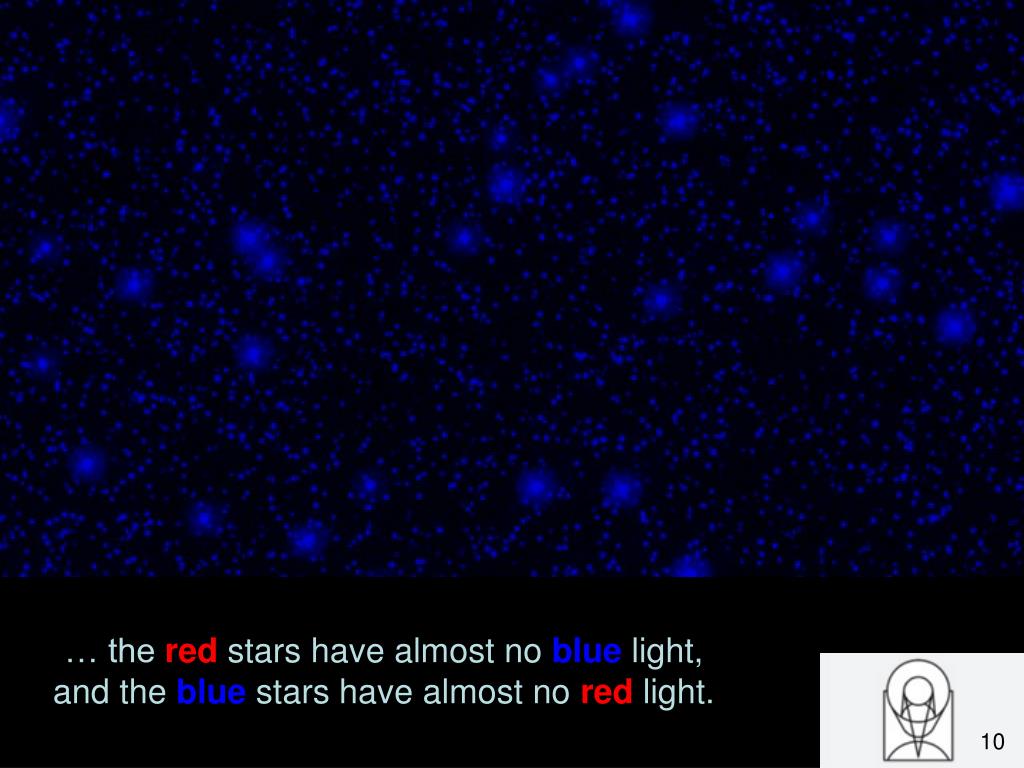

  10. … the red stars have almost no blue light, and the blue stars have almost no red light. 10

  11. The composite image again. 11

  12. Astronomers like to study the colors of stars in a quantitative way. 12

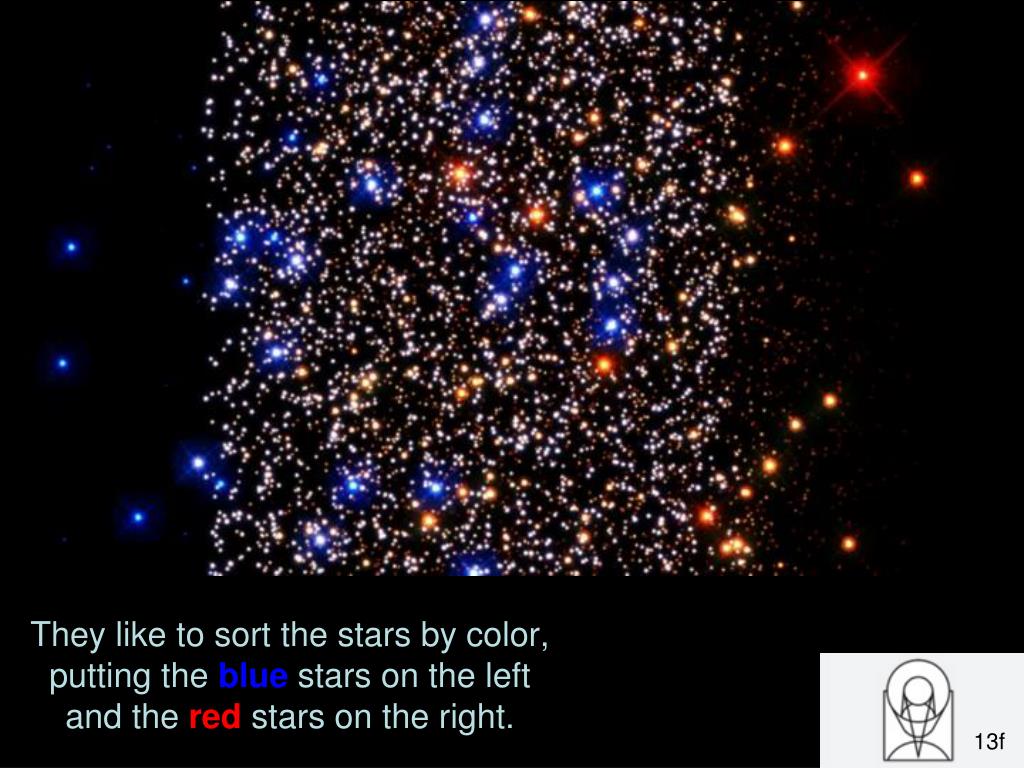

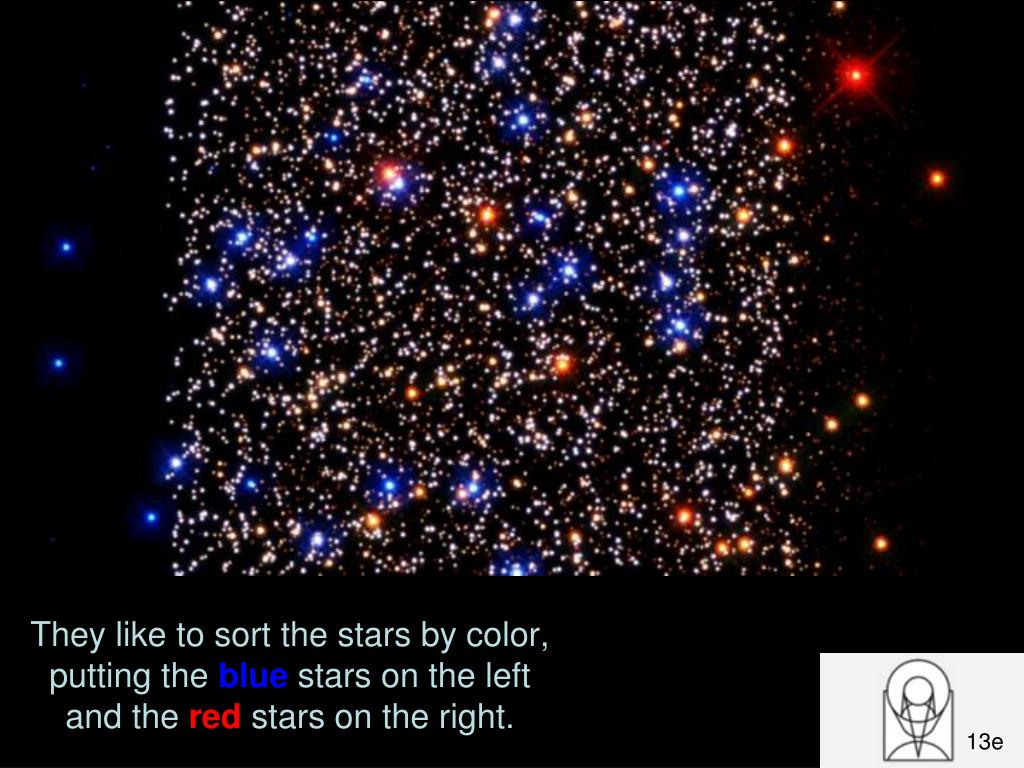

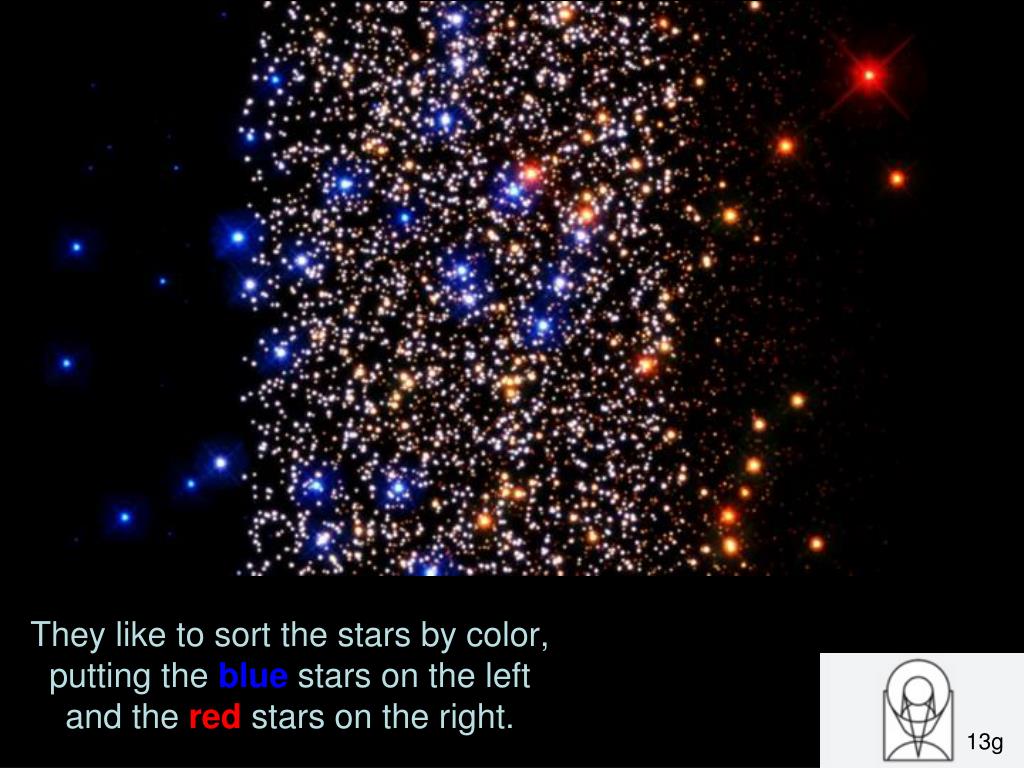

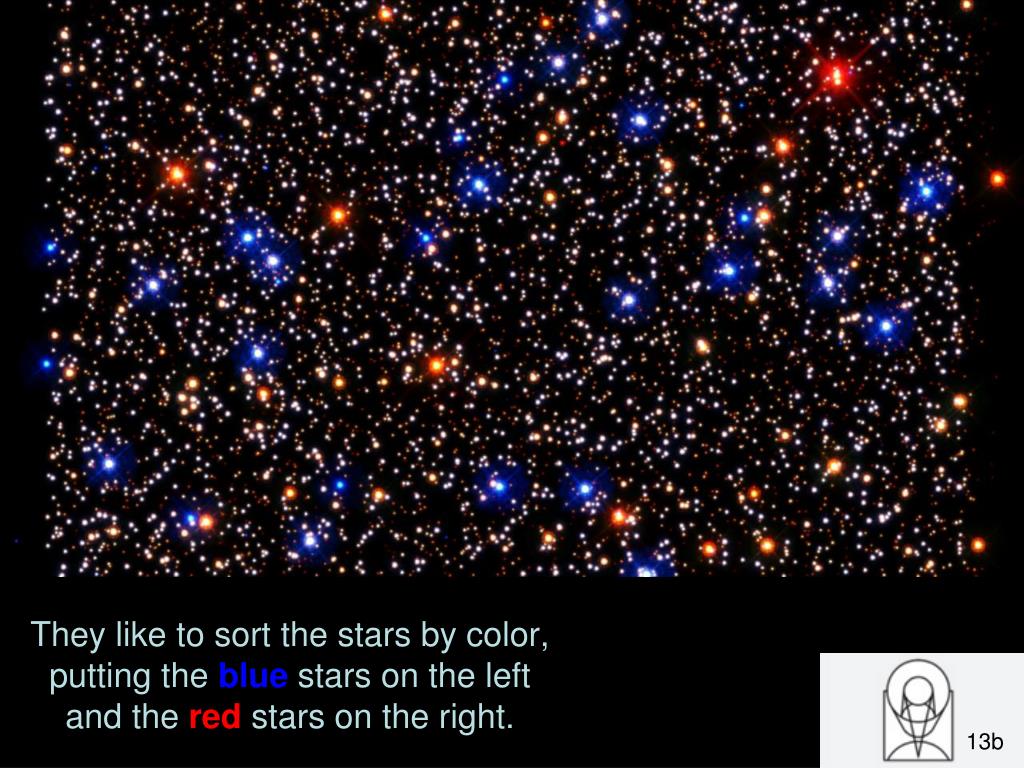

  13. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13a

  14. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13b

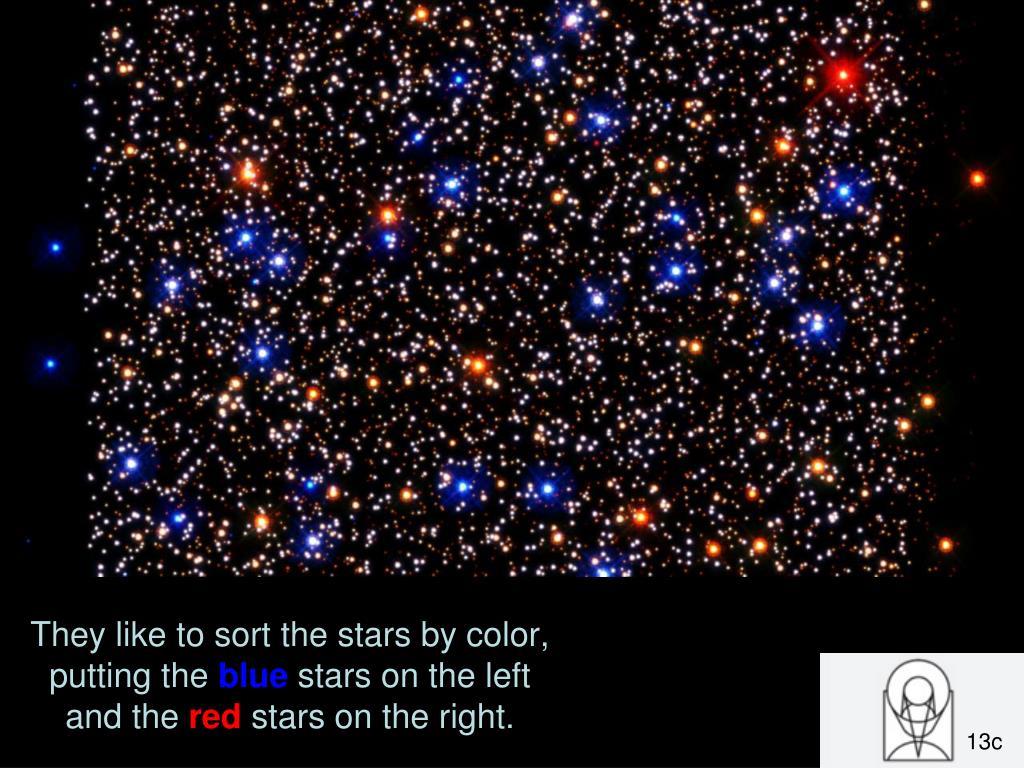

  15. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13c

  16. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13d

  17. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13e

  18. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13f

  19. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13g

  20. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13h

  21. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13i

  22. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13j

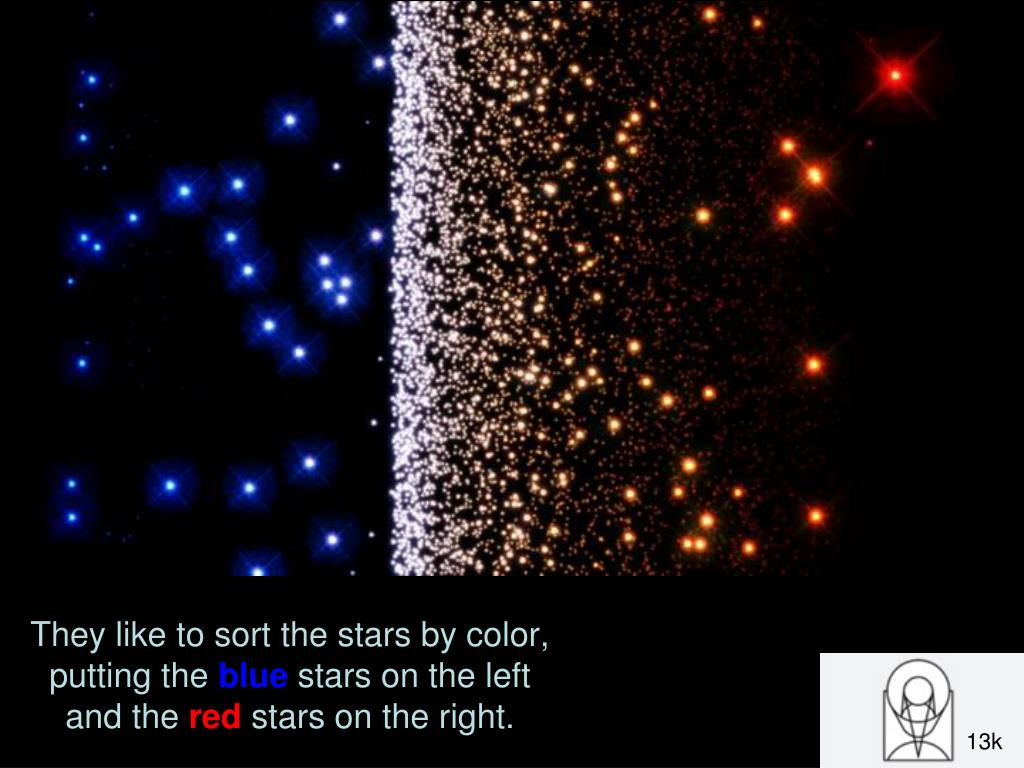

  23. They like to sort the stars by color, putting the blue stars on the left and the red stars on the right. 13k

  24. Note that there are very few extreme stars; most stars are white, meaning they have a balanced spectrum. 14

  25. Astronomers also like to characterize the stars in terms of brightness. 14

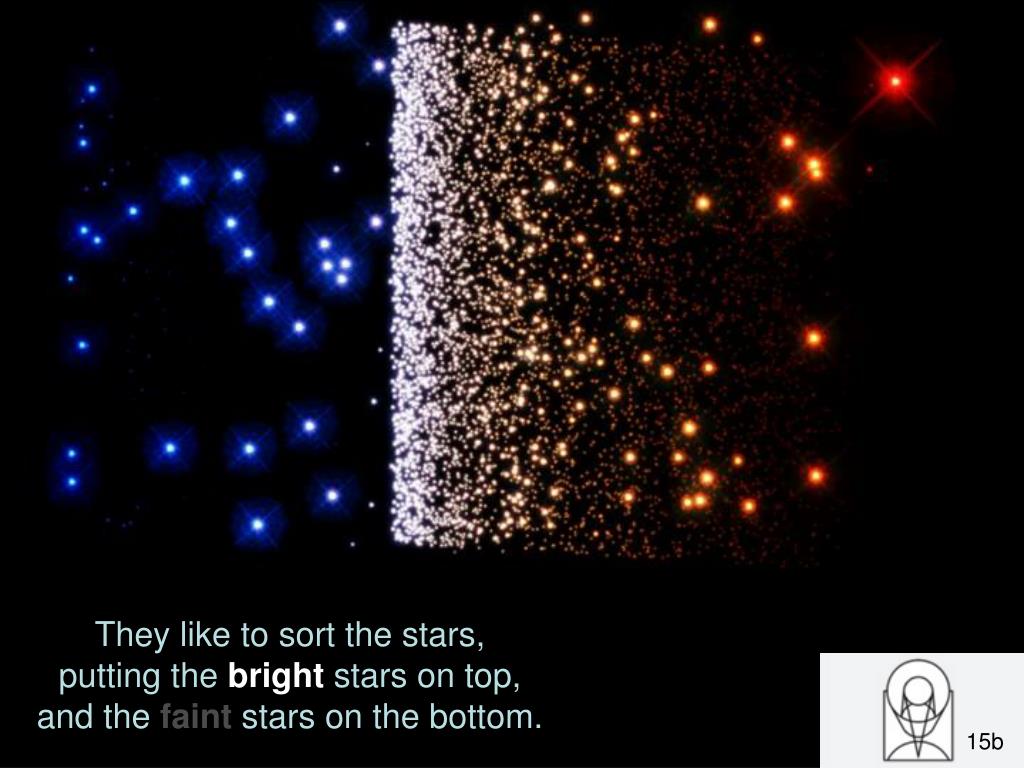

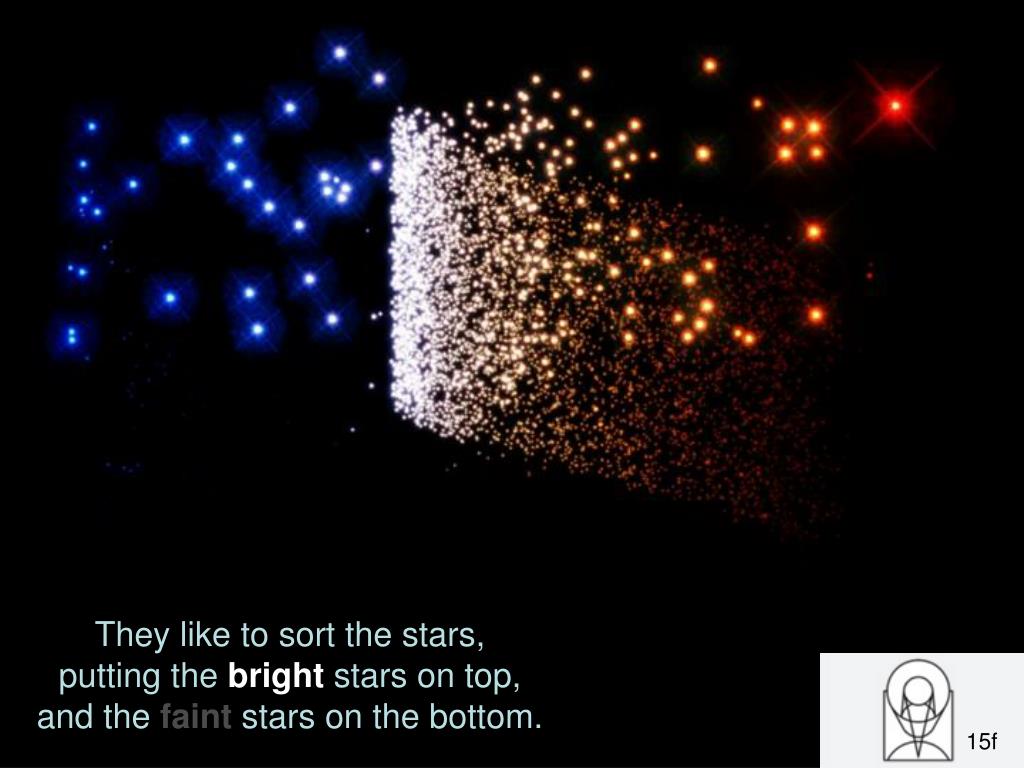

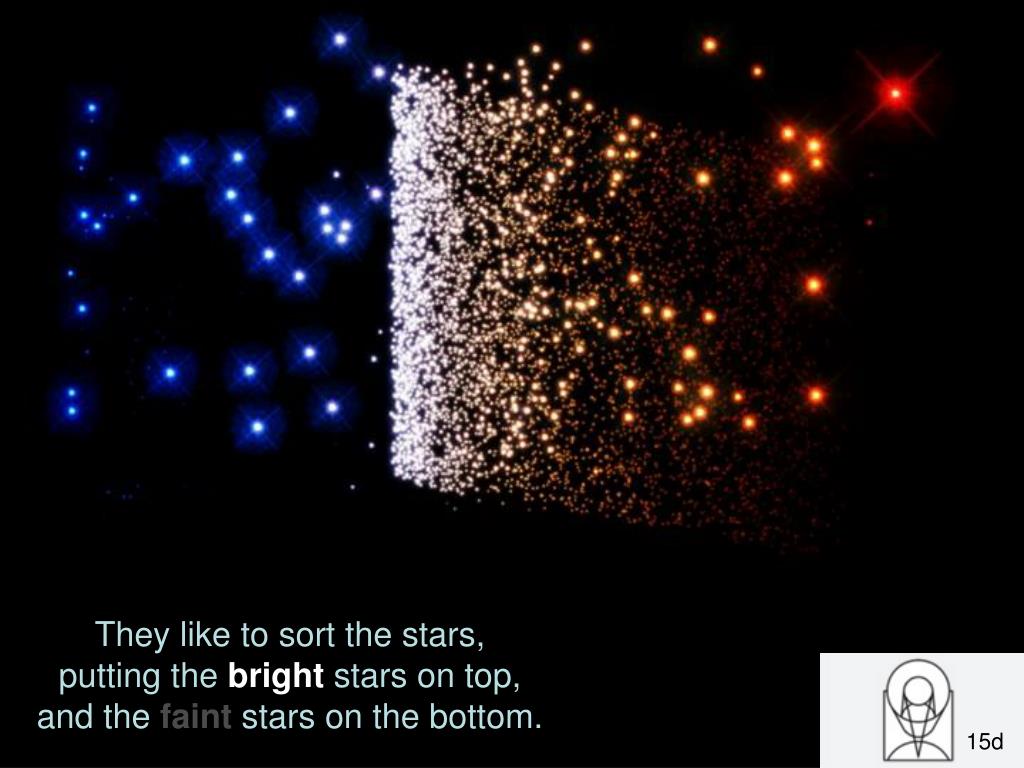

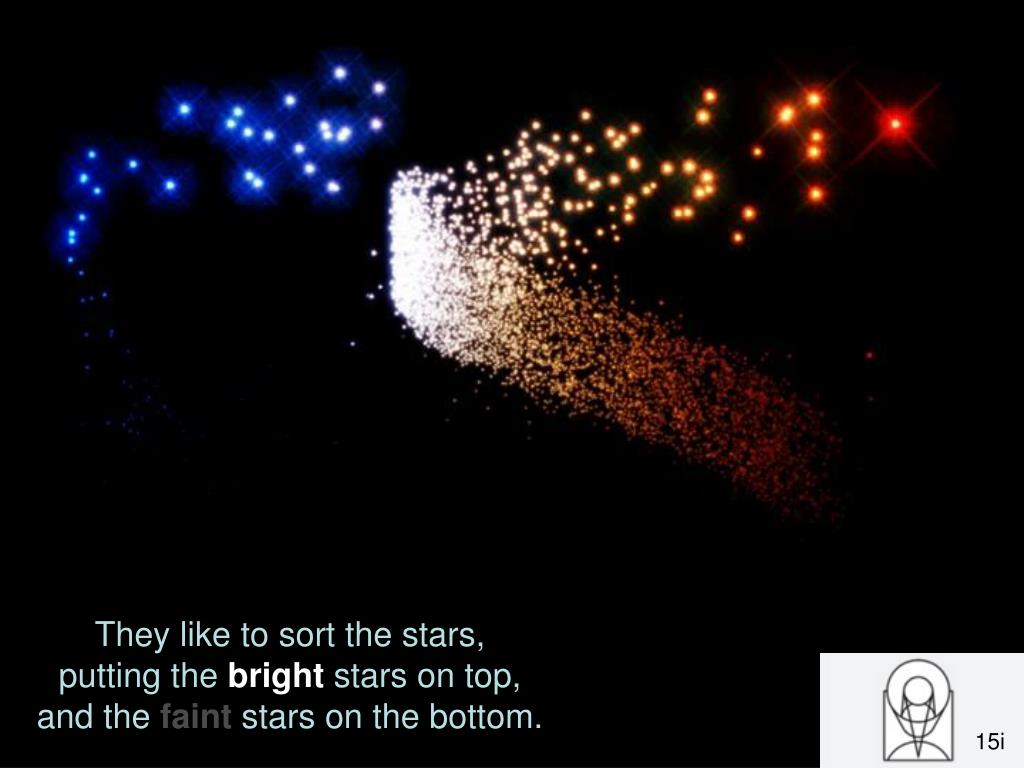

  26. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15a

  27. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15b

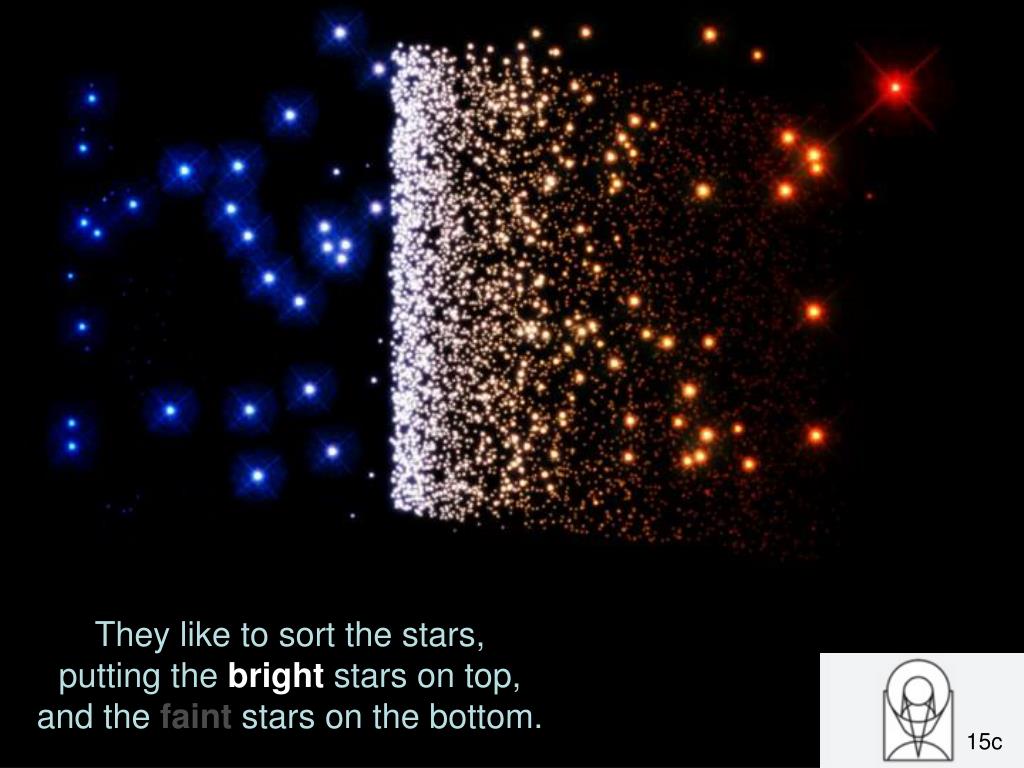

  28. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15c

  29. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15d

  30. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15e

  31. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15f

  32. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15g

  33. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15h

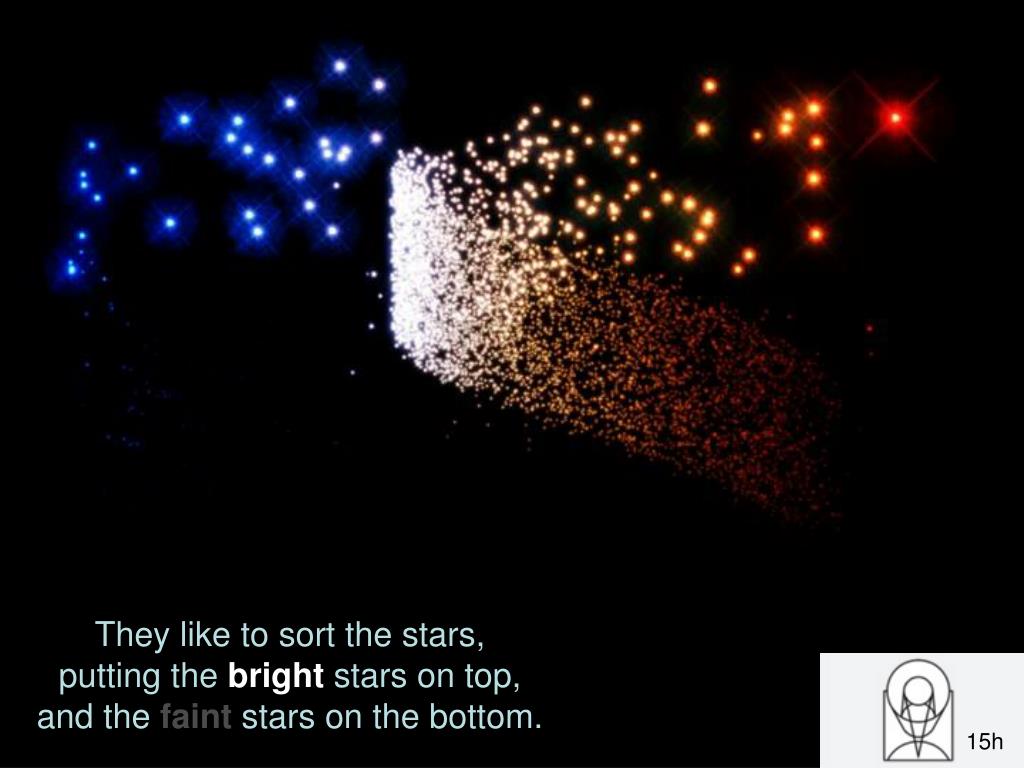

  34. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15i

  35. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15j

  36. They like to sort the stars, putting the bright stars on top, and the faint stars on the bottom. 15k

  37. This is called a Color-Magnitude Diagram (CMD). 16

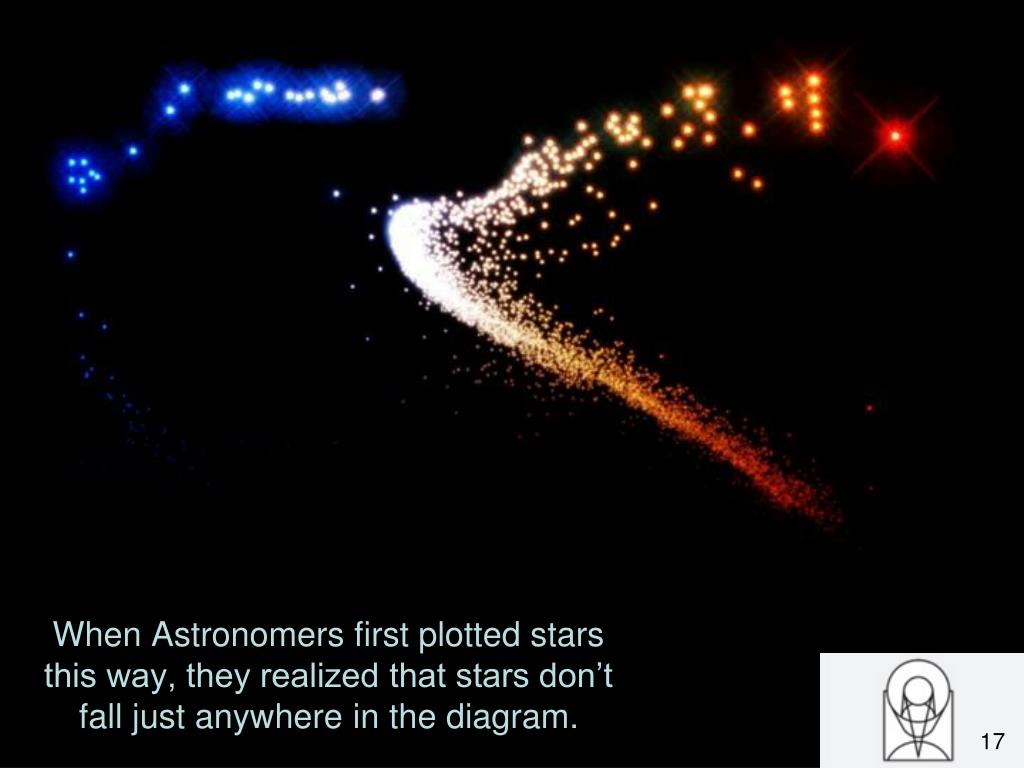

  38. When Astronomers first plotted stars this way, they realized that stars don’t fall just anywhere in the diagram. 17

  39. Stars tend to lie along a few well-defined sequences. 18

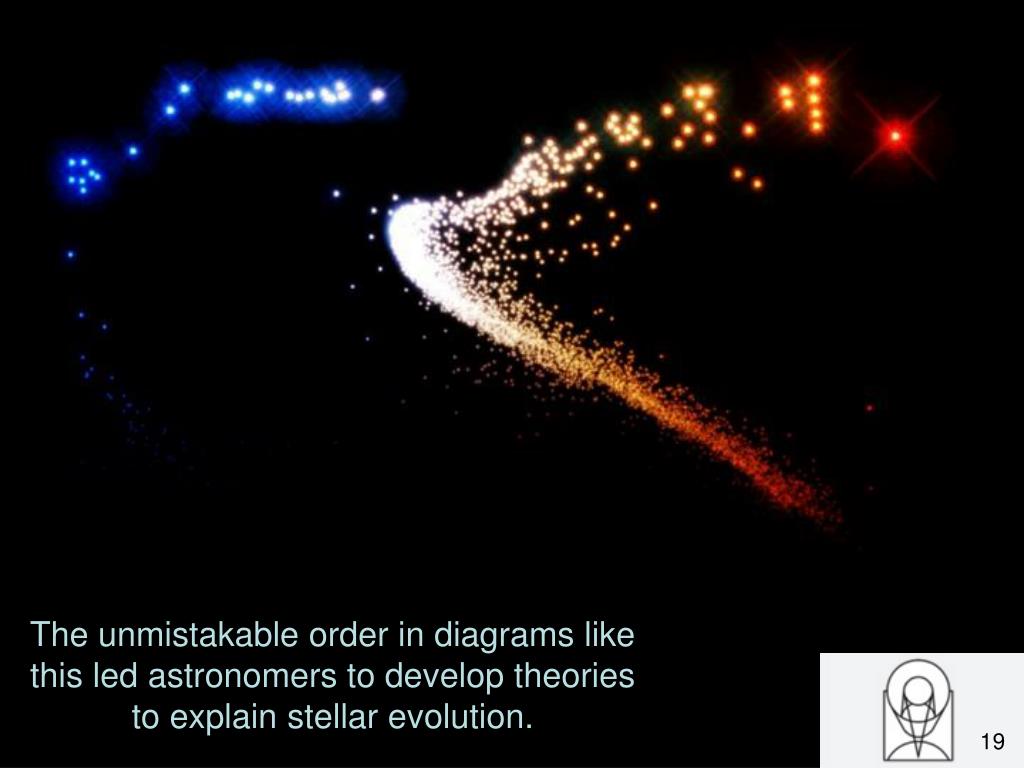

  40. The unmistakable order in diagrams like this led astronomers to develop theories to explain stellar evolution. 19

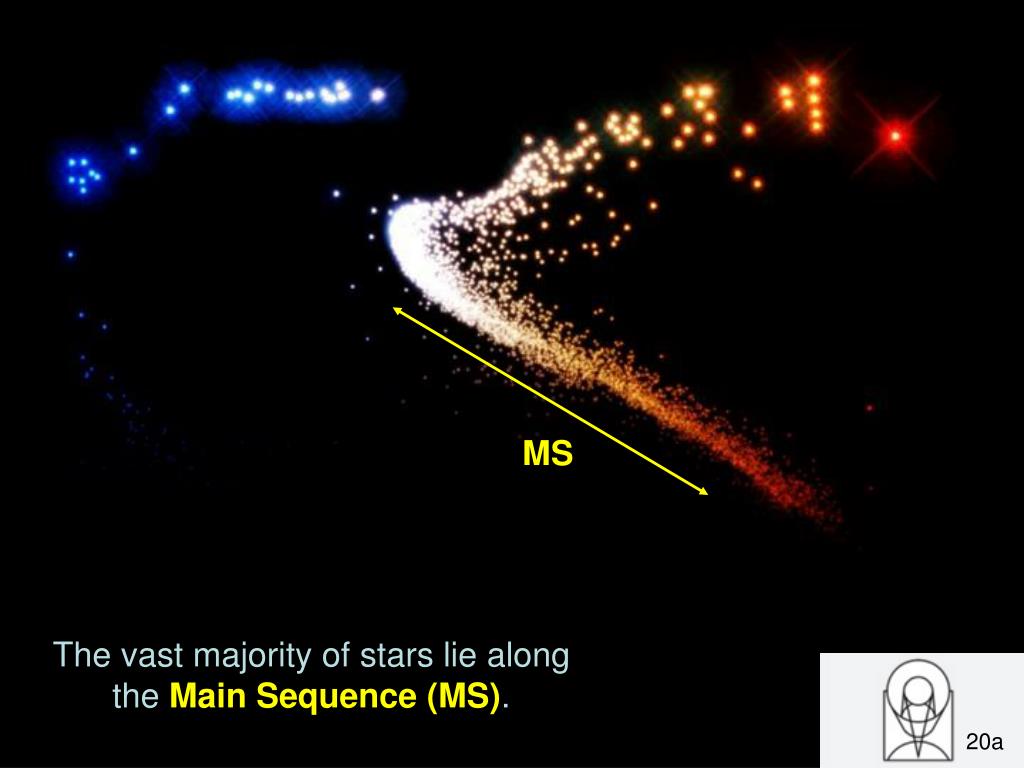

  41. The vast majority of stars lie along the Main Sequence (MS). MS 20a

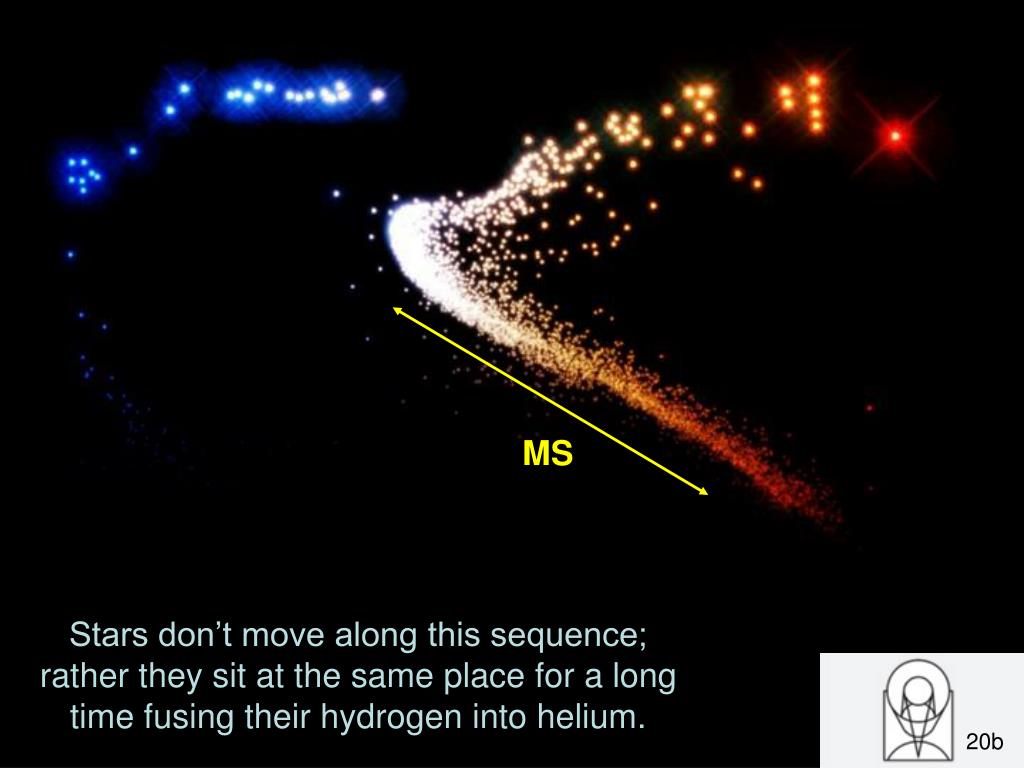

  42. Stars don’t move along this sequence; rather they sit at the same place for a long time fusing their hydrogen into helium. MS 20b

  43. This is a sequence in mass. Stars at the bright end are massive, and those at the faint, red end have very low masses. MS 20c

  44. The more massive stars consume their hydrogen fuel much faster than the lower-mass stars. MS 20d

  45. When fuel becomes sparse in the stellar core, stars readjust their internal structure and move red-ward along the Sub-Giant Branch (SGB). SGB MS 21

  46. RGB They start to burn the hydrogen in a shell around the core and become big and bloated as they move up the Red Giant Branch (RGB). SGB MS 22a

  47. RGB As the shell-burning continues, more and more helium gets deposited onto the core. SGB MS 22b

  48. RGB When the core has enough mass, it is finally able to ignite helium into carbon. SGB MS 22c

  49. RGB HB The star readjusts its structure again and finds itself on the Horizontal Branch (HB). SGB MS 23a

  50. RGB HB The helium fuel is not as potent as the hydrogen, so it runs out quickly. SGB MS 23b
