  1. Newton’s Divided Difference Polynomial Method of Interpolation Computer Engineering Majors Authors: Autar Kaw, Jai Paul http://numericalmethods.eng.usf.edu Transforming Numerical Methods Education for STEM Undergraduates http://numericalmethods.eng.usf.edu

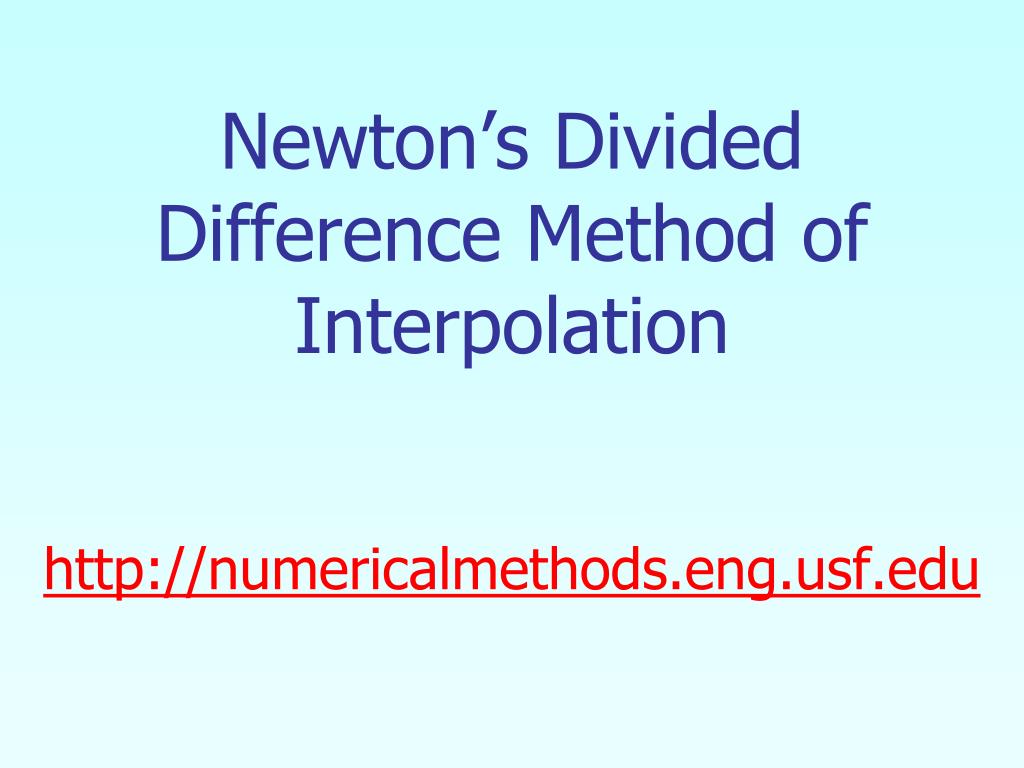

  2. Newton’s Divided Difference Method of Interpolationhttp://numericalmethods.eng.usf.edu

  3. What is Interpolation ? Given (x0,y0), (x1,y1), …… (xn,yn), find the value of ‘y’ at a value of ‘x’ that is not given. http://numericalmethods.eng.usf.edu

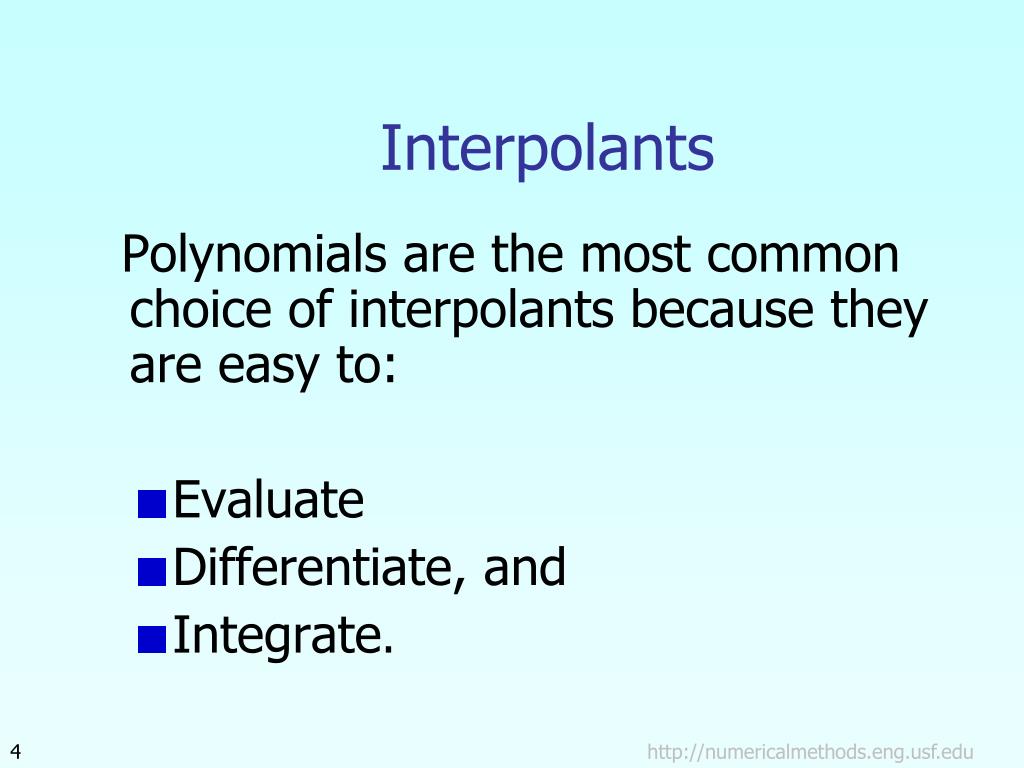

  4. Interpolants Polynomials are the most common choice of interpolants because they are easy to: • Evaluate • Differentiate, and • Integrate. http://numericalmethods.eng.usf.edu

  5. Newton’s Divided Difference Method Linear interpolation: Given pass a linear interpolant through the data where http://numericalmethods.eng.usf.edu

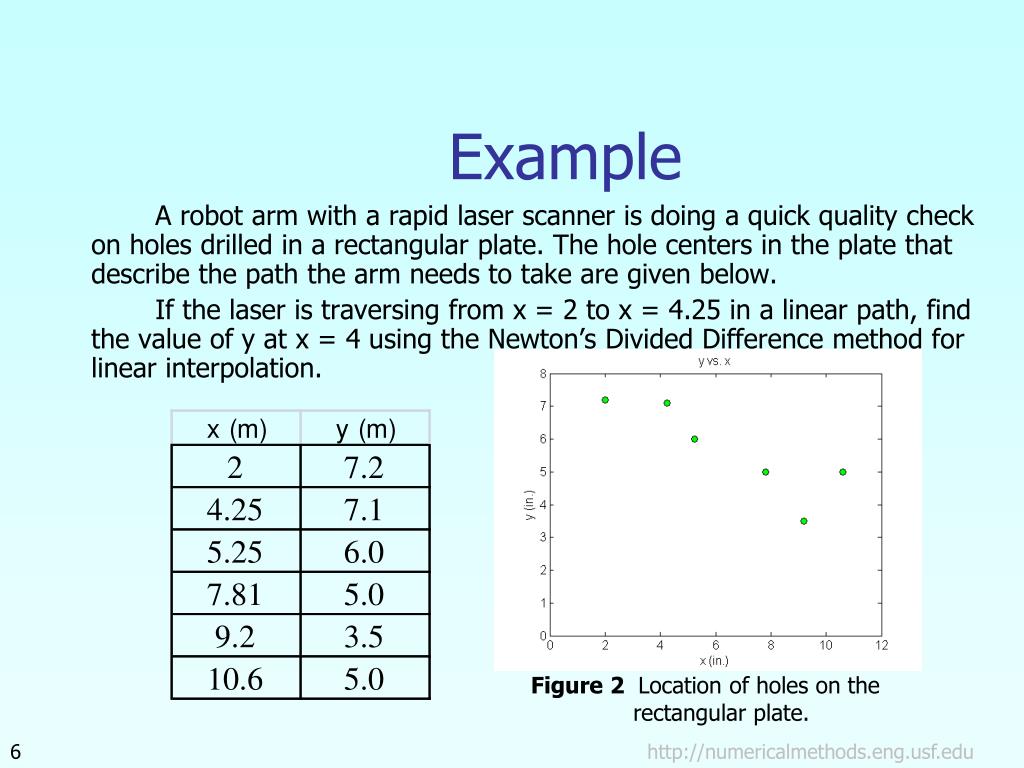

  6. Example A robot arm with a rapid laser scanner is doing a quick quality check on holes drilled in a rectangular plate. The hole centers in the plate that describe the path the arm needs to take are given below. If the laser is traversing from x = 2 to x = 4.25 in a linear path, find the value of y at x = 4 using the Newton’s Divided Difference method for linear interpolation. Figure 2 Location of holes on the rectangular plate. http://numericalmethods.eng.usf.edu

  7. Linear Interpolation http://numericalmethods.eng.usf.edu

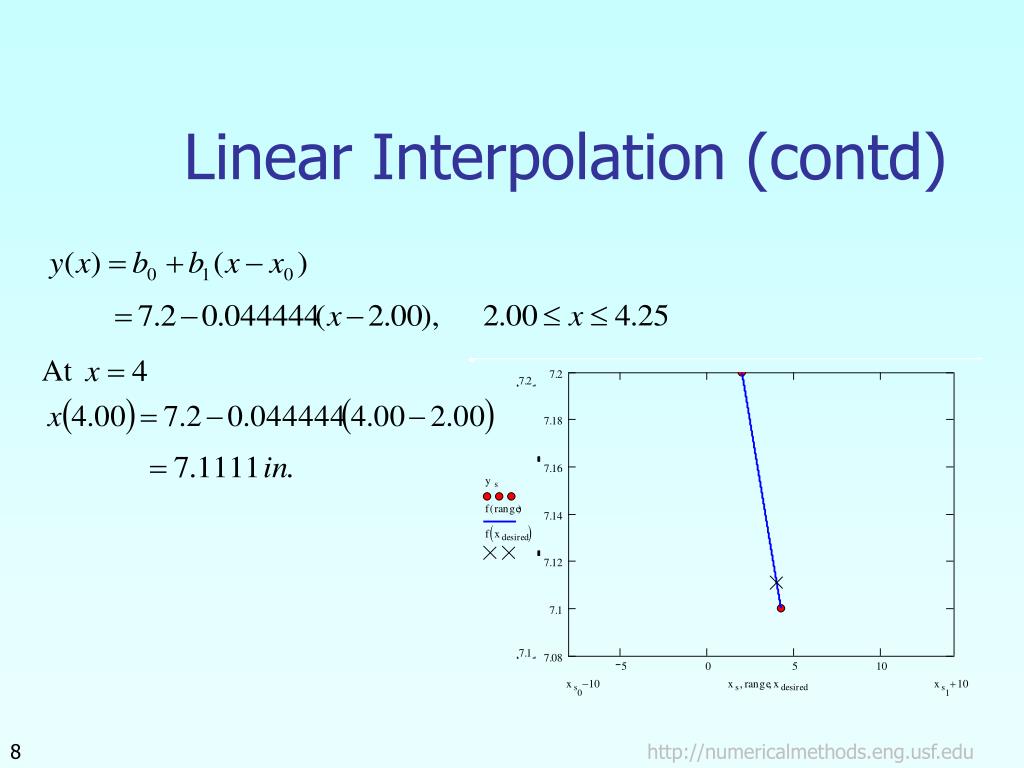

  8. Linear Interpolation (contd) http://numericalmethods.eng.usf.edu

  9. Quadratic Interpolation http://numericalmethods.eng.usf.edu

  10. Example A robot arm with a rapid laser scanner is doing a quick quality check on holes drilled in a rectangular plate. The hole centers in the plate that describe the path the arm needs to take are given below. If the laser is traversing from x = 2 to x = 4.25 in a linear path, find the value of y at x = 4 using the Newton’s Divided Difference method for quadratic interpolation. Figure 2 Location of holes on the rectangular plate. http://numericalmethods.eng.usf.edu

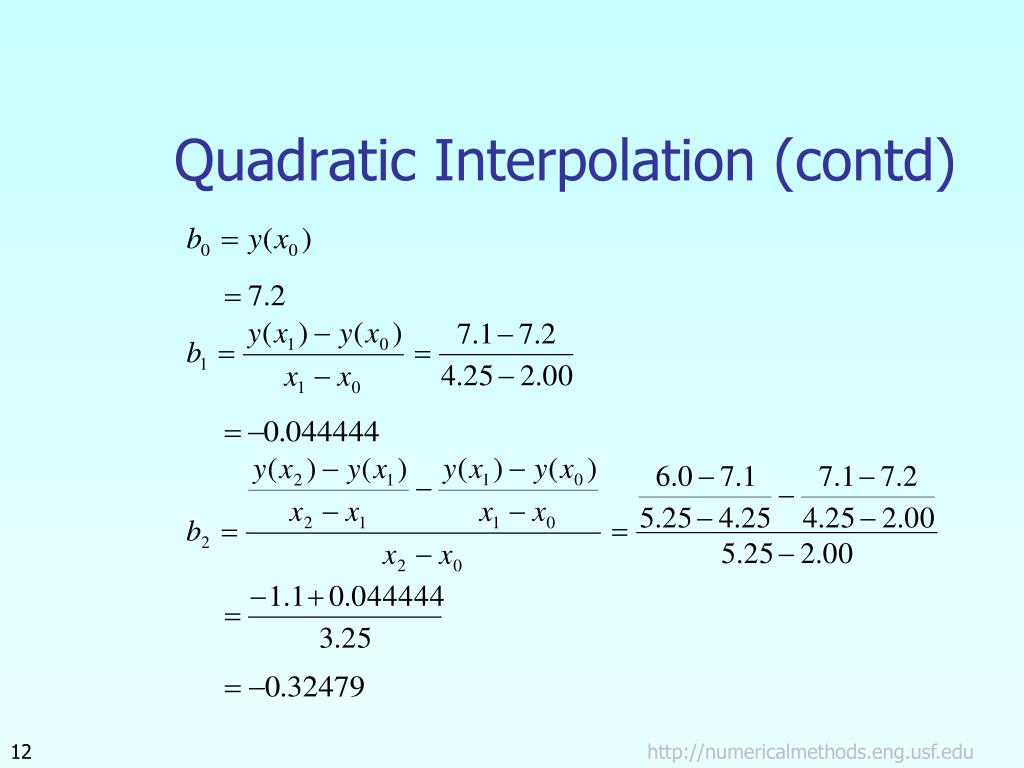

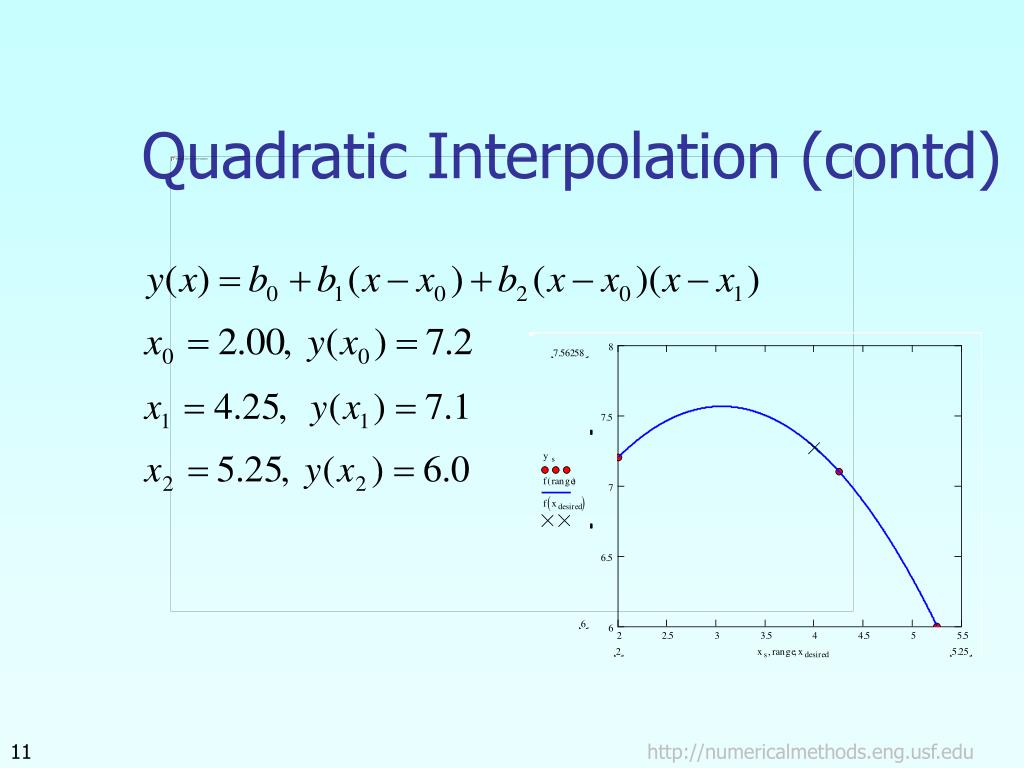

  11. Quadratic Interpolation (contd) http://numericalmethods.eng.usf.edu

  12. Quadratic Interpolation (contd) http://numericalmethods.eng.usf.edu

  13. Quadratic Interpolation (contd) http://numericalmethods.eng.usf.edu

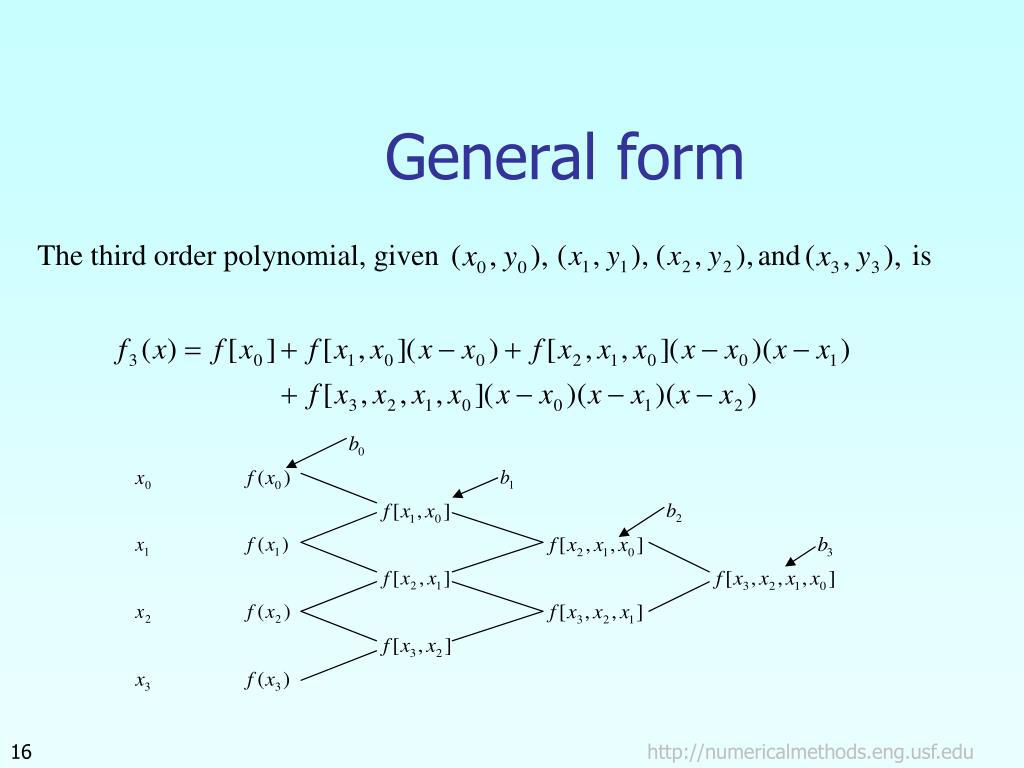

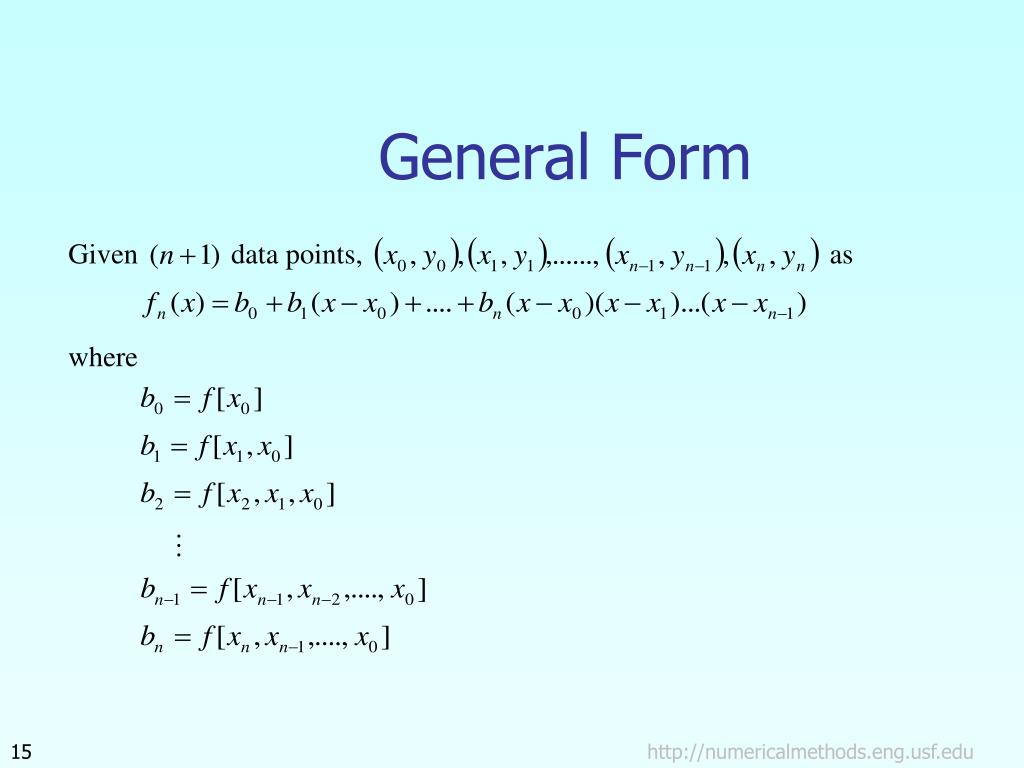

  14. General Form where Rewriting http://numericalmethods.eng.usf.edu

  15. General Form http://numericalmethods.eng.usf.edu

  16. General form http://numericalmethods.eng.usf.edu

  17. Example A robot arm with a rapid laser scanner is doing a quick quality check on holes drilled in a rectangular plate. The hole centers in the plate that describe the path the arm needs to take are given below. If the laser is traversing from x = 2 to x = 4.25 in a linear path, find the value of y at x = 4 using the Newton’s Divided Difference method for a fifth order polynomial. Figure 2 Location of holes on the rectangular plate. http://numericalmethods.eng.usf.edu

  18. Example http://numericalmethods.eng.usf.edu

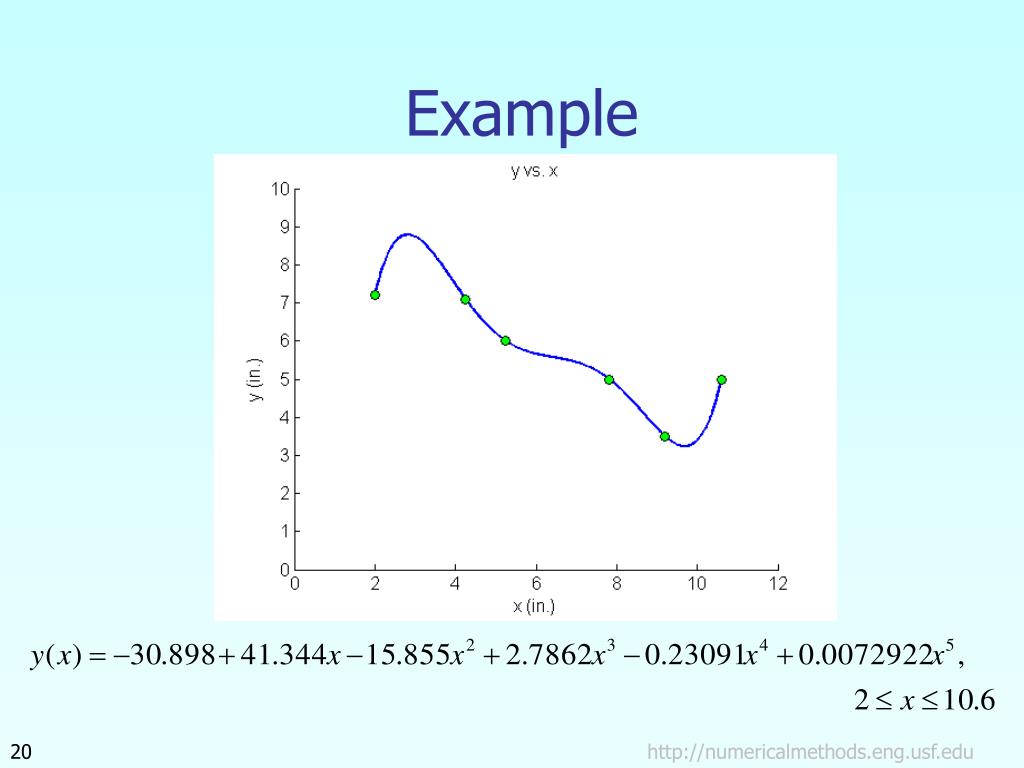

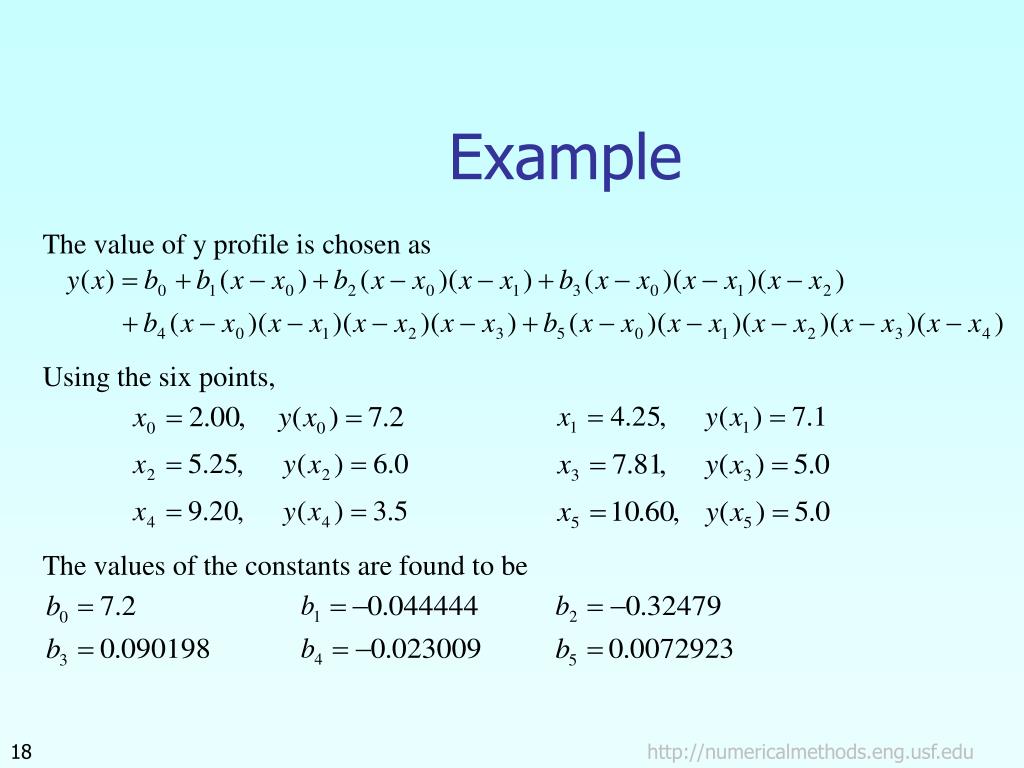

  19. Example http://numericalmethods.eng.usf.edu

  20. Example http://numericalmethods.eng.usf.edu

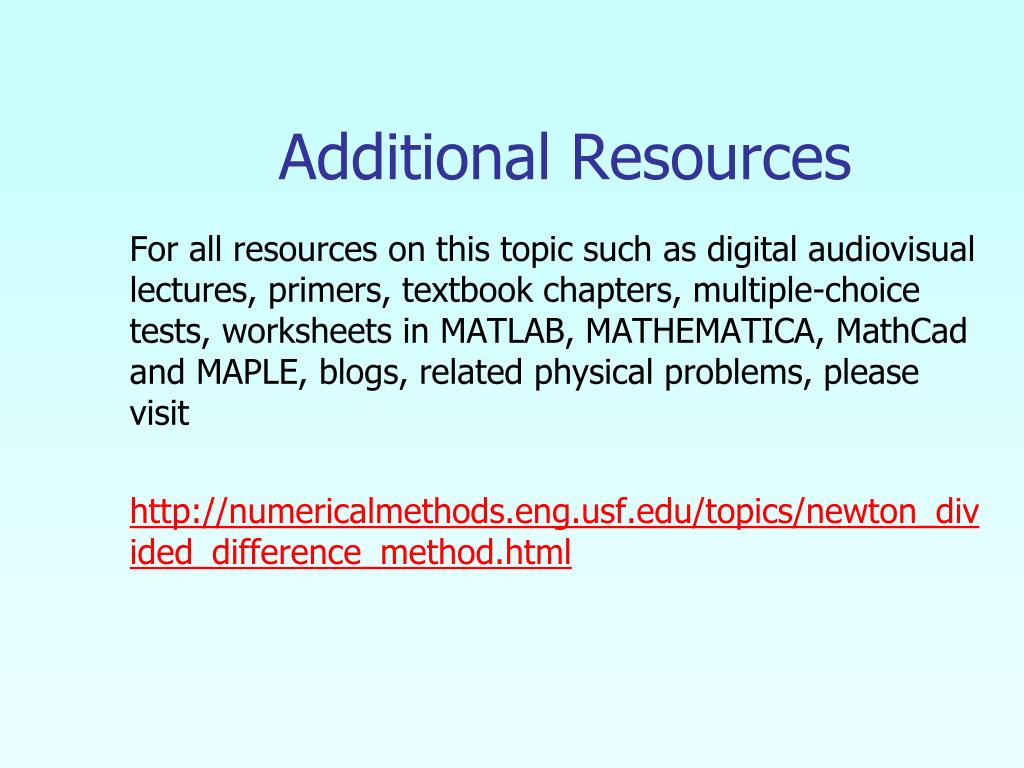

  21. Additional Resources For all resources on this topic such as digital audiovisual lectures, primers, textbook chapters, multiple-choice tests, worksheets in MATLAB, MATHEMATICA, MathCad and MAPLE, blogs, related physical problems, please visit http://numericalmethods.eng.usf.edu/topics/newton_divided_difference_method.html

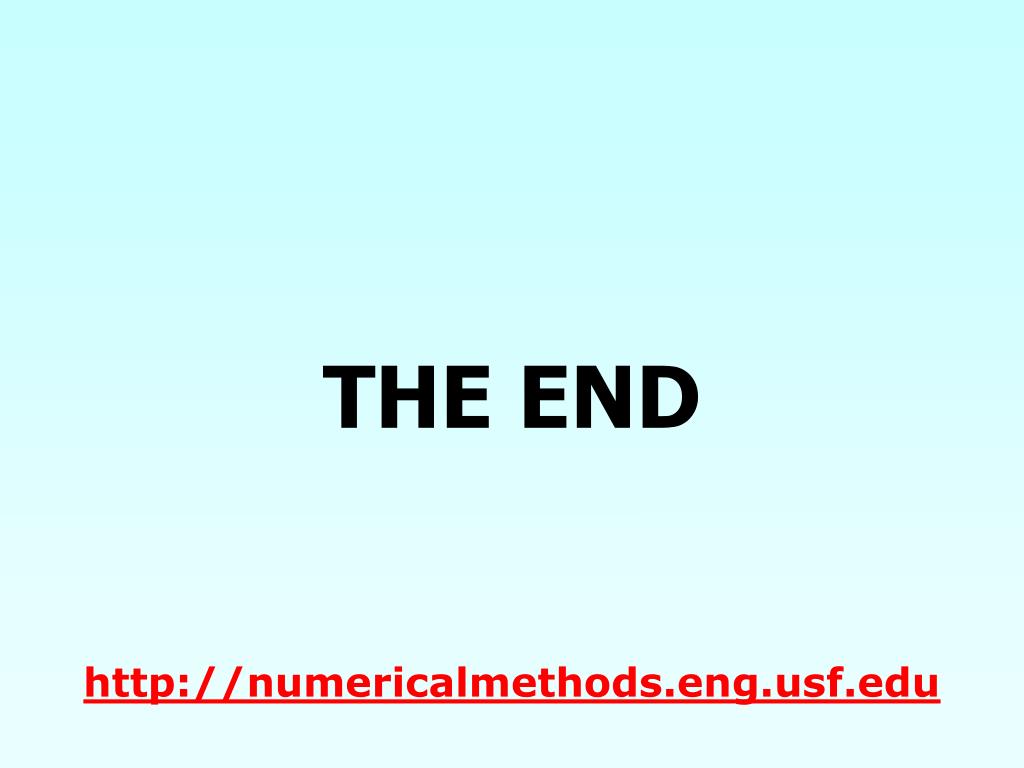

  22. THE END http://numericalmethods.eng.usf.edu
