  1. From Symptom to Cause: Localizing Errors in Counterexample Traces Mayur Naik, Purdue University Thomas Ball, Microsoft Research Sriram K. Rajamani, Microsoft Research

  2. Model Checking + Fully automatic: Does not require the user to provide annotations. + Transparent: Produces a source-level error trace (counterexample). −An error trace represents a symptom of the error as opposed to its cause. − State-of-the-art model checkers report only one error trace.

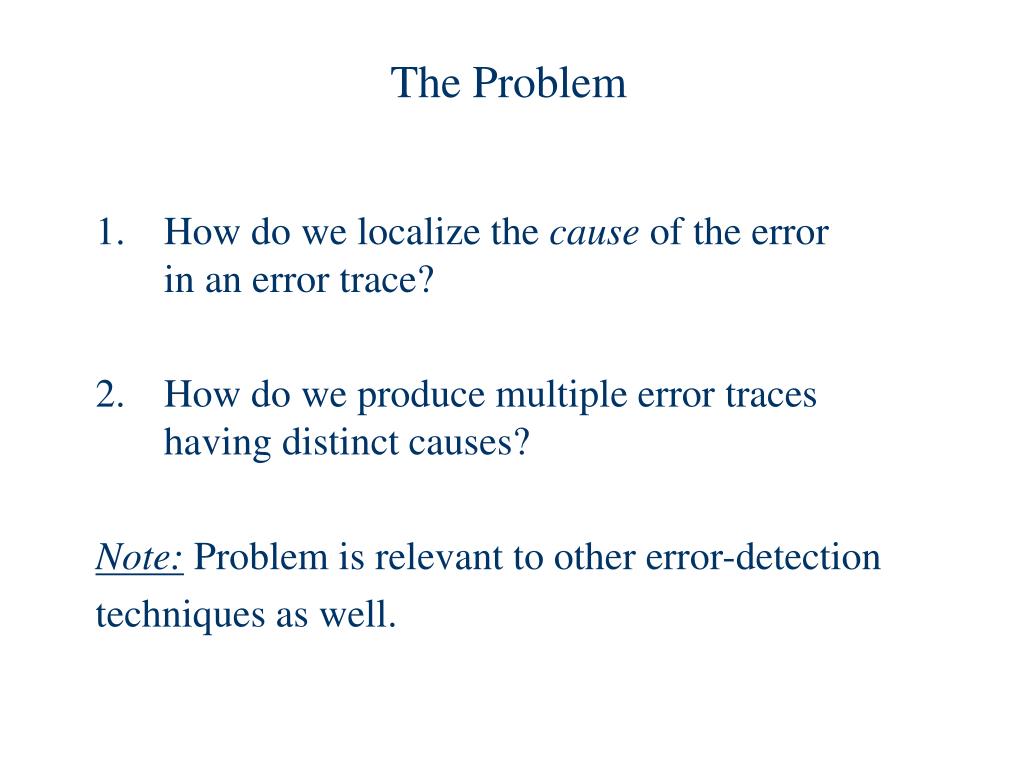

  3. The Problem • How do we localize the cause of the errorin an error trace? • How do we produce multiple error traces having distinct causes? Note: Problem is relevant to other error-detection techniques as well.

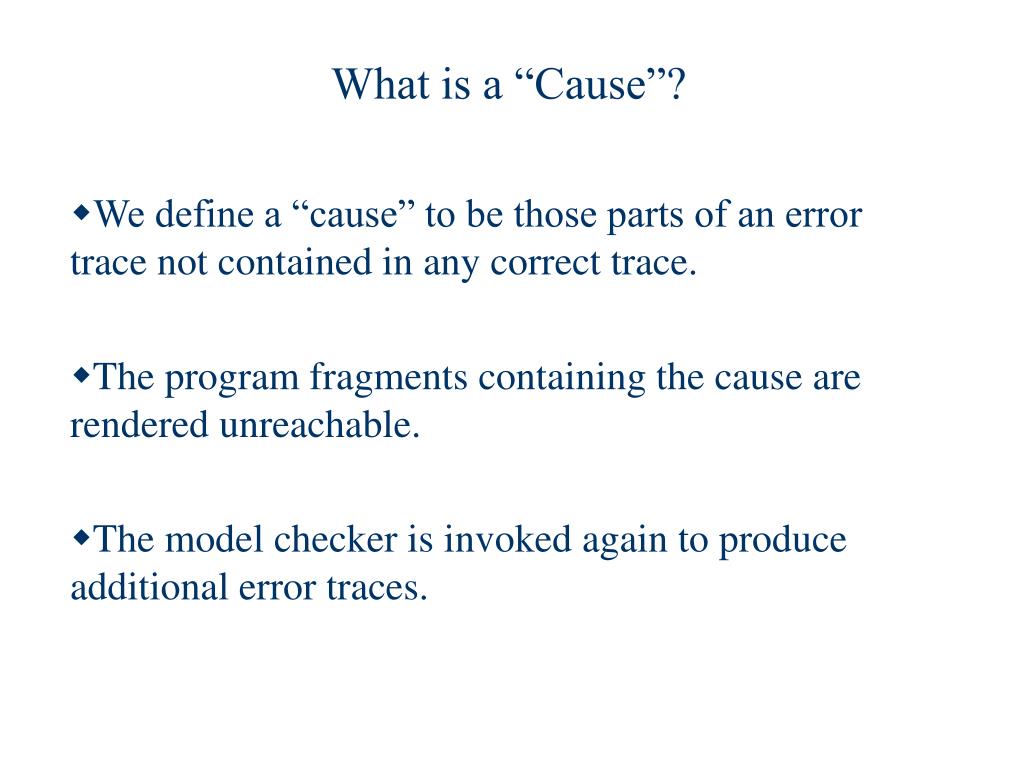

  4. What is a “Cause”? • We define a “cause” to be those parts of an error trace not contained in any correct trace. • The program fragments containing the cause are rendered unreachable. • The model checker is invoked again to produce additional error traces.

  5. Example main() { AcquireLock(); if (...) ReleaseLock(); else { ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

  6. Error #1: Lock acquired in succession main() { AcquireLock(); if (...) ReleaseLock(); else { ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

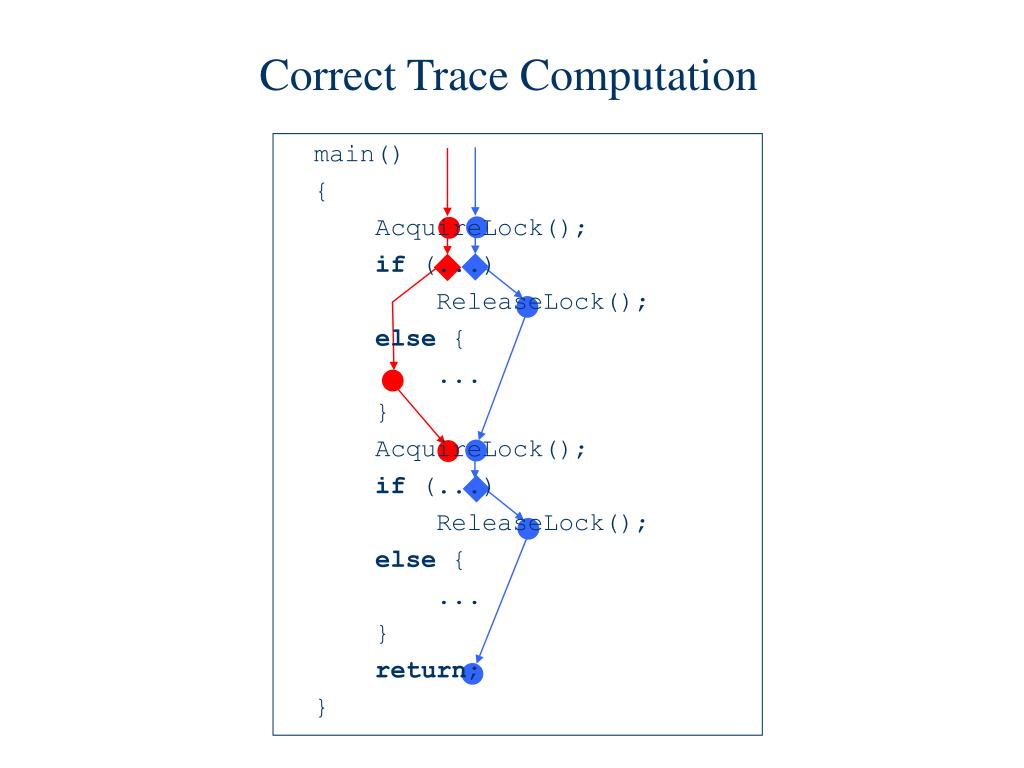

  7. Correct Trace Computation main() { AcquireLock(); if (...) ReleaseLock(); else { ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

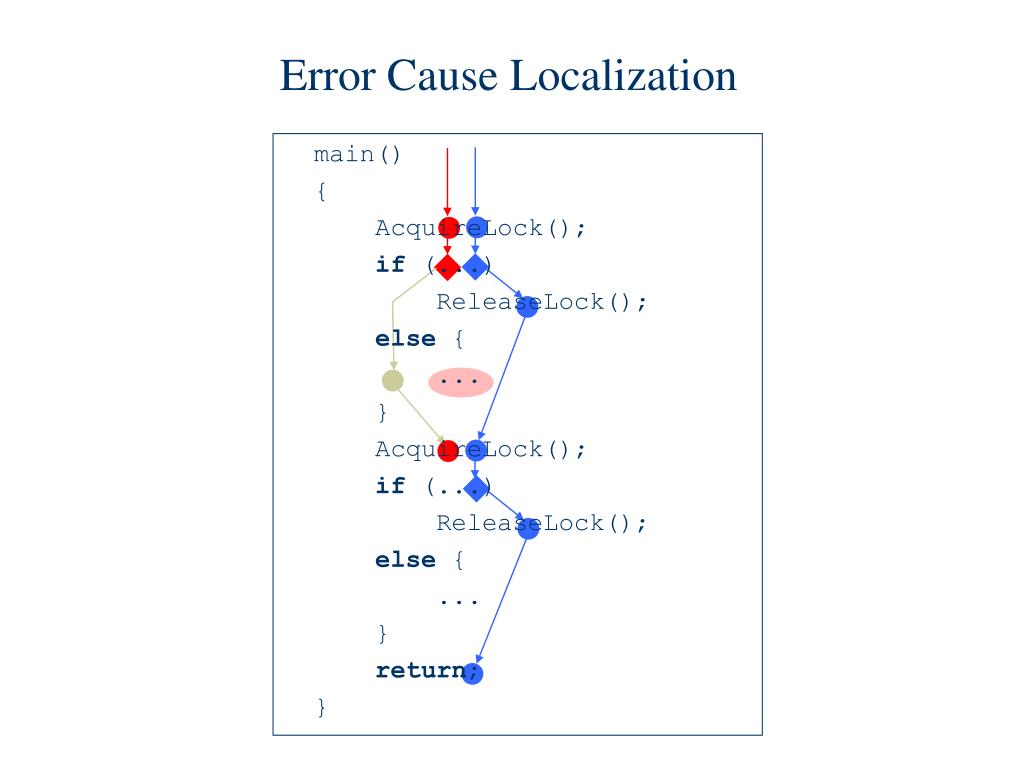

  8. Error Cause Localization main() { AcquireLock(); if (...) ReleaseLock(); else { ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

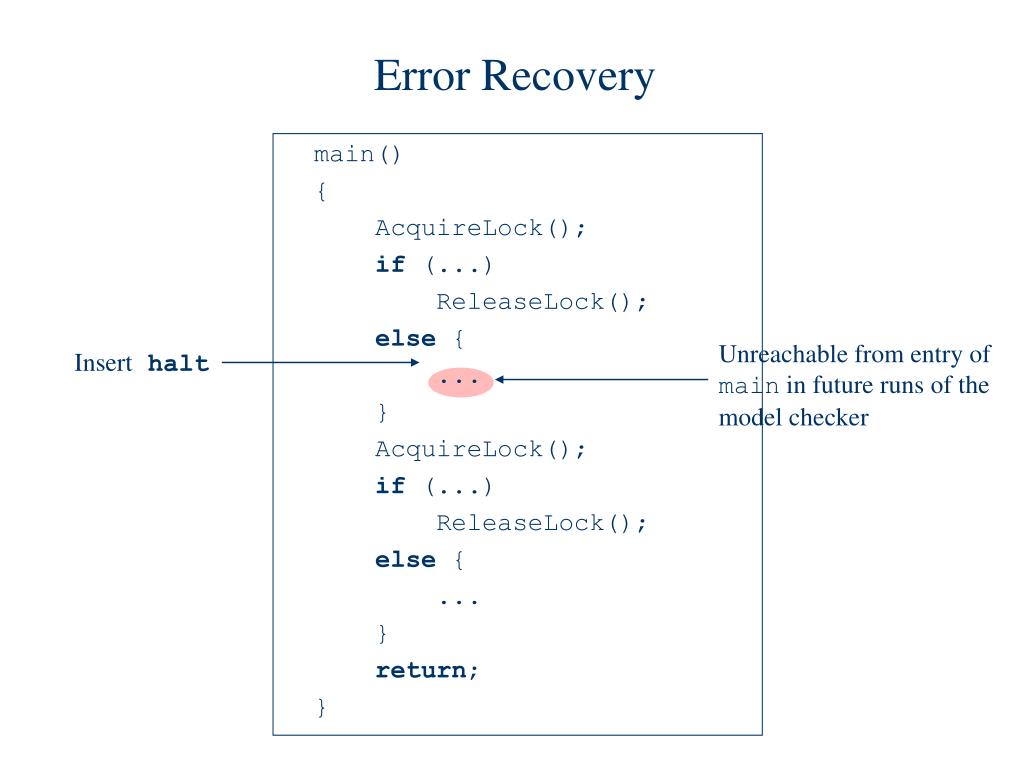

  9. Unreachable from entry of main in future runs of the model checker Inserthalt Error Recovery main() { AcquireLock(); if (...) ReleaseLock(); else { ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

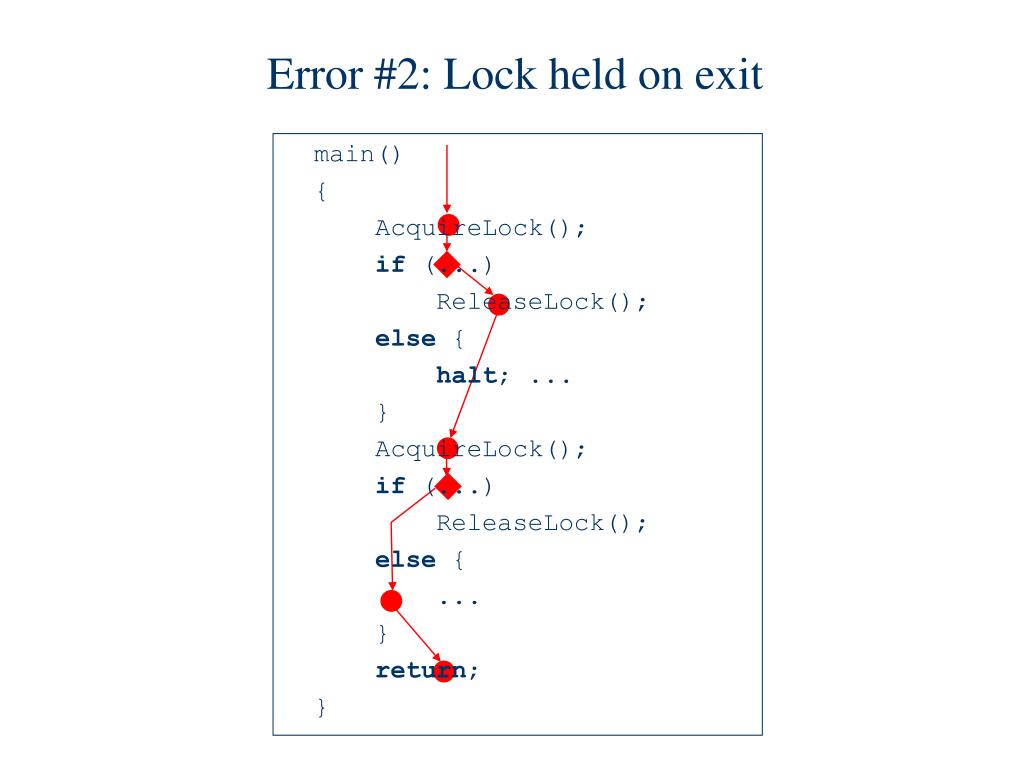

  10. Error #2: Lock held on exit main() { AcquireLock(); if (...) ReleaseLock(); else { halt; ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

  11. Correct Trace Computation main() { AcquireLock(); if (...) ReleaseLock(); else { halt; ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

  12. Error Cause Localization main() { AcquireLock(); if (...) ReleaseLock(); else { halt; ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

  13. Unreachable from entry of main in future runs of the model checker Inserthalt Error Recovery main() { AcquireLock(); if (...) ReleaseLock(); else { halt; ... } AcquireLock(); if (...) ReleaseLock(); else { ... } return; }

  14. Final (Error-Free) Program main() { AcquireLock(); if (...) ReleaseLock(); else { halt; ... } AcquireLock(); if (...) ReleaseLock(); else { halt; ... } return; }

  15. Our Results • A technique that exploits correct traces for error cause localization. • Efficient algorithm for computing correct traces. • Experimental results in the context of the SLAM toolkit.

  16. Transitions and Edges 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock();

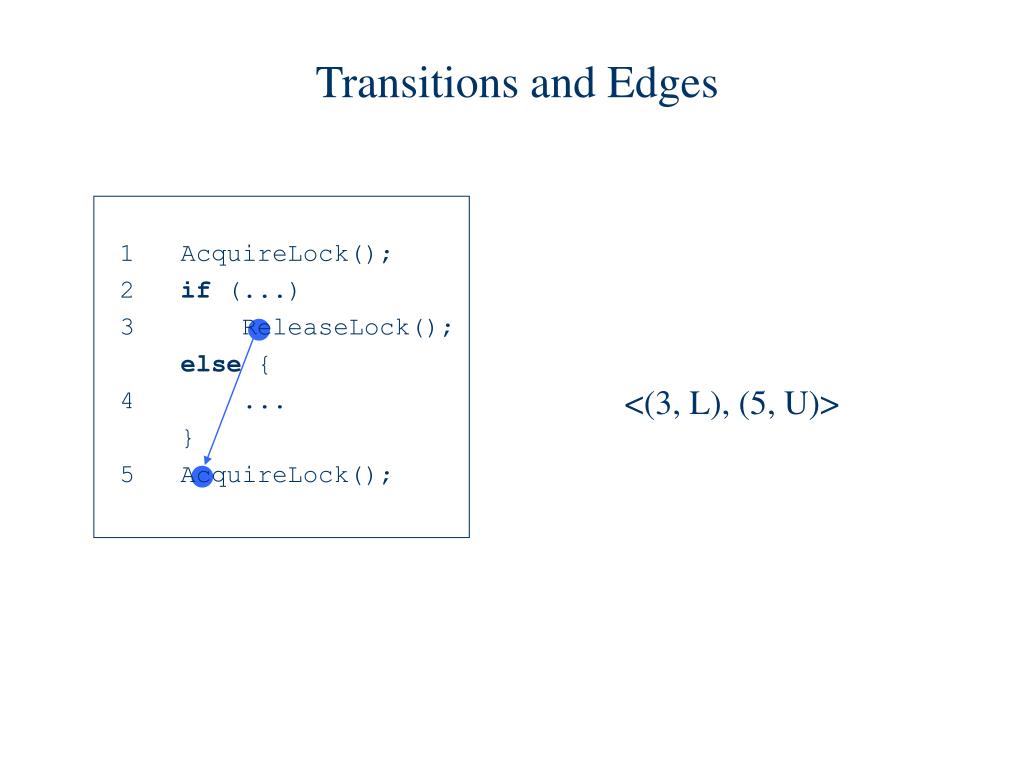

  17. Transitions and Edges 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); <(3, L), (5, U)>

  18. Transitions and Edges 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); project(<(3, L), (5, U)>) = (3, 5)

  19. High-Level Algorithm while truedo switch ModelCheck(G, ve) of //ve is of the form assert(e) case FAILURE(T): let C = GetCorrectTransitions(G, ve) and K = project(T) \ project(C) in if K = Ø then break for each (vi, vj) in K do insert a halt statement between vi and vj case SUCCESS: break

  20. Computing Correct Transitions 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); (1,U) (2,L) (3,L) (4,L) ve≡assert(s==U) (5,U) (5,L) Reachable state-space computed by model checker <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> Transitions in Error Trace (T)

  21. Computing Correct Transitions 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); (1,U) (2,L) (3,L) (4,L) ve≡assert(s==U) (5,U) (5,L) <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> Transitions in Error Trace (T) Correct Transitions (C)

  22. Computing Correct Transitions 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); (1,U) (2,L) (3,L) (4,L) ve≡assert(s==U) (5,U) (5,L) <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(3, L), (5, U)> Transitions in Error Trace (T) Correct Transitions (C)

  23. Computing Correct Transitions 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); (1,U) (2,L) (3,L) (4,L) ve≡assert(s==U) (5,U) (5,L) <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(2, L), (3, L)> <(3, L), (5, U)> Transitions in Error Trace (T) Correct Transitions (C)

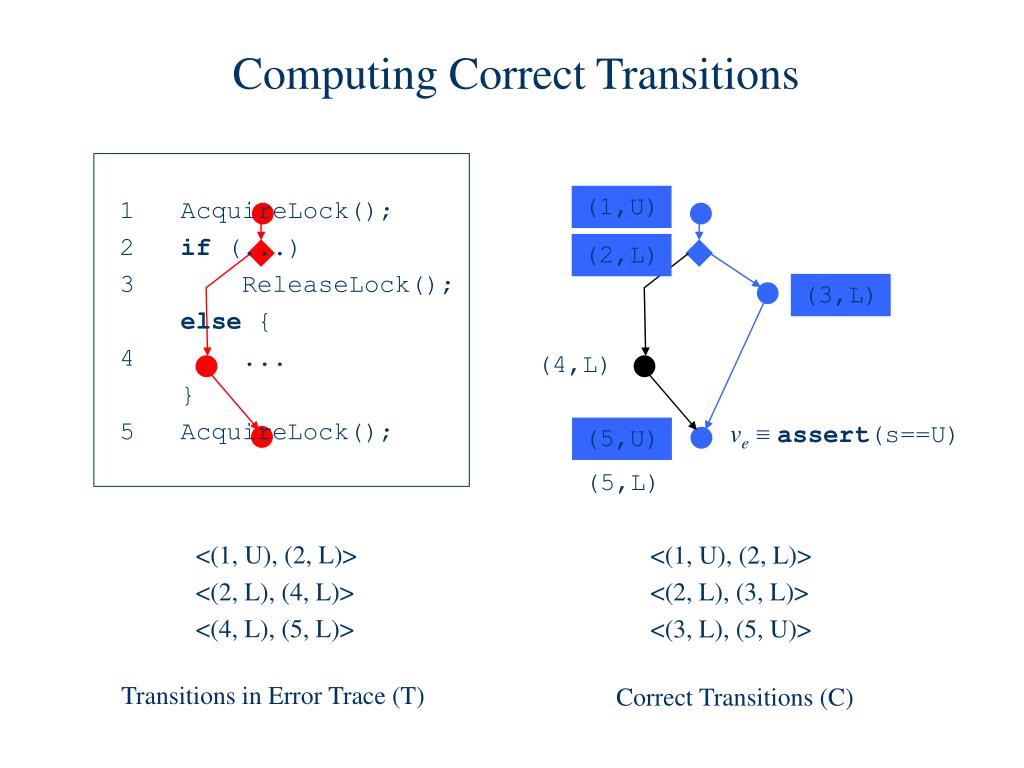

  24. Computing Correct Transitions 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 AcquireLock(); (1,U) (2,L) (3,L) (4,L) ve≡assert(s==U) (5,U) (5,L) <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> Transitions in Error Trace (T) Correct Transitions (C)

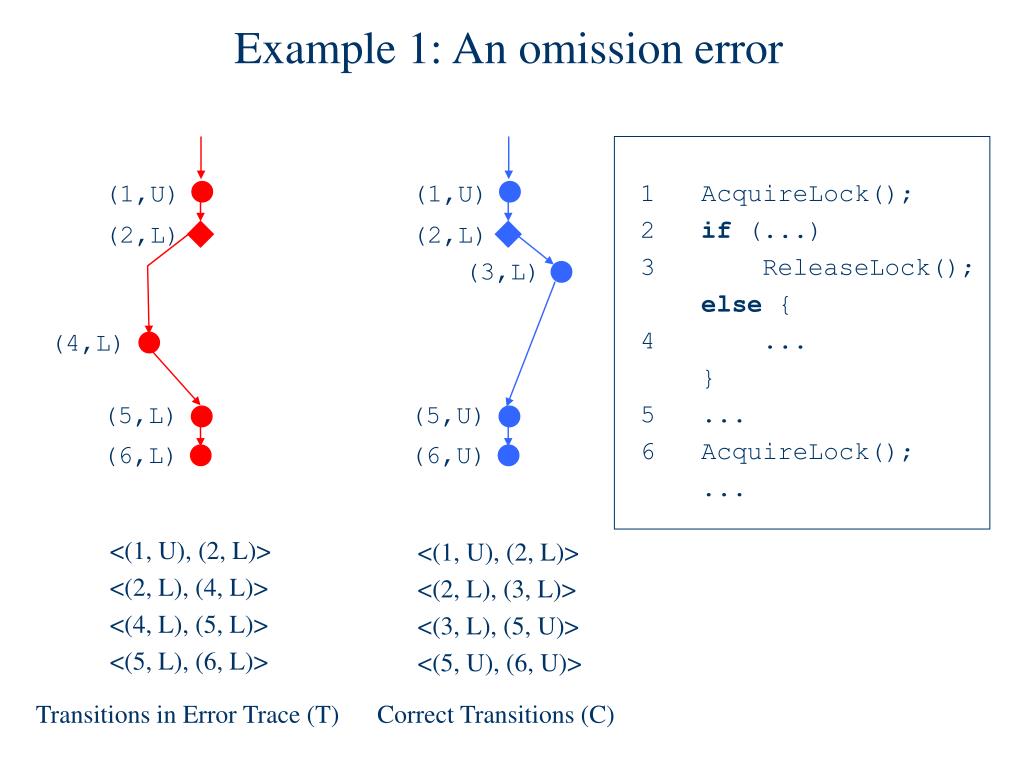

  25. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Example 1: An omission error 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> Transitions in Error Trace (T) Correct Transitions (C)

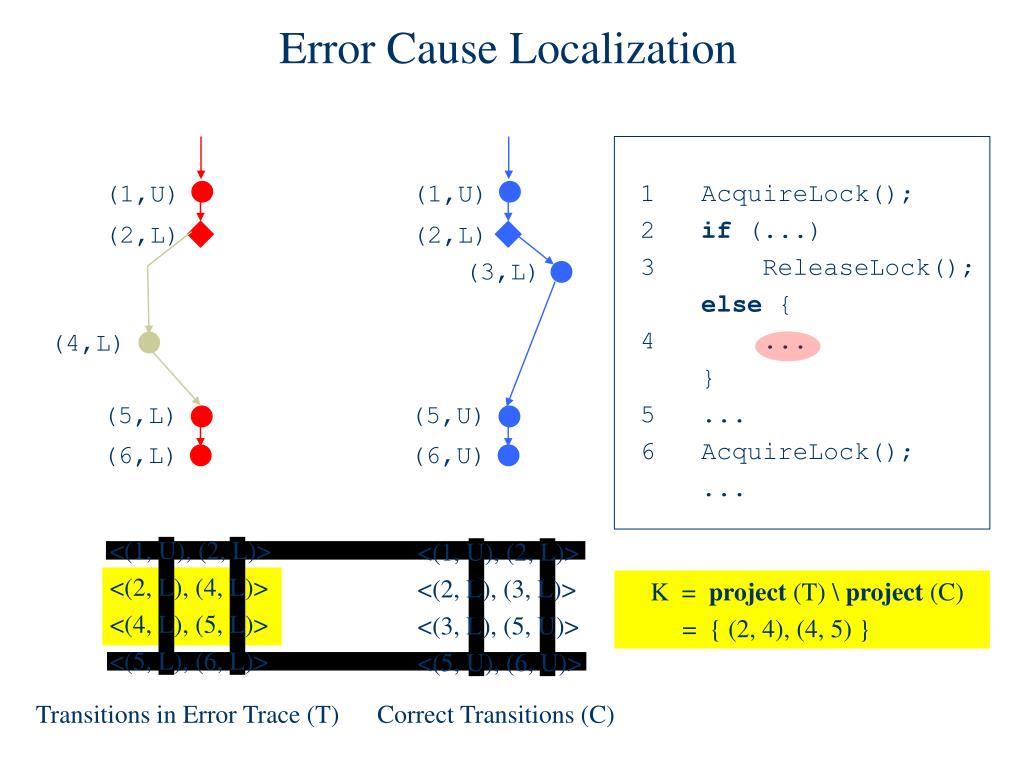

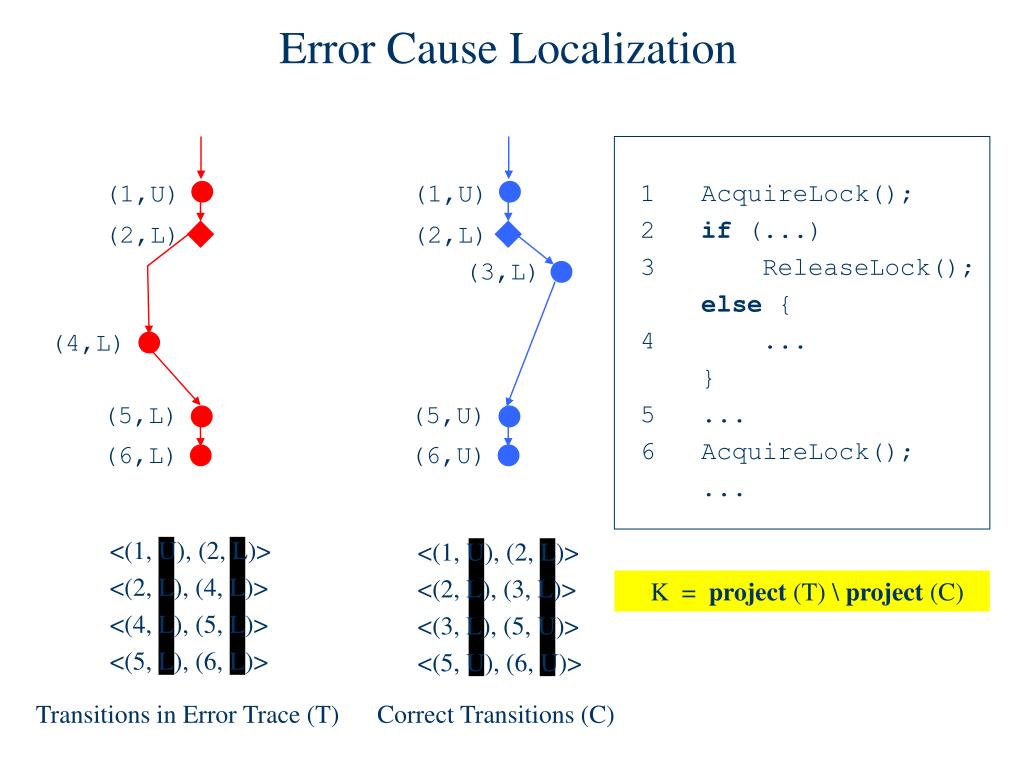

  26. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T) \ project (C) Transitions in Error Trace (T) Correct Transitions (C)

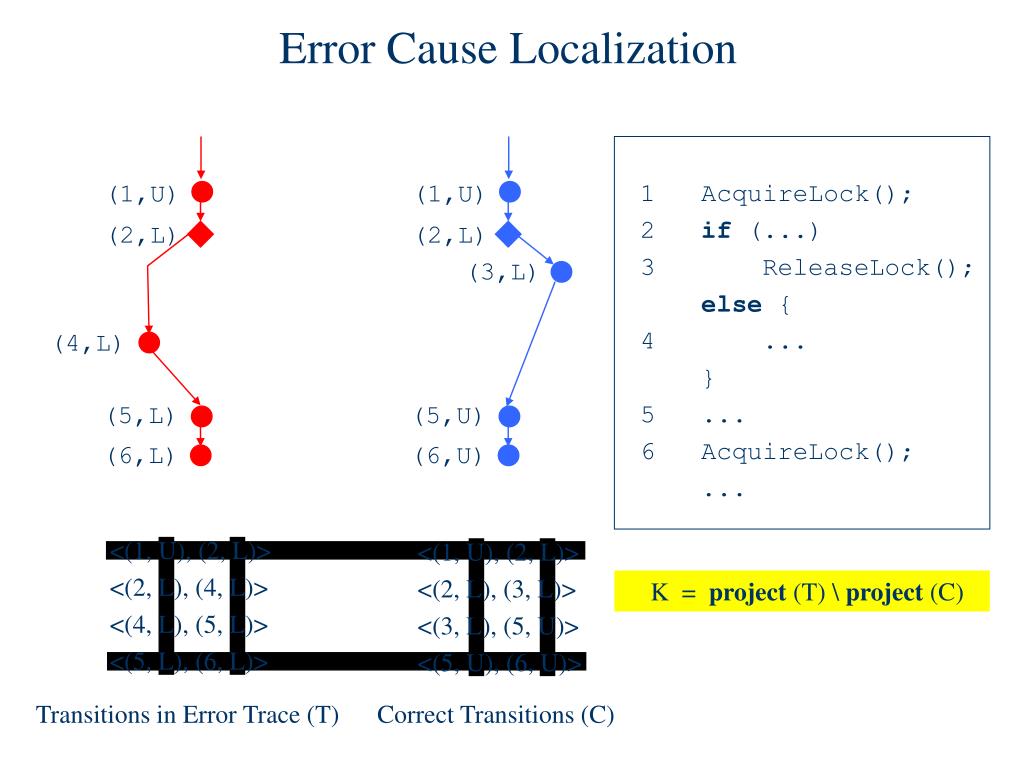

  27. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T) \ project (C) Transitions in Error Trace (T) Correct Transitions (C)

  28. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T) \ project (C) Transitions in Error Trace (T) Correct Transitions (C)

  29. (1,U) (2,L) (3,L) (5,U) (6,U) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... (1,U) (2,L) (4,L) (5,L) (6,L) <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T) \ project (C) = { (2, 4), (4, 5) } Transitions in Error Trace (T) Correct Transitions (C)

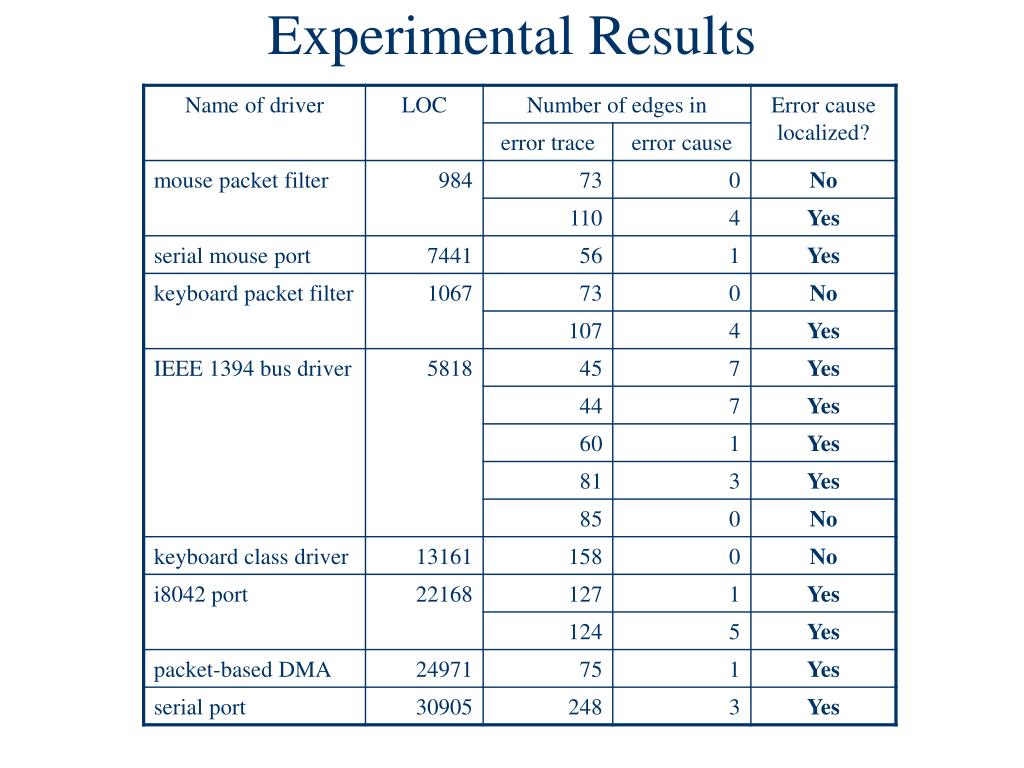

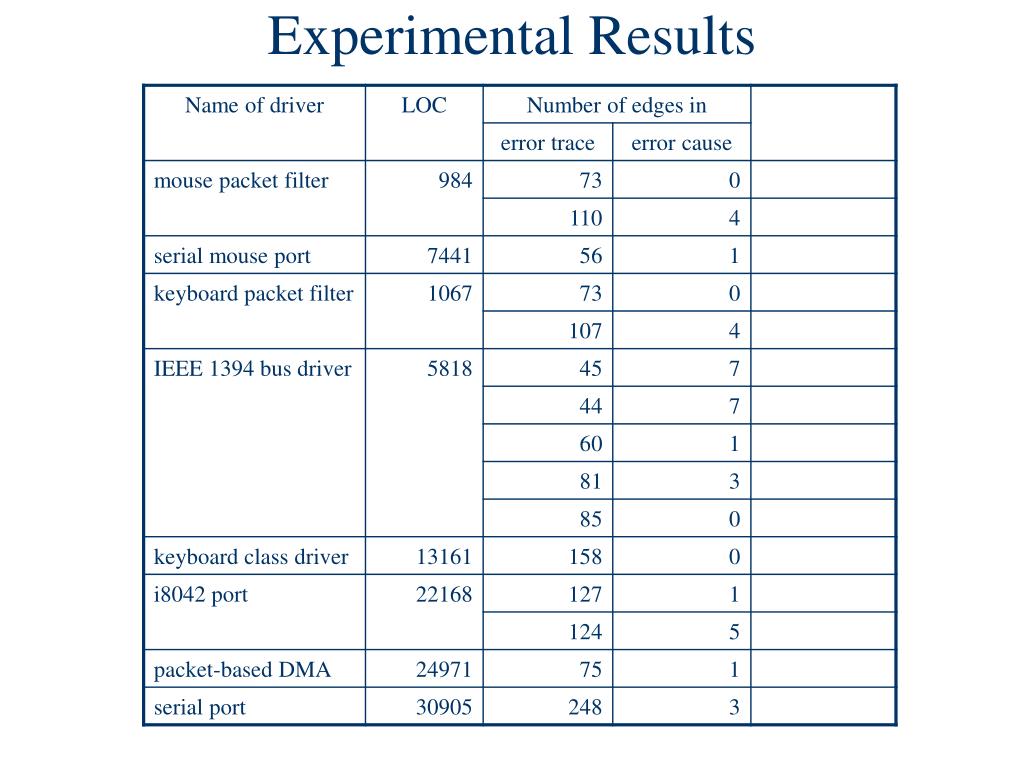

  30. Experimental Results

  31. Experimental Results

  32. Experimental Results

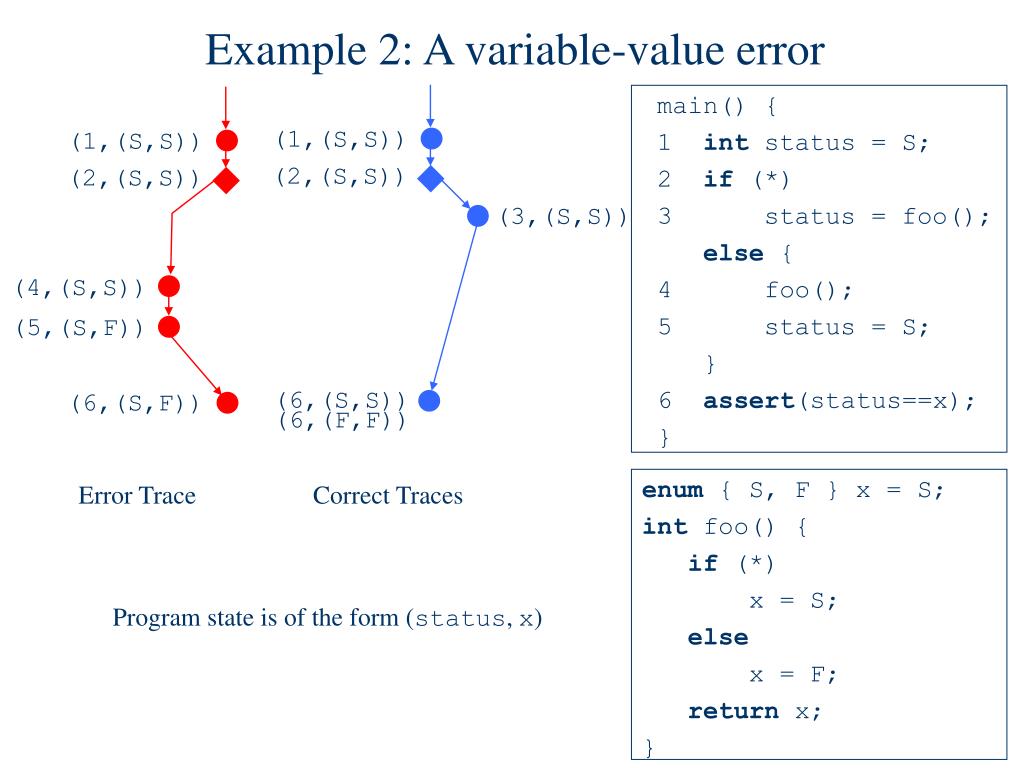

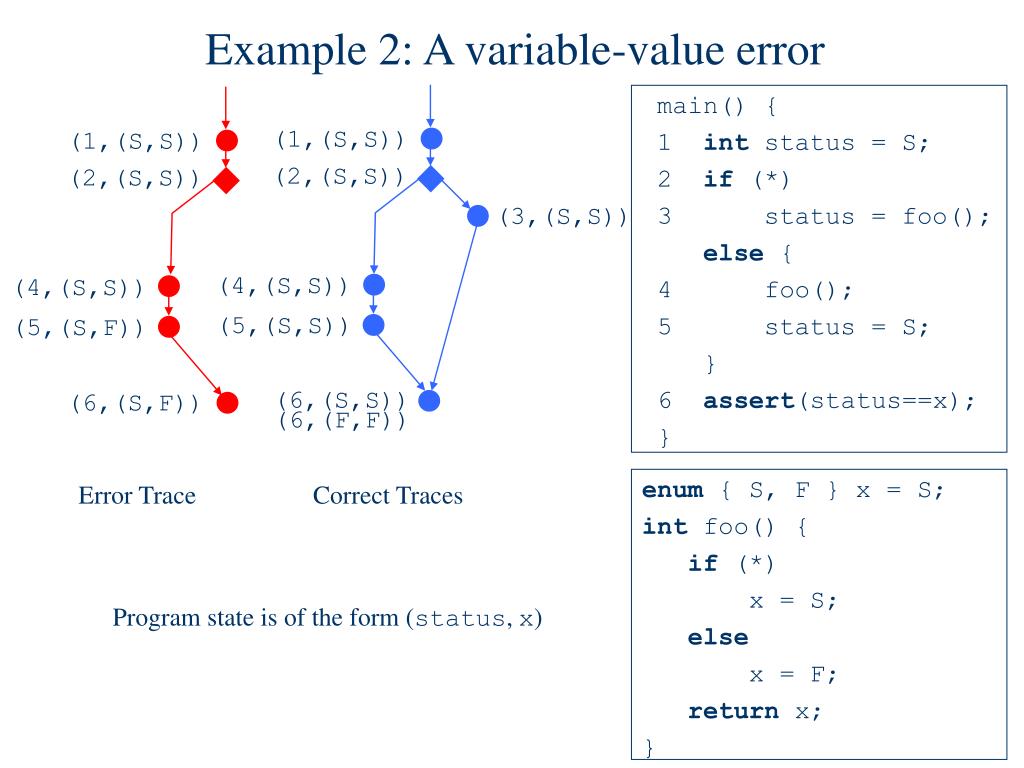

  33. (1,(S,S)) (2,(S,S)) (4,(S,S)) (5,(S,F)) (6,(S,F)) Error Trace Example 2: A variable-value error main() { 1 int status = S; 2 if (*) 3 status = foo(); else { 4 foo(); 5 status = S; } 6 assert(status==x); } (1,(S,S)) (2,(S,S)) (3,(S,S)) (6,(S,S)) (6,(F,F)) enum { S, F } x = S; int foo() { if (*) x = S; else x = F; return x; } Correct Traces Program state is of the form (status, x)

  34. (1,(S,S)) (1,(S,S)) (2,(S,S)) (2,(S,S)) (3,(S,S)) (4,(S,S)) (4,(S,S)) (5,(S,S)) (5,(S,F)) (6,(S,S)) (6,(S,F)) (6,(F,F)) Correct Traces Error Trace Example 2: A variable-value error main() { 1 int status = S; 2 if (*) 3 status = foo(); else { 4 foo(); 5 status = S; } 6 assert(status==x); } enum { S, F } x = S; int foo() { if (*) x = S; else x = F; return x; } Program state is of the form (status, x)

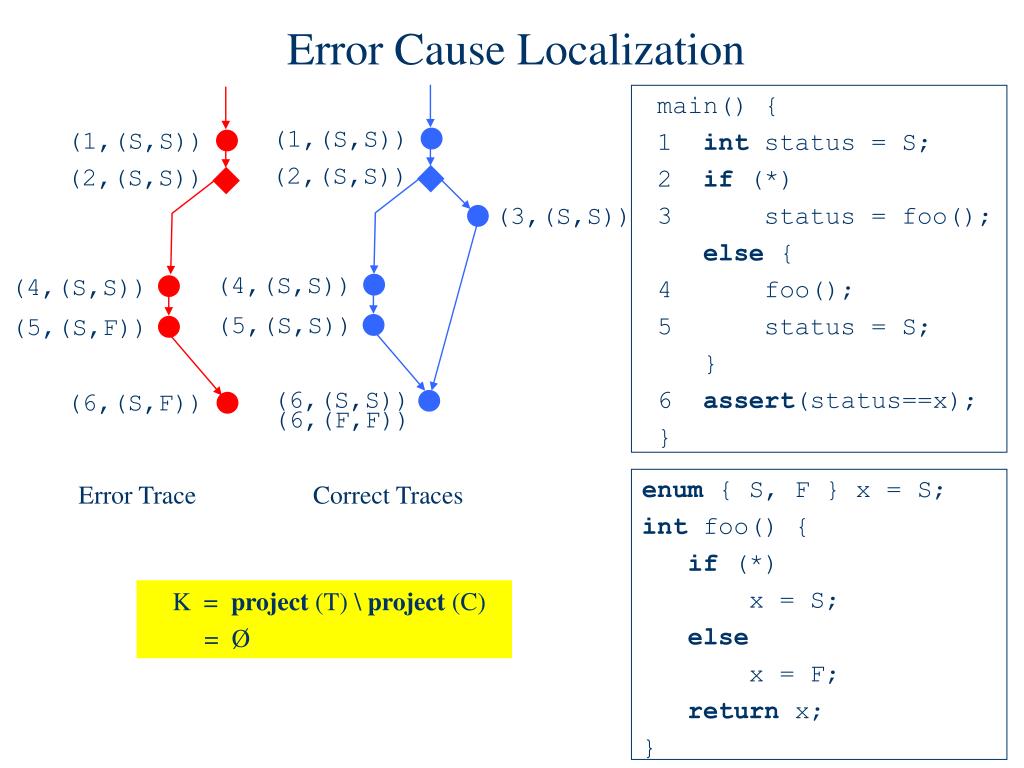

  35. (1,(S,S)) (1,(S,S)) (2,(S,S)) (2,(S,S)) (3,(S,S)) (4,(S,S)) (4,(S,S)) (5,(S,S)) (5,(S,F)) (6,(S,S)) (6,(S,F)) (6,(F,F)) Correct Traces Error Trace Error Cause Localization main() { 1 int status = S; 2 if (*) 3 status = foo(); else { 4 foo(); 5 status = S; } 6 assert(status==x); } enum { S, F } x = S; int foo() { if (*) x = S; else x = F; return x; } K = project (T) \ project (C) = Ø

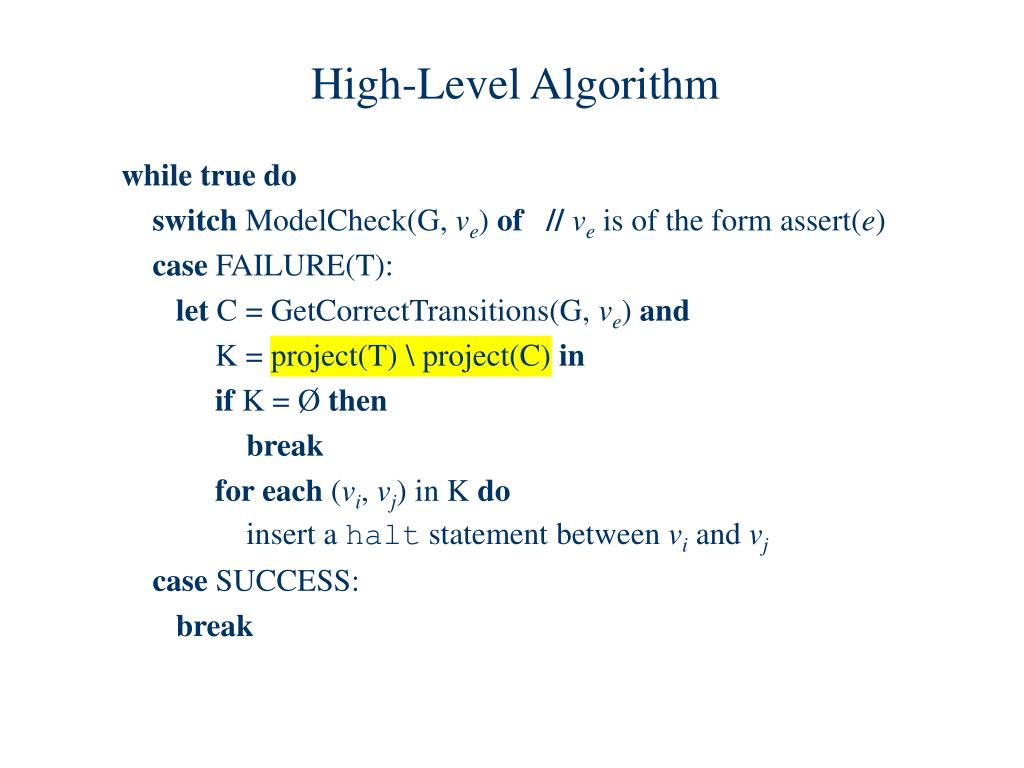

  36. High-Level Algorithm while truedo switch ModelCheck(G, ve) of //ve is of the form assert(e) case FAILURE(T): let C = GetCorrectTransitions(G, ve) and K = project(T) \ project(C) in if K = Ø then break for each (vi, vj) in K do insert a halt statement between vi and vj case SUCCESS: break

  37. High-Level Algorithm while truedo switch ModelCheck(G, ve) of //ve is of the form assert(e) case FAILURE(T): let C = GetCorrectTransitions(G, ve) and K = project(T \ C) in if K = Ø then break for each (vi, vj) in K do insert a halt statement between vi and vj case SUCCESS: break

  38. (1,(S,S)) (1,(S,S)) (2,(S,S)) (2,(S,S)) (3,(S,S)) (4,(S,S)) (4,(S,S)) (5,(S,S)) (5,(S,F)) (6,(S,S)) (6,(S,F)) (6,(F,F)) Correct Traces Error Trace Example 2: A variable-value error main() { 1 int status = S; 2 if (*) 3 status = foo(); else { 4 foo(); 5 status = S; } 6 assert(status==x); } enum { S, F } x = S; int foo() { if (*) x = S; else x = F; return x; } Program state is of the form (status, x)

  39. (1,(S,S)) (2,(S,S)) (3,(S,S)) (4,(S,S)) (5,(S,S)) (6,(S,S)) (6,(F,F)) Correct Traces Error Cause Localization main() { 1 int status = S; 2 if (*) 3 status = foo(); else { 4 foo(); 5 status = S; } 6 assert(status==x); } (1,(S,S)) (2,(S,S)) (4,(S,S)) (5,(S,F)) (6,(S,F)) enum { S, F } x = S; int foo() { if (*) x = S; else x = F; return x; } Error Trace K = project (T \ C) = { (4, 5), (5, 6) }

  40. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Example 1: An omission error 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> Transitions in Error Trace (T) Correct Transitions (C)

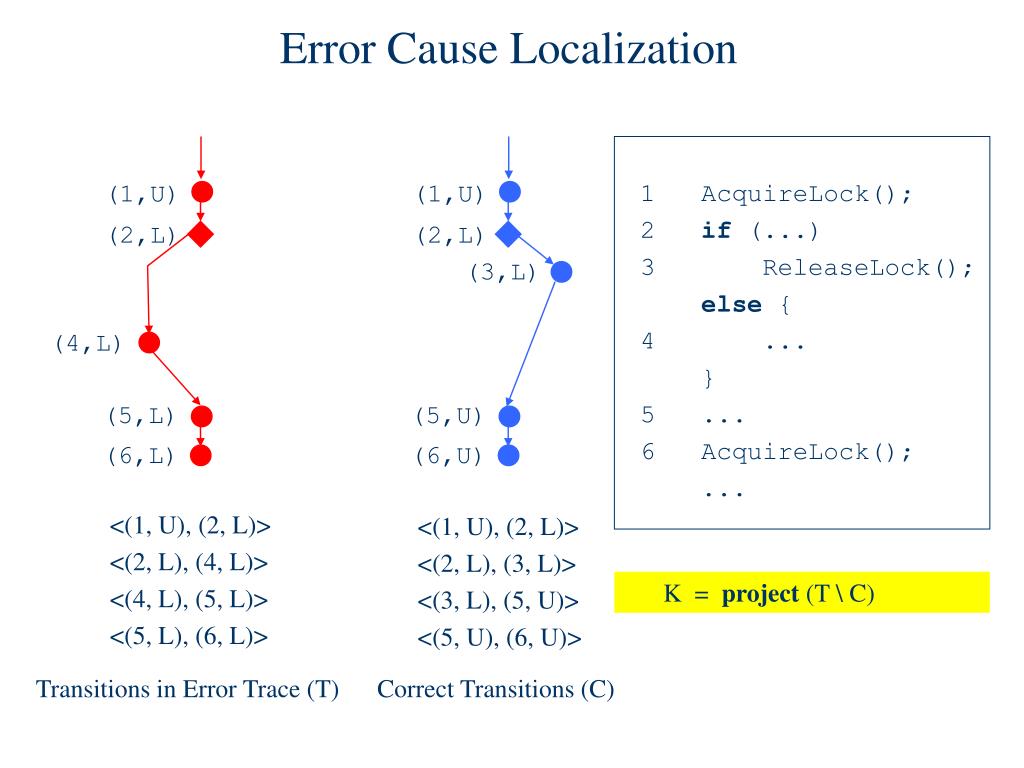

  41. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T \ C) Transitions in Error Trace (T) Correct Transitions (C)

  42. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T \ C) Transitions in Error Trace (T) Correct Transitions (C)

  43. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T \ C) Transitions in Error Trace (T) Correct Transitions (C)

  44. (1,U) (1,U) (2,L) (2,L) (3,L) (4,L) (5,U) (5,L) (6,U) (6,L) Error Cause Localization 1 AcquireLock(); 2 if (...) 3 ReleaseLock(); else { 4 ... } 5 ... 6 AcquireLock(); ... <(1, U), (2, L)> <(2, L), (4, L)> <(4, L), (5, L)> <(5, L), (6, L)> <(1, U), (2, L)> <(2, L), (3, L)> <(3, L), (5, U)> <(5, U), (6, U)> K = project (T \ C) = { (2, 4), (4, 5), (5, 6) } Transitions in Error Trace (T) Correct Transitions (C)

  45. Limitations • Control-based approach fails to localize the cause when every edge in the error trace is contained in some correct trace. • Transition-based approach localizes the cause to a suffix of the error trace. • Model Imprecision: Infeasible paths can misguide error cause localization using either approach.

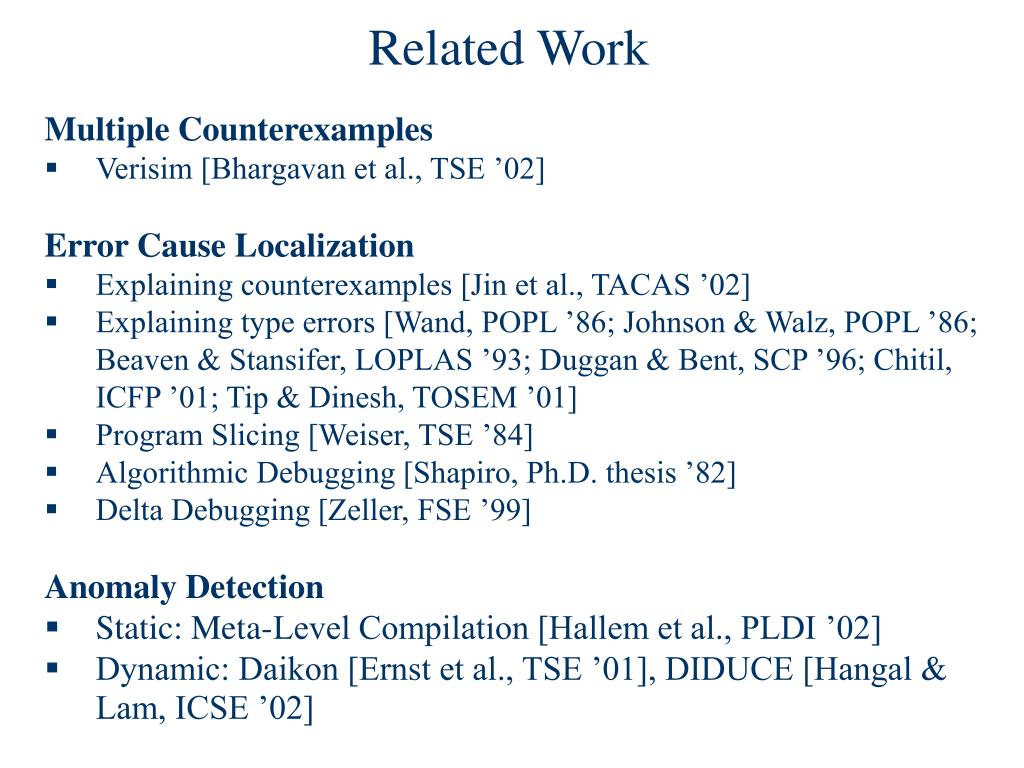

  46. Related Work Multiple Counterexamples • Verisim [Bhargavan et al., TSE ’02] Error Cause Localization • Explaining counterexamples [Jin et al., TACAS ’02] • Explaining type errors [Wand, POPL ’86; Johnson & Walz, POPL ’86; Beaven & Stansifer, LOPLAS ’93; Duggan & Bent, SCP ’96; Chitil, ICFP ’01; Tip & Dinesh, TOSEM ’01] • Program Slicing [Weiser, TSE ’84] • Algorithmic Debugging [Shapiro, Ph.D. thesis ’82] • Delta Debugging [Zeller, FSE ’99] Anomaly Detection • Static: Meta-Level Compilation [Hallem et al., PLDI ’02] • Dynamic: Daikon [Ernst et al., TSE ’01], DIDUCE [Hangal & Lam, ICSE ’02]

  47. Conclusions • We have presented a technique for localizing the causes of errors in counterexample traces. • A combination of the control-based and transition-based approaches appears promising. • Our technique is quite general and should be applicable to error detection tools based on data-flow analysis as well.
