merging separate chord structures into a single harmonious whole

Merging separate Chord structures into a single harmonious whole

An integral part of the quest to add more musical puns to The ConCert Project

the problem
The problem:
  • Bob: Sridhar, I’m afraid I have some bad news… We’re shutting down the ConCert Project. As a result, we’re going to have to let you go.
  • Me: What? Why?
  • Bob: As you know, we’ve tried as much as possible to ensure that the various components of the ConCert Project were named after musical terms. Indeed, creating suchly-named software was the true reason for its conception, “certified code” and “grid computing” merely being the phrases we used to get funding. Conductor, Lightharp, and Tempo were great successes in terms of this true goal--
  • Me: And don’t forget Iktara!
  • Bob: --yes, and even Iktara. However, we’ve recently run into some problems.
backstory cont
Backstory, cont.:
  • Bob: Specifically, the Chord protocol, which we’d been using to implement our distributed hash tables… well, it works alright in most cases, but we just can’t see any way to efficiently merge two isolated Chord networks together. Now, Karl and I have been searching and searching, but it turns out there aren’t any other distributed hashtable systems with musical names. It seems there’s no hope.
  • *Bob reaches, sobbing, for a red button, located under a sign which reads “To terminate the ConCert Project, press here”*
  • Me: Ah, that’s too bad. Guess I’ll have to switch to spending my summer waking up whenever I want, working on projects of my own choosing, and generally wallowing in copious amounts of free time… Well, see ya!
  • *I head towards the door*
  • Bob: Oh, to see my life’s work come to naught like this!
approaching the point
Approaching the point…
  • Me: Your… your life’s work? What about all that stuff with ML?
  • Bob: Oh, that was all just a precursor for the planned ConCert subproject, ML-Ody. With ML-Ody, I’d finally do ML right.
  • Me: ML-Ody? Tell me, in what ways would ML-Ody improve on Standard ML?
  • Bob: Basically, it would be Haskell, but with a musical name. Also, we’d probably convert a good portion of the SML userbase over to ML-Ody.
  • Me, excitedly: Replace SML with Haskell? Oh man! That’d be… That’d be great! Ok, I’ll tell you what… I’ll do some research and see what I can do about salvaging this Chord protocol, looking for ways to, uh, to efficiently merge the… the whatnot… and the… Replace SML with Haskell? Whoohoo!
  • *I run out of the room giddy, and, I must admit, drooling*
the problem sans ridiculous lies
The problem, sans ridiculous lies:
  • The Chord protocol gives us a nice way of implementing distributed hash tables
  • However, Chord gives us no easy way of merging separate such DHTs (as we would like to do in the case of, for example, a temporary network partition)
  • Therefore, we seek a way to do such merging both efficiently and with minimal modifications to the basic Chord protocol
just what is the chord protocol
Just what is the Chord protocol?
  • The Chord protocol allows us to do a single task: For a given key, identify the node responsible for that key’s data
  • This is done in such a way that responsibility is evenly distributed, lookups are efficient, and nodes can join and leave the network with minimal disruption
  • There is no direct support for many features which might be desirable in a DHT (e.g., redundancy of responsibility). Chord merely provides a simple layer on top of which distributed hash tables, among other things, can be implemented
details about the chord protocol
Details about the Chord protocol
  • High-level overview of the Chord protocol:
    • Every node on a network has an identifier derived by hashing its IP address using SHA-1; These identifiers are ordered in a circle
    • Based on these identifiers, the nodes are ordered in a ring structure, each maintaining links to its successor and predecessor on the ring (a link consists of both an identifier and an IP address)
    • Keys are also given identifiers by hashing them (we will often use the word “key” to refer to this generated ID, and similarly for “node”, as determined by the context)
    • The node responsible for some key K is the one whose identifier first follows or is equal to K’s on the identifier circle; this node is denoted successor(K)
more details about the chord protocol
More details about the Chord protocol
  • By chasing successor links around the ring, we can look up the node responsible for a particular key in linear time (in the size of the network)
    • Meh. Can’t we do better?
  • Yes. By having each node N maintain links (known as “fingers”) to successor(N+1), successor(N+2), successor(N+4), etc., we can arrange for logarithmic time lookup, sending messages bouncing across the identifier circle from node to node till eventually the right one is found

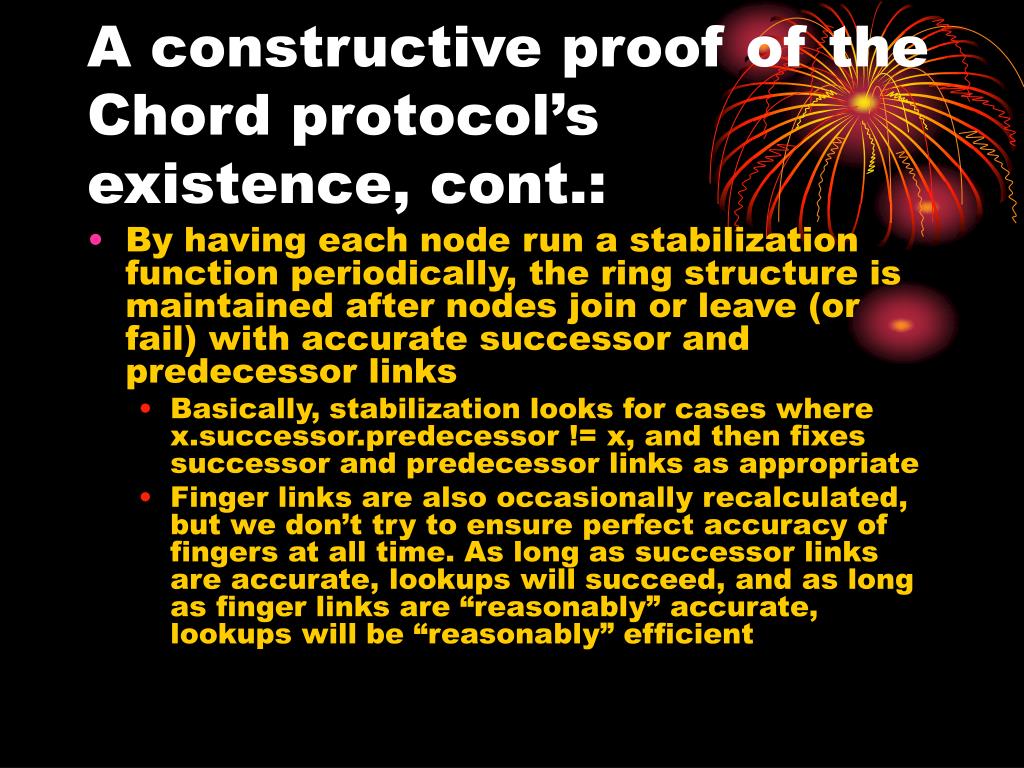

a constructive proof of the chord protocol s existence cont
A constructive proof of the Chord protocol’s existence, cont.:
  • By having each node run a stabilization function periodically, the ring structure is maintained after nodes join or leave (or fail) with accurate successor and predecessor links
    • Basically, stabilization looks for cases where x.successor.predecessor != x, and then fixes successor and predecessor links as appropriate
    • Finger links are also occasionally recalculated, but we don’t try to ensure perfect accuracy of fingers at all time. As long as successor links are accurate, lookups will succeed, and as long as finger links are “reasonably” accurate, lookups will be “reasonably” efficient
the problem redux
The problem, redux:
  • The Chord protocol gives us a nice way of implementing distributed hash tables
  • However, Chord gives us no easy way of merging separate such DHTs (as we would like to do in the case of, for example, a temporary network partition)
  • Therefore, we seek a way to do such merging both efficiently and with minimal modifications to the basic Chord protocol
my proposed solution
My proposed solution
  • Ghosts:
    • Every node can now contain multiple instances of (Successor, Predecessor, Fingerlist), instead of just one. Each instance will be associated with unique tag bits, and one instance will be designated as the “live” one, the others being considered “ghosts”. The network in which a node’s live instance lives is its “primary” network.
    • A node still contains only one set of (Key, Data) pairs. These will consist only of those pairs for which its live instance is responsible (in its primary network).
    • When an external source tells an instance of node N in network A about the existence of network B, node N checks to see if it has an instance in network B. If it does not, N may choose (more details on this later) to make B its primary network.
a thing of genius or at least of good enough
A thing of genius, or at least of good-enough
  • Jumping ship:
    • To switch primary networks from A to B, node N creates a new instance with new tag bits, and designates it as its live instance. This instance then joins network B.
    • Once in network B, node N checks to see which of its (Key, Data) pairs it is still responsible for. These it keeps; the rest it “injects” into network B, passing them along to the appropriate nodes to take care of
why it works
Why it works
  • Lookups:
    • Links will now consist of (Identifier, IP addr, Tag), instead of just (Identifier, IP addr)
    • Messages sent across links always include the tag bits of the link
    • When a node receives a request to lookup data, it checks to see if it has the wanted (Key, Data) pair. If it does, it returns the Data, of course. If it doesn’t, it forwards the request, as before
      • Only now, in order to decide to whom to forward the request, it uses the tag bits sent to it with this message. The request is forwarded through the fingerlist of the corresponding instance. Thus, a message which arrives at N from network X will be forwarded by N back into network X, even while N maintains pseudo-membership in multiple networks.
i can practically smell that haskell of new jersey
I can practically smell that Haskell of New Jersey…
  • Spreading the revolution:
    • When node N jumps ship from network A to network B, it should tell some of its comrades in A to do the same
    • When N’s ghost instance in A receives a request from a node to newly join A, it should reply saying “No, join B (my primary network) instead”
    • Eventually, A will become a “ghost network”, with no live nodes
    • Once a node thinks it has an instance living in a ghost network, it would be appropriate to delete that instance
    • If a node receives a message with tag bits which do not correspond to any of its current instances, it must assume the message was intended for an old, erroneously deleted instance. In this case, it should contact the sender, explain the situation, and politely ask the sender to join the receiver’s new primary network and try again.
      • “politely”? I’ve gone over the anthropomorphizing edge. I better hurry up and finish this presentation…
issues to flesh out
Issues to flesh out:
  • When does a node decide to jump ship?
    • Idea: Give nodes some way of estimating the size of their network. Have nodes jump ship only if this would result in moving from a smaller primary network to a larger one.
      • Caution: Have to make sure to appropriately handle edge cases of merging two approximately equally-sized networks
  • What is the exact protocol for telling other nodes to jump ship?
    • Idea: After jumping ship, contact every node on the old fingerlist with a command to follow suit. Just as messages bouncing around the fingerlist reach their destination in logarithmic time with high probability, merging can be expected to take about logarithmic time with this method.
      • Caution: Any individual node is going to receive a lot of redundant commands to jump ship with this method. We have to ensure that we deal with these appropriately, instead of creating new instances for each (causing the “jump ship” command to loop around the old network forever)
  • When does a node decide it is on a ghost network/it is appropriate to delete an old instance?
    • This depends on the answer to the above question. With the above solution, a node jumping ship from a K-sized network could wait log(K) rounds before deciding to delete its old instance
  • How many tag bits are necessary?
    • 1 could very well be good enough, handling a single jump at a time. 2 bits could maybe handle several different concurrent jumps (e.g., network A begins to merge into network B, but before this finishes network B decides to merge into network C). It’s not clear, though, that this would actually work.
why it works cont aka does it work
Why it works, cont. (aka, Does it work?):
  • Currently searching for proofs of “correctness”, for some value of “correctness”
    • Proofs that lookups continue to succeed at all points during merging
    • Proofs that ghost instances are always eventually deleted appropriately
    • Proofs that the snake never tries to eat its tail (i.e., network A doesn’t try to merge into network B while B simultaneously tries to merge into A)
      • Or perhaps just a proof that temporary snake autocannibalism is tolerable, with lookups continuing to succeed and a stable network eventually reached
    • Proofs that multiple simultaneous network merges work smoothly
      • Though perhaps this won’t be much of an issue in practice
conclusion
Conclusion
  • *Bob, sitting alone in office, grows curious. Finally, he is overcome. He reaches for, and presses, the red ConCert Project termination button*
  • *Nothing happens*
  • Bob: I suppose it’s a good thing the system requires simultaneous synchronized presses from Karl and me, for authentication.
  • *I run panting into the room*
  • Me: I did it! I did it! I’ve fixed the protocol! Start the true referential transparency! Cue the type classes! Begin the—
  • Bob: You have concrete results proving the correctness of your fix, right?
  • Me: Er, well, not quite yet, no…
  • Bob: Well, I would like to see some of those. Still, did you find anything interesting about Chord in your research?
  • Me: Why, yes, actually. It turns out the name is based on the geometrical concept of a chord; you know, a line connecting any two points on a circle. That connects with its system of redirecting lookup requests using “fingerlists”. So I guess it wasn’t really a musical name after all.
  • Bob: No one must ever know!
  • FIN
