  1. Eastern US Transport Climatology During Average, High and Low Ozone DaysBret A. Schichtel and Rudolf B. Husar Center for Air Pollution Impact and Trend Analysis (CAPITA) Washington University St. Louis, MissouriPresented at A&WMA's 91st Annual MeetingJune 14 -18 1998

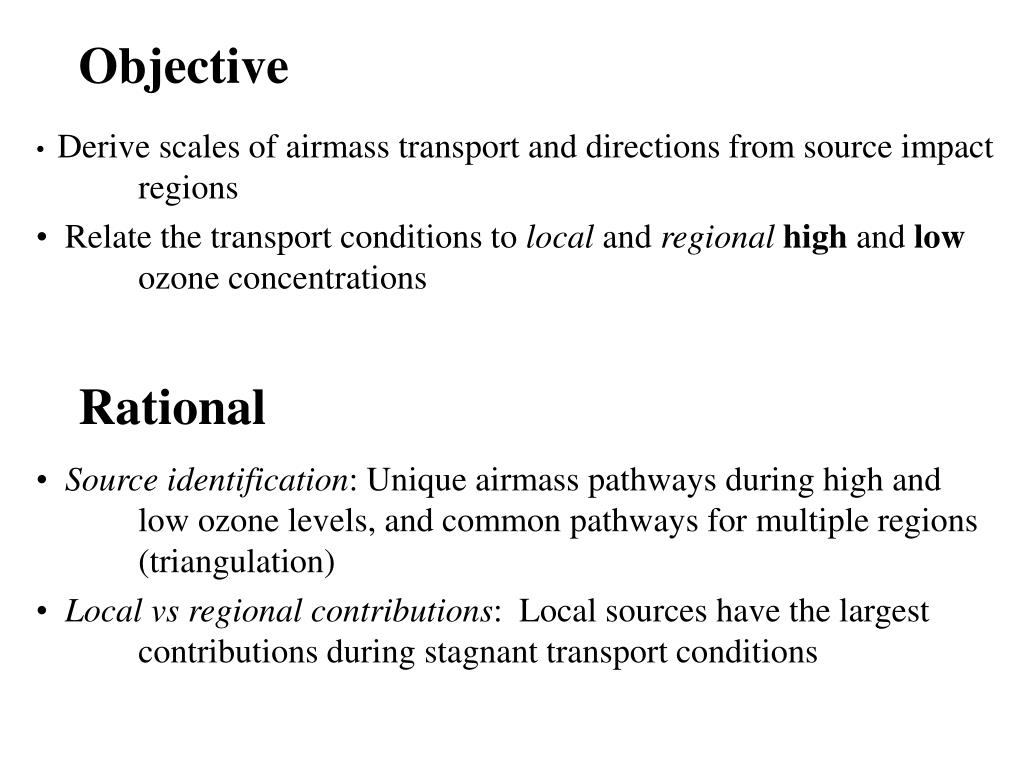

  2. Objective Rational Derive scales of airmass transport and directions from source impact regions Relate the transport conditions to local and regionalhigh and low ozone concentrations • Source identification: Unique airmass pathways during high and low ozone levels, and common pathways for multiple regions (triangulation) • Local vs regional contributions: Local sources have the largest contributions during stagnant transport conditions

  3. Meteorological Data National Meteorological Centers Nested Grid Model (NGM) Time range:1989 - 6/97 Horizontal resolution: ~ 160 kmVertical resolution: 10 layers up to 7 km3-D variables:u, v, w, temp., humiditySurface variables include: Precip, Mixing Hgt,….

  4. St. Louis 5-day Plumes Daily Plume - 12 plumes from 2 AM to midnight on July 5, 1995 Single Plume - Noon July 5, 1995

  5. Regional Impact Analysis Source Region of Influence Encompasses 63% of mass Transport Wind Vector vector from the source to the center of mass

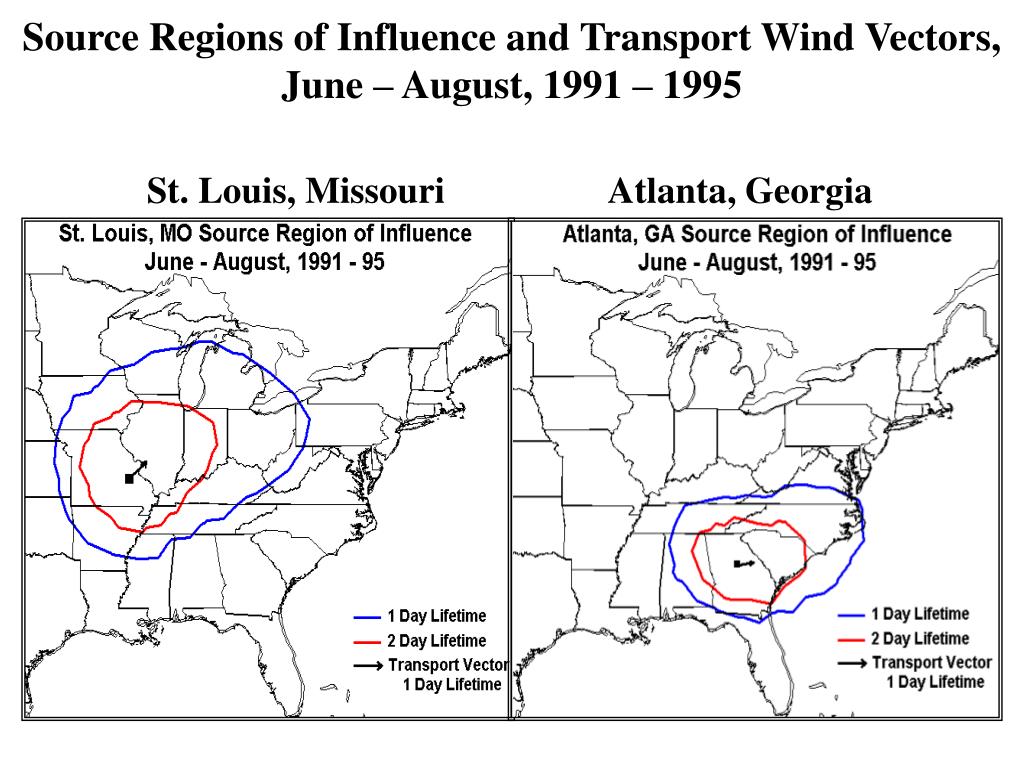

  6. Source Regions of Influence and Transport Wind Vectors, June – August, 1991 – 1995 St. Louis, Missouri Atlanta, Georgia

  7. OzoneData OTAG Domain • Local Ozone - Average concentration within each NGM grid cell • Regional Ozone - Average concentration with in OTAG domain

  8. Transport Conditions During High (90%-ile) and Low (10%-ile) Local Ozone Days High local ozone in the Central East and Southeast occur during slow transport winds. In the north and west, high ozone is associated with strong winds. Low local ozone occurs on days with transport from outside the region. The regions of influence (yellow shaded areas) are also larger.

  9. Transport Conditions During High (90%-ile) and Low (10%-ile) Regional Ozone Days High regional ozone is associated with slow meandering or recirculating transport over KY, TN and WV, with strong clockwise transport around this region. Low region ozone is associated with northerly transport in the Northeast, south - southwesterly transport in the South. and clockwise recirculation in the Northwest.

  10. Conclusions • High local ozone in the Central East (IL, IN, OH, and KY) and Southeast are associated with stagnant regional transport conditions. • High local ozone levels in the northern and western parts of the Eastern US are more typically associated with higher speed and persistent regional transport conditions from inside the Eastern US. • Regional transport in any direction from the Central East is associated with high local ozone levels in the neighboring areas. • Low ozone is associated with swift regional transport from outside the US. • High region ozone is associated with slow meandering or recirculating transport over KY, TN and WV, with strong clockwise transport around this region.

  11. Equal Transport Vectors Low speed transport predominately to the east High speed transport occurring in all directions

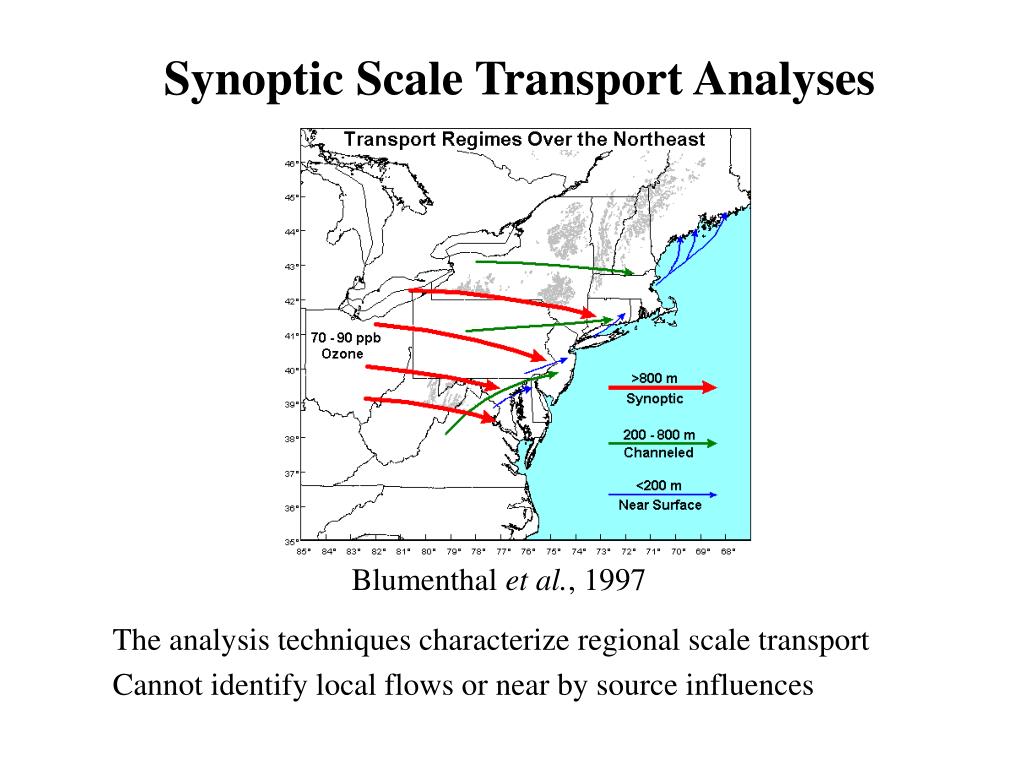

  12. Synoptic Scale Transport Analyses • Blumenthal et al., 1997 • The analysis techniques characterize regional scale transport • Cannot identify local flows or near by source influences
