Presentation Transcript

  1. MS Dynamics CRM 2011 Integration with SharePoint Travis Chen Senior Developer 10 Nov 2011

  2. SharePoint and CRM are complementary

  3. SharePoint and CRM integration features • Document Integration How about bring CRM data to SharePoint?

  4. Why not build SharePoint Web Part for CRM • Expensive • Reusability and Maintenance • Limited Features • CRM 2011 is built on .Net 4 and SharePoint 2010 is .Net 3.5

  5. BCS Architecture

  6. Benefits of integrating CRM to SharePoint via BCS • Familiar User Interface e.g. Data/List View, BDC Web Parts • Read or Write to External System • No-Code Connectivity to External System (Built-in Connectors) • Offline Access to External Data • Discovery Through Search

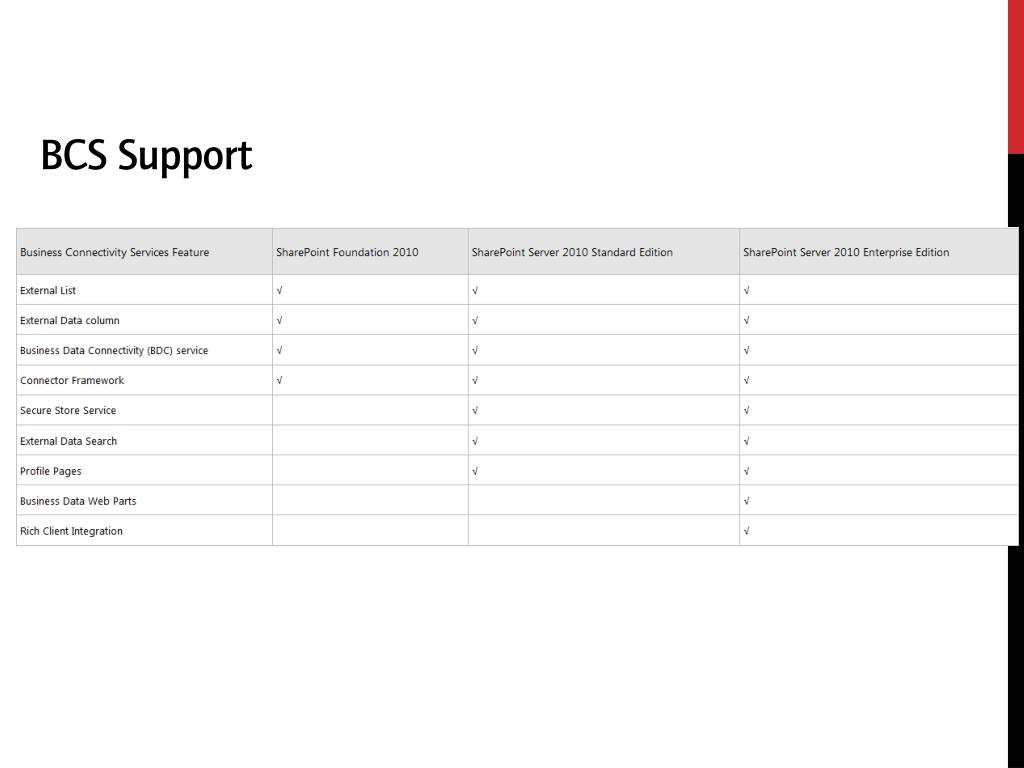

  7. BCS Support

  8. BCS Connectors • SQL connector • WCF connector • .net assembly connector • Custom connector

  9. SQL BCS Connector • Connect to CRM 2011 database, Use SQL View to retrieve data • Pros • 100% out of box • No code required • Best Performance • Cons • Read only • Does not support CRM Online

  10. WCF BCS Connector SharePoint 2010 CRM Proxy Service CRM 2011 WCF BCS Connector WCF Connector requires WCF proxy service to have following methods: • Read, Read Multiple, Add, Update, Delete • Pros • Read/Write • Support CRM Online • Cons • Custom development required for CRM Proxy Service

  11. Custom BCS Connector -1 • WCF Connector is good but not flexible • New WCF Service/Web Methods have to be developed for each CRM entityto be published to SharePoint

  12. Custom BCS Connector -2 • Pros • Read/Write • No Code required for extending integration • Dynamic Filter • Cons • Development required for custom BCS Connector and CRM Proxy Service SharePoint 2010 CRM Proxy Service CRM 2011 Custom BCS Connector

  13. How about office 365 and CRM online 2011 • SharePoint On Premise to CRM On Premise – Full support for all connectors • SharePoint On Premise to CRM On Line – Full Support except SQL Connector • SharePoint On Line to CRM On Premise – SQL and WCF Connector • SharePoint On Line to CRM On Line – WCF Connector

  14. Reference Girish Raja’s Blog – Custom BCS Connector http://blogs.msdn.com/b/girishr/archive/2011/06/16/teched-na-2011-session-recording-crm-and-sharepoint.aspx Build Custom BCS Connector http://msdn.microsoft.com/en-us/library/ff953161.aspx BCS Overview http://technet.microsoft.com/en-us/sharepoint/ee518675

  15. Q & A

  16. Business Connectivity Service Architecture
