Hole Plugger Fatality - USA Summary of Incident

Hole Plugger Fatality - USA Summary of Incident. IAGC Forum Rio – 2010 Apr 15. Hole Plugger Fatality - USA. Hole Plugger (Victim, “HP”) was struck on top of his head when the Fast Plug released prematurely drill stem. - Single fatality 5 March 2010 – 13:19 Drilling Subcontractor

snowy
Download Presentation

Hole Plugger Fatality - USA Summary of Incident

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Hole Plugger Fatality - USASummary of Incident IAGC Forum Rio – 2010 Apr 15 W LTI 1202 208 - Final report

  2. Hole Plugger Fatality - USA Hole Plugger (Victim, “HP”) was struck on top of his head when the Fast Plug released prematurely drill stem. - Single fatality • 5 March 2010 – 13:19 • Drilling Subcontractor • Hole Plugger • Rain/Wet, Snow/Ice • Barren Plain, Snow/ice • Truck Mount Conventional Drill LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  3. Site Photo 1 LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

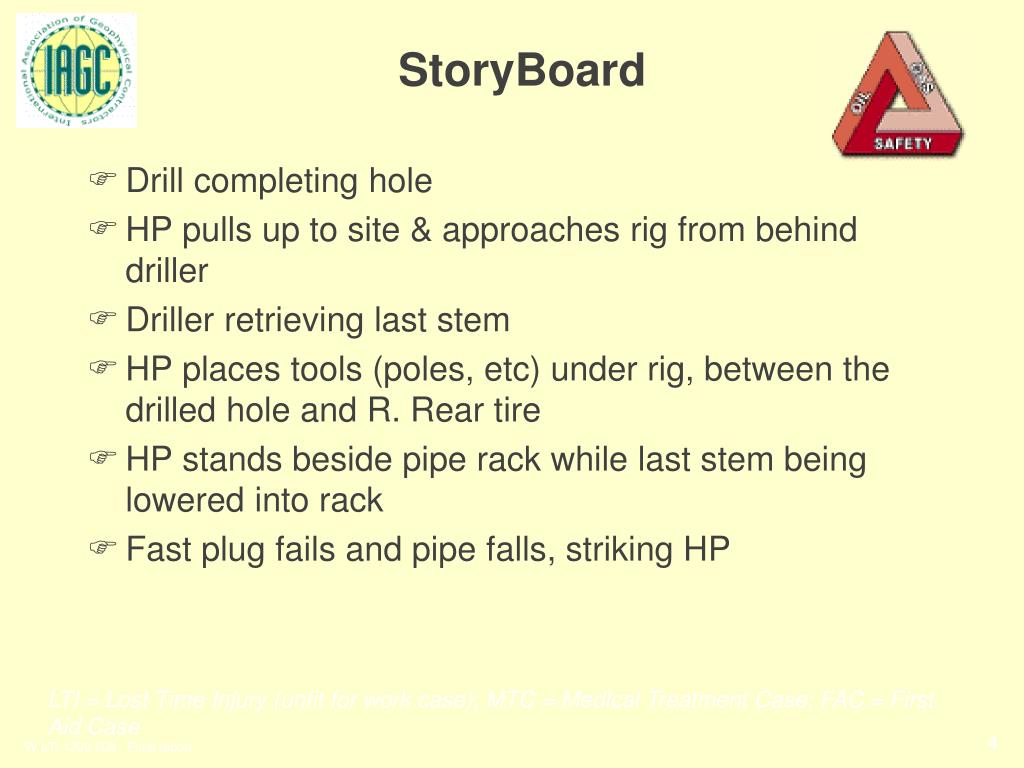

  4. StoryBoard • Drill completing hole • HP pulls up to site & approaches rig from behind driller • Driller retrieving last stem • HP places tools (poles, etc) under rig, between the drilled hole and R. Rear tire • HP stands beside pipe rack while last stem being lowered into rack • Fast plug fails and pipe falls, striking HP LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

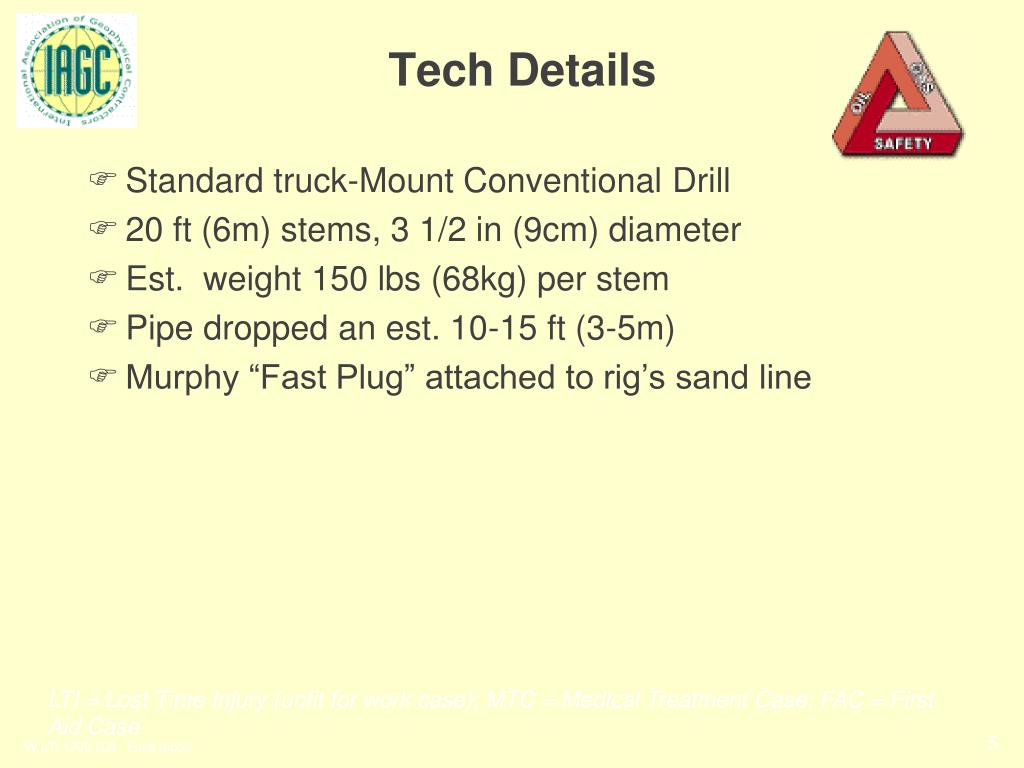

  5. Tech Details • Standard truck-Mount Conventional Drill • 20 ft (6m) stems, 3 1/2 in (9cm) diameter • Est. weight 150 lbs (68kg) per stem • Pipe dropped an est. 10-15 ft (3-5m) • Murphy “Fast Plug” attached to rig’s sand line LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

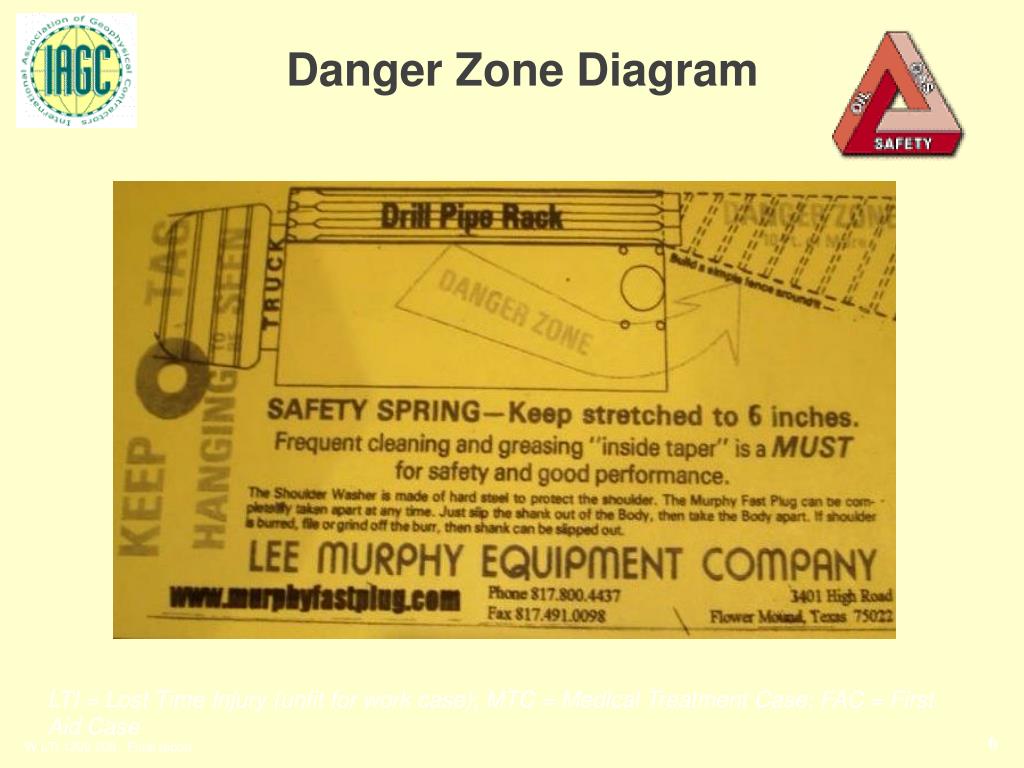

  6. Danger Zone Diagram LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  7. Photo 2 – Murphy Fast Plug LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  8. Site Photo 3 LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  9. Site Photo 4 LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  10. Analysis • What Changed? • Boggy Conditions • Decision to stop work early • Urgency to complete hole • Triggers • T-Fast Plug malfunction • P-HP decision to stand in danger zone LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  11. Analysis • Organization Factors • Training – Lack of hazard understanding • Lifting, Hoisting and Rigging, suspended equipment • Crew general hazard orientations & HSE meetings were confirmed, including to the HP • Unclear communication of rules • Maintenance Procedures • Culture– Failure to promote positive culture, mixed signals • People • Driller did not control worksite • Helper without hardhat (Escalation Factor) • Rules violations LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  12. Analysis • Similar Events • Fast plugs fail from time to time • Manufacturer recognizes & warns of this • HP had the habit of placing tools under rig prior to completion • Environment • Atmosphere of urgency to complete hole • Shallow holes, big rig – Cultureof SC Mgt staff to get work done - shortcuts LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  13. Analysis • Technology Factors • Maintenance of Murphy Fast Plug • Equipment Selection • Conventional drill rig for shallow holes? • Selection of the fast plug for retrieving pipe • A note about supervision • 2 dedicated HSE present, and in field • SC drilling supervisor in field during day • Numerous rigs on project with several SC’s • Competence of HSE & Supervisors with regards to trade skills such as drilling? LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  14. General Findings • Cultureof Urgency & Mixed signals by SC Leadership • Lack of hazard awareness • Habit of cutting corners for efficiency • Maintenance & Inspection could not be shown • Lack of control by driller, despite written rule to do so. • Get ‘er done mentality • Failure of Care • Fundamentally enabled the chain of events to occur LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  15. General Findings • Field supervision occurring, but the guys couldn’t be everywhere • Other reported instances of cutting corners for efficiency were not strongly dealt with • Training, Maintenance could not be proven • Crew project hazard orientations did occur • Daily HSE meetings were occurring LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  16. General Recommendations • Pease make a commitment to improve Culture, particularly with the Sub Contractors. It takes time & dedication • Of course strengthen of SC qualification, and be clear and agreed as to what the expectations are in advance of operations • Eliminate use of the Fast Plug • Better consideration of equipment selection LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  17. General Recommendations • Truly monitor performance on equipment inspections and maintenance, particular special hazard areas • Insist that work sites HSE are fully controlled by person in charge – and responsible • Green Hands monitoring, Including visitors • Better temporary hazard barriers (such as cones, flagging, placards) for hazard areas LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  18. General Recommendations • HSE Personnel supervision with knowledge and training about drilling operations – ie competency to supervise • Stronger verification & Less leniency toward Subcontractor training • Sit down and STRESS with SC management the expectations regarding their leadership role – and make it clear that lack of Positive culture leadership will not be tolerated. Make them sign off on it. LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report

  19. A Plea • We’re taking all the recommendations to heart too. • IN HSE, our success with our programs is solely determined by what DOES NOT happen. • This means Lives Preserved • We talk (and go to conventions) all the time. • Truly create (and maintain) a culture of incident prevention. It will serve us well. LTI = Lost Time Injury (unfit for work case); MTC = Medical Treatment Case; FAC = First Aid Case W LTI 1202 208 - Final report
